Every Passive PA Speaker

170 PA speakers in our rankings are passive, so they need an external amplifier and, for most professional models, the manufacturer’s processor preset to reach their rated response. They suit fixed installs and touring systems built around rack amplifiers, where one amplifier can drive several cabinets and the electronics stay out of the speaker.

A passive speaker’s rating assumes it is driven the way its maker intends. Budget for the amplifier and processing when comparing prices with powered speakers, which have both built in. For a plug-in-and-play setup, see every powered PA speaker.

This is every match, grouped by size and sorted by measured performance.

The Speakers

Prices on this page were last checked October 9, 2026 at 8:01 AM UTC. Product prices and availability are accurate as of that date/time and are subject to change; the price and availability shown on Amazon at the time of purchase will apply to the purchase of this product.

As an eBay Partner, we may be compensated if you make a purchase.

Quick Navigation

• Compact 5 to 6.5-Inch PA Speakers
• 8-Inch PA Speakers
• 10-Inch PA Speakers
• 12-Inch PA Speakers
• 15-Inch PA Speakers
• Column and Line Array PA Speakers
• Surface-Mount and Background Music Speakers

Compact 5 to 6.5-Inch PA Speakers

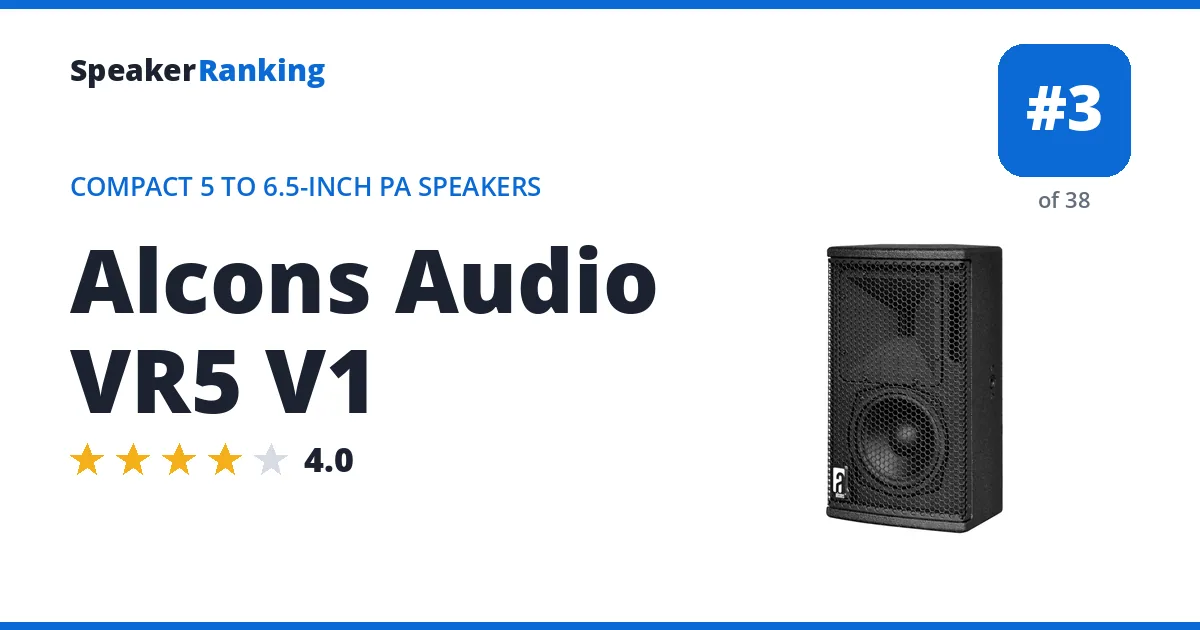

Ranked #3 of 38 in Compact 5 to 6.5-Inch PA Speakers - Alcons Audio VR5 V1 Passive eBay

Same family: the Alcons Audio VR8 (larger model, estimated 3.9/5) and the Alcons Audio VR12 (larger model, estimated 4/5).

Pros: High-quality vendor Spinorama data gives preference scores of 4.04 standalone and 7.06 with an ideal subwoofer, and predicted in-room smoothness is 0.73. The pro-ribbon high-frequency driver stays linear at any level, and the compact cabinet suits near-field and stage monitor duty. Measured bass extension of 80Hz (-3dB).

Cons: Bass reaches only about 80Hz (-3dB), and listening-window narrow-band deviation is 0.408, so a subwoofer is needed for music. It is passive and priced by dealers well above ordinary compact monitors.

Full Alcons Audio VR5 V1 review and specifications →

AES Input	No
Amplifier Power	Passive speaker; requires external amplification (500W peak input to the ribbon section)
Aux Input	No
Bass Extension (-3dB)	80Hz (measured, vendor Spinorama data)
Bluetooth	No
Coaxial Input	No
Configuration	Passive 2-way compact monitor
DSP	No (passive)
Drivers	5” mid-bass with Active Coil, RBN202 pro-ribbon
Guitar Input	No
HDMI Input	No
Maximum SPL	127dB peak (manufacturer specified)
Microphone Input	No
Optical Input	No
Passive	Yes
RCA Input	No
Rigging	5 x M10 mounting points
Spinorama Preference Score	4.04
Spinorama Preference Score with Perfect Sub	7.06
TRS Input	No
USB Input	No
Weight	13.2 lbs (6 kg)
XLR Input	No

• Links
  • Alcons Audio VR5 Product Page
• Reviews, Comparisons and Sound Samples
  • Spinorama Measurements
• Head-to-Head Comparisons
  • Alcons Audio VR5 V1 vs DAS Audio ARTEC 506A
  • Alcons Audio VR5 V1 vs L-Acoustics X6i
  • Alcons Audio VR5 V1 vs DAS Audio ARTEC 526A
  • Alcons Audio VR5 V1 vs Meyer Sound Ultra X22
  • Alcons Audio VR5 V1 vs Coda Audio HOPS5

Ranked #4 of 38 in Compact 5 to 6.5-Inch PA Speakers - L-Acoustics X6i Passive eBay

Same family: the L-Acoustics X4i (smaller model, ranked lower, rated 3.6/5), the L-Acoustics X8 (larger model, rated 4/5), the L-Acoustics X12 (larger model, rated 4.6/5) and the L-Acoustics X15 HiQ (larger model, rated 4.4/5).

Pros: Vendor Spinorama data gives preference scores of 4.20 standalone and 7.34 with an ideal subwoofer. The 90° axisymmetric coaxial pattern is even, with listening-window narrow-band deviation of 0.23 and predicted in-room smoothness of 0.572. It is an IP55 rated 6.3kg cabinet that reaches 123dB, which suits weather-exposed installs and near-field monitoring. Measured bass extension of 90Hz (-3dB).

Cons: A passive cabinet that needs an L-Acoustics amplified controller such as the LA2Xi, LA4X or LA7.16i. Bass reaches only about 90Hz (-3dB), so a subwoofer is required for anything beyond speech and light music. Pricing is dealer quoted and high for a 6.5-inch box.

Full L-Acoustics X6i review and specifications →

AES Input	No
Amplifier Power	Passive speaker; requires an L-Acoustics amplified controller (LA2Xi, LA4X or LA7.16i)
Aux Input	No
Bass Extension (-3dB)	90Hz (measured, vendor Spinorama data)
Bluetooth	No
Cabinet Material	Baltic beech and birch plywood
Coaxial Input	No
Configuration	Passive 2-way coaxial PA speaker
Coverage	90° axisymmetric
DSP	No (passive; processing and protection come from the amplified controller)
Dimensions	14.3”H x 7.4”W x 6.7”D (362 x 187 x 170 mm)
Drivers	6.5” low-frequency driver, 1.5” compression driver (coaxial)
Frequency Response	69Hz - 20kHz (manufacturer specified)
Guitar Input	No
HDMI Input	No
IP Rating	IP55
Inputs	2-point terminal block input and link
Maximum SPL	123dB (manufacturer specified)
Microphone Input	No
Optical Input	No
Passive	Yes
RCA Input	No
Spinorama Preference Score	4.20
Spinorama Preference Score with Perfect Sub	7.34
TRS Input	No
USB Input	No
Weight	13.9 lbs (6.3 kg)
XLR Input	No

• Links
  • L-Acoustics X6i Product Page
• Reviews, Comparisons and Sound Samples
  • Spinorama Measurements
• Head-to-Head Comparisons
  • L-Acoustics X6i vs Alcons Audio VR5 V1
  • L-Acoustics X6i vs DAS Audio ARTEC 506A
  • L-Acoustics X6i vs EAW MKC60
  • L-Acoustics X6i vs DAS Audio ARTEC 526A
  • L-Acoustics X6i vs Coda Audio HOPS5
  • L-Acoustics X6i vs Alcons Audio SR9

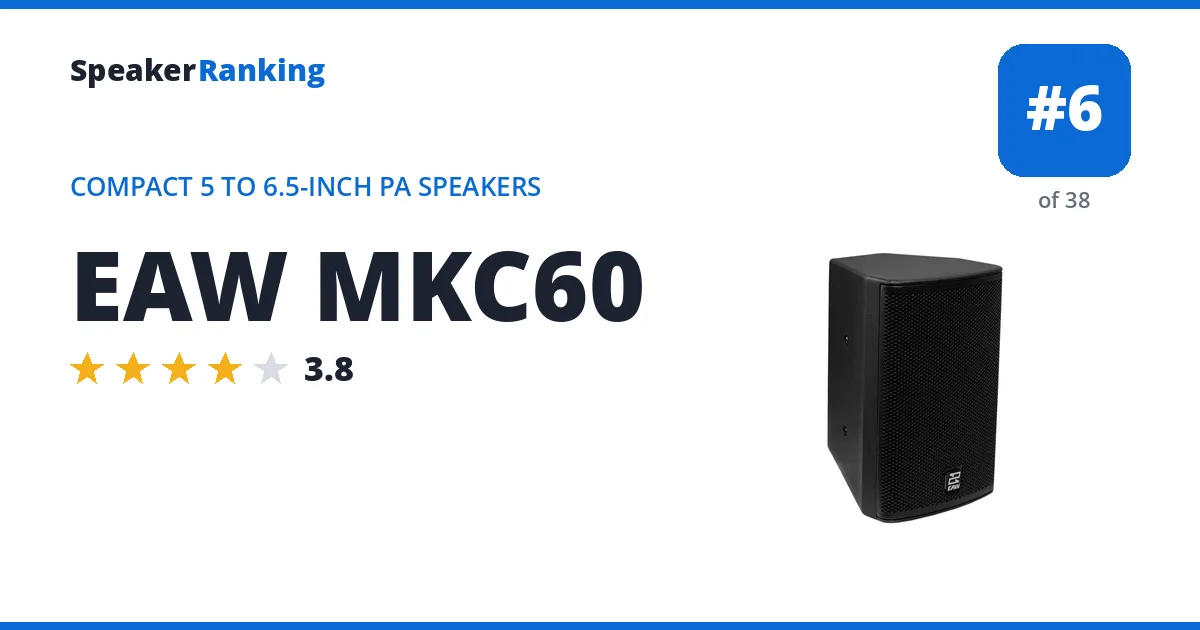

Ranked #6 of 38 in Compact 5 to 6.5-Inch PA Speakers - EAW MKC60: $627.00 each Passive Full Compass eBay

Same family: the EAW MKC50 (smaller model, ranked lower, rated 3.6/5), the EAW MKC80 (larger model, rated 3.9/5) and the EAW MKC120 (larger model, rated 4.3/5).

Pros: The 4.9kg coaxial cabinet has very wide 110° x 110° coverage and reaches 125dB. Vendor Spinorama data gives preference scores of 3.64 standalone and 6.90 with an ideal subwoofer, and listening-window narrow-band deviation is a low 0.29. Measured bass extension of 90Hz (-3dB).

Cons: Bass reaches only about 90Hz (-3dB), so it needs a subwoofer for music, and it is passive, so an external amplifier is required. Predicted in-room smoothness of 0.569 is average, and the price is high for a small cabinet.

Full EAW MKC60 review and specifications →

AES Input	No
Amplifier Power	Passive speaker; requires external amplification within the 250W handling rating
Aux Input	No
Bass Extension (-3dB)	90Hz (measured, vendor Spinorama data)
Bluetooth	No
Coaxial Input	No
Configuration	Passive 2-way coaxial PA speaker
Coverage	110° x 110°
DSP	No (passive)
Dimensions	12.8”H x 8.2”W x 8.1”D (324 x 208 x 206 mm)
Drivers	6.5” low-frequency driver, 1” dome tweeter (coaxial)
Frequency Response	70Hz - 20kHz (manufacturer specified)
Guitar Input	No
HDMI Input	No
Maximum SPL	125dB (manufacturer specified)
Microphone Input	No
Optical Input	No
Passive	Yes
Power Handling	250W (manufacturer specified)
RCA Input	No
Rigging	3 pairs of M6 points for pole/stand adapters; M5 bracket pattern
Sensitivity	89dB
Spinorama Preference Score	3.64
Spinorama Preference Score with Perfect Sub	6.90
TRS Input	No
USB Input	No
Weight	10.8 lbs (4.9 kg)
XLR Input	No

• Links
  • EAW MKC60 Product Page
• Reviews, Comparisons and Sound Samples
  • Spinorama Measurements
• Head-to-Head Comparisons
  • EAW MKC60 vs Coda Audio HOPS5
  • EAW MKC60 vs L-Acoustics X6i
  • EAW MKC60 vs EAW MKC50
  • EAW MKC60 vs DAS Audio ARTEC 506A
  • EAW MKC60 vs Meyer Sound Ultra X20
  • EAW MKC60 vs Seeburg X1

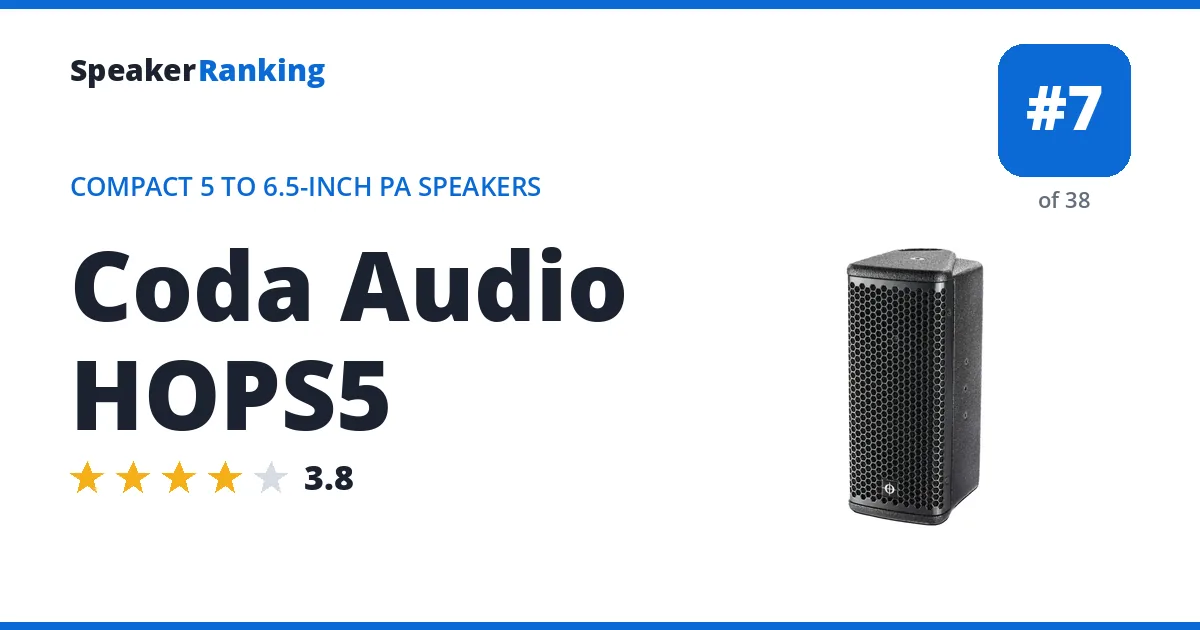

Ranked #7 of 38 in Compact 5 to 6.5-Inch PA Speakers - Coda Audio HOPS5 Passive eBay

Same family: the Coda Audio HOPS8 (larger model, rated 3.7/5) and the Coda Audio HOPS12i-Pro (larger model, estimated 3/5).

Pros: High-quality vendor Spinorama data gives preference scores of 3.60 standalone and 6.80 with an ideal subwoofer, and predicted in-room smoothness is a good 0.774. The IP54 rated 6.4kg cabinet has wide 100° x 100° coverage and reaches 124dB. Measured bass extension of 90Hz (-3dB).

Cons: Bass reaches only about 90Hz (-3dB), and listening-window narrow-band deviation is 0.478, so it sounds thin and slightly uneven without a subwoofer. It is passive and needs an external amplifier and processor.

Full Coda Audio HOPS5 review and specifications →

AES Input	No
Amplifier Power	Passive speaker; requires external amplification within the 300W AES handling rating
Aux Input	No
Bass Extension (-3dB)	90Hz (measured, vendor Spinorama data)
Bluetooth	No
Coaxial Input	No
Configuration	Passive 2-way coaxial PA speaker
Coverage	100° x 100°
DSP	No (passive)
Drivers	Double 5” coaxial system
Frequency Response	80Hz - 20kHz (-6dB, manufacturer specified)
Guitar Input	No
HDMI Input	No
IP Rating	IP54
Maximum SPL	124dB peak (manufacturer specified)
Microphone Input	No
Optical Input	No
Passive	Yes
Power Handling	300W AES (manufacturer specified)
RCA Input	No
Rigging	2 x M6, 2 x M8, 2 x M10 fixing points
Spinorama Preference Score	3.60
Spinorama Preference Score with Perfect Sub	6.80
TRS Input	No
USB Input	No
Weight	14.1 lbs (6.4 kg)
XLR Input	No

• Links
  • Coda Audio HOPS5 Product Page
• Reviews, Comparisons and Sound Samples
  • Spinorama Measurements
• Head-to-Head Comparisons
  • Coda Audio HOPS5 vs EAW MKC60
  • Coda Audio HOPS5 vs L-Acoustics X6i
  • Coda Audio HOPS5 vs Alcons Audio VR5 V1
  • Coda Audio HOPS5 vs Turbosound NuQ62
  • Coda Audio HOPS5 vs Kling Freitag CA 106 Pro
  • Coda Audio HOPS5 vs Alcons Audio SR9

Ranked #8 of 38 in Compact 5 to 6.5-Inch PA Speakers - Fulcrum Acoustic RX6 Passive eBay

Same family: the Fulcrum Acoustic RX4 (smaller model, ranked lower, rated 3.2/5), the Fulcrum Acoustic RX5 (smaller model, ranked lower, rated 3.3/5) and the Fulcrum Acoustic RX8 (larger model, rated 3.6/5).

Pros: Vendor measurements give preference scores of 2.14 standalone and 5.92 with an ideal subwoofer, with a very smooth on-axis response (0.96dB average deviation). The coaxial driver keeps the tone consistent across its 90° x 75° pattern, and the 16 ohm load lets several speakers share one amplifier channel. Measured bass extension of 118Hz (-3dB).

Cons: Bass reaches only about 118Hz at -3dB and 95Hz at -10dB, so it needs a subwoofer for anything beyond speech and background music. Maximum output is 118dB peak. It is passive and sold through pro dealers with no published price.

Full Fulcrum Acoustic RX6 review and specifications →

AES Input	No
Amplifier Power	Passive speaker; requires external amplification
Aux Input	No
Bass Extension (-10dB)	about 94.9Hz (measured, vendor Spinorama data)
Bass Extension (-3dB)	118Hz (measured, vendor Spinorama data)
Bluetooth	No
Coaxial Input	No
Configuration	Passive 2-way coaxial PA speaker
Coverage	90° x 75°
DSP	No (passive)
Dimensions	7.2”H x 10.7”W x 6.1”D (184 x 273 x 154 mm)
Drivers	6.5” woofer with 2” voice coil, coaxial 1” compression driver
Guitar Input	No
HDMI Input	No
Impedance	16 ohms
Maximum SPL	118dB peak / 112dB continuous (manufacturer specified)
Microphone Input	No
Optical Input	No
Passive	Yes
Power Handling	175W at 16 ohms
RCA Input	No
Sensitivity	90dB
Spinorama Preference Score	2.14
Spinorama Preference Score with Perfect Sub	5.92
TRS Input	No
USB Input	No
Weight	10.8 lbs (4.9 kg)
XLR Input	No

• Links
  • Fulcrum Acoustic RX Series
• Reviews, Comparisons and Sound Samples
  • Spinorama Measurements

Ranked #9 of 38 in Compact 5 to 6.5-Inch PA Speakers - EAW MKC50: $375.00 each Passive Full Compass eBay

Same family: the EAW MKC60 (larger model, ranked higher, rated 3.8/5), the EAW MKC80 (larger model, rated 3.9/5) and the EAW MKC120 (larger model, rated 4.3/5).

Pros: A 3.3kg coaxial cabinet with wide 110° x 110° coverage and a 121dB rating, small enough to hide in a wall or corner. Vendor Spinorama data gives preference scores of 3.37 standalone and 6.89 with an ideal subwoofer, with listening-window narrow-band deviation of 0.288. Measured bass extension of 103Hz (-3dB).

Cons: Bass reaches only about 103Hz (-3dB), so it needs a subwoofer for anything but speech, and predicted in-room smoothness of 0.469 is modest. It is passive, and the price is high for a 5-inch box.

Full EAW MKC50 review and specifications →

AES Input	No
Amplifier Power	Passive speaker; requires external amplification within the 150W handling rating
Aux Input	No
Bass Extension (-3dB)	103Hz (measured, vendor Spinorama data)
Bluetooth	No
Coaxial Input	No
Configuration	Passive 2-way coaxial PA speaker
Coverage	110° x 110°
DSP	No (passive)
Dimensions	9.3”H x 6.5”W x 5.6”D (235 x 165 x 141 mm)
Drivers	5.25” low-frequency driver, 1” dome tweeter (coaxial)
Frequency Response	80Hz - 20kHz (manufacturer specified)
Guitar Input	No
HDMI Input	No
Maximum SPL	121dB (manufacturer specified)
Microphone Input	No
Optical Input	No
Passive	Yes
Power Handling	150W (manufacturer specified)
RCA Input	No
Rigging	4 x M5 threaded pattern for wall or ceiling bracket
Sensitivity	87dB
Spinorama Preference Score	3.37
Spinorama Preference Score with Perfect Sub	6.89
TRS Input	No
USB Input	No
Weight	7.3 lbs (3.3 kg)
XLR Input	No

• Links
  • EAW MKC50 Product Page
• Reviews, Comparisons and Sound Samples
  • Spinorama Measurements
• Head-to-Head Comparisons
  • EAW MKC50 vs DB Audiotechnik 44S
  • EAW MKC50 vs Meyer Sound Ultra X20
  • EAW MKC50 vs EAW MKC60
  • EAW MKC50 vs Turbosound NuQ62
  • EAW MKC50 vs Meyer Sound Ultra X22
  • EAW MKC50 vs Seeburg X1
  • EAW MKC50 vs Meyer Sound Ultra X23

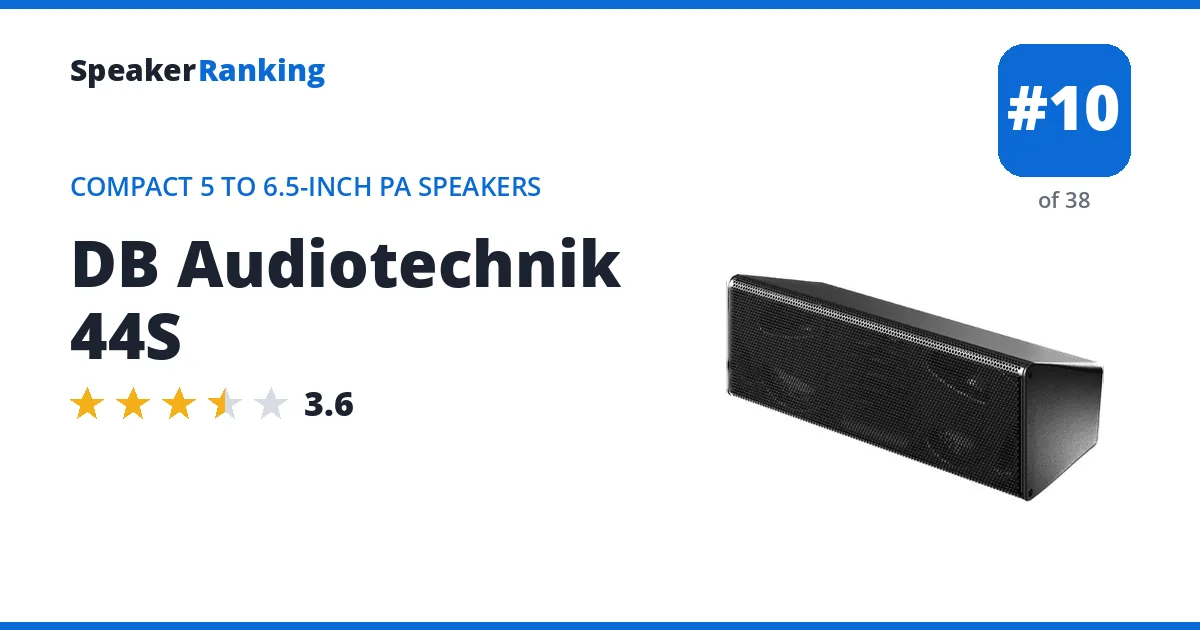

Ranked #10 of 38 in Compact 5 to 6.5-Inch PA Speakers - DB Audiotechnik 44S Passive eBay

Same family: the DB Audiotechnik 4S (smaller model, estimated 3.2/5), the DB Audiotechnik 42S (smaller model, estimated 3.5/5), the DB Audiotechnik 5S (larger model, estimated 3.3/5), the DB Audiotechnik 8S (larger model, rated 3.1/5), the DB Audiotechnik 10S (larger model, rated 3.7/5), the DB Audiotechnik 12S (larger model, rated 3.8/5) and the DB Audiotechnik 24S (larger model, rated 3.8/5).

Pros: A 3.6kg cabinet with dual 4.5-inch drivers and a rotatable horn that reaches 123dB, with a low on-axis deviation (narrow-band 0.37). Vendor Spinorama data gives preference scores of 3.14 standalone and 6.61 with an ideal subwoofer. Measured bass extension of 122Hz (-3dB).

Cons: Bass reaches only about 122Hz (-3dB), so it works as a speech and fill box that needs a subwoofer for music. It is passive and works properly only with d&b amplifiers, and pricing is dealer quoted.

Full DB Audiotechnik 44S review and specifications →

AES Input	No
Amplifier Power	Passive speaker; requires external amplification within the 150W RMS / 500W peak handling rating
Aux Input	No
Bass Extension (-3dB)	122Hz (measured, vendor Spinorama data)
Bluetooth	No
Coaxial Input	No
Configuration	Passive 2-way compact PA speaker
Coverage	Rotatable CD horn (measured 90° x 30°)
DSP	No (passive; used with d&b amplifiers for presets)
Drivers	Dual 4.5” neodymium woofers, dual 1.25” dome tweeters on a rotatable CD horn
Frequency Response	90Hz - 17kHz (-5dB, manufacturer specified)
Guitar Input	No
HDMI Input	No
Maximum SPL	123dB (manufacturer specified)
Microphone Input	No
Optical Input	No
Passive	Yes
Power Handling	150W RMS / 500W peak (manufacturer specified)
RCA Input	No
Rigging	2 x M8 inserts on rear panel
Spinorama Preference Score	3.14
Spinorama Preference Score with Perfect Sub	6.61
TRS Input	No
USB Input	No
Weight	7.9 lbs (3.6 kg) (13.7 lbs (6.2 kg) with backbox)
XLR Input	No

• Links
  • d&b audiotechnik 44S Product Page
• Reviews, Comparisons and Sound Samples
  • Spinorama Measurements
• Head-to-Head Comparisons
  • DB Audiotechnik 44S vs EAW MKC50
  • DB Audiotechnik 44S vs Meyer Sound Ultra X20
  • DB Audiotechnik 44S vs Turbosound NuQ62
  • DB Audiotechnik 44S vs Meyer Sound Ultra X22
  • DB Audiotechnik 44S vs Kling Freitag CA 106 Pro
  • DB Audiotechnik 44S vs Seeburg X1
  • DB Audiotechnik 44S vs Meyer Sound Ultra X23

Ranked #12 of 38 in Compact 5 to 6.5-Inch PA Speakers - Turbosound NuQ62 Passive Discontinued eBay

Pros: The lowest price in this ranking for a two-way 6.5-inch box from a major PA brand, with a 6.3kg cabinet and 100° x 60° coverage. Bass reaches about 73Hz (-3dB) in vendor Spinorama data, with preference scores of 3.39 standalone and 6.14 with an ideal subwoofer. Measured bass extension of 73Hz (-3dB).

Cons: The Spinorama data is low quality, and predicted in-room smoothness of 0.356 is the weakest of the group. Maximum output of 116dB is modest, and it is passive, so an amplifier is required. Discontinued.

Full Turbosound NuQ62 review and specifications →

AES Input	No
Amplifier Power	Passive speaker; requires external amplification
Aux Input	No
Bass Extension (-3dB)	73Hz (measured, vendor Spinorama data)
Bluetooth	No
Coaxial Input	No
Configuration	Passive 2-way bass-reflex PA speaker
Coverage	100° x 60°
DSP	No (passive)
Dimensions	13.8”H x 7.5”W x 8.3”D (350 x 190 x 210 mm)
Drivers	6.5” low-frequency driver, 1” neodymium compression driver
Guitar Input	No
HDMI Input	No
Maximum SPL	116dB peak (manufacturer specified)
Microphone Input	No
Optical Input	No
Passive	Yes
RCA Input	No
Rigging	6 x M8 inserts
Sensitivity	88dB
Spinorama Preference Score	3.39
Spinorama Preference Score with Perfect Sub	6.14
TRS Input	No
USB Input	No
Weight	13.9 lbs (6.3 kg)
XLR Input	No

• Links
  • Turbosound NuQ62 Product Page
• Reviews, Comparisons and Sound Samples
  • Spinorama Measurements
• Head-to-Head Comparisons
  • Turbosound NuQ62 vs Meyer Sound Ultra X20
  • Turbosound NuQ62 vs DB Audiotechnik 44S
  • Turbosound NuQ62 vs EAW MKC50
  • Turbosound NuQ62 vs Coda Audio HOPS5
  • Turbosound NuQ62 vs Kling Freitag CA 106 Pro
  • Turbosound NuQ62 vs Meyer Sound Ultra X23
  • Turbosound NuQ62 vs Alcons Audio SR9

Ranked #13 of 38 in Compact 5 to 6.5-Inch PA Speakers - L-Acoustics X4i Passive eBay

Same family: the L-Acoustics X6i (larger model, ranked higher, rated 3.9/5), the L-Acoustics X8 (larger model, rated 4/5), the L-Acoustics X12 (larger model, rated 4.6/5) and the L-Acoustics X15 HiQ (larger model, rated 4.4/5).

Pros: Vendor measurements give a preference score of 5.88 with an ideal subwoofer, high for a speaker this small, thanks to a listening window held within a tight 0.8dB band. The 1kg, IP55 cabinet gives 110° conical coverage for discreet fills, delays and immersive systems. Measured bass extension of 190Hz (-3dB).

Cons: Bass reaches only about 190Hz at -3dB, so on its own it scores 1.51 and needs a subwoofer for any full range use. Maximum output is 116dB. It is passive, needs L-Acoustics amplifier presets, and is sold through dealers with no published price.

Full L-Acoustics X4i review and specifications →

AES Input	No
Amplifier Power	Passive speaker; requires external amplification
Aux Input	No
Bass Extension (-10dB)	about 122.4Hz (measured, vendor Spinorama data)
Bass Extension (-3dB)	190Hz (measured, vendor Spinorama data)
Bluetooth	No
Coaxial Input	No
Configuration	Passive 2-way coaxial PA speaker, IP55 weather rated
Coverage	110° conical
DSP	No (passive)
Dimensions	4.6”H x 4.6”W x 3.9”D (116 x 116 x 99 mm)
Drivers	4” woofer, coaxial 1.4” diaphragm compression driver
Frequency Response	120Hz - 20kHz (manufacturer specified)
Guitar Input	No
HDMI Input	No
Maximum SPL	116dB (manufacturer specified)
Microphone Input	No
Optical Input	No
Passive	Yes
RCA Input	No
Spinorama Preference Score	1.51
Spinorama Preference Score with Perfect Sub	5.88
TRS Input	No
USB Input	No
Weight	2.2 lbs (1 kg)
XLR Input	No

• Links
  • L-Acoustics X4i Product Page
• Reviews, Comparisons and Sound Samples
  • Spinorama Measurements

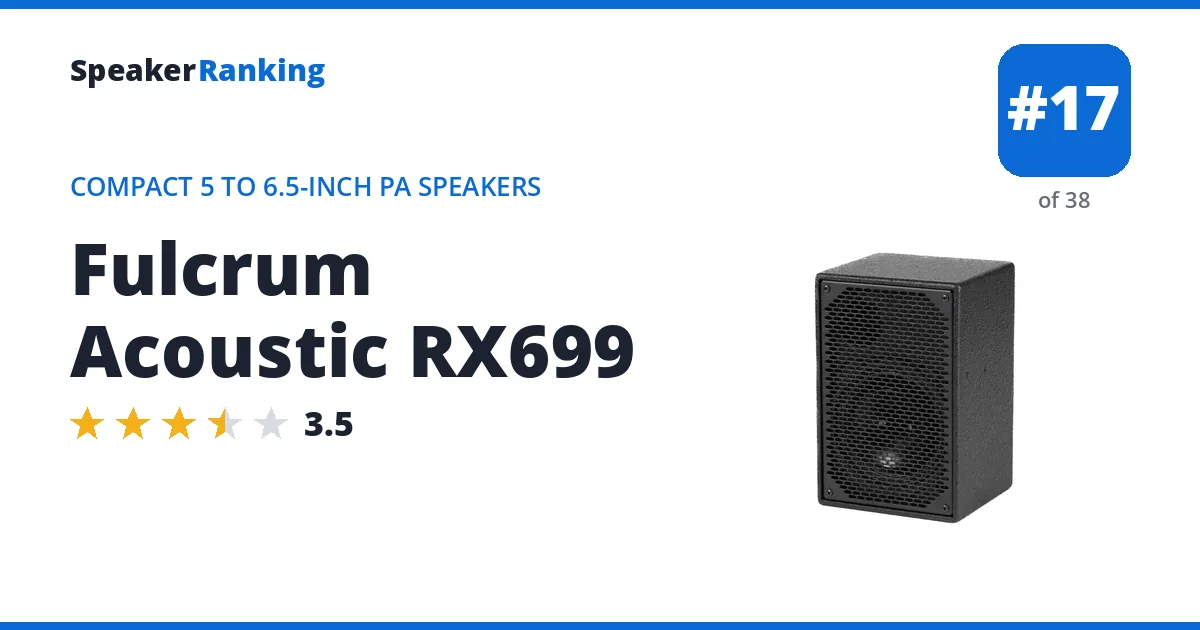

Ranked #17 of 38 in Compact 5 to 6.5-Inch PA Speakers - Fulcrum Acoustic RX699 Passive Discontinued eBay

Pros: A 5.4kg coaxial cabinet with a 90° x 90° pattern and a 16 ohm load that lets many speakers share one amplifier channel. Vendor Spinorama data gives preference scores of 2.98 standalone and 6.54 with an ideal subwoofer. Measured bass extension of 109Hz (-3dB).

Cons: Bass reaches only about 109Hz (-3dB) and maximum output is 118dB, so it suits speech and background music rather than loud programs. Listening-window narrow-band deviation is 0.406, and it is passive, so an amplifier is required. Discontinued.

Full Fulcrum Acoustic RX699 review and specifications →

AES Input	No
Amplifier Power	Passive speaker; requires external amplification within the 175W handling rating at 16 ohms
Aux Input	No
Bass Extension (-3dB)	109Hz (measured, vendor Spinorama data)
Bluetooth	No
Coaxial Input	No
Configuration	Passive 2-way coaxial PA speaker
Coverage	90° x 90°
DSP	No (passive)
Dimensions	10.8”H x 7.1”W x 6.5”D (274 x 180 x 165 mm)
Drivers	6.5” woofer with 2” voice coil, horn-loaded compression driver (coaxial)
Guitar Input	No
HDMI Input	No
Maximum SPL	118dB peak / 112dB continuous (manufacturer specified)
Microphone Input	No
Optical Input	No
Passive	Yes
Power Handling	175W at 16 ohms (manufacturer specified)
RCA Input	No
Rigging	2 x M6 yoke points; 2 x M6 nut plates for pan/tilt mounts
Sensitivity	89dB
Spinorama Preference Score	2.98
Spinorama Preference Score with Perfect Sub	6.54
TRS Input	No
USB Input	No
Weight	11.9 lbs (5.4 kg)
XLR Input	No

• Links
  • Fulcrum Acoustic RX699 Product Page
• Reviews, Comparisons and Sound Samples
  • Spinorama Measurements

Ranked #18 of 38 in Compact 5 to 6.5-Inch PA Speakers - Kling Freitag CA 106 Pro Passive eBay

Pros: High-quality manufacturer measurements give a 5.73 preference score with an ideal subwoofer, with a 2.5dB reference band and even 90° x 60° coverage from a rotatable constant-directivity horn. The 6.5-inch woofer and 1-inch compression driver sit in a 6.7kg multiplex cabinet, and the 16 ohm load lets several cabinets share one amplifier channel for distributed systems. Measured bass extension of 132Hz (-3dB).

Cons: Bass rolls off early, about 69Hz at -10dB, so it needs a subwoofer for music, and its 125dB peak output suits near-field and moderate-distance use rather than large rooms. A 4.71 directivity-index deviation means off-axis tone varies. It is passive and sold only through pro dealers with no published price.

Full Kling Freitag CA 106 Pro review and specifications →

AES Input	No
Amplifier Power	Passive speaker; requires external amplification
Aux Input	No
Bass Extension (-10dB)	about 68.9Hz (measured, vendor Spinorama data)
Bass Extension (-3dB)	132Hz (measured, vendor Spinorama data)
Bluetooth	No
Cabinet Material	12mm multiplex
Coaxial Input	No
Configuration	Passive 2-way compact PA speaker
Coverage	90° x 60° (rotatable)
DSP	No (passive)
Drivers	6.5” woofer, 1” exit compression driver on rotatable CD horn
Frequency Response	73Hz - 20kHz (±3dB, manufacturer specified)
Guitar Input	No
HDMI Input	No
Impedance	16 ohms
Maximum SPL	125dB peak (manufacturer specified)
Microphone Input	No
Optical Input	No
Passive	Yes
Power Handling	200W nominal / 400W program / 600W peak
RCA Input	No
Rigging	12 x M8 and 2 x M6 threaded inserts
Spinorama Preference Score	2.53
Spinorama Preference Score with Perfect Sub	5.73
TRS Input	No
USB Input	No
Weight	14.8 lbs (6.7 kg)
XLR Input	No

• Links
  • Kling & Freitag CA 106 PRO Product Page
• Reviews, Comparisons and Sound Samples
  • Spinorama Measurements
• Head-to-Head Comparisons
  • Kling Freitag CA 106 Pro vs Seeburg X1
  • Kling Freitag CA 106 Pro vs Meyer Sound Ultra X23
  • Kling Freitag CA 106 Pro vs Turbosound NuQ62
  • Kling Freitag CA 106 Pro vs DB Audiotechnik 44S
  • Kling Freitag CA 106 Pro vs Alcons Audio SR9
  • Kling Freitag CA 106 Pro vs Coda Audio HOPS5

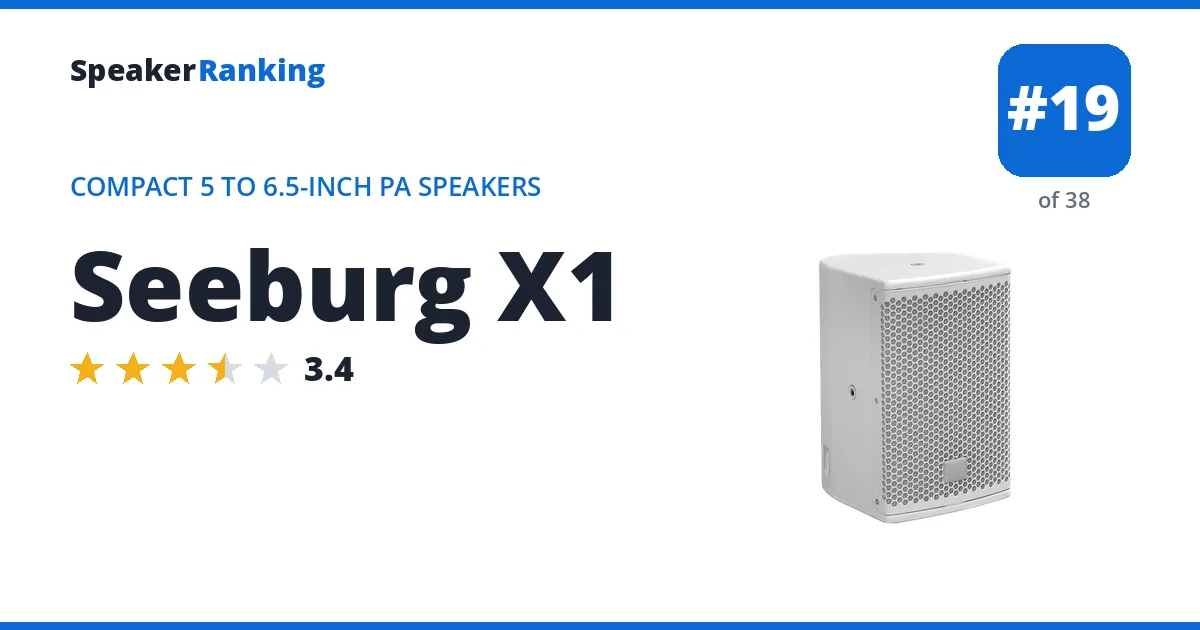

Ranked #19 of 38 in Compact 5 to 6.5-Inch PA Speakers - Seeburg X1: $866 Passive Thomann eBay

Same family: the Seeburg X2 (larger model, rated 3.6/5), the Seeburg X4 (larger model, rated 3.9/5), the Seeburg X6 (larger model, rated 3.9/5) and the Seeburg X8 (larger model, rated 3.5/5).

Pros: A 5.99 preference score with an ideal subwoofer and a 2.0dB reference band give an even tonal balance from a 5.5kg box. The coaxial 6.5-inch and 1-inch neodymium drivers keep sound consistent across the 90° x 60° pattern, which suits fills, small rooms and speech. It reaches a 120dB peak and has M10 points for wall and ceiling mounting. Measured bass extension of 97.5Hz (-3dB).

Cons: Bass is very limited, at 97.5Hz for -3dB and about 85Hz for -10dB, so it needs a subwoofer for any music at volume. The standalone preference score is only 2.52. It is passive and needs an external amplifier with Seeburg presets unless you buy the self-powered X1 dp.

Full Seeburg X1 review and specifications →

AES Input	No
Amplifier Power	Passive speaker; requires external amplification (self-powered X1 dp version available)
Aux Input	No
Bass Extension (-10dB)	about 84.9Hz (measured, vendor Spinorama data)
Bass Extension (-3dB)	97.5Hz (measured, vendor Spinorama data)
Bluetooth	No
Coaxial Input	No
Configuration	Passive 2-way coaxial compact speaker
Coverage	90° x 60° (rotatable)
DSP	No (passive)
Dimensions	12.2”H x 7.9”W x 8.7”D (310 x 200 x 220 mm)
Drivers	6.5” neodymium woofer (2” voice coil), coaxial 1” neodymium compression driver
Frequency Response	80Hz - 19kHz (-6dB, manufacturer specified)
Guitar Input	No
HDMI Input	No
Impedance	8 ohms
Maximum SPL	120dB peak (manufacturer specified)
Microphone Input	No
Optical Input	No
Passive	Yes
Power Handling	200W AES / 600W peak
RCA Input	No
Rigging	4x M10 points
Sensitivity	92dB (1W/1m)
Spinorama Preference Score	2.52
Spinorama Preference Score with Perfect Sub	5.99
TRS Input	No
USB Input	No
Weight	12.1 lbs (5.5 kg)
XLR Input	No

• Links
  • Seeburg X1 Product Page
• Reviews, Comparisons and Sound Samples
  • Spinorama Measurements
• Head-to-Head Comparisons
  • Seeburg X1 vs Kling Freitag CA 106 Pro
  • Seeburg X1 vs Meyer Sound Ultra X23
  • Seeburg X1 vs Alcons Audio SR9
  • Seeburg X1 vs DB Audiotechnik 44S
  • Seeburg X1 vs EAW MKC50
  • Seeburg X1 vs EAW MKC60

Ranked #21 of 38 in Compact 5 to 6.5-Inch PA Speakers - Fulcrum Acoustic RX599 Passive Discontinued eBay

Newer model: the Fulcrum Acoustic RX5, ranked lower, rated 3.3/5.

Pros: A compact coaxial installation speaker with a 1” compression driver at the center of a 5.25” woofer, rated at 93dB and 115dB maximum. Fulcrum’s measurements hold the listening window within 0.9dB from 300Hz to 5kHz, and the score reaches 5.91 with an ideal subwoofer.

Cons: Bass stops early, about 125Hz (-3dB), so it needs a subwoofer, and on-axis response is uneven (1.09dB average deviation), for a preference score of 2.13 alone. The measurements are Fulcrum’s own. Replaced by the Fulcrum Acoustic RX5. Discontinued.

Full Fulcrum Acoustic RX599 review and specifications →

AES Input	No
Amplifier Power	Passive speaker; requires external amplification
Aux Input	No
Bass Extension (-10dB)	about 104.0Hz (measured, manufacturer data via spinorama.org)
Bass Extension (-3dB)	125.0Hz (measured, manufacturer data via spinorama.org)
Bluetooth	No
Coaxial Input	No
Configuration	Passive 2-way coaxial PA speaker
Coverage	90 x 90 degrees
DSP	No (passive)
Dimensions	8.7”H x 5.9”W x 5.6”D (220 x 151 x 142 mm)
Drivers	5.25” woofer with coaxial 1” compression driver
Frequency Response	100Hz-20kHz (manufacturer specified)
Guitar Input	No
HDMI Input	No
Maximum SPL	115dB (manufacturer specified)
Microphone Input	No
Optical Input	No
Passive	Yes
Power Handling	150W
RCA Input	No
Rigging	2 x M6 yoke points; 2 x M6 nut plates for pan/tilt mounts
Sensitivity	93dB
Spinorama Preference Score	2.13
Spinorama Preference Score with Perfect Sub	5.91
TRS Input	No
USB Input	No
Weight	8.6 lbs (3.9 kg)
XLR Input	No

• Reviews, Comparisons and Sound Samples
  • Manufacturer Measurements (spinorama.org)

Ranked #22 of 38 in Compact 5 to 6.5-Inch PA Speakers - Fulcrum Acoustic RX5 Passive eBay

Older model: the Fulcrum Acoustic RX599 (ranked higher, rated 3.3/5).

Same family: the Fulcrum Acoustic RX4 (smaller model, ranked lower, rated 3.2/5), the Fulcrum Acoustic RX6 (larger model, ranked higher, rated 3.7/5) and the Fulcrum Acoustic RX8 (larger model, rated 3.6/5).

Pros: The updated 5.25” coaxial RX speaker, with a new crossover and horn for better off-axis response and 90 x 75 degree coverage. Fulcrum’s own measurements on spinorama.org hold the listening window within 1.5dB from 300Hz to 5kHz.

Cons: Bass stops early, about 128Hz (-3dB), so it needs a subwoofer, and on-axis response is uneven (1.15dB average deviation), for a preference score of 1.76 alone and 5.64 with an ideal subwoofer. The measurements are Fulcrum’s own, and it is sold through installers only.

Full Fulcrum Acoustic RX5 review and specifications →

AES Input	No
Amplifier Power	Passive speaker; requires external amplification
Aux Input	No
Bass Extension (-10dB)	about 104.0Hz (measured, manufacturer data via spinorama.org)
Bass Extension (-3dB)	128.0Hz (measured, manufacturer data via spinorama.org)
Bluetooth	No
Coaxial Input	No
Configuration	Passive 2-way coaxial PA speaker
Coverage	90 x 75 degrees
DSP	No (passive)
Drivers	5.25” woofer with coaxial compression driver
Guitar Input	No
HDMI Input	No
Maximum SPL	117dB peak (manufacturer specified)
Microphone Input	No
Optical Input	No
Passive	Yes
RCA Input	No
Spinorama Preference Score	1.76
Spinorama Preference Score with Perfect Sub	5.64
TRS Input	No
USB Input	No
Weight	9 lbs (4.1 kg)
XLR Input	No

• Links
  • Official Fulcrum Acoustic RX5 Website
• Reviews, Comparisons and Sound Samples
  • Manufacturer Measurements (spinorama.org)

Ranked #23 of 38 in Compact 5 to 6.5-Inch PA Speakers - L-Acoustics 5XT Passive eBay

Pros: A 3.5kg cube with 110° conical coverage and a 121dB peak, more output than most speakers this size, with a very smooth on-axis response (0.71dB average deviation) in vendor measurements. Measured bass extension of 115Hz (-3dB).

Cons: Preference scores of 0.91 standalone and 4.63 with an ideal subwoofer trail better compact models, because bass stops near 115Hz (-3dB) and the listening window drifts across a 3.2dB band. It is passive, needs L-Acoustics presets, and is sold through dealers with no published price.

Full L-Acoustics 5XT review and specifications →

AES Input	No
Amplifier Power	Passive speaker; requires external amplification
Aux Input	No
Bass Extension (-10dB)	about 97.4Hz (measured, vendor Spinorama data)
Bass Extension (-3dB)	115Hz (measured, vendor Spinorama data)
Bluetooth	No
Coaxial Input	No
Configuration	Passive 2-way coaxial PA speaker
Coverage	110° conical
DSP	No (passive)
Dimensions	6.5”H x 6.5”W x 6.5”D (165 x 165 x 165 mm)
Drivers	5” woofer, coaxial 1” compression driver
Frequency Response	95Hz - 20kHz (manufacturer specified)
Guitar Input	No
HDMI Input	No
Maximum SPL	121dB (manufacturer specified)
Microphone Input	No
Optical Input	No
Passive	Yes
RCA Input	No
Rigging	M6 inserts for ETR5 brackets; mic stand adapter
Spinorama Preference Score	0.91
Spinorama Preference Score with Perfect Sub	4.63
TRS Input	No
USB Input	No
Weight	7.7 lbs (3.5 kg)
XLR Input	No

• Links
  • L-Acoustics 5XT Product Page
• Reviews, Comparisons and Sound Samples
  • Spinorama Measurements

Ranked #24 of 38 in Compact 5 to 6.5-Inch PA Speakers - Axiom ED60P: $815 each Passive eBay

Same family: the Axiom ED80P (larger model, rated 3.4/5), the Axiom ED120A (larger model, rated 4/5) and the Axiom ED150A (larger model, rated 3.8/5).

Pros: A compact passive PA and stage speaker from Axiom with a 6” woofer and a horn-loaded tweeter. Axiom’s data shows a flat on-axis response (0.48 average deviation). Axiom’s measurements show a preference score of 3.39 that reaches 4.96 with an ideal subwoofer, with 0.60 listening window deviation.

Cons: Axiom’s data shows bass to about 40Hz, which is implausible for a 6” box Axiom itself rates at 85Hz (-6dB), so treat the bass figures with caution.

Full Axiom ED60P review and specifications →

Bluetooth	No
DIY Kit	No
Drivers	6” woofer, horn-loaded tweeter
Maximum SPL	114dB peak (manufacturer specified)
Passive	Yes
Rigging	2 x M8 flying points; 35mm pole mount
Spinorama Preference Score	3.39
Spinorama Preference Score with Perfect Sub	4.96
Weight	11 lbs (5 kg)

• Reviews, Comparisons and Sound Samples
  • Manufacturer Measurements (spinorama.org)

Ranked #25 of 38 in Compact 5 to 6.5-Inch PA Speakers - EAW MKD526 Passive Estimated eBay

Same family: the EAW MKD1000 (larger model, rated 2.9/5) and the EAW MKD1200 (larger model, rated 4/5).

Pros: The ultra-compact model of EAW’s MKD installation range alongside the measured EAW MKD1000 and EAW MKD1200, with two 5.25” woofers around a compression driver on a rotatable 120° x 60° horn. EAW rates it at 250W, 127dB maximum and 75Hz to 20kHz in a 7.6 kg cabinet, sized for fills and small rooms.

Cons: No independent measurements yet, so it can’t be compared with ranked PA speakers. Bass stops around 75Hz, so it needs a subwoofer for music, and it is sold through installation dealers.

Full EAW MKD526 review and specifications →

Amplifier Power	Passive speaker; requires external amplification
Bluetooth	No
Configuration	Passive 2-way installation speaker
Coverage	120° x 60°, rotatable
DSP	No (passive)
Drivers	2x 5.25” woofers, compression driver
Frequency Response	75Hz - 20kHz (manufacturer specified)
Maximum SPL	127dB (manufacturer specified)
Passive	Yes
Power Handling	250W
Rigging	12 x M6 threaded points for mounting accessories
Weight	16.8 lbs (7.6 kg)
XLR Input	No

• Links
  • EAW MKD526 Product Page
• Reviews, Comparisons and Sound Samples
  • No independent measurement review is linked for this model; it is ranked from hands-on listening and comparison against similarly priced speakers.

Ranked #26 of 38 in Compact 5 to 6.5-Inch PA Speakers - Alcons Audio SR9 Passive eBay

Pros: High-quality vendor Spinorama data gives preference scores of 2.46 standalone and 6.18 with an ideal subwoofer. The RBN401 pro-ribbon and 120° horizontal pattern make it a discreet ribbon-fill and front-fill box, and the sealed woofers give a smooth roll-off. Measured bass extension of 150Hz (-3dB).

Cons: Bass reaches only about 150Hz (-3dB), the shallowest of the group, so it is a fill and speech box that depends on a subwoofer. It is passive, listening-window narrow-band deviation is 0.463, and the very narrow 15° vertical pattern limits placement.

Full Alcons Audio SR9 review and specifications →

AES Input	No
Amplifier Power	Passive speaker; requires external amplification within the 800W peak handling rating
Aux Input	No
Bass Extension (-3dB)	150Hz (measured, vendor Spinorama data)
Bluetooth	No
Coaxial Input	No
Configuration	Passive 2-way ribbon-fill PA speaker
Coverage	120° horizontal x 15° vertical
DSP	No (passive)
Drivers	Dual 5” sealed woofers, RBN401 pro-ribbon
Guitar Input	No
HDMI Input	No
Maximum SPL	124dB peak (manufacturer specified)
Microphone Input	No
Optical Input	No
Passive	Yes
Power Handling	800W peak (manufacturer specified)
RCA Input	No
Spinorama Preference Score	2.46
Spinorama Preference Score with Perfect Sub	6.18
TRS Input	No
USB Input	No
Weight	18.7 lbs (8.5 kg)
XLR Input	No

• Links
  • Alcons Audio SR9 Product Page
• Reviews, Comparisons and Sound Samples
  • Spinorama Measurements
• Head-to-Head Comparisons
  • Alcons Audio SR9 vs Meyer Sound Ultra X23
  • Alcons Audio SR9 vs Seeburg X1
  • Alcons Audio SR9 vs Kling Freitag CA 106 Pro
  • Alcons Audio SR9 vs Turbosound NuQ62
  • Alcons Audio SR9 vs Meyer Sound Ultra X20
  • Alcons Audio SR9 vs Coda Audio HOPS5
  • Alcons Audio SR9 vs L-Acoustics X6i

Ranked #27 of 38 in Compact 5 to 6.5-Inch PA Speakers - Fulcrum Acoustic RX4 Passive eBay

Same family: the Fulcrum Acoustic RX5 (larger model, ranked higher, rated 3.3/5), the Fulcrum Acoustic RX6 (larger model, ranked higher, rated 3.7/5) and the Fulcrum Acoustic RX8 (larger model, rated 3.6/5).

Pros: A 1.4kg coaxial speaker small enough to hide under balconies or in architectural details, with wide 100° conical coverage for short throw fills. Measured bass extension of 165Hz (-3dB).

Cons: Vendor measurements give weak preference scores of -0.17 standalone and 4.13 with an ideal subwoofer, with an uneven on-axis response (3.53dB average deviation). Bass stops near 165Hz (-3dB), so it needs a subwoofer for anything but speech. Low 85dB sensitivity and a 111dB peak limit output. It is sold through pro dealers with no published price.

Full Fulcrum Acoustic RX4 review and specifications →

AES Input	No
Amplifier Power	Passive speaker; requires external amplification
Aux Input	No
Bass Extension (-10dB)	about 128.6Hz (measured, vendor Spinorama data)
Bass Extension (-3dB)	165Hz (measured, vendor Spinorama data)
Bluetooth	No
Coaxial Input	No
Configuration	Passive 2-way coaxial PA speaker
Coverage	100° x 100°
DSP	No (passive)
Dimensions	5”H x 5.3”W x 5.2”D (127 x 135 x 132 mm)
Drivers	4” coaxial driver
Guitar Input	No
HDMI Input	No
Maximum SPL	111dB peak / 105dB continuous (manufacturer specified)
Microphone Input	No
Optical Input	No
Passive	Yes
RCA Input	No
Rigging	2 x M6 yoke points; optional UB-RX4 yoke bracket
Sensitivity	85dB
Spinorama Preference Score	-0.17
Spinorama Preference Score with Perfect Sub	4.13
TRS Input	No
USB Input	No
Weight	3.1 lbs (1.4 kg)
XLR Input	No

• Links
  • Fulcrum Acoustic RX Series
• Reviews, Comparisons and Sound Samples
  • Spinorama Measurements

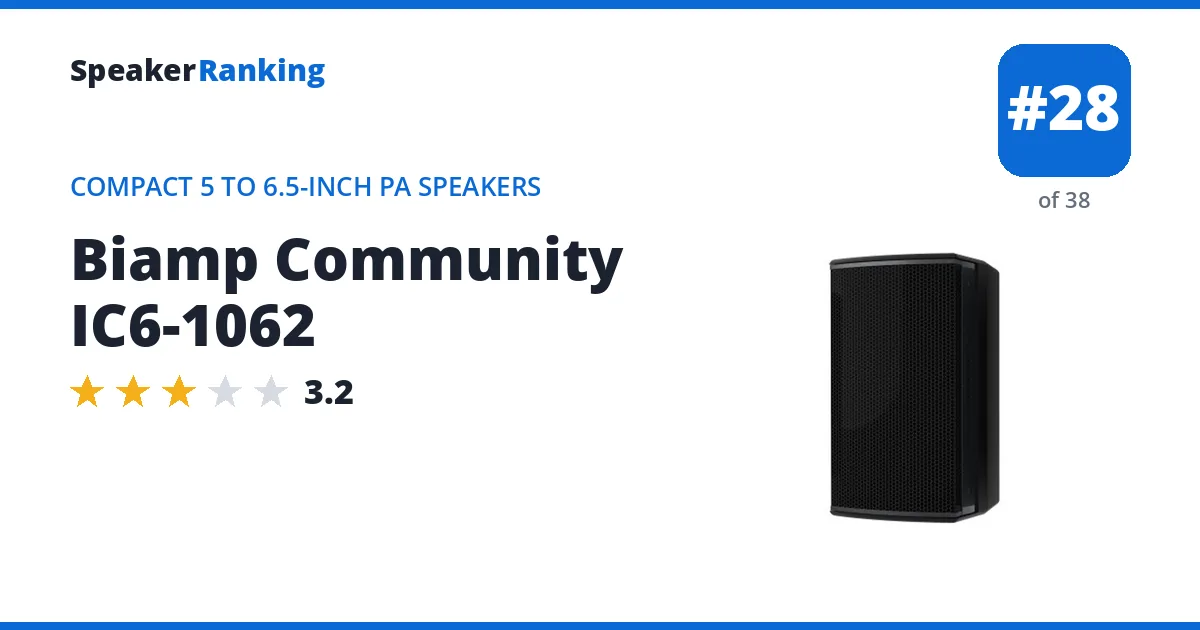

Ranked #28 of 38 in Compact 5 to 6.5-Inch PA Speakers - Biamp Community IC6-1062 Passive eBay

Same family: the Biamp Community IC6-1082 (larger model, rated 3.2/5).

Pros: Bass reaches 80Hz at -3dB and about 65Hz at -10dB in vendor measurements, deep for a 6.5-inch speaker, and wide 100° coverage suits meeting rooms and small venues. Measured bass extension of 80Hz (-3dB).

Cons: Preference scores of 1.09 standalone and 4.12 with an ideal subwoofer are among the lowest here, with an uneven on-axis response (1.55dB average deviation) and a listening window spread across 3.7dB. Maximum output is 120dB peak. It is passive and sold through installation dealers with no published price.

Full Biamp Community IC6-1062 review and specifications →

AES Input	No
Amplifier Power	Passive speaker; requires external amplification
Aux Input	No
Bass Extension (-10dB)	about 65.1Hz (measured, vendor Spinorama data)
Bass Extension (-3dB)	80Hz (measured, vendor Spinorama data)
Bluetooth	No
Coaxial Input	No
Configuration	Passive 2-way installation PA speaker
Coverage	100° x 100°
DSP	No (passive)
Drivers	6.5” woofer, compression driver
Guitar Input	No
HDMI Input	No
Impedance	8 ohms
Maximum SPL	120dB peak / 114dB continuous (manufacturer specified)
Microphone Input	No
Optical Input	No
Passive	Yes
RCA Input	No
Rigging	9 x M6 threaded rigging points
Sensitivity	92dB
Spinorama Preference Score	1.09
Spinorama Preference Score with Perfect Sub	4.12
TRS Input	No
USB Input	No
Weight	16.1 lbs (7.3 kg)
XLR Input	No

• Reviews, Comparisons and Sound Samples
  • Spinorama Measurements

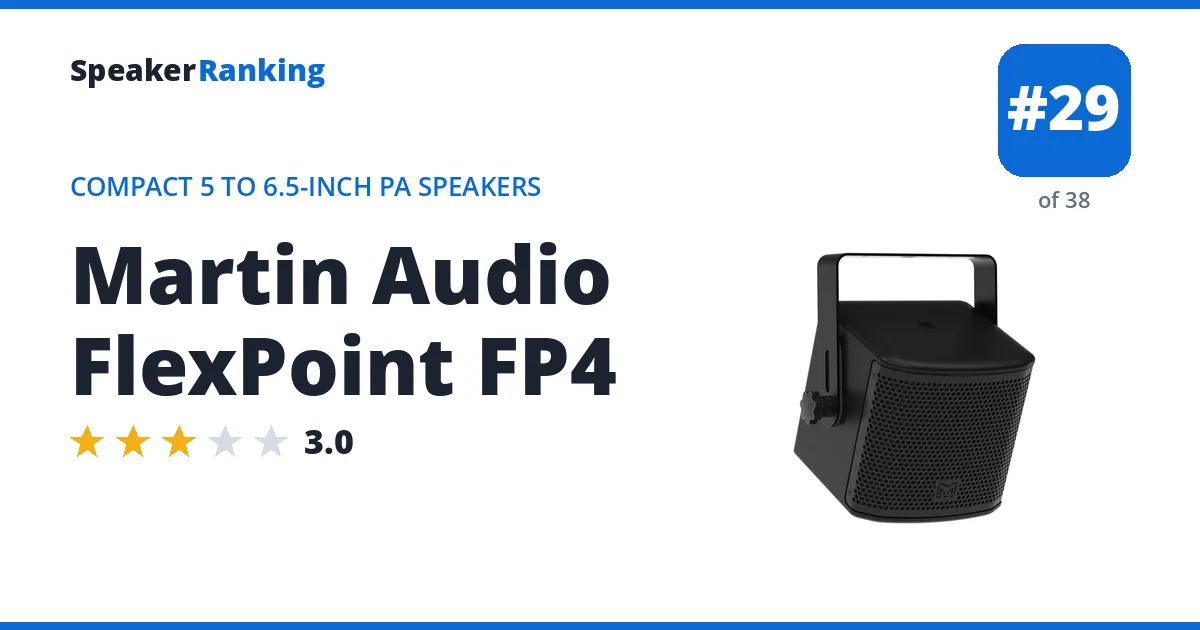

Ranked #29 of 38 in Compact 5 to 6.5-Inch PA Speakers - Martin Audio FlexPoint FP4 Passive eBay

Same family: the Martin Audio FlexPoint FP6 (larger model, ranked lower, rated 3/5), the Martin Audio FlexPoint FP8 (larger model, rated 3/5), the Martin Audio FlexPoint FP12 (larger model, rated 3/5) and the Martin Audio FlexPoint FP15 (larger model, rated 2.7/5).

Pros: A 1.9kg cabinet with a yoke mount for discreet fills, and vendor measurements give a preference score of 3.71 with an ideal subwoofer, wide even coverage helping it. Measured bass extension of 145Hz (-3dB).

Cons: Bass stops near 145Hz (-3dB), so on its own it scores -0.31 and needs a subwoofer for anything but speech. Low 84dB sensitivity and a 108dB peak limit output, and the on-axis response is uneven (2.66dB average deviation). It is passive.

Full Martin Audio FlexPoint FP4 review and specifications →

AES Input	No
Amplifier Power	Passive speaker; requires external amplification
Aux Input	No
Bass Extension (-10dB)	about 108.9Hz (measured, vendor Spinorama data)
Bass Extension (-3dB)	145Hz (measured, vendor Spinorama data)
Bluetooth	No
Coaxial Input	No
Configuration	Passive 2-way PA speaker
DSP	No (passive)
Drivers	4” woofer, tweeter
Guitar Input	No
HDMI Input	No
Maximum SPL	108dB peak / 102dB continuous (manufacturer specified)
Microphone Input	No
Optical Input	No
Passive	Yes
RCA Input	No
Rigging	4 x M6 inserts; 3/8” mic stand mount
Sensitivity	84dB
Spinorama Preference Score	-0.31
Spinorama Preference Score with Perfect Sub	3.71
TRS Input	No
USB Input	No
Weight	4.2 lbs (1.9 kg)
XLR Input	No

• Links
  • Martin Audio FlexPoint FP4 Product Page
• Reviews, Comparisons and Sound Samples
  • Spinorama Measurements

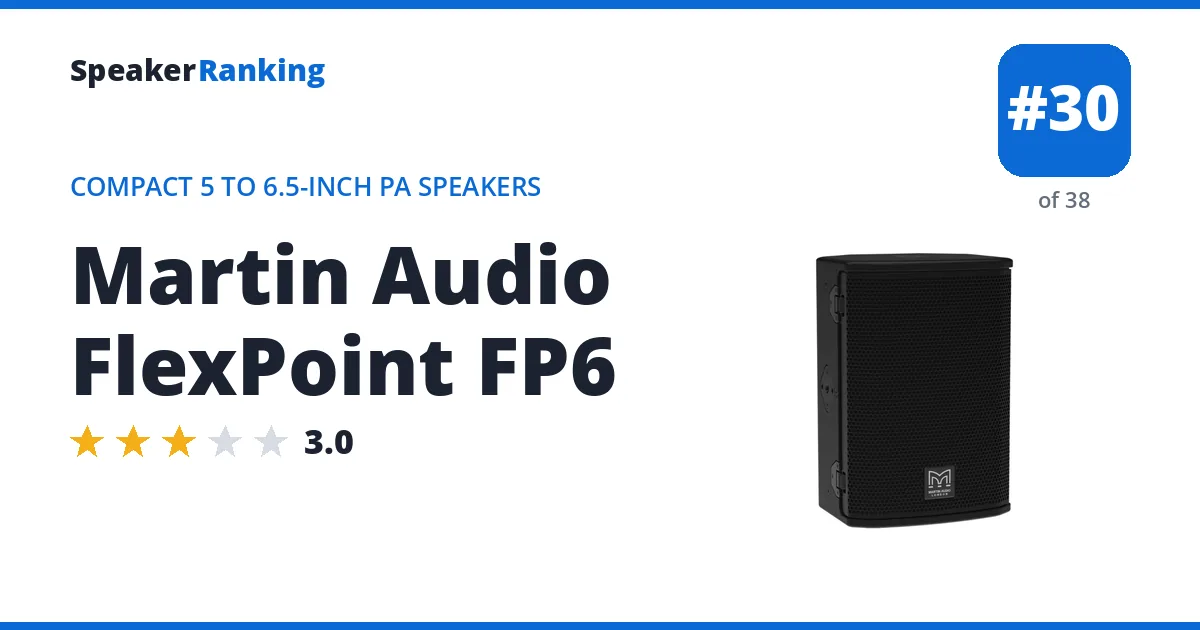

Ranked #30 of 38 in Compact 5 to 6.5-Inch PA Speakers - Martin Audio FlexPoint FP6 Passive eBay

Same family: the Martin Audio FlexPoint FP4 (smaller model, ranked higher, rated 3/5), the Martin Audio FlexPoint FP8 (larger model, rated 3/5), the Martin Audio FlexPoint FP12 (larger model, rated 3/5) and the Martin Audio FlexPoint FP15 (larger model, rated 2.7/5).

Pros: Bass reaches 73Hz at -3dB and about 60Hz at -10dB in vendor measurements, deep for a 6.5-inch speaker, and the on-axis response is smooth (0.37dB average deviation). Measured bass extension of 73Hz (-3dB).

Cons: Preference scores of 0.87 standalone and 3.68 with an ideal subwoofer are low because the listening window spreads across 5.1dB, so tonal balance shifts off axis. Maximum output is 119dB peak, and it is passive.

Full Martin Audio FlexPoint FP6 review and specifications →

AES Input	No
Amplifier Power	Passive speaker; requires external amplification
Aux Input	No
Bass Extension (-10dB)	about 59.6Hz (measured, vendor Spinorama data)
Bass Extension (-3dB)	73Hz (measured, vendor Spinorama data)
Bluetooth	No
Coaxial Input	No
Configuration	Passive 2-way PA speaker
DSP	No (passive)
Drivers	6.5” woofer, compression driver
Guitar Input	No
HDMI Input	No
Maximum SPL	119dB peak / 113dB continuous (manufacturer specified)
Microphone Input	No
Optical Input	No
Passive	Yes
RCA Input	No
Rigging	4 x M10 and 15 x M6 inserts; 3/8” mic stand mount
Sensitivity	91dB
Spinorama Preference Score	0.87
Spinorama Preference Score with Perfect Sub	3.68
TRS Input	No
USB Input	No
Weight	12.1 lbs (5.5 kg)
XLR Input	No

• Links
  • Martin Audio FlexPoint FP6 Product Page
• Reviews, Comparisons and Sound Samples
  • Spinorama Measurements

Ranked #33 of 38 in Compact 5 to 6.5-Inch PA Speakers - Tannoy VX6: $778.00 per pair Passive Estimated B&H Photo Video eBay

Same family: the Tannoy VX8 (larger model, estimated 3/5), the Tannoy VX12 (larger model, rated 3.1/5) and the Tannoy VX15HP (larger model, estimated 3.1/5).

Pros: A passive model from Tannoy’s VX range alongside the measured Tannoy VX12: the 6” model, for background music, speech and small stages. Every VX uses a Dual Concentric driver with the tweeter in the center of the woofer, so the sound comes from one point and stays consistent off axis. Tannoy rates it at 91dB sensitivity and 117dB peak / 111dB average.

Cons: No independent measurements yet, so it can’t be compared with ranked PA speakers. It needs an external amplifier, ideally with Tannoy’s recommended EQ, and US dealers list it as a special order with long lead times.

Full Tannoy VX6 review and specifications →

Amplifier Power	Passive speaker; requires external amplification
Bluetooth	No
Configuration	Passive Dual Concentric PA speaker
DSP	No (passive)
Drivers	6” Dual Concentric driver
Frequency Response	80Hz - 45kHz (-3dB), 65Hz (-10dB) (manufacturer specified)
Impedance	8 ohms
Maximum SPL	117dB peak / 111dB average (manufacturer specified)
Passive	Yes
Power Handling	100W average / 520W peak
Rigging	2 x M6 yoke and 4 x M6 inserts; pole mount
Sensitivity	91dB
Weight	12.1 lbs (5.5 kg)
XLR Input	No

• Links
  • Tannoy VX6 Product Page
• Reviews, Comparisons and Sound Samples
  • No independent measurement review is linked for this model; it is ranked from hands-on listening and comparison against similarly priced speakers.

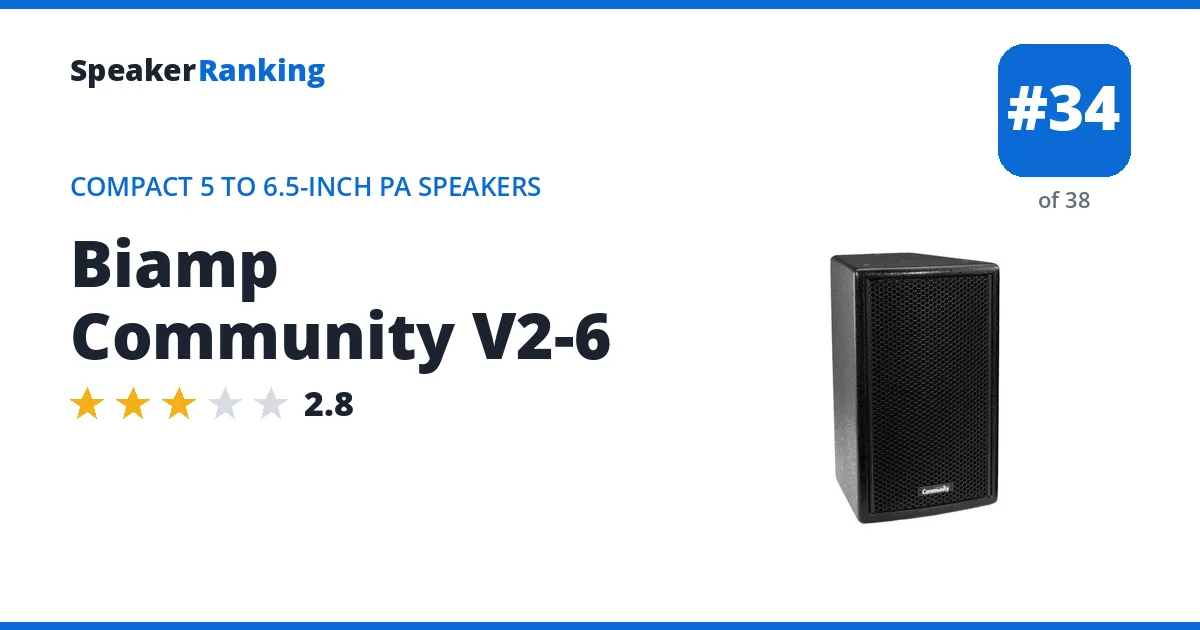

Ranked #34 of 38 in Compact 5 to 6.5-Inch PA Speakers - Biamp Community V2-6 Passive eBay

Same family: the Biamp Community V2-26 (larger model, ranked lower, rated 2.8/5), the Biamp Community V2-8 (larger model, rated 2.7/5), the Biamp Community V2-28 (larger model, rated 2.4/5), the Biamp Community V2-3294 (larger model, rated 2.7/5) and the Biamp Community V2-3594 (larger model, rated 2.7/5).

Pros: A compact installation speaker with a smooth on-axis response (0.79dB average deviation in vendor measurements) and 92dB sensitivity for speech and background music. Measured bass extension of 118Hz (-3dB).

Cons: Bass stops near 118Hz (-3dB), so it scores -0.53 standalone and 3.08 with an ideal subwoofer, and the listening window spreads across 6.2dB. Power handling is only 100W. It is passive and sold through installation dealers.

Full Biamp Community V2-6 review and specifications →

AES Input	No
Amplifier Power	Passive speaker; requires external amplification
Aux Input	No
Bass Extension (-10dB)	about 80.8Hz (measured, vendor Spinorama data)
Bass Extension (-3dB)	118Hz (measured, vendor Spinorama data)
Bluetooth	No
Coaxial Input	No
Configuration	Passive 2-way installation PA speaker
DSP	No (passive)
Drivers	6.5” woofer, compression driver
Frequency Response	90Hz - 18kHz (operating range)
Guitar Input	No
HDMI Input	No
Impedance	8 ohms
Maximum SPL	118dB peak (manufacturer specified)
Microphone Input	No
Optical Input	No
Passive	Yes
Power Handling	100W continuous at 8 ohms
RCA Input	No
Rigging	9 x M6 rigging points; 4 x M6 points for V-HSS suspension
Sensitivity	92dB
Spinorama Preference Score	-0.53
Spinorama Preference Score with Perfect Sub	3.08
TRS Input	No
USB Input	No
Weight	19.6 lbs (8.9 kg)
XLR Input	No

• Reviews, Comparisons and Sound Samples
  • Spinorama Measurements

Ranked #35 of 38 in Compact 5 to 6.5-Inch PA Speakers - Biamp Community V2-26 Passive eBay

Same family: the Biamp Community V2-6 (smaller model, ranked higher, rated 2.8/5), the Biamp Community V2-8 (larger model, rated 2.7/5), the Biamp Community V2-28 (larger model, rated 2.4/5), the Biamp Community V2-3294 (larger model, rated 2.7/5) and the Biamp Community V2-3594 (larger model, rated 2.7/5).

Pros: Two 6.5-inch woofers reach 98Hz at -3dB and about 67Hz at -10dB in vendor measurements, with a smooth on-axis response (0.45dB average deviation) and a listening window within 3.8dB. Measured bass extension of 97.5Hz (-3dB).

Cons: Preference scores of -0.46 standalone and 2.95 with an ideal subwoofer are low, and the narrow vertical pattern suits only speakers aimed straight at the audience. It is passive, needs a 4 ohm capable amplifier, and is sold through installation dealers.

Full Biamp Community V2-26 review and specifications →

AES Input	No
Amplifier Power	Passive speaker; requires external amplification
Aux Input	No
Bass Extension (-10dB)	about 67.1Hz (measured, vendor Spinorama data)
Bass Extension (-3dB)	97.5Hz (measured, vendor Spinorama data)
Bluetooth	No
Coaxial Input	No
Configuration	Passive 2-way installation PA speaker
DSP	No (passive)
Drivers	2 x 6.5” woofers, compression driver
Frequency Response	70Hz - 18kHz (operating range)
Guitar Input	No
HDMI Input	No
Impedance	4 ohms
Maximum SPL	121dB peak (manufacturer specified)
Microphone Input	No
Optical Input	No
Passive	Yes
Power Handling	200W continuous at 4 ohms
RCA Input	No
Rigging	9 x M6 rigging points; 4 x M6 points for V-HSS suspension
Sensitivity	92dB
Spinorama Preference Score	-0.46
Spinorama Preference Score with Perfect Sub	2.95
TRS Input	No
USB Input	No
Weight	28 lbs (12.7 kg)
XLR Input	No

• Reviews, Comparisons and Sound Samples
  • Spinorama Measurements

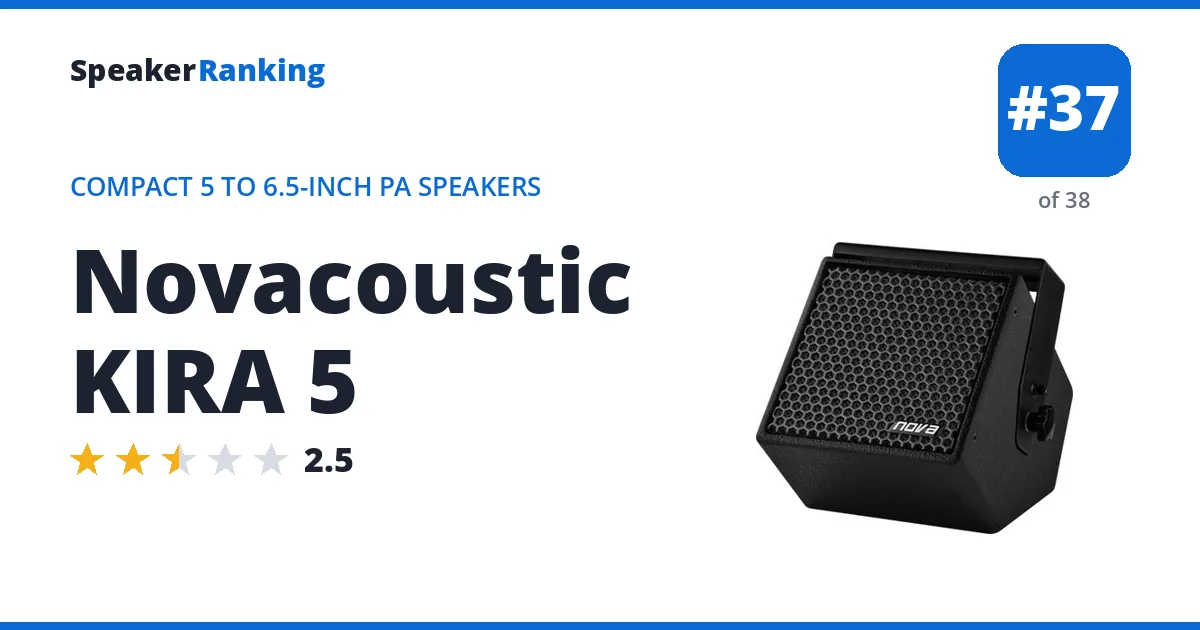

Ranked #37 of 38 in Compact 5 to 6.5-Inch PA Speakers - Novacoustic KIRA 5 Passive eBay

Same family: the Novacoustic KIRA 8 (larger model, rated 2.5/5), the Novacoustic KIRA 10 (larger model, rated 2/5) and the Novacoustic KIRA 12 (larger model, rated 2.7/5).

Pros: A 3kg coaxial speaker with wide 90° conical coverage and a 16 ohm load that lets several share an amplifier channel. Measured bass extension of 145Hz (-3dB).

Cons: Bass stops near 145Hz (-3dB) and the on-axis response is uneven (1.36dB average deviation), so vendor measurements give preference scores of -1.81 standalone and 2.17 with an ideal subwoofer. It needs a subwoofer and is passive.

Full Novacoustic KIRA 5 review and specifications →

AES Input	No
Amplifier Power	Passive speaker; requires external amplification
Aux Input	No
Bass Extension (-10dB)	about 105.0Hz (measured, vendor Spinorama data)
Bass Extension (-3dB)	145Hz (measured, vendor Spinorama data)
Bluetooth	No
Coaxial Input	No
Configuration	Passive 2-way coaxial PA speaker
Coverage	90° x 90°
DSP	No (passive)
Dimensions	6.3”H x 6.3”W x 7.1”D (160 x 160 x 180 mm)
Drivers	5” coaxial driver
Frequency Response	95Hz - 18kHz (±3dB, manufacturer specified)
Guitar Input	No
HDMI Input	No
Impedance	16 ohms
Maximum SPL	117dB peak (manufacturer specified)
Microphone Input	No
Optical Input	No
Passive	Yes
Power Handling	150W RMS
RCA Input	No
Rigging	2 x M10 inserts with U-bracket; optional stand adapter
Sensitivity	92dB
Spinorama Preference Score	-1.81
Spinorama Preference Score with Perfect Sub	2.17
TRS Input	No
USB Input	No
Weight	6.6 lbs (3 kg)
XLR Input	No

• Links
  • Novacoustic KIRA 5 Product Page
• Reviews, Comparisons and Sound Samples
  • Spinorama Measurements
• Head-to-Head Comparisons
  • Novacoustic KIRA 5 vs Novacoustic KIRA 8
  • Novacoustic KIRA 5 vs Novacoustic KIRA 10
  • Novacoustic KIRA 5 vs Novacoustic KIRA 12

Ranked #38 of 38 in Compact 5 to 6.5-Inch PA Speakers - Turbosound TCS62 Passive Discontinued eBay

Pros: Bass reaches about 45Hz at -3dB in vendor measurements, unusually deep for a 6.5-inch speaker, in a 6.9kg cabinet. Measured bass extension of 45Hz (-3dB).

Cons: Preference scores of 0.43 standalone and 2.05 with an ideal subwoofer are low, with an uneven on-axis response (2.13dB average deviation) and inconsistent off-axis tone. It is passive and discontinued, so it is mainly found used.

Full Turbosound TCS62 review and specifications →

AES Input	No
Amplifier Power	Passive speaker; requires external amplification
Aux Input	No
Bass Extension (-10dB)	about 33.2Hz (measured, vendor Spinorama data)
Bass Extension (-3dB)	45Hz (measured, vendor Spinorama data)
Bluetooth	No
Coaxial Input	No
Configuration	Passive 2-way PA speaker
Coverage	100° x 60° (rotatable)
DSP	No (passive)
Dimensions	15.8”H x 8.8”W x 7.8”D (402 x 224 x 198 mm)
Drivers	6.5” woofer, compression driver on a rotatable waveguide
Frequency Response	60Hz - 20kHz (±3dB, manufacturer specified)
Guitar Input	No
HDMI Input	No
Maximum SPL	118.5dB peak (manufacturer specified)
Microphone Input	No
Optical Input	No
Passive	Yes
RCA Input	No
Rigging	8 x M8 and 2 x M6 inserts
Sensitivity	90dB
Spinorama Preference Score	0.43
Spinorama Preference Score with Perfect Sub	2.05
TRS Input	No
USB Input	No
Weight	15.2 lbs (6.9 kg)
XLR Input	No

• Reviews, Comparisons and Sound Samples
  • Spinorama Measurements

8-Inch PA Speakers

Ranked #3 of 44 in 8-Inch PA Speakers - Turbosound NuQ82: $500 Passive Discontinued eBay

Pros: Low-quality vendor data still shows a 5.7 ideal-subwoofer preference score with 52Hz measured extension, the deepest bass reach of any 8-inch box in this ranking. The switchable passive/bi-amp design and coaxial point-source layout give installers flexibility on amplification and DSP. Measured bass extension of 73Hz (-3dB).

Cons: Being passive-by-default, it needs an external amplifier and crossover to work at all, and its 123dB peak claim trails every active speaker here. Discontinued.

Full Turbosound NuQ82 review and specifications →

AES Input	No
Amplifier Power	Passive/bi-amp speaker; use external amplification within the 250W continuous / 1,000W peak handling rating
Aux Input	No
Bass Extension (-3dB)	73Hz (measured, vendor Spinorama data)
Bluetooth	No
Cabinet Material	12mm birch plywood
Coaxial Input	No
Configuration	Passive/bi-amp switchable 2-way coaxial PA speaker
Coverage	100° x 60°
DSP	Yes, Klark Teknik DSP with dynamic EQ, limiting, position compensation, user EQ and subwoofer integration; LCD/rotary control plus USB for PC remote control
Dimensions	18.3”H x 10.8”W x 8.7”D (464 x 274 x 220 mm)
Drivers	8” coaxial woofer, compression driver
Frequency Response	65Hz - 18kHz (±3dB, manufacturer specified); 55Hz - 20kHz (-10dB)
Guitar Input	No
HDMI Input	No
Inputs	Two Neutrik speakON NL4 connectors
Maximum SPL	123dB peak (manufacturer specified)
Microphone Input	No
Optical Input	No
Passive	Yes
Power Handling	250W continuous / 1,000W peak (IEC, manufacturer specified)
RCA Input	No
Rigging	Eight M10 and three M8 fly points
Spinorama Preference Score	3.25
Spinorama Preference Score with Perfect Sub	5.68
TRS Input	No
USB Input	No
Weight	22.5 lbs (10.2 kg)
XLR Input	No

• Links
  • Turbosound NuQ82 Product Page
• Reviews, Comparisons and Sound Samples
  • Spinorama Measurements
• Head-to-Head Comparisons
  • Turbosound NuQ82 vs L-Acoustics 108P
  • Turbosound NuQ82 vs Yamaha DXR8mkII
  • Turbosound NuQ82 vs QSC K8.2
  • Turbosound NuQ82 vs RCF KX 08-A
  • Turbosound NuQ82 vs Vue Audiotechnik A-8

Ranked #6 of 44 in 8-Inch PA Speakers - L-Acoustics X8 Passive eBay

Same family: the L-Acoustics X4i (smaller model, rated 3.6/5), the L-Acoustics X6i (smaller model, rated 3.9/5), the L-Acoustics X12 (larger model, rated 4.6/5) and the L-Acoustics X15 HiQ (larger model, rated 4.4/5).

Pros: Vendor Spinorama data gives preference scores of 4.29 standalone and 7.09 with an ideal subwoofer, the best standalone score in this ranking. Bass reaches about 71Hz (-3dB) with a deviation of only 1.0dB across the reference band, and the 100° axisymmetric coaxial pattern stays even off axis. It reaches 129dB from a 12kg cabinet with a 35° monitor angle. Measured bass extension of 71Hz (-3dB).

Cons: It is a passive cabinet that needs an L-Acoustics amplified controller. Listening-window narrow-band deviation is 0.363 and predicted in-room smoothness is 0.615, a step behind the best-measuring boxes. Pricing is dealer quoted and high for an 8-inch box.

Full L-Acoustics X8 review and specifications →

AES Input	No
Amplifier Power	Passive speaker; requires external amplification (L-Acoustics amplified controller)
Aux Input	No
Bass Extension (-3dB)	71Hz (measured, vendor Spinorama data)
Bluetooth	No
Coaxial Input	No
Configuration	Passive 2-way coaxial PA speaker
Coverage	100° axisymmetric
DSP	No (passive; processing comes from the amplified controller)
Drivers	8” low-frequency driver, 1.5” compression driver (coaxial)
Frequency Response	60Hz - 20kHz (manufacturer specified)
Guitar Input	No
HDMI Input	No
Maximum SPL	129dB (manufacturer specified)
Microphone Input	No
Optical Input	No
Passive	Yes
RCA Input	No
Rigging	35° monitoring angle
Spinorama Preference Score	4.29
Spinorama Preference Score with Perfect Sub	7.09
TRS Input	No
USB Input	No
Weight	26.5 lbs (12 kg)
XLR Input	No

• Links
  • L-Acoustics X8 Product Page
• Reviews, Comparisons and Sound Samples
  • Spinorama Measurements
• Head-to-Head Comparisons
  • L-Acoustics X8 vs JBL PRX908
  • L-Acoustics X8 vs RCF KX 08-A
  • L-Acoustics X8 vs Yamaha DXR8mkII
  • L-Acoustics X8 vs EAW MKC80

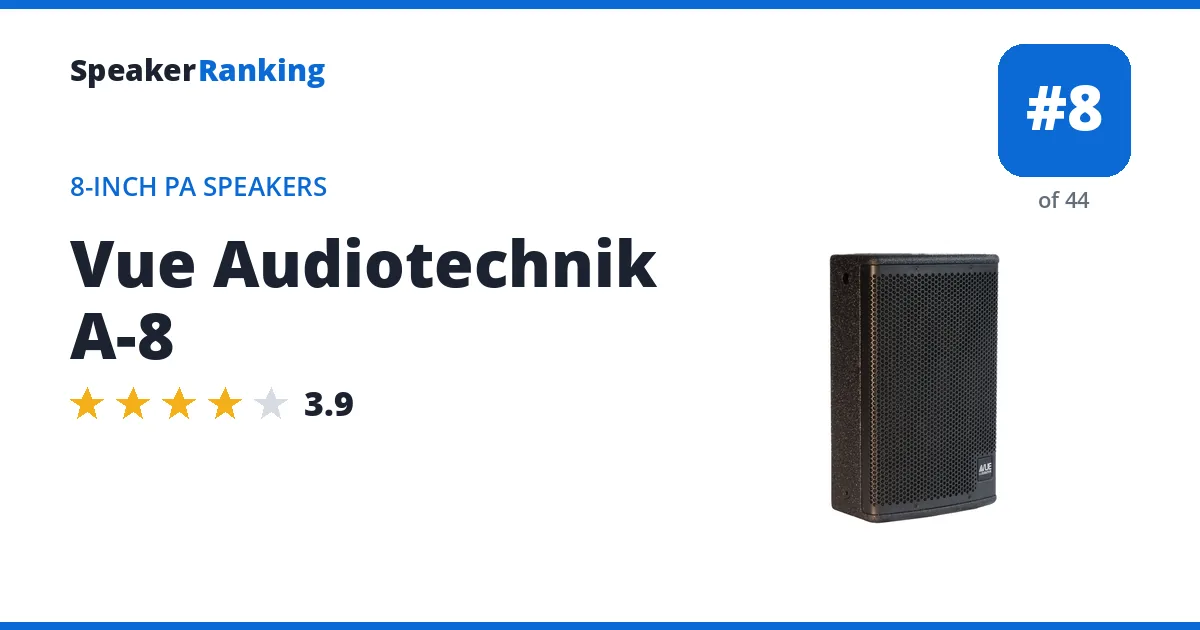

Ranked #8 of 44 in 8-Inch PA Speakers - Vue Audiotechnik A-8: $999 Passive eBay

Same family: the Vue Audiotechnik A-10 (larger model, rated 3.7/5), the Vue Audiotechnik A-12 (larger model, rated 3.6/5) and the Vue Audiotechnik A-15 (larger model, rated 3.5/5).

Pros: Low-quality vendor data shows a 5.61 ideal-subwoofer preference score, the strongest measured result among the passive entries in this ranking. A neodymium woofer and aluminum-dome compression driver on a rotatable 70° x 55° horn keep amplification and DSP choices flexible for installers. Measured bass extension of 90Hz (-3dB).

Cons: Being passive, it needs an external amplifier and processing to perform correctly, adding cost and complexity that self-powered rivals avoid. Measured bass extension is shallow at roughly 90Hz.

Full Vue Audiotechnik A-8 review and specifications →

Amplifier Power	Passive speaker; external amplifier required (manufacturer output rating not published in the current product page)
Aux Input	No
Bass Extension (-3dB)	90Hz (measured, vendor Spinorama data)
Bluetooth	No
Cabinet Material	Multi-ply cross-grain laminated birch plywood
Configuration	Passive 2-way bass-reflex PA speaker
Coverage	70° x 55°, rotatable
DSP	No (passive, passive crossover network only)
Dimensions	18.1” x 11.3” x 10.8” (460 x 286 x 274 mm)
Drivers	8” neodymium woofer, aluminum-dome compression driver
Frequency Response	75Hz - 20kHz (manufacturer specified)
Guitar Input	No
Inputs	2x Neutrik NL-4 Speakon
Maximum SPL	124dB peak (manufacturer specified)
Microphone Input	No
Passive	Yes
Rigging	Integrated fly points and pole-mount system
Spinorama Preference Score	2.35
Spinorama Preference Score with Perfect Sub	5.61
Weight	28.9 lbs (13.1 kg)
XLR Input	No

• Links
  • VUE Audiotechnik A-8 Product Information
• Reviews, Comparisons and Sound Samples
  • Spinorama Measurements
• Head-to-Head Comparisons
  • Vue Audiotechnik A-8 vs RCF KX 08-A
  • Vue Audiotechnik A-8 vs EAW MKC80
  • Vue Audiotechnik A-8 vs Turbosound NuQ82
  • Vue Audiotechnik A-8 vs LD Systems Stinger 8-A-G3
  • Vue Audiotechnik A-8 vs FBT J8A
  • Vue Audiotechnik A-8 vs Seeburg X2

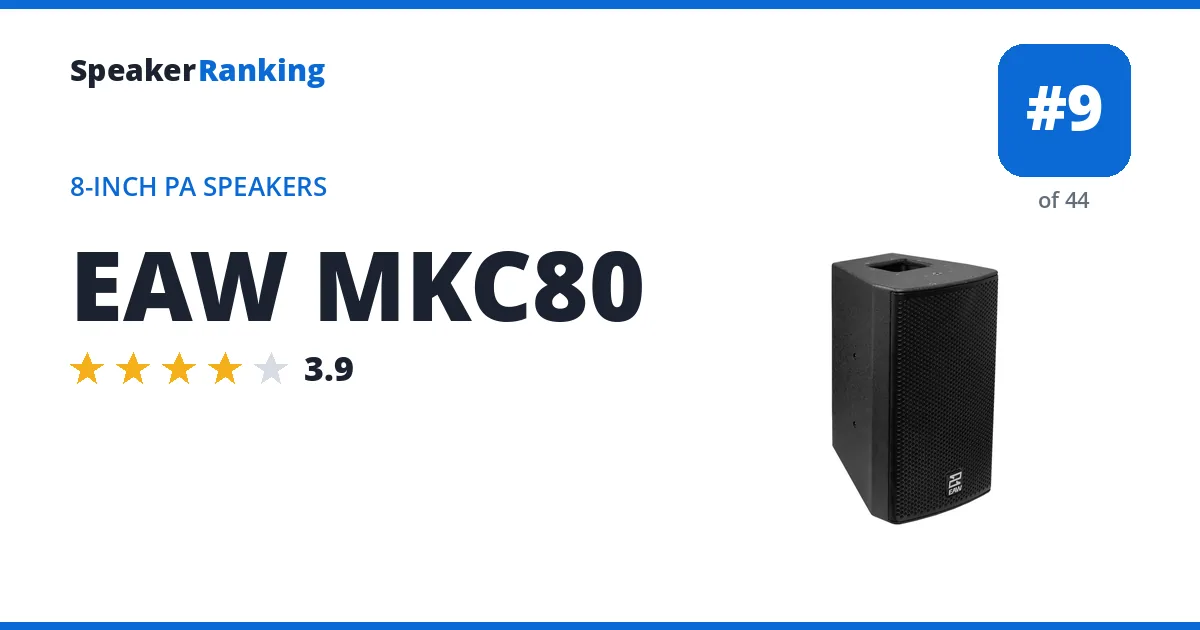

Ranked #9 of 44 in 8-Inch PA Speakers - EAW MKC80 Passive Full Compass eBay

Same family: the EAW MKC50 (smaller model, rated 3.6/5), the EAW MKC60 (smaller model, rated 3.8/5) and the EAW MKC120 (larger model, rated 4.3/5).

Pros: Vendor Spinorama data gives preference scores of 4.08 standalone and 7.10 with an ideal subwoofer. A 93dB sensitivity and 450W handling deliver a 132dB peak rating from a 10kg cabinet, and the rotatable 90° x 60° coaxial horn suits horizontal or vertical placement. Measured bass extension of 85Hz (-3dB).

Cons: Bass reaches only about 85Hz (-3dB), and listening-window narrow-band deviation is 0.321, so the tonal balance is less even than the best 8-inch models. It is passive, so an amplifier and processor with EAW presets are needed to play it.

Full EAW MKC80 review and specifications →

AES Input	No
Amplifier Power	Passive speaker; requires external amplification within the 450W handling rating
Aux Input	No
Bass Extension (-3dB)	85Hz (measured, vendor Spinorama data)
Bluetooth	No
Coaxial Input	No
Configuration	Passive 2-way coaxial PA speaker
Coverage	90° x 60° (rotatable)
DSP	No (passive)
Dimensions	16.6”H x 10”W x 10.5”D (422 x 255 x 267 mm)
Drivers	8” cone woofer with 2” voice coil, 1” exit compression driver with CSA coaxial loading
Frequency Response	60Hz - 20kHz (manufacturer specified)
Guitar Input	No
HDMI Input	No
Maximum SPL	132dB (manufacturer specified)
Microphone Input	No
Optical Input	No
Passive	Yes
Power Handling	450W at 8 ohms (manufacturer specified)
RCA Input	No
Rigging	Integrated M10 mounting points, pole mount
Sensitivity	93dB
Spinorama Preference Score	4.08
Spinorama Preference Score with Perfect Sub	7.10
TRS Input	No
USB Input	No
Weight	22 lbs (10 kg)
XLR Input	No

• Links
  • EAW MKC80 Product Page
• Reviews, Comparisons and Sound Samples
  • Spinorama Measurements
• Head-to-Head Comparisons
  • EAW MKC80 vs Vue Audiotechnik A-8
  • EAW MKC80 vs DAS Audio ARTEC 508A
  • EAW MKC80 vs L-Acoustics X8
  • EAW MKC80 vs Meyer Sound Ultra X40

Ranked #10 of 44 in 8-Inch PA Speakers - Alcons Audio VR8 Passive Estimated eBay

Same family: the Alcons Audio VR5 V1 (smaller model, rated 4/5) and the Alcons Audio VR12 (larger model, estimated 4/5).

Pros: A passive pro-ribbon point source from Alcons’ VR series, a larger sibling of the measured Alcons Audio VR5 V1: an 8” woofer under Alcons’ 4” RBN401 pro-ribbon, the same ribbon type used in the VR5. The ribbon’s low distortion and controlled horizontal pattern are what lift the measured VR5 near the top of the compact class.

Cons: No independent measurements yet, so it can’t be compared with ranked PA speakers. It needs an Alcons Sentinel amplifier and controller preset for its rated response, and Alcons sells only through dealers, so there is no retail price.

Full Alcons Audio VR8 review and specifications →

Amplifier Power	Passive speaker; requires external amplification
Bass Extension (-3dB)	74Hz (manufacturer specified)
Bluetooth	No
Configuration	Passive 2-way pro-ribbon PA speaker
DSP	No (passive)
Drivers	8” woofer, RBN401 4” pro-ribbon driver
Maximum SPL	128dB peak (manufacturer specified)
Passive	Yes
Weight	26.5 lbs (12 kg)
XLR Input	No

• Links
  • Alcons Audio VR8 Product Page
• Reviews, Comparisons and Sound Samples
  • No independent measurement review is linked for this model; it is ranked from hands-on listening and comparison against similarly priced speakers.

Ranked #13 of 44 in 8-Inch PA Speakers - One Systems 108HTH Passive eBay

Pros: Manufacturer measurements give the best result in this group of weatherproof installation speakers: preference scores of 3.25 standalone and 6.11 with an ideal subwoofer. Bass reaches about 52Hz at -10dB, deep for an 8-inch design, and the IP56 cabinet with 70V/100V taps suits outdoor bars, patios and pool areas. Measured bass extension of 118Hz (-3dB).

Cons: The treble is rolled off on axis, with response quoted only to 16kHz, so it sounds less airy than the flattest 8-inch models. It is passive and needs an amplifier, and it is sold through pro dealers with no published price.

Full One Systems 108HTH review and specifications →

AES Input	No
Amplifier Power	Passive speaker; requires external amplification
Aux Input	No
Bass Extension (-10dB)	about 52.1Hz (measured, vendor Spinorama data)
Bass Extension (-3dB)	118Hz (measured, vendor Spinorama data)
Bluetooth	No
Coaxial Input	No
Configuration	Passive 2-way PA speaker, IP56 weather rated
Coverage	105° x 60° or 60° x 40° (rotatable horn)
DSP	No (passive)
Dimensions	19”H x 9.6”W x 10.7”D (483 x 243 x 271 mm)
Drivers	8” woofer, compression driver on a rotatable horn
Frequency Response	65Hz - 16kHz (manufacturer specified)
Guitar Input	No
HDMI Input	No
Impedance	8 ohms, with 70V/100V taps
Microphone Input	No
Optical Input	No
Passive	Yes
Power Handling	200W continuous / 800W peak
RCA Input	No
Rigging	7 x M8 rigging points; optional pole mount and brackets
Sensitivity	92dB
Spinorama Preference Score	3.25
Spinorama Preference Score with Perfect Sub	6.11
TRS Input	No
USB Input	No
Weight	36.4 lbs (16.5 kg)
XLR Input	No

• Links
  • One Systems 108HTH Data Sheet
• Reviews, Comparisons and Sound Samples
  • Spinorama Measurements

Ranked #16 of 44 in 8-Inch PA Speakers - Coda Audio HOPS8 Passive eBay

Same family: the Coda Audio HOPS5 (smaller model, rated 3.8/5) and the Coda Audio HOPS12i-Pro (larger model, estimated 3/5).

Pros: High-quality manufacturer measurements give preference scores of 2.82 standalone and 5.53 with an ideal subwoofer, and bass reaches 63Hz at -3dB, deep for an 8-inch design. An 8-inch woofer plus an 8-inch coaxial driver with a 1.75-inch compression driver gives wide 100° conical coverage. It is rated at 98dB sensitivity and a 133.5dB peak from a 12kg cabinet. Measured bass extension of 63Hz (-3dB).

Cons: Listening-window deviation of 0.586 means the tonal balance is less even than the best 8-inch models, and a 3.69 directivity-index deviation means off-axis tone varies. It is passive and needs an amplifier with Coda presets. It is sold through pro dealers with no published price.

Full Coda Audio HOPS8 review and specifications →

AES Input	No
Amplifier Power	Passive speaker; requires external amplification
Aux Input	No
Bass Extension (-10dB)	about 56.8Hz (measured, vendor Spinorama data)
Bass Extension (-3dB)	63Hz (measured, vendor Spinorama data)
Bluetooth	No
Coaxial Input	No
Configuration	Passive 2-way PA speaker
Coverage	100° conical
DSP	No (passive)
Dimensions	21.3”H x 9.1”W x 10.9”D (540 x 230 x 278 mm)
Drivers	8” woofer, 8” coaxial driver with 1.75” compression driver
Frequency Response	60Hz - 20kHz (-6dB, manufacturer specified)
Guitar Input	No
HDMI Input	No
Impedance	8 ohms
Maximum SPL	133.5dB peak (manufacturer specified)
Microphone Input	No
Optical Input	No
Passive	Yes
Power Handling	450W AES / 1,800W peak
RCA Input	No
Rigging	CODA mobile suspension and flange adapter; optional U- and L-brackets
Sensitivity	98dB
Spinorama Preference Score	2.82
Spinorama Preference Score with Perfect Sub	5.53
TRS Input	No
USB Input	No
Weight	26.5 lbs (12 kg)
XLR Input	No

• Links
  • Coda Audio HOPS8 Product Page
• Reviews, Comparisons and Sound Samples
  • Spinorama Measurements
• Head-to-Head Comparisons
  • Coda Audio HOPS8 vs LD Systems Stinger 8-A-G3
  • Coda Audio HOPS8 vs Meyer Sound Ultra X40
  • Coda Audio HOPS8 vs LD Systems Stinger 28-A-G3
  • Coda Audio HOPS8 vs DAS Audio ARTEC 508A

Ranked #18 of 44 in 8-Inch PA Speakers - Seeburg X2: $1,059.00 Passive Thomann eBay

Same family: the Seeburg X1 (smaller model, rated 3.4/5), the Seeburg X4 (larger model, rated 3.9/5), the Seeburg X6 (larger model, rated 3.9/5) and the Seeburg X8 (larger model, rated 3.5/5).

Pros: The 8kg coaxial cabinet has a rotatable 90° x 60° horn, M10 rigging points and a pole flange. Vendor Spinorama data gives preference scores of 3.39 standalone and 6.64 with an ideal subwoofer, with predicted in-room smoothness of 0.645. Measured bass extension of 90Hz (-3dB).

Cons: Bass reaches only about 90Hz (-3dB), and listening-window narrow-band deviation is 0.466, so it needs a subwoofer and sounds uneven in the midrange. It is passive, needs an external amplifier, and costs more than powered 8-inch competitors that measure similarly.

Full Seeburg X2 review and specifications →

AES Input	No
Amplifier Power	Passive speaker; requires external amplification within the 250W AES / 750W peak handling rating
Aux Input	No
Bass Extension (-3dB)	90Hz (measured, vendor Spinorama data)
Bluetooth	No
Coaxial Input	No
Configuration	Passive 2-way coaxial PA speaker
Coverage	90° x 60° (rotatable horn)
DSP	No (passive)
Dimensions	14.8”H x 9.8”W x 9.8”D (375 x 250 x 250 mm)
Drivers	8” neodymium woofer, 1” neodymium compression driver (coaxial)
Frequency Response	70Hz - 19kHz (-6dB, manufacturer specified)
Guitar Input	No
HDMI Input	No
Inputs	Two Speakon NL4 connectors
Maximum SPL	124dB (manufacturer specified)
Microphone Input	No
Optical Input	No
Passive	Yes
Power Handling	250W AES / 750W peak (manufacturer specified)
RCA Input	No
Rigging	M10 rigging points, 35mm stand flange
Spinorama Preference Score	3.39
Spinorama Preference Score with Perfect Sub	6.64
TRS Input	No
USB Input	No
Weight	17.6 lbs (8.0 kg)
XLR Input	No

• Links
  • Seeburg X2 Product Page
• Reviews, Comparisons and Sound Samples
  • Spinorama Measurements
• Head-to-Head Comparisons
  • Seeburg X2 vs LD Systems Stinger 28-A-G3
  • Seeburg X2 vs DAS Audio ARTEC 508A
  • Seeburg X2 vs RCF ART 708-A MK5
  • Seeburg X2 vs Vue Audiotechnik A-8

Ranked #20 of 44 in 8-Inch PA Speakers - Fulcrum Acoustic RX8 Passive eBay

Same family: the Fulcrum Acoustic RX4 (smaller model, rated 3.2/5), the Fulcrum Acoustic RX5 (smaller model, rated 3.3/5) and the Fulcrum Acoustic RX6 (smaller model, rated 3.7/5).

Pros: Vendor measurements give preference scores of 2.49 standalone and 5.91 with an ideal subwoofer, and the on-axis response is very even (0.78dB average deviation). At 6.4kg it is light for an 8-inch coaxial, and the 16 ohm load lets several share one amplifier channel. Measured bass extension of 109Hz (-3dB).

Cons: Bass rolls off early for an 8-inch speaker, at about 109Hz (-3dB) and 86Hz (-10dB), so pair it with a subwoofer. Its directivity index varies more than the Fulcrum Acoustic RX6 (5.05dB deviation), so off-axis tone changes more. It is passive and sold through pro dealers with no published price.

Full Fulcrum Acoustic RX8 review and specifications →

AES Input	No
Amplifier Power	Passive speaker; requires external amplification
Aux Input	No
Bass Extension (-10dB)	about 85.8Hz (measured, vendor Spinorama data)
Bass Extension (-3dB)	109Hz (measured, vendor Spinorama data)
Bluetooth	No
Coaxial Input	No
Configuration	Passive 2-way coaxial PA speaker
Coverage	90° x 75°
DSP	No (passive)
Dimensions	9”H x 12.7”W x 9.3”D (229 x 323 x 235 mm)
Drivers	8” woofer with 2” voice coil, coaxial 1” compression driver
Guitar Input	No
HDMI Input	No
Impedance	16 ohms
Maximum SPL	122dB peak / 116dB continuous (manufacturer specified)
Microphone Input	No
Optical Input	No
Passive	Yes
Power Handling	200W at 16 ohms
RCA Input	No
Rigging	2 x M6 yoke points; 2 x M6 rear points; VESA 75 mounting points
Sensitivity	93dB
Spinorama Preference Score	2.49
Spinorama Preference Score with Perfect Sub	5.91
TRS Input	No
USB Input	No
Weight	14.1 lbs (6.4 kg)
XLR Input	No

• Links
  • Fulcrum Acoustic RX Series
• Reviews, Comparisons and Sound Samples
  • Spinorama Measurements

Ranked #22 of 44 in 8-Inch PA Speakers - One Systems 208HTC Passive eBay

Pros: Two 8-inch woofers give bass to about 66Hz at -10dB and 96dB sensitivity, and manufacturer measurements give a preference score of 5.14 with an ideal subwoofer. The weatherized cabinet with 70V/100V taps suits outdoor and distributed systems. Measured bass extension of 118Hz (-3dB).

Cons: The on-axis response is uneven (1.83dB average deviation) with treble quoted only to 16kHz, and it scores 1.57 without a subwoofer. It is passive, weighs 19.5kg, and is sold through pro dealers with no published price.

Full One Systems 208HTC review and specifications →

AES Input	No
Amplifier Power	Passive speaker; requires external amplification
Aux Input	No
Bass Extension (-10dB)	about 66.4Hz (measured, vendor Spinorama data)
Bass Extension (-3dB)	118Hz (measured, vendor Spinorama data)
Bluetooth	No
Coaxial Input	No
Configuration	Passive 2-way PA speaker, weather rated
Coverage	70° conical
DSP	No (passive)
Drivers	2 x 8” woofers (upper one coaxial with titanium compression driver)
Frequency Response	65Hz - 16kHz (manufacturer specified)
Guitar Input	No
HDMI Input	No
Impedance	4 ohms, with 70V/100V taps
Microphone Input	No
Optical Input	No
Passive	Yes
Power Handling	400W continuous / 1,600W peak
RCA Input	No
Rigging	7 x M8 rigging points; optional pole mount and pan/tilt brackets
Sensitivity	96dB
Spinorama Preference Score	1.57
Spinorama Preference Score with Perfect Sub	5.14
TRS Input	No
USB Input	No
Weight	43 lbs (19.5 kg)
XLR Input	No

• Links
  • One Systems 208HTC Data Sheet
• Reviews, Comparisons and Sound Samples
  • Spinorama Measurements

Ranked #23 of 44 in 8-Inch PA Speakers - Coda Audio G308 Passive Estimated eBay

Same family: the Coda Audio G512 (larger model, rated 3.6/5), the Coda Audio G515 (larger model, rated 3.7/5), the Coda Audio G712 (larger model, rated 3.8/5) and the Coda Audio G715 (larger model, rated 3.8/5).

Pros: The 8-inch model of Coda’s G-Series multidesign boxes, smaller than the measured Coda Audio G512 and Coda Audio G515. An 8” low-distortion woofer and a 1” compression driver on a 90° conical wooden waveguide cover 60Hz to 30kHz (-6dB) with 220W AES handling, and the cabinet works upright, on its side or as a floor monitor.

Cons: No independent measurements yet, so it can’t be compared with ranked PA speakers. It needs an external amplifier and controller and is sold only through Coda dealers, so there is no retail price.

Full Coda Audio G308 review and specifications →

Amplifier Power	Passive speaker; requires external amplification
Bluetooth	No
Configuration	Passive 2-way multipurpose PA speaker
Coverage	90° conical
DSP	No (passive)
Drivers	8” woofer, 1” compression driver
Frequency Response	60Hz - 30kHz (-6dB, manufacturer specified)
Maximum SPL	124dB peak (manufacturer specified)
Passive	Yes
Power Handling	220W AES
Rigging	M6 and M8 threaded points; flange adapter; GFA flying adapter
Weight	20.9 lbs (9.5 kg)
XLR Input	No

• Links
  • Coda Audio G308-Pro Product Page
• Reviews, Comparisons and Sound Samples
  • No independent measurement review is linked for this model; it is ranked from hands-on listening and comparison against similarly priced speakers.
• Head-to-Head Comparisons
  • Coda Audio G308 vs Coda Audio G512
  • Coda Audio G308 vs Coda Audio G515
  • Coda Audio G308 vs Coda Audio G712
  • Coda Audio G308 vs Coda Audio G715

Ranked #25 of 44 in 8-Inch PA Speakers - Axiom ED80P: $950 Passive Discontinued eBay

Same family: the Axiom ED60P (smaller model, rated 3.3/5), the Axiom ED120A (larger model, rated 4/5) and the Axiom ED150A (larger model, rated 3.8/5).

Pros: High-quality vendor data returns a 4.9 ideal-subwoofer preference score. A 1-inch aluminum-voice-coil compression driver pairs with the 8-inch woofer in a compact passive point-source cabinet aimed at fixed-install and portable use.

Cons: Being passive, it needs an external amplifier and crossover, and Axiom has a much smaller North American dealer and service network than JBL, Yamaha or QSC. The vendor measurement’s implied bass reach should be treated with some skepticism for a cabinet this compact. Discontinued.

Full Axiom ED80P review and specifications →

AES Input	No
Amplifier Power	Passive speaker; use external amplification within the 280W AES / 560W program rating
Aux Input	No
Bluetooth	No
Cabinet Material	15mm reinforced phenolic birch plywood
Coaxial Input	No
Configuration	Passive 2-way full-range PA speaker
Coverage	60-120° horizontal (asymmetric), 55° vertical average
DSP	No (passive, requires external amplifier/DSP)
Dimensions	17.7”H x 9.8”W x 9.1”D (450 x 250 x 230 mm)
Drivers	8” woofer, 1” compression driver
Frequency Response	75Hz - 18kHz (-6dB, manufacturer specified)
Guitar Input	No
HDMI Input	No
Inputs	Two Neutrik speakON NL4 connectors (input and link)
Maximum SPL	124dB peak (manufacturer specified)
Microphone Input	No
Optical Input	No
Passive	Yes
Power Handling	280W AES / 560W program (manufacturer specified)
RCA Input	No
Rigging	M10 and M6 fly points; pole-mount socket
Spinorama Preference Score	3.48
Spinorama Preference Score with Perfect Sub	4.88
TRS Input	No
USB Input	No
Weight	17.6 lbs (8 kg)
XLR Input	No

• Links
  • Axiom ED80P Product Information
• Reviews, Comparisons and Sound Samples
  • Spinorama Measurements
• Head-to-Head Comparisons
  • Axiom ED80P vs RCF ART 708-A MK5
  • Axiom ED80P vs Vue Audiotechnik H-8
  • Axiom ED80P vs Martin Audio CDD8
  • Axiom ED80P vs FBT J8A

Ranked #27 of 44 in 8-Inch PA Speakers - Electro-Voice EVC-1082: $1,074.95 Passive B&H eBay

Same family: the Electro-Voice EVC-1122 (larger model, rated 3.2/5) and the Electro-Voice EVC-1152 (larger model, rated 3.3/5).

Pros: Vendor measurements give preference scores of 2.27 standalone and 5.02 with an ideal subwoofer, the best of the EVC models here, and bass reaches 67Hz (-3dB) and about 56Hz (-10dB), deep for an 8-inch cabinet. The rotatable waveguide lets it mount vertically or horizontally. Measured bass extension of 67Hz (-3dB).

Cons: The listening window spreads across a 4.2dB band, so the tonal balance changes off axis. Sensitivity is a modest 91dB with a 120dB maximum, and it is passive, so it needs an amplifier.

Full Electro-Voice EVC-1082 review and specifications →

AES Input	No
Amplifier Power	Passive speaker; requires external amplification
Aux Input	No
Bass Extension (-10dB)	about 55.7Hz (measured, vendor Spinorama data)
Bass Extension (-3dB)	67Hz (measured, vendor Spinorama data)
Bluetooth	No
Coaxial Input	No
Configuration	Passive 2-way installation PA speaker
Coverage	90° x 60° (rotatable)
DSP	No (passive)
Drivers	8” EVS-2008 woofer, 1.25” titanium compression driver on a rotatable waveguide
Frequency Response	75Hz - 21kHz (manufacturer specified)
Guitar Input	No
HDMI Input	No
Impedance	8 ohms
Maximum SPL	120dB (manufacturer calculated)
Microphone Input	No
Optical Input	No
Passive	Yes
Power Handling	200W continuous
RCA Input	No
Rigging	8 x M10 flying points; optional U-bracket or wall mount
Sensitivity	91dB
Spinorama Preference Score	2.27
Spinorama Preference Score with Perfect Sub	5.02
TRS Input	No
USB Input	No
Weight	24.7 lbs (11.2 kg)
XLR Input	No

• Links
  • Electro-Voice EVC-1082-96 Product Page
• Reviews, Comparisons and Sound Samples
  • Spinorama Measurements

Ranked #28 of 44 in 8-Inch PA Speakers - Fulcrum Acoustic P8 Passive eBay

Pros: Very high 101dB sensitivity and a 125dB peak from a 7.3kg coaxial cabinet, with wide 100° conical coverage. Vendor measurements give a preference score of 4.81 with an ideal subwoofer. Measured bass extension of 132Hz (-3dB).

Cons: The listening window spreads across a 6.4dB band, the widest in this group, so the tonal balance is uneven, and it scores only 0.99 standalone. Bass stops near 132Hz (-3dB), so it needs a subwoofer. It is passive and sold through pro dealers with no published price.

Full Fulcrum Acoustic P8 review and specifications →

AES Input	No
Amplifier Power	Passive speaker; requires external amplification
Aux Input	No
Bass Extension (-10dB)	about 94.0Hz (measured, vendor Spinorama data)
Bass Extension (-3dB)	132Hz (measured, vendor Spinorama data)
Bluetooth	No
Coaxial Input	No
Configuration	Passive 2-way coaxial PA speaker
Coverage	100° conical
DSP	No (passive)
Dimensions	9.8”H x 12.3”W x 11.6”D (250 x 313 x 294 mm)
Drivers	8” woofer with 2” voice coil, coaxial 1.7” titanium compression driver
Frequency Response	90Hz - 20kHz (operating range)
Guitar Input	No
HDMI Input	No
Maximum SPL	125dB (manufacturer specified)
Microphone Input	No
Optical Input	No
Passive	Yes
Power Handling	250W
RCA Input	No
Sensitivity	101dB
Spinorama Preference Score	0.99
Spinorama Preference Score with Perfect Sub	4.81
TRS Input	No
USB Input	No
Weight	16.1 lbs (7.3 kg)
XLR Input	No

• Reviews, Comparisons and Sound Samples
  • Spinorama Measurements

Ranked #31 of 44 in 8-Inch PA Speakers - Martin Audio CDD8 Passive eBay

Same family: the Martin Audio CDD-LIVE 8 (smallest powered model, ranked higher, estimated 3.4/5), the Martin Audio CDD-LIVE 12 (powered model, estimated 3.1/5), the Martin Audio CDD-LIVE 15 (largest powered model, estimated 3.5/5), the Martin Audio CDD5 (smaller passive model, estimated 3/5), the Martin Audio CDD6 (smaller passive model, estimated 3.1/5), the Martin Audio CDD10 (larger passive model, rated 3.1/5), the Martin Audio CDD12 (larger passive model, rated 2.9/5) and the Martin Audio CDD15 (larger passive model, rated 3.3/5).

Pros: Medium-quality vendor data shows a 4.1 ideal-subwoofer preference score. The coaxial Differential Dispersion driver gives point-source summation of the LF and HF sections for consistent coverage, and the ultra-compact enclosure mounts horizontally or vertically for on-wall installation use. Measured bass extension of 128Hz (-3dB).

Cons: Being passive, it needs an external amplifier and crossover, and its compact on-wall design targets installed foreground music over full PA main duty.

Full Martin Audio CDD8 review and specifications →

AES Input	No
Amplifier Power	Passive speaker; use external amplification within the 200W AES / 800W peak handling rating
Aux Input	No
Bass Extension (-3dB)	128Hz (measured, vendor Spinorama data)
Bluetooth	No
Cabinet Material	Composite material
Coaxial Input	No
Configuration	Passive 2-way coaxial PA speaker
Coverage	80-110° horizontal (user-rotatable), 60° vertical
Crossover Frequency	2.3kHz passive
DSP	No (passive; used with a DX-series controller or MA Series amplifier for EQ and limiter presets)
Dimensions	16.1”H x 10.1”W x 9.9”D (410 x 256 x 252 mm)
Drivers	8” coaxial woofer, 1” exit compression driver
Frequency Response	70Hz - 20kHz (±3dB, manufacturer specified); 55Hz (-10dB)
Guitar Input	No
HDMI Input	No
Inputs	Low-profile 13A push-lock input and link
Maximum SPL	123dB peak / 117dB continuous
Microphone Input	No
Optical Input	No
Passive	Yes
Power Handling	200W AES / 800W peak (manufacturer specified)
RCA Input	No
Rigging	Six M6 inserts for wall/ceiling brackets
Spinorama Preference Score	1.11
Spinorama Preference Score with Perfect Sub	4.14
TRS Input	No
USB Input	No
Weight	20.9 lbs (9.5 kg)
XLR Input	No

• Links
  • Martin Audio CDD8 Product Page
• Reviews, Comparisons and Sound Samples
  • Spinorama Measurements
• Head-to-Head Comparisons
  • Martin Audio CDD8 vs RCF ART 708-A MK4
  • Martin Audio CDD8 vs RCF ART 708-A MK5
  • Martin Audio CDD8 vs Axiom ED80P
  • Martin Audio CDD8 vs Audiofocus VENU 8a

Ranked #32 of 44 in 8-Inch PA Speakers - Biamp Community IC6-1082 Passive eBay

Same family: the Biamp Community IC6-1062 (smaller model, rated 3.2/5).

Pros: Deep bass for an 8-inch installation speaker, reaching 75Hz at -3dB and about 60Hz at -10dB in vendor measurements, with 94dB sensitivity and a 124dB peak for houses of worship and conference halls. Measured bass extension of 75Hz (-3dB).

Cons: Preference scores of 1.40 standalone and 4.15 with an ideal subwoofer are low, because the listening window drifts across a 3.7dB band and off-axis tone varies. It is passive and sold through installation dealers with no published price.

Full Biamp Community IC6-1082 review and specifications →

AES Input	No
Amplifier Power	Passive speaker; requires external amplification
Aux Input	No
Bass Extension (-10dB)	about 60.3Hz (measured, vendor Spinorama data)
Bass Extension (-3dB)	75Hz (measured, vendor Spinorama data)
Bluetooth	No
Coaxial Input	No
Configuration	Passive 2-way installation PA speaker
Coverage	120° x 60° or 90° x 60°
DSP	No (passive)
Dimensions	18.7”H x 10.4”W x 10.6”D (476 x 264 x 270 mm)
Drivers	8” woofer, compression driver
Guitar Input	No
HDMI Input	No
Impedance	8 ohms
Maximum SPL	124dB peak / 118dB continuous (manufacturer specified)
Microphone Input	No
Optical Input	No
Passive	Yes
RCA Input	No
Rigging	7 x M10 and 4 x M8 rigging inserts
Sensitivity	94dB
Spinorama Preference Score	1.40
Spinorama Preference Score with Perfect Sub	4.15
TRS Input	No
USB Input	No
Weight	24.9 lbs (11.3 kg)
XLR Input	No

• Reviews, Comparisons and Sound Samples
  • Spinorama Measurements

Ranked #33 of 44 in 8-Inch PA Speakers - Bose AMM108 Passive B&H eBay

Same family: the Bose AMM112 (larger model, rated 3.3/5).

Pros: High-quality manufacturer measurements show a smooth on-axis response (0.76dB average deviation), and the compact wedge cabinet doubles as a fill or floor monitor with 110° x 60° coverage and a 128dB peak. Measured bass extension of 87.5Hz (-3dB).

Cons: Preference scores of 1.09 standalone and 4.34 with an ideal subwoofer are low because the listening window spreads across 4.4dB. Bass reaches only 88Hz at -3dB, so it needs a subwoofer for music. It is passive.

Full Bose AMM108 review and specifications →

AES Input	No
Amplifier Power	Passive speaker; requires external amplification
Aux Input	No
Bass Extension (-10dB)	about 76.0Hz (measured, vendor Spinorama data)
Bass Extension (-3dB)	87.5Hz (measured, vendor Spinorama data)
Bluetooth	No
Coaxial Input	No
Configuration	Passive 2-way coaxial PA speaker
Coverage	110° x 60°
DSP	No (passive)
Dimensions	12.5”H x 12.5”W x 10.6”D (318 x 318 x 268 mm)
Drivers	8” coaxial woofer and compression driver
Frequency Response	88Hz - 17kHz (-3dB, manufacturer specified)
Guitar Input	No
HDMI Input	No
Maximum SPL	128dB peak (manufacturer calculated)
Microphone Input	No
Optical Input	No
Passive	Yes
RCA Input	No
Rigging	35mm pole cup; 4 x M8 inserts; 6 x M10 inserts
Sensitivity	94dB
Spinorama Preference Score	1.09
Spinorama Preference Score with Perfect Sub	4.34
TRS Input	No
USB Input	No
Weight	28.7 lbs (13 kg)
XLR Input	No

• Links
  • Bose AMM108 Product Page
• Reviews, Comparisons and Sound Samples
  • Spinorama Measurements

Ranked #34 of 44 in 8-Inch PA Speakers - DB Audiotechnik 8S Passive eBay

Same family: the DB Audiotechnik 4S (smaller model, estimated 3.2/5), the DB Audiotechnik 42S (smaller model, estimated 3.5/5), the DB Audiotechnik 44S (smaller model, rated 3.6/5), the DB Audiotechnik 5S (smaller model, estimated 3.3/5), the DB Audiotechnik 10S (larger model, rated 3.7/5), the DB Audiotechnik 12S (larger model, rated 3.8/5) and the DB Audiotechnik 24S (larger model, rated 3.8/5).

Pros: A 127dB maximum from a 7.4kg coaxial cabinet with wide 100° conical coverage, and bass reaches about 66Hz at -10dB in vendor measurements. Measured bass extension of 106Hz (-3dB).

Cons: Preference scores of 0.93 standalone and 4.01 with an ideal subwoofer are the lowest in this group, because the listening window spreads across a 3.8dB band. It is passive, needs d&b amplifiers and presets, and is sold only through d&b dealers with no published price.

Full DB Audiotechnik 8S review and specifications →

AES Input	No
Amplifier Power	Passive speaker; requires external amplification
Aux Input	No
Bass Extension (-10dB)	about 65.6Hz (measured, vendor Spinorama data)
Bass Extension (-3dB)	106Hz (measured, vendor Spinorama data)
Bluetooth	No
Coaxial Input	No
Configuration	Passive 2-way coaxial PA speaker
Coverage	100° x 100°
DSP	No (passive)
Dimensions	13.9”H x 8.8”W x 8.1”D (352 x 224 x 205 mm)
Drivers	8” woofer, coaxial 1” compression driver
Frequency Response	70Hz - 20kHz (manufacturer specified)
Guitar Input	No
HDMI Input	No
Impedance	12 ohms
Maximum SPL	127dB (manufacturer specified)
Microphone Input	No
Optical Input	No
Passive	Yes
Power Handling	800W peak
RCA Input	No
Rigging	M8 inserts in top and bottom panels; 2 x M8 inserts on rear
Spinorama Preference Score	0.93
Spinorama Preference Score with Perfect Sub	4.01
TRS Input	No
USB Input	No
Weight	16.3 lbs (7.4 kg)
XLR Input	No

• Links
  • d&b audiotechnik 8S Product Page
• Reviews, Comparisons and Sound Samples
  • Spinorama Measurements

Ranked #36 of 44 in 8-Inch PA Speakers - Martin Audio FlexPoint FP8 Passive eBay

Same family: the Martin Audio FlexPoint FP4 (smaller model, rated 3/5), the Martin Audio FlexPoint FP6 (smaller model, rated 3/5), the Martin Audio FlexPoint FP12 (larger model, rated 3/5) and the Martin Audio FlexPoint FP15 (larger model, rated 2.7/5).

Pros: Deep bass for an 8-inch speaker, reaching 58Hz at -3dB and about 47Hz at -10dB in vendor measurements, with a smooth on-axis response (0.44dB average deviation) and 94dB sensitivity. Measured bass extension of 58Hz (-3dB).

Cons: Preference scores of 1.19 standalone and 3.51 with an ideal subwoofer are low because the listening window spreads across 4.8dB, so off-axis listeners hear a different balance. It is passive.

Full Martin Audio FlexPoint FP8 review and specifications →

AES Input	No
Amplifier Power	Passive speaker; requires external amplification
Aux Input	No
Bass Extension (-10dB)	about 46.7Hz (measured, vendor Spinorama data)
Bass Extension (-3dB)	58Hz (measured, vendor Spinorama data)
Bluetooth	No
Coaxial Input	No
Configuration	Passive 2-way PA speaker
DSP	No (passive)
Drivers	8” woofer, compression driver
Guitar Input	No
HDMI Input	No
Maximum SPL	124dB peak / 118dB continuous (manufacturer specified)
Microphone Input	No
Optical Input	No
Passive	Yes
RCA Input	No
Rigging	4 x M10 and 15 x M6 inserts; dual-angle pole socket
Sensitivity	94dB
Spinorama Preference Score	1.19
Spinorama Preference Score with Perfect Sub	3.51
TRS Input	No
USB Input	No
Weight	20.5 lbs (9.3 kg)
XLR Input	No

• Links
  • Martin Audio FlexPoint FP8 Product Page
• Reviews, Comparisons and Sound Samples
  • Spinorama Measurements

Ranked #37 of 44 in 8-Inch PA Speakers - Tannoy VX8: $1,138.00 per pair Passive Estimated B&H Photo Video eBay

Same family: the Tannoy VX6 (smaller model, estimated 2.9/5), the Tannoy VX12 (larger model, rated 3.1/5) and the Tannoy VX15HP (larger model, estimated 3.1/5).

Pros: A passive model from Tannoy’s VX range alongside the measured Tannoy VX12: the 8” model, with a little more output and bass than the VX 6. Every VX uses a Dual Concentric driver with the tweeter in the center of the woofer, so the sound comes from one point and stays consistent off axis. Tannoy rates it at 92dB sensitivity and 119dB peak / 113dB average.

Cons: No independent measurements yet, so it can’t be compared with ranked PA speakers. It needs an external amplifier, ideally with Tannoy’s recommended EQ, and US dealers list it as a special order with long lead times.

Full Tannoy VX8 review and specifications →

Amplifier Power	Passive speaker; requires external amplification
Bass Extension (-3dB)	85Hz (manufacturer specified)
Bluetooth	No
Configuration	Passive Dual Concentric PA speaker
DSP	No (passive)
Drivers	8” Dual Concentric driver
Frequency Response	85Hz - 35kHz (-3dB), 62Hz (-10dB) (manufacturer specified)
Impedance	8 ohms
Maximum SPL	119dB peak / 113dB average (manufacturer specified)
Passive	Yes
Power Handling	130W average / 520W peak
Rigging	M10 flying and yoke inserts; M6 inserts; optional pole mount
Sensitivity	92dB
Weight	17.9 lbs (8.1 kg)
XLR Input	No

• Links
  • Tannoy VX8 Product Page
• Reviews, Comparisons and Sound Samples
  • No independent measurement review is linked for this model; it is ranked from hands-on listening and comparison against similarly priced speakers.

Ranked #38 of 44 in 8-Inch PA Speakers - Novacoustic Pariz P28 Passive eBay

Pros: Very high 100dB sensitivity and a 136dB maximum from two 8-inch woofers, with bass to 78Hz at -3dB and about 66Hz at -10dB in vendor measurements. Measured bass extension of 77.5Hz (-3dB).

Cons: Preference scores of -0.19 standalone and 2.83 with an ideal subwoofer are low, with an uneven on-axis response (1.17dB average deviation). It is passive and sold through pro dealers with no published price.

Full Novacoustic Pariz P28 review and specifications →

AES Input	No
Amplifier Power	Passive speaker; requires external amplification
Aux Input	No
Bass Extension (-10dB)	about 65.6Hz (measured, vendor Spinorama data)
Bass Extension (-3dB)	77.5Hz (measured, vendor Spinorama data)
Bluetooth	No
Coaxial Input	No
Configuration	Passive 2-way PA speaker
Coverage	90° x 40°
DSP	No (passive)
Dimensions	23.2”H x 10.6”W x 13”D (590 x 270 x 330 mm)
Drivers	2 x 8” carbon cone woofers, 1.4” compression driver
Frequency Response	75Hz - 18kHz (±3dB, manufacturer specified)
Guitar Input	No
HDMI Input	No
Maximum SPL	136dB (manufacturer specified)
Microphone Input	No
Optical Input	No
Passive	Yes
Power Handling	1,000W RMS
RCA Input	No
Rigging	16 x M8 mounting points; self-locking U-bracket system
Sensitivity	100dB
Spinorama Preference Score	-0.19
Spinorama Preference Score with Perfect Sub	2.83
TRS Input	No
USB Input	No
Weight	39.7 lbs (18 kg)
XLR Input	No

• Links
  • Novacoustic P28 Product Page
• Reviews, Comparisons and Sound Samples
  • Spinorama Measurements

Ranked #39 of 44 in 8-Inch PA Speakers - Biamp Community V2-8 Passive eBay

Same family: the Biamp Community V2-6 (smaller model, rated 2.8/5), the Biamp Community V2-26 (smaller model, rated 2.8/5), the Biamp Community V2-28 (larger model, ranked lower, rated 2.4/5), the Biamp Community V2-3294 (larger model, rated 2.7/5) and the Biamp Community V2-3594 (larger model, rated 2.7/5).

Pros: A smooth on-axis response (0.43dB average deviation in vendor measurements) and 92dB sensitivity in a compact installation cabinet. Measured bass extension of 100Hz (-3dB).

Cons: Bass rolls off at 100Hz (-3dB), early for an 8-inch woofer, so it scores -0.64 standalone and 2.72 with an ideal subwoofer. It is passive and sold through installation dealers.

Full Biamp Community V2-8 review and specifications →

AES Input	No
Amplifier Power	Passive speaker; requires external amplification
Aux Input	No
Bass Extension (-10dB)	about 65.1Hz (measured, vendor Spinorama data)
Bass Extension (-3dB)	100Hz (measured, vendor Spinorama data)
Bluetooth	No
Coaxial Input	No
Configuration	Passive 2-way installation PA speaker
DSP	No (passive)
Drivers	8” woofer, compression driver
Frequency Response	70Hz - 18kHz (-10dB, manufacturer specified)
Guitar Input	No
HDMI Input	No
Impedance	8 ohms
Maximum SPL	120dB peak (manufacturer specified)
Microphone Input	No
Optical Input	No
Passive	Yes
Power Handling	150W continuous / 375W program
RCA Input	No
Rigging	9 x M6 rigging points; 4 x M6 third-party fittings; yoke bracket
Sensitivity	92dB
Spinorama Preference Score	-0.64
Spinorama Preference Score with Perfect Sub	2.72
TRS Input	No
USB Input	No
Weight	25.4 lbs (11.5 kg)
XLR Input	No

• Reviews, Comparisons and Sound Samples
  • Spinorama Measurements

Ranked #40 of 44 in 8-Inch PA Speakers - Novacoustic KIRA 8 Passive eBay

Same family: the Novacoustic KIRA 5 (smaller model, rated 2.5/5), the Novacoustic KIRA 10 (larger model, rated 2/5) and the Novacoustic KIRA 12 (larger model, rated 2.7/5).

Pros: A compact coaxial cabinet with 96dB sensitivity, a 123dB peak and 90° conical coverage, with bass to about 78Hz at -10dB. Measured bass extension of 118Hz (-3dB).

Cons: Preference scores of -1.23 standalone and 2.13 with an ideal subwoofer are low, because the listening window spreads across 7.7dB and bass rolls off at 118Hz (-3dB). It is passive.

Full Novacoustic KIRA 8 review and specifications →

AES Input	No
Amplifier Power	Passive speaker; requires external amplification
Aux Input	No
Bass Extension (-10dB)	about 77.7Hz (measured, vendor Spinorama data)
Bass Extension (-3dB)	118Hz (measured, vendor Spinorama data)
Bluetooth	No
Coaxial Input	No
Configuration	Passive 2-way coaxial PA speaker
Coverage	90° x 90°
DSP	No (passive)
Dimensions	9.8”H x 9.8”W x 9.8”D (250 x 250 x 250 mm)
Drivers	8” coaxial driver
Frequency Response	55Hz - 20kHz (manufacturer specified)
Guitar Input	No
HDMI Input	No
Impedance	8 ohms
Maximum SPL	123dB peak (manufacturer specified)
Microphone Input	No
Optical Input	No
Passive	Yes
Power Handling	250W RMS
RCA Input	No
Rigging	2 x M10 inserts with U-bracket; M5 wall mount points; optional stand adapter
Sensitivity	96dB
Spinorama Preference Score	-1.23
Spinorama Preference Score with Perfect Sub	2.13
TRS Input	No
USB Input	No
Weight	19.8 lbs (9 kg)
XLR Input	No

• Links
  • Novacoustic KIRA 8 Product Page
• Reviews, Comparisons and Sound Samples
  • Spinorama Measurements
• Head-to-Head Comparisons
  • Novacoustic KIRA 8 vs Novacoustic KIRA 5
  • Novacoustic KIRA 8 vs Novacoustic KIRA 10
  • Novacoustic KIRA 8 vs Novacoustic KIRA 12

Ranked #41 of 44 in 8-Inch PA Speakers - Rockville SPG88: $64.95 each Passive Amazon eBay

Pros: A budget passive PA speaker with an 8” woofer in an ABS cabinet. Measurements show a preference score of -0.89 that reaches 2.76 with an ideal subwoofer, with 0.95 listening window deviation. Measured bass extension of 111.5Hz (-3dB).

Cons: Bass is limited and the on-axis response is uneven (1.75 average deviation), and that data is low quality. Bass reaches 111.5Hz (-3dB) and about 79Hz (-10dB). That data is low quality.

Full Rockville SPG88 review and specifications →

Bass Extension (-10dB)	about 78.8Hz (measured, third-party data via spinorama.org)
Bass Extension (-3dB)	111.5Hz (measured, third-party data via spinorama.org)
Bluetooth	No
DIY Kit	No
Drivers	8” woofer, tweeter
Maximum SPL	119dB peak (manufacturer specified)
Passive	Yes
Rigging	35mm pole mount
Spinorama Preference Score	-0.89
Spinorama Preference Score with Perfect Sub	2.76
Weight	11.9 lbs (5.4 kg)

• Reviews, Comparisons and Sound Samples
  • Spinorama Measurements

Ranked #42 of 44 in 8-Inch PA Speakers - Biamp Community V2-28: $851.00 Passive Amazon eBay

Same family: the Biamp Community V2-6 (smaller model, rated 2.8/5), the Biamp Community V2-26 (smaller model, rated 2.8/5), the Biamp Community V2-8 (smaller model, ranked higher, rated 2.7/5), the Biamp Community V2-3294 (larger model, rated 2.7/5) and the Biamp Community V2-3594 (larger model, rated 2.7/5).

Pros: Two 8-inch woofers and 94dB sensitivity give more output than the single-woofer Biamp Community V2-8, with bass to about 59Hz at -10dB in vendor measurements. Measured bass extension of 90Hz (-3dB).

Cons: Preference scores of -1.6 standalone and 1.65 with an ideal subwoofer are among the lowest here, because the listening window spreads across a 9.9dB band. It is passive and weighs 16.7kg.

Full Biamp Community V2-28 review and specifications →

AES Input	No
Amplifier Power	Passive speaker; requires external amplification
Aux Input	No
Bass Extension (-10dB)	about 59.5Hz (measured, vendor Spinorama data)
Bass Extension (-3dB)	90Hz (measured, vendor Spinorama data)
Bluetooth	No
Coaxial Input	No
Configuration	Passive 2-way installation PA speaker
DSP	No (passive)
Drivers	2 x 8” woofers, compression driver
Frequency Response	60Hz - 18kHz (-10dB, manufacturer specified)
Guitar Input	No
HDMI Input	No
Maximum SPL	125dB peak (manufacturer specified)
Microphone Input	No
Optical Input	No
Passive	Yes
Power Handling	300W continuous / 750W program
RCA Input	No
Rigging	13 x M6 rigging inserts; yoke bracket included
Sensitivity	94dB
Spinorama Preference Score	-1.60
Spinorama Preference Score with Perfect Sub	1.65
TRS Input	No
USB Input	No
Weight	36.8 lbs (16.7 kg)
XLR Input	No

• Reviews, Comparisons and Sound Samples
  • Spinorama Measurements

Ranked #44 of 44 in 8-Inch PA Speakers - LYX SPA8PAS: $100 each Passive Discontinued eBay

Pros: A budget passive PA speaker with an 8” woofer. Measurements show a preference score of -3.34 that reaches 0.56 with an ideal subwoofer, with 1.23 listening window deviation. Measured bass extension of 123.4Hz (-3dB).

Cons: The response is very uneven, for a preference score of -3.34 that reaches only 0.56 with an ideal subwoofer, and that data is low quality. Its current availability could not be confirmed. Bass reaches 123.4Hz (-3dB) and about 99Hz (-10dB). That data is low quality. Discontinued.

Full LYX SPA8PAS review and specifications →

Bass Extension (-10dB)	about 98.9Hz (measured, third-party data via spinorama.org)
Bass Extension (-3dB)	123.4Hz (measured, third-party data via spinorama.org)
Bluetooth	No
DIY Kit	No
Drivers	8” woofer, tweeter
Passive	Yes
Spinorama Preference Score	-3.34
Spinorama Preference Score with Perfect Sub	0.56

• Reviews, Comparisons and Sound Samples
  • Spinorama Measurements

10-Inch PA Speakers

Ranked #7 of 39 in 10-Inch PA Speakers - Turbosound NuQ102: $530 Passive Discontinued eBay

Pros: Low-quality vendor data still shows a 5.5 ideal-subwoofer preference score with 63Hz measured extension. The coaxial point-source design gives symmetric 100° x 60° coverage, and being passive keeps amplification and DSP choices flexible for installers. Measured bass extension of 69Hz (-3dB).

Cons: Being passive, it needs an external amplifier and crossover to work at all, and its 124dB peak claim trails every active speaker in this ranking. Discontinued.

Full Turbosound NuQ102 review and specifications →

AES Input	No
Amplifier Power	Passive/bi-amp speaker; use external amplification within the 300W continuous / 1,200W peak handling rating
Aux Input	No
Bass Extension (-3dB)	69Hz (measured, vendor Spinorama data)
Bluetooth	No
Cabinet Material	12mm birch plywood
Coaxial Input	No
Configuration	Passive 2-way coaxial PA speaker
Coverage	100° x 60°
DSP	Yes, Klark Teknik DSP with dynamic EQ, limiting, position compensation, user EQ and subwoofer integration; LCD/rotary control plus USB for PC remote control
Dimensions	20.7”H x 12.5”W x 10.2”D (525 x 318 x 258 mm)
Drivers	10” coaxial woofer, compression driver
Frequency Response	55Hz - 18kHz (±3dB, manufacturer specified); 50Hz - 20kHz (-10dB)
Guitar Input	No
HDMI Input	No
Inputs	Two Neutrik speakON NL4 connectors
Maximum SPL	124dB peak (manufacturer specified)
Microphone Input	No
Optical Input	No
Passive	Yes
Power Handling	300W continuous / 1,200W peak (IEC, manufacturer specified)
RCA Input	No
Rigging	Eight M10, three M8 and four M6 fly points
Spinorama Preference Score	2.72
Spinorama Preference Score with Perfect Sub	5.47
TRS Input	No
USB Input	No
Weight	28 lbs (12.7 kg)
XLR Input	No

• Links
  • Turbosound NuQ102 Product Page
• Reviews, Comparisons and Sound Samples
  • Spinorama Measurements
• Head-to-Head Comparisons
  • Turbosound NuQ102 vs RCF KX 10-A
  • Turbosound NuQ102 vs LD Systems Stinger 10-A-G3
  • Turbosound NuQ102 vs HK Audio LINEAR 7 110 XA
  • Turbosound NuQ102 vs Yamaha DXR10mkIII

Ranked #9 of 39 in 10-Inch PA Speakers - Seeburg X4: $1,369 Passive Thomann eBay

Same family: the Seeburg X1 (smaller model, rated 3.4/5), the Seeburg X2 (smaller model, rated 3.6/5), the Seeburg X6 (larger model, rated 3.9/5) and the Seeburg X8 (larger model, rated 3.5/5).

Pros: Its 6.08 preference score with an ideal subwoofer places it in the upper half of this ranking, and its 1.8dB reference band keeps the midrange and treble tonally even. The coaxial 10-inch and 1-inch neodymium drivers keep sound consistent as listeners move around, with 0.66 predicted in-room smoothness. At 12.5kg with 97dB sensitivity and a 127dB peak rating, it also works as a stage monitor or pole-mounted top. Measured bass extension of 95Hz (-3dB).

Cons: Bass drops early, at 95Hz for -3dB and about 70Hz for -10dB, so a subwoofer is needed for full-range music. It is passive and needs an external amplifier and processor with Seeburg presets, unless you buy the self-powered X4 dp instead. A 4.26 directivity-index deviation means off-axis tone varies more than the best coaxials here.

Full Seeburg X4 review and specifications →

AES Input	No
Amplifier Power	Passive speaker; requires external amplification (self-powered X4 dp version available)
Aux Input	No
Bass Extension (-10dB)	about 70.3Hz (measured, vendor Spinorama data)
Bass Extension (-3dB)	95Hz (measured, vendor Spinorama data)
Bluetooth	No
Coaxial Input	No
Configuration	Passive 2-way coaxial PA speaker
Coverage	80° x 60° (rotatable)
DSP	No (passive)
Dimensions	17.7”H x 12.2”W x 11.4”D (450 x 310 x 290 mm)
Drivers	10” neodymium woofer (3” voice coil), coaxial 1” neodymium compression driver
Frequency Response	60Hz - 19kHz (-6dB, manufacturer specified)
Guitar Input	No
HDMI Input	No
Impedance	8 ohms
Maximum SPL	127dB peak (manufacturer specified)
Microphone Input	No
Optical Input	No
Passive	Yes
Power Handling	350W AES / 1,000W peak
RCA Input	No
Rigging	9x M10 points, 35mm pole mount
Sensitivity	97dB (1W/1m)
Spinorama Preference Score	2.94
Spinorama Preference Score with Perfect Sub	6.08
TRS Input	No
USB Input	No
Weight	27.6 lbs (12.5 kg)
XLR Input	No

• Links
  • Seeburg X4 Product Page
• Reviews, Comparisons and Sound Samples
  • Spinorama Measurements
• Head-to-Head Comparisons
  • Seeburg X4 vs Yamaha DXR10mkIII
  • Seeburg X4 vs DB Audiotechnik V7P
  • Seeburg X4 vs Vue Audiotechnik A-10
  • Seeburg X4 vs RCF NX 910-A

Ranked #14 of 39 in 10-Inch PA Speakers - DB Audiotechnik V7P Passive eBay

Same family: the DB Audiotechnik V10P (larger model, ranked lower, rated 3.6/5).

Pros: Manufacturer measurements give preference scores of 3.09 standalone and 5.80 with an ideal subwoofer. It is a 3-way design with two 10-inch woofers, a horn-loaded 8-inch midrange and a 1.4-inch compression driver, reaching 65Hz at -3dB with a 140dB peak rating. Its 75° x 40° pattern gives long throw for large venues. Measured bass extension of 65Hz (-3dB).

Cons: The 3.0dB reference band and 0.566 listening-window deviation mean tonal balance is less even than the best 10-inch models. It is a 33kg passive touring cabinet that needs d&b amplifiers, and it is sold only through d&b dealers with no published price.

Full DB Audiotechnik V7P review and specifications →

AES Input	No
Amplifier Power	Passive speaker; requires external amplification (d&b amplifiers)
Aux Input	No
Bass Extension (-10dB)	about 53.5Hz (measured, vendor Spinorama data)
Bass Extension (-3dB)	65Hz (measured, vendor Spinorama data)
Bluetooth	No
Coaxial Input	No
Configuration	Passive 3-way point-source loudspeaker
Coverage	75° x 40°
DSP	No (passive)
Dimensions	27.6”H x 12.1”W x 18.3”D (700 x 308 x 466 mm)
Drivers	2x 10” neodymium woofers, horn-loaded 8” neodymium midrange, 1.4” exit compression driver
Frequency Response	59Hz - 18kHz (-5dB, manufacturer specified)
Guitar Input	No
HDMI Input	No
Impedance	8 ohms
Maximum SPL	140dB peak (manufacturer specified)
Microphone Input	No
Optical Input	No
Passive	Yes
Power Handling	500W RMS / 2,000W peak
RCA Input	No
Rigging	M10 inserts for d&b rigging hardware; 3 x M10 load pin sockets
Spinorama Preference Score	3.09
Spinorama Preference Score with Perfect Sub	5.80
TRS Input	No
USB Input	No
Weight	72.8 lbs (33 kg)
XLR Input	No

• Links
  • d&b audiotechnik V7P Product Page
• Reviews, Comparisons and Sound Samples
  • Spinorama Measurements
• Head-to-Head Comparisons
  • DB Audiotechnik V7P vs KV2 Audio EX10
  • DB Audiotechnik V7P vs DB Audiotechnik 10S
  • DB Audiotechnik V7P vs Seeburg X4
  • DB Audiotechnik V7P vs Amate Audio X102FD

Ranked #15 of 39 in 10-Inch PA Speakers - Vue Audiotechnik A-10: $1,200 Passive eBay

Same family: the Vue Audiotechnik A-8 (smaller model, rated 3.9/5), the Vue Audiotechnik A-12 (larger model, rated 3.6/5) and the Vue Audiotechnik A-15 (larger model, rated 3.5/5).

Pros: Low-quality vendor data shows a 4.93 ideal-subwoofer preference score, and the passive point-source design keeps amplification and DSP choices flexible for installers building out a system. Measured bass extension of 80Hz (-3dB).

Cons: Being passive, it needs an external amplifier and processing to perform correctly, adding cost and complexity that self-powered rivals avoid. Measured bass extension is shallow at roughly 80Hz.

Full Vue Audiotechnik A-10 review and specifications →

Amplifier Power	Passive speaker; external amplifier required (manufacturer output rating not published in the current product page)
Aux Input	No
Bass Extension (-3dB)	80Hz (measured, vendor Spinorama data)
Bluetooth	No
Cabinet Material	Multi-ply cross-grain laminated birch plywood
Configuration	Passive 2-way bass-reflex PA speaker
Coverage	70° x 55°
DSP	No (passive, passive crossover network only)
Dimensions	21.1” x 13.4” x 13” (535 x 340 x 330 mm)
Drivers	10” woofer, compression driver
Frequency Response	67Hz - 20kHz (manufacturer specified)
Guitar Input	No
Inputs	2x Neutrik NL-4 Speakon
Maximum SPL	127dB peak (manufacturer specified)
Microphone Input	No
Passive	Yes
Rigging	Integrated fly points and pole-mount system
Spinorama Preference Score	1.96
Spinorama Preference Score with Perfect Sub	4.93
Weight	31.5 lbs (14.3 kg)
XLR Input	No

• Links
  • VUE Audiotechnik A-10 Product Information
• Reviews, Comparisons and Sound Samples
  • Spinorama Measurements
• Head-to-Head Comparisons
  • Vue Audiotechnik A-10 vs KV2 Audio EX10
  • Vue Audiotechnik A-10 vs Yamaha DXR10mkII
  • Vue Audiotechnik A-10 vs RCF ART 710-A MK5
  • Vue Audiotechnik A-10 vs Yamaha DXR10mkIII
  • Vue Audiotechnik A-10 vs Seeburg X4
  • Vue Audiotechnik A-10 vs DB Audiotechnik V10P

Ranked #17 of 39 in 10-Inch PA Speakers - DB Audiotechnik 10S Passive eBay

Same family: the DB Audiotechnik 4S (smaller model, estimated 3.2/5), the DB Audiotechnik 42S (smaller model, estimated 3.5/5), the DB Audiotechnik 44S (smaller model, rated 3.6/5), the DB Audiotechnik 5S (smaller model, estimated 3.3/5), the DB Audiotechnik 8S (smaller model, rated 3.1/5), the DB Audiotechnik 12S (larger model, rated 3.8/5) and the DB Audiotechnik 24S (larger model, rated 3.8/5).

Pros: Manufacturer measurements give preference scores of 2.74 standalone and 5.60 with an ideal subwoofer, with bass to 75Hz at -3dB and about 56Hz at -10dB. A 1.4-inch compression driver on a rotatable 75° x 50° horn gives a 130dB peak from a compact 13kg cabinet, suited to theaters, churches and fills. Measured bass extension of 75Hz (-3dB).

Cons: Listening-window deviation of 0.608 means tonal balance is less even than the flattest 10-inch models. It is passive, needs d&b amplifiers and presets, and is aimed at permanent installs. It is sold only through d&b dealers with no published price.

Full DB Audiotechnik 10S review and specifications →

AES Input	No
Amplifier Power	Passive speaker; requires external amplification (d&b amplifiers)
Aux Input	No
Bass Extension (-10dB)	about 56.3Hz (measured, vendor Spinorama data)
Bass Extension (-3dB)	75Hz (measured, vendor Spinorama data)
Bluetooth	No
Coaxial Input	No
Configuration	Passive 2-way installation loudspeaker
Coverage	75° x 50° (rotatable)
DSP	No (passive)
Dimensions	22.8”H x 11.1”W x 13.8”D (580 x 283 x 350 mm)
Drivers	10” neodymium woofer, 1.4” compression driver on CD horn
Frequency Response	60Hz - 18kHz (-5dB, manufacturer specified)
Guitar Input	No
HDMI Input	No
Impedance	12 ohms
Maximum SPL	130dB peak (manufacturer specified)
Microphone Input	No
Optical Input	No
Passive	Yes
Power Handling	200W RMS / 1,200W peak
RCA Input	No
Rigging	M10 inserts in top and bottom panels; 2 x M8 inserts on rear
Spinorama Preference Score	2.74
Spinorama Preference Score with Perfect Sub	5.60
TRS Input	No
USB Input	No
Weight	28.7 lbs (13 kg)
XLR Input	No

• Links
  • d&b audiotechnik 10S Product Page
• Reviews, Comparisons and Sound Samples
  • Spinorama Measurements
• Head-to-Head Comparisons
  • DB Audiotechnik 10S vs RCF ART 710-A MK5
  • DB Audiotechnik 10S vs DAS Audio ARTEC 510A
  • DB Audiotechnik 10S vs DB Audiotechnik V7P
  • DB Audiotechnik 10S vs Seeburg K20
  • DB Audiotechnik 10S vs DB Audiotechnik V10P

Ranked #20 of 39 in 10-Inch PA Speakers - Seeburg K20 Passive Thomann eBay

Pros: Dual 10-inch woofers and a 1.4-inch compression driver reach 134dB in a 22.5kg cabinet. Predicted in-room smoothness is a solid 0.711, and vendor Spinorama data gives preference scores of 3.14 standalone and 6.61 with an ideal subwoofer. Measured bass extension of 95Hz (-3dB).

Cons: Bass reaches only about 95Hz (-3dB) and on-axis narrow-band deviation is 0.562, so the response is uneven and thin without a subwoofer. It is passive, so an external amplifier and processor are needed, and pricing is high for the class.

Full Seeburg K20 review and specifications →

AES Input	No
Amplifier Power	Passive speaker; requires external amplification within the 800W AES / 2400W peak handling rating
Aux Input	No
Bass Extension (-3dB)	95Hz (measured, vendor Spinorama data)
Bluetooth	No
Coaxial Input	No
Configuration	Passive 2-way high-mid PA speaker
Coverage	90° x 60° (60° x 50° variant also offered)
DSP	No (passive)
Dimensions	26”H x 11.8”W x 14.2”D (660 x 300 x 360 mm)
Drivers	Dual 10” neodymium woofers, 1.4” neodymium compression driver
Frequency Response	70Hz - 18kHz (manufacturer specified)
Guitar Input	No
HDMI Input	No
Maximum SPL	134dB (manufacturer specified)
Microphone Input	No
Optical Input	No
Passive	Yes
Power Handling	800W AES / 2400W peak at 4 ohms (manufacturer specified)
RCA Input	No
Rigging	10 x M10 inserts; 35mm pole mount
Spinorama Preference Score	3.14
Spinorama Preference Score with Perfect Sub	6.61
TRS Input	No
USB Input	No
Weight	49.6 lbs (22.5 kg)
XLR Input	No

• Links
  • Seeburg K20 Product Page
• Reviews, Comparisons and Sound Samples
  • Spinorama Measurements
• Head-to-Head Comparisons
  • Seeburg K20 vs DAS Audio ARTEC 510A
  • Seeburg K20 vs Amate Audio X102FD
  • Seeburg K20 vs DB Audiotechnik V10P
  • Seeburg K20 vs DB Audiotechnik 10S

Ranked #22 of 39 in 10-Inch PA Speakers - DB Audiotechnik V10P Passive eBay

Same family: the DB Audiotechnik V7P (smaller model, ranked higher, rated 3.8/5).

Pros: The wide-coverage sibling of the DB Audiotechnik V7P, with the same 3-way layout of two 10-inch woofers, a horn-loaded 8-inch midrange and a 1.4-inch compression driver, but a 110° x 40° pattern for wider rooms. It reaches 65Hz at -3dB and a 139dB peak, and manufacturer measurements give a 5.15 preference score with an ideal subwoofer. Measured bass extension of 65Hz (-3dB).

Cons: A wide 4.6dB reference band and 0.659 listening-window deviation mean tonal balance is less even than the DB Audiotechnik V7P, with a 2.44 standalone score. It is a 33kg passive touring cabinet that needs d&b amplifiers, and it is sold only through d&b dealers.

Full DB Audiotechnik V10P review and specifications →

AES Input	No
Amplifier Power	Passive speaker; requires external amplification (d&b amplifiers)
Aux Input	No
Bass Extension (-10dB)	about 53.5Hz (measured, vendor Spinorama data)
Bass Extension (-3dB)	65Hz (measured, vendor Spinorama data)
Bluetooth	No
Coaxial Input	No
Configuration	Passive 3-way point-source loudspeaker
Coverage	110° x 40°
DSP	No (passive)
Dimensions	27.6”H x 12.1”W x 18.3”D (700 x 308 x 466 mm)
Drivers	2x 10” neodymium woofers, horn-loaded 8” neodymium midrange, 1.4” exit compression driver
Frequency Response	59Hz - 18kHz (-5dB, manufacturer specified)
Guitar Input	No
HDMI Input	No
Impedance	8 ohms
Maximum SPL	139dB peak (manufacturer specified)
Microphone Input	No
Optical Input	No
Passive	Yes
Power Handling	500W RMS / 2,000W peak
RCA Input	No
Rigging	M10 inserts for d&b rigging hardware; 3 x M10 load pin sockets
Spinorama Preference Score	2.44
Spinorama Preference Score with Perfect Sub	5.15
TRS Input	No
USB Input	No
Weight	72.8 lbs (33 kg)
XLR Input	No

• Links
  • d&b audiotechnik V10P Product Page
• Reviews, Comparisons and Sound Samples
  • Spinorama Measurements
• Head-to-Head Comparisons
  • DB Audiotechnik V10P vs Seeburg K20
  • DB Audiotechnik V10P vs DAS Audio ARTEC 510A
  • DB Audiotechnik V10P vs DB Audiotechnik 10S
  • DB Audiotechnik V10P vs KV2 Audio EX10
  • DB Audiotechnik V10P vs Vue Audiotechnik A-10

Ranked #23 of 39 in 10-Inch PA Speakers - DB Audiotechnik Q7 Passive Discontinued eBay

Same family: the DB Audiotechnik Q10 (larger model, ranked lower, rated 3.6/5).

Pros: A passive touring and installation loudspeaker from d&b with a 10” woofer and a compression driver on a rotatable 75 degree horn, driven by d&b amplifiers. DB Audiotechnik’s measurements show a preference score of 2.84 that reaches 5.7 with an ideal subwoofer, with 0.54 listening window deviation. Measured bass extension of 90.0Hz (-3dB).

Cons: It needs a d&b amplifier with the matching setup. d&b discontinued the Q-Series.

Full DB Audiotechnik Q7 review and specifications →

Bass Extension (-3dB)	90.0Hz (measured, vendor Spinorama data)
Bluetooth	No
DIY Kit	No
Drivers	10” woofer, compression driver on rotatable horn
Maximum SPL	134dB peak (manufacturer specified)
Passive	Yes
Spinorama Preference Score	2.84
Spinorama Preference Score with Perfect Sub	5.7
Weight	48.5 lbs (22 kg)

• Reviews, Comparisons and Sound Samples
  • Manufacturer Measurements (spinorama.org)

Ranked #24 of 39 in 10-Inch PA Speakers - DB Audiotechnik Q10 Passive Discontinued eBay

Same family: the DB Audiotechnik Q7 (smaller model, ranked higher, rated 3.6/5).

Pros: A passive touring and installation loudspeaker from d&b with a 10” woofer and a compression driver on a wide 110 degree rotatable horn. d&b’s data shows a flat on-axis response (0.23 average deviation). DB Audiotechnik’s measurements show a preference score of 2.6 that reaches 5.47 with an ideal subwoofer, with 0.68 listening window deviation. Measured bass extension of 90.0Hz (-3dB).

Cons: It needs a d&b amplifier with the matching setup. d&b discontinued the Q-Series.

Full DB Audiotechnik Q10 review and specifications →

Bass Extension (-3dB)	90.0Hz (measured, vendor Spinorama data)
Bluetooth	No
DIY Kit	No
Drivers	10” woofer, compression driver on rotatable horn
Maximum SPL	137dB peak (manufacturer specified)
Passive	Yes
Spinorama Preference Score	2.6
Spinorama Preference Score with Perfect Sub	5.47
Weight	48.5 lbs (22 kg)

• Reviews, Comparisons and Sound Samples
  • Manufacturer Measurements (spinorama.org)

Ranked #28 of 39 in 10-Inch PA Speakers - Yamaha CXR10mkIII: $649.00 Passive Estimated B&H Photo Video eBay

Same family: the Yamaha DXR10mkIII (smallest powered model, ranked higher, rated 3.8/5), the Yamaha DXR12mkIII (powered model, rated 4.1/5), the Yamaha DXR15mkIII (largest powered model, rated 3.8/5), the Yamaha CXR12mkIII (larger passive model, estimated 3.8/5) and the Yamaha CXR15mkIII (larger passive model, estimated 3.5/5).

Pros: The passive version of the measured Yamaha DXR10mkIII, with the same 10” woofer, 1.75” voice coil compression driver, horn and port design. Yamaha rates it at 93dB sensitivity, 123dB maximum SPL and bass to 54Hz (-10dB) with 90° x 60° coverage, and its PX and PC-D amplifiers carry a dedicated processing preset for it.

Cons: No independent measurements yet, so it can’t be compared with ranked PA speakers. It needs an external amplifier and, for its rated response, speaker processing; the powered model has that built in. Without Yamaha’s preset its tonal balance depends on the amplifier’s EQ.

Full Yamaha CXR10mkIII review and specifications →

Amplifier Power	Passive speaker; requires external amplification
Bluetooth	No
Configuration	Passive 2-way bass-reflex PA speaker
Coverage	90° x 60°
DSP	No (passive)
Drivers	10” woofer, 1.75” voice coil compression driver
Frequency Response	54Hz - 20kHz (-10dB, manufacturer specified)
Impedance	8 ohms
Maximum SPL	123dB (manufacturer specified)
Passive	Yes
Power Handling	550W continuous
Rigging	2 x 35mm pole sockets; 6 x M8 and 1 x M6 inserts
Sensitivity	93dB
Weight	26.9 lbs (12.2 kg)
XLR Input	No

• Links
  • Yamaha CXR10mkIII Product Information
• Reviews, Comparisons and Sound Samples
  • No independent measurement review is linked for this model; it is ranked from hands-on listening and comparison against similarly priced speakers.

Ranked #32 of 39 in 10-Inch PA Speakers - Yamaha CZR10: $814.00 Passive Estimated B&H Photo Video eBay

Same family: the Yamaha DZR10 (smallest powered model, ranked higher, rated 3.4/5), the Yamaha DZR12 (powered model, rated 3.9/5), the Yamaha DZR15 (powered model, rated 4/5), the Yamaha DZR315 (largest powered model, rated 3.8/5), the Yamaha CZR12 (larger passive model, estimated 3.6/5) and the Yamaha CZR15 (larger passive model, estimated 3.7/5).

Pros: The passive version of the measured Yamaha DZR10, with a 10” woofer and a 2” voice coil compression driver in a plywood cabinet with 90° x 60° coverage. Yamaha rates it at 700W handling, 127dB maximum SPL and bass reaching 43Hz, and its PX and PC-D amplifiers carry a dedicated processing preset for it.

Cons: No independent measurements yet, so it can’t be compared with ranked PA speakers. It needs an external amplifier and speaker processing to match the powered DZR, which has its FIR-X tuning built in. It costs about as much as the powered model before the amplifier.

Full Yamaha CZR10 review and specifications →

Amplifier Power	Passive speaker; requires external amplification
Bluetooth	No
Cabinet Material	Plywood
Configuration	Passive 2-way bass-reflex PA speaker
Coverage	90° x 60°
DSP	No (passive)
Drivers	10” woofer, 2” voice coil compression driver
Frequency Response	43Hz - 20kHz (-10dB, manufacturer specified)
Impedance	8 ohms
Maximum SPL	127dB (manufacturer specified)
Passive	Yes
Power Handling	700W
Rigging	8 x M10 and 2 x M8 inserts; 2 x 35mm pole sockets (0° or -7°)
Weight	30.9 lbs (14.0 kg)
XLR Input	No

• Links
  • Yamaha CZR10 Product Information
• Reviews, Comparisons and Sound Samples
  • No independent measurement review is linked for this model; it is ranked from hands-on listening and comparison against similarly priced speakers.

Ranked #33 of 39 in 10-Inch PA Speakers - Yamaha CBR10: $299.99 Passive Estimated B&H Photo Video eBay

Same family: the Yamaha DBR10 (smallest powered model, ranked higher, rated 3.4/5), the Yamaha DBR12 (powered model, rated 3.6/5), the Yamaha DBR15 (largest powered model, rated 2.9/5), the Yamaha CBR12 (larger passive model, estimated 3.4/5) and the Yamaha CBR15 (larger passive model, estimated 2.7/5).

Pros: The passive version of the measured Yamaha DBR10, sharing its 10” woofer, compression driver and lightweight polypropylene cabinet with 90° x 60° coverage. Yamaha rates it at 94dB sensitivity, 123dB maximum SPL and bass to 50Hz (-10dB), and at 9.4 kg it is one of the lighter 10-inch boxes.

Cons: No independent measurements yet, so it can’t be compared with ranked PA speakers. It needs an external amplifier, and without the powered model’s DSP its response depends on the amplifier’s EQ. The measured powered version is a budget design, so expect the same limits on output and smoothness.

Full Yamaha CBR10 review and specifications →

Amplifier Power	Passive speaker; requires external amplification
Bluetooth	No
Configuration	Passive 2-way bass-reflex PA speaker
Coverage	90° x 60°
DSP	No (passive)
Drivers	10” woofer, 1” voice coil compression driver
Frequency Response	50Hz - 20kHz (-10dB, manufacturer specified)
Impedance	8 ohms
Maximum SPL	123dB (calculated, manufacturer specified)
Passive	Yes
Power Handling	700W peak
Rigging	2 x M8 eyebolt points; 35mm pole socket
Sensitivity	94dB
Weight	20.7 lbs (9.4 kg)
XLR Input	No

• Links
  • Yamaha CBR10 Product Information
• Reviews, Comparisons and Sound Samples
  • No independent measurement review is linked for this model; it is ranked from hands-on listening and comparison against similarly priced speakers.

Ranked #34 of 39 in 10-Inch PA Speakers - JBL CV3010 Passive Estimated eBay

Same family: the JBL CV3012 (larger model, estimated 3.2/5), the JBL CV3015 (larger model, rated 3.2/5) and the JBL CV3025 (larger model, estimated 3.1/5).

Pros: A passive installation speaker from JBL’s CV3000 range alongside the measured JBL CV3015: the smallest model, with a 10” woofer. JBL rates it at 95dB sensitivity and 126dB peak / 120dB continuous with 90° x 90° coverage, so modest amplifier power fills a restaurant, ballroom or event space.

Cons: No independent measurements yet, so it can’t be compared with ranked PA speakers. It is sold through installation dealers rather than general retailers, and it needs an external amplifier with JBL’s recommended EQ for its rated response.

Full JBL CV3010 review and specifications →

Amplifier Power	Passive speaker; requires external amplification
Bass Extension (-3dB)	85Hz (manufacturer specified)
Bluetooth	No
Configuration	Passive 2-way PA speaker
Coverage	90° x 90°
DSP	No (passive)
Dimensions	21.1”H x 12”W x 13”D (535 x 305 x 329 mm)
Drivers	10” woofer with 2.5” voice coil, JBL 2408-2 compression driver
Frequency Response	85Hz - 20kHz (±3dB, manufacturer specified)
Maximum SPL	126dB peak / 120dB continuous (manufacturer specified)
Passive	Yes
Power Handling	300W continuous / 1,200W peak
Rigging	13 x M10 inserts; 35mm pole mount
Sensitivity	95dB
Weight	31.7 lbs (14.4 kg)
XLR Input	No

• Links
  • JBL CV3010 Product Page
• Reviews, Comparisons and Sound Samples
  • No independent measurement review is linked for this model; it is ranked from hands-on listening and comparison against similarly priced speakers.

Ranked #35 of 39 in 10-Inch PA Speakers - Martin Audio CDD10 Passive eBay

Same family: the Martin Audio CDD-LIVE 8 (smallest powered model, estimated 3.4/5), the Martin Audio CDD-LIVE 12 (powered model, estimated 3.1/5), the Martin Audio CDD-LIVE 15 (largest powered model, estimated 3.5/5), the Martin Audio CDD5 (smaller passive model, estimated 3/5), the Martin Audio CDD6 (smaller passive model, estimated 3.1/5), the Martin Audio CDD8 (smaller passive model, rated 3.2/5), the Martin Audio CDD12 (larger passive model, rated 2.9/5) and the Martin Audio CDD15 (larger passive model, rated 3.3/5).

Pros: Medium-quality vendor data shows a 4.13 ideal-subwoofer preference score. The coaxial Differential Dispersion driver gives point-source summation of the LF and HF sections for consistent coverage, and the compact enclosure mounts horizontally or vertically for on-wall installation use. Measured bass extension of 82.5Hz (-3dB).

Cons: Being passive, it needs an external amplifier and crossover, and its compact on-wall design targets installed foreground music over full PA main duty.

Full Martin Audio CDD10 review and specifications →

AES Input	No
Amplifier Power	Passive speaker; use external amplification within the 250W AES / 1,000W peak handling rating
Aux Input	No
Bass Extension (-3dB)	82.5Hz (measured, vendor Spinorama data)
Bluetooth	No
Cabinet Material	Composite material
Coaxial Input	No
Configuration	Passive 2-way coaxial PA speaker
Coverage	75-110° horizontal (user-rotatable), 60° vertical
Crossover Frequency	2kHz passive
DSP	No (passive; used with a DX-series controller or iKON amplifier for FIR EQ and limiter presets)
Dimensions	20.2”H x 12.7”W x 12.2”D (513 x 323 x 310 mm)
Drivers	10” coaxial woofer, 1” exit compression driver
Frequency Response	65Hz - 20kHz (±3dB, manufacturer specified); 55Hz (-10dB)
Guitar Input	No
HDMI Input	No
Inputs	Low-profile 20A push-lock input and link
Maximum SPL	126dB peak / 120dB continuous
Microphone Input	No
Optical Input	No
Passive	Yes
Power Handling	250W AES / 1,000W peak (manufacturer specified)
RCA Input	No
Rigging	Six M8 inserts for wall bracket; ten M8 fly points
Spinorama Preference Score	1.21
Spinorama Preference Score with Perfect Sub	4.13
TRS Input	No
USB Input	No
Weight	33.7 lbs (15.3 kg)
XLR Input	No

• Links
  • Martin Audio CDD10 Product Page
• Reviews, Comparisons and Sound Samples
  • Spinorama Measurements
• Head-to-Head Comparisons
  • Martin Audio CDD10 vs PreSonus ULT10
  • Martin Audio CDD10 vs Wharfedale Pro Delta X10
  • Martin Audio CDD10 vs RCF HD 10-A MK5
  • Martin Audio CDD10 vs Yamaha DZR10

Ranked #37 of 39 in 10-Inch PA Speakers - EAW MKD1000 Passive eBay

Same family: the EAW MKD526 (smaller model, estimated 3.3/5) and the EAW MKD1200 (larger model, rated 4/5).

Pros: Very consistent off-axis tone (2.84dB directivity-index deviation, the best in this group) and a smooth on-axis response (0.61dB average deviation), with a 136dB maximum from two 10-inch woofers. Measured bass extension of 100Hz (-3dB).

Cons: Bass rolls off at 100Hz (-3dB), so it scores -0.09 standalone and 3.27 with an ideal subwoofer and needs a subwoofer for music. It is passive and weighs 27.2kg.

Full EAW MKD1000 review and specifications →

AES Input	No
Amplifier Power	Passive speaker; requires external amplification
Aux Input	No
Bass Extension (-10dB)	about 68.4Hz (measured, vendor Spinorama data)
Bass Extension (-3dB)	100Hz (measured, vendor Spinorama data)
Bluetooth	No
Coaxial Input	No
Configuration	Passive 2-way installation PA speaker
DSP	No (passive)
Drivers	2 x 10” woofers with 2.5” voice coils, 1.4” exit neodymium compression driver
Guitar Input	No
HDMI Input	No
Maximum SPL	136dB (6dB crest factor, manufacturer calculated)
Microphone Input	No
Optical Input	No
Passive	Yes
RCA Input	No
Rigging	12 x M10 mounting points; U-bracket and eyebolt accessories
Sensitivity	93dB
Spinorama Preference Score	-0.09
Spinorama Preference Score with Perfect Sub	3.27
TRS Input	No
USB Input	No
Weight	60 lbs (27.2 kg)
XLR Input	No

• Links
  • EAW MKD1000 Series Product Page
• Reviews, Comparisons and Sound Samples
  • Spinorama Measurements

Ranked #38 of 39 in 10-Inch PA Speakers - Wharfedale Pro Delta X10: $640 Passive eBay

Pros: Built from 15mm birch plywood with a titanium-diaphragm compression driver, it can run full-range passive or switch to bi-amp mode for more control when paired with separate amplifiers, and its 300W continuous/1,200W peak handling is a genuine budget entry point for a 10-inch box. Measured bass extension of 100Hz (-3dB).

Cons: Low-quality independent data shows a 1.49 ideal-subwoofer preference score with bass extension only to roughly 100Hz, the weakest measured result in this entire ranking; a subwoofer partner is effectively mandatory.

Full Wharfedale Pro Delta X10 review and specifications →

AES Input	No
Amplifier Power	Passive/bi-amp speaker; use external amplification within the 300W continuous / 600W program / 1,200W peak handling rating
Aux Input	No
Bass Extension (-3dB)	100Hz (measured, independent data)
Bluetooth	No
Cabinet Material	15mm plywood with Rhino Rock finish
Coaxial Input	No
Configuration	Passive 2-way (bi-amp capable) bass-reflex PA speaker
Coverage	90° x 60°
Crossover Frequency	2.8kHz (manufacturer specified)
DSP	No (passive; switchable full-range or external bi-amp mode)
Dimensions	19.7”H x 13.3”W x 13”D (500 x 338 x 330 mm)
Drivers	10” woofer, titanium-diaphragm compression driver
Frequency Response	65Hz - 20kHz (±3dB, manufacturer specified); 60Hz - 20kHz (-10dB)
Guitar Input	No
HDMI Input	No
Inputs	Two NL4 speakON-compatible connectors
Maximum SPL	128dB peak (manufacturer specified)
Microphone Input	No
Optical Input	No
Passive	Yes
Power Handling	300W continuous / 600W program / 1,200W peak (manufacturer specified)
RCA Input	No
Rigging	Dual-angle 35mm (0°/10°) pole mount
Spinorama Preference Score	-2.02
Spinorama Preference Score with Perfect Sub	1.49
TRS Input	No
USB Input	No
Weight	40.1 lbs (18.2 kg)
XLR Input	No

• Links
  • Wharfedale Pro Delta X10 Product Page
• Reviews, Comparisons and Sound Samples
  • Spinorama Measurements
• Head-to-Head Comparisons
  • Wharfedale Pro Delta X10 vs PreSonus ULT10
  • Wharfedale Pro Delta X10 vs Martin Audio CDD10
  • Wharfedale Pro Delta X10 vs L-Acoustics 112P

Ranked #39 of 39 in 10-Inch PA Speakers - Novacoustic KIRA 10 Passive eBay

Same family: the Novacoustic KIRA 5 (smaller model, rated 2.5/5), the Novacoustic KIRA 8 (smaller model, rated 2.5/5) and the Novacoustic KIRA 12 (larger model, rated 2.7/5).

Pros: High 97dB sensitivity and a 128.5dB peak from a 14kg coaxial cube. Measured bass extension of 106Hz (-3dB).

Cons: Vendor measurements give the lowest preference scores in the KIRA range, -2.93 standalone and 0.53 with an ideal subwoofer: the listening window spreads across 11dB and bass rolls off at 106Hz (-3dB). It is passive.

Full Novacoustic KIRA 10 review and specifications →

AES Input	No
Amplifier Power	Passive speaker; requires external amplification
Aux Input	No
Bass Extension (-10dB)	about 87.4Hz (measured, vendor Spinorama data)
Bass Extension (-3dB)	106Hz (measured, vendor Spinorama data)
Bluetooth	No
Coaxial Input	No
Configuration	Passive 2-way coaxial PA speaker
DSP	No (passive)
Dimensions	11.8”H x 11.8”W x 11.8”D (300 x 300 x 300 mm)
Drivers	10” coaxial driver
Frequency Response	60Hz - 20kHz (manufacturer specified)
Guitar Input	No
HDMI Input	No
Impedance	8 ohms
Maximum SPL	128.5dB peak (manufacturer specified)
Microphone Input	No
Optical Input	No
Passive	Yes
Power Handling	350W RMS
RCA Input	No
Rigging	2 x M10 inserts with U-bracket; 4 x M6 points; optional stand adapter
Sensitivity	97dB
Spinorama Preference Score	-2.93
Spinorama Preference Score with Perfect Sub	0.53
TRS Input	No
USB Input	No
Weight	30.9 lbs (14 kg)
XLR Input	No

• Links
  • Novacoustic KIRA 10 Product Page
• Reviews, Comparisons and Sound Samples
  • Spinorama Measurements
• Head-to-Head Comparisons
  • Novacoustic KIRA 10 vs Novacoustic KIRA 5
  • Novacoustic KIRA 10 vs Novacoustic KIRA 8
  • Novacoustic KIRA 10 vs Novacoustic KIRA 12

12-Inch PA Speakers

Ranked #3 of 77 in 12-Inch PA Speakers - L-Acoustics X12 Passive eBay

Same family: the L-Acoustics X4i (smaller model, rated 3.6/5), the L-Acoustics X6i (smaller model, rated 3.9/5), the L-Acoustics X8 (smaller model, rated 4/5) and the L-Acoustics X15 HiQ (larger model, rated 4.4/5).

Pros: Vendor Spinorama data gives the highest preference scores in the 12-inch ranking: 5.60 standalone and 8.52 with an ideal subwoofer. The listening-window response is very even (narrow-band deviation 0.158) and predicted in-room smoothness is 0.853, so tone stays consistent across the 90° x 60° coverage. Bass reaches about 78Hz (-3dB) in a 20kg coaxial cabinet with a 136dB maximum SPL. Measured bass extension of 78Hz (-3dB).

Cons: This is a passive cabinet that needs an L-Acoustics amplified controller such as the LA4X or LA12X, so the box alone will not play. Bass extension of about 78Hz (-3dB) is modest for a 12-inch box, and a subwoofer is needed for full-range music. Pricing is dealer quoted and typically well above self-powered 12-inch alternatives once the controller is included.

Full L-Acoustics X12 review and specifications →

AES Input	No
Amplifier Power	Passive speaker; requires an L-Acoustics amplified controller (LA2Xi, LA4X, LA8 or LA12X)
Aux Input	No
Bass Extension (-3dB)	78Hz (measured, vendor Spinorama data)
Bluetooth	No
Cabinet Material	Baltic beech and birch plywood
Coaxial Input	No
Configuration	Passive 2-way coaxial PA speaker
Coverage	90° x 60°
DSP	No (passive; processing and protection come from the amplified controller)
Dimensions	19.5”H x 16.9”W x 14.8”D (496 x 430 x 375 mm)
Drivers	12” cone woofer, 3” neodymium compression driver (coaxial)
Frequency Response	59Hz - 20kHz (manufacturer specified)
Guitar Input	No
HDMI Input	No
Inputs	Speakon 4-pole input and link
Maximum SPL	136dB (manufacturer specified)
Microphone Input	No
Optical Input	No
Passive	Yes
RCA Input	No
Rigging	M8 and M10 threaded inserts, 35mm pole socket, dual handles
Spinorama Preference Score	5.60
Spinorama Preference Score with Perfect Sub	8.52
TRS Input	No
USB Input	No
Weight	44.1 lbs (20 kg)
XLR Input	No

• Links
  • L-Acoustics X12 Product Page
• Reviews, Comparisons and Sound Samples
  • Spinorama Measurements
• Head-to-Head Comparisons
  • L-Acoustics X12 vs L-Acoustics 112P
  • L-Acoustics X12 vs FBT ProMaxX 112A
  • L-Acoustics X12 vs QSC K12.2

Ranked #8 of 77 in 12-Inch PA Speakers - EAW MKC120: $1,555.00 Passive SoundPro eBay

Same family: the EAW MKC50 (smaller model, rated 3.6/5), the EAW MKC60 (smaller model, rated 3.8/5) and the EAW MKC80 (smaller model, rated 3.9/5).

Pros: Vendor Spinorama data gives preference scores of 5.04 standalone and 7.57 with an ideal subwoofer. Bass reaches about 62Hz (-3dB), deeper than most 12-inch boxes here, and the 135dB maximum SPL and 600W handling suit small and mid-size rooms. It weighs 16.4kg, with a rotatable 90° x 60° horn, built-in handle and pole mount. Measured bass extension of 62Hz (-3dB).

Cons: A passive cabinet, so it needs a separate amplifier and processor with EAW presets. Listening-window narrow-band deviation is 0.239 and predicted in-room smoothness is 0.729, less even than the best coaxials in this ranking. Street pricing is high for a box that cannot play without extra gear.

Full EAW MKC120 review and specifications →

AES Input	No
Amplifier Power	Passive speaker; use external amplification within the 600W handling rating at 8 ohms
Aux Input	No
Bass Extension (-3dB)	62Hz (measured, vendor Spinorama data)
Bluetooth	No
Coaxial Input	No
Configuration	Passive 2-way coaxial PA speaker
Coverage	90° x 60° (rotatable)
DSP	No (passive; use with an amplifier that has EAW DSP presets)
Dimensions	22.4”H x 14.4”W x 13.4”D (569 x 367 x 341 mm)
Drivers	12” cone woofer with 2.5” voice coil, 1” exit compression driver with CSA coaxial loading
Frequency Response	48Hz - 20kHz (manufacturer specified)
Guitar Input	No
HDMI Input	No
Inputs	Two Neutrik NL4 connectors and 2-pin barrier strip
Maximum SPL	135dB (manufacturer specified)
Microphone Input	No
Optical Input	No
Passive	Yes
Power Handling	600W at 8 ohms (manufacturer specified)
RCA Input	No
Rigging	Integrated M10 mounting points, built-in handle, pole mount
Sensitivity	95dB
TRS Input	No
USB Input	No
Weight	36.2 lbs (16.4 kg)
XLR Input	No

• Links
  • EAW MKC120 Product Page
• Reviews, Comparisons and Sound Samples
  • Spinorama Measurements
• Head-to-Head Comparisons
  • EAW MKC120 vs RCF ART 932-A
  • EAW MKC120 vs RCF NX 932-A
  • EAW MKC120 vs JBL PRX912
  • EAW MKC120 vs KV2 Audio ESR212
  • EAW MKC120 vs QSC K12.2

Ranked #16 of 77 in 12-Inch PA Speakers - EAW MKD1200 Passive eBay

Same family: the EAW MKD526 (smaller model, estimated 3.3/5) and the EAW MKD1000 (smaller model, rated 2.9/5).

Pros: Vendor Spinorama data gives preference scores of 4.78 standalone and 7.20 with an ideal subwoofer. Dual 12-inch woofers reach about 58Hz (-3dB), with a 47Hz to 20kHz rated range and output up to 147dB depending on the horn pattern. On-axis narrow-band deviation is a low 0.156, and the three horn patterns (60° x 45°, 90° x 45° or 90° x 60°) fit venues of different shapes. Measured bass extension of 58Hz (-3dB).

Cons: A 47kg passive 3-way cabinet that needs an external amplifier and processor, so it is a fixed installation box rather than a portable 12-inch top. Sound-power narrow-band deviation is 0.546 and predicted in-room smoothness is 0.464, less even than the best 12-inch models. The Spinorama data is low quality, and pricing is quoted by dealers.

Full EAW MKD1200 review and specifications →

AES Input	No
Amplifier Power	Passive speaker; use external amplification within the 1200W LF/MF and 140W HF/MF handling ratings at 8 ohms
Aux Input	No
Bass Extension (-3dB)	58Hz (measured, vendor Spinorama data)
Bluetooth	No
Coaxial Input	No
Configuration	Passive or bi-amplified 3-way full-range PA speaker
Coverage	60° x 45°, 90° x 45° or 90° x 60° (model dependent)
DSP	No (passive; use with an amplifier that has EAW DSP presets)
Dimensions	32”H x 22.7”W x 20.6”D (813 x 577 x 523 mm)
Drivers	Dual 12” cone woofers with 3” voice coils, 2” exit midrange compression driver, 2” exit tweeter compression driver
Frequency Response	47Hz - 20kHz (manufacturer specified)
Guitar Input	No
HDMI Input	No
Inputs	Terminal block connections
Maximum SPL	147dB (MKD1264), 145dB (MKD1294), 139dB (MKD1296)
Microphone Input	No
Optical Input	No
Passive	Yes
Power Handling	1200W at 8 ohms (LF/MF), 140W at 8 ohms (HF/MF)
RCA Input	No
Rigging	12 x M10 mounting points; U-bracket and M10 kit accessories
Spinorama Preference Score	4.78
Spinorama Preference Score with Perfect Sub	7.20
TRS Input	No
USB Input	No
Weight	104.1 lbs (47.2 kg)
XLR Input	No

• Links
  • EAW MKD1200 Series Product Page
• Reviews, Comparisons and Sound Samples
  • Spinorama Measurements
• Head-to-Head Comparisons
  • EAW MKD1200 vs HK Audio LINEAR 9 112 XA
  • EAW MKD1200 vs Yamaha DXR12mkII
  • EAW MKD1200 vs HK Audio LINEAR 7 112 XA
  • EAW MKD1200 vs QSC K12.2

Ranked #21 of 77 in 12-Inch PA Speakers - Alcons Audio VR12 Passive Estimated eBay

Same family: the Alcons Audio VR5 V1 (smaller model, rated 4/5) and the Alcons Audio VR8 (smaller model, estimated 3.9/5).

Pros: A passive pro-ribbon point source from Alcons’ VR series, a larger sibling of the measured Alcons Audio VR5 V1: a 12” woofer under the larger 6” RBN601 pro-ribbon with Real-90 horizontal dispersion, rated 60Hz to 20kHz (±3dB) and 134dB peak. The ribbon’s low distortion and controlled horizontal pattern are what lift the measured VR5 near the top of the compact class.

Cons: No independent measurements yet, so it can’t be compared with ranked PA speakers. It needs an Alcons Sentinel amplifier and controller preset for its rated response, and Alcons sells only through dealers, so there is no retail price.

Full Alcons Audio VR12 review and specifications →

Amplifier Power	Passive speaker; requires external amplification
Bass Extension (-3dB)	60Hz (manufacturer specified)
Bluetooth	No
Configuration	Passive 2-way pro-ribbon PA speaker
DSP	No (passive)
Drivers	12” woofer, RBN601 6” pro-ribbon driver
Frequency Response	60Hz - 20kHz (±3dB, manufacturer specified)
Maximum SPL	134dB peak (manufacturer specified)
Passive	Yes
Rigging	6-position fly track; stand mount adapter
Weight	39.7 lbs (18 kg)
XLR Input	No

• Links
  • Alcons Audio VR12 Product Page
• Reviews, Comparisons and Sound Samples
  • No independent measurement review is linked for this model; it is ranked from hands-on listening and comparison against similarly priced speakers.

Ranked #23 of 77 in 12-Inch PA Speakers - Seeburg X6: $1,975 Passive Thomann eBay

Same family: the Seeburg X1 (smaller model, rated 3.4/5), the Seeburg X2 (smaller model, rated 3.6/5), the Seeburg X4 (smaller model, rated 3.9/5) and the Seeburg X8 (larger model, rated 3.5/5).

Pros: Manufacturer measurements give preference scores of 3.07 standalone and 6.04 with an ideal subwoofer, on par with the JBL PRX912. The coaxial 12-inch woofer and 1.4-inch compression driver give a 2.2dB reference band and consistent sound across the 80° x 60° pattern. With 99dB sensitivity and a 131dB peak rating from an 18.5kg cabinet, it suits bands and venues that need output without bulk. Measured bass extension of 80Hz (-3dB).

Cons: Bass reaches 80Hz at -3dB and about 66Hz at -10dB, so a subwoofer is still needed for full-range music. It is passive, so you need an amplifier and a processor with Seeburg presets, or the self-powered X6 dp version. A 4.34 directivity-index deviation means off-axis balance shifts more than the flattest designs here.

Full Seeburg X6 review and specifications →

AES Input	No
Amplifier Power	Passive speaker; requires external amplification (self-powered X6 dp version available)
Aux Input	No
Bass Extension (-10dB)	about 66.3Hz (measured, vendor Spinorama data)
Bass Extension (-3dB)	80Hz (measured, vendor Spinorama data)
Bluetooth	No
Coaxial Input	No
Configuration	Passive 2-way coaxial PA speaker
Coverage	80° x 60° (rotatable)
DSP	No (passive)
Dimensions	19.7”H x 14.2”W x 13”D (500 x 360 x 330 mm)
Drivers	12” neodymium woofer (3.5” voice coil), coaxial 1.4” neodymium compression driver (3” voice coil)
Frequency Response	55Hz - 18kHz (-6dB, manufacturer specified)
Guitar Input	No
HDMI Input	No
Impedance	8 ohms
Maximum SPL	131dB peak (manufacturer specified)
Microphone Input	No
Optical Input	No
Passive	Yes
Power Handling	500W AES / 1,500W peak
RCA Input	No
Rigging	9x M10 points, 35mm pole mount
Sensitivity	99dB (1W/1m)
Spinorama Preference Score	3.07
Spinorama Preference Score with Perfect Sub	6.04
TRS Input	No
USB Input	No
Weight	40.8 lbs (18.5 kg)
XLR Input	No

• Links
  • Seeburg X6 Product Page
• Reviews, Comparisons and Sound Samples
  • Spinorama Measurements
• Head-to-Head Comparisons
  • Seeburg X6 vs Yamaha DZR12
  • Seeburg X6 vs HK Audio LINEAR 7 112 FA
  • Seeburg X6 vs Axiom ED120A
  • Seeburg X6 vs DB Audiotechnik 24S
  • Seeburg X6 vs Vue Audiotechnik A-12
  • Seeburg X6 vs QSC K12.2

Ranked #30 of 77 in 12-Inch PA Speakers - Coda Audio G712 Passive eBay

Same family: the Coda Audio G308 (smaller model, estimated 3.5/5), the Coda Audio G512 (smaller model, ranked lower, rated 3.6/5), the Coda Audio G515 (smaller model, rated 3.7/5) and the Coda Audio G715 (larger model, rated 3.8/5).

Pros: High-quality manufacturer measurements give preference scores of 3.14 standalone and 6.01 with an ideal subwoofer. It is a 3-way design with a coaxial 1.4-inch mid/high driver above a low-distortion 12-inch woofer, rated at 98dB sensitivity and a very high 143dB peak. A rotatable 90° x 60° waveguide and passive or bi-amp operation suit both portable and installed systems. Measured bass extension of 85Hz (-3dB).

Cons: Bass measures 85Hz at -3dB and about 52Hz at -10dB, so a subwoofer is needed for full-range music. A 3.4dB reference band and 4.40 directivity-index deviation mean tonal balance varies more than in the smoothest 12-inch cabinets here. It is passive, weighs 21.5kg and is sold through pro dealers with no published price.

Full Coda Audio G712 review and specifications →

AES Input	No
Amplifier Power	Passive speaker; requires external amplification
Aux Input	No
Bass Extension (-10dB)	about 52.5Hz (measured, vendor Spinorama data)
Bass Extension (-3dB)	85Hz (measured, vendor Spinorama data)
Bluetooth	No
Coaxial Input	No
Configuration	Passive 3-way PA speaker (passive or bi-amp)
Coverage	90° x 60° (rotatable)
DSP	No (passive)
Dimensions	24.8”H x 13.7”W x 12.6”D (630 x 348 x 320 mm)
Drivers	12” neodymium woofer (4” voice coil), 1.4” neodymium coaxial mid/high driver
Frequency Response	60Hz - 23kHz (-6dB, manufacturer specified)
Guitar Input	No
HDMI Input	No
Impedance	8 ohms
Maximum SPL	143dB peak (manufacturer specified)
Microphone Input	No
Optical Input	No
Passive	Yes
Power Handling	1,000W AES / 4,000W peak
RCA Input	No
Rigging	M6 and M8 threaded points for U-bracket; GFA flying adapter
Sensitivity	98dB
Spinorama Preference Score	3.14
Spinorama Preference Score with Perfect Sub	6.01
TRS Input	No
USB Input	No
Weight	47.4 lbs (21.5 kg)
XLR Input	No

• Links
  • Coda Audio G712-Pro Product Page
• Reviews, Comparisons and Sound Samples
  • Spinorama Measurements
• Head-to-Head Comparisons
  • Coda Audio G712 vs VUE Audiotechnik h-12
  • Coda Audio G712 vs DB Audiotechnik 24S
  • Coda Audio G712 vs DB Audiotechnik 12S
  • Coda Audio G712 vs RCF ART 732-A MK5
  • Coda Audio G712 vs Coda Audio G512
  • Coda Audio G712 vs QSC K12.2
  • Coda Audio G712 vs Coda Audio G515
  • Coda Audio G712 vs Coda Audio G715
  • See all 9 comparisons

Ranked #31 of 77 in 12-Inch PA Speakers - DB Audiotechnik 24S Passive eBay

Same family: the DB Audiotechnik 4S (smaller model, estimated 3.2/5), the DB Audiotechnik 42S (smaller model, estimated 3.5/5), the DB Audiotechnik 44S (smaller model, rated 3.6/5), the DB Audiotechnik 5S (smaller model, estimated 3.3/5), the DB Audiotechnik 8S (smaller model, rated 3.1/5), the DB Audiotechnik 10S (smaller model, rated 3.7/5) and the DB Audiotechnik 12S (smaller model, ranked lower, rated 3.8/5).

Pros: Manufacturer measurements give preference scores of 3.11 standalone and 5.81 with an ideal subwoofer, and two 12-inch woofers reach 69Hz at -3dB and about 53Hz at -10dB. A 1.4-inch compression driver on a rotatable 75° x 45° horn and a 138dB peak rating give long throw for larger rooms. It can run full range on its own or pair with d&b xS subwoofers. Measured bass extension of 69Hz (-3dB).

Cons: The 3.4dB reference band means tonal balance is less even than the best 12-inch speakers here. It is a large 33kg passive cabinet meant for permanent installs, needing d&b amplifiers and presets. It is sold only through d&b dealers with no published price.

Full DB Audiotechnik 24S review and specifications →

AES Input	No
Amplifier Power	Passive speaker; requires external amplification (d&b amplifiers)
Aux Input	No
Bass Extension (-10dB)	about 53Hz (measured, vendor Spinorama data)
Bass Extension (-3dB)	69Hz (measured, vendor Spinorama data)
Bluetooth	No
Coaxial Input	No
Configuration	Passive 2-way installation loudspeaker
Coverage	75° x 45° (rotatable)
DSP	No (passive)
Dimensions	31.5”H x 16.1”W x 16.5”D (800 x 410 x 420 mm)
Drivers	2x 12” neodymium woofers, 1.4” exit compression driver
Frequency Response	55Hz - 18kHz (-5dB, manufacturer specified)
Guitar Input	No
HDMI Input	No
Impedance	4 ohms
Maximum SPL	138dB peak (manufacturer specified)
Microphone Input	No
Optical Input	No
Passive	Yes
Power Handling	500W RMS / 2,000W peak
RCA Input	No
Rigging	8 x M10 inserts on top, bottom and sides
Spinorama Preference Score	3.11
Spinorama Preference Score with Perfect Sub	5.81
TRS Input	No
USB Input	No
Weight	72.8 lbs (33 kg)
XLR Input	No

• Links
  • d&b audiotechnik 24S Product Page
• Reviews, Comparisons and Sound Samples
  • Spinorama Measurements
• Head-to-Head Comparisons
  • DB Audiotechnik 24S vs Coda Audio G712
  • DB Audiotechnik 24S vs DB Audiotechnik 12S
  • DB Audiotechnik 24S vs DAS Audio Vantec 12A
  • DB Audiotechnik 24S vs Seeburg X6
  • DB Audiotechnik 24S vs QSC K12.2

Ranked #32 of 77 in 12-Inch PA Speakers - DB Audiotechnik 12S Passive eBay

Same family: the DB Audiotechnik 4S (smaller model, estimated 3.2/5), the DB Audiotechnik 42S (smaller model, estimated 3.5/5), the DB Audiotechnik 44S (smaller model, rated 3.6/5), the DB Audiotechnik 5S (smaller model, estimated 3.3/5), the DB Audiotechnik 8S (smaller model, rated 3.1/5), the DB Audiotechnik 10S (smaller model, rated 3.7/5) and the DB Audiotechnik 24S (larger model, ranked higher, rated 3.8/5).

Pros: Its 3.20 standalone preference score is among the better passive 12-inch results here, and bass reaches 60Hz at -3dB and about 46Hz at -10dB, deep enough to run without a subwoofer for speech and background music. A 1.4-inch compression driver on a rotatable 75° x 50° horn gives a 133dB peak from a 17kg cabinet, and the 12S-D version offers 110° wide coverage. Measured bass extension of 60Hz (-3dB).

Cons: Listening-window deviation of 0.556 means the tonal balance is less even than the best 12-inch models. It is passive, needs d&b amplifiers and presets, and is aimed at permanent installs. It is sold only through d&b dealers with no published price.

Full DB Audiotechnik 12S review and specifications →

AES Input	No
Amplifier Power	Passive speaker; requires external amplification (d&b amplifiers)
Aux Input	No
Bass Extension (-10dB)	about 46.2Hz (measured, vendor Spinorama data)
Bass Extension (-3dB)	60Hz (measured, vendor Spinorama data)
Bluetooth	No
Coaxial Input	No
Configuration	Passive 2-way installation loudspeaker
Coverage	75° x 50° (rotatable)
DSP	No (passive)
Dimensions	25.1”H x 13.3”W x 14.4”D (638 x 338 x 365 mm)
Drivers	12” neodymium woofer, 1.4” compression driver on CD horn
Frequency Response	48Hz - 18kHz (-5dB, manufacturer specified)
Guitar Input	No
HDMI Input	No
Impedance	8 ohms
Maximum SPL	133dB peak (manufacturer specified)
Microphone Input	No
Optical Input	No
Passive	Yes
Power Handling	300W RMS / 1,600W peak
RCA Input	No
Rigging	M10 inserts in top and bottom panels; 2 x M8 inserts on rear
Spinorama Preference Score	3.20
Spinorama Preference Score with Perfect Sub	5.79
TRS Input	No
USB Input	No
Weight	37.5 lbs (17 kg)
XLR Input	No

• Links
  • d&b audiotechnik 12S Product Page
• Reviews, Comparisons and Sound Samples
  • Spinorama Measurements
• Head-to-Head Comparisons
  • DB Audiotechnik 12S vs DB Audiotechnik 24S
  • DB Audiotechnik 12S vs Coda Audio G712
  • DB Audiotechnik 12S vs RCF ART 732-A MK5
  • DB Audiotechnik 12S vs HK Audio LINEAR 7 112 FA
  • DB Audiotechnik 12S vs QSC K12.2

Ranked #33 of 77 in 12-Inch PA Speakers - Yamaha CXR12mkIII: $699.00 Passive Estimated B&H Photo Video eBay

Same family: the Yamaha DXR10mkIII (smallest powered model, rated 3.8/5), the Yamaha DXR12mkIII (powered model, ranked higher, rated 4.1/5), the Yamaha DXR15mkIII (largest powered model, rated 3.8/5), the Yamaha CXR10mkIII (smaller passive model, estimated 3.5/5) and the Yamaha CXR15mkIII (larger passive model, estimated 3.5/5).

Pros: The passive version of the measured Yamaha DXR12mkIII, with the same 12” woofer, 1.75” voice coil compression driver, horn and port design. Yamaha rates it at 94dB sensitivity, 124dB maximum SPL and bass to 51Hz (-10dB) with 90° x 60° coverage, and its PX and PC-D amplifiers carry a dedicated processing preset for it.

Cons: No independent measurements yet, so it can’t be compared with ranked PA speakers. It needs an external amplifier and, for its rated response, speaker processing; the powered model has that built in. Without Yamaha’s preset its tonal balance depends on the amplifier’s EQ.

Full Yamaha CXR12mkIII review and specifications →

Amplifier Power	Passive speaker; requires external amplification
Bluetooth	No
Configuration	Passive 2-way bass-reflex PA speaker
Coverage	90° x 60°
DSP	No (passive)
Drivers	12” woofer, 1.75” voice coil compression driver
Frequency Response	51Hz - 20kHz (-10dB, manufacturer specified)
Impedance	8 ohms
Maximum SPL	124dB (manufacturer specified)
Passive	Yes
Power Handling	1,100W peak
Rigging	3 x M10 eyebolt points; 4 x M8 points
Sensitivity	94dB
Weight	34 lbs (15.4 kg)
XLR Input	No

• Links
  • Yamaha CXR12mkIII Product Information
• Reviews, Comparisons and Sound Samples
  • No independent measurement review is linked for this model; it is ranked from hands-on listening and comparison against similarly priced speakers.

Ranked #38 of 77 in 12-Inch PA Speakers - Coda Audio G512 Passive eBay

Same family: the Coda Audio G308 (smaller model, estimated 3.5/5), the Coda Audio G515 (larger model, rated 3.7/5), the Coda Audio G712 (larger model, ranked higher, rated 3.8/5) and the Coda Audio G715 (larger model, rated 3.8/5).

Pros: High-quality vendor Spinorama data gives preference scores of 3.04 standalone and 6.11 with an ideal subwoofer. A 98dB sensitivity and 132dB peak rating come from a 16kg cabinet, and the rotatable 90° x 60° waveguide fits horizontal or vertical placement. Measured bass extension of 112Hz (-3dB).

Cons: Measured bass reaches only about 112Hz (-3dB), and listening-window narrow-band deviation is 0.531, so the tonal balance is thin and uneven compared with the leaders in this ranking. It is passive, so an amplifier and processor with the maker’s presets are required.

Full Coda Audio G512 review and specifications →

AES Input	No
Amplifier Power	Passive speaker; requires external amplification within the 600W handling rating
Aux Input	No
Bass Extension (-3dB)	112Hz (measured, vendor Spinorama data)
Bluetooth	No
Coaxial Input	No
Configuration	Passive 2-way bass-reflex PA speaker
Coverage	90° x 60° (rotatable)
DSP	No (passive)
Dimensions	24.8”H x 13.7”W x 12.6”D (630 x 348 x 320 mm)
Drivers	12” neodymium woofer, 1” compression driver on a rotatable elliptical waveguide
Frequency Response	60Hz - 22kHz (-6dB, manufacturer specified)
Guitar Input	No
HDMI Input	No
Maximum SPL	132dB peak (manufacturer specified)
Microphone Input	No
Optical Input	No
Passive	Yes
Power Handling	600W (manufacturer specified)
RCA Input	No
Rigging	M6 and M8 threaded points for optional U-bracket
Sensitivity	98dB
Spinorama Preference Score	3.04
Spinorama Preference Score with Perfect Sub	6.11
TRS Input	No
USB Input	No
Weight	35.3 lbs (16.0 kg)
XLR Input	No

• Links
  • Coda Audio G512 Product Page
• Reviews, Comparisons and Sound Samples
  • Spinorama Measurements
• Head-to-Head Comparisons
  • Coda Audio G512 vs Yamaha DBR12
  • Coda Audio G512 vs RCF ART 712-A MK5
  • Coda Audio G512 vs Vue Audiotechnik A-12
  • Coda Audio G512 vs Coda Audio G712
  • Coda Audio G512 vs QSC K12.2
  • Coda Audio G512 vs Coda Audio G515
  • Coda Audio G512 vs Coda Audio G715
  • Coda Audio G512 vs Coda Audio G308

Ranked #44 of 77 in 12-Inch PA Speakers - Vue Audiotechnik A-12: $1,945 Passive AVLGEAR eBay

Same family: the Vue Audiotechnik A-8 (smaller model, rated 3.9/5), the Vue Audiotechnik A-10 (smaller model, rated 3.7/5) and the Vue Audiotechnik A-15 (larger model, rated 3.5/5).

Pros: Manufacturer measurements give a 5.46 preference score with an ideal subwoofer and a 2.1dB reference band, and bass reaches 80Hz at -3dB and about 60Hz at -10dB. A 12-inch neodymium woofer and 1.4-inch compression driver, both with 3-inch voice coils, sit in a braced birch cabinet with a rotatable 70° x 55° horn. A rear switch sets passive or bi-amp operation. Measured bass extension of 80Hz (-3dB).

Cons: Spinorama rates the data quality as low, and a 0.635 listening-window deviation means tonal balance is less even than the leaders in this ranking. Its 122dB long-term output rating is modest for the price. It is passive and needs an external amplifier and processor.

Full Vue Audiotechnik A-12 review and specifications →

AES Input	No
Amplifier Power	Passive speaker; requires external amplification
Aux Input	No
Bass Extension (-10dB)	about 60Hz (measured, vendor Spinorama data)
Bass Extension (-3dB)	80Hz (measured, vendor Spinorama data)
Bluetooth	No
Cabinet Material	Multi-ply birch
Coaxial Input	No
Configuration	Passive 2-way PA speaker (passive or bi-amp)
Coverage	70° x 55° (rotatable)
DSP	No (passive)
Drivers	12” neodymium woofer (3” voice coil), 1.4” exit neodymium compression driver (3” voice coil)
Frequency Response	55Hz - 18kHz (manufacturer specified)
Guitar Input	No
HDMI Input	No
Maximum SPL	122dB long-term (manufacturer specified)
Microphone Input	No
Optical Input	No
Passive	Yes
Power Handling	450W average / 900W program (passive mode)
RCA Input	No
Rigging	Integrated fly points; integrated pole cup
Spinorama Preference Score	2.54
Spinorama Preference Score with Perfect Sub	5.46
TRS Input	No
USB Input	No
Weight	45 lbs (20.4 kg)
XLR Input	No

• Links
  • VUE Audiotechnik a-12 Product Page
• Reviews, Comparisons and Sound Samples
  • Spinorama Measurements
• Head-to-Head Comparisons
  • Vue Audiotechnik A-12 vs Coda Audio G512
  • Vue Audiotechnik A-12 vs DAS Audio Vantec 12A
  • Vue Audiotechnik A-12 vs HK Audio LINEAR 7 112 FA
  • Vue Audiotechnik A-12 vs Seeburg X6
  • Vue Audiotechnik A-12 vs QSC K12.2

Ranked #45 of 77 in 12-Inch PA Speakers - One Systems 312HC Passive eBay

Pros: Manufacturer measurements give preference scores of 2.81 standalone and 5.62 with an ideal subwoofer, with a very flat on-axis response (0.61dB average deviation). Three 12-inch woofers take bass to 73Hz (-3dB) and about 42Hz (-10dB), and 99dB sensitivity with 1,200W handling suits stadiums and large outdoor venues. Measured bass extension of 73Hz (-3dB).

Cons: The 42kg cabinet needs rigging, and its narrow 60° pattern covers less audience than wider designs. Response is quoted only to 16kHz. It is passive, needs a 4 ohm capable amplifier, and is sold through pro dealers with no published price.

Full One Systems 312HC review and specifications →

AES Input	No
Amplifier Power	Passive speaker; requires external amplification
Aux Input	No
Bass Extension (-10dB)	about 42.3Hz (measured, vendor Spinorama data)
Bass Extension (-3dB)	73Hz (measured, vendor Spinorama data)
Bluetooth	No
Coaxial Input	No
Configuration	Passive 3-way PA column speaker, IP45 weather rated
Coverage	60° conical
DSP	No (passive)
Dimensions	43.3”H x 14.5”W x 16.3”D (1100 x 368 x 414 mm)
Drivers	3 x 12” woofers, 12” coaxial with large format compression driver
Frequency Response	75Hz - 16kHz (manufacturer specified)
Guitar Input	No
HDMI Input	No
Impedance	4 ohms
Microphone Input	No
Optical Input	No
Passive	Yes
Power Handling	1,200W continuous / 4,800W peak
RCA Input	No
Rigging	19 x M10 suspension points; optional pole mount and pan/tilt brackets
Sensitivity	99dB
Spinorama Preference Score	2.81
Spinorama Preference Score with Perfect Sub	5.62
TRS Input	No
USB Input	No
Weight	93 lbs (42.2 kg)
XLR Input	No

• Links
  • One Systems 312HC Data Sheet
• Reviews, Comparisons and Sound Samples
  • Spinorama Measurements

Ranked #46 of 77 in 12-Inch PA Speakers - Yamaha CZR12: $914.00 Passive Estimated B&H Photo Video eBay

Same family: the Yamaha DZR10 (smallest powered model, rated 3.4/5), the Yamaha DZR12 (powered model, ranked higher, rated 3.9/5), the Yamaha DZR15 (powered model, rated 4/5), the Yamaha DZR315 (largest powered model, rated 3.8/5), the Yamaha CZR10 (smaller passive model, estimated 3.2/5) and the Yamaha CZR15 (larger passive model, estimated 3.7/5).

Pros: The passive version of the measured Yamaha DZR12, with a 12” woofer and a 2” voice coil compression driver in a plywood cabinet with 90° x 60° coverage. Yamaha rates it at 800W handling, 129dB maximum SPL and bass reaching 38Hz, and its PX and PC-D amplifiers carry a dedicated processing preset for it.

Cons: No independent measurements yet, so it can’t be compared with ranked PA speakers. It needs an external amplifier and speaker processing to match the powered DZR, which has its FIR-X tuning built in. It costs about as much as the powered model before the amplifier.

Full Yamaha CZR12 review and specifications →

Amplifier Power	Passive speaker; requires external amplification
Bluetooth	No
Cabinet Material	Plywood
Configuration	Passive 2-way bass-reflex PA speaker
Coverage	90° x 60°
DSP	No (passive)
Drivers	12” woofer, 2” voice coil compression driver
Frequency Response	38Hz - 20kHz (-10dB, manufacturer specified)
Impedance	8 ohms
Maximum SPL	129dB (manufacturer specified)
Passive	Yes
Power Handling	800W
Rigging	12 x M10 inserts
Weight	39.7 lbs (18 kg)
XLR Input	No

• Links
  • Yamaha CZR12 Product Information
• Reviews, Comparisons and Sound Samples
  • No independent measurement review is linked for this model; it is ranked from hands-on listening and comparison against similarly priced speakers.

Ranked #50 of 77 in 12-Inch PA Speakers - HK Audio LINEAR 5 112 X: $899.00 Passive B&H Photo Video eBay

Same family: the HK Audio LINEAR 5 112 F (smaller model, ranked lower, rated 3.2/5) and the HK Audio LINEAR 5 115 F (larger model, estimated 3.1/5).

Pros: High-quality manufacturer measurements give a 5.51 preference score with an ideal subwoofer and 0.63 predicted in-room smoothness. A 12-inch woofer and 1-inch compression driver on a rotatable 60° x 40° CD horn give a 135dB peak and long throw, and the birch and MDF cabinet doubles as a floor monitor. Measured bass extension of 103Hz (-3dB).

Cons: It is designed as a top for use with a subwoofer: bass measures 103Hz at -3dB and about 67Hz at -10dB, and the standalone preference score is only 2.20. A 3.1dB reference band and 0.625 listening-window deviation mean tonal balance is uneven. It is passive and needs an external amplifier, and B&H lists it as special order.

Full HK Audio LINEAR 5 112 X review and specifications →

AES Input	No
Amplifier Power	Passive speaker; requires external amplification
Aux Input	No
Bass Extension (-10dB)	about 67.1Hz (measured, vendor Spinorama data)
Bass Extension (-3dB)	103Hz (measured, vendor Spinorama data)
Bluetooth	No
Cabinet Material	Birch/MDF hybrid
Coaxial Input	No
Configuration	Passive 2-way PA speaker and floor monitor
Coverage	60° x 40° (rotatable)
DSP	No (passive)
Dimensions	26.4”H x 14.6”W x 11.8”D (670 x 370 x 300 mm)
Drivers	12” woofer (2.5” voice coil), 1” compression driver (1.75” voice coil)
Frequency Response	100Hz - 18kHz (-6dB, manufacturer specified)
Guitar Input	No
HDMI Input	No
Maximum SPL	135dB peak (manufacturer specified)
Microphone Input	No
Optical Input	No
Passive	Yes
Power Handling	500W RMS / 1,000W program
RCA Input	No
Rigging	3 x M8 rigging points; DuoTilt 3°/7° pole mount
Spinorama Preference Score	2.20
Spinorama Preference Score with Perfect Sub	5.51
TRS Input	No
USB Input	No
Weight	43 lbs (19.5 kg)
XLR Input	No

• Links
  • HK Audio LINEAR 5 112 X Product Page
• Reviews, Comparisons and Sound Samples
  • Spinorama Measurements
• Head-to-Head Comparisons
  • HK Audio LINEAR 5 112 X vs PreSonus CDL12
  • HK Audio LINEAR 5 112 X vs HK Audio LINEAR 5 112 F
  • HK Audio LINEAR 5 112 X vs RCF ART 712-A MK5
  • HK Audio LINEAR 5 112 X vs QSC K12.2

Ranked #51 of 77 in 12-Inch PA Speakers - Turbosound NuQ122: $800 each Passive Discontinued eBay

Pros: A passive 12” two-way installation and touring speaker from Turbosound with a compression driver on a rotatable horn. Turbosound’s measurements show a preference score of 2.78 that reaches 5.59 with an ideal subwoofer, with 0.54 listening window deviation.

Cons: That data is low quality and comes from Turbosound. Retailers list it as no longer available. Bass reaches 71.0Hz (-3dB) and about 50Hz (-10dB). That data is low quality. Discontinued.

Full Turbosound NuQ122 review and specifications →

Bass Extension (-10dB)	about 49.7Hz (measured, manufacturer data via spinorama.org)
Bass Extension (-3dB)	71.0Hz (measured, manufacturer data via spinorama.org)
Bluetooth	No
DIY Kit	No
Drivers	12” woofer, compression driver on rotatable horn
Maximum SPL	128dB peak (manufacturer specified)
Passive	Yes
Rigging	12 x M10 and 4 x M6 inserts; 35mm pole mount
Spinorama Preference Score	2.78
Spinorama Preference Score with Perfect Sub	5.59
Weight	43.2 lbs (19.6 kg)

• Reviews, Comparisons and Sound Samples
  • Manufacturer Measurements (spinorama.org)

Ranked #52 of 77 in 12-Inch PA Speakers - One Systems 212HC Passive eBay

Pros: The flattest on-axis response in this group (0.36dB average deviation in manufacturer measurements), with bass to 73Hz (-3dB) and about 51Hz (-10dB). Sensitivity of 99dB and 1,200W handling give high output for outdoor venues. Measured bass extension of 73Hz (-3dB).

Cons: Preference scores of 2.23 standalone and 4.88 with an ideal subwoofer trail its three-woofer One Systems 312HC sibling, and off-axis tone is less consistent. The 32.8kg cabinet has a narrow 60° pattern. It is passive and sold through pro dealers with no published price.

Full One Systems 212HC review and specifications →

AES Input	No
Amplifier Power	Passive speaker; requires external amplification
Aux Input	No
Bass Extension (-10dB)	about 51.1Hz (measured, vendor Spinorama data)
Bass Extension (-3dB)	73Hz (measured, vendor Spinorama data)
Bluetooth	No
Coaxial Input	No
Configuration	Passive 2-way PA speaker, IP45 weather rated
Coverage	60° conical
DSP	No (passive)
Dimensions	29.5”H x 14.5”W x 16.3”D (749 x 368 x 414 mm)
Drivers	12” woofer, 12” coaxial with large format compression driver
Frequency Response	75Hz - 16kHz (manufacturer specified)
Guitar Input	No
HDMI Input	No
Impedance	4 ohms
Microphone Input	No
Optical Input	No
Passive	Yes
Power Handling	1,200W continuous / 4,800W peak
RCA Input	No
Rigging	15 x M10 suspension points; optional pole mount and pan/tilt brackets
Sensitivity	99dB
Spinorama Preference Score	2.23
Spinorama Preference Score with Perfect Sub	4.88
TRS Input	No
USB Input	No
Weight	72.3 lbs (32.8 kg)
XLR Input	No

• Links
  • One Systems 212HC Data Sheet
• Reviews, Comparisons and Sound Samples
  • Spinorama Measurements

Ranked #53 of 77 in 12-Inch PA Speakers - Yamaha CBR12: $334.99 Passive Estimated Amazon eBay

Same family: the Yamaha DBR10 (smallest powered model, rated 3.4/5), the Yamaha DBR12 (powered model, ranked higher, rated 3.6/5), the Yamaha DBR15 (largest powered model, rated 2.9/5), the Yamaha CBR10 (smaller passive model, estimated 3.2/5) and the Yamaha CBR15 (larger passive model, estimated 2.7/5).

Pros: The passive version of the measured Yamaha DBR12, sharing its 12” woofer, compression driver and lightweight polypropylene cabinet with 90° x 60° coverage. Yamaha rates it at 96dB sensitivity, 125dB maximum SPL and bass to 48Hz (-10dB), and at 13.9 kg it is one of the lighter 12-inch boxes.

Cons: No independent measurements yet, so it can’t be compared with ranked PA speakers. It needs an external amplifier, and without the powered model’s DSP its response depends on the amplifier’s EQ. The measured powered version is a budget design, so expect the same limits on output and smoothness.

Full Yamaha CBR12 review and specifications →

Amplifier Power	Passive speaker; requires external amplification
Bluetooth	No
Configuration	Passive 2-way bass-reflex PA speaker
Coverage	90° x 60°
DSP	No (passive)
Drivers	12” woofer, 1” voice coil compression driver
Frequency Response	48Hz - 20kHz (-10dB, manufacturer specified)
Impedance	8 ohms
Maximum SPL	125dB (calculated, manufacturer specified)
Passive	Yes
Power Handling	700W peak
Rigging	3 x M8 eyebolt points; 35mm pole mount
Sensitivity	96dB
Weight	30.6 lbs (13.9 kg)
XLR Input	No

• Links
  • Yamaha CBR12 Product Information
• Reviews, Comparisons and Sound Samples
  • No independent measurement review is linked for this model; it is ranked from hands-on listening and comparison against similarly priced speakers.

Ranked #55 of 77 in 12-Inch PA Speakers - Electro-Voice MFX-12MC: $2,805.33 Passive Amazon B&H Photo Video eBay

Same family: the Electro-Voice MFX-15MC (larger model, rated 3.6/5).

Pros: The coaxial 12-inch design provides compact 60° x 40° coverage and reaches a claimed 135dB peak with the recommended amplification. Medium-quality vendor data returns a 3.78 ideal-subwoofer preference score. Measured bass extension of 82.5Hz (-3dB).

Cons: This is not self-powered: it requires an external amplifier and can be run passive or externally bi-amplified, so it is less convenient than every conventional powered cabinet here. Measured bass extension is about 75Hz and the narrow pattern is aimed primarily at stage-monitor and fill use.

Full Electro-Voice MFX-12MC review and specifications →

AES Input	No
Amplifier Power	Passive/bi-amp speaker; use external amplification within the 450W continuous / 3,000W peak handling rating
Aux Input	No
Bass Extension (-3dB)	82.5Hz (measured, vendor Spinorama data)
Bluetooth	No
Cabinet Material	12-18mm Baltic birch plywood with EVCoat finish
Coaxial Input	No
Configuration	Passive or externally bi-amplified 2-way coaxial PA monitor
Coverage	60° x 40°, rotatable
DSP	Requires external amplifier/DSP settings
Dimensions	19.7”H x 16.5”W x 11.7”D (500 x 420 x 298 mm)
Drivers	12” coaxial LF/MF driver, 3” HF compression driver
Frequency Response	62Hz - 18kHz (-3dB, manufacturer specified); 50Hz - 19kHz (-10dB)
Guitar Input	No
HDMI Input	No
Inputs	NL4 speakON input and link
Maximum SPL	135dB peak with recommended amplification
Microphone Input	No
Optical Input	No
Passive	Yes
Power Handling	450W continuous / 3,000W peak (manufacturer specified)
RCA Input	No
Rigging	Four M10 suspension points; integrated 35mm pole cup
TRS Input	No
USB Input	No
Weight	41.9 lbs (19 kg)
XLR Input	No

• Links
  • Electro-Voice MFX-12MC Product Information
• Reviews, Comparisons and Sound Samples
  • Spinorama Measurements
• Head-to-Head Comparisons
  • Electro-Voice MFX-12MC vs PreSonus CDL12
  • Electro-Voice MFX-12MC vs Amate Audio X12CLA
  • Electro-Voice MFX-12MC vs RCF ART 732-A MK4
  • Electro-Voice MFX-12MC vs Martin Audio XP12
  • Electro-Voice MFX-12MC vs Martin Audio CDD12
  • Electro-Voice MFX-12MC vs QSC K12.2

Ranked #56 of 77 in 12-Inch PA Speakers - JBL CV5012 Passive eBay

Same family: the JBL CV5015 (larger model, rated 3.3/5).

Pros: The flattest on-axis response of the JBL CV models (0.31dB average deviation in vendor measurements), with bass to about 56Hz at -10dB. A 138dB peak and 98dB sensitivity give big output, and the IP55 birch cabinet suits outdoor venues. Measured bass extension of 92.5Hz (-3dB).

Cons: Preference scores of 1.46 standalone and 4.71 with an ideal subwoofer are modest, because the narrow 60° x 40° pattern makes the off-axis and in-room balance less even. It is passive and weighs 25kg.

Full JBL CV5012 review and specifications →

AES Input	No
Amplifier Power	Passive speaker; requires external amplification
Aux Input	No
Bass Extension (-10dB)	about 56.3Hz (measured, vendor Spinorama data)
Bass Extension (-3dB)	92.5Hz (measured, vendor Spinorama data)
Bluetooth	No
Coaxial Input	No
Configuration	Passive 2-way PA speaker, IP55 weather rated
Coverage	60° x 40°
DSP	No (passive)
Dimensions	24.8”H x 15.5”W x 16.9”D (630 x 394 x 429 mm)
Drivers	12” woofer with 3” voice coil, JBL 2432H-1 compression driver
Frequency Response	80Hz - 20kHz (±3dB, manufacturer specified)
Guitar Input	No
HDMI Input	No
Impedance	8 ohms
Maximum SPL	138dB peak / 126dB continuous (manufacturer specified)
Microphone Input	No
Optical Input	No
Passive	Yes
Power Handling	600W continuous / 2,400W peak
RCA Input	No
Rigging	13 x M10 inserts on top, bottom, back and sides
Sensitivity	98dB
Spinorama Preference Score	1.46
Spinorama Preference Score with Perfect Sub	4.71
TRS Input	No
USB Input	No
Weight	55.1 lbs (25 kg)
XLR Input	No

• Links
  • JBL CV5012 Product Page
• Reviews, Comparisons and Sound Samples
  • Spinorama Measurements

Ranked #57 of 77 in 12-Inch PA Speakers - Bose AMM112 Passive B&H eBay

Same family: the Bose AMM108 (smaller model, rated 3.2/5).

Pros: High-quality manufacturer measurements show a smooth on-axis response (0.87dB average deviation), and the wedge-shaped cabinet works as a main, fill or floor monitor with wide 110° x 60° coverage and a 131dB peak. Measured bass extension of 87.5Hz (-3dB).

Cons: Preference scores of 1.38 standalone and 4.58 with an ideal subwoofer are modest, with bass to 88Hz at -3dB and only about 74Hz at -10dB, shallow for a 12-inch woofer. It is passive and weighs 22kg.

Full Bose AMM112 review and specifications →

AES Input	No
Amplifier Power	Passive speaker; requires external amplification
Aux Input	No
Bass Extension (-10dB)	about 73.6Hz (measured, vendor Spinorama data)
Bass Extension (-3dB)	87.5Hz (measured, vendor Spinorama data)
Bluetooth	No
Coaxial Input	No
Configuration	Passive 2-way coaxial PA speaker
Coverage	110° x 60°
DSP	No (passive)
Dimensions	18”H x 18”W x 15.1”D (457 x 457 x 383 mm)
Drivers	12” coaxial woofer and compression driver
Frequency Response	70Hz - 18kHz (-3dB, manufacturer specified)
Guitar Input	No
HDMI Input	No
Maximum SPL	131dB peak / 121dB continuous (manufacturer specified)
Microphone Input	No
Optical Input	No
Passive	Yes
RCA Input	No
Rigging	2 x 35mm pole cups; 6 x M10 inserts
Sensitivity	96dB
Spinorama Preference Score	1.38
Spinorama Preference Score with Perfect Sub	4.58
TRS Input	No
USB Input	No
Weight	48.5 lbs (22 kg)
XLR Input	No

• Links
  • Bose AMM112 Product Page
• Reviews, Comparisons and Sound Samples
  • Spinorama Measurements

Ranked #60 of 77 in 12-Inch PA Speakers - HK Audio LINEAR 5 112 F: $666 Passive Thomann eBay

Same family: the HK Audio LINEAR 5 112 X (larger model, ranked higher, rated 3.5/5) and the HK Audio LINEAR 5 115 F (larger model, estimated 3.1/5).

Pros: The passive version of the HK Audio LINEAR 5 112 FA, with a 12-inch woofer and 1-inch compression driver on a rotatable asymmetric horn that widens from 60° to 90°, rated to 135dB peak. High-quality manufacturer measurements give a 4.21 preference score with an ideal subwoofer, and bass reaches about 60Hz at -10dB. Measured bass extension of 82.5Hz (-3dB).

Cons: The standalone preference score is only 1.13, with a 0.806 listening-window deviation and bass measuring 82.5Hz at -3dB, so tonal balance is uneven and it needs a subwoofer. It is passive and needs an external amplifier; B&H no longer carries it.

Full HK Audio LINEAR 5 112 F review and specifications →

AES Input	No
Amplifier Power	Passive speaker; requires external amplification
Aux Input	No
Bass Extension (-10dB)	about 60Hz (measured, vendor Spinorama data)
Bass Extension (-3dB)	82.5Hz (measured, vendor Spinorama data)
Bluetooth	No
Coaxial Input	No
Configuration	Passive 2-way PA speaker
Coverage	60°-90° asymmetric x 55° (rotatable)
DSP	No (passive)
Dimensions	26.3”H x 14.6”W x 14.4”D (668 x 370 x 365 mm)
Drivers	12” woofer (2.5” voice coil), 1” compression driver (1.75” voice coil)
Frequency Response	79Hz - 18kHz (-6dB, manufacturer specified)
Guitar Input	No
HDMI Input	No
Maximum SPL	135dB peak (manufacturer specified)
Microphone Input	No
Optical Input	No
Passive	Yes
Power Handling	500W RMS / 1,000W program
RCA Input	No
Rigging	3 x M8 rigging points; DuoTilt 3°/7° pole mount
Spinorama Preference Score	1.13
Spinorama Preference Score with Perfect Sub	4.21
TRS Input	No
USB Input	No
Weight	52.7 lbs (23.9 kg)
XLR Input	No

• Links
  • HK Audio LINEAR 5 112 F Product Page
• Reviews, Comparisons and Sound Samples
  • Spinorama Measurements
• Head-to-Head Comparisons
  • HK Audio LINEAR 5 112 F vs PreSonus CDL12
  • HK Audio LINEAR 5 112 F vs HK Audio LINEAR 5 112 X
  • HK Audio LINEAR 5 112 F vs PreSonus ULT12
  • HK Audio LINEAR 5 112 F vs RCF ART 712-A MK5
  • HK Audio LINEAR 5 112 F vs QSC K12.2

Ranked #61 of 77 in 12-Inch PA Speakers - Electro-Voice EVC-1122: $1,309.95 Passive B&H eBay

Same family: the Electro-Voice EVC-1082 (smaller model, rated 3.4/5) and the Electro-Voice EVC-1152 (larger model, rated 3.3/5).

Pros: Bass reaches 67Hz at -3dB and about 51Hz at -10dB in vendor measurements, with 95dB sensitivity and a 126dB maximum for halls and gyms. The rotatable waveguide allows vertical or horizontal mounting. Measured bass extension of 67Hz (-3dB).

Cons: Preference scores of 1.55 standalone and 4.21 with an ideal subwoofer are low for a 12-inch speaker, with the listening window spread across 3dB and inconsistent off-axis tone. It is passive and weighs 21.8kg.

Full Electro-Voice EVC-1122 review and specifications →

AES Input	No
Amplifier Power	Passive speaker; requires external amplification
Aux Input	No
Bass Extension (-10dB)	about 50.5Hz (measured, vendor Spinorama data)
Bass Extension (-3dB)	67Hz (measured, vendor Spinorama data)
Bluetooth	No
Coaxial Input	No
Configuration	Passive 2-way installation PA speaker
Coverage	90° x 55° (rotatable)
DSP	No (passive)
Drivers	12” EVS-12M woofer, compression driver on a rotatable waveguide
Frequency Response	70Hz - 22kHz (manufacturer specified)
Guitar Input	No
HDMI Input	No
Impedance	8 ohms
Maximum SPL	126dB (manufacturer calculated)
Microphone Input	No
Optical Input	No
Passive	Yes
Power Handling	300W continuous
RCA Input	No
Rigging	12 x M10 threaded inserts; 36mm pole socket
Sensitivity	95dB
Spinorama Preference Score	1.55
Spinorama Preference Score with Perfect Sub	4.21
TRS Input	No
USB Input	No
Weight	48.1 lbs (21.8 kg)
XLR Input	No

• Links
  • Electro-Voice EVC-1122-95 Product Page
• Reviews, Comparisons and Sound Samples
  • Spinorama Measurements

Ranked #62 of 77 in 12-Inch PA Speakers - JBL CV3012 Passive Estimated eBay

Same family: the JBL CV3010 (smaller model, estimated 3.2/5), the JBL CV3015 (larger model, rated 3.2/5) and the JBL CV3025 (larger model, estimated 3.1/5).

Pros: A passive installation speaker from JBL’s CV3000 range alongside the measured JBL CV3015: a 12” woofer with the same compression driver. JBL rates it at 97.5dB sensitivity and 129dB peak / 123dB continuous with 90° x 90° coverage, so modest amplifier power fills a restaurant, ballroom or event space.

Cons: No independent measurements yet, so it can’t be compared with ranked PA speakers. It is sold through installation dealers rather than general retailers, and it needs an external amplifier with JBL’s recommended EQ for its rated response.

Full JBL CV3012 review and specifications →

Amplifier Power	Passive speaker; requires external amplification
Bluetooth	No
Configuration	Passive 2-way PA speaker
Coverage	90° x 90°
DSP	No (passive)
Dimensions	23.6”H x 14.4”W x 15.4”D (600 x 365 x 392 mm)
Drivers	12” woofer with 2.5” voice coil, JBL 2408-2 compression driver
Frequency Response	47Hz - 20kHz (-10dB, manufacturer specified)
Maximum SPL	129dB peak / 123dB continuous (manufacturer specified)
Passive	Yes
Power Handling	350W continuous / 1,400W peak
Rigging	13 x M10 inserts; 35mm pole socket
Sensitivity	97.5dB
Weight	41.6 lbs (18.85 kg)
XLR Input	No

• Links
  • JBL CV3012 Product Page
• Reviews, Comparisons and Sound Samples
  • No independent measurement review is linked for this model; it is ranked from hands-on listening and comparison against similarly priced speakers.

Ranked #65 of 77 in 12-Inch PA Speakers - Tannoy VX12: $860 each Passive eBay

Same family: the Tannoy VX6 (smaller model, estimated 2.9/5), the Tannoy VX8 (smaller model, estimated 3/5) and the Tannoy VX15HP (larger model, estimated 3.1/5).

Pros: A passive installation speaker from Tannoy with a 12” Dual Concentric driver, its tweeter mounted in the center of the woofer. Tannoy’s data shows a flat on-axis response (0.46 average deviation). Tannoy’s measurements show a preference score of 1.94 that reaches 5.02 with an ideal subwoofer, with 0.62 listening window deviation.

Cons: Bass is limited for its size, so it is meant to be used with subwoofers. Bass reaches 90.0Hz (-3dB) and about 61Hz (-10dB).

Full Tannoy VX12 review and specifications →

Bass Extension (-10dB)	about 60.6Hz (measured, manufacturer data via spinorama.org)
Bass Extension (-3dB)	90.0Hz (measured, manufacturer data via spinorama.org)
Bluetooth	No
DIY Kit	No
Drivers	12” Dual Concentric driver
Maximum SPL	126dB peak (manufacturer specified)
Passive	Yes
Rigging	8 x M10 flying and 8 x M10 yoke inserts; 4 x M6 inserts; pole mount
Spinorama Preference Score	1.94
Spinorama Preference Score with Perfect Sub	5.02
Weight	37.5 lbs (17 kg)

• Reviews, Comparisons and Sound Samples
  • Manufacturer Measurements (spinorama.org)

Ranked #66 of 77 in 12-Inch PA Speakers - Coda Audio HOPS12i-Pro Passive Estimated eBay

Older model: the Coda Audio HOPS12 (ranked lower, rated 2.6/5).

Same family: the Coda Audio HOPS5 (smaller model, rated 3.8/5) and the Coda Audio HOPS8 (smaller model, rated 3.7/5).

Pros: The current HOPS12 with two 12” neodymium woofers and a 1.4” coaxial neodymium mid/high driver, rotatable 90 x 60 or 60 x 40 degree coverage, 2000W AES power handling and a 144dB peak rating. Rated 44Hz to 22kHz (-6dB).

Cons: No independent measurements yet, so its tonal balance and directivity can’t be compared directly with measured speakers; the rating is estimated from its measured predecessor. Its predecessor measured poorly on axis, so the range is wide. It weighs 34kg and is sold through pro audio dealers only.

Full Coda Audio HOPS12i-Pro review and specifications →

AES Input	No
Amplifier Power	Passive speaker; requires external amplification
Aux Input	No
Bluetooth	No
Coaxial Input	No
Configuration	Passive 3-way point source PA speaker
Coverage	90 x 60 or 60 x 40 degrees (rotatable)
DSP	No (passive)
Dimensions	31.1”H x 14.5”W x 16.5”D (790 x 368 x 420 mm)
Drivers	2x 12” neodymium woofers, 1.4” coaxial neodymium mid/high driver
Frequency Response	44Hz-22kHz -6dB (manufacturer specified)
Guitar Input	No
HDMI Input	No
Maximum SPL	144dB peak (manufacturer specified)
Microphone Input	No
Optical Input	No
Passive	Yes
Power Handling	2000W AES
RCA Input	No
Rigging	11 x M8 threaded points
TRS Input	No
USB Input	No
Weight	75 lbs (34 kg)
XLR Input	No

• Links
  • Official Coda Audio HOPS12i-Pro Website
• Reviews, Comparisons and Sound Samples
  • No independent measurement review is linked for this model; it is ranked from hands-on listening and comparison against similarly priced speakers.

Ranked #67 of 77 in 12-Inch PA Speakers - Martin Audio FlexPoint FP12 Passive eBay

Same family: the Martin Audio FlexPoint FP4 (smaller model, rated 3/5), the Martin Audio FlexPoint FP6 (smaller model, rated 3/5), the Martin Audio FlexPoint FP8 (smaller model, rated 3/5) and the Martin Audio FlexPoint FP15 (larger model, rated 2.7/5).

Pros: Bass reaches 60Hz at -3dB and about 47Hz at -10dB in vendor measurements with a smooth on-axis response (0.5dB average deviation), and 97dB sensitivity gives a 128dB peak. Measured bass extension of 60Hz (-3dB).

Cons: Preference scores of 1.25 standalone and 3.62 with an ideal subwoofer are low because the listening window spreads across 4.8dB and off-axis tone varies. It is passive and weighs 17.5kg.

Full Martin Audio FlexPoint FP12 review and specifications →

AES Input	No
Amplifier Power	Passive speaker; requires external amplification
Aux Input	No
Bass Extension (-10dB)	about 47.4Hz (measured, vendor Spinorama data)
Bass Extension (-3dB)	60Hz (measured, vendor Spinorama data)
Bluetooth	No
Coaxial Input	No
Configuration	Passive 2-way PA speaker
DSP	No (passive)
Drivers	12” woofer, compression driver
Guitar Input	No
HDMI Input	No
Maximum SPL	128dB peak / 122dB continuous (manufacturer specified)
Microphone Input	No
Optical Input	No
Passive	Yes
RCA Input	No
Rigging	17 x M8 and 4 x M10 inserts; dual-angle pole socket
Sensitivity	97dB
Spinorama Preference Score	1.25
Spinorama Preference Score with Perfect Sub	3.62
TRS Input	No
USB Input	No
Weight	38.6 lbs (17.5 kg)
XLR Input	No

• Links
  • Martin Audio FlexPoint FP12 Product Page
• Reviews, Comparisons and Sound Samples
  • Spinorama Measurements

Ranked #69 of 77 in 12-Inch PA Speakers - Martin Audio CDD12 Passive eBay

Same family: the Martin Audio CDD-LIVE 8 (smallest powered model, estimated 3.4/5), the Martin Audio CDD-LIVE 12 (powered model, ranked higher, estimated 3.1/5), the Martin Audio CDD-LIVE 15 (largest powered model, estimated 3.5/5), the Martin Audio CDD5 (smaller passive model, estimated 3/5), the Martin Audio CDD6 (smaller passive model, estimated 3.1/5), the Martin Audio CDD8 (smaller passive model, rated 3.2/5), the Martin Audio CDD10 (smaller passive model, rated 3.1/5) and the Martin Audio CDD15 (larger passive model, rated 3.3/5).

Pros: Martin Audio’s Coaxial Differential Dispersion driver widens horizontal coverage from 60° far away to 110° up close, so level stays more even from front row to back. A 12-inch woofer shares its motor with a 1-inch compression driver in a 19kg birch cabinet, available in any RAL color for installs. Measured bass extension of 95Hz (-3dB).

Cons: Manufacturer measurements give a very low 0.82 standalone preference score and 3.80 with an ideal subwoofer, with a wide 4.0dB reference band and 0.821 listening-window deviation, so its tonal balance is very uneven. Bass measures 95Hz at -3dB. It is passive, aimed at installs, and sold only through dealers.

Full Martin Audio CDD12 review and specifications →

AES Input	No
Amplifier Power	Passive speaker; requires external amplification
Aux Input	No
Bass Extension (-10dB)	about 55.7Hz (measured, vendor Spinorama data)
Bass Extension (-3dB)	95Hz (measured, vendor Spinorama data)
Bluetooth	No
Cabinet Material	Birch plywood
Coaxial Input	No
Configuration	Passive 2-way coaxial on-wall PA speaker
Coverage	110° to 60° horizontal x 60° (rotatable)
DSP	No (passive)
Dimensions	22”H x 14.2”W x 13.8”D (560 x 360 x 350 mm)
Drivers	12” woofer with coaxial 1” exit compression driver (Coaxial Differential Dispersion)
Guitar Input	No
HDMI Input	No
Impedance	8 ohms
Maximum SPL	128dB peak (manufacturer specified)
Microphone Input	No
Optical Input	No
Passive	Yes
RCA Input	No
Rigging	10 x M8 fly points; 6 x M8 wall bracket inserts
Spinorama Preference Score	0.82
Spinorama Preference Score with Perfect Sub	3.80
TRS Input	No
USB Input	No
Weight	41.9 lbs (19 kg)
XLR Input	No

• Links
  • Martin Audio CDD12 Product Page
• Reviews, Comparisons and Sound Samples
  • Spinorama Measurements
• Head-to-Head Comparisons
  • Martin Audio CDD12 vs Audiofocus VENU 12a
  • Martin Audio CDD12 vs Amate Audio X12CLA
  • Martin Audio CDD12 vs Electro-Voice MFX-12MC
  • Martin Audio CDD12 vs QSC K12.2

Ranked #71 of 77 in 12-Inch PA Speakers - Biamp Community V2-3294 Passive eBay

Same family: the Biamp Community V2-6 (smaller model, rated 2.8/5), the Biamp Community V2-26 (smaller model, rated 2.8/5), the Biamp Community V2-8 (smaller model, rated 2.7/5), the Biamp Community V2-28 (smaller model, rated 2.4/5) and the Biamp Community V2-3594 (larger model, rated 2.7/5).

Pros: High 99dB sensitivity and a 128dB peak, bass to about 53Hz at -10dB, and a smooth on-axis response (0.39dB average deviation in vendor measurements). Measured bass extension of 85Hz (-3dB).

Cons: Preference scores of -0.17 standalone and 2.74 with an ideal subwoofer are low, because off-axis tone changes a lot (4.2dB directivity-index deviation). It is passive and weighs 25.4kg.

Full Biamp Community V2-3294 review and specifications →

AES Input	No
Amplifier Power	Passive speaker; requires external amplification
Aux Input	No
Bass Extension (-10dB)	about 52.5Hz (measured, vendor Spinorama data)
Bass Extension (-3dB)	85Hz (measured, vendor Spinorama data)
Bluetooth	No
Coaxial Input	No
Configuration	Passive 3-way installation PA speaker
Coverage	90° x 40° (rotatable)
DSP	No (passive)
Drivers	12” woofer, midrange horn, compression driver on a rotatable horn
Guitar Input	No
HDMI Input	No
Maximum SPL	128dB peak / 122dB continuous (manufacturer specified)
Microphone Input	No
Optical Input	No
Passive	Yes
RCA Input	No
Rigging	M10 threaded rigging points
Sensitivity	99dB
Spinorama Preference Score	-0.17
Spinorama Preference Score with Perfect Sub	2.74
TRS Input	No
USB Input	No
Weight	56 lbs (25.4 kg)
XLR Input	No

• Reviews, Comparisons and Sound Samples
  • Spinorama Measurements

Ranked #72 of 77 in 12-Inch PA Speakers - Novacoustic KIRA 12 Passive eBay

Same family: the Novacoustic KIRA 5 (smaller model, rated 2.5/5), the Novacoustic KIRA 8 (smaller model, rated 2.5/5) and the Novacoustic KIRA 10 (smaller model, rated 2/5).

Pros: High 98.5dB sensitivity and a 131dB peak with wide 90° conical coverage from a coaxial driver. Measured bass extension of 90Hz (-3dB).

Cons: Preference scores of -0.63 standalone and 2.62 with an ideal subwoofer are low, because the listening window spreads across 10.5dB and off-axis tone varies (4.35dB directivity-index deviation). Bass reaches only 90Hz at -3dB. It is passive.

Full Novacoustic KIRA 12 review and specifications →

AES Input	No
Amplifier Power	Passive speaker; requires external amplification
Aux Input	No
Bass Extension (-10dB)	about 76.0Hz (measured, vendor Spinorama data)
Bass Extension (-3dB)	90Hz (measured, vendor Spinorama data)
Bluetooth	No
Coaxial Input	No
Configuration	Passive 2-way coaxial PA speaker
Coverage	90° x 90°
DSP	No (passive)
Drivers	12” coaxial driver
Frequency Response	50Hz - 20kHz (manufacturer specified)
Guitar Input	No
HDMI Input	No
Impedance	8 ohms
Maximum SPL	131dB peak (manufacturer specified)
Microphone Input	No
Optical Input	No
Passive	Yes
Power Handling	450W RMS
RCA Input	No
Rigging	2 x M10 inserts with U-bracket; 4 x M6 points; optional stand adapter
Sensitivity	98.5dB
Spinorama Preference Score	-0.63
Spinorama Preference Score with Perfect Sub	2.62
TRS Input	No
USB Input	No
Weight	40.8 lbs (18.5 kg)
XLR Input	No

• Links
  • Novacoustic KIRA 12 Product Page
• Reviews, Comparisons and Sound Samples
  • Spinorama Measurements
• Head-to-Head Comparisons
  • Novacoustic KIRA 12 vs Novacoustic KIRA 5
  • Novacoustic KIRA 12 vs Novacoustic KIRA 8
  • Novacoustic KIRA 12 vs Novacoustic KIRA 10

Ranked #74 of 77 in 12-Inch PA Speakers - Coda Audio HOPS12 Passive Discontinued eBay

Newer model: the Coda Audio HOPS12i-Pro, ranked higher, estimated 3/5.

Pros: A three-way point source touring and installation speaker with two 12” woofers and a coaxial mid/high driver. Coda’s measurements show bass to 47.5Hz (-3dB) and about 43Hz (-10dB).

Cons: Coda’s own data shows a very uneven on-axis response (2.37dB average deviation) and a rough predicted in-room response (0.24), for a preference score of 1.65 alone and 3.82 with an ideal subwoofer. Coda now sells the revised Coda Audio HOPS12i-Pro. Discontinued.

Full Coda Audio HOPS12 review and specifications →

AES Input	No
Amplifier Power	Passive speaker; requires external amplification
Aux Input	No
Bass Extension (-10dB)	about 42.9Hz (measured, manufacturer data via spinorama.org)
Bass Extension (-3dB)	47.5Hz (measured, manufacturer data via spinorama.org)
Bluetooth	No
Coaxial Input	No
Configuration	Passive 3-way point source PA speaker
DSP	No (passive)
Drivers	2x 12” woofers, coaxial mid/high driver
Guitar Input	No
HDMI Input	No
Microphone Input	No
Optical Input	No
Passive	Yes
RCA Input	No
Spinorama Preference Score	1.65
Spinorama Preference Score with Perfect Sub	3.82
TRS Input	No
USB Input	No
XLR Input	No

• Reviews, Comparisons and Sound Samples
  • Manufacturer Measurements (spinorama.org)

Ranked #75 of 77 in 12-Inch PA Speakers - Turbosound TCS122 Passive Discontinued eBay

Pros: Deep bass for a 12-inch speaker, about 45Hz at -3dB and 36Hz at -10dB in vendor measurements, with 96dB sensitivity. Measured bass extension of 45Hz (-3dB).

Cons: Preference scores of 0.47 standalone and 2.37 with an ideal subwoofer are low because the listening window spreads across 5.2dB and off-axis tone varies. It is passive, weighs 26.5kg, and is discontinued, so it is mainly found used.

Full Turbosound TCS122 review and specifications →

AES Input	No
Amplifier Power	Passive speaker; requires external amplification
Aux Input	No
Bass Extension (-10dB)	about 35.8Hz (measured, vendor Spinorama data)
Bass Extension (-3dB)	45Hz (measured, vendor Spinorama data)
Bluetooth	No
Coaxial Input	No
Configuration	Passive 2-way PA speaker
Coverage	60° x 40° (other waveguides available)
DSP	No (passive)
Dimensions	32.8”H x 15.7”W x 16.7”D (834 x 399 x 425 mm)
Drivers	12” woofer, compression driver on a rotatable dendritic waveguide
Frequency Response	50Hz - 18kHz (±3dB, manufacturer specified)
Guitar Input	No
HDMI Input	No
Impedance	8 ohms
Maximum SPL	130dB peak (manufacturer specified)
Microphone Input	No
Optical Input	No
Passive	Yes
RCA Input	No
Rigging	9 x M10 and 8 x M8 inserts
Sensitivity	96dB
Spinorama Preference Score	0.47
Spinorama Preference Score with Perfect Sub	2.37
TRS Input	No
USB Input	No
Weight	58.4 lbs (26.5 kg)
XLR Input	No

• Reviews, Comparisons and Sound Samples
  • Spinorama Measurements

Ranked #76 of 77 in 12-Inch PA Speakers - Behringer Eurolive B212XL: $219.00 each Passive Amazon eBay

Same family: the Behringer Eurolive B215XL (larger model, rated 3/5).

Pros: A low-cost passive 12-inch two-way with a 1.75-inch titanium compression driver, rated at 95dB sensitivity so a modest amplifier drives it loud, and light at 10.9kg. Parallel speakON and quarter-inch inputs let you daisy-chain a second box, and it fits a standard speaker pole. Measured bass extension of 95Hz (-3dB).

Cons: Erin’s Audio Corner’s measurements are among the weakest in this class: the listening window spans 8.5dB between 300Hz and 5kHz, the predicted in-room response is rough (0.32 smoothness), and the preference score is -1.01 (2.30 with an ideal subwoofer). Bass rolls off early, around 95Hz at -3dB, so it needs a subwoofer for music, and being passive it also needs an external amplifier. Erin’s verdict was not to buy it for home theater.

Full Behringer Eurolive B212XL review and specifications →

AES Input	No
Amplifier Power	Passive speaker; use external amplification within the 800W peak handling rating
Aux Input	No
Bass Extension (-3dB)	95Hz (measured, Erin’s Audio Corner)
Bluetooth	No
Cabinet Material	Molded enclosure
Coaxial Input	No
Configuration	Passive 2-way bass-reflex PA speaker
Coverage	90° x 60°
DSP	No (passive)
Dimensions	21.7”H x 13.6”W x 10.6”D (550 x 345 x 270 mm)
Drivers	12” woofer, 1.75” titanium-diaphragm compression driver
Frequency Response	65Hz - 18kHz (manufacturer specified)
Guitar Input	No
HDMI Input	No
Impedance	8 ohms nominal (manufacturer specified)
Inputs	Parallel professional twist-lock and quarter-inch inputs
Microphone Input	No
Optical Input	No
Passive	Yes
Power Handling	200W continuous, 800W peak (manufacturer specified)
RCA Input	No
Rigging	Standard speaker-pole mount; optional wall bracket
Sensitivity	95dB (manufacturer specified)
Spinorama Preference Score	-1.01
Spinorama Preference Score with Perfect Sub	2.30
TRS Input	Yes
USB Input	No
Weight	24 lbs (10.9 kg)
XLR Input	No

• Links
  • Behringer Eurolive B212XL Product Page
• Reviews, Comparisons and Sound Samples
  • Erin’s Audio Corner: Do not buy Behringer B212XL & B215XL for your home theater. Save Your Money. More from Erin’s Audio Corner →
  • Erin’s Audio Corner Website: Behringer Eurolive B212XL
  • Erin’s Audio Corner Measurements (spinorama.org)
• Head-to-Head Comparisons
  • Behringer Eurolive B212XL vs RCF ART 712-A MK5
  • Behringer Eurolive B212XL vs Yamaha DBR12
  • Behringer Eurolive B212XL vs FBT ProMaxX 112A
  • Behringer Eurolive B212XL vs QSC K12.2

Ranked #77 of 77 in 12-Inch PA Speakers - K-array Dragon KX12 Passive Discontinued eBay

Pros: A slim 201mm deep stainless steel cabinet with a 133dB peak, and the most consistent off-axis tone in this group (2.26dB directivity-index deviation). Measured bass extension of 109Hz (-3dB).

Cons: Vendor measurements give the lowest preference scores here, -4.28 standalone and -0.41 with an ideal subwoofer, because bass stops near 109Hz (-3dB) and the response tilts strongly. It is passive and discontinued, so it is mainly found used.

Full K-array Dragon KX12 review and specifications →

AES Input	No
Amplifier Power	Passive speaker; requires external amplification
Aux Input	No
Bass Extension (-10dB)	about 80.8Hz (measured, vendor Spinorama data)
Bass Extension (-3dB)	109Hz (measured, vendor Spinorama data)
Bluetooth	No
Coaxial Input	No
Configuration	Passive 2-way coaxial PA speaker, IP54 stainless steel enclosure
DSP	No (passive)
Dimensions	13.4”H x 12.6”W x 7.9”D (340 x 320 x 201 mm)
Drivers	12” coaxial woofer with compression driver
Frequency Response	120Hz - 18kHz (manufacturer specified)
Guitar Input	No
HDMI Input	No
Impedance	8 ohms
Maximum SPL	133dB peak (manufacturer specified)
Microphone Input	No
Optical Input	No
Passive	Yes
RCA Input	No
Spinorama Preference Score	-4.28
Spinorama Preference Score with Perfect Sub	-0.41
TRS Input	No
USB Input	No
Weight	26.9 lbs (12.2 kg)
XLR Input	No

• Reviews, Comparisons and Sound Samples
  • Spinorama Measurements

15-Inch PA Speakers

Ranked #2 of 61 in 15-Inch PA Speakers - L-Acoustics X15 HiQ Passive eBay

Same family: the L-Acoustics X4i (smaller model, rated 3.6/5), the L-Acoustics X6i (smaller model, rated 3.9/5), the L-Acoustics X8 (smaller model, rated 4/5) and the L-Acoustics X12 (smaller model, rated 4.6/5).

Pros: Vendor Spinorama data gives preference scores of 5.31 standalone and 8.06 with an ideal subwoofer, the highest ideal-subwoofer score in the 15-inch ranking. Listening-window narrow-band deviation is a low 0.186 and predicted in-room smoothness is 0.703, so vocals and stage-monitor mixes stay clean. Bass reaches about 73Hz (-3dB) with a 138dB maximum SPL from a 21kg coaxial cabinet. Measured bass extension of 73Hz (-3dB).

Cons: This passive monitor needs an L-Acoustics amplified controller such as the LA4X or LA12X to work at all. Its narrow 40° x 60° pattern suits a stage monitor but covers less of a room than wider mains. Bass reaches only about 73Hz (-3dB), so a subwoofer is still needed for full-range music.

Full L-Acoustics X15 HiQ review and specifications →

AES Input	No
Amplifier Power	Passive speaker; requires an L-Acoustics amplified controller (LA4X, LA12X or LA7.16i)
Aux Input	No
Bass Extension (-3dB)	73Hz (measured, vendor Spinorama data)
Bluetooth	No
Cabinet Material	Baltic birch and beech plywood
Coaxial Input	No
Configuration	Passive 2-way coaxial PA stage monitor
Coverage	40° x 60°
DSP	No (passive; processing and protection come from the amplified controller)
Drivers	15” neodymium woofer, 3” neodymium compression driver (coaxial)
Frequency Response	55Hz - 20kHz (manufacturer specified)
Guitar Input	No
HDMI Input	No
Inputs	Speakon input and link
Maximum SPL	138dB (manufacturer specified)
Microphone Input	No
Optical Input	No
Passive	Yes
RCA Input	No
Rigging	Two handles, M8 and four M10 threaded inserts, two 35mm pole sockets
Spinorama Preference Score	5.31
Spinorama Preference Score with Perfect Sub	8.06
TRS Input	No
USB Input	No
Weight	46.3 lbs (21 kg)
XLR Input	No

• Links
  • L-Acoustics X15 HiQ Product Page
• Reviews, Comparisons and Sound Samples
  • Spinorama Measurements
• Head-to-Head Comparisons
  • L-Acoustics X15 HiQ vs RCF ART 945-A
  • L-Acoustics X15 HiQ vs Vue Audiotechnik H-15
  • L-Acoustics X15 HiQ vs RCF KX 45-A

Ranked #14 of 61 in 15-Inch PA Speakers - Coda Audio G715 Passive eBay

Same family: the Coda Audio G308 (smaller model, estimated 3.5/5), the Coda Audio G512 (smaller model, rated 3.6/5), the Coda Audio G515 (smaller model, ranked lower, rated 3.7/5) and the Coda Audio G712 (smaller model, rated 3.8/5).

Pros: High-quality manufacturer measurements give preference scores of 2.86 standalone and 5.88 with an ideal subwoofer, with a tighter 2.9dB reference band than the Coda Audio G515. The 3-way design pairs a 15-inch low-distortion woofer with a coaxial 1.4-inch mid/high driver, rated at 98dB sensitivity and a 143dB peak. Passive or bi-amp operation and a rotatable 90° x 60° waveguide suit large venues and touring. Measured bass extension of 87.5Hz (-3dB).

Cons: Bass measures 87.5Hz at -3dB and about 56.5Hz at -10dB, less extended than a 15-inch woofer suggests, so it still needs a subwoofer. A 4.19 directivity-index deviation means off-axis tone varies. It weighs 24.5kg, is passive, and is sold through pro dealers with no published price.

Full Coda Audio G715 review and specifications →

AES Input	No
Amplifier Power	Passive speaker; requires external amplification
Aux Input	No
Bass Extension (-10dB)	about 56.5Hz (measured, vendor Spinorama data)
Bass Extension (-3dB)	87.5Hz (measured, vendor Spinorama data)
Bluetooth	No
Coaxial Input	No
Configuration	Passive 3-way PA speaker (passive or bi-amp)
Coverage	90° x 60° (rotatable)
DSP	No (passive)
Dimensions	27.6”H x 16.5”W x 14.6”D (700 x 420 x 370 mm)
Drivers	15” neodymium woofer (4” voice coil), 1.4” neodymium coaxial mid/high driver
Frequency Response	50Hz - 23kHz (-6dB, manufacturer specified)
Guitar Input	No
HDMI Input	No
Impedance	8 ohms
Maximum SPL	143dB peak (manufacturer specified)
Microphone Input	No
Optical Input	No
Passive	Yes
Power Handling	1,000W AES / 4,000W peak
RCA Input	No
Rigging	M6 and M8 threaded points for U-bracket; GFA flying adapter
Sensitivity	98dB
Spinorama Preference Score	2.86
Spinorama Preference Score with Perfect Sub	5.88
TRS Input	No
USB Input	No
Weight	54 lbs (24.5 kg)
XLR Input	No

• Links
  • Coda Audio G715-Pro Product Page
• Reviews, Comparisons and Sound Samples
  • Spinorama Measurements
• Head-to-Head Comparisons
  • Coda Audio G715 vs Axiom ED150A
  • Coda Audio G715 vs Yamaha DXR15mkIII
  • Coda Audio G715 vs Yamaha DZR315
  • Coda Audio G715 vs Turbosound NuQ152
  • Coda Audio G715 vs Coda Audio G515
  • Coda Audio G715 vs Coda Audio G512
  • Coda Audio G715 vs Coda Audio G712
  • Coda Audio G715 vs Coda Audio G308

Ranked #18 of 61 in 15-Inch PA Speakers - Turbosound NuQ152 Passive Discontinued eBay

Pros: Vendor Spinorama data gives preference scores of 3.99 standalone and 6.59 with an ideal subwoofer, and bass reaches about 65Hz (-3dB), deeper than most boxes on this ranking. Sensitivity of 97dB means modest amplifiers reach high levels, and the 70° pattern is easy to place. Measured bass extension of 65Hz (-3dB).

Cons: The Spinorama data is low quality, so the measured curves should be treated cautiously. Predicted in-room smoothness of 0.438 is well behind the best 15-inch boxes, and as a passive cabinet it needs an external amplifier and processor to play at all. Discontinued.

Full Turbosound NuQ152 review and specifications →

AES Input	No
Amplifier Power	Passive speaker; requires external amplification and processing
Aux Input	No
Bass Extension (-3dB)	65Hz (measured, vendor Spinorama data)
Bluetooth	No
Coaxial Input	No
Configuration	Passive 2-way bass-reflex PA speaker
Coverage	70° x 70°
DSP	No (passive)
Dimensions	28”H x 16.9”W x 15.2”D (712 x 430 x 385 mm)
Drivers	15” carbon fibre loaded woofer, 1” neodymium compression driver
Guitar Input	No
HDMI Input	No
Maximum SPL	130dB peak (passive, manufacturer specified)
Microphone Input	No
Optical Input	No
Passive	Yes
RCA Input	No
Rigging	12 x M10 and 4 x M8 inserts; 35mm pole mount
Sensitivity	97dB
Spinorama Preference Score	3.99
Spinorama Preference Score with Perfect Sub	6.59
TRS Input	No
USB Input	No
Weight	53.8 lbs (24.4 kg)
XLR Input	No

• Links
  • Turbosound NuQ152 Product Page
• Reviews, Comparisons and Sound Samples
  • Spinorama Measurements
• Head-to-Head Comparisons
  • Turbosound NuQ152 vs Yamaha DXR15mkII
  • Turbosound NuQ152 vs Coda Audio G515
  • Turbosound NuQ152 vs Coda Audio G715
  • Turbosound NuQ152 vs Amate Audio X14FD

Ranked #21 of 61 in 15-Inch PA Speakers - Coda Audio G515 Passive eBay

Same family: the Coda Audio G308 (smaller model, estimated 3.5/5), the Coda Audio G512 (smaller model, rated 3.6/5), the Coda Audio G712 (larger model, rated 3.8/5) and the Coda Audio G715 (larger model, ranked higher, rated 3.8/5).

Pros: High-quality manufacturer measurements give preference scores of 3.03 standalone and 5.90 with an ideal subwoofer. The 15-inch neodymium woofer reaches 77.5Hz at -3dB and about 53Hz at -10dB, and the cabinet weighs just 17.5kg. A 98dB sensitivity, 132dB peak rating and rotatable 90° x 60° waveguide make it a light, flexible full-range box. Measured bass extension of 77.5Hz (-3dB).

Cons: The wide 3.8dB reference band means tonal balance is less even than the best 15-inch speakers. Output is lower than its 3-way Coda Audio G715 sibling, and a 4.06 directivity-index deviation means off-axis tone varies. It is passive and sold through pro dealers with no published price.

Full Coda Audio G515 review and specifications →

AES Input	No
Amplifier Power	Passive speaker; requires external amplification
Aux Input	No
Bass Extension (-10dB)	about 53Hz (measured, vendor Spinorama data)
Bass Extension (-3dB)	77.5Hz (measured, vendor Spinorama data)
Bluetooth	No
Coaxial Input	No
Configuration	Passive 2-way PA speaker
Coverage	90° x 60° (rotatable)
DSP	No (passive)
Dimensions	27.6”H x 16.5”W x 14.6”D (700 x 420 x 370 mm)
Drivers	15” neodymium woofer (3” voice coil), 1” neodymium compression driver
Frequency Response	50Hz - 21kHz (-6dB, manufacturer specified)
Guitar Input	No
HDMI Input	No
Impedance	8 ohms
Maximum SPL	132dB peak (manufacturer specified)
Microphone Input	No
Optical Input	No
Passive	Yes
Power Handling	600W AES / 2,400W peak
RCA Input	No
Rigging	M6 and M8 threaded points for U-bracket; GFA flying adapter
Sensitivity	98dB
Spinorama Preference Score	3.03
Spinorama Preference Score with Perfect Sub	5.90
TRS Input	No
USB Input	No
Weight	38.6 lbs (17.5 kg)
XLR Input	No

• Links
  • Coda Audio G515-Pro Product Page
• Reviews, Comparisons and Sound Samples
  • Spinorama Measurements
• Head-to-Head Comparisons
  • Coda Audio G515 vs Electro-Voice MFX-15MC
  • Coda Audio G515 vs Turbosound NuQ152
  • Coda Audio G515 vs RCF ART 715-A MK5
  • Coda Audio G515 vs Amate Audio X14FD
  • Coda Audio G515 vs Coda Audio G715
  • Coda Audio G515 vs Coda Audio G512
  • Coda Audio G515 vs Coda Audio G712
  • Coda Audio G515 vs Coda Audio G308

Ranked #22 of 61 in 15-Inch PA Speakers - Yamaha CZR15: $1,024.00 Passive Estimated B&H Photo Video eBay

Same family: the Yamaha DZR10 (smallest powered model, rated 3.4/5), the Yamaha DZR12 (powered model, rated 3.9/5), the Yamaha DZR15 (powered model, ranked higher, rated 4/5), the Yamaha DZR315 (largest powered model, ranked higher, rated 3.8/5), the Yamaha CZR10 (smaller passive model, estimated 3.2/5) and the Yamaha CZR12 (smaller passive model, estimated 3.6/5).

Pros: The passive version of the measured Yamaha DZR15, with a 15” woofer and a 2” voice coil compression driver in a plywood cabinet with 90° x 60° coverage. Yamaha rates it at 800W handling, 129dB maximum SPL and bass reaching 33Hz, and its PX and PC-D amplifiers carry a dedicated processing preset for it.

Cons: No independent measurements yet, so it can’t be compared with ranked PA speakers. It needs an external amplifier and speaker processing to match the powered DZR, which has its FIR-X tuning built in. It costs about as much as the powered model before the amplifier.

Full Yamaha CZR15 review and specifications →

Amplifier Power	Passive speaker; requires external amplification
Bluetooth	No
Cabinet Material	Plywood
Configuration	Passive 2-way bass-reflex PA speaker
Coverage	90° x 60°
DSP	No (passive)
Drivers	15” woofer, 2” voice coil compression driver
Frequency Response	33Hz - 20kHz (-10dB, manufacturer specified)
Impedance	8 ohms
Maximum SPL	129dB (manufacturer specified)
Passive	Yes
Power Handling	800W
Rigging	12 x M10 inserts; 2 x 35mm pole sockets (0° or -7°)
Weight	47 lbs (21.3 kg)
XLR Input	No

• Links
  • Yamaha CZR15 Product Information
• Reviews, Comparisons and Sound Samples
  • No independent measurement review is linked for this model; it is ranked from hands-on listening and comparison against similarly priced speakers.

Ranked #23 of 61 in 15-Inch PA Speakers - Electro-Voice MFX-15MC: $3,170.67 Passive Amazon B&H Photo Video eBay

Same family: the Electro-Voice MFX-12MC (smaller model, rated 3.3/5).

Pros: Medium-quality vendor data returns a 4.35 ideal-subwoofer preference score with 67Hz measured extension, the strongest result of any coaxial monitor in this ranking. The coaxial 15-inch design gives compact 60° x 40° coverage and a claimed 135dB peak with recommended amplification. Measured bass extension of 75Hz (-3dB).

Cons: This is not self-powered: it requires an external amplifier and can run passive or externally bi-amplified, so it is less convenient than every conventional powered cabinet here. The narrow pattern is aimed primarily at stage-monitor and short-throw fill use rather than wide-audience main duty.

Full Electro-Voice MFX-15MC review and specifications →

AES Input	No
Amplifier Power	Passive/bi-amp speaker; use external amplification within the 500W continuous / 3,500W peak handling rating
Aux Input	No
Bass Extension (-3dB)	75Hz (measured, vendor Spinorama data)
Bluetooth	No
Cabinet Material	12-18mm Baltic birch plywood with EVCoat finish
Coaxial Input	No
Configuration	Passive or externally bi-amplified 2-way coaxial PA monitor
Coverage	60° x 40°, rotatable
DSP	Requires external amplifier/DSP settings
Dimensions	23.6”H x 19.7”W x 13.3”D (600 x 500 x 339 mm)
Drivers	15” coaxial LF/MF driver, 3” HF compression driver
Frequency Response	52Hz - 18kHz (-3dB, manufacturer specified); 45Hz - 19kHz (-10dB)
Guitar Input	No
HDMI Input	No
Inputs	Neutrik NL4 input with NL4 pass-through
Maximum SPL	135dB peak with recommended amplification
Microphone Input	No
Optical Input	No
Passive	Yes
Power Handling	500W continuous / 3,500W peak (manufacturer specified)
RCA Input	No
Rigging	Four M10 suspension points; integrated 35mm pole cup
TRS Input	No
USB Input	No
Weight	50.7 lbs (23 kg)
XLR Input	No

• Links
  • Electro-Voice MFX-15MC Product Information
• Reviews, Comparisons and Sound Samples
  • Spinorama Measurements
• Head-to-Head Comparisons
  • Electro-Voice MFX-15MC vs RCF ART 715-A MK5
  • Electro-Voice MFX-15MC vs RCF NX 915-A
  • Electro-Voice MFX-15MC vs Coda Audio G515
  • Electro-Voice MFX-15MC vs Yamaha DXR15mkII
  • Electro-Voice MFX-15MC vs FBT Mitus 115A

Ranked #29 of 61 in 15-Inch PA Speakers - Vue Audiotechnik A-15: $2,500 Passive eBay

Same family: the Vue Audiotechnik A-8 (smaller model, rated 3.9/5), the Vue Audiotechnik A-10 (smaller model, rated 3.7/5) and the Vue Audiotechnik A-12 (smaller model, rated 3.6/5).

Pros: Low-quality vendor data shows a 4.57 ideal-subwoofer preference score, and the passive point-source design keeps amplification and DSP choices flexible for installers building out a system. Measured bass extension of 118Hz (-3dB).

Cons: Being passive, it needs an external amplifier and processing to perform correctly, adding cost and complexity that self-powered rivals avoid. Measured bass extension is shallow at roughly 118Hz, so a subwoofer is effectively mandatory.

Full Vue Audiotechnik A-15 review and specifications →

Amplifier Power	Passive speaker; use external amplification within the 600W average / 1,200W program handling rating
Aux Input	No
Bass Extension (-3dB)	118Hz (measured, vendor Spinorama data)
Bluetooth	No
Cabinet Material	Multi-ply cross-grain laminated birch plywood
Configuration	Passive 2-way bass-reflex PA speaker
Coverage	70° x 55°
DSP	No (passive, passive crossover with passive/bi-amp switch)
Dimensions	28.2” x 17.7” x 17.7” (716 x 450 x 450 mm)
Drivers	15” woofer, compression driver
Frequency Response	52Hz - 18kHz (manufacturer specified)
Guitar Input	No
Inputs	2x Neutrik NL-4 Speakon (switchable single-amp or bi-amp modes)
Maximum SPL	131dB peak (manufacturer specified)
Microphone Input	No
Passive	Yes
Rigging	Integrated fly points and pole-mount system
Spinorama Preference Score	0.95
Spinorama Preference Score with Perfect Sub	4.57
Weight	59.5 lbs (27 kg)
XLR Input	No

• Links
  • VUE Audiotechnik A-15 Product Information
• Reviews, Comparisons and Sound Samples
  • Spinorama Measurements
• Head-to-Head Comparisons
  • Vue Audiotechnik A-15 vs RCF ART 745-A MK5
  • Vue Audiotechnik A-15 vs Seeburg X8
  • Vue Audiotechnik A-15 vs Amate Audio X14FD
  • Vue Audiotechnik A-15 vs RCF NX 915-A
  • Vue Audiotechnik A-15 vs LD Systems Stinger 15-A-G3
  • Vue Audiotechnik A-15 vs RCF ART 745-A MK4

Ranked #30 of 61 in 15-Inch PA Speakers - Seeburg X8: $2,169.00 Passive Thomann eBay

Same family: the Seeburg X1 (smaller model, rated 3.4/5), the Seeburg X2 (smaller model, rated 3.6/5), the Seeburg X4 (smaller model, rated 3.9/5) and the Seeburg X6 (smaller model, rated 3.9/5).

Pros: Bass reaches about 69Hz (-3dB) in vendor Spinorama data, and the coaxial 15-inch design claims 134dB from a 22.5kg cabinet. Preference scores of 3.33 standalone and 6.14 with an ideal subwoofer come with a coverage pattern that stays consistent around the horn. Measured bass extension of 69Hz (-3dB).

Cons: Listening-window narrow-band deviation is 0.571, the worst in this ranking, so the midrange response is noticeably uneven. It is a passive cabinet that needs an external amplifier and processor, and the price is high next to powered 15-inch alternatives.

Full Seeburg X8 review and specifications →

AES Input	No
Amplifier Power	Passive speaker; requires external amplification within the 600W AES / 1800W peak handling rating
Aux Input	No
Bass Extension (-3dB)	69Hz (measured, vendor Spinorama data)
Bluetooth	No
Coaxial Input	No
Configuration	Passive 2-way coaxial PA speaker
Coverage	80° x 60°
DSP	No (passive)
Dimensions	22.8”H x 17.7”W x 15”D (580 x 450 x 380 mm)
Drivers	15” neodymium woofer, 1.4” neodymium compression driver (coaxial)
Frequency Response	50Hz - 18kHz (-6dB, manufacturer specified)
Guitar Input	No
HDMI Input	No
Maximum SPL	134dB (manufacturer specified)
Microphone Input	No
Optical Input	No
Passive	Yes
Power Handling	600W AES / 1800W peak (manufacturer specified)
RCA Input	No
Rigging	9 x M10 inserts; 35mm pole mount
Spinorama Preference Score	3.33
Spinorama Preference Score with Perfect Sub	6.14
TRS Input	No
USB Input	No
Weight	49.6 lbs (22.5 kg)
XLR Input	No

• Links
  • Seeburg X8 Product Page
• Reviews, Comparisons and Sound Samples
  • Spinorama Measurements
• Head-to-Head Comparisons
  • Seeburg X8 vs Vue Audiotechnik A-15
  • Seeburg X8 vs RCF NX 915-A
  • Seeburg X8 vs RCF ART 745-A MK4

Ranked #32 of 61 in 15-Inch PA Speakers - Yamaha CXR15mkIII: $799.00 Passive Estimated B&H Photo Video eBay

Same family: the Yamaha DXR10mkIII (smallest powered model, rated 3.8/5), the Yamaha DXR12mkIII (powered model, rated 4.1/5), the Yamaha DXR15mkIII (largest powered model, ranked higher, rated 3.8/5), the Yamaha CXR10mkIII (smaller passive model, estimated 3.5/5) and the Yamaha CXR12mkIII (smaller passive model, estimated 3.8/5).

Pros: The passive version of the measured Yamaha DXR15mkIII, with the same 15” woofer, 1.75” voice coil compression driver, horn and port design. Yamaha rates it at 95dB sensitivity, 126dB maximum SPL and bass to 50Hz (-10dB) with 90° x 60° coverage, and its PX and PC-D amplifiers carry a dedicated processing preset for it.

Cons: No independent measurements yet, so it can’t be compared with ranked PA speakers. It needs an external amplifier and, for its rated response, speaker processing; the powered model has that built in. Without Yamaha’s preset its tonal balance depends on the amplifier’s EQ.

Full Yamaha CXR15mkIII review and specifications →

Amplifier Power	Passive speaker; requires external amplification
Bluetooth	No
Configuration	Passive 2-way bass-reflex PA speaker
Coverage	90° x 60°
DSP	No (passive)
Drivers	15” woofer, 1.75” voice coil compression driver
Frequency Response	50Hz - 20kHz (-10dB, manufacturer specified)
Impedance	8 ohms
Maximum SPL	126dB (manufacturer specified)
Passive	Yes
Power Handling	1,200W peak
Rigging	3 x M10 and 4 x M8 inserts; 35mm pole sockets (0° or 7°)
Sensitivity	95dB
Weight	41.9 lbs (19 kg)
XLR Input	No

• Links
  • Yamaha CXR15mkIII Product Information
• Reviews, Comparisons and Sound Samples
  • No independent measurement review is linked for this model; it is ranked from hands-on listening and comparison against similarly priced speakers.

Ranked #39 of 61 in 15-Inch PA Speakers - Martin Audio CDD15 Passive eBay

Same family: the Martin Audio CDD-LIVE 8 (smallest powered model, estimated 3.4/5), the Martin Audio CDD-LIVE 12 (powered model, estimated 3.1/5), the Martin Audio CDD-LIVE 15 (largest powered model, ranked higher, estimated 3.5/5), the Martin Audio CDD5 (smaller passive model, estimated 3/5), the Martin Audio CDD6 (smaller passive model, estimated 3.1/5), the Martin Audio CDD8 (smaller passive model, rated 3.2/5), the Martin Audio CDD10 (smaller passive model, rated 3.1/5) and the Martin Audio CDD12 (smaller passive model, rated 2.9/5).

Pros: A 15-inch woofer with a coaxial 1.4-inch titanium compression driver uses Coaxial Differential Dispersion, widening coverage from 60° far away to 100° up close for even level across a room. Bass reaches 80Hz at -3dB and about 50Hz at -10dB, and manufacturer measurements give a 4.91 preference score with an ideal subwoofer. Measured bass extension of 80Hz (-3dB).

Cons: A wide 4.9dB reference band and 0.701 listening-window deviation mean tonal balance is uneven, with a 1.99 standalone score. It is a 26kg passive install cabinet that needs Martin Audio amplification and presets, and it is sold only through dealers.

Full Martin Audio CDD15 review and specifications →

AES Input	No
Amplifier Power	Passive speaker; requires external amplification
Aux Input	No
Bass Extension (-10dB)	about 49.7Hz (measured, vendor Spinorama data)
Bass Extension (-3dB)	80Hz (measured, vendor Spinorama data)
Bluetooth	No
Cabinet Material	Birch plywood
Coaxial Input	No
Configuration	Passive 2-way coaxial on-wall PA speaker
Coverage	100° to 60° horizontal x 60° (rotatable)
DSP	No (passive)
Dimensions	27”H x 17”W x 16.3”D (685 x 432 x 413 mm)
Drivers	15” woofer with coaxial 1.4” exit titanium compression driver (Coaxial Differential Dispersion)
Guitar Input	No
HDMI Input	No
Impedance	8 ohms
Maximum SPL	132dB peak (manufacturer specified)
Microphone Input	No
Optical Input	No
Passive	Yes
RCA Input	No
Rigging	10 x M8 fly points
Spinorama Preference Score	1.99
Spinorama Preference Score with Perfect Sub	4.91
TRS Input	No
USB Input	No
Weight	57.3 lbs (26 kg)
XLR Input	No

• Links
  • Martin Audio CDD15 Product Page
• Reviews, Comparisons and Sound Samples
  • Spinorama Measurements
• Head-to-Head Comparisons
  • Martin Audio CDD15 vs FBT J15A
  • Martin Audio CDD15 vs Martin Audio XP15
  • Martin Audio CDD15 vs DAS Audio Vantec 15A

Ranked #40 of 61 in 15-Inch PA Speakers - Electro-Voice EVC-1152 Passive eBay

Same family: the Electro-Voice EVC-1082 (smaller model, rated 3.4/5) and the Electro-Voice EVC-1122 (smaller model, rated 3.2/5).

Pros: High 98dB sensitivity and a 129dB maximum make it easy to drive loud, and the listening window stays within a 1.9dB band in vendor measurements. Bass reaches 69Hz (-3dB) and about 51Hz (-10dB). Measured bass extension of 69Hz (-3dB).

Cons: Preference scores of 1.77 standalone and 4.58 with an ideal subwoofer trail the better 15-inch models, partly because off-axis tone varies (3.76dB directivity-index deviation). It is passive and weighs 25kg.

Full Electro-Voice EVC-1152 review and specifications →

AES Input	No
Amplifier Power	Passive speaker; requires external amplification
Aux Input	No
Bass Extension (-10dB)	about 51.1Hz (measured, vendor Spinorama data)
Bass Extension (-3dB)	69Hz (measured, vendor Spinorama data)
Bluetooth	No
Coaxial Input	No
Configuration	Passive 2-way installation PA speaker
Coverage	90° x 55° (rotatable)
DSP	No (passive)
Drivers	15” EVS-15M woofer, compression driver on a rotatable waveguide
Frequency Response	70Hz - 21kHz (manufacturer specified)
Guitar Input	No
HDMI Input	No
Impedance	8 ohms
Maximum SPL	129dB (manufacturer calculated)
Microphone Input	No
Optical Input	No
Passive	Yes
Power Handling	350W continuous
RCA Input	No
Rigging	8 x M10 suspension points; optional U-bracket or wall mount
Sensitivity	98dB
Spinorama Preference Score	1.77
Spinorama Preference Score with Perfect Sub	4.58
TRS Input	No
USB Input	No
Weight	55.1 lbs (25 kg)
XLR Input	No

• Links
  • Electro-Voice EVC-1152-95 Product Page
• Reviews, Comparisons and Sound Samples
  • Spinorama Measurements

Ranked #41 of 61 in 15-Inch PA Speakers - JBL CV5015 Passive eBay

Same family: the JBL CV5012 (smaller model, rated 3.3/5).

Pros: High 99dB sensitivity, 800W handling and a 134dB peak give strong output, and the on-axis response is smooth (0.52dB average deviation in vendor measurements). Measured bass extension of 95Hz (-3dB).

Cons: Preference scores of 1.12 standalone and 4.49 with an ideal subwoofer are low because the listening window spreads across 3.3dB. Bass reaches only 95Hz at -3dB, shallow for a 15-inch woofer. It is passive and weighs 33kg.

Full JBL CV5015 review and specifications →

AES Input	No
Amplifier Power	Passive speaker; requires external amplification
Aux Input	No
Bass Extension (-10dB)	about 65.0Hz (measured, vendor Spinorama data)
Bass Extension (-3dB)	95Hz (measured, vendor Spinorama data)
Bluetooth	No
Coaxial Input	No
Configuration	Passive 2-way PA speaker
Coverage	90° x 60° or 60° x 40°
DSP	No (passive)
Dimensions	27.6”H x 17”W x 20.5”D (700 x 431 x 520 mm)
Drivers	15” woofer with 3” voice coil, JBL 2432H-1 compression driver
Frequency Response	75Hz - 20kHz (±3dB, manufacturer specified)
Guitar Input	No
HDMI Input	No
Impedance	8 ohms
Maximum SPL	134dB peak / 128dB continuous (manufacturer specified)
Microphone Input	No
Optical Input	No
Passive	Yes
Power Handling	800W continuous / 3,200W peak
RCA Input	No
Rigging	13 x M10 inserts on top, bottom, sides and rear
Sensitivity	99dB
Spinorama Preference Score	1.12
Spinorama Preference Score with Perfect Sub	4.49
TRS Input	No
USB Input	No
Weight	72.8 lbs (33 kg)
XLR Input	No

• Links
  • JBL CV5015 Product Page
• Reviews, Comparisons and Sound Samples
  • Spinorama Measurements

Ranked #44 of 61 in 15-Inch PA Speakers - Turbosound TCS152 Passive Discontinued eBay

Pros: Deep bass from the 15-inch woofer, reaching about 43Hz at -3dB and 35Hz at -10dB in vendor measurements, deep enough to skip a subwoofer for speech and light music. It scores 2.39 standalone, better than most 15-inch installation models here. Measured bass extension of 42.5Hz (-3dB).

Cons: With an ideal subwoofer it scores only 4.16, because the listening window spreads across a 4.8dB band and off-axis tone varies (4.04dB directivity-index deviation). It is passive, weighs 36kg, and is discontinued, so it is mainly found used.

Full Turbosound TCS152 review and specifications →

AES Input	No
Amplifier Power	Passive speaker; requires external amplification
Aux Input	No
Bass Extension (-10dB)	about 34.8Hz (measured, vendor Spinorama data)
Bass Extension (-3dB)	42.5Hz (measured, vendor Spinorama data)
Bluetooth	No
Coaxial Input	No
Configuration	Passive 2-way PA speaker
Coverage	90° x 40° (other waveguides available)
DSP	No (passive)
Dimensions	33”H x 18.5”W x 17”D (838 x 469 x 433 mm)
Drivers	15” woofer, 1.4” compression driver on a rotatable dendritic waveguide
Frequency Response	65Hz - 20kHz (±3dB, manufacturer specified)
Guitar Input	No
HDMI Input	No
Impedance	8 ohms
Maximum SPL	131dB peak (manufacturer specified)
Microphone Input	No
Optical Input	No
Passive	Yes
Power Handling	500W continuous / 2,000W peak
RCA Input	No
Rigging	9 x M10 and 4 x M8 inserts
Sensitivity	95dB
Spinorama Preference Score	2.39
Spinorama Preference Score with Perfect Sub	4.16
TRS Input	No
USB Input	No
Weight	79.4 lbs (36 kg)
XLR Input	No

• Reviews, Comparisons and Sound Samples
  • Spinorama Measurements

Ranked #45 of 61 in 15-Inch PA Speakers - JBL CV3015 Passive eBay

Same family: the JBL CV3010 (smaller model, estimated 3.2/5), the JBL CV3012 (smaller model, estimated 3.2/5) and the JBL CV3025 (larger model, ranked lower, estimated 3.1/5).

Pros: Wide 90° x 90° coverage and 99dB sensitivity let it fill a room from modest amplifier power, and bass reaches about 56Hz at -10dB. Measured bass extension of 82.5Hz (-3dB).

Cons: Preference scores of 1.01 standalone and 4.14 with an ideal subwoofer are among the lowest here, because the listening window drifts across a 4.5dB band and the on-axis response is uneven (1.26dB average deviation). It is passive.

Full JBL CV3015 review and specifications →

AES Input	No
Amplifier Power	Passive speaker; requires external amplification
Aux Input	No
Bass Extension (-10dB)	about 56.3Hz (measured, vendor Spinorama data)
Bass Extension (-3dB)	82.5Hz (measured, vendor Spinorama data)
Bluetooth	No
Coaxial Input	No
Configuration	Passive 2-way PA speaker
Coverage	90° x 90°
DSP	No (passive)
Dimensions	26.8”H x 16.3”W x 17.5”D (680 x 414 x 445 mm)
Drivers	15” woofer with 3” voice coil, JBL 2408-2 compression driver
Frequency Response	75Hz - 20kHz (±3dB, manufacturer specified)
Guitar Input	No
HDMI Input	No
Impedance	8 ohms
Maximum SPL	131dB peak / 125dB continuous (manufacturer specified)
Microphone Input	No
Optical Input	No
Passive	Yes
Power Handling	400W continuous / 1,600W peak
RCA Input	No
Rigging	13 x M10 inserts; 35mm pole socket
Sensitivity	99dB
Spinorama Preference Score	1.01
Spinorama Preference Score with Perfect Sub	4.14
TRS Input	No
USB Input	No
Weight	51.1 lbs (23.2 kg)
XLR Input	No

• Links
  • JBL CV3015 Product Page
• Reviews, Comparisons and Sound Samples
  • Spinorama Measurements

Ranked #47 of 61 in 15-Inch PA Speakers - JBL CV3025 Passive Estimated eBay

Same family: the JBL CV3010 (smaller model, estimated 3.2/5), the JBL CV3012 (smaller model, estimated 3.2/5) and the JBL CV3015 (smaller model, ranked higher, rated 3.2/5).

Pros: A passive installation speaker from JBL’s CV3000 range alongside the measured JBL CV3015: two 15” woofers and a narrower 60° x 60° horn for longer throws. JBL rates it at 101dB sensitivity and 136dB peak with 60° x 60° coverage, so modest amplifier power fills a restaurant, ballroom or event space.

Cons: No independent measurements yet, so it can’t be compared with ranked PA speakers. It is sold through installation dealers rather than general retailers, and it needs an external amplifier with JBL’s recommended EQ for its rated response.

Full JBL CV3025 review and specifications →

Amplifier Power	Passive speaker; requires external amplification
Bass Extension (-3dB)	65Hz (manufacturer specified)
Bluetooth	No
Configuration	Passive 2-way PA speaker
Coverage	60° x 60°
DSP	No (passive)
Dimensions	48.9”H x 19.1”W x 20.5”D (1243 x 484 x 520 mm)
Drivers	2x 15” woofers, JBL 2408H-1 compression driver
Frequency Response	42Hz - 20kHz (-10dB, manufacturer specified)
Maximum SPL	136dB peak (manufacturer specified)
Passive	Yes
Power Handling	800W continuous / 3,200W peak
Rigging	13 x M10 inserts
Sensitivity	101dB
Weight	97.7 lbs (44.3 kg)
XLR Input	No

• Links
  • JBL CV3025 Product Page
• Reviews, Comparisons and Sound Samples
  • No independent measurement review is linked for this model; it is ranked from hands-on listening and comparison against similarly priced speakers.

Ranked #48 of 61 in 15-Inch PA Speakers - HK Audio LINEAR 5 115 F Passive Estimated eBay

Same family: the HK Audio LINEAR 5 112 F (smaller model, rated 3.2/5) and the HK Audio LINEAR 5 112 X (smaller model, rated 3.5/5).

Pros: The 15-inch passive model of the original LINEAR 5 series, a larger sibling of the measured HK Audio LINEAR 5 112 F. A 15” woofer with a 3” voice coil and a 1.75” voice coil compression driver on a rotatable 60° to 90° asymmetric horn are rated for 600W RMS and 135dB peak.

Cons: No independent measurements yet, so it can’t be compared with ranked PA speakers. It needs an external amplifier and controller, and bass stops around 62Hz (-6dB), so most music needs a subwoofer.

Full HK Audio LINEAR 5 115 F review and specifications →

Amplifier Power	Passive speaker; requires external amplification
Bluetooth	No
Configuration	Passive 2-way PA speaker
Coverage	60° to 90° asymmetric x 55°, rotatable
DSP	No (passive)
Drivers	15” woofer with 3” voice coil, 1” exit/1.75” voice coil compression driver
Frequency Response	62Hz - 18kHz (-6dB, manufacturer specified)
Maximum SPL	135dB peak (manufacturer specified)
Passive	Yes
Power Handling	600W RMS
Rigging	3 x M8 rigging points; DuoTilt 3°/7° pole mount
Weight	66.4 lbs (30.1 kg)
XLR Input	No

• Links
  • Official HK Audio LINEAR 5 115 F Website
• Reviews, Comparisons and Sound Samples
  • No independent measurement review is linked for this model; it is ranked from hands-on listening and comparison against similarly priced speakers.

Ranked #49 of 61 in 15-Inch PA Speakers - Tannoy VX15HP Passive Estimated eBay

Same family: the Tannoy VX6 (smaller model, estimated 2.9/5), the Tannoy VX8 (smaller model, estimated 3/5) and the Tannoy VX12 (smaller model, rated 3.1/5).

Pros: A passive model from Tannoy’s VX range alongside the measured Tannoy VX12: the high-power 15” model, whose 99dB sensitivity gets loud from modest amplifier power. Every VX uses a Dual Concentric driver with the tweeter in the center of the woofer, so the sound comes from one point and stays consistent off axis. Tannoy rates it at 99dB sensitivity and 125dB continuous.

Cons: No independent measurements yet, so it can’t be compared with ranked PA speakers. It needs an external amplifier, ideally with Tannoy’s recommended EQ, and US dealers list it as a special order with long lead times.

Full Tannoy VX15HP review and specifications →

Amplifier Power	Passive speaker; requires external amplification
Bass Extension (-3dB)	70Hz (manufacturer specified)
Bluetooth	No
Configuration	Passive Dual Concentric PA speaker
DSP	No (passive)
Drivers	15” PowerDual Dual Concentric driver
Frequency Response	70Hz - 25kHz (-3dB), 58Hz (-10dB) (manufacturer specified)
Impedance	8 ohms
Maximum SPL	125dB continuous (manufacturer specified)
Passive	Yes
Power Handling	400W continuous / 1,600W peak
Rigging	8 x M10 flying and 8 x M10 yoke inserts; 4 x M6 inserts; pole mount
Sensitivity	99dB
Weight	58.4 lbs (26.5 kg)
XLR Input	No

• Links
  • Tannoy VX15HP Product Page
• Reviews, Comparisons and Sound Samples
  • No independent measurement review is linked for this model; it is ranked from hands-on listening and comparison against similarly priced speakers.

Ranked #50 of 61 in 15-Inch PA Speakers - Behringer Eurolive B215XL: $329.00 Passive Amazon B&H Photo Video eBay

Same family: the Behringer Eurolive B212XL (smaller model, rated 2.3/5).

Pros: High-quality independent measurement data gives a clear, well-documented result: a 3.39 ideal-subwoofer preference score with 77Hz extension. At a fraction of the price of every active speaker here, it is a genuine budget entry point for a 15-inch two-way box. Measured bass extension of 85Hz (-3dB).

Cons: Being passive, it needs an external amplifier and crossover to work at all, and RMS power handling and build quality trail every powered alternative in this ranking. The 70° x 40° pattern is on the narrow side.

Full Behringer Eurolive B215XL review and specifications →

AES Input	No
Amplifier Power	Passive speaker; use external amplification within the 1,000W peak handling rating
Aux Input	No
Bass Extension (-3dB)	85Hz (measured, independent data)
Bluetooth	No
Cabinet Material	Molded enclosure
Coaxial Input	No
Configuration	Passive 2-way bass-reflex PA speaker
Coverage	70° x 40°
DSP	No (passive)
Dimensions	27.4”H x 17.3”W x 13.2”D (695 x 440 x 335 mm)
Drivers	15” woofer, 1.75” titanium-diaphragm compression driver
Frequency Response	55Hz - 20kHz (manufacturer specified)
Guitar Input	No
HDMI Input	No
Inputs	Parallel professional twist-lock and quarter-inch inputs
Maximum SPL	126dB (manufacturer specified)
Microphone Input	No
Optical Input	No
Passive	Yes
Power Handling	1,000W peak (manufacturer specified)
RCA Input	No
Rigging	Standard speaker-pole mount; optional wall bracket
Spinorama Preference Score	0.25
Spinorama Preference Score with Perfect Sub	3.39
TRS Input	Yes
USB Input	No
Weight	38.8 lbs (17.6 kg)
XLR Input	No

• Links
  • Behringer Eurolive B215XL Product Page
• Reviews, Comparisons and Sound Samples
  • Spinorama Measurements
  • Erin’s Audio Corner: Do not buy Behringer B212XL & B215XL for your home theater. Save Your Money. More from Erin’s Audio Corner →
  • Erin’s Audio Corner Website: Behringer Eurolive B215XL
• Head-to-Head Comparisons
  • Behringer Eurolive B215XL vs RCF ART 715-A MK4
  • Behringer Eurolive B215XL vs DAS Audio Vantec 15A
  • Behringer Eurolive B215XL vs Yamaha DBR15
  • Behringer Eurolive B215XL vs RCF ART 735-A MK4

Ranked #56 of 61 in 15-Inch PA Speakers - Martin Audio FlexPoint FP15 Passive eBay

Same family: the Martin Audio FlexPoint FP4 (smaller model, rated 3/5), the Martin Audio FlexPoint FP6 (smaller model, rated 3/5), the Martin Audio FlexPoint FP8 (smaller model, rated 3/5) and the Martin Audio FlexPoint FP12 (smaller model, rated 3/5).

Pros: The deepest bass of the FlexPoint range, 53Hz at -3dB and about 42Hz at -10dB in vendor measurements, with 99dB sensitivity and a 132dB peak. Measured bass extension of 53Hz (-3dB).

Cons: Preference scores of 0.31 standalone and 2.53 with an ideal subwoofer are among the lowest here, because the listening window spreads across a 10.1dB band. It is passive and weighs 27.4kg.

Full Martin Audio FlexPoint FP15 review and specifications →

AES Input	No
Amplifier Power	Passive speaker; requires external amplification
Aux Input	No
Bass Extension (-10dB)	about 42.4Hz (measured, vendor Spinorama data)
Bass Extension (-3dB)	53Hz (measured, vendor Spinorama data)
Bluetooth	No
Coaxial Input	No
Configuration	Passive 2-way coaxial PA speaker
DSP	No (passive)
Drivers	15” coaxial woofer with 1.4” compression driver
Guitar Input	No
HDMI Input	No
Maximum SPL	132dB peak / 126dB continuous (manufacturer specified)
Microphone Input	No
Optical Input	No
Passive	Yes
RCA Input	No
Rigging	4 x M10 and 17 x M8 inserts; dual-angle pole socket
Sensitivity	99dB
Spinorama Preference Score	0.31
Spinorama Preference Score with Perfect Sub	2.53
TRS Input	No
USB Input	No
Weight	60.4 lbs (27.4 kg)
XLR Input	No

• Links
  • Martin Audio FlexPoint FP15 Product Page
• Reviews, Comparisons and Sound Samples
  • Spinorama Measurements

Ranked #58 of 61 in 15-Inch PA Speakers - Biamp Community V2-3594 Passive eBay

Same family: the Biamp Community V2-6 (smaller model, rated 2.8/5), the Biamp Community V2-26 (smaller model, rated 2.8/5), the Biamp Community V2-8 (smaller model, rated 2.7/5), the Biamp Community V2-28 (smaller model, rated 2.4/5) and the Biamp Community V2-3294 (smaller model, rated 2.7/5).

Pros: Bass reaches 75Hz at -3dB and about 50Hz at -10dB in vendor measurements, with 99dB sensitivity and a 128dB peak for halls and gyms. Measured bass extension of 75Hz (-3dB).

Cons: Preference scores of -0.23 standalone and 2.63 with an ideal subwoofer are low because the listening window spreads across 5.2dB and off-axis tone varies. It is passive and weighs 27kg.

Full Biamp Community V2-3594 review and specifications →

AES Input	No
Amplifier Power	Passive speaker; requires external amplification
Aux Input	No
Bass Extension (-10dB)	about 49.7Hz (measured, vendor Spinorama data)
Bass Extension (-3dB)	75Hz (measured, vendor Spinorama data)
Bluetooth	No
Coaxial Input	No
Configuration	Passive 3-way installation PA speaker
Coverage	90° x 40° (rotatable)
DSP	No (passive)
Drivers	15” woofer, midrange horn, compression driver on a rotatable horn
Guitar Input	No
HDMI Input	No
Maximum SPL	128dB peak / 122dB continuous (manufacturer specified)
Microphone Input	No
Optical Input	No
Passive	Yes
RCA Input	No
Rigging	M10 threaded rigging points
Sensitivity	99dB
Spinorama Preference Score	-0.23
Spinorama Preference Score with Perfect Sub	2.63
TRS Input	No
USB Input	No
Weight	59.5 lbs (27 kg)
XLR Input	No

• Reviews, Comparisons and Sound Samples
  • Spinorama Measurements

Ranked #59 of 61 in 15-Inch PA Speakers - Yamaha CBR15: $384.00 Passive Estimated B&H Photo Video eBay

Same family: the Yamaha DBR10 (smallest powered model, rated 3.4/5), the Yamaha DBR12 (powered model, rated 3.6/5), the Yamaha DBR15 (largest powered model, ranked higher, rated 2.9/5), the Yamaha CBR10 (smaller passive model, estimated 3.2/5) and the Yamaha CBR12 (smaller passive model, estimated 3.4/5).

Pros: The passive version of the measured Yamaha DBR15, sharing its 15” woofer, compression driver and lightweight polypropylene cabinet with 90° x 60° coverage. Yamaha rates it at 96dB sensitivity, 126dB maximum SPL and bass to 46Hz (-10dB), and at 17.7 kg it is one of the lighter 15-inch boxes.

Cons: No independent measurements yet, so it can’t be compared with ranked PA speakers. It needs an external amplifier, and without the powered model’s DSP its response depends on the amplifier’s EQ. The measured powered version is a budget design, so expect the same limits on output and smoothness.

Full Yamaha CBR15 review and specifications →

Amplifier Power	Passive speaker; requires external amplification
Bluetooth	No
Configuration	Passive 2-way bass-reflex PA speaker
Coverage	90° x 60°
DSP	No (passive)
Drivers	15” woofer, 1” voice coil compression driver
Frequency Response	46Hz - 20kHz (-10dB, manufacturer specified)
Impedance	8 ohms
Maximum SPL	126dB (calculated, manufacturer specified)
Passive	Yes
Power Handling	1,000W peak
Rigging	3 x M8 inserts; 35mm pole socket
Sensitivity	96dB
Weight	39 lbs (17.7 kg)
XLR Input	No

• Links
  • Yamaha CBR15 Product Information
• Reviews, Comparisons and Sound Samples
  • No independent measurement review is linked for this model; it is ranked from hands-on listening and comparison against similarly priced speakers.

Column and Line Array PA Speakers

Ranked #1 of 23 in Column and Line Array PA Speakers - L-Acoustics SYVA-low+top Passive eBay

Pros: Vendor Spinorama data gives preference scores of 6.05 standalone and 8.11 with an ideal subwoofer, the best in this ranking. Pairing the SYVA line source with SYVA Low adds two 12-inch drivers, extending bass to about 50Hz (-3dB) and 137dB peak SPL. Listening-window narrow-band deviation is 0.188, and the 140° horizontal pattern covers wide rooms from one slim column. Measured bass extension of 50Hz (-3dB).

Cons: A passive system that needs L-Acoustics amplified controllers (LA4X, LA12X or LA8). The two-element stack is 2.15m tall and about 50kg, so it is an installed or touring system rather than a grab-and-go box. Vertical coverage is only about 25°, which suits seated audiences but limits use on steep or multi-tier rooms.

Full L-Acoustics SYVA-low+top review and specifications →

AES Input	No
Amplifier Power	Passive speaker; requires an L-Acoustics amplified controller (LA4X, LA12X or LA8)
Aux Input	No
Bass Extension (-3dB)	50Hz (measured, vendor Spinorama data)
Bluetooth	No
Cabinet Material	Baltic beech and birch plywood
Coaxial Input	No
Configuration	Passive 2-way line source with dual 12” low extension (SYVA plus SYVA Low)
Coverage	140° horizontal, about 25° vertical
DSP	No (passive; processing and protection come from the amplified controller)
Dimensions	84.6”H x 13.1”W x 13.8”D (2150 x 334 x 350 mm) (measured stack)
Drivers	6x 5” cone drivers and 3x 1.75” compression drivers (SYVA), dual 12” cone drivers (SYVA Low)
Frequency Response	40Hz - 20kHz (manufacturer specified)
Guitar Input	No
HDMI Input	No
Inputs	Speakon (via L-Acoustics amplified controller)
Maximum SPL	137dB (manufacturer specified)
Microphone Input	No
Optical Input	No
Passive	Yes
RCA Input	No
Spinorama Preference Score	6.05
Spinorama Preference Score with Perfect Sub	8.11
TRS Input	No
USB Input	No
Weight	110.2 lbs (50 kg)
XLR Input	No

• Links
  • L-Acoustics SYVA Product Page
  • L-Acoustics SYVA Low Product Page
• Reviews, Comparisons and Sound Samples
  • Spinorama Measurements
• Head-to-Head Comparisons
  • L-Acoustics SYVA-low+top vs JBL CBT 1000 + CBT 1000E
  • L-Acoustics SYVA-low+top vs JBL CBT 1000
  • L-Acoustics SYVA-low+top vs Kling Freitag PIA M
  • L-Acoustics SYVA-low+top vs Alcons Audio QR24

Ranked #2 of 23 in Column and Line Array PA Speakers - JBL CBT 1000 + CBT 1000E: $4,945.00 Passive B&H Photo Video eBay

Pros: Adding the CBT 1000E extension below the JBL CBT 1000 gives a 5.70 standalone preference score, one of the highest of any PA speaker we list, and 7.96 with an ideal subwoofer. Bass reaches 51.5Hz at -3dB and about 40Hz at -10dB, so the pair can run full range without a subwoofer, and a 1.4dB reference band keeps the tonal balance very even. JBL’s Constant Beamwidth Technology gives switchable vertical coverage for long rooms. Measured bass extension of 51.5Hz (-3dB).

Cons: The measurements are manufacturer supplied and spinorama rates their quality as low. At $4945 the combination is expensive, stands about 2m tall and weighs around 50kg, and it needs an external amplifier.

Full JBL CBT 1000 + CBT 1000E review and specifications →

AES Input	No
Amplifier Power	Passive speaker; requires external amplification
Aux Input	No
Bass Extension (-10dB)	about 39.6Hz (measured, vendor Spinorama data)
Bass Extension (-3dB)	51.5Hz (measured, vendor Spinorama data)
Bluetooth	No
Coaxial Input	No
Configuration	Passive 2-way Constant Beamwidth Technology column with matching extension
Coverage	Switchable vertical patterns, wide horizontal
DSP	No (passive)
Drivers	CBT 1000: 6x 6.5” woofers, 24x 1” tweeters; CBT 1000E adds a matching extension array
Frequency Response	45Hz - 20kHz (-10dB, CBT 1000 alone, manufacturer specified)
Guitar Input	No
HDMI Input	No
Impedance	4 ohms (CBT 1000)
Maximum SPL	130dB peak (manufacturer specified)
Microphone Input	No
Optical Input	No
Passive	Yes
Power Handling	1,500W (6,000W peak), CBT 1000
RCA Input	No
Rigging	14 rear threaded points; 4 on each end-cap; wall bracket included
Sensitivity	102dB (highest setting, CBT 1000)
Spinorama Preference Score	5.70
Spinorama Preference Score with Perfect Sub	7.96
TRS Input	No
USB Input	No
Weight	104.1 lbs (47.2 kg)
XLR Input	No

• Links
  • JBL CBT 1000 and CBT 1000E Product Page
• Reviews, Comparisons and Sound Samples
  • Spinorama Measurements
• Head-to-Head Comparisons
  • JBL CBT 1000 + CBT 1000E vs L-Acoustics SYVA-low+top
  • JBL CBT 1000 + CBT 1000E vs JBL CBT 1000
  • JBL CBT 1000 + CBT 1000E vs Kling Freitag PIA M
  • JBL CBT 1000 + CBT 1000E vs L-Acoustics SYVA
  • JBL CBT 1000 + CBT 1000E vs Alcons Audio QR24

Ranked #3 of 23 in Column and Line Array PA Speakers - JBL CBT 1000: $2,985.00 Passive Amazon B&H Photo Video eBay

Same family: the JBL CBT 50LA-1 (smaller model, ranked lower, estimated 3.1/5), the JBL CBT 70J-1 (smaller model, ranked lower, rated 3.4/5), the JBL CBT 100LA-1 (smaller model, ranked lower, estimated 3.1/5) and the JBL CBT 200LA-1 (smaller model, ranked lower, estimated 3.2/5).

Pros: Its 8.13 preference score with an ideal subwoofer is one of the highest of any PA speaker we list, and a 0.168 listening-window deviation shows a very even tonal balance for listeners across the coverage area. Six 6.5-inch woofers and 24 one-inch tweeters in JBL’s Constant Beamwidth design give switchable vertical coverage, 102dB sensitivity and a 1,500W rating. The optional CBT 1000E extension adds bass and throw. Measured bass extension of 115Hz (-3dB).

Cons: The measurements are manufacturer supplied and spinorama rates their quality as low. On its own the standalone score is 4.67, and the measured bass response is uneven, reaching 115Hz at -3dB but about 48Hz at -10dB, so a subwoofer or the CBT 1000E helps. It is passive, weighs 24.5kg and needs an external amplifier.

Full JBL CBT 1000 review and specifications →

AES Input	No
Amplifier Power	Passive speaker; requires external amplification
Aux Input	No
Bass Extension (-10dB)	about 48.3Hz (measured, vendor Spinorama data)
Bass Extension (-3dB)	115Hz (measured, vendor Spinorama data)
Bluetooth	No
Coaxial Input	No
Configuration	Passive 2-way Constant Beamwidth Technology column
Coverage	Switchable vertical patterns, wide horizontal
DSP	No (passive)
Dimensions	40.2”H x 9.8”W x 13.6”D (1020 x 250 x 345 mm)
Drivers	6x 6.5” neodymium woofers, 24x 1” neodymium tweeters
Frequency Response	45Hz - 20kHz (-10dB, manufacturer specified)
Guitar Input	No
HDMI Input	No
Impedance	4 ohms
Maximum SPL	130dB peak (manufacturer specified)
Microphone Input	No
Optical Input	No
Passive	Yes
Power Handling	1,500W (6,000W peak)
RCA Input	No
Rigging	14 x M8 rear inserts; 4 x M8 top and bottom; wall bracket included
Sensitivity	102dB (highest setting)
Spinorama Preference Score	4.67
Spinorama Preference Score with Perfect Sub	8.13
TRS Input	No
USB Input	No
Weight	54 lbs (24.5 kg)
XLR Input	No

• Links
  • JBL CBT 1000 Product Page
• Reviews, Comparisons and Sound Samples
  • Spinorama Measurements
• Head-to-Head Comparisons
  • JBL CBT 1000 vs JBL CBT 1000 + CBT 1000E
  • JBL CBT 1000 vs Kling Freitag PIA M
  • JBL CBT 1000 vs L-Acoustics SYVA-low+top
  • JBL CBT 1000 vs L-Acoustics SYVA
  • JBL CBT 1000 vs Alcons Audio QR24
  • JBL CBT 1000 vs JBL CBT 70J-1

Ranked #4 of 23 in Column and Line Array PA Speakers - Kling Freitag PIA M Passive eBay

Pros: High-quality manufacturer measurements give preference scores of 4.50 standalone and 7.92 with an ideal subwoofer, with a 1.7dB reference band and 0.82 predicted in-room smoothness. The 3-way column has an adjustable tweeter array (5°, 15° or 25° vertical), a cardioid midrange and a woofer section switchable between bass reflex and cardioid to cut sound behind the speaker. It reaches 132dB from a slim 12.2kg cabinet. Measured bass extension of 95Hz (-3dB).

Cons: Bass is limited, at 95Hz for -3dB and about 82Hz for -10dB in bass-reflex mode, so it needs a subwoofer for music. It is passive and meant for Kling & Freitag amplifiers, and it is sold only through pro dealers with no published price.

Full Kling Freitag PIA M review and specifications →

AES Input	No
Amplifier Power	Passive speaker; requires external amplification
Aux Input	No
Bass Extension (-10dB)	about 81.7Hz (measured, vendor Spinorama data)
Bass Extension (-3dB)	95Hz (measured, vendor Spinorama data)
Bluetooth	No
Coaxial Input	No
Configuration	Passive 3-way column loudspeaker
Coverage	100° x 5° to 25° (adjustable)
DSP	No (passive)
Dimensions	47.1”H x 5.5”W x 6.6”D (1196 x 139 x 168 mm)
Drivers	4x 0.75” compression drivers on adjustable horn, 2x 4” midrange (cardioid chamber), 4x 4” woofers (switchable bass-reflex/cardioid)
Frequency Response	85Hz - 23kHz (±10dB, bass-reflex mode, manufacturer specified)
Guitar Input	No
HDMI Input	No
Impedance	8 ohms
Maximum SPL	132dB (manufacturer specified)
Microphone Input	No
Optical Input	No
Passive	Yes
Power Handling	150W nominal / 325W program / 650W peak
RCA Input	No
Rigging	2 x M10 inserts in base and lid; 4 x M10 rear inserts
Spinorama Preference Score	4.50
Spinorama Preference Score with Perfect Sub	7.92
TRS Input	No
USB Input	No
Weight	26.9 lbs (12.2 kg)
XLR Input	No

• Links
  • Kling & Freitag PIA M Product Page
• Reviews, Comparisons and Sound Samples
  • Spinorama Measurements
• Head-to-Head Comparisons
  • Kling Freitag PIA M vs JBL CBT 1000
  • Kling Freitag PIA M vs L-Acoustics SYVA
  • Kling Freitag PIA M vs Alcons Audio QR24
  • Kling Freitag PIA M vs JBL CBT 1000 + CBT 1000E
  • Kling Freitag PIA M vs L-Acoustics SYVA-low+top
  • Kling Freitag PIA M vs Alcons Audio QRP40

Ranked #5 of 23 in Column and Line Array PA Speakers - L-Acoustics SYVA Passive eBay

Pros: Vendor Spinorama data gives preference scores of 4.01 standalone and 7.58 with an ideal subwoofer. Six 5-inch drivers and three compression drivers form a slim 21kg line source with 140° horizontal coverage and 137dB peak SPL. It is intended to be paired with SYVA Low or a subwoofer, which is where the system’s bass comes from. Measured bass extension of 106Hz (-3dB).

Cons: On its own it reaches only about 106Hz (-3dB), so it cannot be used without a subwoofer. It is a passive line source that needs L-Acoustics amplified controllers, and the narrow 25° vertical coverage limits placement flexibility. Listening-window narrow-band deviation is 0.319 and on-axis deviation is higher than the coaxial competition.

Full L-Acoustics SYVA review and specifications →

AES Input	No
Amplifier Power	Passive speaker; requires an L-Acoustics amplified controller (LA4X, LA12X or LA7.16i)
Aux Input	No
Bass Extension (-3dB)	106Hz (measured, vendor Spinorama data)
Bluetooth	No
Cabinet Material	Baltic beech and birch plywood
Coaxial Input	No
Configuration	Passive 2-way line source
Coverage	140° horizontal, +5°/-21° vertical
DSP	No (passive; processing and protection come from the amplified controller)
Dimensions	51.2”H x 5.7”W x 8.2”D (1301 x 144 x 209 mm)
Drivers	6x 5” cone drivers, 3x 1.75” compression drivers
Frequency Response	87Hz - 20kHz (manufacturer specified)
Guitar Input	No
HDMI Input	No
Inputs	Speakon (via L-Acoustics amplified controller)
Maximum SPL	137dB (manufacturer specified)
Microphone Input	No
Optical Input	No
Passive	Yes
RCA Input	No
Spinorama Preference Score	4.01
Spinorama Preference Score with Perfect Sub	7.58
TRS Input	No
USB Input	No
Weight	46.3 lbs (21 kg)
XLR Input	No

• Links
  • L-Acoustics SYVA Product Page
• Reviews, Comparisons and Sound Samples
  • Spinorama Measurements
• Head-to-Head Comparisons
  • L-Acoustics SYVA vs Alcons Audio QR24
  • L-Acoustics SYVA vs Kling Freitag PIA M
  • L-Acoustics SYVA vs JBL CBT 1000
  • L-Acoustics SYVA vs JBL CBT 1000 + CBT 1000E
  • L-Acoustics SYVA vs Alcons Audio QRP20
  • L-Acoustics SYVA vs JBL COL600

Ranked #6 of 23 in Column and Line Array PA Speakers - Alcons Audio QR24 Passive eBay

Same family: the Alcons Audio QRP20 (smaller model, ranked lower, rated 3.6/5) and the Alcons Audio QRP40 (larger model, ranked lower, rated 3.7/5).

Pros: High-quality manufacturer measurements give preference scores of 4.38 standalone and 7.25 with an ideal subwoofer, with a tight 1.4dB reference band and 0.279 listening-window deviation. Two 12-inch pro-ribbon drivers above four 6.5-inch woofers give 109dB sensitivity and a 135dB peak, and bass reaches 71Hz at -3dB. It works alone or stacked with more modules as a vertical array, in 80° or 110° horizontal versions. Measured bass extension of 71Hz (-3dB).

Cons: Bass drops quickly below about 70Hz, so a subwoofer is needed for full-range music. It needs Alcons Sentinel amplification for its presets, weighs 22kg, and is sold only through pro dealers with no published price.

Full Alcons Audio QR24 review and specifications →

AES Input	No
Amplifier Power	Passive speaker; requires external amplification (Alcons Sentinel)
Aux Input	No
Bass Extension (-10dB)	about 62.5Hz (measured, vendor Spinorama data)
Bass Extension (-3dB)	71Hz (measured, vendor Spinorama data)
Bluetooth	No
Coaxial Input	No
Configuration	Passive 2-way modular column (pro-ribbon)
Coverage	80° or 110° horizontal x 3.6° per module
DSP	No (passive)
Dimensions	25.9”H x 9.8”W x 13.2”D (658 x 248 x 336 mm)
Drivers	2x 12” RBN1203 pro-ribbon drivers, 4x 6.5” neodymium woofers (vented)
Frequency Response	74Hz - 20kHz (±3dB, manufacturer specified)
Guitar Input	No
HDMI Input	No
Impedance	8 ohms
Maximum SPL	135dB peak (manufacturer specified)
Microphone Input	No
Optical Input	No
Passive	Yes
RCA Input	No
Sensitivity	109dB (200Hz - 10kHz)
Spinorama Preference Score	4.38
Spinorama Preference Score with Perfect Sub	7.25
TRS Input	No
USB Input	No
Weight	48.5 lbs (22 kg)
XLR Input	No

• Links
  • Alcons Audio QR24 Product Page
• Reviews, Comparisons and Sound Samples
  • Spinorama Measurements
• Head-to-Head Comparisons
  • Alcons Audio QR24 vs L-Acoustics SYVA
  • Alcons Audio QR24 vs Alcons Audio QRP40
  • Alcons Audio QR24 vs Kling Freitag PIA M
  • Alcons Audio QR24 vs JBL CBT 1000
  • Alcons Audio QR24 vs JBL CBT 1000 + CBT 1000E
  • Alcons Audio QR24 vs L-Acoustics SYVA-low+top

Ranked #7 of 23 in Column and Line Array PA Speakers - Alcons Audio QRP40 Passive eBay

Same family: the Alcons Audio QRP20 (smaller model, ranked lower, rated 3.6/5) and the Alcons Audio QR24 (smaller model, ranked higher, rated 4/5).

Pros: High-quality manufacturer measurements give preference scores of 3.80 standalone and 6.67 with an ideal subwoofer. A 12-inch pro-ribbon driver sits coaxially within eight sealed 5-inch woofers, giving 103dB sensitivity and a 131dB peak with 90° or 120° horizontal coverage. Bass reaches 73Hz at -3dB, and the shallow 236mm cabinet is easy to hide on a wall. Measured bass extension of 73Hz (-3dB).

Cons: A 4.22 directivity-index deviation means off-axis tone varies more than its Alcons Audio QR24 sibling, and it needs a subwoofer below about 70Hz. It needs Alcons Sentinel amplification and is sold only through pro dealers with no published price.

Full Alcons Audio QRP40 review and specifications →

AES Input	No
Amplifier Power	Passive speaker; requires external amplification (Alcons Sentinel)
Aux Input	No
Bass Extension (-10dB)	about 63.8Hz (measured, vendor Spinorama data)
Bass Extension (-3dB)	73Hz (measured, vendor Spinorama data)
Bluetooth	No
Coaxial Input	No
Configuration	Passive 2-way point-source column (pro-ribbon)
Coverage	90° x 20° (120° version available)
DSP	No (passive)
Dimensions	44”H x 6.3”W x 9.3”D (1118 x 161 x 236 mm)
Drivers	1x 12” RBN1203 pro-ribbon driver, 8x 5” woofers (sealed)
Frequency Response	71Hz - 20kHz (±3dB, manufacturer specified)
Guitar Input	No
HDMI Input	No
Impedance	4 ohms
Maximum SPL	131dB peak (manufacturer specified)
Microphone Input	No
Optical Input	No
Passive	Yes
RCA Input	No
Sensitivity	103dB (200Hz - 10kHz)
Spinorama Preference Score	3.80
Spinorama Preference Score with Perfect Sub	6.67
TRS Input	No
USB Input	No
Weight	48.5 lbs (22 kg)
XLR Input	No

• Links
  • Alcons Audio QRP40/90 Product Page
• Reviews, Comparisons and Sound Samples
  • Spinorama Measurements
• Head-to-Head Comparisons
  • Alcons Audio QRP40 vs Alcons Audio QR24
  • Alcons Audio QRP40 vs Alcons Audio QRP20
  • Alcons Audio QRP40 vs L-Acoustics SOKA
  • Alcons Audio QRP40 vs Kling Freitag PIA M
  • Alcons Audio QRP40 vs JBL COL800
  • Alcons Audio QRP40 vs JBL COL600
  • Alcons Audio QRP40 vs Coda Audio CoRay4

Ranked #8 of 23 in Column and Line Array PA Speakers - Alcons Audio QRP20 Passive eBay

Same family: the Alcons Audio QR24 (larger model, ranked higher, rated 4/5) and the Alcons Audio QRP40 (larger model, ranked higher, rated 3.7/5).

Pros: High-quality manufacturer measurements of the 90° version give preference scores of 3.38 standalone and 6.69 with an ideal subwoofer. A 4-inch pro-ribbon driver on a Morpher lens above four sealed 5-inch woofers gives 99dB sensitivity and a 128dB peak from a slim 150mm-square, 12kg column, with 90° or 120° horizontal versions. Measured bass extension of 90Hz (-3dB).

Cons: Bass reaches only 90Hz at -3dB and about 81Hz at -10dB, so it needs a subwoofer for music. The 120° version measures slightly worse, at 3.00 standalone. It needs Alcons Sentinel amplification and is sold only through pro dealers with no published price.

Full Alcons Audio QRP20 review and specifications →

AES Input	No
Amplifier Power	Passive speaker; requires external amplification (Alcons Sentinel)
Aux Input	No
Bass Extension (-10dB)	about 80.8Hz (measured, vendor Spinorama data)
Bass Extension (-3dB)	90Hz (measured, vendor Spinorama data)
Bluetooth	No
Coaxial Input	No
Configuration	Passive 2-way point-source column (pro-ribbon)
Coverage	90° x 15° (120° version available)
DSP	No (passive)
Dimensions	29.2”H x 5.9”W x 5.9”D (742 x 150 x 150 mm)
Drivers	1x 4” RBN401 pro-ribbon driver, 4x 5” woofers (sealed)
Frequency Response	72Hz - 20kHz (±3dB, manufacturer specified)
Guitar Input	No
HDMI Input	No
Impedance	4 ohms
Maximum SPL	128dB peak (manufacturer specified)
Microphone Input	No
Optical Input	No
Passive	Yes
RCA Input	No
Rigging	M10 inserts top and bottom; M6 bracket pattern on back
Sensitivity	99dB (200Hz - 10kHz)
Spinorama Preference Score	3.38
Spinorama Preference Score with Perfect Sub	6.69
TRS Input	No
USB Input	No
Weight	26.5 lbs (12 kg)
XLR Input	No

• Links
  • Alcons Audio QRP20/90 Product Page
• Reviews, Comparisons and Sound Samples
  • Spinorama Measurements
• Head-to-Head Comparisons
  • Alcons Audio QRP20 vs Alcons Audio QRP40
  • Alcons Audio QRP20 vs L-Acoustics SOKA
  • Alcons Audio QRP20 vs JBL CBT 70J-1
  • Alcons Audio QRP20 vs L-Acoustics SYVA
  • Alcons Audio QRP20 vs JBL COL800
  • Alcons Audio QRP20 vs JBL COL600
  • Alcons Audio QRP20 vs Coda Audio CoRay4

Ranked #9 of 23 in Column and Line Array PA Speakers - L-Acoustics SOKA Passive eBay

Pros: An ultra-shallow line source only about 10cm deep and 9.4kg that reaches 133dB with 140° horizontal coverage, which lets it hide against a wall or column. Vendor Spinorama data gives preference scores of 3.21 standalone and 6.99 with an ideal subwoofer. Measured bass extension of 128Hz (-3dB).

Cons: Bass reaches only about 128Hz (-3dB), so it needs a subwoofer or a bass companion, and it is passive, so it requires L-Acoustics amplified controllers. Listening-window narrow-band deviation is 0.348 and pricing is dealer quoted.

Full L-Acoustics SOKA review and specifications →

AES Input	No
Amplifier Power	Passive speaker; requires external amplification (L-Acoustics amplified controller)
Aux Input	No
Bass Extension (-3dB)	128Hz (measured, vendor Spinorama data)
Bluetooth	No
Coaxial Input	No
Configuration	Passive 2-way ultra-shallow line source
Coverage	140° horizontal, +5°/-21° vertical
DSP	No (passive; processing comes from the amplified controller)
Dimensions	41.9”H x 3.9”W x 4.1”D (1065 x 99 x 104 mm)
Drivers	9x 3.5” neodymium cone drivers, 3x 1” neodymium compression drivers
Frequency Response	70Hz - 20kHz (-10dB, manufacturer specified)
Guitar Input	No
HDMI Input	No
Maximum SPL	133dB peak (manufacturer specified)
Microphone Input	No
Optical Input	No
Passive	Yes
RCA Input	No
Rigging	6 x M6 inserts
Spinorama Preference Score	3.21
Spinorama Preference Score with Perfect Sub	6.99
TRS Input	No
USB Input	No
Weight	20.7 lbs (9.4 kg)
XLR Input	No

• Links
  • L-Acoustics SOKA Product Page
• Reviews, Comparisons and Sound Samples
  • Spinorama Measurements
• Head-to-Head Comparisons
  • L-Acoustics SOKA vs Alcons Audio QRP20
  • L-Acoustics SOKA vs JBL CBT 70J-1
  • L-Acoustics SOKA vs Alcons Audio QRP40
  • L-Acoustics SOKA vs JBL COL800
  • L-Acoustics SOKA vs JBL COL600
  • L-Acoustics SOKA vs Coda Audio CoRay4

Ranked #10 of 23 in Column and Line Array PA Speakers - JBL CBT 70J-1: $1,480.00 Passive B&H Photo Video eBay

Same family: the JBL CBT 50LA-1 (smaller model, ranked lower, estimated 3.1/5), the JBL CBT 100LA-1 (larger model, ranked lower, estimated 3.1/5), the JBL CBT 200LA-1 (larger model, ranked lower, estimated 3.2/5) and the JBL CBT 1000 (larger model, ranked higher, rated 4.1/5).

Pros: Independently measured by Audio Science Review, with a 5.87 preference score with an ideal subwoofer and a 3.20 directivity-index deviation. Sixteen 1-inch tweeters and four 5-inch woofers give switchable 25° or 45° vertical coverage for long-throw or medium rooms, with a 131dB peak and a speech or music voicing switch. A pan and tilt wall bracket is included. Measured bass extension of 120.1Hz (-3dB).

Cons: Bass measures 120Hz at -3dB and about 62Hz at -10dB, and the standalone score is only 2.95, so it needs a subwoofer for music. A 4.0dB reference band and 0.573 listening-window deviation mean tonal balance is uneven. It is passive and needs an external amplifier.

Full JBL CBT 70J-1 review and specifications →

AES Input	No
Amplifier Power	Passive speaker; requires external amplification
Aux Input	No
Bass Extension (-10dB)	about 61.5Hz (measured, Audio Science Review data on spinorama.org)
Bass Extension (-3dB)	120.1Hz (measured, Audio Science Review data on spinorama.org)
Bluetooth	No
Coaxial Input	No
Configuration	Passive 2-way Constant Beamwidth Technology column
Coverage	Switchable 25° or 45° vertical
DSP	No (passive)
Dimensions	27.3”H x 6.7”W x 9.3”D (694 x 170 x 237 mm)
Drivers	4x 5” neodymium woofers, 16x 1” neodymium tweeters
Frequency Response	60Hz - 20kHz (-10dB, manufacturer specified)
Guitar Input	No
HDMI Input	No
Impedance	8 ohms
Maximum SPL	131dB peak (narrow, speech mode, manufacturer specified)
Microphone Input	No
Optical Input	No
Passive	Yes
Power Handling	500W (2,000W peak)
RCA Input	No
Rigging	10 x M6 rear inserts; swivel/tilt wall bracket included
Spinorama Preference Score	2.95
Spinorama Preference Score with Perfect Sub	5.87
TRS Input	No
USB Input	No
Weight	20.9 lbs (9.5 kg)
XLR Input	No

• Links
  • JBL CBT 70J-1 Product Page
• Reviews, Comparisons and Sound Samples
  • Audio Science Review Measurements (spinorama.org) More from Audio Science Review →
  • Audio Science Review
• Head-to-Head Comparisons
  • JBL CBT 70J-1 vs L-Acoustics SOKA
  • JBL CBT 70J-1 vs JBL COL800
  • JBL CBT 70J-1 vs Alcons Audio QRP20
  • JBL CBT 70J-1 vs JBL COL600
  • JBL CBT 70J-1 vs JBL CBT 1000
  • JBL CBT 70J-1 vs Coda Audio CoRay4

Ranked #11 of 23 in Column and Line Array PA Speakers - JBL COL800: $577.00 Passive B&H Photo Video eBay

Same family: the JBL COL600 (smaller model, ranked lower, rated 3.3/5).

Pros: Manufacturer measurements give a 6.34 preference score with an ideal subwoofer from a slim 93mm-deep column that blends into a wall. Four racetrack woofers and two tweeters give wide 160° horizontal coverage with a built-in 10° downward tilt, and a 70V/100V transformer or 8 ohm direct mode suits distributed systems. Measured bass extension of 115Hz (-3dB).

Cons: Bass measures 115Hz at -3dB and about 86Hz at -10dB, and output tops out at 116dB, so it suits speech and background music rather than loud programs. The data is manufacturer supplied, rated low quality, and the standalone score is 2.67.

Full JBL COL800 review and specifications →

AES Input	No
Amplifier Power	Passive speaker; requires external amplification
Aux Input	No
Bass Extension (-10dB)	about 85.6Hz (measured, vendor Spinorama data)
Bass Extension (-3dB)	115Hz (measured, vendor Spinorama data)
Bluetooth	No
Coaxial Input	No
Configuration	Passive slim column (8 ohm or 70V/100V)
Coverage	160° x 60°, 10° down-tilt
DSP	No (passive)
Dimensions	31.5”H x 4”W x 3.7”D (800 x 102 x 93 mm)
Drivers	4x 5” x 2.25” racetrack woofers, 2x 0.8” tweeters
Frequency Response	85Hz - 20kHz (-10dB, manufacturer specified)
Guitar Input	No
HDMI Input	No
Impedance	8 ohms
Maximum SPL	116dB peak (manufacturer specified)
Microphone Input	No
Optical Input	No
Passive	Yes
Power Handling	150W continuous pink noise (600W peak)
RCA Input	No
Rigging	M6 inserts on back, top, bottom and sides; wall and L-brackets included
Sensitivity	88dB (2.83V/1m)
Spinorama Preference Score	2.67
Spinorama Preference Score with Perfect Sub	6.34
TRS Input	No
USB Input	No
Weight	11.5 lbs (5.2 kg)
XLR Input	No

• Links
  • JBL COL800 Product Page
• Reviews, Comparisons and Sound Samples
  • Spinorama Measurements
• Head-to-Head Comparisons
  • JBL COL800 vs JBL CBT 70J-1
  • JBL COL800 vs L-Acoustics SOKA
  • JBL COL800 vs JBL COL600
  • JBL COL800 vs Alcons Audio QRP20
  • JBL COL800 vs Alcons Audio QRP40
  • JBL COL800 vs Coda Audio CoRay4

Ranked #13 of 23 in Column and Line Array PA Speakers - JBL COL600: $386.00 Passive B&H Photo Video eBay

Same family: the JBL COL800 (larger model, ranked higher, rated 3.4/5).

Pros: Manufacturer measurements give a 6.11 preference score with an ideal subwoofer and a 2.1dB reference band from a 598mm column only 93mm deep. Two racetrack woofers and a 1-inch tweeter give 160° x 110° coverage with a 10° downward tilt, and a 70V/100V transformer or 8 ohm direct mode suits restaurants, shops and meeting rooms. Measured bass extension of 106Hz (-3dB).

Cons: Bass measures 106Hz at -3dB and about 78Hz at -10dB, and output tops out at 111dB, so it is for speech and background music. The data is manufacturer supplied, rated low quality, and the standalone score is 2.64.

Full JBL COL600 review and specifications →

AES Input	No
Amplifier Power	Passive speaker; requires external amplification
Aux Input	No
Bass Extension (-10dB)	about 77.7Hz (measured, vendor Spinorama data)
Bass Extension (-3dB)	106Hz (measured, vendor Spinorama data)
Bluetooth	No
Coaxial Input	No
Configuration	Passive slim column (8 ohm or 70V/100V)
Coverage	160° x 110°, 10° down-tilt
DSP	No (passive)
Dimensions	23.5”H x 4”W x 3.7”D (598 x 102 x 93 mm)
Drivers	2x 5” x 2.25” racetrack woofers, 1x 1” tweeter
Frequency Response	70Hz - 20kHz (-10dB, manufacturer specified)
Guitar Input	No
HDMI Input	No
Impedance	8 ohms
Maximum SPL	111dB peak (manufacturer specified)
Microphone Input	No
Optical Input	No
Passive	Yes
Power Handling	80W continuous pink noise (320W peak)
RCA Input	No
Rigging	M6 inserts on top, bottom and sides; wall and L-brackets included
Sensitivity	86dB (2.83V/1m)
Spinorama Preference Score	2.64
Spinorama Preference Score with Perfect Sub	6.11
TRS Input	No
USB Input	No
Weight	7.7 lbs (3.5 kg)
XLR Input	No

• Links
  • JBL COL600 Product Page
• Reviews, Comparisons and Sound Samples
  • Spinorama Measurements
• Head-to-Head Comparisons
  • JBL COL600 vs JBL COL800
  • JBL COL600 vs JBL CBT 70J-1
  • JBL COL600 vs L-Acoustics SOKA
  • JBL COL600 vs Alcons Audio QRP20
  • JBL COL600 vs Coda Audio CoRay4
  • JBL COL600 vs Alcons Audio QRP40
  • JBL COL600 vs L-Acoustics SYVA

Ranked #15 of 23 in Column and Line Array PA Speakers - JBL CBT 200LA-1: $2,449.16 each Passive Estimated Amazon eBay

Same family: the JBL CBT 50LA-1 (smaller model, ranked lower, estimated 3.1/5), the JBL CBT 70J-1 (smaller model, ranked higher, rated 3.4/5), the JBL CBT 100LA-1 (smaller model, ranked lower, estimated 3.1/5) and the JBL CBT 1000 (larger model, ranked higher, rated 4.1/5).

Pros: A Constant Beamwidth Technology column from the same JBL CBT range as the measured JBL CBT 70J-1 and JBL CBT 1000, with thirty-two 2” full-range drivers in a 2000mm tall cabinet. It keeps a steady 150° horizontal and switchable 15° or 30° vertical pattern across frequency, which helps speech intelligibility in reverberant rooms, and JBL rates it at 129dB peak.

Cons: No independent measurements yet, so it can’t be compared with ranked PA speakers. Its 2” drivers have no separate woofer or tweeter and roll off below 80Hz, so music needs a subwoofer, and it requires an external amplifier.

Full JBL CBT 200LA-1 review and specifications →

Amplifier Power	Passive speaker; requires external amplification
Bluetooth	No
Configuration	Passive Constant Beamwidth Technology line array column
Coverage	150° horizontal, switchable 15° or 30° vertical
DSP	No (passive)
Dimensions	78.7” (2000 mm) tall
Drivers	32x 2” full-range drivers
Frequency Response	80Hz - 20kHz (manufacturer specified)
Maximum SPL	129dB peak (manufacturer specified)
Passive	Yes
Power Handling	650W continuous
Rigging	28 x M6 rear inserts; swivel/tilt wall bracket included
Weight	32.2 lbs (14.6 kg)
XLR Input	No

• Links
  • JBL CBT 200LA-1 Product Page
• Reviews, Comparisons and Sound Samples
  • No independent measurement review is linked for this model; it is ranked from hands-on listening and comparison against similarly priced speakers.

Ranked #17 of 23 in Column and Line Array PA Speakers - JBL CBT 50LA-1: $585.00 each Passive Estimated Amazon eBay

Same family: the JBL CBT 70J-1 (larger model, ranked higher, rated 3.4/5), the JBL CBT 100LA-1 (larger model, ranked lower, estimated 3.1/5), the JBL CBT 200LA-1 (larger model, ranked higher, estimated 3.2/5) and the JBL CBT 1000 (larger model, ranked higher, rated 4.1/5).

Pros: A Constant Beamwidth Technology column from the same JBL CBT range as the measured JBL CBT 70J-1 and JBL CBT 1000, with eight 2” full-range drivers in a 528mm tall cabinet. It keeps a steady 150° horizontal and 20° vertical pattern across frequency, which helps speech intelligibility in reverberant rooms, and JBL rates it at 115dB continuous.

Cons: No independent measurements yet, so it can’t be compared with ranked PA speakers. Its 2” drivers have no separate woofer or tweeter and roll off below 80Hz, so music needs a subwoofer, and it requires an external amplifier.

Full JBL CBT 50LA-1 review and specifications →

Amplifier Power	Passive speaker; requires external amplification
Bluetooth	No
Configuration	Passive Constant Beamwidth Technology line array column
Coverage	150° horizontal, 20° vertical
DSP	No (passive)
Dimensions	20.8” (528 mm) tall
Drivers	8x 2” full-range drivers
Frequency Response	80Hz - 20kHz (manufacturer specified)
Maximum SPL	115dB continuous (manufacturer specified)
Passive	Yes
Power Handling	150W continuous
Rigging	10 x M6 rear inserts; swivel/tilt wall bracket included
Weight	9 lbs (4.1 kg)
XLR Input	No

• Links
  • JBL CBT 50LA-1 Product Page
• Reviews, Comparisons and Sound Samples
  • No independent measurement review is linked for this model; it is ranked from hands-on listening and comparison against similarly priced speakers.

Ranked #18 of 23 in Column and Line Array PA Speakers - JBL CBT 100LA-1: $1,055.00 each Passive Estimated Amazon eBay

Same family: the JBL CBT 50LA-1 (smaller model, ranked higher, estimated 3.1/5), the JBL CBT 70J-1 (smaller model, ranked higher, rated 3.4/5), the JBL CBT 200LA-1 (larger model, ranked higher, estimated 3.2/5) and the JBL CBT 1000 (larger model, ranked higher, rated 4.1/5).

Pros: A Constant Beamwidth Technology column from the same JBL CBT range as the measured JBL CBT 70J-1 and JBL CBT 1000, with sixteen 2” full-range drivers in a 1000mm tall cabinet. It keeps a steady 150° horizontal and switchable 15° or 40° vertical pattern across frequency, which helps speech intelligibility in reverberant rooms, and JBL rates it at 121dB (narrow mode).

Cons: No independent measurements yet, so it can’t be compared with ranked PA speakers. Its 2” drivers have no separate woofer or tweeter and roll off below 80Hz, so music needs a subwoofer, and it requires an external amplifier.

Full JBL CBT 100LA-1 review and specifications →

Amplifier Power	Passive speaker; requires external amplification
Bluetooth	No
Configuration	Passive Constant Beamwidth Technology line array column
Coverage	150° horizontal, switchable 15° or 40° vertical
DSP	No (passive)
Dimensions	39.4” (1000 mm) tall
Drivers	16x 2” full-range drivers
Frequency Response	80Hz - 20kHz (manufacturer specified)
Maximum SPL	121dB (narrow mode) (manufacturer specified)
Passive	Yes
Power Handling	325W continuous
Rigging	18 x M6 inserts (OmniMount pattern); swivel/tilt wall bracket included
Weight	15.9 lbs (7.2 kg)
XLR Input	No

• Links
  • JBL CBT 100LA-1 Product Page
• Reviews, Comparisons and Sound Samples
  • No independent measurement review is linked for this model; it is ranked from hands-on listening and comparison against similarly priced speakers.

Ranked #19 of 23 in Column and Line Array PA Speakers - Coda Audio CoRay4 Passive eBay

Pros: Two 4-inch planar wave drivers above four 5-inch woofers give 97dB sensitivity and a very high 144dB peak, with 120°, 60° or asymmetric 90° horizontal coverage and an asymmetric 12° vertical pattern. Bass reaches 82.5Hz at -3dB, and columns can be linked into a longer array for touring or installation. Measured bass extension of 82.5Hz (-3dB).

Cons: High-quality manufacturer measurements give a low 1.96 standalone preference score and 5.04 with an ideal subwoofer, with a 0.619 listening-window deviation, so tonal balance is uneven. It will not work without a Coda Audio system controller, weighs 15.7kg and is sold only through pro dealers with no published price.

Full Coda Audio CoRay4 review and specifications →

AES Input	No
Amplifier Power	Passive speaker; requires a Coda Audio LINUS amplifier/controller
Aux Input	No
Bass Extension (-10dB)	about 71.6Hz (measured, vendor Spinorama data)
Bass Extension (-3dB)	82.5Hz (measured, vendor Spinorama data)
Bluetooth	No
Coaxial Input	No
Configuration	Passive 2-way line source column (requires Coda controller)
Coverage	120°, 60° or 90° asymmetric horizontal x 12° vertical
DSP	No (passive)
Dimensions	29.8”H x 6”W x 8.4”D (758 x 152 x 214 mm)
Drivers	2x 4” neodymium planar wave drivers, 4x 5” woofers
Frequency Response	80Hz - 20kHz (-6dB, manufacturer specified)
Guitar Input	No
HDMI Input	No
Impedance	4 ohms
Maximum SPL	144dB peak (manufacturer specified)
Microphone Input	No
Optical Input	No
Passive	Yes
Power Handling	700W AES / 2,800W peak
RCA Input	No
Rigging	CODA mobile suspension and flange adapter; optional CF4 flying frame
Sensitivity	97dB
Spinorama Preference Score	1.96
Spinorama Preference Score with Perfect Sub	5.04
TRS Input	No
USB Input	No
Weight	34.6 lbs (15.7 kg)
XLR Input	No

• Links
  • Coda Audio CoRAY4 Product Page
• Reviews, Comparisons and Sound Samples
  • Spinorama Measurements
• Head-to-Head Comparisons
  • Coda Audio CoRay4 vs JBL COL600
  • Coda Audio CoRay4 vs JBL COL800
  • Coda Audio CoRay4 vs JBL CBT 70J-1
  • Coda Audio CoRay4 vs L-Acoustics SOKA
  • Coda Audio CoRay4 vs Alcons Audio QRP20
  • Coda Audio CoRay4 vs Alcons Audio QRP40

Ranked #20 of 23 in Column and Line Array PA Speakers - KME ICS4 Passive eBay

Pros: A slim passive column with four 4 inch woofers and a 1 inch dome tweeter in an IP44 rated cabinet, built for installation in churches, theatres and conference rooms. Its 80° x 40° pattern keeps sound off ceilings and floors, and it weighs just 6 kg. Measured bass extension of 155.0Hz (-3dB).

Cons: Vendor data shows an uneven response, with 0.97 on-axis and 0.86 listening window deviation, for a standalone preference score of -0.24 that only reaches 3.67 with an ideal subwoofer. Bass rolls off at about 118Hz (-6dB), so it must be paired with a subwoofer, and it needs an external amplifier.

Full KME ICS4 review and specifications →

AES Input	No
Aux Input	No
Bass Extension (-3dB)	155.0Hz (measured, vendor Spinorama data)
Bluetooth	No
Coaxial Input	No
Configuration	Passive 2.5-way column speaker
Coverage	80° x 40°
Dimensions	19.7”H x 5.3”W x 6.5”D (500 x 135 x 166 mm)
Drivers	4x 4” woofers, 1” dome tweeter
Frequency Response	100Hz - 20kHz (-10dB, manufacturer specified)
Guitar Input	No
HDMI Input	No
IP Rating	IP44
Impedance	8 ohms
Inputs	2x Speakon NL4, Phoenix in/out
Maximum SPL	113dB (manufacturer specified)
Microphone Input	No
Optical Input	No
Passive	Yes
Power Handling	200W AES, 400W program
RCA Input	No
Sensitivity	90dB (1W/1m, manufacturer specified)
Spinorama Preference Score	-0.24
Spinorama Preference Score with Perfect Sub	3.67
TRS Input	No
USB Input	No
Weight	13.2 lbs (6 kg)
XLR Input	No

• Links
  • KME ICS 4 Product Information
• Reviews, Comparisons and Sound Samples
  • Spinorama Measurements

Ranked #21 of 23 in Column and Line Array PA Speakers - Yamaha VXL1-8: $444.99 each Passive Amazon eBay

Same family: the Yamaha VXL1-16 (larger model, ranked lower, estimated 2.6/5) and the Yamaha VXL1-24 (larger model, ranked lower, rated 2.5/5).

Pros: A slim column speaker for commercial installations with eight 1.5” drivers in a line array. Yamaha’s measurements show a preference score of -0.38 that reaches 4.48 with an ideal subwoofer, with 0.69 listening window deviation.

Cons: Bass is very limited, so it needs a subwoofer, and the on-axis response is very uneven (2.37 average deviation). The data comes from Yamaha.

Full Yamaha VXL1-8 review and specifications →

Bluetooth	No
DIY Kit	No
Drivers	8x 1.5” full-range drivers (line array)
Maximum SPL	111dB peak (manufacturer specified)
Passive	Yes
Rigging	Wall mount bracket included
Spinorama Preference Score	-0.38
Spinorama Preference Score with Perfect Sub	4.48
Weight	4.6 lbs (2.1 kg)

• Reviews, Comparisons and Sound Samples
  • Manufacturer Measurements (spinorama.org)

Ranked #22 of 23 in Column and Line Array PA Speakers - Yamaha VXL1-16: $807.99 each Passive Estimated Full Compass eBay

Same family: the Yamaha VXL1-8 (smaller model, ranked higher, rated 2.6/5) and the Yamaha VXL1-24 (larger model, ranked lower, rated 2.5/5).

Pros: The middle model of Yamaha’s VXL slim line arrays, with sixteen 1.5” full-range drivers in a 54mm wide column between the measured Yamaha VXL1-8 and Yamaha VXL1-24. A rear switch picks 20° or 30° vertical coverage, which helps speech intelligibility in reflective rooms.

Cons: No independent measurements yet, so it can’t be compared with ranked PA speakers. Small full-range drivers limit bass and output, so it is built for speech and background music, and it needs an external amplifier.

Full Yamaha VXL1-16 review and specifications →

Amplifier Power	Passive speaker; requires external amplification
Bluetooth	No
Configuration	Passive slim line array column
Coverage	Switchable 20° or 30° vertical
DSP	No (passive)
Drivers	16x 1.5” full-range drivers
Maximum SPL	116dB peak (manufacturer specified)
Passive	Yes
Power Handling	80W
Rigging	Wall mount bracket included
Weight	8.6 lbs (3.9 kg)
XLR Input	No

• Links
  • Yamaha VXL Series Product Information
• Reviews, Comparisons and Sound Samples
  • No independent measurement review is linked for this model; it is ranked from hands-on listening and comparison against similarly priced speakers.

Ranked #23 of 23 in Column and Line Array PA Speakers - Yamaha VXL1-24: $1,340 each Passive eBay

Same family: the Yamaha VXL1-8 (smaller model, ranked higher, rated 2.6/5) and the Yamaha VXL1-16 (smaller model, ranked higher, estimated 2.6/5).

Pros: A tall column speaker for commercial installations with 24 1.5” drivers in a line array. Yamaha’s measurements show a preference score of -0.75 that reaches 4.27 with an ideal subwoofer, with 0.68 listening window deviation. Measured bass extension of 272.0Hz (-3dB).

Cons: Bass is very limited, so it needs a subwoofer, and the on-axis response is very uneven (2.73 average deviation). The data comes from Yamaha.

Full Yamaha VXL1-24 review and specifications →

Bass Extension (-3dB)	272.0Hz (measured, vendor Spinorama data)
Bluetooth	No
DIY Kit	No
Drivers	24x 1.5” full-range drivers (line array)
Maximum SPL	117dB peak (manufacturer specified)
Passive	Yes
Rigging	Wall mount bracket included; optional pole and wall bracket
Spinorama Preference Score	-0.75
Spinorama Preference Score with Perfect Sub	4.27
Weight	12.1 lbs (5.5 kg)

• Reviews, Comparisons and Sound Samples
  • Manufacturer Measurements (spinorama.org)

Surface-Mount and Background Music Speakers

Ranked #1 of 26 in Surface-Mount and Background Music Speakers - JBL Control 24CT: $350.00 per pair Passive Amazon eBay

Pros: A 4” two-way ceiling speaker for background and foreground music with a coaxial 3/4” titanium-coated tweeter, a 130 degree conical coverage pattern and a built-in transformer for 70V and 100V distributed systems. JBL’s data shows a very even listening window (0.13 deviation), for a preference score of 7.35.

Cons: It has no 8 ohm bypass, so it needs a 70V or 100V amplifier rather than a normal home amplifier. Output is limited to 102dB, and the on-axis response is less even (1.14 average deviation) because it is meant to be heard off-axis from the ceiling. That data comes from JBL.

Full JBL Control 24CT review and specifications →

Bluetooth	No
DIY Kit	No
Drivers	4” (100mm) polypropylene-coated woofer, coaxial 3/4” (19mm) titanium-coated tweeter
Frequency Response	80Hz-20kHz -10dB (manufacturer specified)
Maximum SPL	102dB (manufacturer specified)
Passive	Yes
Power Handling	30W multitap transformer (70V/100V)
Rigging	None
Sensitivity	86dB (manufacturer specified)
Spinorama Preference Score	7.35
Spinorama Preference Score with Perfect Sub	8.65
Weight	6 lbs (2.7 kg)

• Reviews, Comparisons and Sound Samples
  • Manufacturer Measurements (spinorama.org)

Ranked #2 of 26 in Surface-Mount and Background Music Speakers - DB Audiotechnik 42S Passive Estimated eBay

Same family: the DB Audiotechnik 4S (smaller model, ranked lower, estimated 3.2/5), the DB Audiotechnik 44S (larger model, rated 3.6/5), the DB Audiotechnik 5S (larger model, ranked lower, estimated 3.3/5), the DB Audiotechnik 8S (larger model, rated 3.1/5), the DB Audiotechnik 10S (larger model, rated 3.7/5), the DB Audiotechnik 12S (larger model, rated 3.8/5) and the DB Audiotechnik 24S (larger model, rated 3.8/5).

Pros: A passive installation loudspeaker from d&b’s xS-Series alongside the measured DB Audiotechnik 44S and DB Audiotechnik 8S: the newest ultra-compact model, with a single 4.5” woofer and 120° x 90° dispersion. d&b rates it at 117dB maximum SPL with a range of 77Hz - 20kHz (-5dB) when driven by its matched d&b amplifier presets.

Cons: No independent measurements yet, so it can’t be compared with ranked PA speakers. It is meant to run from d&b amplifiers with the matching preset and is sold only through d&b dealers, so there is no retail price.

Full DB Audiotechnik 42S review and specifications →

Amplifier Power	Passive speaker; requires external amplification
Bluetooth	No
Configuration	Passive 2-way installation speaker
DSP	No (passive)
Drivers	4.5” woofer, 0.75” tweeter
Frequency Response	77Hz - 20kHz (-5dB) (manufacturer specified)
Maximum SPL	117dB (manufacturer specified)
Passive	Yes
Rigging	2 x M8 inserts on rear panel
Weight	3.5 lbs (1.6 kg)
XLR Input	No

• Links
  • d&b audiotechnik 42S Product Page
• Reviews, Comparisons and Sound Samples
  • No independent measurement review is linked for this model; it is ranked from hands-on listening and comparison against similarly priced speakers.

Ranked #3 of 26 in Surface-Mount and Background Music Speakers - Electro-Voice EVID-S5.2X: $519.00 per pair Passive Amazon eBay

Same family: the Electro-Voice EVID-S4.2 (smaller model, ranked lower, rated 2.5/5), the Electro-Voice EVID-S5.2 (smaller model, ranked lower, rated 2.6/5) and the Electro-Voice EVID-S8.2 (larger model, ranked lower, rated 2.7/5).

Pros: A weather-resistant (IP65) surface-mount installation speaker from Electro-Voice with a 5.25” woofer and a tweeter, for 70V and 100V systems or low impedance. EV’s measurements show a preference score of 2.44 that reaches 6.05 with an ideal subwoofer, with 0.55 listening window deviation.

Cons: Bass is very limited, so it needs a subwoofer for full-range music, and the on-axis response is uneven (1.29 average deviation). The data comes from EV. Bass reaches 150.0Hz (-3dB) and about 82Hz (-10dB).

Full Electro-Voice EVID-S5.2X review and specifications →

Bass Extension (-10dB)	about 81.6Hz (measured, manufacturer data via spinorama.org)
Bass Extension (-3dB)	150.0Hz (measured, manufacturer data via spinorama.org)
Bluetooth	No
DIY Kit	No
Drivers	5.25” woofer, tweeter
IP Rating	IP65
Maximum SPL	115dB peak (manufacturer specified)
Passive	Yes
Rigging	U-bracket mount for U-bolt, threaded rod, pole or junction box
Spinorama Preference Score	2.44
Spinorama Preference Score with Perfect Sub	6.05
Weight	6 lbs (2.7 kg)

• Reviews, Comparisons and Sound Samples
  • Manufacturer Measurements (spinorama.org)

Ranked #4 of 26 in Surface-Mount and Background Music Speakers - DB Audiotechnik 5S Passive Estimated eBay

Same family: the DB Audiotechnik 4S (smaller model, ranked lower, estimated 3.2/5), the DB Audiotechnik 42S (smaller model, ranked higher, estimated 3.5/5), the DB Audiotechnik 44S (smaller model, rated 3.6/5), the DB Audiotechnik 8S (larger model, rated 3.1/5), the DB Audiotechnik 10S (larger model, rated 3.7/5), the DB Audiotechnik 12S (larger model, rated 3.8/5) and the DB Audiotechnik 24S (larger model, rated 3.8/5).

Pros: A passive installation loudspeaker from d&b’s xS-Series alongside the measured DB Audiotechnik 44S and DB Audiotechnik 8S: a compact 5” bass-reflex model that reaches lower than the 4S. d&b rates it at 118dB maximum SPL with a range of 80Hz - 20kHz (-5dB) when driven by its matched d&b amplifier presets.

Cons: No independent measurements yet, so it can’t be compared with ranked PA speakers. It is meant to run from d&b amplifiers with the matching preset and is sold only through d&b dealers, so there is no retail price.

Full DB Audiotechnik 5S review and specifications →

Amplifier Power	Passive speaker; requires external amplification
Bluetooth	No
Configuration	Passive 2-way installation speaker
DSP	No (passive)
Drivers	5” woofer with coaxial dome tweeter, bass reflex
Frequency Response	80Hz - 20kHz (-5dB) (manufacturer specified)
Maximum SPL	118dB (manufacturer specified)
Passive	Yes
Rigging	2 x M8 inserts on rear panel; optional M10 stand adapter
Weight	5.5 lbs (2.5 kg)
XLR Input	No

• Links
  • d&b audiotechnik 5S Product Page
• Reviews, Comparisons and Sound Samples
  • No independent measurement review is linked for this model; it is ranked from hands-on listening and comparison against similarly priced speakers.

Ranked #5 of 26 in Surface-Mount and Background Music Speakers - DB Audiotechnik 4S Passive Estimated eBay

Same family: the DB Audiotechnik 42S (larger model, ranked higher, estimated 3.5/5), the DB Audiotechnik 44S (larger model, rated 3.6/5), the DB Audiotechnik 5S (larger model, ranked higher, estimated 3.3/5), the DB Audiotechnik 8S (larger model, rated 3.1/5), the DB Audiotechnik 10S (larger model, rated 3.7/5), the DB Audiotechnik 12S (larger model, rated 3.8/5) and the DB Audiotechnik 24S (larger model, rated 3.8/5).

Pros: A passive installation loudspeaker from d&b’s xS-Series alongside the measured DB Audiotechnik 44S and DB Audiotechnik 8S: the ultra-compact 4” model, weighing just 1 kg, for fills and discreet installs. d&b rates it at 115dB maximum SPL with a range of 130Hz - 20kHz (-5dB) when driven by its matched d&b amplifier presets.

Cons: No independent measurements yet, so it can’t be compared with ranked PA speakers. It is meant to run from d&b amplifiers with the matching preset and is sold only through d&b dealers, so there is no retail price.

Full DB Audiotechnik 4S review and specifications →

Amplifier Power	Passive speaker; requires external amplification
Bluetooth	No
Configuration	Passive 2-way installation speaker
DSP	No (passive)
Drivers	4” neodymium woofer with coaxial dome tweeter
Frequency Response	130Hz - 20kHz (-5dB) (manufacturer specified)
Maximum SPL	115dB (manufacturer specified)
Passive	Yes
Rigging	M10 inserts on rear panel; optional M10 stand adapter
Weight	2.2 lbs (1 kg)
XLR Input	No

• Links
  • d&b audiotechnik 4S Product Page
• Reviews, Comparisons and Sound Samples
  • No independent measurement review is linked for this model; it is ranked from hands-on listening and comparison against similarly priced speakers.

Ranked #6 of 26 in Surface-Mount and Background Music Speakers - JBL AC28/26: $1,990.00 each Passive Estimated Amazon eBay

Same family: the JBL AC15 (smaller model, ranked lower, estimated 2.6/5), the JBL AC16 (smaller model, ranked lower, estimated 2.8/5), the JBL AC25 (smaller model, ranked lower, rated 2.6/5), the JBL AC26 (smaller model, ranked lower, estimated 2.9/5) and the JBL AC18/26 (smaller model, ranked lower, estimated 3/5).

Pros: A compact JBL Professional installation speaker from the same AC range as the measured JBL AC25: two 8” woofers with a rotatable 120° x 60° horn, the largest of the compact models. JBL rates it at 94dB sensitivity and 120dB maximum SPL with 120° x 60° coverage and bass to 53Hz (-10dB), in an enclosure weighing 18.6 kg with mounting points for walls and ceilings.

Cons: No independent measurements yet, so it can’t be compared with ranked PA speakers. It is a passive installation speaker that needs an amplifier and, for best results, JBL’s recommended EQ, and the only measured AC model scored poorly, so treat the estimate with caution.

Full JBL AC28/26 review and specifications →

Amplifier Power	Passive speaker; requires external amplification
Bass Extension (-3dB)	65Hz (manufacturer specified)
Bluetooth	No
Configuration	Passive 2-way installation speaker
Coverage	120° x 60°
DSP	No (passive)
Drivers	2x 8” woofers, 1” compression driver
Frequency Response	53Hz - 20kHz (-10dB, manufacturer specified)
Maximum SPL	120dB (manufacturer specified)
Passive	Yes
Power Handling	750W program
Rigging	6 x M8 suspension points; 4 x M8 rear for MultiMount bracket
Sensitivity	94dB
Weight	41 lbs (18.6 kg)
XLR Input	No

• Links
  • JBL AC28/26 Product Page
• Reviews, Comparisons and Sound Samples
  • No independent measurement review is linked for this model; it is ranked from hands-on listening and comparison against similarly priced speakers.

Ranked #7 of 26 in Surface-Mount and Background Music Speakers - Martin Audio CDD6: $550.00 each Passive Estimated Full Compass eBay

Same family: the Martin Audio CDD-LIVE 8 (smallest powered model, estimated 3.4/5), the Martin Audio CDD-LIVE 12 (powered model, estimated 3.1/5), the Martin Audio CDD-LIVE 15 (largest powered model, estimated 3.5/5), the Martin Audio CDD5 (smaller passive model, ranked lower, estimated 3/5), the Martin Audio CDD8 (larger passive model, rated 3.2/5), the Martin Audio CDD10 (larger passive model, rated 3.1/5), the Martin Audio CDD12 (larger passive model, rated 2.9/5) and the Martin Audio CDD15 (larger passive model, rated 3.3/5).

Pros: A passive Coaxial Differential Dispersion speaker from the same Martin Audio CDD line as the measured Martin Audio CDD8 and Martin Audio CDD10: a 6.5” coaxial driver in a cabinet small enough for discreet installs. CDD widens the horizontal pattern close to the speaker and narrows it with distance, which keeps level more even from front to back of a room.

Cons: No independent measurements yet, so it can’t be compared with ranked PA speakers. It needs an external amplifier, and its small woofer limits bass and output, so larger rooms need a subwoofer or bigger CDD models.

Full Martin Audio CDD6 review and specifications →

Amplifier Power	Passive speaker; requires external amplification
Bass Extension (-3dB)	80Hz (manufacturer specified)
Bluetooth	No
Configuration	Passive 2-way coaxial installation speaker
DSP	No (passive)
Drivers	6.5” woofer with coaxial 1” HF driver
Frequency Response	80Hz - 20kHz (±3dB), 70Hz (-10dB) (manufacturer specified)
Impedance	8 ohms
Maximum SPL	119dB peak (manufacturer specified)
Passive	Yes
Power Handling	150W AES
Rigging	4 x M6 inserts for wall/ceiling brackets
Weight	12.5 lbs (5.69 kg)
XLR Input	No

• Links
  • Official Martin Audio CDD6 Website
• Reviews, Comparisons and Sound Samples
  • No independent measurement review is linked for this model; it is ranked from hands-on listening and comparison against similarly priced speakers.

Ranked #8 of 26 in Surface-Mount and Background Music Speakers - Yamaha VXS5: $392.98 per pair Passive Amazon eBay

Same family: the Yamaha VXS1ML (smaller model, ranked lower, estimated 2.4/5), the Yamaha VXS3F (smaller model, ranked lower, rated 2.6/5) and the Yamaha VXS8 (larger model, ranked lower, estimated 3/5).

Pros: A compact surface-mount speaker for commercial installations with a 5.25” woofer and a dome tweeter, weather-resistant for covered outdoor use. Yamaha’s measurements show a preference score of 1.86 that reaches 5.17 with an ideal subwoofer, with 0.59 listening window deviation.

Cons: Bass is limited, so it needs a subwoofer for full-range music, and the on-axis response is uneven (0.95 average deviation). The data comes from Yamaha. Bass reaches 95.0Hz (-3dB) and about 70Hz (-10dB).

Full Yamaha VXS5 review and specifications →

Bass Extension (-10dB)	about 69.5Hz (measured, manufacturer data via spinorama.org)
Bass Extension (-3dB)	95.0Hz (measured, manufacturer data via spinorama.org)
Bluetooth	No
DIY Kit	No
Drivers	5.25” woofer, dome tweeter
Maximum SPL	114dB peak (manufacturer specified)
Passive	Yes
Rigging	Wall/ceiling mount bracket included
Spinorama Preference Score	1.86
Spinorama Preference Score with Perfect Sub	5.17
Weight	7.9 lbs (3.6 kg)

• Reviews, Comparisons and Sound Samples
  • Manufacturer Measurements (spinorama.org)

Ranked #9 of 26 in Surface-Mount and Background Music Speakers - Yamaha VXS8: $662.98 per pair Passive Estimated B&H Photo Video eBay

Same family: the Yamaha VXS1ML (smaller model, ranked lower, estimated 2.4/5), the Yamaha VXS3F (smaller model, ranked lower, rated 2.6/5) and the Yamaha VXS5 (smaller model, ranked higher, rated 3/5).

Pros: The 8-inch model of Yamaha’s VXS surface-mount range, a larger sibling of the measured Yamaha VXS5 with an 8” woofer and a 1” soft dome tweeter. Yamaha rates it at 91dB sensitivity and 117dB maximum SPL with bass to 51Hz (-10dB), so it reaches lower than the 5.25” model, and a transformer tap lets it run on 70V/100V lines or at low impedance.

Cons: No independent measurements yet, so it can’t be compared with ranked PA speakers. It is an installation speaker sold in pairs, with no built-in amplifier and a dome tweeter that limits output compared with horn-loaded PA boxes.

Full Yamaha VXS8 review and specifications →

Amplifier Power	Passive speaker; requires external amplification
Bluetooth	No
Configuration	Passive 2-way surface-mount speaker
DSP	No (passive)
Drivers	8” woofer, 1” soft dome tweeter
Frequency Response	51Hz - 20kHz (-10dB, manufacturer specified)
Maximum SPL	117dB (calculated, manufacturer specified)
Passive	Yes
Power Handling	90W noise / 180W program
Rigging	Wall/ceiling mount bracket included
Sensitivity	91dB
Weight	18.1 lbs (8.2 kg)
XLR Input	No

• Links
  • Yamaha VXS Series Product Information
• Reviews, Comparisons and Sound Samples
  • No independent measurement review is linked for this model; it is ranked from hands-on listening and comparison against similarly priced speakers.

Ranked #10 of 26 in Surface-Mount and Background Music Speakers - JBL AC18/26: $1,070.67 each Passive Estimated Amazon eBay

Same family: the JBL AC15 (smaller model, ranked lower, estimated 2.6/5), the JBL AC16 (smaller model, ranked lower, estimated 2.8/5), the JBL AC25 (smaller model, ranked lower, rated 2.6/5), the JBL AC26 (smaller model, ranked lower, estimated 2.9/5) and the JBL AC28/26 (larger model, ranked higher, estimated 3.1/5).

Pros: A compact JBL Professional installation speaker from the same AC range as the measured JBL AC25: an 8” woofer with a rotatable 120° x 60° horn. JBL rates it at 92dB sensitivity and 116dB maximum SPL with 120° x 60° coverage and bass to 52Hz (-10dB), in an enclosure weighing 12.8 kg with mounting points for walls and ceilings.

Cons: No independent measurements yet, so it can’t be compared with ranked PA speakers. It is a passive installation speaker that needs an amplifier and, for best results, JBL’s recommended EQ, and the only measured AC model scored poorly, so treat the estimate with caution.

Full JBL AC18/26 review and specifications →

Amplifier Power	Passive speaker; requires external amplification
Bass Extension (-3dB)	63Hz (manufacturer specified)
Bluetooth	No
Configuration	Passive 2-way installation speaker
Coverage	120° x 60°
DSP	No (passive)
Drivers	8” woofer, 1” compression driver
Frequency Response	52Hz - 20kHz (-10dB, manufacturer specified)
Maximum SPL	116dB (manufacturer specified)
Passive	Yes
Power Handling	500W program
Rigging	6 x M8 suspension points; 4 x M6 rear for OmniMount bracket
Sensitivity	92dB
Weight	28.2 lbs (12.8 kg)
XLR Input	No

• Links
  • JBL AC18/26 Product Page
• Reviews, Comparisons and Sound Samples
  • No independent measurement review is linked for this model; it is ranked from hands-on listening and comparison against similarly priced speakers.

Ranked #11 of 26 in Surface-Mount and Background Music Speakers - Martin Audio CDD5: $315.00 each Passive Estimated Full Compass eBay

Same family: the Martin Audio CDD-LIVE 8 (smallest powered model, estimated 3.4/5), the Martin Audio CDD-LIVE 12 (powered model, estimated 3.1/5), the Martin Audio CDD-LIVE 15 (largest powered model, estimated 3.5/5), the Martin Audio CDD6 (larger passive model, ranked higher, estimated 3.1/5), the Martin Audio CDD8 (larger passive model, rated 3.2/5), the Martin Audio CDD10 (larger passive model, rated 3.1/5), the Martin Audio CDD12 (larger passive model, rated 2.9/5) and the Martin Audio CDD15 (larger passive model, rated 3.3/5).

Pros: A passive Coaxial Differential Dispersion speaker from the same Martin Audio CDD line as the measured Martin Audio CDD8 and Martin Audio CDD10: the smallest model, a 5.25” coaxial driver in an ultra-compact on-wall cabinet. CDD widens the horizontal pattern close to the speaker and narrows it with distance, which keeps level more even from front to back of a room.

Cons: No independent measurements yet, so it can’t be compared with ranked PA speakers. It needs an external amplifier, and its small woofer limits bass and output, so larger rooms need a subwoofer or bigger CDD models.

Full Martin Audio CDD5 review and specifications →

Amplifier Power	Passive speaker; requires external amplification
Bass Extension (-3dB)	100Hz (manufacturer specified)
Bluetooth	No
Configuration	Passive 2-way coaxial installation speaker
DSP	No (passive)
Drivers	5.25” woofer with coaxial 0.75” dome tweeter
Impedance	8 ohms
Maximum SPL	116dB peak (manufacturer specified)
Passive	Yes
Power Handling	100W AES
Rigging	6 x M5 inserts; wall bracket
Weight	6.6 lbs (3 kg)
XLR Input	No

• Links
  • Official Martin Audio CDD5 Website
• Reviews, Comparisons and Sound Samples
  • No independent measurement review is linked for this model; it is ranked from hands-on listening and comparison against similarly priced speakers.

Ranked #12 of 26 in Surface-Mount and Background Music Speakers - JBL AC26: $1,700.00 each Passive Estimated Amazon eBay

Same family: the JBL AC15 (smaller model, ranked lower, estimated 2.6/5), the JBL AC16 (smaller model, ranked lower, estimated 2.8/5), the JBL AC25 (smaller model, ranked lower, rated 2.6/5), the JBL AC18/26 (larger model, ranked higher, estimated 3/5) and the JBL AC28/26 (larger model, ranked higher, estimated 3.1/5).

Pros: A compact JBL Professional installation speaker from the same AC range as the measured JBL AC25: two 6.5” woofers around a compression driver. JBL rates it at 92dB sensitivity and 117dB maximum SPL with 90° x 90° coverage and bass to 55Hz (-10dB), in an enclosure weighing 11.0 kg with mounting points for walls and ceilings.

Cons: No independent measurements yet, so it can’t be compared with ranked PA speakers. It is a passive installation speaker that needs an amplifier and, for best results, JBL’s recommended EQ, and the only measured AC model scored poorly, so treat the estimate with caution.

Full JBL AC26 review and specifications →

Amplifier Power	Passive speaker; requires external amplification
Bass Extension (-3dB)	70Hz (manufacturer specified)
Bluetooth	No
Configuration	Passive 2-way installation speaker
Coverage	90° x 90°
DSP	No (passive)
Drivers	2x 6.5” woofers, 1” compression driver
Frequency Response	55Hz - 20kHz (-10dB, manufacturer specified)
Maximum SPL	117dB (manufacturer specified)
Passive	Yes
Power Handling	350W
Rigging	6 x M8 suspension points; 4 x M6 rear for OmniMount bracket
Sensitivity	92dB
Weight	24.3 lbs (11.0 kg)
XLR Input	No

• Links
  • JBL AC26 Product Page
• Reviews, Comparisons and Sound Samples
  • No independent measurement review is linked for this model; it is ranked from hands-on listening and comparison against similarly priced speakers.

Ranked #13 of 26 in Surface-Mount and Background Music Speakers - JBL AC16: $674.00 each Passive Estimated Amazon eBay

Same family: the JBL AC15 (smaller model, ranked lower, estimated 2.6/5), the JBL AC25 (larger model, ranked lower, rated 2.6/5), the JBL AC26 (larger model, ranked higher, estimated 2.9/5), the JBL AC18/26 (larger model, ranked higher, estimated 3/5) and the JBL AC28/26 (larger model, ranked higher, estimated 3.1/5).

Pros: A compact JBL Professional installation speaker from the same AC range as the measured JBL AC25: a single 6.5” woofer with a compression driver on a waveguide. JBL rates it at 90dB sensitivity and 110dB maximum SPL with 90° x 90° coverage and bass to 55Hz (-10dB), in an enclosure weighing 7.2 kg with mounting points for walls and ceilings.

Cons: No independent measurements yet, so it can’t be compared with ranked PA speakers. It is a passive installation speaker that needs an amplifier and, for best results, JBL’s recommended EQ, and the only measured AC model scored poorly, so treat the estimate with caution.

Full JBL AC16 review and specifications →

Amplifier Power	Passive speaker; requires external amplification
Bass Extension (-3dB)	65Hz (manufacturer specified)
Bluetooth	No
Configuration	Passive 2-way installation speaker
Coverage	90° x 90°
DSP	No (passive)
Drivers	6.5” woofer, 1” compression driver
Frequency Response	55Hz - 20kHz (-10dB, manufacturer specified)
Maximum SPL	110dB (manufacturer specified)
Passive	Yes
Power Handling	250W
Rigging	5 x M8 points; 4 x M6 rear for OmniMount/MultiMount
Sensitivity	90dB
Weight	15.9 lbs (7.2 kg)
XLR Input	No

• Links
  • JBL AC16 Product Page
• Reviews, Comparisons and Sound Samples
  • No independent measurement review is linked for this model; it is ranked from hands-on listening and comparison against similarly priced speakers.

Ranked #14 of 26 in Surface-Mount and Background Music Speakers - Electro-Voice EVID-S8.2: $709.00 per pair Passive Amazon eBay

Same family: the Electro-Voice EVID-S4.2 (smaller model, ranked lower, rated 2.5/5), the Electro-Voice EVID-S5.2 (smaller model, ranked lower, rated 2.6/5) and the Electro-Voice EVID-S5.2X (smaller model, ranked higher, rated 3.3/5).

Pros: A weather-resistant surface-mount installation speaker from Electro-Voice with an 8” woofer and a tweeter. EV’s measurements show a preference score of 0.84 that reaches 4.15 with an ideal subwoofer, with 0.75 listening window deviation.

Cons: The on-axis response is uneven (1.84 average deviation). The data comes from EV. Bass reaches 92.5Hz (-3dB) and about 66Hz (-10dB).

Full Electro-Voice EVID-S8.2 review and specifications →

Bass Extension (-10dB)	about 65.9Hz (measured, manufacturer data via spinorama.org)
Bass Extension (-3dB)	92.5Hz (measured, manufacturer data via spinorama.org)
Bluetooth	No
DIY Kit	No
Drivers	8” woofer, tweeter
Maximum SPL	116dB peak (manufacturer specified)
Passive	Yes
Rigging	Pre-assembled wall/ceiling bracket (90° horizontal, 45° vertical swivel)
Spinorama Preference Score	0.84
Spinorama Preference Score with Perfect Sub	4.15
Weight	11.2 lbs (5.1 kg)

• Reviews, Comparisons and Sound Samples
  • Manufacturer Measurements (spinorama.org)

Ranked #15 of 26 in Surface-Mount and Background Music Speakers - Electro-Voice EVID-S5.2: $390 per pair Passive eBay

Same family: the Electro-Voice EVID-S4.2 (smaller model, ranked lower, rated 2.5/5), the Electro-Voice EVID-S5.2X (larger model, ranked higher, rated 3.3/5) and the Electro-Voice EVID-S8.2 (larger model, ranked higher, rated 2.7/5).

Pros: A weather-resistant surface-mount installation speaker from Electro-Voice with a 5.25” woofer and a tweeter, in a low-impedance version. EV’s measurements show a preference score of 0.42 that reaches 4.03 with an ideal subwoofer, with 0.71 listening window deviation.

Cons: Bass is limited, so it needs a subwoofer, and the on-axis response is uneven (1.08 average deviation). The data comes from EV. Bass reaches 103.0Hz (-3dB) and about 76Hz (-10dB).

Full Electro-Voice EVID-S5.2 review and specifications →

Bass Extension (-10dB)	about 76.2Hz (measured, manufacturer data via spinorama.org)
Bass Extension (-3dB)	103.0Hz (measured, manufacturer data via spinorama.org)
Bluetooth	No
DIY Kit	No
Drivers	5.25” woofer, tweeter
Maximum SPL	109dB peak (manufacturer specified)
Passive	Yes
Rigging	Pre-assembled wall/ceiling bracket (90° horizontal, 45° vertical swivel)
Spinorama Preference Score	0.42
Spinorama Preference Score with Perfect Sub	4.03
Weight	6 lbs (2.7 kg)

• Reviews, Comparisons and Sound Samples
  • Manufacturer Measurements (spinorama.org)

Ranked #16 of 26 in Surface-Mount and Background Music Speakers - Yamaha VXS3F: $284 per pair Passive eBay

Same family: the Yamaha VXS1ML (smaller model, ranked lower, estimated 2.4/5), the Yamaha VXS5 (larger model, ranked higher, rated 3/5) and the Yamaha VXS8 (larger model, ranked higher, estimated 3/5).

Pros: A tiny full-range surface-mount speaker for commercial background music. Yamaha’s measurements show a preference score of 0.1 that reaches 4.71 with an ideal subwoofer, with 0.65 listening window deviation.

Cons: Bass is very limited, so it needs a subwoofer, and the on-axis response is very uneven (3.13 average deviation). The data comes from Yamaha. Bass reaches 218.0Hz (-3dB) and about 137Hz (-10dB).

Full Yamaha VXS3F review and specifications →

Bass Extension (-10dB)	about 136.9Hz (measured, manufacturer data via spinorama.org)
Bass Extension (-3dB)	218.0Hz (measured, manufacturer data via spinorama.org)
Bluetooth	No
DIY Kit	No
Drivers	3.5” full-range driver
Maximum SPL	105dB peak (manufacturer specified)
Passive	Yes
Spinorama Preference Score	0.1
Spinorama Preference Score with Perfect Sub	4.71
Weight	2.2 lbs (1 kg)

• Reviews, Comparisons and Sound Samples
  • Manufacturer Measurements (spinorama.org)

Ranked #17 of 26 in Surface-Mount and Background Music Speakers - JBL AC15: $1,180.00 per pair Passive Estimated Amazon eBay

Same family: the JBL AC16 (larger model, ranked higher, estimated 2.8/5), the JBL AC25 (larger model, ranked lower, rated 2.6/5), the JBL AC26 (larger model, ranked higher, estimated 2.9/5), the JBL AC18/26 (larger model, ranked higher, estimated 3/5) and the JBL AC28/26 (larger model, ranked higher, estimated 3.1/5).

Pros: A compact JBL Professional installation speaker from the same AC range as the measured JBL AC25: the smallest model, with a dome tweeter like the AC25. JBL rates it at 86dB sensitivity and 108dB maximum SPL with 90° x 90° coverage and bass to 80Hz (-10dB), in an enclosure weighing 4.7 kg with mounting points for walls and ceilings.

Cons: No independent measurements yet, so it can’t be compared with ranked PA speakers. It is a passive installation speaker that needs an amplifier and, for best results, JBL’s recommended EQ, and the only measured AC model scored poorly, so treat the estimate with caution.

Full JBL AC15 review and specifications →

Amplifier Power	Passive speaker; requires external amplification
Bass Extension (-3dB)	90Hz (manufacturer specified)
Bluetooth	No
Configuration	Passive 2-way installation speaker
Coverage	90° x 90°
DSP	No (passive)
Drivers	5.25” woofer, 1” dome tweeter
Frequency Response	80Hz - 20kHz (-10dB, manufacturer specified)
Maximum SPL	108dB (manufacturer specified)
Passive	Yes
Power Handling	225W
Rigging	4 x M8 points; 2 x M6 bottom for OmniMount/MultiMount
Sensitivity	86dB
Weight	10.4 lbs (4.7 kg)
XLR Input	No

• Links
  • JBL AC15 Product Page
• Reviews, Comparisons and Sound Samples
  • No independent measurement review is linked for this model; it is ranked from hands-on listening and comparison against similarly priced speakers.

Ranked #18 of 26 in Surface-Mount and Background Music Speakers - JBL AC25: $814.67 each Passive Amazon eBay

Same family: the JBL AC15 (smaller model, ranked higher, estimated 2.6/5), the JBL AC16 (smaller model, ranked higher, estimated 2.8/5), the JBL AC26 (larger model, ranked higher, estimated 2.9/5), the JBL AC18/26 (larger model, ranked higher, estimated 3/5) and the JBL AC28/26 (larger model, ranked higher, estimated 3.1/5).

Pros: An ultra-compact two-way installation speaker from JBL Professional with two 5.25” woofers and a tweeter. Audio Science Review measured a preference score of 0.43 that reaches 4.01 with an ideal subwoofer, with 0.79 listening window deviation. Measured bass extension of 124.5Hz (-3dB).

Cons: Bass is very limited, so it needs a subwoofer. Audio Science Review found an uneven response (0.89 average on-axis deviation). Bass reaches 124.5Hz (-3dB) and about 84Hz (-10dB).

Full JBL AC25 review and specifications →

Bass Extension (-10dB)	about 84.3Hz (measured, Audio Science Review)
Bass Extension (-3dB)	124.5Hz (measured, Audio Science Review)
Bluetooth	No
DIY Kit	No
Drivers	2x 5.25” woofers, tweeter
Maximum SPL	115dB peak (manufacturer specified)
Passive	Yes
Rigging	4 x M8 points; 4 x M6 rear for MultiMount
Spinorama Preference Score	0.43
Spinorama Preference Score with Perfect Sub	4.01
Weight	16.5 lbs (7.5 kg)

• Reviews, Comparisons and Sound Samples
  • Audio Science Review Measurements (spinorama.org) More from Audio Science Review →

Ranked #19 of 26 in Surface-Mount and Background Music Speakers - Electro-Voice EVID-S4.2: $240 per pair Passive eBay

Same family: the Electro-Voice EVID-S5.2 (larger model, ranked higher, rated 2.6/5), the Electro-Voice EVID-S5.2X (larger model, ranked higher, rated 3.3/5) and the Electro-Voice EVID-S8.2 (larger model, ranked higher, rated 2.7/5).

Pros: A small weather-resistant surface-mount installation speaker from Electro-Voice with a 4” woofer and a tweeter. EV’s measurements show a preference score of -0.09 that reaches 3.68 with an ideal subwoofer, with 0.84 listening window deviation.

Cons: Bass is very limited, so it needs a subwoofer. The data comes from EV. Bass reaches 122.0Hz (-3dB) and about 92Hz (-10dB).

Full Electro-Voice EVID-S4.2 review and specifications →

Bass Extension (-10dB)	about 91.5Hz (measured, manufacturer data via spinorama.org)
Bass Extension (-3dB)	122.0Hz (measured, manufacturer data via spinorama.org)
Bluetooth	No
DIY Kit	No
Drivers	4” woofer, tweeter
Maximum SPL	109dB peak (manufacturer specified)
Passive	Yes
Rigging	Pre-assembled wall/ceiling bracket (90° horizontal, 45° vertical swivel)
Spinorama Preference Score	-0.09
Spinorama Preference Score with Perfect Sub	3.68
Weight	3.3 lbs (1.5 kg)

• Reviews, Comparisons and Sound Samples
  • Manufacturer Measurements (spinorama.org)

Ranked #20 of 26 in Surface-Mount and Background Music Speakers - Optimal Audio Cuboid 5: $110 each Passive eBay

Same family: the Optimal Audio Cuboid 3 (smaller model, ranked lower, rated 2.3/5).

Pros: A compact installation speaker from Optimal Audio with a 5” coaxial driver. Optimal Audio’s measurements show a preference score of 0.27 that reaches 3.94 with an ideal subwoofer, with 0.74 listening window deviation.

Cons: Bass is very limited, so it needs a subwoofer, and the on-axis response is uneven (1.15 average deviation). That data is low quality and comes from Optimal Audio. Bass reaches 122.0Hz (-3dB) and about 92Hz (-10dB). That data is low quality.

Full Optimal Audio Cuboid 5 review and specifications →

Bass Extension (-10dB)	about 91.5Hz (measured, manufacturer data via spinorama.org)
Bass Extension (-3dB)	122.0Hz (measured, manufacturer data via spinorama.org)
Bluetooth	No
DIY Kit	No
Drivers	5” coaxial driver
Maximum SPL	111dB peak (manufacturer specified)
Passive	Yes
Spinorama Preference Score	0.27
Spinorama Preference Score with Perfect Sub	3.94
Weight	4.7 lbs (2.15 kg)

• Reviews, Comparisons and Sound Samples
  • Manufacturer Measurements (spinorama.org)
• Head-to-Head Comparisons
  • Optimal Audio Cuboid 5 vs Optimal Audio Cuboid 3

Ranked #21 of 26 in Surface-Mount and Background Music Speakers - Yamaha VXS1ML: $96.99 per pair Passive Estimated Amazon eBay

Same family: the Yamaha VXS3F (larger model, ranked higher, rated 2.6/5), the Yamaha VXS5 (larger model, ranked higher, rated 3/5) and the Yamaha VXS8 (larger model, ranked higher, estimated 3/5).

Pros: The smallest of Yamaha’s VXS surface-mount speakers, a single 1.5” full-range driver with a neodymium magnet and very wide 170° dispersion, so a few units can cover a large room for background music. It sits below the measured Yamaha VXS3F and is meant to pair with Yamaha’s VXS3S compact subwoofer.

Cons: No independent measurements yet, so it can’t be compared with ranked PA speakers. A 1.5” driver alone has little bass, so it needs a subwoofer for anything beyond background music and speech.

Full Yamaha VXS1ML review and specifications →

Amplifier Power	Passive speaker; requires external amplification
Bluetooth	No
Configuration	Passive full-range surface-mount speaker
Coverage	170° x 170°
DSP	No (passive)
Drivers	1.5” full-range driver
Maximum SPL	92dB peak (manufacturer specified)
Passive	Yes
Rigging	Wall/ceiling bracket included
Weight	0.4 lbs (0.17 kg)
XLR Input	No

• Links
  • Yamaha VXS “M Model” Product Information
• Reviews, Comparisons and Sound Samples
  • No independent measurement review is linked for this model; it is ranked from hands-on listening and comparison against similarly priced speakers.

Ranked #22 of 26 in Surface-Mount and Background Music Speakers - Bose DesignMax DM8S: $758.94 each Passive Discontinued Amazon eBay

Newer model: the Bose DesignMax DM8SE, ranked lower, estimated 2.4/5.

Pros: A two-way surface-mount installation speaker from Bose Professional with an 8” woofer. Bose’s measurements show a preference score of 0.3 that reaches 3.05 with an ideal subwoofer, with 0.96 listening window deviation.

Cons: The on-axis response is uneven (1.32 average deviation). The data comes from Bose. Bass reaches 67.0Hz (-3dB) and about 57Hz (-10dB). Discontinued.

Full Bose DesignMax DM8S review and specifications →

Bass Extension (-10dB)	about 56.8Hz (measured, manufacturer data via spinorama.org)
Bass Extension (-3dB)	67.0Hz (measured, manufacturer data via spinorama.org)
Bluetooth	No
DIY Kit	No
Drivers	8” woofer, tweeter
Maximum SPL	115dB peak (manufacturer specified)
Passive	Yes
Spinorama Preference Score	0.3
Spinorama Preference Score with Perfect Sub	3.05
Weight	22.8 lbs (10.34 kg)

• Reviews, Comparisons and Sound Samples
  • Manufacturer Measurements (spinorama.org)

Ranked #23 of 26 in Surface-Mount and Background Music Speakers - Bose DesignMax DM8SE: $699.00 each Passive Estimated Amazon eBay

Older model: the Bose DesignMax DM8S (ranked higher, rated 2.4/5).

Same family: the Bose DesignMax DM5SE (smaller model, ranked lower, rated 2.2/5) and the Bose DesignMax DM6SE (smaller model, ranked lower, rated 2.2/5).

Pros: The outdoor-rated replacement for the measured Bose DesignMax DM8S, keeping its 8” woofer and center-firing coaxial 1” compression driver with 150W handling and a 52Hz to 20kHz range. It adds IP55 weather sealing, an aluminum grille with a rust-resistant finish and a sealed cover over the input terminals.

Cons: No independent measurements yet, so it can’t be compared with ranked PA speakers. The measured DM8S it is based on had an uneven response for its price, and it needs an external amplifier.

Full Bose DesignMax DM8SE review and specifications →

Amplifier Power	Passive speaker; requires external amplification
Bass Extension (-3dB)	60Hz (manufacturer specified)
Bluetooth	No
Configuration	Passive 2-way coaxial surface-mount speaker
DSP	No (passive)
Drivers	8” woofer, coaxial 1” compression driver
Frequency Response	52Hz - 20kHz (manufacturer specified)
IP Rating	IP55
Maximum SPL	121dB peak (manufacturer specified)
Passive	Yes
Power Handling	150W
Rigging	QuickHold U-bracket; 2 x M8 bracket inserts; M8 safety cable insert
Weight	22.7 lbs (10.3 kg)
XLR Input	No

• Links
  • Bose DesignMax DM8SE Product Page
• Reviews, Comparisons and Sound Samples
  • No independent measurement review is linked for this model; it is ranked from hands-on listening and comparison against similarly priced speakers.

Ranked #24 of 26 in Surface-Mount and Background Music Speakers - Optimal Audio Cuboid 3: $85 each Passive eBay

Same family: the Optimal Audio Cuboid 5 (larger model, ranked higher, rated 2.5/5).

Pros: A tiny installation speaker from Optimal Audio with a 3” driver. Optimal Audio’s measurements show a preference score of -0.18 that reaches 3.43 with an ideal subwoofer, with 0.82 listening window deviation.

Cons: Bass is very limited, so it needs a subwoofer, and the on-axis response is very uneven (2.07 average deviation). That data is low quality and comes from Optimal Audio. Bass reaches 115.0Hz (-3dB) and about 82Hz (-10dB). That data is low quality.

Full Optimal Audio Cuboid 3 review and specifications →

Bass Extension (-10dB)	about 82.4Hz (measured, manufacturer data via spinorama.org)
Bass Extension (-3dB)	115.0Hz (measured, manufacturer data via spinorama.org)
Bluetooth	No
DIY Kit	No
Drivers	3” driver
Maximum SPL	104dB peak (manufacturer specified)
Passive	Yes
Spinorama Preference Score	-0.18
Spinorama Preference Score with Perfect Sub	3.43
Weight	2.8 lbs (1.26 kg)

• Reviews, Comparisons and Sound Samples
  • Manufacturer Measurements (spinorama.org)
• Head-to-Head Comparisons
  • Optimal Audio Cuboid 3 vs Optimal Audio Cuboid 5

Ranked #25 of 26 in Surface-Mount and Background Music Speakers - Bose DesignMax DM5SE: $897.05 per pair Passive Amazon eBay

Same family: the Bose DesignMax DM6SE (larger model, ranked lower, rated 2.2/5) and the Bose DesignMax DM8SE (larger model, ranked higher, estimated 2.4/5).

Pros: An IP55 surface-mount installation speaker from Bose Professional with a 5.25” coaxial driver. Bose’s measurements show a preference score of -0.41 that reaches 2.61 with an ideal subwoofer, with 1.03 listening window deviation.

Cons: The response is uneven and bass is limited, for a low preference score. The data comes from Bose. Bass reaches 77.5Hz (-3dB) and about 68Hz (-10dB).

Full Bose DesignMax DM5SE review and specifications →

Bass Extension (-10dB)	about 68.3Hz (measured, manufacturer data via spinorama.org)
Bass Extension (-3dB)	77.5Hz (measured, manufacturer data via spinorama.org)
Bluetooth	No
DIY Kit	No
Drivers	5.25” coaxial driver
IP Rating	IP55
Maximum SPL	111dB peak (manufacturer specified)
Passive	Yes
Rigging	QuickHold U-bracket; M8 inserts for pan and tilt bracket
Spinorama Preference Score	-0.41
Spinorama Preference Score with Perfect Sub	2.61
Weight	9.7 lbs (4.38 kg)

• Reviews, Comparisons and Sound Samples
  • Manufacturer Measurements (spinorama.org)

Ranked #26 of 26 in Surface-Mount and Background Music Speakers - Bose DesignMax DM6SE: $936.00 per pair Passive Amazon eBay

Same family: the Bose DesignMax DM5SE (smaller model, ranked higher, rated 2.2/5) and the Bose DesignMax DM8SE (larger model, ranked higher, estimated 2.4/5).

Pros: An IP55 surface-mount installation speaker from Bose Professional with a 6.5” coaxial driver. Bose’s measurements show a preference score of -0.04 that reaches 2.87 with an ideal subwoofer, with 1.00 listening window deviation.

Cons: The on-axis response is very uneven (3.11 average deviation). The data comes from Bose. Bass reaches 71.0Hz (-3dB) and about 62Hz (-10dB).

Full Bose DesignMax DM6SE review and specifications →

Bass Extension (-10dB)	about 62.0Hz (measured, manufacturer data via spinorama.org)
Bass Extension (-3dB)	71.0Hz (measured, manufacturer data via spinorama.org)
Bluetooth	No
DIY Kit	No
Drivers	6.5” coaxial driver
IP Rating	IP55
Maximum SPL	107dB peak (manufacturer specified)
Passive	Yes
Rigging	QuickHold U-bracket; 2 x M8 bracket inserts; M8 safety tether insert
Spinorama Preference Score	-0.04
Spinorama Preference Score with Perfect Sub	2.87
Weight	13.1 lbs (5.93 kg)

• Reviews, Comparisons and Sound Samples
  • Manufacturer Measurements (spinorama.org)
