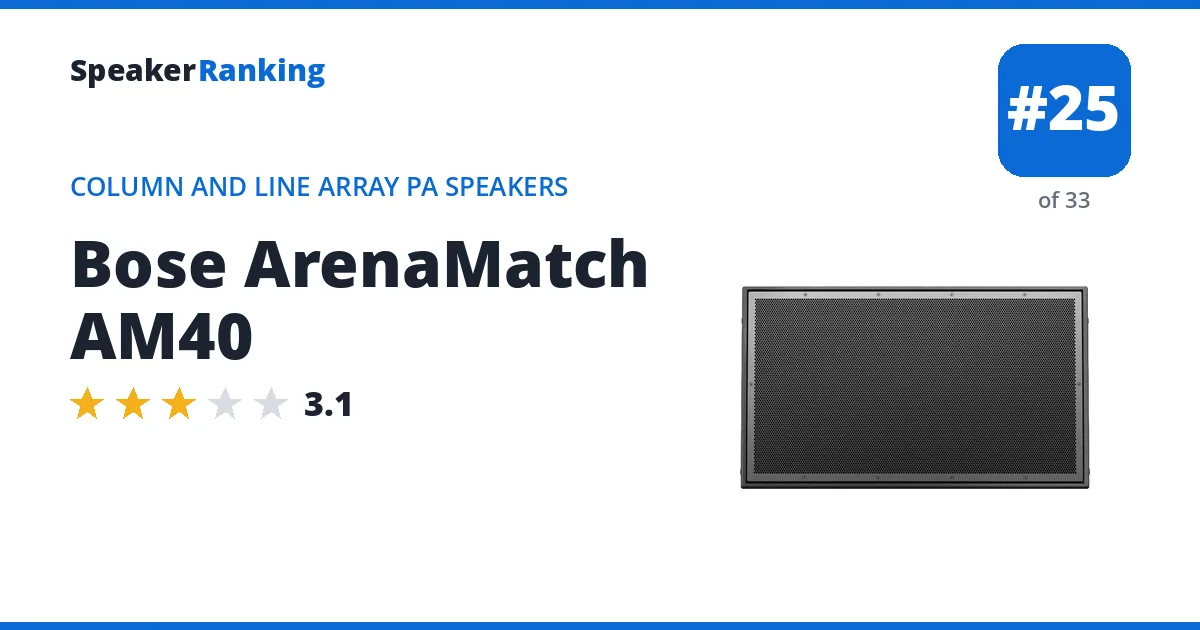

The Bose ArenaMatch AM40 ranks #25 out of 33 total Column and Line Array PA Speakers for sound quality. See all PA & Live Sound rankings for every top pick.
Brand: Bose
Prices on this page were last checked October 14, 2026 at 2:38 PM UTC. Product prices and availability are accurate as of that date/time and are subject to change; the price and availability shown on Amazon at the time of purchase will apply to the purchase of this product.
As an eBay Partner, we may be compensated if you make a purchase.
#25 Bose ArenaMatch AM40 Passive eBay
Pros: Weatherproof (IP55) DeltaQ module whose 40 degree vertical pattern makes it the most usable on its own of the ArenaMatch range, with a very even on-axis response in vendor measurements (0.20dB average deviation) and bass to 54.5Hz at -3dB. Measured bass extension of 54.5Hz (-3dB).
Cons: Scores are low at 1.58 on its own and 3.90 with an ideal subwoofer, from a rough predicted in-room response (0.38 smoothness). No US retailer lists it, so it is bought through Bose Professional dealers.
| AES Input | No |
|---|---|
| Amplifier Power | Passive speaker; requires external amplification |
| Aux Input | No |
| Bass Extension (-10dB) | about 49.6Hz (measured, vendor Spinorama data) |
| Bass Extension (-3dB) | 54.5Hz (measured, vendor Spinorama data) |
| Bluetooth | No |
| Coaxial Input | No |
| Configuration | Passive 2-way DeltaQ array module (outdoor, IP55) |
| Coverage | 100° x 40° (60° and 80° horizontal versions available) |
| DSP | No (passive) |
| Dimensions | 19.3”H x 30.8”W x 15.7”D (489 x 783 x 400 mm) |
| Drivers | 14” woofer, 6 x EMB2S compression drivers |
| Frequency Response | 55Hz - 18kHz (manufacturer specified) |
| Guitar Input | No |
| HDMI Input | No |
| Impedance | 8 ohms (70V/100V transformer version available) |
| Maximum SPL | 125dB to 127dB peak (calculated, manufacturer specified) |
| Microphone Input | No |
| Optical Input | No |
| Passive | Yes |
| Power Handling | 750W continuous, 3,000W peak |
| RCA Input | No |
| Sensitivity | 100dB |
| Spinorama Preference Score | 1.58 |
| Spinorama Preference Score with Perfect Sub | 3.90 |
| TRS Input | No |
| USB Input | No |
| Weight | 76.9 lbs (34.9 kg) |
| XLR Input | No |
