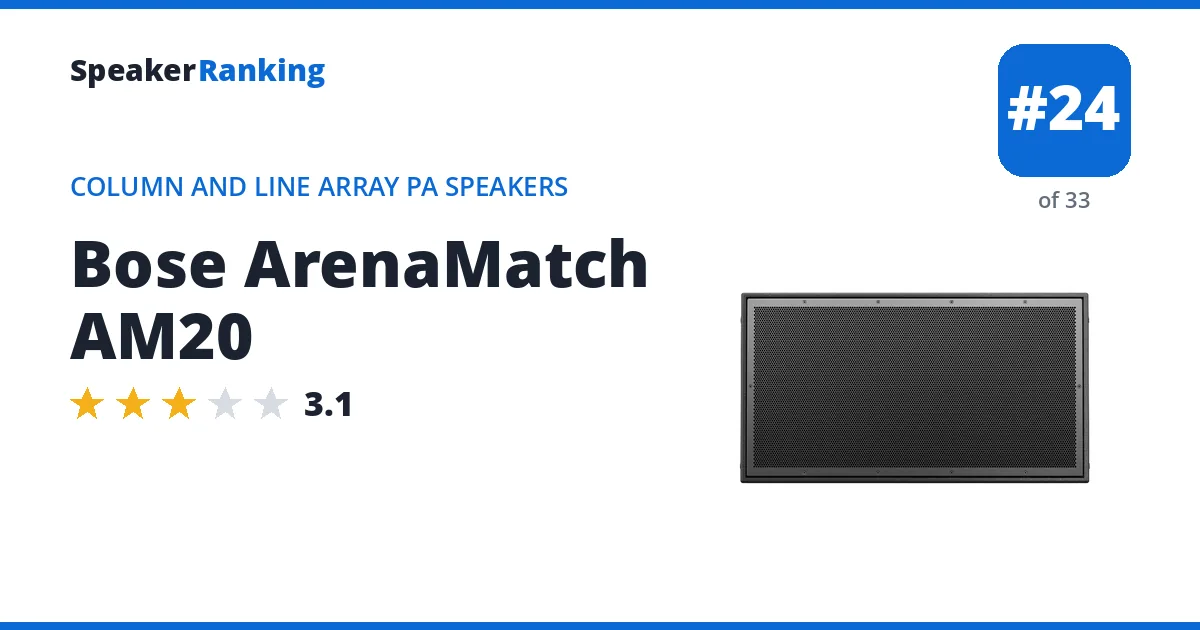

The Bose ArenaMatch AM20 ranks #24 out of 33 total Column and Line Array PA Speakers for sound quality. See all PA & Live Sound rankings for every top pick.
Brand: Bose
Prices on this page were last checked October 14, 2026 at 2:38 PM UTC. Product prices and availability are accurate as of that date/time and are subject to change; the price and availability shown on Amazon at the time of purchase will apply to the purchase of this product.
As an eBay Partner, we may be compensated if you make a purchase.
#24 Bose ArenaMatch AM20: $5,714.00 Passive SoundPro $5,714.00 eBay
Pros: Weatherproof (IP55) DeltaQ array module with a 20 degree vertical pattern for mid-distance seating. Vendor measurements show bass to 56Hz at -3dB and about 50Hz at -10dB, and its directivity is the most consistent of the ArenaMatch range (3.67dB variation). Measured bass extension of 56Hz (-3dB).
Cons: Scores are low at 1.67 on its own and 3.99 with an ideal subwoofer, from a rough predicted in-room response (0.41 smoothness). It is designed to be arrayed and installed by a pro, at about 36kg per module.
| AES Input | No |
|---|---|
| Amplifier Power | Passive speaker; requires external amplification |
| Aux Input | No |
| Bass Extension (-10dB) | about 49.6Hz (measured, vendor Spinorama data) |
| Bass Extension (-3dB) | 56Hz (measured, vendor Spinorama data) |
| Bluetooth | No |
| Coaxial Input | No |
| Configuration | Passive 2-way DeltaQ array module (outdoor, IP55) |
| Coverage | 100° x 20° (60° and 80° horizontal versions available) |
| DSP | No (passive) |
| Dimensions | 17.2”H x 30.8”W x 16.4”D (437 x 783 x 416 mm) |
| Drivers | 14” woofer, 6 x EMB2S compression drivers |
| Frequency Response | 55Hz - 18kHz (manufacturer specified) |
| Guitar Input | No |
| HDMI Input | No |
| Impedance | 8 ohms (70V/100V transformer version available) |
| Maximum SPL | 126dB to 128dB peak (calculated, manufacturer specified) |
| Microphone Input | No |
| Optical Input | No |
| Passive | Yes |
| Power Handling | 750W continuous, 3,000W peak |
| RCA Input | No |
| Sensitivity | 100dB |
| Spinorama Preference Score | 1.67 |
| Spinorama Preference Score with Perfect Sub | 3.99 |
| TRS Input | No |
| USB Input | No |
| Weight | 79.8 lbs (36.2 kg) |
| XLR Input | No |
