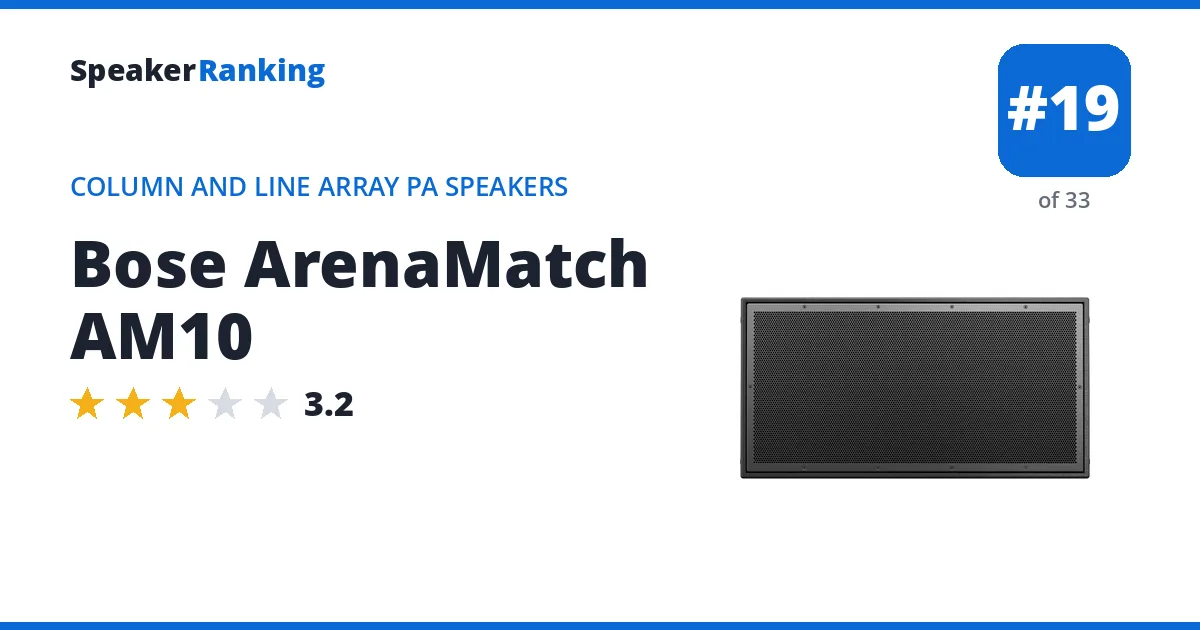

The Bose ArenaMatch AM10 ranks #19 out of 33 total Column and Line Array PA Speakers for sound quality. See all PA & Live Sound rankings for every top pick.
Brand: Bose
Prices on this page were last checked October 14, 2026 at 2:38 PM UTC. Product prices and availability are accurate as of that date/time and are subject to change; the price and availability shown on Amazon at the time of purchase will apply to the purchase of this product.
As an eBay Partner, we may be compensated if you make a purchase.
#19 Bose ArenaMatch AM10: $5,714.00 Passive SoundPro $5,714.00 eBay
Pros: Weatherproof (IP55) array module for stadiums whose DeltaQ waveguides match each box’s vertical coverage to its throw distance. Vendor measurements of the 100 degree version show bass to 56Hz at -3dB and about 50Hz at -10dB, with scores of 1.95 on its own and 4.27 with an ideal subwoofer, the best of the ArenaMatch range. Measured bass extension of 56Hz (-3dB).
Cons: Built to be arrayed: on its own the narrow 10 degree vertical pattern gives uneven directivity (4.37dB variation) and a rough predicted in-room response (0.36 smoothness). At 36kg and 783mm wide it needs a rigging plan and a pro installer.
| AES Input | No |
|---|---|
| Amplifier Power | Passive speaker; requires external amplification |
| Aux Input | No |
| Bass Extension (-10dB) | about 49.6Hz (measured, vendor Spinorama data) |
| Bass Extension (-3dB) | 56Hz (measured, vendor Spinorama data) |
| Bluetooth | No |
| Coaxial Input | No |
| Configuration | Passive 2-way DeltaQ array module (outdoor, IP55) |
| Coverage | 100° x 10° (60° and 80° horizontal versions available) |
| DSP | No (passive) |
| Dimensions | 16.1”H x 30.8”W x 16.5”D (409 x 783 x 420 mm) |
| Drivers | 14” woofer, 6 x EMB2S compression drivers |
| Frequency Response | 55Hz - 18kHz (manufacturer specified) |
| Guitar Input | No |
| HDMI Input | No |
| Impedance | 8 ohms (70V/100V transformer version available) |
| Maximum SPL | 127dB to 129dB peak (calculated, manufacturer specified) |
| Microphone Input | No |
| Optical Input | No |
| Passive | Yes |
| Power Handling | 750W continuous, 3,000W peak |
| RCA Input | No |
| Sensitivity | 100dB |
| Spinorama Preference Score | 1.95 |
| Spinorama Preference Score with Perfect Sub | 4.27 |
| TRS Input | No |
| USB Input | No |
| Weight | 80 lbs (36.3 kg) |
| XLR Input | No |
