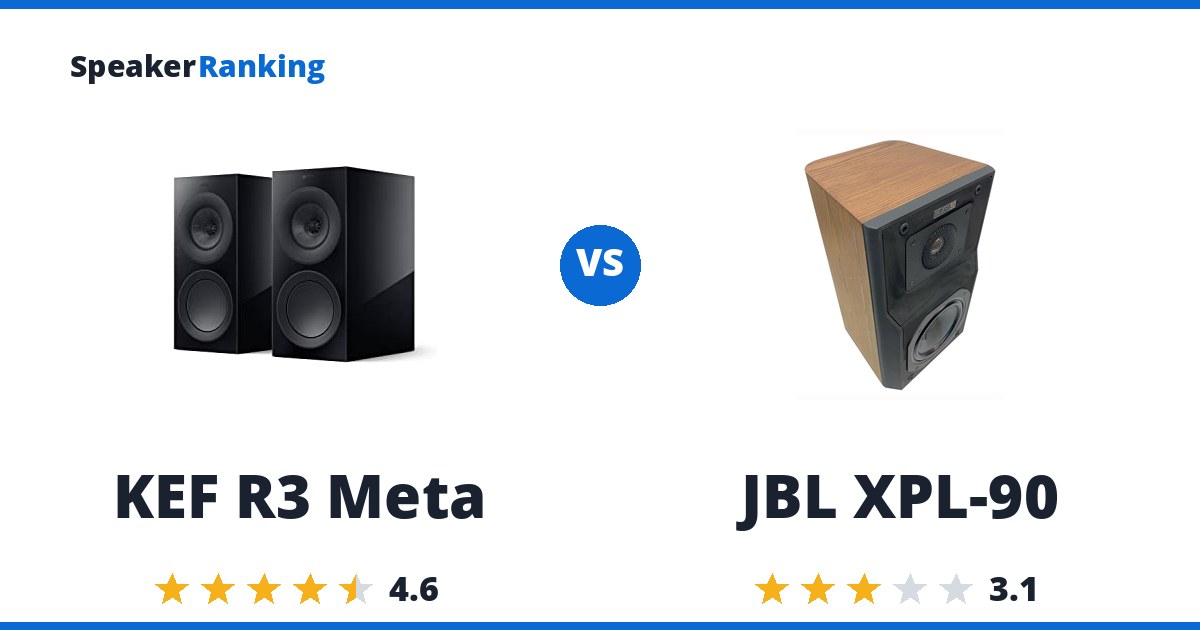

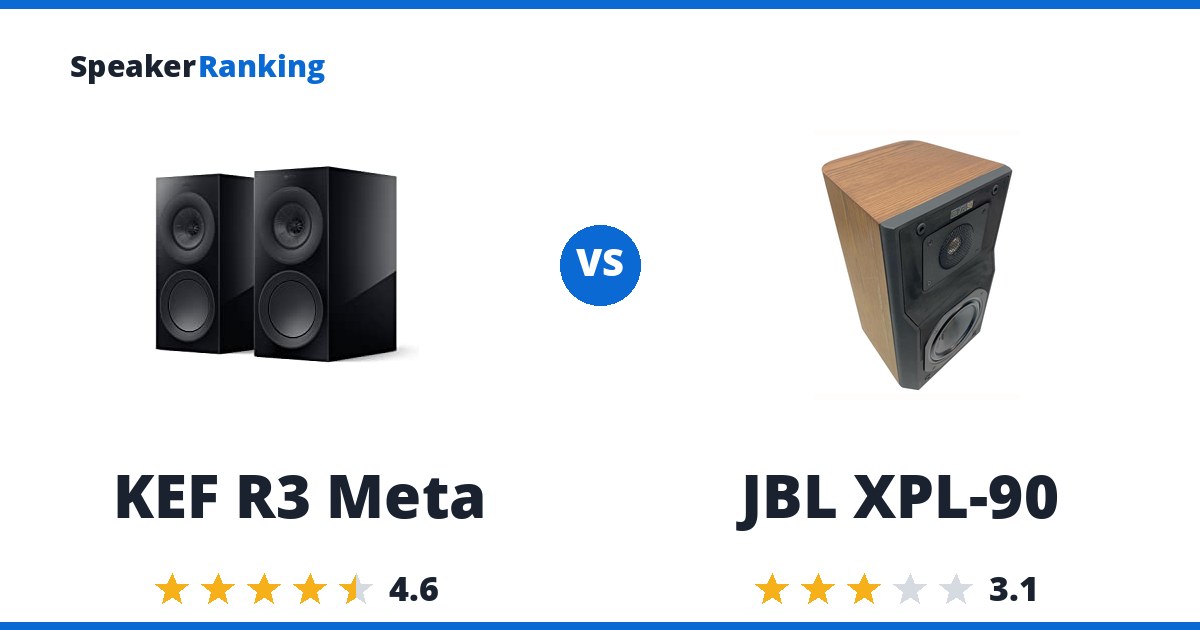

Short answer: the KEF R3 Meta for better sound quality, the JBL XPL-90 for the lower price. The KEF R3 Meta ranks #10 of 131 bookshelf speakers at $2499.99. The JBL XPL-90 ranks #101 at $1298, $1201.99 cheaper.
What the KEF R3 Meta offers: Three-way design with an unconventional concentric layout: the 1” tweeter is recessed into the throat of the 5.25” midrange driver, deeper integration than a standard coaxial arrangement. A quasi sealed/ported bass alignment gives an extended low-end shelf tuned to match typical in-room gain, reaching about 50Hz for most content - deeper than recently-tested rivals like the Focal Aria 906, Polk R200, and an 8” Aperion design. Spinorama measurements show class-leading directivity and sound power, plus very linear on-axis response (at the recommended 10° toe-out) and early-reflections directivity, so it takes EQ exceptionally well. The vertical sweet spot extends to about ±20-30° off the reference axis with nearly identical tonality, unusually wide for a two- or three-way design. A clear upgrade over the earlier, non-Meta R3, eliminating the treble brightness the original had even when toed off-axis. Outperforms similarly-priced rivals (Revel M106, Wharfedale Linton, Philharmonic BMR V2, JBL HDI 1600) specifically on directivity and linearity in the reviewer’s measurements. At $2,200/pair, called the best value in its class with near-reference-level anechoic performance. Watch for: Pointed straight on-axis, there’s a 1-2dB bump around 9kHz that stays consistent across angles thanks to the constant-directivity waveguide - only toeing the speaker out about 10° tames it. Minimum impedance dips to about 3.2 ohms nominal (EPDR as low as 1.9 ohms), so it needs a 4-ohm-stable amplifier; a standard AVR likely won’t cut it. Distortion crosses the reviewer’s 3% threshold around 80Hz at 96dB output and shows added deviation again near 50Hz, indicating it runs out of headroom at higher volumes - a subwoofer is recommended for loud listening. Horizontal radiation narrows from about ±70° at low frequency to ±40° at high frequency. Below about 100Hz, compression testing shows fairly wide deviations at both 86dB and 96dB output, though the reviewer notes this is typical for speakers in this size and price class. Current R3 owners who are already happy with that speaker have little reason to upgrade.
What the JBL XPL-90 offers: Nearly ruler-flat on-axis response up to 1kHz with even horizontal directivity until the tweeter beams above 10kHz. The reviewer found real strength with vocals and simpler instrumentation, calling it “the first speaker I have liked that has some clear response errors” and “an enjoyable speaker” despite the flaws. Titanium tweeter and internal Monster cable wiring reflect JBL’s higher-end late-1980s engineering. Watch for: Crossover region peaking around 3kHz and treble peaking above 10kHz color the top end, and poor vertical directivity means the tweeter needs to be at ear level. Distortion rises at 96dB SPL, especially around 3kHz. Long discontinued; only available on the used market.
Buy the KEF R3 Meta if sound quality matters more than the price. Buy the JBL XPL-90 if the price matters more than sound quality.
If sound quality matters at all to you, skip the JBL XPL-90. It ranks near the bottom of the 131 bookshelf speakers, so look higher up the list instead.
Specifications Side By Side
| KEF R3 Meta | JBL XPL-90 | |
|---|---|---|
| Price | $2,499.99 | $1,298 used, discontinued (vintage, late 1980s) |
| Ranked | #10 of 131 in Large Size Bookshelf Speakers | #101 of 131 in Large Size Bookshelf Speakers |
| Bass Extension (-10dB) | 37Hz (measured, Erin’s Audio Corner) | 48.7Hz (measured, Audio Science Review) |
| Bass Extension (-3dB) | 76Hz (measured, Erin’s Audio Corner) | 77.6Hz (measured, Audio Science Review) |
| Dimensions | 16.6"H x 7.9"W x 13.2"D (421.6 x 200.7 x 335.3 mm) | 15.5"H x 9.5"W x 9.8"D (394 x 241 x 248 mm) |
| Impedance | 4 ohms nominal (3.2 ohms minimum above 80Hz, measured, Erin’s Audio Corner) | 6 ohms |
| Drivers | 6.5" Hybrid aluminum ported woofer, 5" aluminum cone midrange, 1" vented aluminium dome with MAT tweeter | 6.5" bass/mid driver, 1" titanium dome tweeter |
| Sensitivity | 85.9dB (measured, Erin’s Audio Corner; 87dB manufacturer specified) | 85dB (2.83V/1m, measured, Audio Science Review) |
| Weight | 27.3 lbs / 12.4 kg each | 20.1 lbs / 9.1 kg each |
| Woofer Cabinet | ported | - |
| Power Handling | - | 100W nominal, 400W max |
Related Speaker Comparisons
More useful head-to-heads from the same speaker class:
- Emotiva Airmotiv B2+ vs Sonus Faber Sonetto II G2
- KEF Q Concerto Meta vs KEF R3
- KEF Q Concerto Meta vs MoFi SourcePoint 8
- JBL XPL-90 vs B&W 805S
- KEF Q Concerto Meta vs KEF R3 Meta
Prices on this page were last checked August 25, 2026 at 6:19 AM UTC. Product prices and availability are accurate as of that date/time and are subject to change; the price and availability shown on Amazon at the time of purchase will apply to the purchase of this product.
As an eBay Partner, we may be compensated if you make a purchase.
The Two Speakers In Full
KEF R3 Meta: $2,499.99 Amazon Crutchfield eBay
Pros: Three-way design with an unconventional concentric layout: the 1” tweeter is recessed into the throat of the 5.25” midrange driver, deeper integration than a standard coaxial arrangement. A quasi sealed/ported bass alignment gives an extended low-end shelf tuned to match typical in-room gain, reaching about 50Hz for most content - deeper than recently-tested rivals like the Focal Aria 906, Polk R200, and an 8” Aperion design. Spinorama measurements show class-leading directivity and sound power, plus very linear on-axis response (at the recommended 10° toe-out) and early-reflections directivity, so it takes EQ exceptionally well. The vertical sweet spot extends to about ±20-30° off the reference axis with nearly identical tonality, unusually wide for a two- or three-way design. A clear upgrade over the earlier, non-Meta R3, eliminating the treble brightness the original had even when toed off-axis. Outperforms similarly-priced rivals (Revel M106, Wharfedale Linton, Philharmonic BMR V2, JBL HDI 1600) specifically on directivity and linearity in the reviewer’s measurements. At $2,200/pair, called the best value in its class with near-reference-level anechoic performance.
Cons: Pointed straight on-axis, there’s a 1-2dB bump around 9kHz that stays consistent across angles thanks to the constant-directivity waveguide - only toeing the speaker out about 10° tames it. Minimum impedance dips to about 3.2 ohms nominal (EPDR as low as 1.9 ohms), so it needs a 4-ohm-stable amplifier; a standard AVR likely won’t cut it. Distortion crosses the reviewer’s 3% threshold around 80Hz at 96dB output and shows added deviation again near 50Hz, indicating it runs out of headroom at higher volumes - a subwoofer is recommended for loud listening. Horizontal radiation narrows from about ±70° at low frequency to ±40° at high frequency. Below about 100Hz, compression testing shows fairly wide deviations at both 86dB and 96dB output, though the reviewer notes this is typical for speakers in this size and price class. Current R3 owners who are already happy with that speaker have little reason to upgrade.
Full KEF R3 Meta review and specifications →
| Bass Extension (-10dB) | 37Hz (measured, Erin's Audio Corner) |
|---|---|
| Bass Extension (-3dB) | 76Hz (measured, Erin's Audio Corner) |
| Dimensions | 16.6"H x 7.9"W x 13.2"D (421.6 x 200.7 x 335.3 mm) |
| Drivers | 6.5" Hybrid aluminum ported woofer, 5" aluminum cone midrange, 1" vented aluminium dome with MAT tweeter |
| Impedance | 4 ohms nominal (3.2 ohms minimum above 80Hz, measured, Erin's Audio Corner) |
| Sensitivity | 85.9dB (measured, Erin's Audio Corner; 87dB manufacturer specified) |
| Weight | 27.3 lbs / 12.4 kg each |
| Woofer Cabinet | ported |
- Links
- Reviews, Comparisons and Sound Samples
- Erin’s Audio Corner: KEF R3 Meta: The Speaker to Beat. More from Erin’s Audio Corner →
- Erin’s Audio Corner Website KEF R3 Meta Review
- Erin’s Audio Corner: Upgrade Your Sound with These 6 Surprisingly Affordable Speakers!
- Erin’s Audio Corner: My Personal Favorite Speakers Under $2500
- Erin’s Audio Corner: My Top Picks of 2023: Must-Haves Under $3000
- GR-Research: Finally… a Speaker Danny Doesn’t Have to Fix? More from GR-Research →
- New Record Day: The Gold Standard Of “Pretty Good” KEF R3 Meta Review
- Erin’s Audio Corner Measurements (spinorama.org)
- Reddit Search for KEF R3 Meta Review
- Head-to-Head Comparisons
JBL XPL-90: $1,298 used, discontinued (vintage, late 1980s) eBay
Pros: Nearly ruler-flat on-axis response up to 1kHz with even horizontal directivity until the tweeter beams above 10kHz. The reviewer found real strength with vocals and simpler instrumentation, calling it “the first speaker I have liked that has some clear response errors” and “an enjoyable speaker” despite the flaws. Titanium tweeter and internal Monster cable wiring reflect JBL’s higher-end late-1980s engineering.
Cons: Crossover region peaking around 3kHz and treble peaking above 10kHz color the top end, and poor vertical directivity means the tweeter needs to be at ear level. Distortion rises at 96dB SPL, especially around 3kHz. Long discontinued; only available on the used market.
Full JBL XPL-90 review and specifications →
| Bass Extension (-10dB) | 48.7Hz (measured, Audio Science Review) |
|---|---|
| Bass Extension (-3dB) | 77.6Hz (measured, Audio Science Review) |
| Dimensions | 15.5"H x 9.5"W x 9.8"D (394 x 241 x 248 mm) |
| Drivers | 6.5" bass/mid driver, 1" titanium dome tweeter |
| Impedance | 6 ohms |
| Power Handling | 100W nominal, 400W max |
| Sensitivity | 85dB (2.83V/1m, measured, Audio Science Review) |
| Weight | 20.1 lbs / 9.1 kg each |
