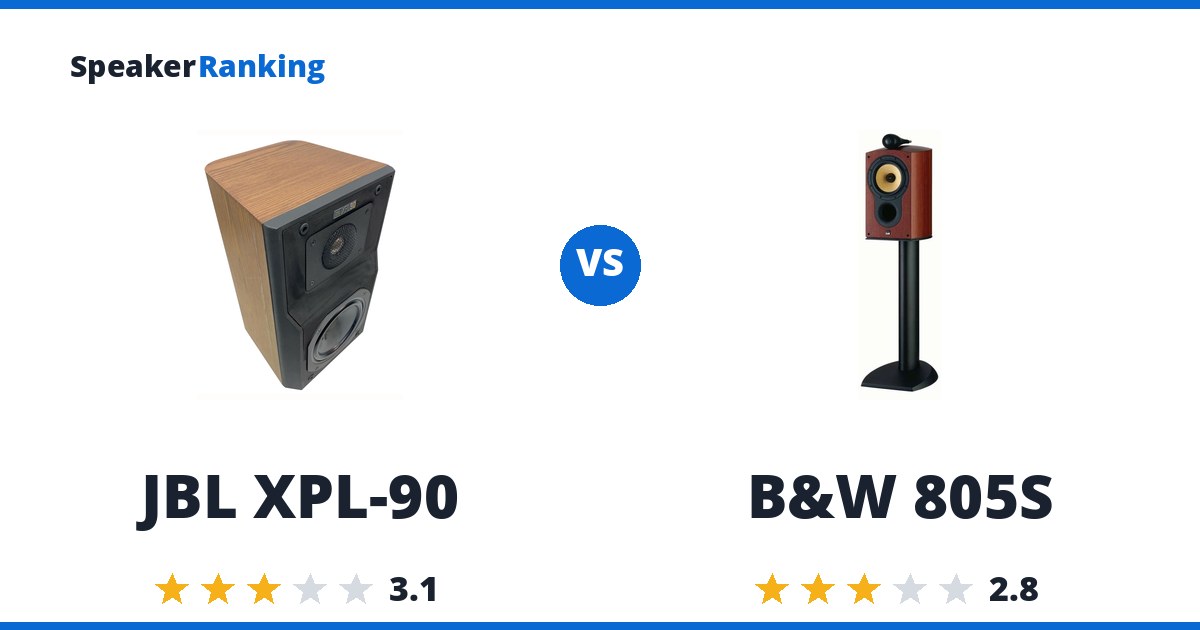

JBL XPL-90 vs Bowers & Wilkins 805S

Last updated: October 31, 2026

Short answer: the JBL XPL-90, the cleaner design despite its peaks. It stays nearly ruler-flat on-axis up to 1kHz with even horizontal directivity until the tweeter beams above 10kHz, though the crossover region and treble peak around 3kHz and above 10kHz, and poor vertical directivity means the tweeter needs to sit at ear level. The Bowers & Wilkins 805S’s directivity breaks down badly from around 1kHz to 3kHz, leaving vocals recessed and masked without EQ. The Bowers & Wilkins 805S has been replaced by the Bowers & Wilkins 805 D5. If you are buying new, get the Bowers & Wilkins 805 D5.

JBL XPL-90 vs Bowers & Wilkins 805S

Buy the JBL XPL-90 only if you find one used in good condition; both are discontinued, and it is the better rated of the two. For a new speaker, buy the Bowers & Wilkins 805 D5, which replaces the Bowers & Wilkins 805S.

Want more options? Browse the full Passive Home rankings.

Measured Differences

Prices on this page were last checked November 18, 2026 at 8:41 AM UTC. Product prices and availability are accurate as of that date/time and are subject to change; the price and availability shown on Amazon at the time of purchase will apply to the purchase of this product.

As an eBay Partner, we may be compensated if you make a purchase.

Specifications Side By Side

JBL XPL-90 Bowers & Wilkins 805S
Price$1,298 per pair used (vintage, late 1980s), Discontinued$2,500 per pair Discontinued
Ranked#181 of 222 in Large Size Bookshelf Speakers#199 of 222 in Large Size Bookshelf Speakers
Drivers6.5” bass/mid driver, 1” titanium dome tweeter1” aluminum dome tweeter, 6.5” woven Kevlar cone mid/bass
Dimensions15.5”H x 9.5”W x 9.8”D (394 x 241 x 248 mm)16.5H x 9.4W x 13.8D in
Weight20.1 lbs (9.1 kg) each25.4 lbs (11.5 kg) each
Sensitivity85dB (2.83V/1m, measured, Audio Science Review)86.5dB (2.83V/1m, measured, Audio Science Review)
Impedance6 ohms8 ohms nominal (3.7 ohms minimum)
Power Handling100W nominal, 400W max50-120W
Bass Extension (-3dB)77.6Hz (measured, Audio Science Review)46.9Hz (measured, Audio Science Review)
Bass Extension (-10dB)48.7Hz (measured, Audio Science Review)35.6Hz (derived, log-interpolated between spinorama.org -9dB/-12dB points)
Spinorama Preference Score3.7 (spinorama.org)4.12
Spinorama Preference Score with Perfect Sub6.31 (spinorama.org)6.07
DIY KitNoNo
Frequency Response-49Hz - 22kHz +/-3dB (-6dB at 42Hz and 50kHz) (Manufacturer specified)
Woofer Cabinet-ported, rear

Where the Ratings Come From

This comparison is generated from the ratings, specifications and measurements on each product’s own page, and it updates when that data changes. How we rank explains how each rating is decided.
