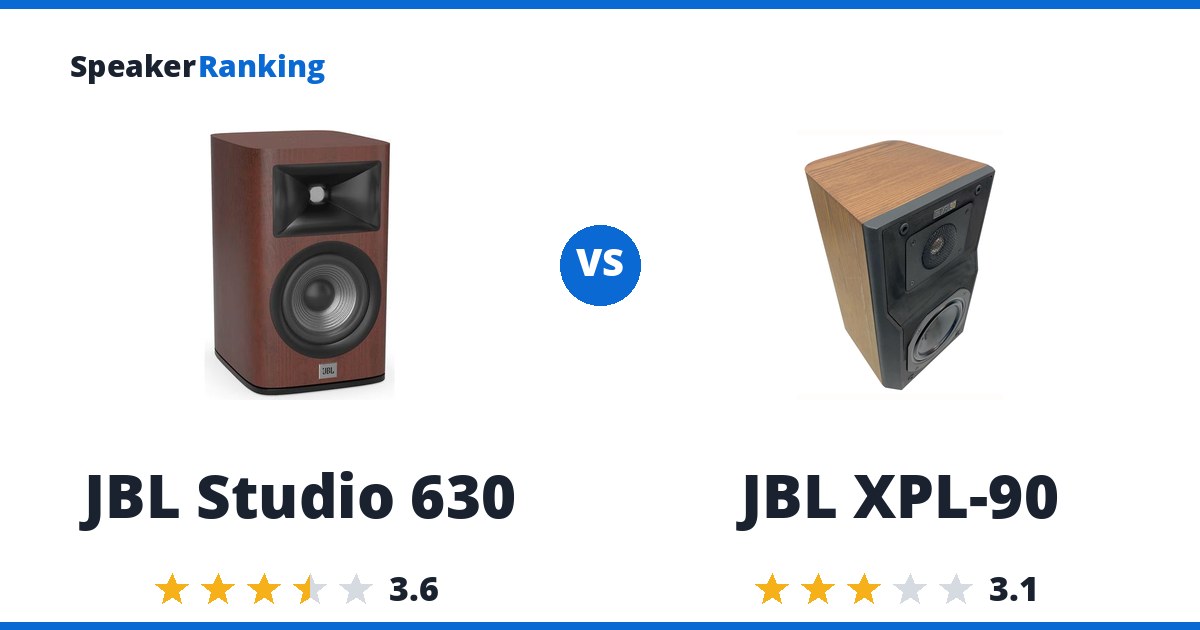

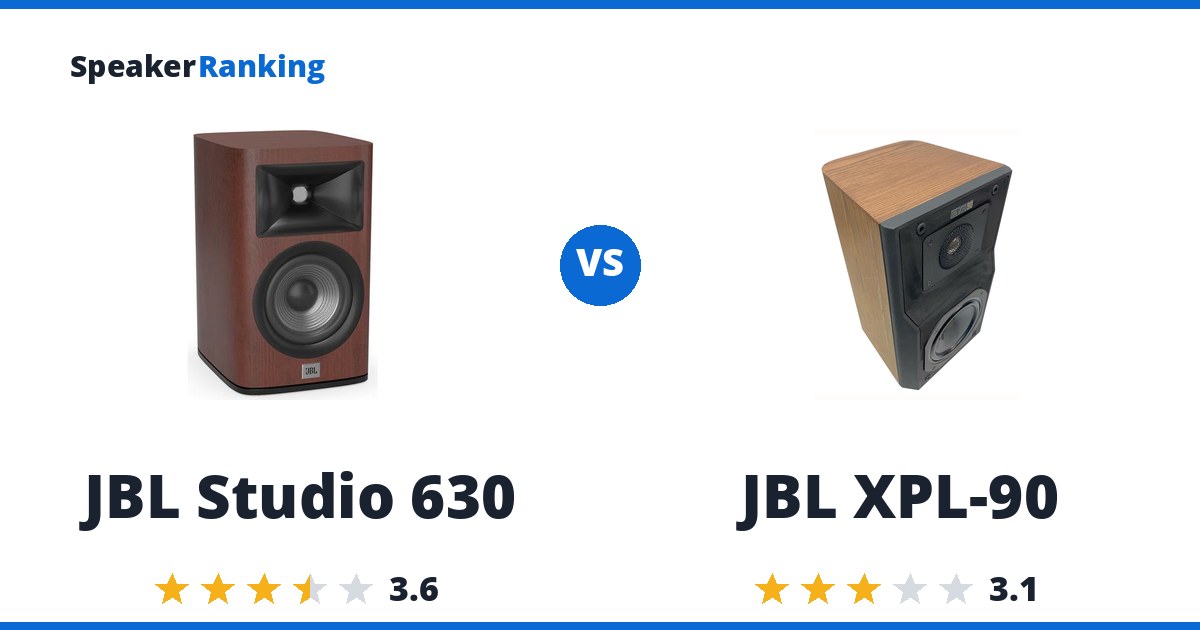

Short answer: both are discontinued, so this only matters if you are buying used. Used, the JBL Studio 630 is the better pick: it ranks #123 of 203 bookshelf speakers by sound quality (rated 3.6/5), against #166 (rated 3.1/5) for the JBL XPL-90. If you want one new, the AsciLab C6B ranks #6 at $1,145.
The JBL Studio 630 is the better-sounding, deeper-bass choice. Excellent directivity linearity: harmonics of the same instrument stay collocated in the soundstage instead of drifting between positions, giving precise, stable imaging that holds up well into higher frequencies where many speakers start to beam and narrow. Its bass reaches about 54.2Hz before falling 3dB, against 77.6Hz for the JBL XPL-90. The tradeoff: Noticeable mid-range dip/scoop relative to the higher frequencies: not dramatic, but audibly “missing” something by the second or third track.
The case for the JBL XPL-90: Nearly ruler-flat on-axis response up to 1kHz with even horizontal directivity until the tweeter beams above 10kHz. The tradeoff: Crossover region peaking around 3kHz and treble peaking above 10kHz color the top end, and poor vertical directivity means the tweeter needs to be at ear level.
Buy the JBL Studio 630 only if you find one used in good condition; both are discontinued, and it is the better rated of the two. For a new speaker, start with the AsciLab C6B instead.
Still deciding? The full Passive Home rankings cover every ranked option.
Specifications Side By Side
| JBL Studio 630 | JBL XPL-90 | |
|---|---|---|
| Price | $699 per pair Discontinued | $1,298 per pair used (vintage, late 1980s), Discontinued |
| Ranked | #123 of 203 in Large Size Bookshelf Speakers | #166 of 203 in Large Size Bookshelf Speakers |
| Drivers | 6.5” PolyPlas cone woofer, 1” compression driver (2414H-1) with waveguide | 6.5” bass/mid driver, 1” titanium dome tweeter |
| Dimensions | 14-13/16”H x 9”W x 11-5/16”D | 15.5”H x 9.5”W x 9.8”D (394 x 241 x 248 mm) |
| Weight | 19.8 lbs (9 kg) each | 20.1 lbs (9.1 kg) each |
| Impedance | 6 ohms nominal, 4.7 ohms minimum (measured, Erin’s Audio Corner) | 6 ohms |
| Sensitivity | 83.2dB (measured, Erin’s Audio Corner; 85dB manufacturer specified) | 85dB (2.83V/1m, measured, Audio Science Review) |
| Frequency Response | 45Hz - 40,000Hz (manufacturer specified) | - |
| Bass Extension (-3dB) | 54.2Hz (measured, Erin’s Audio Corner) | 77.6Hz (measured, Audio Science Review) |
| Bass Extension (-10dB) | 37.0Hz (measured, Erin’s Audio Corner) | 48.7Hz (measured, Audio Science Review) |
| Power Handling | up to 150W | 100W nominal, 400W max |
| Spinorama Preference Score | 3.67 | 3.7 (spinorama.org) |
| Spinorama Preference Score with Perfect Sub | 5.68 | 6.31 (spinorama.org) |
| DIY Kit | No | No |
Related Speaker Comparisons
More worthwhile head-to-heads for JBL Studio 630:
- JBL Studio 630 vs AsciLab C6B
- JBL Studio 630 vs KEF R3 Meta
- JBL Studio 630 vs KEF Q Concerto Meta
- AsciLab F6B vs JBL Studio 630
- JBL Studio 630 vs MoFi SourcePoint 8
Prices on this page were last checked October 7, 2026 at 9:25 PM UTC. Product prices and availability are accurate as of that date/time and are subject to change; the price and availability shown on Amazon at the time of purchase will apply to the purchase of this product.
As an eBay Partner, we may be compensated if you make a purchase.
The Two Speakers In Full
JBL Studio 630: $699 per pair Discontinued eBay
Same family: the JBL Studio 698 (floorstanding, rated 4.3/5).
Pros: Excellent directivity linearity: harmonics of the same instrument stay collocated in the soundstage instead of drifting between positions, giving precise, stable imaging that holds up well into higher frequencies where many speakers start to beam and narrow. Good compression behavior: mid-bass stays taut and controlled from low to high volume without the sound falling apart or distorting as you turn it up. A pleasant, controlled mid-bass bump in the 60-100 Hz range adds punch to kick drums without bleeding into an uncontrolled boom on bass guitar. Horizontal radiation holds steady off-axis (about ±60°), so toe-in isn’t fussy. Compared directly to its predecessor, the JBL Studio 530, the reviewer would pick the 630 (smoother trend line through the upper mids and treble, and likely more dynamic headroom) as long as you’re willing to EQ. Measured bass extension of 54.2Hz (-3dB), with a measured sensitivity of 83.2dB.
Cons: Noticeable mid-range dip/scoop relative to the higher frequencies: not dramatic, but audibly “missing” something by the second or third track. Some tracks read as forward or aggressive around 2 kHz, like the upper frequencies are jumping out at you rather than sitting in stage depth. Needs EQ to bring the mid-range back up to be fully recommendable; without EQ available, the reviewer says he’d look at a different speaker entirely. Measured sensitivity (about 83.2dB) runs noticeably below the 85dB manufacturer spec, likely a byproduct of the mid-range dip skewing the average downward. Discontinued and no longer sold new.
Full JBL Studio 630 review and specifications →
| Bass Extension (-10dB) | 37.0Hz (measured, Erin’s Audio Corner) |
|---|---|
| Bass Extension (-3dB) | 54.2Hz (measured, Erin’s Audio Corner) |
| DIY Kit | No |
| Dimensions | 14-13/16”H x 9”W x 11-5/16”D |
| Drivers | 6.5” PolyPlas cone woofer, 1” compression driver (2414H-1) with waveguide |
| Frequency Response | 45Hz - 40,000Hz (manufacturer specified) |
| Impedance | 6 ohms nominal, 4.7 ohms minimum (measured, Erin’s Audio Corner) |
| Power Handling | up to 150W |
| Sensitivity | 83.2dB (measured, Erin’s Audio Corner; 85dB manufacturer specified) |
| Spinorama Preference Score | 3.67 |
| Spinorama Preference Score with Perfect Sub | 5.68 |
| Weight | 19.8 lbs (9 kg) each |
- Links
- Reviews, Comparisons and Sound Samples
- Head-to-Head Comparisons
- JBL Studio 630 vs Behringer B2030P
- JBL Studio 630 vs Dynaudio Emit 20
- JBL Studio 630 vs Klipsch RP-600M II
- JBL Studio 630 vs Infinity IL10
- JBL Studio 630 vs Dynaudio Special Forty
- JBL Studio 630 vs ELAC Debut 2.0 B6.2
- JBL Studio 630 vs SVS Prime Bookshelf
- JBL Studio 630 vs Infinity Reference R162
- See all 38 comparisons
JBL XPL-90: $1,298 per pair used (vintage, late 1980s) Discontinued eBay
Pros: Nearly ruler-flat on-axis response up to 1kHz with even horizontal directivity until the tweeter beams above 10kHz. The reviewer found real strength with vocals and simpler instrumentation, calling it “the first speaker I have liked that has some clear response errors” and “an enjoyable speaker” despite the flaws. Titanium tweeter and internal Monster cable wiring reflect JBL’s higher-end late-1980s engineering. Measured bass extension of 77.6Hz (-3dB), with a measured sensitivity of 85dB.
Cons: Crossover region peaking around 3kHz and treble peaking above 10kHz color the top end, and poor vertical directivity means the tweeter needs to be at ear level. Distortion rises at 96dB SPL, especially around 3kHz. Long discontinued; only available on the used market.
Full JBL XPL-90 review and specifications →
| Bass Extension (-10dB) | 48.7Hz (measured, Audio Science Review) |
|---|---|
| Bass Extension (-3dB) | 77.6Hz (measured, Audio Science Review) |
| DIY Kit | No |
| Dimensions | 15.5”H x 9.5”W x 9.8”D (394 x 241 x 248 mm) |
| Drivers | 6.5” bass/mid driver, 1” titanium dome tweeter |
| Impedance | 6 ohms |
| Power Handling | 100W nominal, 400W max |
| Sensitivity | 85dB (2.83V/1m, measured, Audio Science Review) |
| Spinorama Preference Score | 3.7 (spinorama.org) |
| Spinorama Preference Score with Perfect Sub | 6.31 (spinorama.org) |
| Weight | 20.1 lbs (9.1 kg) each |
