Name: Axiom ED120A
Brand: Axiom
Price: 1790 USD

The Axiom ED120A is rated 4/5 for sound quality, #18 of 83 12-Inch PA Speakers. See all PA & Live Sound rankings for every top pick.

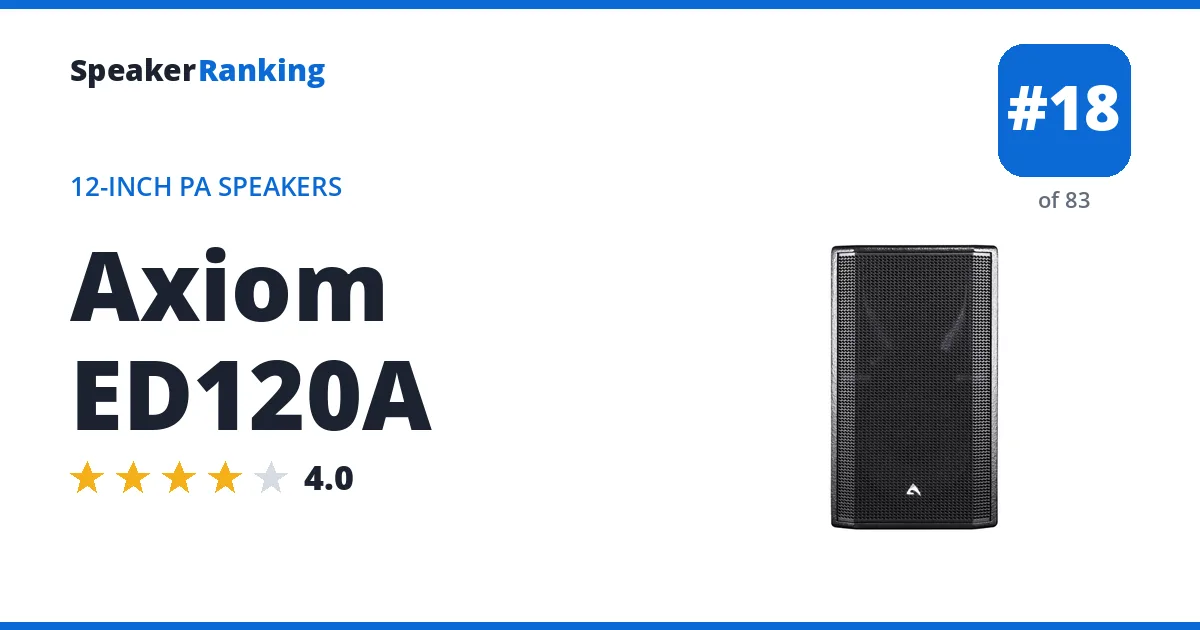

Axiom ED120A · Editor's rating 4/5, ranked #18 of 83 12-Inch PA Speakers

Prices on this page were last checked October 24, 2026 at 4:42 PM UTC. Product prices and availability are accurate as of that date/time and are subject to change; the price and availability shown on Amazon at the time of purchase will apply to the purchase of this product.

As an eBay Partner, we may be compensated if you make a purchase.

Brand: Axiom

#18 Axiom ED120A: $1,790 eBay

Same family: the Axiom ED60P (smaller model, rated 3.3/5), the Axiom ED80P (smaller model, rated 3.4/5) and the Axiom ED150A (larger model, rated 3.8/5).

Pros: A good sounding professional 12 inch powered PA speaker with deep bass, remote control and an asymmetric horn for installs. High-quality vendor Spinorama data gives it a 5.73 ideal-subwoofer preference score and 52Hz bass extension, a solid tonal showing for a professional cabinet. CORE DSP, PRONET remote control and an asymmetric rotatable horn add useful installation flexibility. Measured bass extension of 60Hz (-3dB).

Cons: The 132dB claimed peak is competitive rather than class-leading, and the asymmetric 60°-to-100° pattern needs more deliberate aiming than a conventional symmetric horn. Availability and service coverage are less broad than the mainstream QSC, JBL, Yamaha and RCF choices.

Featured on:

Network Control

Released	2017 (9 years ago)
AES Input	No
Amplifier Power	1,200W continuous (900W LF + 300W HF Class D, manufacturer specified)
Aux Input	No
Bass Extension (-3dB)	60Hz (measured, vendor Spinorama data)
Bluetooth	No
Cabinet Material	15mm reinforced phenolic birch plywood
Coaxial Input	No
Configuration	Active 2-way bass-reflex PA speaker
Coverage	60°-100° asymmetric x 60°
DSP	Yes, CORE processing with PRONET control
Dimensions	24”H x 14.2”W x 12.2”D (610 x 360 x 310 mm)
Drivers	12” woofer, 1.4” compression driver
Frequency Response	65Hz - 17kHz (-6dB, manufacturer specified)
Guitar Input	No
HDMI Input	No
Inputs	XLR input and link; EtherCON control network
Maximum SPL	132dB peak (manufacturer specified)
Microphone Input	No
Network Control	PRONET control over EtherCON/CANBUS
Optical Input	No
Passive	No
RCA Input	No
Rigging	M10 and M6 fly points; pole-mount socket
Spinorama Preference Score	3.30
Spinorama Preference Score with Perfect Sub	5.73
TRS Input	No
USB Input	No
Weight	41.9 lbs (19 kg)
XLR Input	Yes

Search eBay for Axiom ED120A →

Links
- Axiom ED120A Product Information
Reviews, Comparisons and Sound Samples
- Spinorama Measurements

Frequency Response

How the Axiom ED120A measures across the audible range. A flatter listening window (the sound arriving straight at you) is more neutral: peaks sound forward or harsh, dips sound recessed. The estimated in-room response adds what a typical room does, and there a gentle, even tilt down toward the treble is ideal. Both curves are shifted so their 300 Hz to 3 kHz average sits at 0 dB.

Listening windowEstimated in-room response

Measurement data: spinorama.org, measured by the manufacturer.

EQ for a Neutral Response

No EQ preset: the best simple EQ we can fit to these measurements improves the predicted preference score by less than 0.2. The listening window is already close to flat, and what holds the score back, such as narrow ripple in the response or uneven output off-axis, is not something EQ can fix without making it worse elsewhere.
