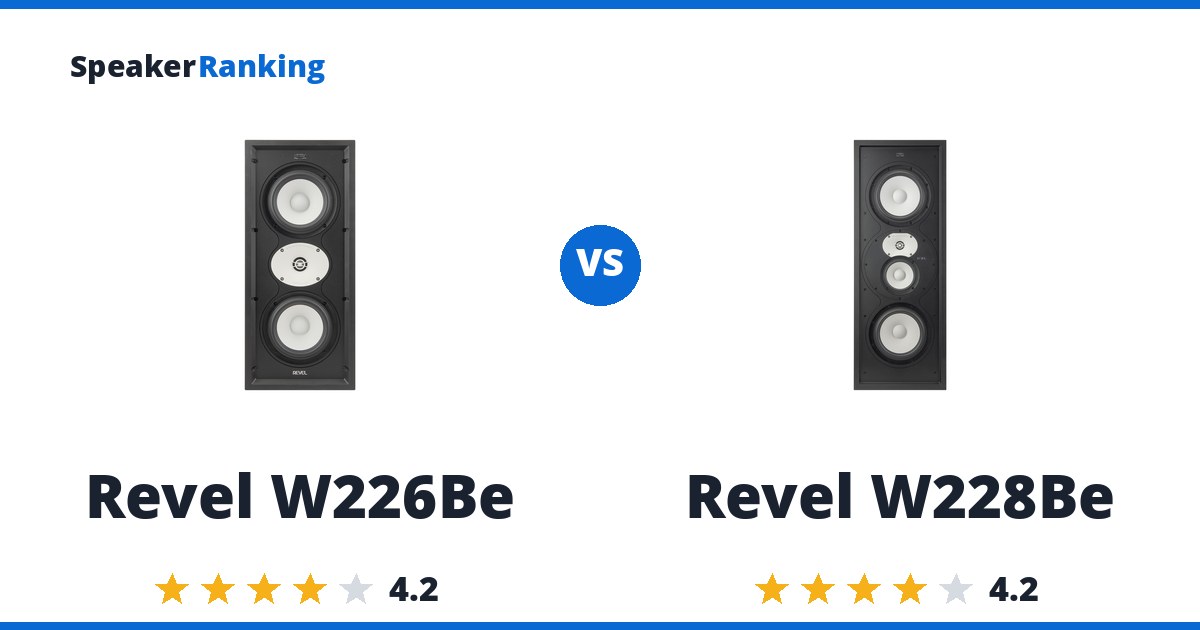

Short answer: the Revel W226Be. Both are rated 4.2/5 for sound quality (#4 and #5 of 18 in-wall speakers), and the Revel W226Be costs $4,949.90 against $7,699.90 for the Revel W228Be, so with nothing between them on sound quality, price settles it.
The case for the Revel W226Be: Revel’s own measurement, published on spinorama.org, gives a preference score of 5.51, or 7.60 with a perfect subwoofer. The tradeoff: The measurement comes from Revel, digitized from its published curves, and has no independent second test, so treat the figures as manufacturer supplied.
The case for the Revel W228Be: Revel’s own measurement, published on spinorama.org, gives a preference score of 6.79, or 8.33 with a perfect subwoofer. Watch for: Audio Science Review’s independent Klippel measurement was far weaker than Revel’s own (preference score 2.31, or 6.15 with a subwoofer, and -3dB at 108Hz), so real bass depends heavily on the installation and enclosure.
Buy the Revel W226Be. Both are rated the same for sound quality, and it costs $2,750 less than the Revel W228Be.
Still deciding? The full Passive Home rankings cover every ranked option.
Specifications Side By Side
| Revel W226Be | Revel W228Be | |
|---|---|---|
| Price | $4,949.90 per pair | $7,699.90 per pair |
| Ranked | #4 of 18 in In-Wall & In-Ceiling Speakers | #5 of 18 in In-Wall & In-Ceiling Speakers |
| Drivers | 2x 6.5” Deep Ceramic Composite (DCC) aluminum cone woofers, 1” beryllium dome tweeter with acoustic lens waveguide (2-way) | 2x 8” DCC aluminum woofers, 5.25” DCC aluminum midrange, 1” beryllium dome tweeter with acoustic lens waveguide (3-way) |
| Enclosure | In-wall, 18-36L enclosure (optional W226BEBB back box sold separately) | In-wall, 27-54L enclosure (optional W228BEBB back box sold separately) |
| Mounting Cutout | 226W x 549H mm | 309W x 896H mm |
| Dimensions | 23”H x 10.2”W x 3.8”D (583 x 259 x 96 mm) (88mm mounting depth) | 37”H x 13.9”W x 4.1”D (939 x 353 x 105 mm) (96mm mounting depth) |
| Weight | 15.7 lbs (7.1 kg) | 31.5 lbs (14.3 kg) |
| Sensitivity | 90dB | 90dB |
| Impedance | 6 ohms nominal (4 ohm minimum) | 6 ohms nominal (4 ohm minimum) |
| Power Handling | 50-200W RMS at 4 ohms | 50-400W RMS at 4 ohms |
| Frequency Response | 43Hz-40kHz (-6dB, manufacturer) | 35Hz-40kHz (-6dB, manufacturer) |
| Maximum SPL | 110dB (manufacturer specified) | 115dB (manufacturer specified) |
| Crossover Frequency | 2,000Hz | 220Hz, 2,500Hz |
| Bass Extension (-3dB) | 48.1Hz (measured, Revel vendor data on spinorama.org) | 43.4Hz (measured, Revel vendor data on spinorama.org) |
| Bass Extension (-10dB) | 36.4Hz (measured, Revel vendor data on spinorama.org) | 26.9Hz (measured, Revel vendor data on spinorama.org) |
| Spinorama Preference Score | 5.51 | 6.79 |
| Spinorama Preference Score with Perfect Sub | 7.60 | 8.33 |
| DIY Kit | No | No |
Related Speaker Comparisons
More top alternatives to Revel W226Be:
- Revel W126Be vs Revel W226Be
- Revel W226Be vs KEF CI250RRM-THX
- Revel W226Be vs Miller & Kreisel IW150
- Revel W228Be vs KEF CI250RRM-THX
- Revel W228Be vs MartinLogan Tribute 5XW
Prices on this page were last checked September 26, 2026 at 11:14 PM UTC. Product prices and availability are accurate as of that date/time and are subject to change; the price and availability shown on Amazon at the time of purchase will apply to the purchase of this product.
As an eBay Partner, we may be compensated if you make a purchase.
The Two Speakers In Full
Revel W226Be: $4,949.90 per pair Crutchfield eBay
Pros: Revel’s own measurement, published on spinorama.org, gives a preference score of 5.51, or 7.60 with a perfect subwoofer. Bass measures to 48.1Hz at -3dB and 43.7Hz at -6dB, deeper than the single-woofer W126Be, and directivity is well controlled (SPDI deviation 1.95dB). Dual 6.5” aluminum cone woofers and a 1” beryllium dome tweeter behind an acoustic lens waveguide give 90dB sensitivity and a rated 110dB maximum output, and it accepts 50-200W of amplifier power. Measured bass extension of 48.1Hz (-3dB).
Cons: The measurement comes from Revel, digitized from its published curves, and has no independent second test, so treat the figures as manufacturer supplied. At $2475 each a stereo pair costs twice that, and the back box is not included and is sold separately. Predicted in-room smoothness (0.81) and on-axis deviation (0.33dB) are good but not ahead of the cheaper W126Be, so the extra cost buys bass and output rather than a cleaner midrange.
Full Revel W226Be review and specifications →
| Bass Extension (-10dB) | 36.4Hz (measured, Revel vendor data on spinorama.org) |
|---|---|
| Bass Extension (-3dB) | 48.1Hz (measured, Revel vendor data on spinorama.org) |
| Crossover Frequency | 2,000Hz |
| DIY Kit | No |
| Dimensions | 23”H x 10.2”W x 3.8”D (583 x 259 x 96 mm) (88mm mounting depth) |
| Drivers | 2x 6.5” Deep Ceramic Composite (DCC) aluminum cone woofers, 1” beryllium dome tweeter with acoustic lens waveguide (2-way) |
| Enclosure | In-wall, 18-36L enclosure (optional W226BEBB back box sold separately) |
| Frequency Response | 43Hz-40kHz (-6dB, manufacturer) |
| Impedance | 6 ohms nominal (4 ohm minimum) |
| Maximum SPL | 110dB (manufacturer specified) |
| Mounting Cutout | 226W x 549H mm |
| Power Handling | 50-200W RMS at 4 ohms |
| Sensitivity | 90dB |
| Spinorama Preference Score | 5.51 |
| Spinorama Preference Score with Perfect Sub | 7.60 |
| Weight | 15.7 lbs (7.1 kg) |
- Links
- Reviews, Comparisons and Sound Samples
- Head-to-Head Comparisons
Revel W228Be: $7,699.90 per pair Crutchfield eBay
Pros: Revel’s own measurement, published on spinorama.org, gives a preference score of 6.79, or 8.33 with a perfect subwoofer. Bass measures to 43.4Hz at -3dB and 34.3Hz at -6dB, exceptional for an in-wall, and predicted in-room response is very smooth (0.91 smoothness) with tightly controlled directivity (SPDI deviation 1.89dB). Its three-way design uses dual 8” aluminum woofers, a 5.25” midrange and a 1” beryllium tweeter, rated for 115dB output, and the midrange and tweeter module rotates for vertical or horizontal mounting. Measured bass extension of 43.4Hz (-3dB).
Cons: Audio Science Review’s independent Klippel measurement was far weaker than Revel’s own (preference score 2.31, or 6.15 with a subwoofer, and -3dB at 108Hz), so real bass depends heavily on the installation and enclosure. The Revel figures are manufacturer supplied and digitized. At $3850 each a stereo pair costs twice that, and the speaker is about 939mm tall and 14.3kg with a 27 to 54 liter enclosure requirement, with the back box sold separately.
Full Revel W228Be review and specifications →
| Bass Extension (-10dB) | 26.9Hz (measured, Revel vendor data on spinorama.org) |
|---|---|
| Bass Extension (-3dB) | 43.4Hz (measured, Revel vendor data on spinorama.org) |
| Crossover Frequency | 220Hz, 2,500Hz |
| DIY Kit | No |
| Dimensions | 37”H x 13.9”W x 4.1”D (939 x 353 x 105 mm) (96mm mounting depth) |
| Drivers | 2x 8” DCC aluminum woofers, 5.25” DCC aluminum midrange, 1” beryllium dome tweeter with acoustic lens waveguide (3-way) |
| Enclosure | In-wall, 27-54L enclosure (optional W228BEBB back box sold separately) |
| Frequency Response | 35Hz-40kHz (-6dB, manufacturer) |
| Impedance | 6 ohms nominal (4 ohm minimum) |
| Maximum SPL | 115dB (manufacturer specified) |
| Mounting Cutout | 309W x 896H mm |
| Power Handling | 50-400W RMS at 4 ohms |
| Sensitivity | 90dB |
| Spinorama Preference Score | 6.79 |
| Spinorama Preference Score with Perfect Sub | 8.33 |
| Weight | 31.5 lbs (14.3 kg) |
