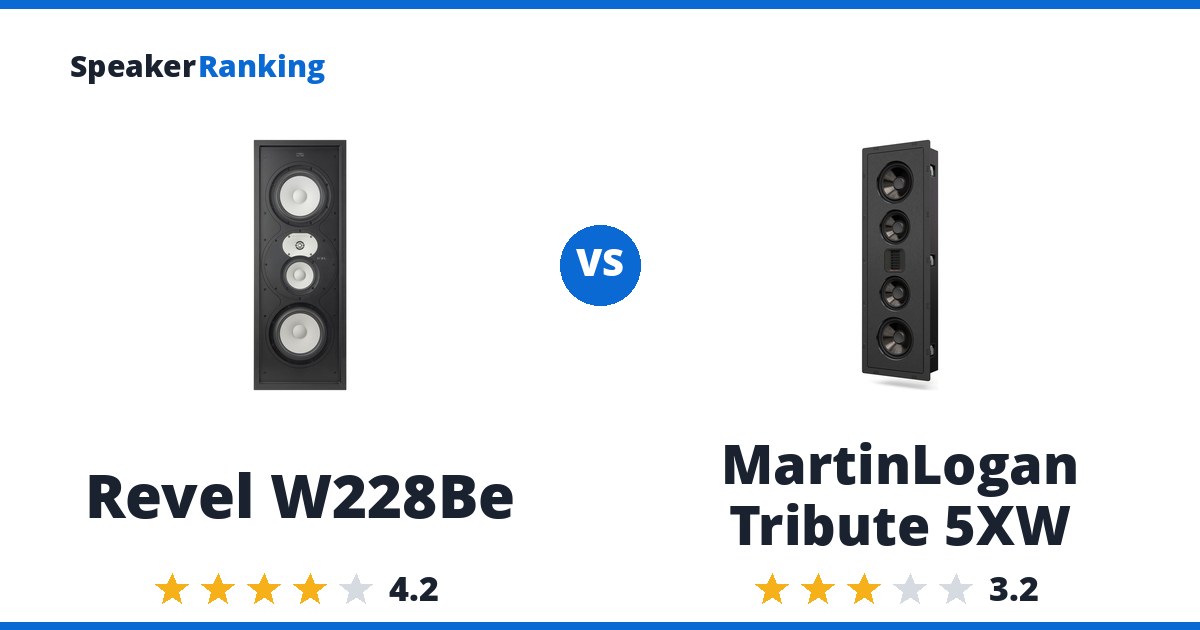

Short answer: the Revel W228Be. It ranks #5 of 18 in-wall speakers by sound quality, rated 4.2/5, at $7,699.90. The MartinLogan Tribute 5XW ranks #17, rated 3.2/5, at $6,999.98, $699.92 cheaper, which does not close the gap in sound quality.
What the Revel W228Be does well: Revel’s own measurement, published on spinorama.org, gives a preference score of 6.79, or 8.33 with a perfect subwoofer. The tradeoff: Audio Science Review’s independent Klippel measurement was far weaker than Revel’s own (preference score 2.31, or 6.15 with a subwoofer, and -3dB at 108Hz), so real bass depends heavily on the installation and enclosure.
Why pick the MartinLogan Tribute 5XW: Erin’s Audio Corner’s Klippel measurement shows a rated 94dB sensitivity that measured a still efficient 88.1dB at 1 meter, so it plays loudly for its size. The catch: The measurement is the weakest of the in-wall speakers here: a preference score of 1.84, or just 4.91 with a perfect subwoofer, with on-axis smoothness of 0.30, an average on-axis deviation of 1.56dB and wide directivity swings (SPDI deviation 3.25dB).
Buy the Revel W228Be. It is rated higher for sound quality, and the $699.92 saving on the MartinLogan Tribute 5XW is not enough to make up the difference.
Looking for alternatives? See the complete Passive Home rankings.
Specifications Side By Side
| Revel W228Be | MartinLogan Tribute 5XW | |
|---|---|---|
| Price | $7,699.90 per pair | $6,999.98 per pair |
| Ranked | #5 of 18 in In-Wall & In-Ceiling Speakers | #17 of 18 in In-Wall & In-Ceiling Speakers |
| Drivers | 2x 8” DCC aluminum woofers, 5.25” DCC aluminum midrange, 1” beryllium dome tweeter with acoustic lens waveguide (3-way) | 1.25 x 2.4” Folded Motion XT Obsidian tweeter, 2x 5.25” carbon fiber woofers, 2x 6.5” passive radiators |
| Enclosure | In-wall, 27-54L enclosure (optional W228BEBB back box sold separately) | Sealed back box, in-wall |
| Mounting Cutout | 309W x 896H mm | 236W x 757H mm |
| Dimensions | 37”H x 13.9”W x 4.1”D (939 x 353 x 105 mm) (96mm mounting depth) | 31.1”H x 10.6”W x 4.1”D (791 x 269 x 104 mm) (97mm mounting depth) |
| Weight | 31.5 lbs (14.3 kg) | 25.6 lbs (11.6 kg) |
| Sensitivity | 90dB | 94dB (manufacturer), 88.1dB (measured, Erin’s Audio Corner) |
| Impedance | 6 ohms nominal (4 ohm minimum) | 4 ohms |
| Power Handling | 50-400W RMS at 4 ohms | 20-250W recommended amplifier power |
| Frequency Response | 35Hz-40kHz (-6dB, manufacturer) | 71Hz-25kHz +/-3dB (manufacturer) |
| Maximum SPL | 115dB (manufacturer specified) | - |
| Crossover Frequency | 220Hz, 2,500Hz | 2,250Hz |
| Bass Extension (-3dB) | 43.4Hz (measured, Revel vendor data on spinorama.org) | 74.7Hz (measured, Erin’s Audio Corner) |
| Bass Extension (-10dB) | 26.9Hz (measured, Revel vendor data on spinorama.org) | 68.3Hz (measured, Erin’s Audio Corner) |
| Spinorama Preference Score | 6.79 | 1.84 |
| Spinorama Preference Score with Perfect Sub | 8.33 | 4.91 |
| DIY Kit | No | No |
Related Speaker Comparisons
More top alternatives to Revel W228Be:
- Revel W226Be vs Revel W228Be
- Revel W228Be vs KEF CI250RRM-THX
- Revel W228Be vs JBL Synthesis SCL-3
- Revel W228Be vs JBL Synthesis SCL-4
- JBL Synthesis SCL-3 vs MartinLogan Tribute 5XW
Prices on this page were last checked September 26, 2026 at 11:14 PM UTC. Product prices and availability are accurate as of that date/time and are subject to change; the price and availability shown on Amazon at the time of purchase will apply to the purchase of this product.
As an eBay Partner, we may be compensated if you make a purchase.
The Two Speakers In Full
Revel W228Be: $7,699.90 per pair Crutchfield eBay
Pros: Revel’s own measurement, published on spinorama.org, gives a preference score of 6.79, or 8.33 with a perfect subwoofer. Bass measures to 43.4Hz at -3dB and 34.3Hz at -6dB, exceptional for an in-wall, and predicted in-room response is very smooth (0.91 smoothness) with tightly controlled directivity (SPDI deviation 1.89dB). Its three-way design uses dual 8” aluminum woofers, a 5.25” midrange and a 1” beryllium tweeter, rated for 115dB output, and the midrange and tweeter module rotates for vertical or horizontal mounting. Measured bass extension of 43.4Hz (-3dB).
Cons: Audio Science Review’s independent Klippel measurement was far weaker than Revel’s own (preference score 2.31, or 6.15 with a subwoofer, and -3dB at 108Hz), so real bass depends heavily on the installation and enclosure. The Revel figures are manufacturer supplied and digitized. At $3850 each a stereo pair costs twice that, and the speaker is about 939mm tall and 14.3kg with a 27 to 54 liter enclosure requirement, with the back box sold separately.
Full Revel W228Be review and specifications →
| Bass Extension (-10dB) | 26.9Hz (measured, Revel vendor data on spinorama.org) |
|---|---|
| Bass Extension (-3dB) | 43.4Hz (measured, Revel vendor data on spinorama.org) |
| Crossover Frequency | 220Hz, 2,500Hz |
| DIY Kit | No |
| Dimensions | 37”H x 13.9”W x 4.1”D (939 x 353 x 105 mm) (96mm mounting depth) |
| Drivers | 2x 8” DCC aluminum woofers, 5.25” DCC aluminum midrange, 1” beryllium dome tweeter with acoustic lens waveguide (3-way) |
| Enclosure | In-wall, 27-54L enclosure (optional W228BEBB back box sold separately) |
| Frequency Response | 35Hz-40kHz (-6dB, manufacturer) |
| Impedance | 6 ohms nominal (4 ohm minimum) |
| Maximum SPL | 115dB (manufacturer specified) |
| Mounting Cutout | 309W x 896H mm |
| Power Handling | 50-400W RMS at 4 ohms |
| Sensitivity | 90dB |
| Spinorama Preference Score | 6.79 |
| Spinorama Preference Score with Perfect Sub | 8.33 |
| Weight | 31.5 lbs (14.3 kg) |
- Links
- Reviews, Comparisons and Sound Samples
- Head-to-Head Comparisons
MartinLogan Tribute 5XW: $6,999.98 per pair Audio Advice eBay
Pros: Erin’s Audio Corner’s Klippel measurement shows a rated 94dB sensitivity that measured a still efficient 88.1dB at 1 meter, so it plays loudly for its size. The folded thin-film Folded Motion XT Obsidian tweeter rotates for horizontal or vertical mounting, and it pairs two carbon fiber woofers with two 6.5” passive radiators in a sealed box. It accepts 20-250W of amplifier power and mounts with a slim 3.8” depth behind the wall. Measured bass extension of 74.7Hz (-3dB), with a measured sensitivity of 94dB.
Cons: The measurement is the weakest of the in-wall speakers here: a preference score of 1.84, or just 4.91 with a perfect subwoofer, with on-axis smoothness of 0.30, an average on-axis deviation of 1.56dB and wide directivity swings (SPDI deviation 3.25dB). Bass measured -3dB at only 74.7Hz, so a subwoofer is required, and MartinLogan rates it to 71Hz. At $3500 each a stereo pair costs twice that and MartinLogan sells it through dealers.
Full MartinLogan Tribute 5XW review and specifications →
| Bass Extension (-10dB) | 68.3Hz (measured, Erin’s Audio Corner) |
|---|---|
| Bass Extension (-3dB) | 74.7Hz (measured, Erin’s Audio Corner) |
| Crossover Frequency | 2,250Hz |
| DIY Kit | No |
| Dimensions | 31.1”H x 10.6”W x 4.1”D (791 x 269 x 104 mm) (97mm mounting depth) |
| Drivers | 1.25 x 2.4” Folded Motion XT Obsidian tweeter, 2x 5.25” carbon fiber woofers, 2x 6.5” passive radiators |
| Enclosure | Sealed back box, in-wall |
| Frequency Response | 71Hz-25kHz +/-3dB (manufacturer) |
| Impedance | 4 ohms |
| Mounting Cutout | 236W x 757H mm |
| Power Handling | 20-250W recommended amplifier power |
| Sensitivity | 94dB (manufacturer), 88.1dB (measured, Erin’s Audio Corner) |
| Spinorama Preference Score | 1.84 |
| Spinorama Preference Score with Perfect Sub | 4.91 |
| Weight | 25.6 lbs (11.6 kg) |
