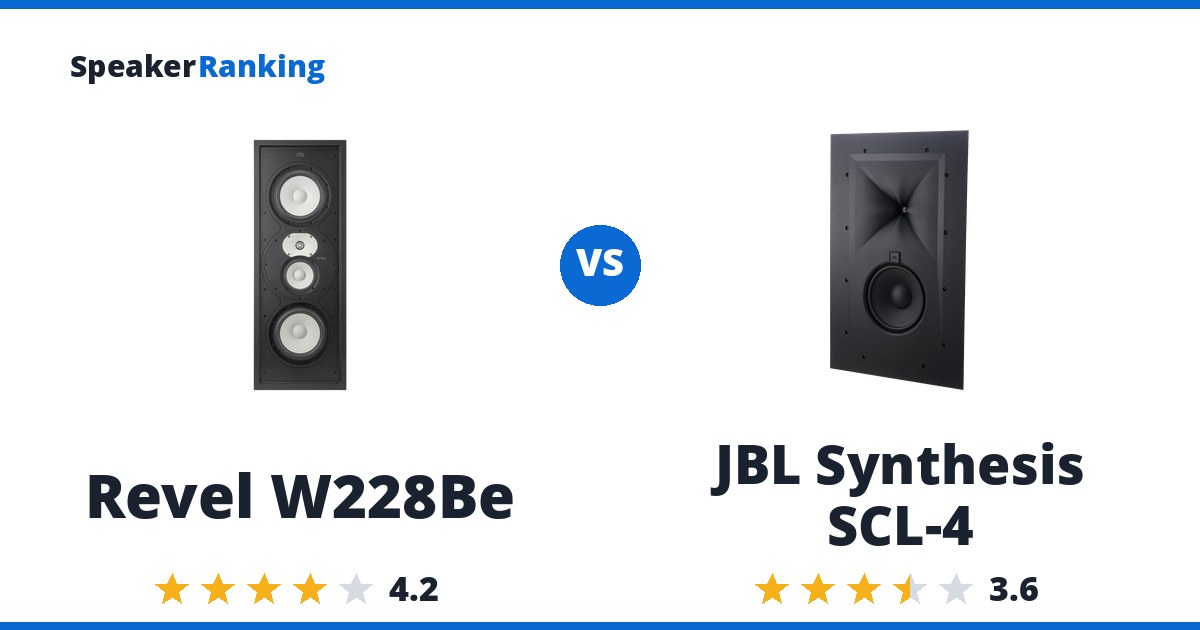

Short answer: the Revel W228Be. It ranks #5 of 18 in-wall speakers by sound quality, rated 4.2/5, at $7,699.90. The JBL Synthesis SCL-4 ranks #12, rated 3.6/5, at $7,259.90, $440 cheaper, not enough of a saving to outweigh the sound-quality gap.
What the Revel W228Be does well: Revel’s own measurement, published on spinorama.org, gives a preference score of 6.79, or 8.33 with a perfect subwoofer. The tradeoff: Audio Science Review’s independent Klippel measurement was far weaker than Revel’s own (preference score 2.31, or 6.15 with a subwoofer, and -3dB at 108Hz), so real bass depends heavily on the installation and enclosure.
What the JBL Synthesis SCL-4 does well: JBL’s own measurements show a 1.85 directivity-index deviation, the most even directivity of the JBL Synthesis in-walls, with 0.35dB average on-axis deviation. The tradeoff: Bass is the weakest here, at 83.7Hz for -3dB and about 61.9Hz for -10dB in free air, so it needs a subwoofer.
Buy the Revel W228Be. It is rated higher for sound quality, and saving $440 with the JBL Synthesis SCL-4 does not make up for the sound-quality gap.
Looking for alternatives? See the complete Passive Home rankings.
Specifications Side By Side
| Revel W228Be | JBL Synthesis SCL-4 | |
|---|---|---|
| Price | $7,699.90 per pair | $7,259.90 per pair |
| Ranked | #5 of 18 in In-Wall & In-Ceiling Speakers | #12 of 18 in In-Wall & In-Ceiling Speakers |
| Drivers | 2x 8” DCC aluminum woofers, 5.25” DCC aluminum midrange, 1” beryllium dome tweeter with acoustic lens waveguide (3-way) | 7” aluminum matrix cone woofer, 1” 2409H compression driver on HDI horn (2-way) |
| Enclosure | In-wall, 27-54L enclosure (optional W228BEBB back box sold separately) | In-wall, integrated MDF back box |
| Mounting Cutout | 309W x 896H mm | - |
| Dimensions | 37”H x 13.9”W x 4.1”D (939 x 353 x 105 mm) (96mm mounting depth) | 25”H x 16.1”W x 3.7”D (636 x 409 x 93 mm) |
| Weight | 31.5 lbs (14.3 kg) | 27.6 lbs (12.51 kg) |
| Sensitivity | 90dB | 91dB (2.83V/1m) |
| Impedance | 6 ohms nominal (4 ohm minimum) | 6 ohms |
| Power Handling | 50-400W RMS at 4 ohms | 200W RMS maximum recommended amplifier power |
| Frequency Response | 35Hz-40kHz (-6dB, manufacturer) | 45Hz-33kHz -6dB (manufacturer, on-axis) |
| Maximum SPL | 115dB (manufacturer specified) | - |
| Crossover Frequency | 220Hz, 2,500Hz | 1.3kHz |
| Bass Extension (-3dB) | 43.4Hz (measured, Revel vendor data on spinorama.org) | 83.7Hz (measured, JBL data on spinorama.org) |
| Bass Extension (-10dB) | 26.9Hz (measured, Revel vendor data on spinorama.org) | 61.9Hz (measured, JBL data on spinorama.org) |
| Spinorama Preference Score | 6.79 | 3.56 |
| Spinorama Preference Score with Perfect Sub | 8.33 | 6.55 |
| DIY Kit | No | No |
Related Speaker Comparisons
More top alternatives to Revel W228Be:
- Revel W226Be vs Revel W228Be
- Revel W228Be vs KEF CI250RRM-THX
- Revel W228Be vs JBL Synthesis SCL-3
- Revel W228Be vs MartinLogan Tribute 5XW
- JBL Synthesis SCL-3 vs JBL Synthesis SCL-4
Prices on this page were last checked September 26, 2026 at 11:14 PM UTC. Product prices and availability are accurate as of that date/time and are subject to change; the price and availability shown on Amazon at the time of purchase will apply to the purchase of this product.
As an eBay Partner, we may be compensated if you make a purchase.
The Two Speakers In Full
Revel W228Be: $7,699.90 per pair Crutchfield eBay
Pros: Revel’s own measurement, published on spinorama.org, gives a preference score of 6.79, or 8.33 with a perfect subwoofer. Bass measures to 43.4Hz at -3dB and 34.3Hz at -6dB, exceptional for an in-wall, and predicted in-room response is very smooth (0.91 smoothness) with tightly controlled directivity (SPDI deviation 1.89dB). Its three-way design uses dual 8” aluminum woofers, a 5.25” midrange and a 1” beryllium tweeter, rated for 115dB output, and the midrange and tweeter module rotates for vertical or horizontal mounting. Measured bass extension of 43.4Hz (-3dB).
Cons: Audio Science Review’s independent Klippel measurement was far weaker than Revel’s own (preference score 2.31, or 6.15 with a subwoofer, and -3dB at 108Hz), so real bass depends heavily on the installation and enclosure. The Revel figures are manufacturer supplied and digitized. At $3850 each a stereo pair costs twice that, and the speaker is about 939mm tall and 14.3kg with a 27 to 54 liter enclosure requirement, with the back box sold separately.
Full Revel W228Be review and specifications →
| Bass Extension (-10dB) | 26.9Hz (measured, Revel vendor data on spinorama.org) |
|---|---|
| Bass Extension (-3dB) | 43.4Hz (measured, Revel vendor data on spinorama.org) |
| Crossover Frequency | 220Hz, 2,500Hz |
| DIY Kit | No |
| Dimensions | 37”H x 13.9”W x 4.1”D (939 x 353 x 105 mm) (96mm mounting depth) |
| Drivers | 2x 8” DCC aluminum woofers, 5.25” DCC aluminum midrange, 1” beryllium dome tweeter with acoustic lens waveguide (3-way) |
| Enclosure | In-wall, 27-54L enclosure (optional W228BEBB back box sold separately) |
| Frequency Response | 35Hz-40kHz (-6dB, manufacturer) |
| Impedance | 6 ohms nominal (4 ohm minimum) |
| Maximum SPL | 115dB (manufacturer specified) |
| Mounting Cutout | 309W x 896H mm |
| Power Handling | 50-400W RMS at 4 ohms |
| Sensitivity | 90dB |
| Spinorama Preference Score | 6.79 |
| Spinorama Preference Score with Perfect Sub | 8.33 |
| Weight | 31.5 lbs (14.3 kg) |
- Links
- Reviews, Comparisons and Sound Samples
- Head-to-Head Comparisons
JBL Synthesis SCL-4: $7,259.90 per pair Audio Advice eBay
Pros: JBL’s own measurements show a 1.85 directivity-index deviation, the most even directivity of the JBL Synthesis in-walls, with 0.35dB average on-axis deviation. The preference score rises from 3.56 to 6.55 with a subwoofer. A 7-inch aluminum woofer and 2409H compression driver on JBL’s imaging horn give 91dB sensitivity, and bi-wire and bi-amp terminals suit custom home theaters. Measured bass extension of 83.7Hz (-3dB).
Cons: Bass is the weakest here, at 83.7Hz for -3dB and about 61.9Hz for -10dB in free air, so it needs a subwoofer. Listening-window smoothness is 0.59 inside a 3.1dB reference band, and the data is manufacturer supplied and digitized from graphs. At $3630 each it costs twice as much as the better-measuring SCL-6.
Full JBL Synthesis SCL-4 review and specifications →
| Bass Extension (-10dB) | 61.9Hz (measured, JBL data on spinorama.org) |
|---|---|
| Bass Extension (-3dB) | 83.7Hz (measured, JBL data on spinorama.org) |
| Crossover Frequency | 1.3kHz |
| DIY Kit | No |
| Dimensions | 25”H x 16.1”W x 3.7”D (636 x 409 x 93 mm) |
| Drivers | 7” aluminum matrix cone woofer, 1” 2409H compression driver on HDI horn (2-way) |
| Enclosure | In-wall, integrated MDF back box |
| Frequency Response | 45Hz-33kHz -6dB (manufacturer, on-axis) |
| Impedance | 6 ohms |
| Power Handling | 200W RMS maximum recommended amplifier power |
| Sensitivity | 91dB (2.83V/1m) |
| Spinorama Preference Score | 3.56 |
| Spinorama Preference Score with Perfect Sub | 6.55 |
| Weight | 27.6 lbs (12.51 kg) |
