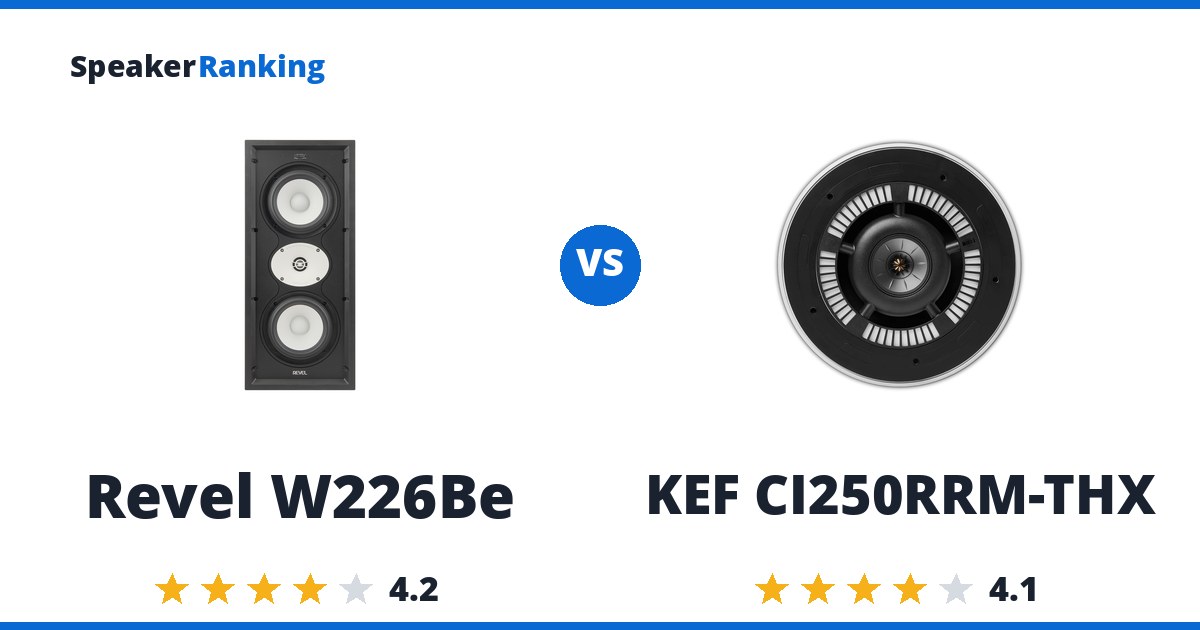

Short answer: the Revel W226Be. It ranks #5 of 28 in-wall speakers by sound quality, rated 4.2/5, at $4,949.90. The KEF CI250RRM-THX ranks #7, rated 4.1/5, at $4,357.90, $592 cheaper, which does not close the gap in sound quality.
The Revel W226Be is the more accurate pick. A premium in-wall speaker with twin woofers for deeper bass, a beryllium tweeter, accurate sound and high output. Its measured preference score, a predictor of how neutral it sounds, is 5.51 against 4.67 for the KEF CI250RRM-THX. The tradeoff: The measurement comes from Revel, digitized from its published curves, and has no independent second test, so treat the figures as manufacturer supplied.
The case for the KEF CI250RRM-THX: An in-ceiling speaker with very deep bass for its type, voiced for Atmos height or surround channels and great with room correction. The tradeoff: At $2179 each, this is the most expensive speaker in this category.
Buy the Revel W226Be. It is rated higher for sound quality, and saving $592 with the KEF CI250RRM-THX does not make up for the sound-quality gap.
Looking for alternatives? See the complete Passive Home rankings.
Prices on this page were last checked November 7, 2026 at 7:34 PM UTC. Product prices and availability are accurate as of that date/time and are subject to change; the price and availability shown on Amazon at the time of purchase will apply to the purchase of this product.
As an eBay Partner, we may be compensated if you make a purchase.
Specifications Side By Side
| Revel W226Be | KEF CI250RRM-THX | |
|---|---|---|
| Price | $4,949.90 per pair | $4,357.90 per pair |
| Ranked | #5 of 28 in In-Wall & In-Ceiling Speakers | #7 of 28 in In-Wall & In-Ceiling Speakers |
| Drivers | 2x 6.5” Deep Ceramic Composite (DCC) aluminum cone woofers, 1” beryllium dome tweeter with acoustic lens waveguide (2-way) | 10” LF woofer, 4” Uni-Q midrange, 1” vented aluminum dome tweeter with MAT (3-way coaxial) |
| Enclosure | In-wall, 18-36L enclosure (optional W226BEBB back box sold separately) | Open-backed, in-ceiling |
| Mounting Cutout | 226W x 549H mm | 300mm (11.81 in) |
| Dimensions | 23”H x 10.2”W x 3.8”D (583 x 259 x 96 mm) (88mm mounting depth) | 13.6” x 13.6” x 6.9” (346 x 346 x 175 mm) (168mm mounting depth) |
| Weight | 15.7 lbs (7.1 kg) | 13.2 lbs (6 kg) |
| Sensitivity | 90dB | 89dB |
| Impedance | 6 ohms nominal (4 ohm minimum) | 8 ohms |
| Power Handling | 50-200W RMS at 4 ohms | 50-250W recommended amplifier power |
| Frequency Response | 43Hz-40kHz (-6dB, manufacturer) | 28Hz-20kHz +/-6dB (manufacturer, open-backed) |
| Maximum SPL | 110dB (manufacturer specified) | - |
| Crossover Frequency | 2,000Hz | - |
| Bass Extension (-3dB) | 48.1Hz (measured, Revel vendor data on spinorama.org) | 51.3Hz (measured, spinorama.org ASR data) |
| Bass Extension (-10dB) | 36.4Hz (measured, Revel vendor data on spinorama.org) | 23.3Hz (measured, spinorama.org ASR data) |
| Spinorama Preference Score | 5.51 | 4.67 |
| Spinorama Preference Score with Perfect Sub | 7.60 | 6.68 |
| DIY Kit | No | No |
| Certification | - | THX |
