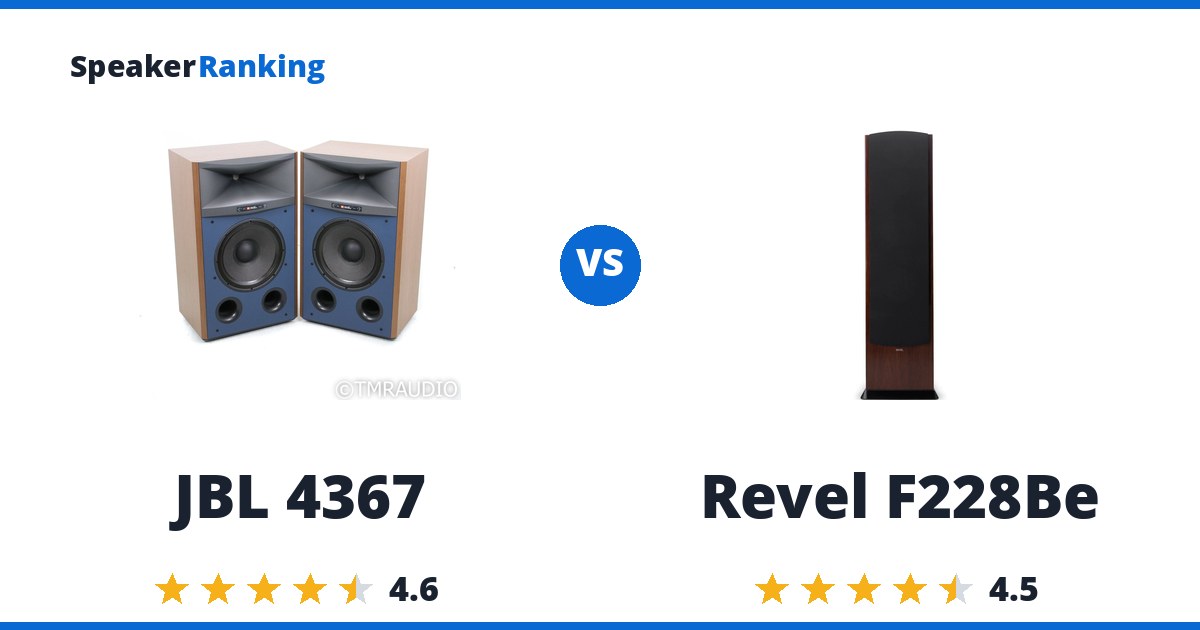

Short answer: the JBL 4367 for better sound quality, the Revel F228Be for the lower price. The JBL 4367 ranks #11 of 56 floorstanding speakers at $16500. The Revel F228Be ranks #15 at $7000, $9500 cheaper.
On the JBL 4367 side: Three-way design pairing a 15” front-ported woofer with a compression driver on a controlled-dispersion horn/waveguide, crossed over at 700Hz. Set against that: At roughly $16,500/pair, this is a major investment - the reviewer recommends buying from a dealer with a liberal return policy.
The case for the Revel F228Be: CEA2034 spinorama shows an essentially flat on-axis response with very nice directivity. The tradeoff: Minimum impedance dips to 3.4 ohms with a secondary rise around 2kHz, calling for an amplifier comfortable with a demanding load.
Buy the JBL 4367 if sound quality matters more than the price. Buy the Revel F228Be if the price matters more than sound quality.
Specifications Side By Side
| JBL 4367 | Revel F228Be | |
|---|---|---|
| Price | $16500 | $7000 |
| Ranked | #11 of 56 in Large Size Floorstanding Speakers | #15 of 56 in Large Size Floorstanding Speakers |
| Bass Extension (-10dB) | 31Hz (measured, Erin’s Audio Corner) | 25Hz (measured, Audio Science Review) |
| Bass Extension (-3dB) | 43Hz (measured, Erin’s Audio Corner) | 61Hz (measured, Audio Science Review) |
| Dimensions | 37.2"H x 22.2"W x 16.8"D (944.9 x 563.9 x 426.7 mm) | 50.9"H x 13.5"W x 17.6"D (1292.9 x 342.9 x 447 mm) |
| Impedance | 4 ohms nominal (5.3 ohms minimum above 80Hz, measured by Erin’s Audio Corner) | 8 ohms |
| Sensitivity | 92.5dB (measured average, Erin’s Audio Corner) | 89.3dB (300Hz-3kHz @ 2.83V/1m, measured by Audio Science Review; 90dB manufacturer specified) |
| Drivers | 15" (380mm) 2216Nd-1 Dual Differential Drive® woofer, 3" (75mm) D2430K dual compression tweeter | Dual 8" (200mm) Deep Ceramic Composite aluminum cones, with cast frames woofers, 5-1/4" (130mm) Deep Ceramic Composite aluminum cone, with cast frame midrange, 1" (25mm) Beryllium dome, with acoustic lens waveguide tweeter |
| Weight | 119 lbs / 54 kg each | 112.4 lbs / 51 kg each |
| Woofer Cabinet | ported, front | ported, front |
Related Speaker Comparisons
More useful head-to-heads from the same speaker class:
- Revel F328Be vs Revel F226Be
- Revel F226Be vs PS Audio Aspen FR10
- Revel F328Be vs KEF Reference 203
- Revel F226Be vs JBL 4367
- JBL 4367 vs MoFi SourcePoint 888
The Two Speakers In Full
JBL 4367: $16500
Pros: Three-way design pairing a 15” front-ported woofer with a compression driver on a controlled-dispersion horn/waveguide, crossed over at 700Hz. On-axis frequency response is nearly dead flat, holding within about ±1.5dB, with the listening window tracking it closely except right at the crossover. Distortion stays below 1% THD across the entire audible band at both 86dB and 96dB. Compression/dynamic-range linearity is exceptional - within about a quarter of a dB from 76dB to 102dB, among the best the reviewer has measured. High sensitivity (about 92.6dB average) eases the amplifier match despite the speaker’s size. Minimal rear radiation thanks to the 15” woofer’s directivity and front-firing ports - rear energy runs about 20dB down from the primary wavefront, giving it a near-cardioid radiation pattern. Well-controlled horn directivity keeps the soundstage from noticeably shifting in width across the 700Hz crossover region. A natural high-frequency rolloff above about 7-8kHz gives it an easy, non-fatiguing character for extended listening sessions.
Cons: At roughly $16,500/pair, this is a major investment - the reviewer recommends buying from a dealer with a liberal return policy. Vertical response shows dips beyond about ±10-20°, with a larger null further out - an inherent trade-off of mating a 15” woofer to a horn compression driver at a 700Hz crossover, since crossing lower would hurt power handling and dynamic range. Horizontal directivity isn’t perfectly consistent with frequency: narrow (about ±20°) through 200-800Hz, briefly widening to near ±50° above the crossover, then narrowing again at high frequency - an unusual, non-constant pattern. The high-frequency rolloff that gives it an easy-listening character also reduces the sense of air and space in the soundstage when listening from off-center seats. Massive and heavy (about 120 lbs, roughly 36-37” tall) - needs to be raised on a stand to bring the horn to ear level, and isn’t something one person easily moves alone. Only modest EQ adjustment is available on the speaker itself (about ±1-2dB bass/treble trim).
Full JBL 4367 review and specifications →
| Bass Extension (-10dB) | 31Hz (measured, Erin's Audio Corner) |
|---|---|
| Bass Extension (-3dB) | 43Hz (measured, Erin's Audio Corner) |
| Dimensions | 37.2"H x 22.2"W x 16.8"D (944.9 x 563.9 x 426.7 mm) |
| Drivers | 15" (380mm) 2216Nd-1 Dual Differential Drive® woofer, 3" (75mm) D2430K dual compression tweeter |
| Impedance | 4 ohms nominal (5.3 ohms minimum above 80Hz, measured by Erin's Audio Corner) |
| Sensitivity | 92.5dB (measured average, Erin's Audio Corner) |
| Weight | 119 lbs / 54 kg each |
| Woofer Cabinet | ported, front |
As an eBay Partner, we may be compensated if you make a purchase.
- Links
- Reviews, Comparisons and Sound Samples
- Head-to-Head Comparisons
Revel F228Be: $7000 Crutchfield
Pros: CEA2034 spinorama shows an essentially flat on-axis response with very nice directivity. Predicted in-room response is nearly perfect, with a smooth slope down from bass to treble. Horizontal beamwidth of about ±70 degrees is wide and holds up well until narrowing above 8kHz. Vertical directivity offers more degrees of listening-height freedom than a typical bookshelf design, a benefit of this tower’s driver layout. Distortion is extremely low across the full audio range at 86dB SPL/1m and stays comfortable even at 96dB SPL/1m. Near-field measurements of the individual drivers show nice, well-integrated crossover behavior with only low-level resonances.
Cons: Minimum impedance dips to 3.4 ohms with a secondary rise around 2kHz, calling for an amplifier comfortable with a demanding load. Very expensive and very heavy (51 kg each).
Full Revel F228Be review and specifications →
| Bass Extension (-10dB) | 25Hz (measured, Audio Science Review) |
|---|---|
| Bass Extension (-3dB) | 61Hz (measured, Audio Science Review) |
| Dimensions | 50.9"H x 13.5"W x 17.6"D (1292.9 x 342.9 x 447 mm) |
| Drivers | Dual 8" (200mm) Deep Ceramic Composite aluminum cones, with cast frames woofers, 5-1/4" (130mm) Deep Ceramic Composite aluminum cone, with cast frame midrange, 1" (25mm) Beryllium dome, with acoustic lens waveguide tweeter |
| Impedance | 8 ohms |
| Sensitivity | 89.3dB (300Hz-3kHz @ 2.83V/1m, measured by Audio Science Review; 90dB manufacturer specified) |
| Weight | 112.4 lbs / 51 kg each |
| Woofer Cabinet | ported, front |
