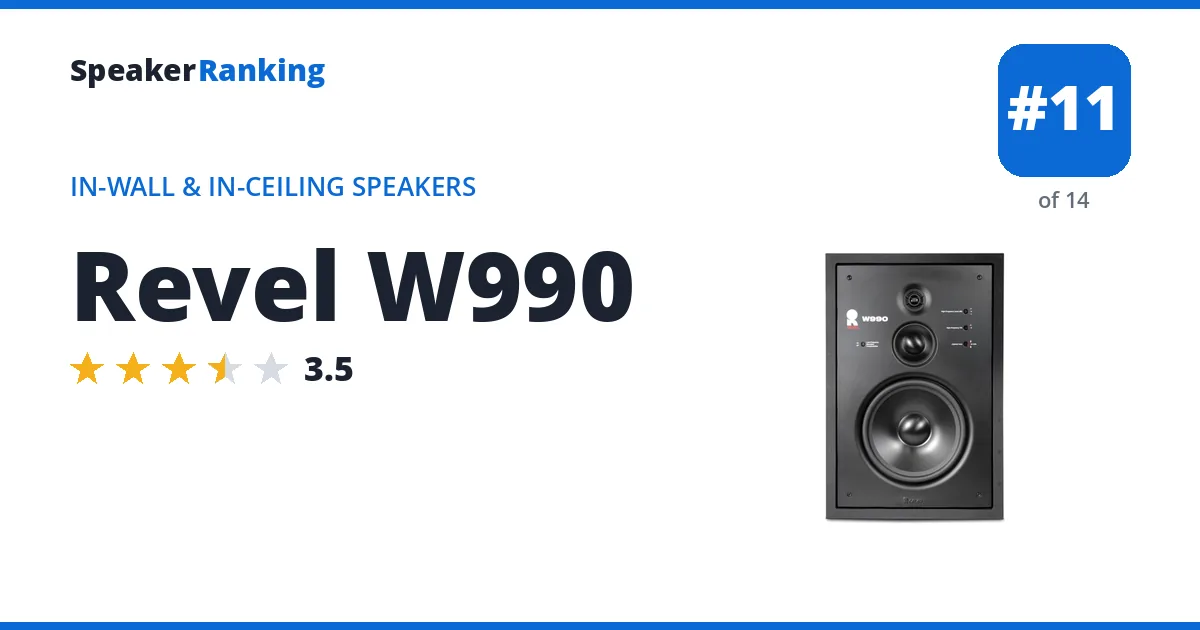

The Revel W990 ranks #11 out of 14 total In-Wall & In-Ceiling Speakers for sound quality. See all Passive Home rankings for every top pick.
Brand: Revel
Prices on this page were last checked September 24, 2026 at 10:28 PM UTC. Product prices and availability are accurate as of that date/time and are subject to change; the price and availability shown on Amazon at the time of purchase will apply to the purchase of this product.
As an eBay Partner, we may be compensated if you make a purchase.
#11 Revel W990: $4,239.90 per pair Crutchfield eBay
Pros: Audio Science Review’s Klippel measurement shows some of the deepest bass of any in-wall speaker, with -3dB at 32.2Hz and -6dB at 27.8Hz, so it can carry music without a subwoofer better than most. Directivity is well controlled (SPDI deviation 1.95dB). It is a three-way with a 9” woofer, a 3.5” midrange and a 1” aluminum dome tweeter, accepts 10-200W of amplifier power, and offers high frequency level, tilt, boundary compensation and listener axis controls to tune it to the room. Measured bass extension of 32.2Hz (-3dB), with a measured sensitivity of 85.9dB.
Cons: Its measured preference score is only 3.6, or 5.09 with a perfect subwoofer, because the midrange is uneven: on-axis deviation is high (0.86 normalized deviation on axis, 0.69 in the listening window) and on-axis smoothness is just 0.34. ASR’s computed sensitivity is about 85.9dB, so it needs more amplifier power than most speakers to play loud. At $2120 each a stereo pair costs twice that, which is a high price for the measured performance.
How it compares: Just above it: KEF CI130.2CR - $1820 cheaper, 1.1Hz higher bass extension (-3dB). Just below it: Grimani Systems Rixos-L - $6080 more, 10.1Hz higher bass extension (-3dB).
| Bass Extension (-10dB) | 22.4Hz (measured, Audio Science Review) |
|---|---|
| Bass Extension (-3dB) | 32.2Hz (measured, Audio Science Review) |
| DIY Kit | No |
| Dimensions | 20.7”H x 13.9”W x 4.1”D (527 x 352 x 103 mm) (95mm mounting depth) |
| Drivers | 9” micro-ceramic composite (MCC) woofer, 3.5” midrange, 1” aluminum dome tweeter with waveguide (3-way) |
| Enclosure | In-wall, passive |
| Mounting Cutout | 318W x 486H mm |
| Power Handling | 10-200W RMS recommended amplifier power |
| Sensitivity | 85.9dB (measured, Audio Science Review) |
| Spinorama Preference Score | 3.60 |
| Spinorama Preference Score with Perfect Sub | 5.09 |
| Warranty | 5 years |
| Weight | 17 lbs (7.7 kg) |
