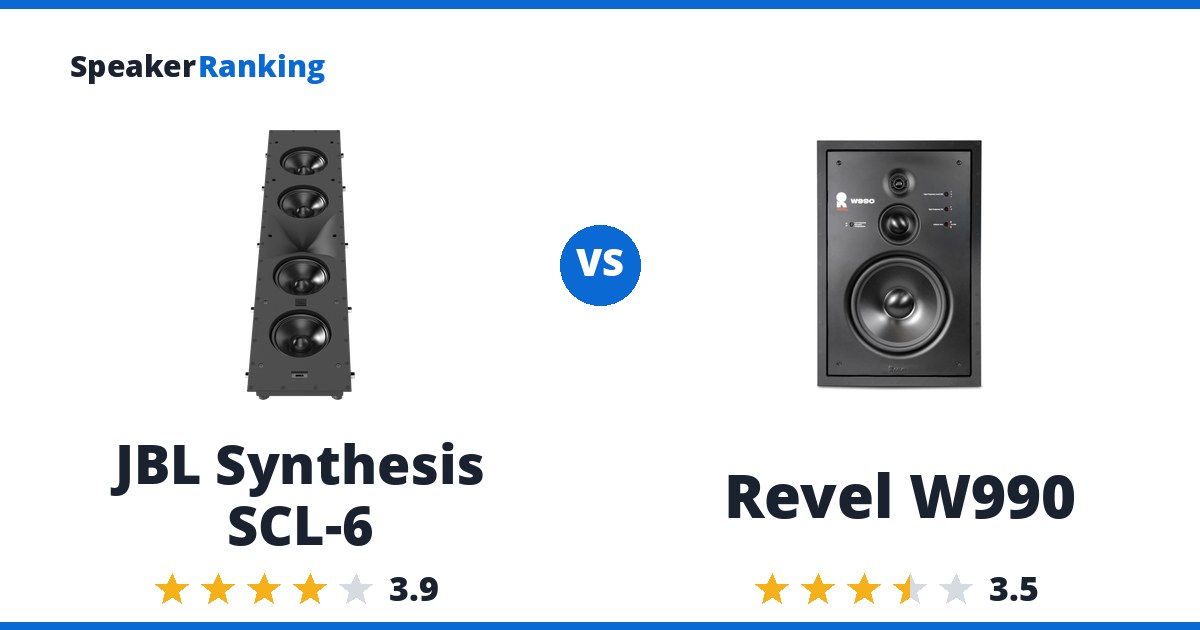

Short answer: the JBL Synthesis SCL-6. It ranks #8 of 18 in-wall speakers by sound quality, rated 3.9/5, at $3,629.90; the Revel W990 ranks #15, rated 3.5/5, and costs $4,239.90, so there is little reason to consider the other one.
What the JBL Synthesis SCL-6 does well: Erin’s Audio Corner measured it with a very tight 1.2dB reference band and 0.67 listening-window smoothness, and its preference score rises from 3.92 to 6.71 with a subwoofer. The catch: Bass is limited without a subwoofer, and a 3.92 standard score trails the best in-wall speakers here.
Why pick the Revel W990: Audio Science Review’s Klippel measurement shows some of the deepest bass of any in-wall speaker, with -3dB at 32.2Hz and -6dB at 27.8Hz, so it can carry music without a subwoofer better than most. The catch: Its measured preference score is only 3.6, or 5.09 with a perfect subwoofer, because the midrange is uneven: on-axis deviation is high (0.86 normalized deviation on axis, 0.69 in the listening window) and on-axis smoothness is just 0.34.
Buy the JBL Synthesis SCL-6. It is rated higher for sound quality than the Revel W990 and costs less, which makes it the one to get unless you need something the other one does better.
Looking for alternatives? See the complete Passive Home rankings.
Specifications Side By Side
| JBL Synthesis SCL-6 | Revel W990 | |
|---|---|---|
| Price | $3,629.90 per pair | $4,239.90 per pair |
| Ranked | #8 of 18 in In-Wall & In-Ceiling Speakers | #15 of 18 in In-Wall & In-Ceiling Speakers |
| Drivers | Four 5.25” aluminum matrix cone woofers, 1” 2410H-2 compression driver on HDI horn (2.5-way) | 9” micro-ceramic composite (MCC) woofer, 3.5” midrange, 1” aluminum dome tweeter with waveguide (3-way) |
| Enclosure | In-wall, open back | In-wall, passive |
| Mounting Cutout | 157 x 766mm (6.18 x 30.18 in) | 318W x 486H mm |
| Dimensions | 31.3”H x 7.3”W x 3.8”D (796 x 185 x 97 mm) (92mm mounting depth) | 20.7”H x 13.9”W x 4.1”D (527 x 352 x 103 mm) (95mm mounting depth) |
| Weight | 22.2 lbs (10.07 kg) | 17 lbs (7.7 kg) |
| Sensitivity | 91dB (2.83V/1m, 2pi anechoic) | 85.9dB (measured, Audio Science Review) |
| Impedance | 4 ohms | - |
| Power Handling | 25-200W recommended amplifier power | 10-200W RMS recommended amplifier power |
| Frequency Response | 50Hz-30kHz -6dB (manufacturer, 2pi) | - |
| Crossover Frequency | 1.8kHz | - |
| Bass Extension (-3dB) | 67.4Hz (measured, spinorama.org Erin’s Audio Corner data) | 32.2Hz (measured, Audio Science Review) |
| Bass Extension (-10dB) | 40.8Hz (measured, spinorama.org Erin’s Audio Corner data) | 22.4Hz (measured, Audio Science Review) |
| Spinorama Preference Score | 3.92 | 3.60 |
| Spinorama Preference Score with Perfect Sub | 6.71 | 5.09 |
| DIY Kit | No | No |
| Warranty | - | 5 years |
Related Speaker Comparisons
How JBL Synthesis SCL-6 compares with other leading options:
- Revel W126Be vs JBL Synthesis SCL-6
- JBL Synthesis SCL-6 vs KEF CI200RR-THX
- JBL Synthesis SCL-6 vs JBL Synthesis SCL-7
- JBL Synthesis SCL-6 vs Miller & Kreisel IW150
- Miller & Kreisel IW150 vs Revel W990
Prices on this page were last checked September 26, 2026 at 11:14 PM UTC. Product prices and availability are accurate as of that date/time and are subject to change; the price and availability shown on Amazon at the time of purchase will apply to the purchase of this product.
As an eBay Partner, we may be compensated if you make a purchase.
The Two Speakers In Full
JBL Synthesis SCL-6: $3,629.90 per pair Audio Advice eBay
Pros: Erin’s Audio Corner measured it with a very tight 1.2dB reference band and 0.67 listening-window smoothness, and its preference score rises from 3.92 to 6.71 with a subwoofer. Four 5.25-inch aluminum woofers around a 2410H-2 compression driver on JBL’s imaging horn give 91dB sensitivity and high output, with an 80 degree by 80 degree treble coverage pattern that keeps directivity consistent. Bass measures 67.4Hz at -3dB and about 40.8Hz at -10dB in free air, before the extra wall reinforcement of an in-wall install. Measured bass extension of 67.4Hz (-3dB).
Cons: Bass is limited without a subwoofer, and a 3.92 standard score trails the best in-wall speakers here. Average on-axis deviation of 0.49dB is rougher than the Revel in-walls. The 4 ohm load and 766mm tall cutout need a capable amplifier and a tall wall cavity, and at $1815 each it is sold mainly through custom-installation dealers.
Full JBL Synthesis SCL-6 review and specifications →
| Bass Extension (-10dB) | 40.8Hz (measured, spinorama.org Erin’s Audio Corner data) |
|---|---|
| Bass Extension (-3dB) | 67.4Hz (measured, spinorama.org Erin’s Audio Corner data) |
| Crossover Frequency | 1.8kHz |
| DIY Kit | No |
| Dimensions | 31.3”H x 7.3”W x 3.8”D (796 x 185 x 97 mm) (92mm mounting depth) |
| Drivers | Four 5.25” aluminum matrix cone woofers, 1” 2410H-2 compression driver on HDI horn (2.5-way) |
| Enclosure | In-wall, open back |
| Frequency Response | 50Hz-30kHz -6dB (manufacturer, 2pi) |
| Impedance | 4 ohms |
| Mounting Cutout | 157 x 766mm (6.18 x 30.18 in) |
| Power Handling | 25-200W recommended amplifier power |
| Sensitivity | 91dB (2.83V/1m, 2pi anechoic) |
| Spinorama Preference Score | 3.92 |
| Spinorama Preference Score with Perfect Sub | 6.71 |
| Weight | 22.2 lbs (10.07 kg) |
- Links
- Reviews, Comparisons and Sound Samples
- Head-to-Head Comparisons
Revel W990: $4,239.90 per pair Crutchfield eBay
Pros: Audio Science Review’s Klippel measurement shows some of the deepest bass of any in-wall speaker, with -3dB at 32.2Hz and -6dB at 27.8Hz, so it can carry music without a subwoofer better than most. Directivity is well controlled (SPDI deviation 1.95dB). It is a three-way with a 9” woofer, a 3.5” midrange and a 1” aluminum dome tweeter, accepts 10-200W of amplifier power, and offers high frequency level, tilt, boundary compensation and listener axis controls to tune it to the room. Measured bass extension of 32.2Hz (-3dB), with a measured sensitivity of 85.9dB.
Cons: Its measured preference score is only 3.6, or 5.09 with a perfect subwoofer, because the midrange is uneven: on-axis deviation is high (0.86 normalized deviation on axis, 0.69 in the listening window) and on-axis smoothness is just 0.34. ASR’s computed sensitivity is about 85.9dB, so it needs more amplifier power than most speakers to play loud. At $2120 each a stereo pair costs twice that, which is a high price for the measured performance.
Full Revel W990 review and specifications →
| Bass Extension (-10dB) | 22.4Hz (measured, Audio Science Review) |
|---|---|
| Bass Extension (-3dB) | 32.2Hz (measured, Audio Science Review) |
| DIY Kit | No |
| Dimensions | 20.7”H x 13.9”W x 4.1”D (527 x 352 x 103 mm) (95mm mounting depth) |
| Drivers | 9” micro-ceramic composite (MCC) woofer, 3.5” midrange, 1” aluminum dome tweeter with waveguide (3-way) |
| Enclosure | In-wall, passive |
| Mounting Cutout | 318W x 486H mm |
| Power Handling | 10-200W RMS recommended amplifier power |
| Sensitivity | 85.9dB (measured, Audio Science Review) |
| Spinorama Preference Score | 3.60 |
| Spinorama Preference Score with Perfect Sub | 5.09 |
| Warranty | 5 years |
| Weight | 17 lbs (7.7 kg) |
