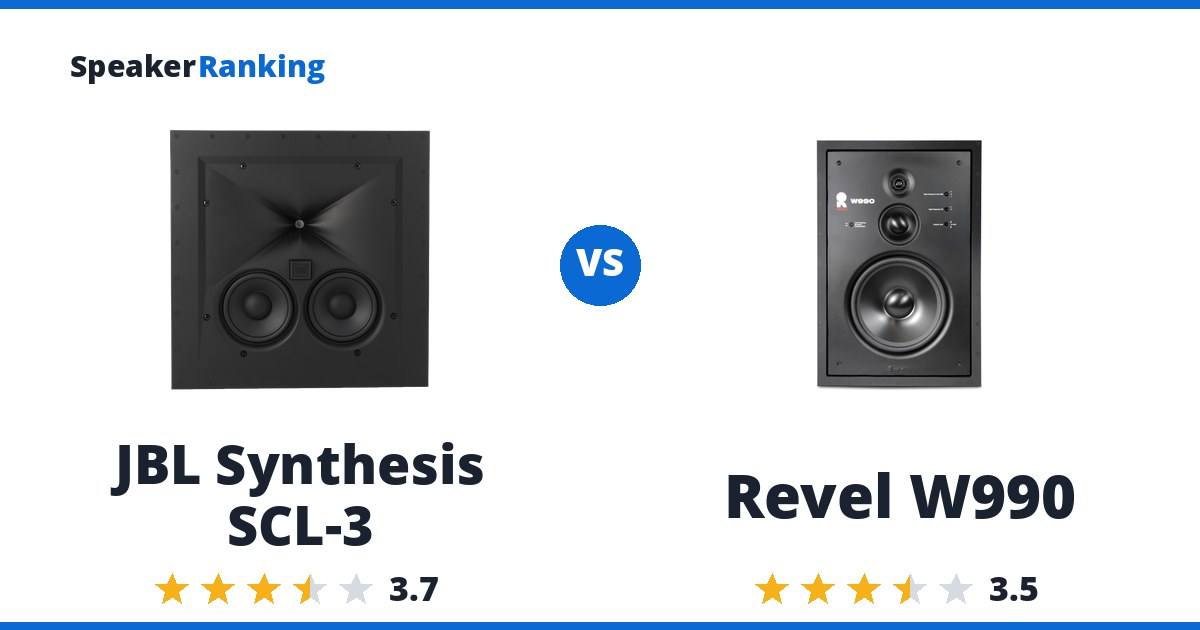

Short answer: the JBL Synthesis SCL-3. It ranks #10 of 18 in-wall speakers by sound quality, rated 3.7/5, at $7,259.90. The Revel W990 ranks #15, rated 3.5/5, at $4,239.90, $3,020 cheaper, a saving that is not big enough to make up the sound-quality gap.
Why pick the JBL Synthesis SCL-3: JBL’s own measurements show 0.32dB average on-axis deviation and a 2.28 directivity-index deviation, and the preference score rises from 3.80 to 6.42 with a subwoofer. The tradeoff: Bass rolls off early, at 72.4Hz for -3dB and about 45.8Hz for -10dB in free air, so it needs a subwoofer.
The case for the Revel W990: Audio Science Review’s Klippel measurement shows some of the deepest bass of any in-wall speaker, with -3dB at 32.2Hz and -6dB at 27.8Hz, so it can carry music without a subwoofer better than most. The tradeoff: Its measured preference score is only 3.6, or 5.09 with a perfect subwoofer, because the midrange is uneven: on-axis deviation is high (0.86 normalized deviation on axis, 0.69 in the listening window) and on-axis smoothness is just 0.34.
Buy the JBL Synthesis SCL-3. It is rated higher for sound quality, and saving $3,020 with the Revel W990 does not make up for the sound-quality gap.
Want more options? Browse the full Passive Home rankings.
Specifications Side By Side
| JBL Synthesis SCL-3 | Revel W990 | |
|---|---|---|
| Price | $7,259.90 per pair | $4,239.90 per pair |
| Ranked | #10 of 18 in In-Wall & In-Ceiling Speakers | #15 of 18 in In-Wall & In-Ceiling Speakers |
| Drivers | Two 5.25” aluminum matrix cone woofers, 1” 2409H compression driver on HDI horn (2-way) | 9” micro-ceramic composite (MCC) woofer, 3.5” midrange, 1” aluminum dome tweeter with waveguide (3-way) |
| Enclosure | In-wall/in-ceiling, integrated MDF back box | In-wall, passive |
| Dimensions | 16.5”H x 16.5”W x 6”D (418 x 418 x 153 mm) | 20.7”H x 13.9”W x 4.1”D (527 x 352 x 103 mm) (95mm mounting depth) |
| Weight | 24.3 lbs (11.02 kg) | 17 lbs (7.7 kg) |
| Sensitivity | 91dB (2.83V/1m) | 85.9dB (measured, Audio Science Review) |
| Impedance | 6 ohms | - |
| Power Handling | 200W RMS maximum recommended amplifier power | 10-200W RMS recommended amplifier power |
| Frequency Response | 65Hz-33kHz -6dB (manufacturer, on-axis) | - |
| Crossover Frequency | 1.3kHz | - |
| Bass Extension (-3dB) | 72.4Hz (measured, JBL data on spinorama.org) | 32.2Hz (measured, Audio Science Review) |
| Bass Extension (-10dB) | 45.8Hz (measured, JBL data on spinorama.org) | 22.4Hz (measured, Audio Science Review) |
| Spinorama Preference Score | 3.80 | 3.60 |
| Spinorama Preference Score with Perfect Sub | 6.42 | 5.09 |
| DIY Kit | No | No |
| Mounting Cutout | - | 318W x 486H mm |
| Warranty | - | 5 years |
Related Speaker Comparisons
More top alternatives to JBL Synthesis SCL-3:
- Revel W228Be vs JBL Synthesis SCL-3
- JBL Synthesis SCL-7 vs JBL Synthesis SCL-3
- JBL Synthesis SCL-3 vs JBL Synthesis SCL-4
- JBL Synthesis SCL-3 vs Miller & Kreisel IW150
- JBL Synthesis SCL-3 vs Grimani Systems Rixos-L
Prices on this page were last checked September 26, 2026 at 11:14 PM UTC. Product prices and availability are accurate as of that date/time and are subject to change; the price and availability shown on Amazon at the time of purchase will apply to the purchase of this product.
As an eBay Partner, we may be compensated if you make a purchase.
The Two Speakers In Full
JBL Synthesis SCL-3: $7,259.90 per pair Audio Advice eBay
Pros: JBL’s own measurements show 0.32dB average on-axis deviation and a 2.28 directivity-index deviation, and the preference score rises from 3.80 to 6.42 with a subwoofer. Two 5.25-inch aluminum woofers and a 2409H compression driver on JBL’s imaging horn give 91dB sensitivity, and the square baffle works in walls or ceilings. Bi-wire and bi-amp terminals and a paintable magnetic grille suit custom home theaters. Measured bass extension of 72.4Hz (-3dB).
Cons: Bass rolls off early, at 72.4Hz for -3dB and about 45.8Hz for -10dB in free air, so it needs a subwoofer. Listening-window smoothness is only 0.43 inside a 3.1dB reference band, rougher than the other JBL Synthesis in-walls. The data is manufacturer supplied and digitized from graphs. At $3630 each it costs twice as much as the better-measuring SCL-6.
Full JBL Synthesis SCL-3 review and specifications →
| Bass Extension (-10dB) | 45.8Hz (measured, JBL data on spinorama.org) |
|---|---|
| Bass Extension (-3dB) | 72.4Hz (measured, JBL data on spinorama.org) |
| Crossover Frequency | 1.3kHz |
| DIY Kit | No |
| Dimensions | 16.5”H x 16.5”W x 6”D (418 x 418 x 153 mm) |
| Drivers | Two 5.25” aluminum matrix cone woofers, 1” 2409H compression driver on HDI horn (2-way) |
| Enclosure | In-wall/in-ceiling, integrated MDF back box |
| Frequency Response | 65Hz-33kHz -6dB (manufacturer, on-axis) |
| Impedance | 6 ohms |
| Power Handling | 200W RMS maximum recommended amplifier power |
| Sensitivity | 91dB (2.83V/1m) |
| Spinorama Preference Score | 3.80 |
| Spinorama Preference Score with Perfect Sub | 6.42 |
| Weight | 24.3 lbs (11.02 kg) |
- Links
- Reviews, Comparisons and Sound Samples
- Head-to-Head Comparisons
Revel W990: $4,239.90 per pair Crutchfield eBay
Pros: Audio Science Review’s Klippel measurement shows some of the deepest bass of any in-wall speaker, with -3dB at 32.2Hz and -6dB at 27.8Hz, so it can carry music without a subwoofer better than most. Directivity is well controlled (SPDI deviation 1.95dB). It is a three-way with a 9” woofer, a 3.5” midrange and a 1” aluminum dome tweeter, accepts 10-200W of amplifier power, and offers high frequency level, tilt, boundary compensation and listener axis controls to tune it to the room. Measured bass extension of 32.2Hz (-3dB), with a measured sensitivity of 85.9dB.
Cons: Its measured preference score is only 3.6, or 5.09 with a perfect subwoofer, because the midrange is uneven: on-axis deviation is high (0.86 normalized deviation on axis, 0.69 in the listening window) and on-axis smoothness is just 0.34. ASR’s computed sensitivity is about 85.9dB, so it needs more amplifier power than most speakers to play loud. At $2120 each a stereo pair costs twice that, which is a high price for the measured performance.
Full Revel W990 review and specifications →
| Bass Extension (-10dB) | 22.4Hz (measured, Audio Science Review) |
|---|---|
| Bass Extension (-3dB) | 32.2Hz (measured, Audio Science Review) |
| DIY Kit | No |
| Dimensions | 20.7”H x 13.9”W x 4.1”D (527 x 352 x 103 mm) (95mm mounting depth) |
| Drivers | 9” micro-ceramic composite (MCC) woofer, 3.5” midrange, 1” aluminum dome tweeter with waveguide (3-way) |
| Enclosure | In-wall, passive |
| Mounting Cutout | 318W x 486H mm |
| Power Handling | 10-200W RMS recommended amplifier power |
| Sensitivity | 85.9dB (measured, Audio Science Review) |
| Spinorama Preference Score | 3.60 |
| Spinorama Preference Score with Perfect Sub | 5.09 |
| Warranty | 5 years |
| Weight | 17 lbs (7.7 kg) |
