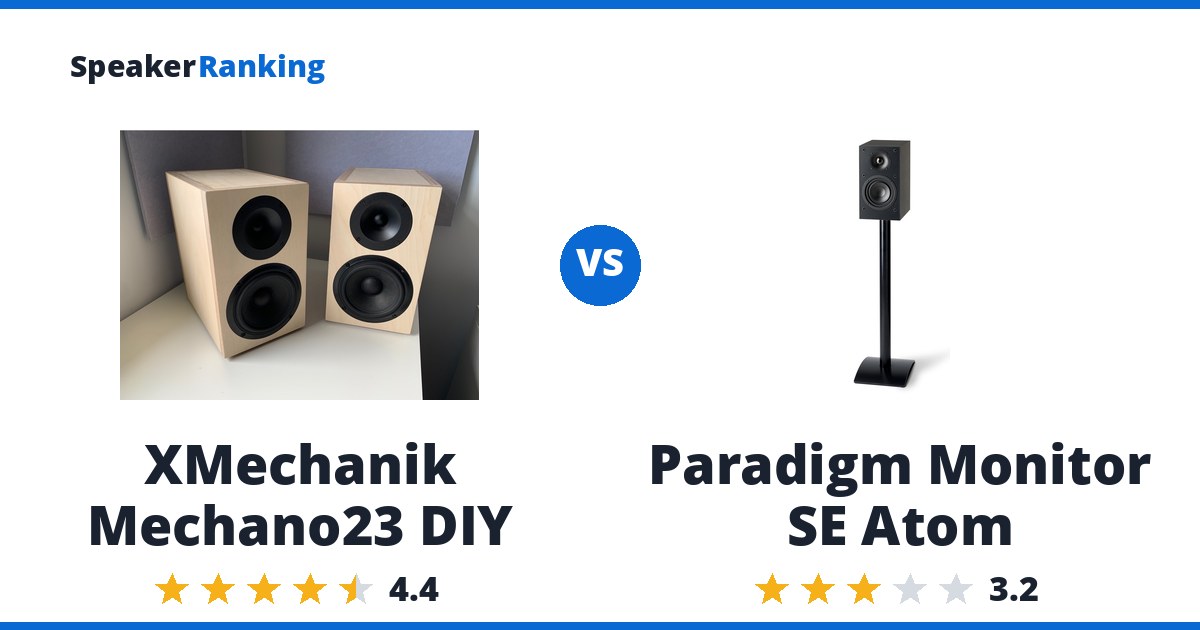

Short answer: the XMechanik Mechano23 DIY. It ranks #6 of 87 bookshelf speakers by sound quality at $48; the Paradigm Monitor SE Atom ranks #49 and costs $399.98, so there is little reason to consider the other one.
What the XMechanik Mechano23 DIY offers: The bass alignment is unusually well damped, with a measured Q of 0.336, among the lowest of any speaker in this catalog, so the -3dB point at 77.6Hz rolls off cleanly instead of building into a resonant bump the way many small ported designs do. On axis deviation measures a tight 0.195dB average, and Audio Science Review’s independent Klippel NFS review called the predicted in room response nearly perfect, with directivity matching that beats some commercial designs costing many times more, all from about $200 in parts. Watch for: This is a true DIY project. There is no assembled unit to buy, drivers come from Madisound, the crossover kit comes separately from EZ Speaker Solutions, and the birch plywood cabinet has to be built and finished by hand. Listening window smoothness measures a moderate 0.47 and the sound power directivity index has more variation (standard deviation 4.02) than the tightest speakers in this catalog, so off axis energy isn’t quite as evenly controlled as the excellent on axis figures suggest.
What the Paradigm Monitor SE Atom offers: Good, consistent directivity across the on-axis, listening-window, and off-axis curves makes the Atom easier to equalize and less room-dependent than many budget speakers. Bass tuning is well judged, letting the woofer play loud on demanding tracks without bottoming out even without a subwoofer. Paradigm’s NRC research pedigree shows in the horizontal and vertical dispersion measurements. Watch for: On-axis response is uneven out of the box, with a 2-4kHz dip followed by a peak and a resonance around 15kHz that the reviewer said gives it a bright, “showroom” voicing without EQ correction. There’s no meaningful bass extension for full-range use, so a subwoofer is effectively required for anything beyond desktop or near-field listening.
Buy the XMechanik Mechano23 DIY. It ranks higher for sound quality than the Paradigm Monitor SE Atom and costs less, so the other one has nothing left to offer.
Want more options? Browse the full Passive Home rankings.
Specifications Side By Side
| XMechanik Mechano23 DIY | Paradigm Monitor SE Atom | |
|---|---|---|
| Price | $200 per pair DIY parts | $399.98 per pair |
| Ranked | #6 of 87 in Medium Size Bookshelf Speakers | #49 of 87 in Medium Size Bookshelf Speakers |
| Enclosure | ported | - |
| Drivers | Scan-Speak Discovery H2606/9200 1" horn loaded textile dome tweeter, SB Acoustics SB13PFCR25-4 5" fiber cone woofer | 1" X-PAL aluminum dome tweeter (ferrofluid, PPA lens), 5.5" mineral-filled polypropylene mid/bass |
| Dimensions | 11.4"H x 6.9"W x 10.4"D (290 x 174 x 263 mm) | 12.75H x 7.125W x 11D in |
| Sensitivity | 85.1dB @ 2.83V/1m (measured, Audio Science Review) | 85dB (2.83V/1m, measured, Audio Science Review) |
| Bass Extension (-3dB) | 77.6Hz (measured, Audio Science Review) | 82Hz (measured, Audio Science Review) |
| Bass Extension (-10dB) | 42.4Hz (measured, Audio Science Review) | 62Hz (measured, Audio Science Review) |
| Port Tuning | Approximately 45Hz | - |
| Cabinet Material | 18mm Baltic birch plywood | - |
| Country | Design origin: United States (ASR forum); assembled by buyer | - |
| Spinorama Preference Score | 4.70 | 3.41 |
| Spinorama Preference Score with Perfect Sub | 7.16 | 5.77 |
| Weight | - | 11.9 lbs (5.4 kg) each |
| Frequency Response | - | 61Hz - 21kHz +/-3dB (Manufacturer specified) |
| Impedance | - | 8 ohms |
| Power Handling | - | 15-100W recommended |
| Woofer Cabinet | - | ported, rear |
Related Speaker Comparisons
How XMechanik Mechano23 DIY compares with other leading options:
- XMechanik Mechano23 DIY vs Audio First Fidelia
- XMechanik Mechano23 DIY vs Philharmonic Ceramic Mini
- Ascend Sierra 1 v2 vs XMechanik Mechano23 DIY
- KEF LS50 Meta vs XMechanik Mechano23 DIY
- Ascend Acoustics HTM-200SE2 vs XMechanik Mechano23 DIY
Prices on this page were last checked September 16, 2026 at 12:41 AM UTC. Product prices and availability are accurate as of that date/time and are subject to change; the price and availability shown on Amazon at the time of purchase will apply to the purchase of this product.
As an eBay Partner, we may be compensated if you make a purchase.
The Two Speakers In Full
XMechanik Mechano23 DIY: $200 per pair DIY parts Madisound (Tweeter) Madisound (Woofer) eBay
Pros: The bass alignment is unusually well damped, with a measured Q of 0.336, among the lowest of any speaker in this catalog, so the -3dB point at 77.6Hz rolls off cleanly instead of building into a resonant bump the way many small ported designs do. On axis deviation measures a tight 0.195dB average, and Audio Science Review’s independent Klippel NFS review called the predicted in room response nearly perfect, with directivity matching that beats some commercial designs costing many times more, all from about $200 in parts. Measured bass extension of 77.6Hz (-3dB), with a measured sensitivity of 85.1dB.
Cons: This is a true DIY project. There is no assembled unit to buy, drivers come from Madisound, the crossover kit comes separately from EZ Speaker Solutions, and the birch plywood cabinet has to be built and finished by hand. Listening window smoothness measures a moderate 0.47 and the sound power directivity index has more variation (standard deviation 4.02) than the tightest speakers in this catalog, so off axis energy isn’t quite as evenly controlled as the excellent on axis figures suggest.
Full XMechanik Mechano23 DIY review and specifications →
| Bass Extension (-10dB) | 42.4Hz (measured, Audio Science Review) |
|---|---|
| Bass Extension (-3dB) | 77.6Hz (measured, Audio Science Review) |
| Cabinet Material | 18mm Baltic birch plywood |
| Country | Design origin: United States (ASR forum); assembled by buyer |
| Dimensions | 11.4"H x 6.9"W x 10.4"D (290 x 174 x 263 mm) |
| Drivers | Scan-Speak Discovery H2606/9200 1" horn loaded textile dome tweeter, SB Acoustics SB13PFCR25-4 5" fiber cone woofer |
| Enclosure | ported |
| Port Tuning | Approximately 45Hz |
| Sensitivity | 85.1dB @ 2.83V/1m (measured, Audio Science Review) |
| Spinorama Preference Score | 4.70 |
| Spinorama Preference Score with Perfect Sub | 7.16 |
- Links
- Reviews, Comparisons and Sound Samples
- Head-to-Head Comparisons
- XMechanik Mechano23 DIY vs Ascend Acoustics HTM-200SE2
- XMechanik Mechano23 DIY vs Arendal 1961 Monitor
- XMechanik Mechano23 DIY vs KEF LS50 Meta
- XMechanik Mechano23 DIY vs Ascend Sierra 1 v2
- XMechanik Mechano23 DIY vs Philharmonic Ceramic Mini
- XMechanik Mechano23 DIY vs Ascend Acoustics Luna V2 Mini-Monitor Titan
- XMechanik Mechano23 DIY vs Aalto Speakers Aalto 1 EVO
- XMechanik Mechano23 DIY vs Audio First Fidelia
- See all 20 comparisons
Paradigm Monitor SE Atom: $399.98 per pair Amazon eBay
Pros: Good, consistent directivity across the on-axis, listening-window, and off-axis curves makes the Atom easier to equalize and less room-dependent than many budget speakers. Bass tuning is well judged, letting the woofer play loud on demanding tracks without bottoming out even without a subwoofer. Paradigm’s NRC research pedigree shows in the horizontal and vertical dispersion measurements. Measured bass extension of 82Hz (-3dB), with a measured sensitivity of 85dB.
Cons: On-axis response is uneven out of the box, with a 2-4kHz dip followed by a peak and a resonance around 15kHz that the reviewer said gives it a bright, “showroom” voicing without EQ correction. There’s no meaningful bass extension for full-range use, so a subwoofer is effectively required for anything beyond desktop or near-field listening.
Full Paradigm Monitor SE Atom review and specifications →
| Bass Extension (-10dB) | 62Hz (measured, Audio Science Review) |
|---|---|
| Bass Extension (-3dB) | 82Hz (measured, Audio Science Review) |
| Dimensions | 12.75H x 7.125W x 11D in |
| Drivers | 1" X-PAL aluminum dome tweeter (ferrofluid, PPA lens), 5.5" mineral-filled polypropylene mid/bass |
| Frequency Response | 61Hz - 21kHz +/-3dB (Manufacturer specified) |
| Impedance | 8 ohms |
| Power Handling | 15-100W recommended |
| Sensitivity | 85dB (2.83V/1m, measured, Audio Science Review) |
| Spinorama Preference Score | 3.41 |
| Spinorama Preference Score with Perfect Sub | 5.77 |
| Weight | 11.9 lbs (5.4 kg) each |
| Woofer Cabinet | ported, rear |
