Short answer: the Ascend Acoustics Sierra 1 v2 for better sound quality, the XMechanik Mechano23 DIY for the lower price. The Ascend Acoustics Sierra 1 v2 ranks #3 of 178 bookshelf speakers, rated 4.7/5, at $1,000. The XMechanik Mechano23 DIY ranks #6, rated 4.4/5, at $200, $800 cheaper.
The Ascend Acoustics Sierra 1 v2 is the more accurate, deeper-bass pick. Formaldehyde-free layered bamboo ply cabinet with a 1” dome tweeter over a 5.25” midwoofer, mated by a 4th-order acoustic crossover rather than a stock textbook design. Its measured preference score, a predictor of how neutral it sounds, is 6.65 against 5.42 for the XMechanik Mechano23 DIY. Its bass reaches about 55Hz before falling 3dB, against 77.6Hz for the XMechanik Mechano23 DIY. Watch for: F3 of 55Hz and F10 of 39Hz mean in-room extension tops out in the mid-40s Hz; the reviewer still recommends a subwoofer for full-range material.
Why pick the XMechanik Mechano23 DIY: The bass alignment is unusually well damped, with a measured Q of 0.336, among the lowest of any speaker in this catalog, so the -3dB point at 77.6Hz rolls off cleanly instead of building into a resonant bump the way many small ported designs do. The tradeoff: This is a true DIY project.
Buy the Ascend Acoustics Sierra 1 v2 if sound quality is the priority over the price, or the XMechanik Mechano23 DIY if the price is the priority over sound quality.
Looking for alternatives? See the complete Passive Home rankings.
Specifications Side By Side
| Ascend Acoustics Sierra 1 v2 | XMechanik Mechano23 DIY | |
|---|---|---|
| Price | $1000 per pair | $200 per pair DIY parts |
| Ranked | #3 of 178 in Medium Size Bookshelf Speakers | #6 of 178 in Medium Size Bookshelf Speakers |
| Bass Extension (-10dB) | 39Hz (measured, Erin’s Audio Corner) | 42.4Hz (measured, Audio Science Review) |
| Bass Extension (-3dB) | 55Hz (measured, Erin’s Audio Corner) | 77.6Hz (measured, Audio Science Review) |
| Dimensions | 14.2”H x 7.5”W x 10.5”D (361.9 x 190.5 x 266.7 mm) | 11.4”H x 6.9”W x 10.4”D (290 x 174 x 263 mm) |
| Impedance | 8 ohms nominal, 7 ohms minimum (measured, Erin’s Audio Corner) | 4.1 ohms nominal (measured, ASR) |
| Sensitivity | 81.5dB (measured, Erin’s Audio Corner) | 85.1dB @ 2.83V/1m (measured, Audio Science Review) |
| Drivers | 5.25” proprietary mineral-filled polypropylene cone with cast aluminum frame woofer, 26mm aluminum/magnesium alloy dome tweeter with titanium former (SEAS Titan) | Scan-Speak Discovery H2606/9200 1” horn loaded textile dome tweeter, SB Acoustics SB13PFCR25-4 5” fiber cone woofer |
| Weight | 18.5 lbs (8.4 kg) each | - |
| Woofer Cabinet | ported | - |
| Spinorama Preference Score | 6.65 | 5.42 |
| Spinorama Preference Score with Perfect Sub | 8.61 | 7.88 |
| DIY Kit | No | Yes |
| Enclosure | - | ported |
| Port Tuning | - | Approximately 45Hz |
| Cabinet Material | - | 18mm Baltic birch plywood |
| Country | - | Design origin: United States (ASR forum); assembled by buyer |
Frequency Response Compared
Both speakers’ spinorama measurements, overlaid. A flatter line is more neutral: peaks sound forward or harsh, dips sound recessed. Each curve is shifted so its average from 300 Hz to 3 kHz sits at 0 dB, so loudness differences between the two are removed and only the shape is compared. The two were measured by different sources, so small differences, especially in the bass, can come from the measurement setup rather than the speakers.
Measurement data: Ascend Acoustics Sierra 1 v2 (measured by the manufacturer) and XMechanik Mechano23 DIY (measured by Audio Science Review), via spinorama.org.
Related Speaker Comparisons
How Ascend Acoustics Sierra 1 v2 compares with other leading options:
- Ascend Acoustics Sierra 1 v2 vs Audio First Fidelia
- Ascend Acoustics Sierra 1 v2 vs Philharmonic Ceramic Mini
- Ascend Acoustics Sierra 1 v2 vs KEF LS50 Meta
- Ascend Acoustics Sierra 1 v2 vs Ascend Acoustics HTM-200SE2
- Arendal 1961 Monitor vs Ascend Acoustics Sierra 1 v2
Prices on this page were last checked October 15, 2026 at 5:41 PM UTC. Product prices and availability are accurate as of that date/time and are subject to change; the price and availability shown on Amazon at the time of purchase will apply to the purchase of this product.
As an eBay Partner, we may be compensated if you make a purchase.
The Two Speakers In Full

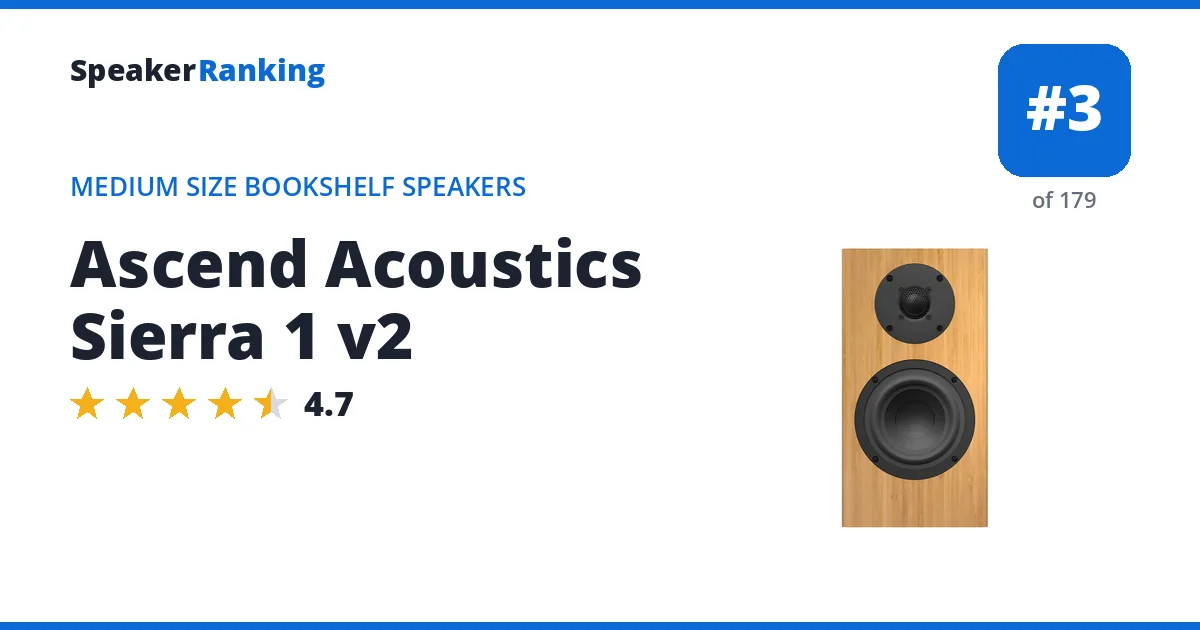

Ascend Acoustics Sierra 1 v2: $1000 per pair Ascend Acoustics $1000 eBay
Same family: the Ascend Acoustics Sierra-2EX V2 (larger bookshelf, rated 4.3/5), the Ascend Acoustics Sierra-LX (larger bookshelf, rated 4.3/5), the Ascend Acoustics Sierra Titan Tower (floorstanding, rated 4.4/5) and the Ascend Acoustics Sierra Horizon V2 (center, estimated 4.3/5). See every Ascend Sierra generation.
Pros: Formaldehyde-free layered bamboo ply cabinet with a 1” dome tweeter over a 5.25” midwoofer, mated by a 4th-order acoustic crossover rather than a stock textbook design. In-room response is extremely linear (the reviewer called it “textbook”) a clear step up from the earlier V1, which had boxiness around 700Hz-1kHz and sibilance around 4-6kHz. Preference score of 8.4 with a subwoofer (6.8 without), which the reviewer calls topnotch. Wide, even horizontal radiation of about ±70° up to 6kHz. Better vertical directivity than its tweeter-to-woofer spacing would suggest, thanks to the steep 4th-order crossover slopes. No mechanical noise, port chuffing, or woofer bottoming even driven to 96dB/1m. In a three-way comparison against the Dynaudio Emit 20 and a Revel bookshelf model (all around $1,000/pair), measured as the most linear of the three and was the reviewer’s personal pick over both, despite the Dynaudio’s deeper bass and higher output capability. Independent ASR Klippel measurements corroborate Erin’s findings: superb off-axis response with only slight on-axis variations, and an in-room response the reviewer called “incredibly smooth and accurate. Amazing for a non-DSP speaker.” Distortion above 200Hz at 86dB/1m is very low for the class. Measured bass extension of 55Hz (-3dB), with a measured sensitivity of 81.5dB.
Cons: F3 of 55Hz and F10 of 39Hz mean in-room extension tops out in the mid-40s Hz; the reviewer still recommends a subwoofer for full-range material. Diffraction dips appear around 3kHz and 5-6kHz, and the 1” dome tweeter starts beaming above roughly 6.7kHz, narrowing the soundstage radiation in the top octave: a straightforward consequence of dome size rather than a design flaw. At 96dB/1m the 5.25” midwoofer shows increased distortion in the midrange, likely tied to motor topology; high-passing to a subwoofer around 80Hz largely clears it up. Moderate sensitivity (~81-82dB average) with a 7-ohm minimum impedance. ASR’s power-sweep testing found response holds steady up to 96dB SPL/1m, but pushing to 102dB causes midbass below 400Hz to sag with distortion “through the roof”: a harder output ceiling than the 96dB tests alone suggest. Vertical directivity also narrows above about 1kHz, so the reviewer recommends staying at tweeter-axis height for best results.
Full Ascend Acoustics Sierra 1 v2 review and specifications →
| Released | Dec 2023 (2 years ago) |
|---|---|
| Bass Extension (-10dB) | 39Hz (measured, Erin’s Audio Corner) |
| Bass Extension (-3dB) | 55Hz (measured, Erin’s Audio Corner) |
| DIY Kit | No |
| Dimensions | 14.2”H x 7.5”W x 10.5”D (361.9 x 190.5 x 266.7 mm) |
| Drivers | 5.25” proprietary mineral-filled polypropylene cone with cast aluminum frame woofer, 26mm aluminum/magnesium alloy dome tweeter with titanium former (SEAS Titan) |
| Impedance | 8 ohms nominal, 7 ohms minimum (measured, Erin’s Audio Corner) |
| Sensitivity | 81.5dB (measured, Erin’s Audio Corner) |
| Spinorama Preference Score | 6.65 |
| Spinorama Preference Score with Perfect Sub | 8.61 |
| Weight | 18.5 lbs (8.4 kg) each |
| Woofer Cabinet | ported |
- Links
- Reviews, Comparisons and Sound Samples
- Erin’s Audio Corner: NEW! Ascend Acoustics Sierra-1 V2 Review More from Erin’s Audio Corner →
- Erin’s Audio Corner: 5 AWESOME SPEAKERS Under $1000 You Won’t Regret
- Erin’s Audio Corner: I Tested 250 Speakers So You Don’t Have To!
- Erin’s Audio Corner: My Top Picks of 2023: Must-Haves Under $3000
- Erin’s Audio Corner Website Ascend Sierra 1 v2
- Audio Science Review Ascend Sierra 1 v2 More from Audio Science Review →
- Manufacturer Measurements (spinorama.org)
- Head-to-Head Comparisons
- Ascend Acoustics Sierra 1 v2 vs KEF LS50 Meta
- Ascend Acoustics Sierra 1 v2 vs Philharmonic Ceramic Mini
- Ascend Acoustics Sierra 1 v2 vs Audio First Fidelia
- Ascend Acoustics Sierra 1 v2 vs Ascend Acoustics HTM-200SE2
- Ascend Acoustics Sierra 1 v2 vs Arendal 1961 Monitor
- Ascend Acoustics Sierra 1 v2 vs Ascend Acoustics Luna V2 Mini-Monitor Titan
- Ascend Acoustics Sierra 1 v2 vs Aalto Speakers Aalto 1 EVO
- Ascend Acoustics Sierra 1 v2 vs Moondrop M4P MTM
- See all 50 comparisons

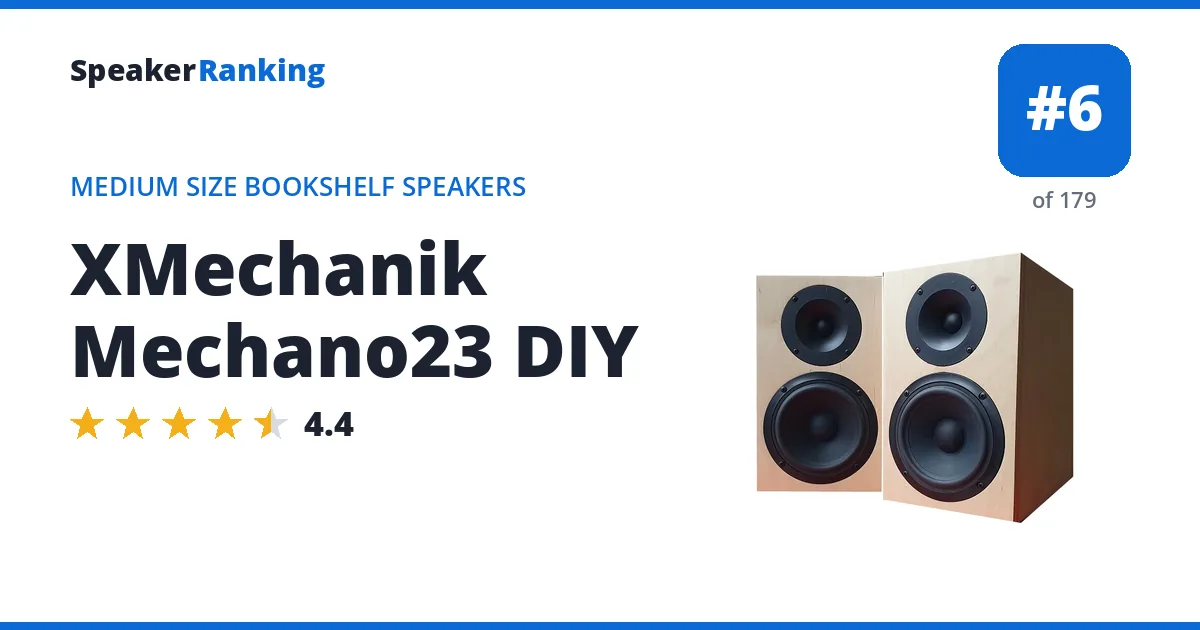

XMechanik Mechano23 DIY: $200 per pair DIY parts Madisound (Tweeter) $200 Madisound (Woofer) eBay
Pros: The bass alignment is unusually well damped, with a measured Q of 0.336, among the lowest of any speaker in this catalog, so the -3dB point at 77.6Hz rolls off cleanly instead of building into a resonant bump the way many small ported designs do. On axis deviation measures a tight 0.195dB average, and Audio Science Review’s independent Klippel NFS review called the predicted in room response nearly perfect, with directivity matching that beats some commercial designs costing many times more, all from about $200 in parts. Measured bass extension of 77.6Hz (-3dB), with a measured sensitivity of 85.1dB.
Cons: This is a true DIY project. There is no assembled unit to buy, drivers come from Madisound, the crossover kit comes separately from EZ Speaker Solutions, and the birch plywood cabinet has to be built and finished by hand. Listening window smoothness measures a moderate 0.47 and the sound power directivity index has more variation (standard deviation 4.02) than the tightest speakers in this catalog, so off axis energy isn’t quite as evenly controlled as the excellent on axis figures suggest.
Full XMechanik Mechano23 DIY review and specifications →
| Released | Feb 2023 (3 years ago) |
|---|---|
| Bass Extension (-10dB) | 42.4Hz (measured, Audio Science Review) |
| Bass Extension (-3dB) | 77.6Hz (measured, Audio Science Review) |
| Cabinet Material | 18mm Baltic birch plywood |
| Country | Design origin: United States (ASR forum); assembled by buyer |
| DIY Kit | Yes |
| Dimensions | 11.4”H x 6.9”W x 10.4”D (290 x 174 x 263 mm) |
| Drivers | Scan-Speak Discovery H2606/9200 1” horn loaded textile dome tweeter, SB Acoustics SB13PFCR25-4 5” fiber cone woofer |
| Enclosure | ported |
| Impedance | 4.1 ohms nominal (measured, ASR) |
| Port Tuning | Approximately 45Hz |
| Sensitivity | 85.1dB @ 2.83V/1m (measured, Audio Science Review) |
| Spinorama Preference Score | 5.42 |
| Spinorama Preference Score with Perfect Sub | 7.88 |
