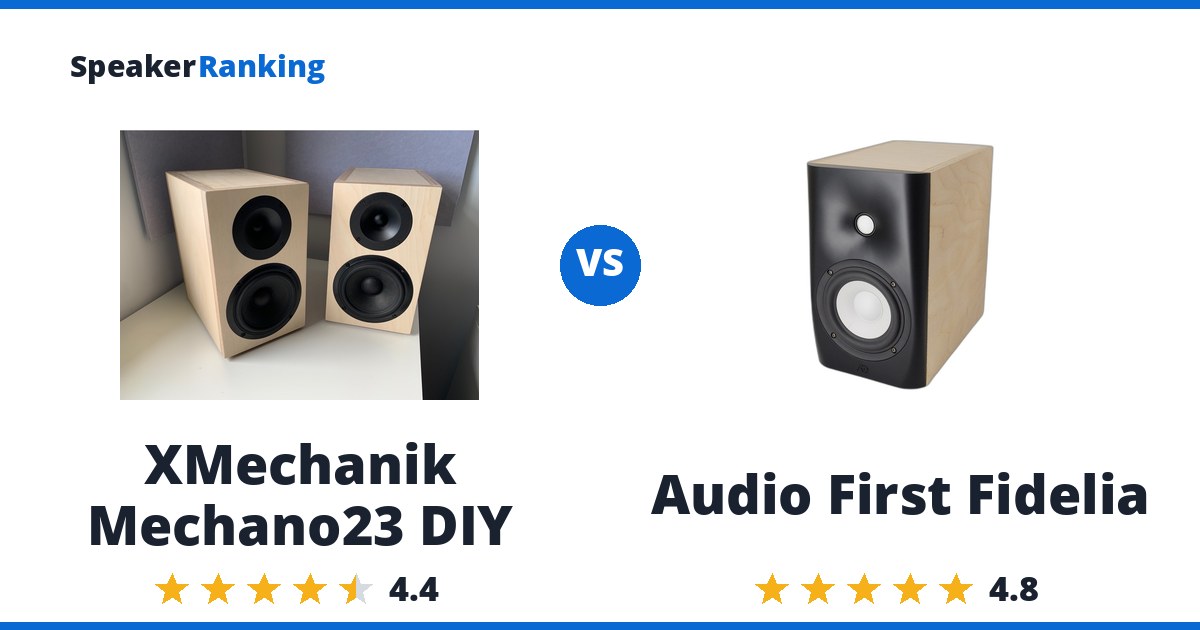

Short answer: the Audio First Fidelia. It ranks #1 of 87 bookshelf speakers by sound quality; the XMechanik Mechano23 DIY ranks #6.
What the XMechanik Mechano23 DIY offers: The bass alignment is unusually well damped, with a measured Q of 0.336, among the lowest of any speaker in this catalog, so the -3dB point at 77.6Hz rolls off cleanly instead of building into a resonant bump the way many small ported designs do. On axis deviation measures a tight 0.195dB average, and Audio Science Review’s independent Klippel NFS review called the predicted in room response nearly perfect, with directivity matching that beats some commercial designs costing many times more, all from about $200 in parts. Watch for: This is a true DIY project. There is no assembled unit to buy, drivers come from Madisound, the crossover kit comes separately from EZ Speaker Solutions, and the birch plywood cabinet has to be built and finished by hand. Listening window smoothness measures a moderate 0.47 and the sound power directivity index has more variation (standard deviation 4.02) than the tightest speakers in this catalog, so off axis energy isn’t quite as evenly controlled as the excellent on axis figures suggest.
What the Audio First Fidelia offers: Kit speaker offering exceptional value and tonal accuracy; chosen by reviewer as reference standard for future speaker tonality comparisons despite 1,250 USD price point. Achieves bass extension to 53 Hz (F3) and 38 Hz (F10) from compact cabinet. Direct-from-manufacturer availability eliminates retailer markup. Watch for: Kit assembly required; lower sensitivity (~83-85 dB vs. typical 85 dB average) demands adequate amplifier power. Only available direct from UK manufacturer with associated shipping costs and lead times. Trade-off between compact driver configuration and maximum dynamic output.
Buy the XMechanik Mechano23 DIY if the price matters more than sound quality. Buy the Audio First Fidelia if sound quality matters more than the price.
Looking for alternatives? See the complete Passive Home rankings.
Specifications Side By Side
| XMechanik Mechano23 DIY | Audio First Fidelia | |
|---|---|---|
| Price | $200 per pair DIY parts | £950 per pair for the flatpack kit (assembly required) |
| Ranked | #6 of 87 in Medium Size Bookshelf Speakers | #1 of 87 in Medium Size Bookshelf Speakers |
| Enclosure | ported | - |
| Drivers | Scan-Speak Discovery H2606/9200 1" horn loaded textile dome tweeter, SB Acoustics SB13PFCR25-4 5" fiber cone woofer | 5" ceramic-aluminum cone woofer, 1" ceramic-aluminum tweeter |
| Dimensions | 11.4"H x 6.9"W x 10.4"D (290 x 174 x 263 mm) | 11.8"H x 7.1"W x 11.7"D (300 x 180 x 297.6 mm) |
| Sensitivity | 85.1dB @ 2.83V/1m (measured, Audio Science Review) | 84dB |
| Bass Extension (-3dB) | 77.6Hz (measured, Audio Science Review) | 53Hz (measured, Erin's Audio Corner) |
| Bass Extension (-10dB) | 42.4Hz (measured, Audio Science Review) | 38Hz (measured, Erin's Audio Corner) |
| Port Tuning | Approximately 45Hz | - |
| Cabinet Material | 18mm Baltic birch plywood | - |
| Country | Design origin: United States (ASR forum); assembled by buyer | - |
| Spinorama Preference Score | 4.70 | 5.85 |
| Spinorama Preference Score with Perfect Sub | 7.16 | 7.86 |
| Crossover Frequency | - | 1560Hz |
| Impedance | - | 4 ohms |
| Weight | - | 15 lbs (6.8 kg) each |
| Woofer Cabinet | - | ported, rear |
Related Speaker Comparisons
More worthwhile head-to-heads for Audio First Fidelia:
- Philharmonic Ceramic Mini vs Audio First Fidelia
- Ascend Sierra 1 v2 vs Audio First Fidelia
- KEF LS50 Meta vs Audio First Fidelia
- Ascend Acoustics HTM-200SE2 vs Audio First Fidelia
- Audio First Fidelia vs Arendal 1961 Monitor
Prices on this page were last checked September 16, 2026 at 12:41 AM UTC. Product prices and availability are accurate as of that date/time and are subject to change; the price and availability shown on Amazon at the time of purchase will apply to the purchase of this product.
As an eBay Partner, we may be compensated if you make a purchase.
The Two Speakers In Full
XMechanik Mechano23 DIY: $200 per pair DIY parts Madisound (Tweeter) Madisound (Woofer) eBay
Pros: The bass alignment is unusually well damped, with a measured Q of 0.336, among the lowest of any speaker in this catalog, so the -3dB point at 77.6Hz rolls off cleanly instead of building into a resonant bump the way many small ported designs do. On axis deviation measures a tight 0.195dB average, and Audio Science Review’s independent Klippel NFS review called the predicted in room response nearly perfect, with directivity matching that beats some commercial designs costing many times more, all from about $200 in parts. Measured bass extension of 77.6Hz (-3dB), with a measured sensitivity of 85.1dB.
Cons: This is a true DIY project. There is no assembled unit to buy, drivers come from Madisound, the crossover kit comes separately from EZ Speaker Solutions, and the birch plywood cabinet has to be built and finished by hand. Listening window smoothness measures a moderate 0.47 and the sound power directivity index has more variation (standard deviation 4.02) than the tightest speakers in this catalog, so off axis energy isn’t quite as evenly controlled as the excellent on axis figures suggest.
Full XMechanik Mechano23 DIY review and specifications →
| Bass Extension (-10dB) | 42.4Hz (measured, Audio Science Review) |
|---|---|
| Bass Extension (-3dB) | 77.6Hz (measured, Audio Science Review) |
| Cabinet Material | 18mm Baltic birch plywood |
| Country | Design origin: United States (ASR forum); assembled by buyer |
| Dimensions | 11.4"H x 6.9"W x 10.4"D (290 x 174 x 263 mm) |
| Drivers | Scan-Speak Discovery H2606/9200 1" horn loaded textile dome tweeter, SB Acoustics SB13PFCR25-4 5" fiber cone woofer |
| Enclosure | ported |
| Port Tuning | Approximately 45Hz |
| Sensitivity | 85.1dB @ 2.83V/1m (measured, Audio Science Review) |
| Spinorama Preference Score | 4.70 |
| Spinorama Preference Score with Perfect Sub | 7.16 |
- Links
- Reviews, Comparisons and Sound Samples
- Head-to-Head Comparisons
- XMechanik Mechano23 DIY vs Ascend Acoustics HTM-200SE2
- XMechanik Mechano23 DIY vs Arendal 1961 Monitor
- XMechanik Mechano23 DIY vs KEF LS50 Meta
- XMechanik Mechano23 DIY vs Ascend Sierra 1 v2
- XMechanik Mechano23 DIY vs Philharmonic Ceramic Mini
- XMechanik Mechano23 DIY vs Ascend Acoustics Luna V2 Mini-Monitor Titan
- XMechanik Mechano23 DIY vs Aalto Speakers Aalto 1 EVO
- XMechanik Mechano23 DIY vs Monitor Audio Silver 50 7G
- See all 20 comparisons
Audio First Fidelia: £950 per pair for the flatpack kit (assembly required) Audio First Designs eBay
Pros: Kit speaker offering exceptional value and tonal accuracy; chosen by reviewer as reference standard for future speaker tonality comparisons despite 1,250 USD price point. Achieves bass extension to 53 Hz (F3) and 38 Hz (F10) from compact cabinet. Direct-from-manufacturer availability eliminates retailer markup. Measured bass extension of 53Hz (-3dB).
Cons: Kit assembly required; lower sensitivity (~83-85 dB vs. typical 85 dB average) demands adequate amplifier power. Only available direct from UK manufacturer with associated shipping costs and lead times. Trade-off between compact driver configuration and maximum dynamic output.
Full Audio First Fidelia review and specifications →
| Bass Extension (-10dB) | 38Hz (measured, Erin's Audio Corner) |
|---|---|
| Bass Extension (-3dB) | 53Hz (measured, Erin's Audio Corner) |
| Crossover Frequency | 1560Hz |
| Dimensions | 11.8"H x 7.1"W x 11.7"D (300 x 180 x 297.6 mm) |
| Drivers | 5" ceramic-aluminum cone woofer, 1" ceramic-aluminum tweeter |
| Impedance | 4 ohms |
| Sensitivity | 84dB |
| Spinorama Preference Score | 5.85 |
| Spinorama Preference Score with Perfect Sub | 7.86 |
| Weight | 15 lbs (6.8 kg) each |
| Woofer Cabinet | ported, rear |
