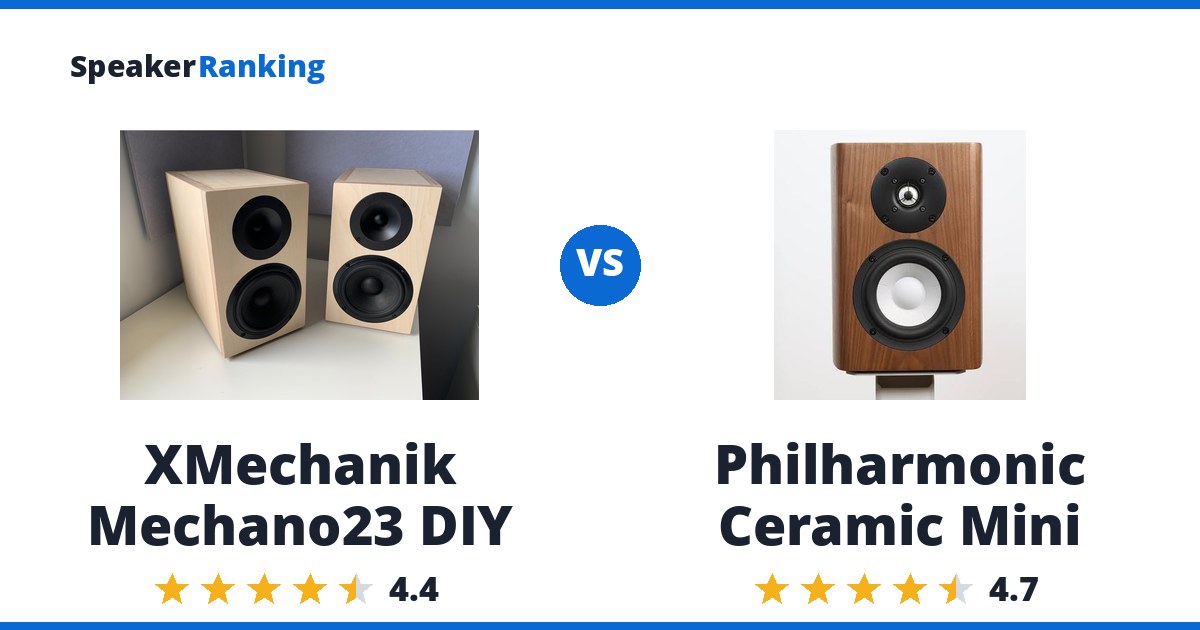

Short answer: the Philharmonic Ceramic Mini for better sound quality, the XMechanik Mechano23 DIY for the lower price. The Philharmonic Ceramic Mini ranks #2 of 87 bookshelf speakers at $900. The XMechanik Mechano23 DIY ranks #6 at $48, $852 cheaper.
What the XMechanik Mechano23 DIY offers: The bass alignment is unusually well damped, with a measured Q of 0.336, among the lowest of any speaker in this catalog, so the -3dB point at 77.6Hz rolls off cleanly instead of building into a resonant bump the way many small ported designs do. On axis deviation measures a tight 0.195dB average, and Audio Science Review’s independent Klippel NFS review called the predicted in room response nearly perfect, with directivity matching that beats some commercial designs costing many times more, all from about $200 in parts. Watch for: This is a true DIY project. There is no assembled unit to buy, drivers come from Madisound, the crossover kit comes separately from EZ Speaker Solutions, and the birch plywood cabinet has to be built and finished by hand. Listening window smoothness measures a moderate 0.47 and the sound power directivity index has more variation (standard deviation 4.02) than the tightest speakers in this catalog, so off axis energy isn’t quite as evenly controlled as the excellent on axis figures suggest.
What the Philharmonic Ceramic Mini offers: Gorgeous looks and finish options for the price. Very low midrange distortion for the size, well under 1% above about 400-500Hz. Excellent on-axis linearity. Mild, pleasant bass bump around 100Hz that adds welcome warmth without being excessive. Wide soundstage and dispersion (~70-80 degrees horizontally). Clean cabinet and port with no measured resonances. A great value combination of looks and performance at this price. Watch for: Somewhat limited output capability for its size - audible woofer compression (“flopping”) around 95dB at 3 meters for a stereo pair, so keep to moderate levels or pair with a subwoofer for home theater use. A mild diffraction-related dip around 4-6kHz can cause occasional sibilance on some vocal tracks. Measured sensitivity (82.2dB average) runs a bit below the manufacturer’s claimed 84dB, so it needs more amp power than the spec alone suggests. Needs a subwoofer for real bass authority below about 40Hz.
Buy the XMechanik Mechano23 DIY when the price outweighs sound quality for you, and the Philharmonic Ceramic Mini when sound quality outweighs the price instead.
Looking for alternatives? See the complete Passive Home rankings.
Specifications Side By Side
| XMechanik Mechano23 DIY | Philharmonic Ceramic Mini | |
|---|---|---|
| Price | $200 per pair DIY parts | $900 per pair |
| Ranked | #6 of 87 in Medium Size Bookshelf Speakers | #2 of 87 in Medium Size Bookshelf Speakers |
| Enclosure | ported | - |
| Drivers | Scan-Speak Discovery H2606/9200 1" horn loaded textile dome tweeter, SB Acoustics SB13PFCR25-4 5" fiber cone woofer | 5.25" ceramic woofer, 1" ceramic dome tweeter |
| Dimensions | 11.4"H x 6.9"W x 10.4"D (290 x 174 x 263 mm) | 12" x 8.5" x 11.3" (305 x 216 x 286 mm) |
| Sensitivity | 85.1dB @ 2.83V/1m (measured, Audio Science Review) | 82dB (2.83V/1m, measured by Erin's Audio Corner) |
| Bass Extension (-3dB) | 77.6Hz (measured, Audio Science Review) | 51Hz (measured, Erin's Audio Corner) |
| Bass Extension (-10dB) | 42.4Hz (measured, Audio Science Review) | 36Hz (measured, Erin's Audio Corner) |
| Port Tuning | Approximately 45Hz | - |
| Cabinet Material | 18mm Baltic birch plywood | - |
| Country | Design origin: United States (ASR forum); assembled by buyer | USA (Vienna, Virginia) |
| Spinorama Preference Score | 4.70 | 4.89 |
| Spinorama Preference Score with Perfect Sub | 7.16 | 6.91 |
| Impedance | - | 4 ohms nominal (3.2 ohms min, 15 ohms max) (measured, Erin's Audio Corner) |
| Weight | - | 17 lbs (7.7 kg) |
| Frequency Response | - | 55Hz - 20kHz (+1.5/-3dB, Manufacturer specified, ported) |
| Crossover Frequency | - | 2kHz (Linkwitz-Riley 4th order) |
| Woofer Cabinet | - | ported, rear |
Related Speaker Comparisons
More worthwhile head-to-heads for Philharmonic Ceramic Mini:
- Philharmonic Ceramic Mini vs Audio First Fidelia
- Ascend Sierra 1 v2 vs Philharmonic Ceramic Mini
- KEF LS50 Meta vs Philharmonic Ceramic Mini
- Ascend Acoustics HTM-200SE2 vs Philharmonic Ceramic Mini
- Arendal 1961 Monitor vs Philharmonic Ceramic Mini
Prices on this page were last checked September 16, 2026 at 12:41 AM UTC. Product prices and availability are accurate as of that date/time and are subject to change; the price and availability shown on Amazon at the time of purchase will apply to the purchase of this product.
As an eBay Partner, we may be compensated if you make a purchase.
The Two Speakers In Full
XMechanik Mechano23 DIY: $200 per pair DIY parts Madisound (Tweeter) Madisound (Woofer) eBay
Pros: The bass alignment is unusually well damped, with a measured Q of 0.336, among the lowest of any speaker in this catalog, so the -3dB point at 77.6Hz rolls off cleanly instead of building into a resonant bump the way many small ported designs do. On axis deviation measures a tight 0.195dB average, and Audio Science Review’s independent Klippel NFS review called the predicted in room response nearly perfect, with directivity matching that beats some commercial designs costing many times more, all from about $200 in parts. Measured bass extension of 77.6Hz (-3dB), with a measured sensitivity of 85.1dB.
Cons: This is a true DIY project. There is no assembled unit to buy, drivers come from Madisound, the crossover kit comes separately from EZ Speaker Solutions, and the birch plywood cabinet has to be built and finished by hand. Listening window smoothness measures a moderate 0.47 and the sound power directivity index has more variation (standard deviation 4.02) than the tightest speakers in this catalog, so off axis energy isn’t quite as evenly controlled as the excellent on axis figures suggest.
Full XMechanik Mechano23 DIY review and specifications →
| Bass Extension (-10dB) | 42.4Hz (measured, Audio Science Review) |
|---|---|
| Bass Extension (-3dB) | 77.6Hz (measured, Audio Science Review) |
| Cabinet Material | 18mm Baltic birch plywood |
| Country | Design origin: United States (ASR forum); assembled by buyer |
| Dimensions | 11.4"H x 6.9"W x 10.4"D (290 x 174 x 263 mm) |
| Drivers | Scan-Speak Discovery H2606/9200 1" horn loaded textile dome tweeter, SB Acoustics SB13PFCR25-4 5" fiber cone woofer |
| Enclosure | ported |
| Port Tuning | Approximately 45Hz |
| Sensitivity | 85.1dB @ 2.83V/1m (measured, Audio Science Review) |
| Spinorama Preference Score | 4.70 |
| Spinorama Preference Score with Perfect Sub | 7.16 |
- Links
- Reviews, Comparisons and Sound Samples
- Head-to-Head Comparisons
- XMechanik Mechano23 DIY vs Ascend Acoustics HTM-200SE2
- XMechanik Mechano23 DIY vs Arendal 1961 Monitor
- XMechanik Mechano23 DIY vs KEF LS50 Meta
- XMechanik Mechano23 DIY vs Ascend Sierra 1 v2
- XMechanik Mechano23 DIY vs Ascend Acoustics Luna V2 Mini-Monitor Titan
- XMechanik Mechano23 DIY vs Aalto Speakers Aalto 1 EVO
- XMechanik Mechano23 DIY vs Audio First Fidelia
- XMechanik Mechano23 DIY vs Monitor Audio Silver 50 7G
- See all 20 comparisons
Philharmonic Ceramic Mini: $900 per pair Philharmonic Audio eBay
Pros: Gorgeous looks and finish options for the price. Very low midrange distortion for the size, well under 1% above about 400-500Hz. Excellent on-axis linearity. Mild, pleasant bass bump around 100Hz that adds welcome warmth without being excessive. Wide soundstage and dispersion (~70-80 degrees horizontally). Clean cabinet and port with no measured resonances. A great value combination of looks and performance at this price. Measured bass extension of 51Hz (-3dB), with a measured sensitivity of 82dB.
Cons: Somewhat limited output capability for its size - audible woofer compression (“flopping”) around 95dB at 3 meters for a stereo pair, so keep to moderate levels or pair with a subwoofer for home theater use. A mild diffraction-related dip around 4-6kHz can cause occasional sibilance on some vocal tracks. Measured sensitivity (82.2dB average) runs a bit below the manufacturer’s claimed 84dB, so it needs more amp power than the spec alone suggests. Needs a subwoofer for real bass authority below about 40Hz.
Full Philharmonic Ceramic Mini review and specifications →
| Bass Extension (-10dB) | 36Hz (measured, Erin's Audio Corner) |
|---|---|
| Bass Extension (-3dB) | 51Hz (measured, Erin's Audio Corner) |
| Country | USA (Vienna, Virginia) |
| Crossover Frequency | 2kHz (Linkwitz-Riley 4th order) |
| Dimensions | 12" x 8.5" x 11.3" (305 x 216 x 286 mm) |
| Drivers | 5.25" ceramic woofer, 1" ceramic dome tweeter |
| Frequency Response | 55Hz - 20kHz (+1.5/-3dB, Manufacturer specified, ported) |
| Impedance | 4 ohms nominal (3.2 ohms min, 15 ohms max) (measured, Erin's Audio Corner) |
| Sensitivity | 82dB (2.83V/1m, measured by Erin's Audio Corner) |
| Spinorama Preference Score | 4.89 |
| Spinorama Preference Score with Perfect Sub | 6.91 |
| Weight | 17 lbs (7.7 kg) |
| Woofer Cabinet | ported, rear |
