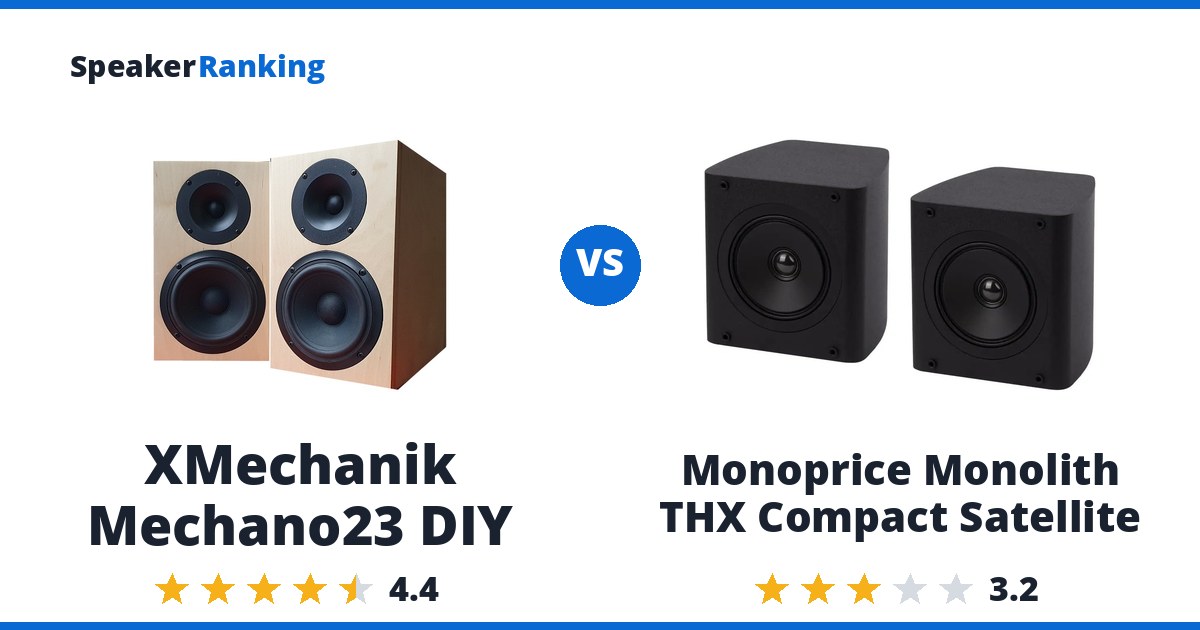

Short answer: the XMechanik Mechano23 DIY. It ranks #6 of 90 bookshelf speakers by sound quality, rated 4.4/5, at $96; the Monoprice Monolith THX Compact Satellite ranks #54, rated 3.2/5, and costs $249.99, so there is not much of a tradeoff to weigh.
The case for the XMechanik Mechano23 DIY: The bass alignment is unusually well damped, with a measured Q of 0.336, among the lowest of any speaker in this catalog, so the -3dB point at 77.6Hz rolls off cleanly instead of building into a resonant bump the way many small ported designs do. Watch for: This is a true DIY project.
Why pick the Monoprice Monolith THX Compact Satellite: A compact sealed satellite with a 4.5-inch coaxial driver and a 20mm silk-dome tweeter mounted at its center, THX certified and built to sit with a subwoofer crossed over at 80Hz. Watch for: Bass stops at about 82Hz (-3dB) and 62Hz (-10dB), so it needs a subwoofer for any full-range use, and without one its preference score is only 3.57.
Buy the XMechanik Mechano23 DIY. It is rated higher for sound quality than the Monoprice Monolith THX Compact Satellite and costs less, so only choose the other one for a particular feature it does better.
Want more options? Browse the full Passive Home rankings.
Specifications Side By Side
| XMechanik Mechano23 DIY | Monoprice Monolith THX Compact Satellite | |
|---|---|---|
| Price | $200 per pair DIY parts | $249.99 per pair |
| Ranked | #6 of 90 in Medium Size Bookshelf Speakers | #54 of 90 in Medium Size Bookshelf Speakers |
| Enclosure | ported | - |
| Drivers | Scan-Speak Discovery H2606/9200 1” horn loaded textile dome tweeter, SB Acoustics SB13PFCR25-4 5” fiber cone woofer | 4.5” polypropylene woofer with coaxial 20mm silk-dome tweeter |
| Dimensions | 11.4”H x 6.9”W x 10.4”D (290 x 174 x 263 mm) | 6.3”H x 6”W x 5.9”D (160 x 153 x 150 mm) |
| Sensitivity | 85.1dB @ 2.83V/1m (measured, Audio Science Review) | 81dB (manufacturer specified) |
| Bass Extension (-3dB) | 77.6Hz (measured, Audio Science Review) | 82Hz (measured, Erin’s Audio Corner) |
| Bass Extension (-10dB) | 42.4Hz (measured, Audio Science Review) | 61.5Hz (measured, Erin’s Audio Corner) |
| Port Tuning | Approximately 45Hz | - |
| Cabinet Material | 18mm Baltic birch plywood | - |
| Country | Design origin: United States (ASR forum); assembled by buyer | - |
| Spinorama Preference Score | 5.42 | 3.57 |
| Spinorama Preference Score with Perfect Sub | 7.88 | 6.56 |
| Impedance | 4.1 ohms nominal (measured, ASR) | 4 ohms nominal (manufacturer specified) |
| DIY Kit | Yes | No |
| Frequency Response | - | 80Hz-20kHz ±3dB (manufacturer specified) |
| Weight | - | 4.2 lbs (1.9 kg) each |
| Woofer Cabinet | - | sealed |
Related Speaker Comparisons
More top alternatives to XMechanik Mechano23 DIY:
- XMechanik Mechano23 DIY vs Audio First Fidelia
- XMechanik Mechano23 DIY vs Philharmonic Ceramic Mini
- Ascend Sierra 1 v2 vs XMechanik Mechano23 DIY
- KEF LS50 Meta vs XMechanik Mechano23 DIY
- Ascend Acoustics HTM-200SE2 vs XMechanik Mechano23 DIY
Prices on this page were last checked September 30, 2026 at 2:57 PM UTC. Product prices and availability are accurate as of that date/time and are subject to change; the price and availability shown on Amazon at the time of purchase will apply to the purchase of this product.
As an eBay Partner, we may be compensated if you make a purchase.
The Two Speakers In Full
XMechanik Mechano23 DIY: $200 per pair DIY parts Madisound (Tweeter) Madisound (Woofer) eBay
Pros: The bass alignment is unusually well damped, with a measured Q of 0.336, among the lowest of any speaker in this catalog, so the -3dB point at 77.6Hz rolls off cleanly instead of building into a resonant bump the way many small ported designs do. On axis deviation measures a tight 0.195dB average, and Audio Science Review’s independent Klippel NFS review called the predicted in room response nearly perfect, with directivity matching that beats some commercial designs costing many times more, all from about $48 in parts. Measured bass extension of 77.6Hz (-3dB), with a measured sensitivity of 85.1dB.
Cons: This is a true DIY project. There is no assembled unit to buy, drivers come from Madisound, the crossover kit comes separately from EZ Speaker Solutions, and the birch plywood cabinet has to be built and finished by hand. Listening window smoothness measures a moderate 0.47 and the sound power directivity index has more variation (standard deviation 4.02) than the tightest speakers in this catalog, so off axis energy isn’t quite as evenly controlled as the excellent on axis figures suggest.
Full XMechanik Mechano23 DIY review and specifications →
| Bass Extension (-10dB) | 42.4Hz (measured, Audio Science Review) |
|---|---|
| Bass Extension (-3dB) | 77.6Hz (measured, Audio Science Review) |
| Cabinet Material | 18mm Baltic birch plywood |
| Country | Design origin: United States (ASR forum); assembled by buyer |
| DIY Kit | Yes |
| Dimensions | 11.4”H x 6.9”W x 10.4”D (290 x 174 x 263 mm) |
| Drivers | Scan-Speak Discovery H2606/9200 1” horn loaded textile dome tweeter, SB Acoustics SB13PFCR25-4 5” fiber cone woofer |
| Enclosure | ported |
| Impedance | 4.1 ohms nominal (measured, ASR) |
| Port Tuning | Approximately 45Hz |
| Sensitivity | 85.1dB @ 2.83V/1m (measured, Audio Science Review) |
| Spinorama Preference Score | 5.42 |
| Spinorama Preference Score with Perfect Sub | 7.88 |
- Links
- Reviews, Comparisons and Sound Samples
- Head-to-Head Comparisons
- XMechanik Mechano23 DIY vs Ascend Acoustics HTM-200SE2
- XMechanik Mechano23 DIY vs Arendal 1961 Monitor
- XMechanik Mechano23 DIY vs KEF LS50 Meta
- XMechanik Mechano23 DIY vs Ascend Sierra 1 v2
- XMechanik Mechano23 DIY vs Philharmonic Ceramic Mini
- XMechanik Mechano23 DIY vs Ascend Acoustics Luna V2 Mini-Monitor Titan
- XMechanik Mechano23 DIY vs Aalto Speakers Aalto 1 EVO
- XMechanik Mechano23 DIY vs Audio First Fidelia
- See all 23 comparisons
Monoprice Monolith THX Compact Satellite: $249.99 per pair Amazon Monoprice eBay
Pros: A compact sealed satellite with a 4.5-inch coaxial driver and a 20mm silk-dome tweeter mounted at its center, THX certified and built to sit with a subwoofer crossed over at 80Hz. Erin’s Audio Corner measured a listening window within a 4.0dB span from 300Hz to 5kHz, a smooth predicted in-room response (0.61 smoothness) and wide, even dispersion (about 60 degrees horizontally and 55 degrees vertically), and its preference score rises to 6.56 with an ideal subwoofer. A keyhole slot makes wall mounting easy. Measured bass extension of 82Hz (-3dB).
Cons: Bass stops at about 82Hz (-3dB) and 62Hz (-10dB), so it needs a subwoofer for any full-range use, and without one its preference score is only 3.57. Sensitivity is a low 81dB into a 4-ohm load, so it needs a capable amplifier to play loud. Out of stock at Monoprice and Amazon, with Monoprice quoting a restock date well into 2027.
Full Monoprice Monolith THX Compact Satellite review and specifications →
| Bass Extension (-10dB) | 61.5Hz (measured, Erin’s Audio Corner) |
|---|---|
| Bass Extension (-3dB) | 82Hz (measured, Erin’s Audio Corner) |
| DIY Kit | No |
| Dimensions | 6.3”H x 6”W x 5.9”D (160 x 153 x 150 mm) |
| Drivers | 4.5” polypropylene woofer with coaxial 20mm silk-dome tweeter |
| Frequency Response | 80Hz-20kHz ±3dB (manufacturer specified) |
| Impedance | 4 ohms nominal (manufacturer specified) |
| Sensitivity | 81dB (manufacturer specified) |
| Spinorama Preference Score | 3.57 |
| Spinorama Preference Score with Perfect Sub | 6.56 |
| Weight | 4.2 lbs (1.9 kg) each |
| Woofer Cabinet | sealed |
