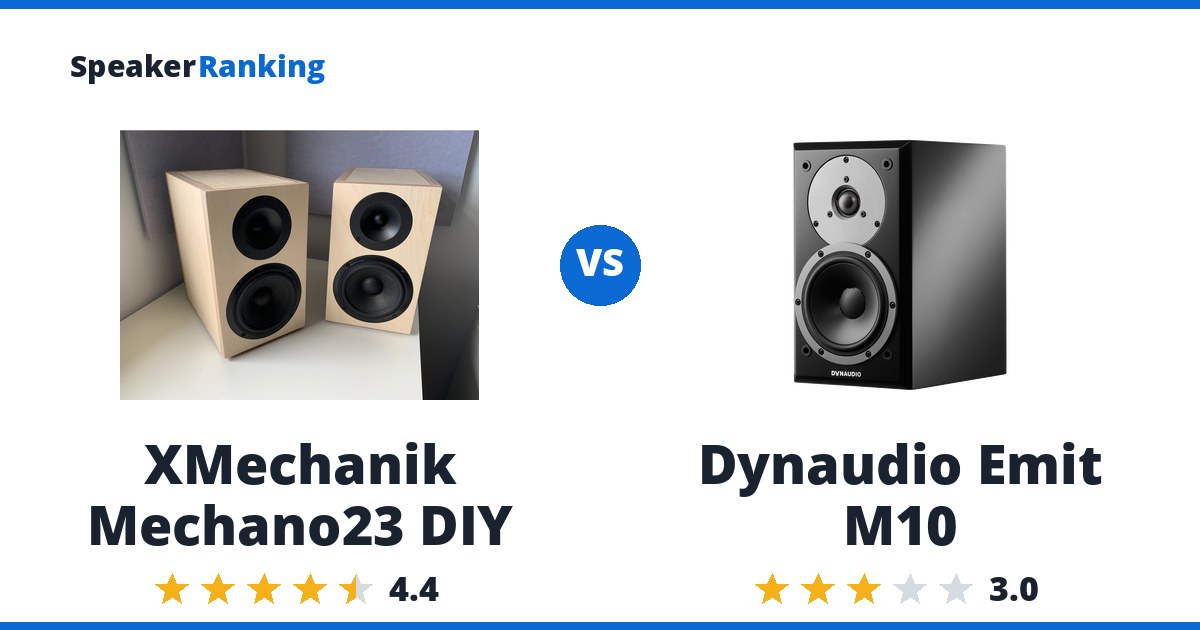

Short answer: the XMechanik Mechano23 DIY. It ranks #6 of 87 bookshelf speakers by sound quality at $48; the Dynaudio Emit M10 ranks #56 and costs $800, so there is little reason to consider the other one.
What the XMechanik Mechano23 DIY offers: The bass alignment is unusually well damped, with a measured Q of 0.336, among the lowest of any speaker in this catalog, so the -3dB point at 77.6Hz rolls off cleanly instead of building into a resonant bump the way many small ported designs do. On axis deviation measures a tight 0.195dB average, and Audio Science Review’s independent Klippel NFS review called the predicted in room response nearly perfect, with directivity matching that beats some commercial designs costing many times more, all from about $200 in parts. Watch for: This is a true DIY project. There is no assembled unit to buy, drivers come from Madisound, the crossover kit comes separately from EZ Speaker Solutions, and the birch plywood cabinet has to be built and finished by hand. Listening window smoothness measures a moderate 0.47 and the sound power directivity index has more variation (standard deviation 4.02) than the tightest speakers in this catalog, so off axis energy isn’t quite as evenly controlled as the excellent on axis figures suggest.
What the Dynaudio Emit M10 offers: CEA2034 spinorama shows impressive, headphone-level distortion through the midrange and tweeter at 86dB SPL, with a well-executed port that keeps resonance low below the crossover. 28mm soft dome tweeter and 14cm MSP mid/bass driver. Watch for: Tuned toward a mild showroom sound with boosted upper bass and treble and a recessed midrange - the reviewer prefers speakers that get the 100Hz-3kHz range right, which this doesn’t. His verdict: cheaper speakers deliver much more balanced tonality, so he wouldn’t buy it for himself.
Buy the XMechanik Mechano23 DIY. It ranks higher for sound quality than the Dynaudio Emit M10 and costs less, so there is no real case for the other one.
Want more options? Browse the full Passive Home rankings.
Specifications Side By Side
| XMechanik Mechano23 DIY | Dynaudio Emit M10 | |
|---|---|---|
| Price | $200 per pair DIY parts | $800 per pair |
| Ranked | #6 of 87 in Medium Size Bookshelf Speakers | #56 of 87 in Medium Size Bookshelf Speakers |
| Enclosure | ported | - |
| Drivers | Scan-Speak Discovery H2606/9200 1" horn loaded textile dome tweeter, SB Acoustics SB13PFCR25-4 5" fiber cone woofer | 28mm soft dome tweeter, 14cm MSP mid/bass driver |
| Dimensions | 11.4"H x 6.9"W x 10.4"D (290 x 174 x 263 mm) | 11.5"H x 6.7"W x 9.4"D (292 x 170 x 240 mm) |
| Sensitivity | 85.1dB @ 2.83V/1m (measured, Audio Science Review) | 83.5dB (2.83V/1m, measured, Audio Science Review) |
| Bass Extension (-3dB) | 77.6Hz (measured, Audio Science Review) | 78Hz (measured, Audio Science Review) |
| Bass Extension (-10dB) | 42.4Hz (measured, Audio Science Review) | 60Hz (measured, Audio Science Review) |
| Port Tuning | Approximately 45Hz | - |
| Cabinet Material | 18mm Baltic birch plywood | - |
| Country | Design origin: United States (ASR forum); assembled by buyer | - |
| Spinorama Preference Score | 4.70 | - |
| Spinorama Preference Score with Perfect Sub | 7.16 | - |
| Impedance | - | 6 ohms nominal |
| Frequency Response | - | 50Hz - 23kHz (+/-3dB) (Manufacturer specified) |
| Weight | - | 12.3 lbs (5.6 kg) each |
| Woofer Cabinet | - | ported |
Related Speaker Comparisons
How XMechanik Mechano23 DIY compares with other leading options:
- XMechanik Mechano23 DIY vs Audio First Fidelia
- XMechanik Mechano23 DIY vs Philharmonic Ceramic Mini
- Ascend Sierra 1 v2 vs XMechanik Mechano23 DIY
- KEF LS50 Meta vs XMechanik Mechano23 DIY
- Ascend Acoustics HTM-200SE2 vs XMechanik Mechano23 DIY
Prices on this page were last checked September 16, 2026 at 12:41 AM UTC. Product prices and availability are accurate as of that date/time and are subject to change; the price and availability shown on Amazon at the time of purchase will apply to the purchase of this product.
As an eBay Partner, we may be compensated if you make a purchase.
The Two Speakers In Full
XMechanik Mechano23 DIY: $200 per pair DIY parts Madisound (Tweeter) Madisound (Woofer) eBay
Pros: The bass alignment is unusually well damped, with a measured Q of 0.336, among the lowest of any speaker in this catalog, so the -3dB point at 77.6Hz rolls off cleanly instead of building into a resonant bump the way many small ported designs do. On axis deviation measures a tight 0.195dB average, and Audio Science Review’s independent Klippel NFS review called the predicted in room response nearly perfect, with directivity matching that beats some commercial designs costing many times more, all from about $200 in parts. Measured bass extension of 77.6Hz (-3dB), with a measured sensitivity of 85.1dB.
Cons: This is a true DIY project. There is no assembled unit to buy, drivers come from Madisound, the crossover kit comes separately from EZ Speaker Solutions, and the birch plywood cabinet has to be built and finished by hand. Listening window smoothness measures a moderate 0.47 and the sound power directivity index has more variation (standard deviation 4.02) than the tightest speakers in this catalog, so off axis energy isn’t quite as evenly controlled as the excellent on axis figures suggest.
Full XMechanik Mechano23 DIY review and specifications →
| Bass Extension (-10dB) | 42.4Hz (measured, Audio Science Review) |
|---|---|
| Bass Extension (-3dB) | 77.6Hz (measured, Audio Science Review) |
| Cabinet Material | 18mm Baltic birch plywood |
| Country | Design origin: United States (ASR forum); assembled by buyer |
| Dimensions | 11.4"H x 6.9"W x 10.4"D (290 x 174 x 263 mm) |
| Drivers | Scan-Speak Discovery H2606/9200 1" horn loaded textile dome tweeter, SB Acoustics SB13PFCR25-4 5" fiber cone woofer |
| Enclosure | ported |
| Port Tuning | Approximately 45Hz |
| Sensitivity | 85.1dB @ 2.83V/1m (measured, Audio Science Review) |
| Spinorama Preference Score | 4.70 |
| Spinorama Preference Score with Perfect Sub | 7.16 |
