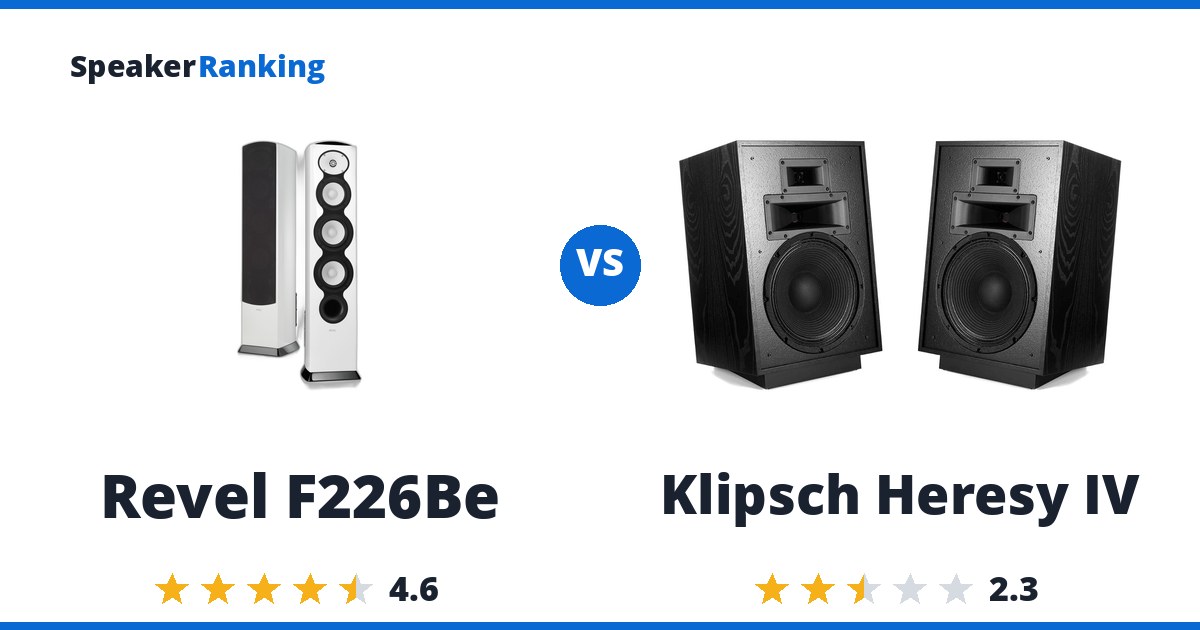

Short answer: the Revel F226Be for better sound quality, the Klipsch Heresy IV for the lower price. The Revel F226Be ranks #9 of 54 floorstanding speakers at $7700. The Klipsch Heresy IV ranks #32 at $3198, $4502 cheaper.
What the Revel F226Be offers: Compact three-way tower with a beryllium dome tweeter in an acoustic lens waveguide, a dedicated 5.25” mid-range, and dual 6.5” woofers (not a coaxial layout) - all Deep Ceramic Composite aluminum cones engineered specifically to… Watch for: Minimum impedance dips to about 3.7-4 ohms below roughly 500Hz despite the 8-ohm nominal rating, so it wants a genuine 4-ohm-capable two-channel amplifier; budget AVRs rated only for 6 or 8 ohms may struggle.
What the Klipsch Heresy IV offers: Very high 94.5dB/2.83V/1m sensitivity in Erin’s anechoic measurement—well below Klipsch’s 99dB in-room claim, but still excellent—and strong short-term output from a 12-inch woofer plus horn-loaded midrange and tweeter. Watch for: Erin measured a 77Hz F3 and response rolling away near 100Hz in-room, so a subwoofer is required for modern full-range reproduction.
Buy the Revel F226Be if sound quality matters more than the price. Buy the Klipsch Heresy IV if the price matters more than sound quality.
Specifications Side By Side
| Revel F226Be | Klipsch Heresy IV | |
|---|---|---|
| Price | $7700 | $3,198/pair |
| Ranked | #9 of 54 in Large Size Floorstanding Speakers | #32 of 54 in Large Size Floorstanding Speakers |
| Bass Extension (-10dB) | 36Hz (measured, Erin’s Audio Corner) | - |
| Bass Extension (-3dB) | 56Hz (measured, Erin’s Audio Corner) | 77Hz (measured, Erin’s Audio Corner) |
| Dimensions | 41.3"H x 9.8"W x 13.7"D (1049 x 248.9 x 348 mm) | 24.8"H x 15.6"W x 13.3"D |
| Impedance | 8 ohms nominal (3.7 ohms minimum, measured, Erin’s Audio Corner) | Approximately 4 ohms minimum (measured, Erin’s Audio Corner) |
| Drivers | Two 6.5" (165mm) Deep Ceramic Composite aluminum cones, with cast frames woofer, 5-1/4" (130mm) Deep Ceramic Composite aluminum cone, with cast frame midrange, 1" (25mm) Beryllium dome, with acoustic lens waveguide tweeter | 1" horn-loaded tweeter; 1.75" horn-loaded midrange; 12" woofer |
| Sensitivity | 89.7dB (measured, Erin’s Audio Corner) | 94.5dB/2.83V/1m (measured, Erin’s Audio Corner) |
| Weight | 58.2 lbs / 26.4 kg each | 45 lb each |
| Woofer Cabinet | ported, front | ported, rear |
Related Speaker Comparisons
More useful head-to-heads from the same speaker class:
- Klipsch Forte IV vs MoFi SourcePoint 888
- MoFi SourcePoint 888 vs Revival Audio Atalante 5
- JBL HDI-3800 vs Klipsch Forte IV
- Revel F226Be vs KEF R5
- KEF R11 Meta vs Revel F226Be
The Two Speakers In Full
Revel F226Be: $7700 Crutchfield
Pros: Compact three-way tower with a beryllium dome tweeter in an acoustic lens waveguide, a dedicated 5.25” mid-range, and dual 6.5” woofers (not a coaxial layout) - all Deep Ceramic Composite aluminum cones engineered specifically to avoid breakup outside their crossover bands, and it measures that way: neither the woofers nor the mid-range show breakup spikes even well outside their intended pass bands, and even the front port measures unusually clean (only a mild ~3dB bump around 150Hz, well controlled versus the resonances the reviewer typically sees from ports). On-axis frequency response holds within about ±1.5dB above roughly 65Hz - excellent linearity - and off-axis behavior tracks it closely, with only mild, subdued peaking around 4-6kHz that doesn’t show up as real resonance in the spinorama data. Average sensitivity around 90dB (2.83V/1m), notably higher than some competing three-way designs and most bookshelf speakers, translating directly into better dynamic range at both low and high listening levels - one reviewer specifically praised its ability to deliver full transient impact (snare hits, kick drum) even at quiet, conversational volumes rather than needing to be cranked up to feel dynamic. Wide, consistent horizontal radiation of about ±60-70° at the -6dB point, landing right in the reviewer’s preferred range for an enveloping soundstage without excess diffusion, and exceptionally wide vertical dispersion - roughly ±80° up to 10kHz and still ±70° above that, which one reviewer called the widest vertical radiation pattern he had measured to date. Distortion stays under 3% even at 104dB SPL, and in real-world testing up to 105dB from 12-14 feet away, full-range with no crossover, the reviewer heard no audible mechanical noise, port chuffing, or compression at all. Flat enough on- and off-axis response that toeing the speaker 10-15° away from the listener preserves the same tonal balance rather than changing it, and the wide, well-controlled directivity lets sidewall reflections reinforce rather than smear the soundstage.
Cons: Minimum impedance dips to about 3.7-4 ohms below roughly 500Hz despite the 8-ohm nominal rating, so it wants a genuine 4-ohm-capable two-channel amplifier; budget AVRs rated only for 6 or 8 ohms may struggle. F3 of 56Hz and F10 of 36Hz mean it doesn’t extend nearly as low as some three-way rivals with larger woofers - a dedicated subwoofer (10-12”, or 15” for content below 30Hz) is recommended for home theater or bass-heavy music, even though the speaker itself can play surprisingly loud without one. Vertical directivity tolerance is tighter in the crossover handoff region than a true coaxial design would offer, since the tweeter, midrange, and woofers are physically separated - a mild directivity bump appears around 2-2.5kHz that’s typical of non-coaxial multi-way speakers, though not audibly problematic within about ±10° vertically. On-axis, the top end reads as a bit bright according to one reviewer’s subjective impression, generally benefiting from some toe-out. High-gloss cabinet finish can create distracting reflections if used behind a projector screen in a home theater setup. Front-ported, so it can technically sit close to a wall, but doing so makes the bass boomier.
Full Revel F226Be review and specifications →
| Bass Extension (-10dB) | 36Hz (measured, Erin's Audio Corner) |
|---|---|
| Bass Extension (-3dB) | 56Hz (measured, Erin's Audio Corner) |
| Dimensions | 41.3"H x 9.8"W x 13.7"D (1049 x 248.9 x 348 mm) |
| Drivers | Two 6.5" (165mm) Deep Ceramic Composite aluminum cones, with cast frames woofer, 5-1/4" (130mm) Deep Ceramic Composite aluminum cone, with cast frame midrange, 1" (25mm) Beryllium dome, with acoustic lens waveguide tweeter |
| Impedance | 8 ohms nominal (3.7 ohms minimum, measured, Erin's Audio Corner) |
| Sensitivity | 89.7dB (measured, Erin's Audio Corner) |
| Weight | 58.2 lbs / 26.4 kg each |
| Woofer Cabinet | ported, front |
As an eBay Partner, we may be compensated if you make a purchase.
- Links
- Reviews, Comparisons and Sound Samples
- Head-to-Head Comparisons
Klipsch Heresy IV: $3,198/pair Amazon Crutchfield
Pros: Very high 94.5dB/2.83V/1m sensitivity in Erin’s anechoic measurement—well below Klipsch’s 99dB in-room claim, but still excellent—and strong short-term output from a 12-inch woofer plus horn-loaded midrange and tweeter. The compact, furniture-grade Heritage cabinet is easier to place than most high-efficiency designs, and dynamics at moderate levels can sound lively. A stable four-ohm-capable amplifier can produce substantial SPL with relatively little voltage.
Cons: Erin measured a 77Hz F3 and response rolling away near 100Hz in-room, so a subwoofer is required for modern full-range reproduction. The impedance dips to about 4 ohms, reducing the practical amplifier advantage implied by its sensitivity. Pronounced directivity mismatch at the driver transitions, impedance/response resonances and elevated distortion spikes around the crossover remain audible concerns that EQ cannot fully solve. At 102dB Erin measured roughly 1.5dB midband compression; at 96dB distortion rises around crossover. Performance is difficult to justify at the price, and Erin explicitly did not recommend it.
Full Klipsch Heresy IV review and specifications →
| Bass Extension (-3dB) | 77Hz (measured, Erin's Audio Corner) |
|---|---|
| Dimensions | 24.8"H x 15.6"W x 13.3"D |
| Drivers | 1" horn-loaded tweeter; 1.75" horn-loaded midrange; 12" woofer |
| Impedance | Approximately 4 ohms minimum (measured, Erin's Audio Corner) |
| Sensitivity | 94.5dB/2.83V/1m (measured, Erin's Audio Corner) |
| Weight | 45 lb each |
| Woofer Cabinet | ported, rear |
