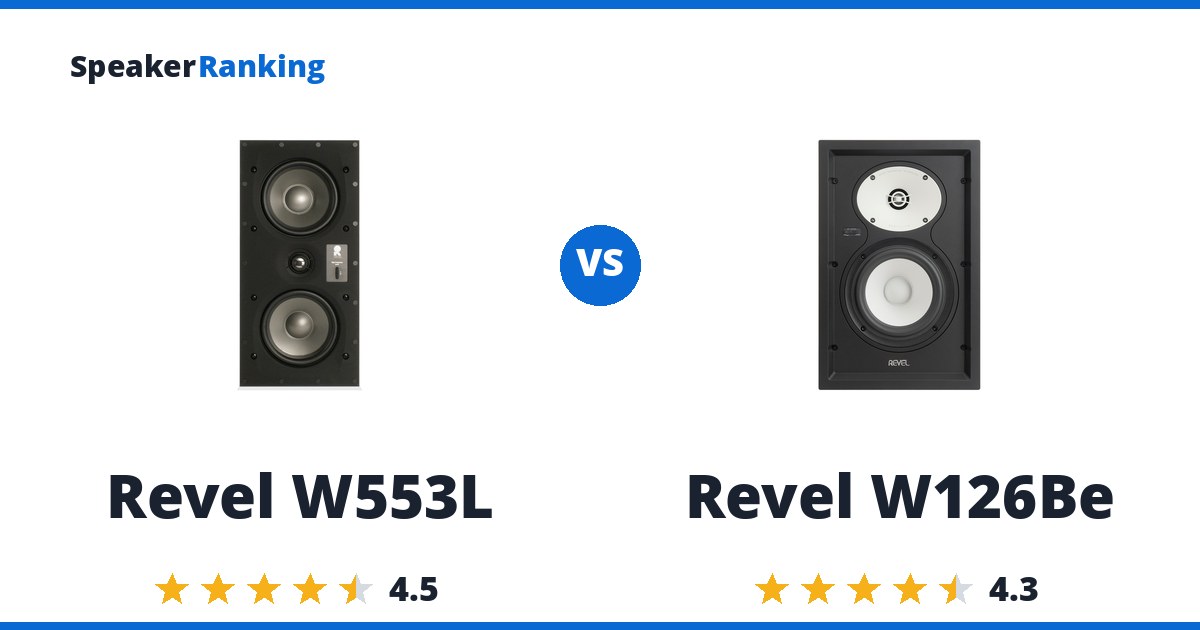

Short answer: the Revel W553L. It ranks #2 of 18 in-wall speakers by sound quality, rated 4.5/5, at $1,089.90; the Revel W126Be ranks #3, rated 4.3/5, and costs $3,849.90, which makes this an easy call rather than a real tradeoff.
The case for the Revel W553L: Erin’s Audio Corner’s Klippel measurement gives a preference score of 4.84, or 7.50 with a perfect subwoofer, a strong result for an in-wall speaker at this price. The tradeoff: At $545 each a stereo pair costs twice that, and a separate amplifier is required.
Why pick the Revel W126Be: Revel’s own measurement, published on spinorama.org, gives a preference score of 5.39, or 7.97 with a perfect subwoofer, with a smooth predicted in-room response (0.85 smoothness). The catch: The measurement comes from Revel, digitized from its published curves, and has no independent second test, so treat the figures as manufacturer supplied.
Buy the Revel W553L. It is rated higher for sound quality than the Revel W126Be and costs less, so it is the default pick unless a specific strength of the other one matters more to you.
Still deciding? The full Passive Home rankings cover every ranked option.
Specifications Side By Side
| Revel W553L | Revel W126Be | |
|---|---|---|
| Price | $1,089.90 per pair | $3,849.90 per pair |
| Ranked | #2 of 18 in In-Wall & In-Ceiling Speakers | #3 of 18 in In-Wall & In-Ceiling Speakers |
| Drivers | 2x 5.25” micro-ceramic composite (MCC) woofers, 1” swiveling aluminum dome tweeter with waveguide | 6.5” Deep Ceramic Composite (DCC) aluminum cone woofer, 1” beryllium dome tweeter with acoustic lens waveguide (2-way) |
| Enclosure | In-wall, LCR (vertical or horizontal mounting) | In-wall, 9-18L enclosure (optional W126BEBB back box sold separately) |
| Mounting Cutout | 163W x 359H mm | 226W x 357H mm |
| Dimensions | 15.1”H x 7.4”W (384 x 188 mm) (74mm mounting depth) | 15.6”H x 10.2”W x 3.8”D (395 x 260 x 97 mm) (88.7mm mounting depth) |
| Weight | 7.7 lbs (3.5 kg) | 10.4 lbs (4.7 kg) |
| Sensitivity | 90dB | 89dB |
| Power Handling | 10-150W recommended amplifier power | 50-150W RMS at 4 ohms |
| Warranty | Lifetime | - |
| Bass Extension (-3dB) | 64.5Hz (measured, Erin’s Audio Corner) | 89.7Hz (measured, Revel vendor data on spinorama.org) |
| Bass Extension (-10dB) | 39.3Hz (measured, Erin’s Audio Corner) | 42.5Hz (measured, Revel vendor data on spinorama.org) |
| Spinorama Preference Score | 4.84 | 5.39 |
| Spinorama Preference Score with Perfect Sub | 7.50 | 7.97 |
| DIY Kit | No | No |
| Impedance | - | 6 ohms nominal (4 ohm minimum) |
| Frequency Response | - | 55Hz-40kHz (-6dB, manufacturer) |
| Maximum SPL | - | 105dB (manufacturer specified) |
| Crossover Frequency | - | 2,100Hz |
Related Speaker Comparisons
More top alternatives to Revel W553L:
- Revel W553L vs KEF Ci3160RLM-THX
- Revel W553L vs Monolith THX-365IW
- Revel W126Be vs JBL Synthesis SCL-6
- KEF Ci3160RLM-THX vs Revel W126Be
- Revel W126Be vs Revel W226Be
Prices on this page were last checked September 26, 2026 at 11:14 PM UTC. Product prices and availability are accurate as of that date/time and are subject to change; the price and availability shown on Amazon at the time of purchase will apply to the purchase of this product.
As an eBay Partner, we may be compensated if you make a purchase.
The Two Speakers In Full
Revel W553L: $1,089.90 per pair Crutchfield eBay
Pros: Erin’s Audio Corner’s Klippel measurement gives a preference score of 4.84, or 7.50 with a perfect subwoofer, a strong result for an in-wall speaker at this price. On-axis response is smooth (0.68 smoothness) and directivity is well controlled (SPDI deviation 2.35dB), so the sound off to the sides stays close to the sound you hear straight on. Bass measures to 64.5Hz at -3dB and 51.3Hz at -6dB. The 1” aluminum dome tweeter swivels toward the listening seat, a three-position switch trims treble to suit the room, and the cabinet mounts vertically or horizontally, so it works as a left, right or center channel. Measured bass extension of 64.5Hz (-3dB).
Cons: At $545 each a stereo pair costs twice that, and a separate amplifier is required. Bass ends early for a main speaker, with -3dB at 64.5Hz, so a subwoofer is needed for music and movies. Audio Science Review’s own measurement was less flattering (preference score 4.04, -3dB at 82Hz), so results differ between test benches. Two 5.25” woofers give less output headroom than the larger Revel in-wall models.
Full Revel W553L review and specifications →
| Bass Extension (-10dB) | 39.3Hz (measured, Erin’s Audio Corner) |
|---|---|
| Bass Extension (-3dB) | 64.5Hz (measured, Erin’s Audio Corner) |
| DIY Kit | No |
| Dimensions | 15.1”H x 7.4”W (384 x 188 mm) (74mm mounting depth) |
| Drivers | 2x 5.25” micro-ceramic composite (MCC) woofers, 1” swiveling aluminum dome tweeter with waveguide |
| Enclosure | In-wall, LCR (vertical or horizontal mounting) |
| Mounting Cutout | 163W x 359H mm |
| Power Handling | 10-150W recommended amplifier power |
| Sensitivity | 90dB |
| Spinorama Preference Score | 4.84 |
| Spinorama Preference Score with Perfect Sub | 7.50 |
| Warranty | Lifetime |
| Weight | 7.7 lbs (3.5 kg) |
- Links
- Reviews, Comparisons and Sound Samples
- Head-to-Head Comparisons
Revel W126Be: $3,849.90 per pair Crutchfield eBay
Pros: Revel’s own measurement, published on spinorama.org, gives a preference score of 5.39, or 7.97 with a perfect subwoofer, with a smooth predicted in-room response (0.85 smoothness). Directivity is tightly controlled (SPDI deviation 2.01dB) and on-axis deviation averages only 0.34dB. Bass measures to 62.6Hz at -6dB. It pairs a 1” beryllium dome tweeter and acoustic lens waveguide with a 6.5” aluminum cone woofer, rated at 89dB sensitivity and 105dB maximum output. Measured bass extension of 89.7Hz (-3dB).
Cons: The measurement comes from Revel, digitized from its published curves, and has no independent second test, so treat the figures as manufacturer supplied. Bass is limited, with -3dB at 89.7Hz, so a subwoofer is needed for full range sound. At $1925 each a stereo pair costs twice that, and the optional back box is sold separately. A single 6.5” woofer gives less output than the dual-woofer W226Be.
Full Revel W126Be review and specifications →
| Bass Extension (-10dB) | 42.5Hz (measured, Revel vendor data on spinorama.org) |
|---|---|
| Bass Extension (-3dB) | 89.7Hz (measured, Revel vendor data on spinorama.org) |
| Crossover Frequency | 2,100Hz |
| DIY Kit | No |
| Dimensions | 15.6”H x 10.2”W x 3.8”D (395 x 260 x 97 mm) (88.7mm mounting depth) |
| Drivers | 6.5” Deep Ceramic Composite (DCC) aluminum cone woofer, 1” beryllium dome tweeter with acoustic lens waveguide (2-way) |
| Enclosure | In-wall, 9-18L enclosure (optional W126BEBB back box sold separately) |
| Frequency Response | 55Hz-40kHz (-6dB, manufacturer) |
| Impedance | 6 ohms nominal (4 ohm minimum) |
| Maximum SPL | 105dB (manufacturer specified) |
| Mounting Cutout | 226W x 357H mm |
| Power Handling | 50-150W RMS at 4 ohms |
| Sensitivity | 89dB |
| Spinorama Preference Score | 5.39 |
| Spinorama Preference Score with Perfect Sub | 7.97 |
| Weight | 10.4 lbs (4.7 kg) |
