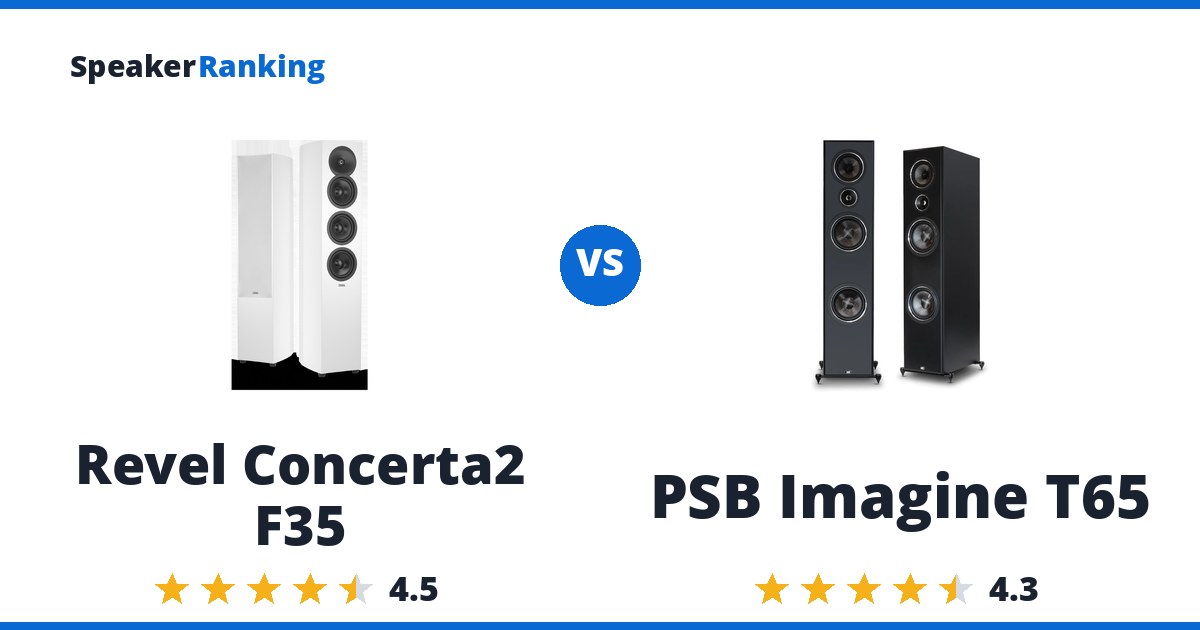

Revel Concerta2 F35 vs PSB Imagine T65

Last updated: October 31, 2026

Short answer: it depends on which compromise you prefer. The PSB Imagine T65’s dual 6.5” carbon fiber woofers deliver genuinely strong, extended low end, but a midrange/crossover dip affects dialogue and vocal clarity. The Revel F35’s waveguide-loaded 1” aluminum dome tweeter and dual 5.25” mid-bass drivers are tidy, but its F3 of 61Hz and F10 of 39Hz mean a subwoofer is needed.

Revel Concerta2 F35 vs PSB Imagine T65

Buy the Revel Concerta2 F35. It is rated higher for sound quality than the PSB Imagine T65 and costs less, so it is the default pick unless a specific strength of the other one matters more to you.

Still deciding? The full Passive Home rankings cover every ranked option.

Measured Differences

Prices on this page were last checked November 14, 2026 at 6:17 PM UTC. Product prices and availability are accurate as of that date/time and are subject to change; the price and availability shown on Amazon at the time of purchase will apply to the purchase of this product.

As an eBay Partner, we may be compensated if you make a purchase.

Specifications Side By Side

Revel Concerta2 F35 PSB Imagine T65
Price$900 per pair$2,699 per pair
Ranked#31 of 228 in Large Size Floorstanding Speakers#66 of 228 in Large Size Floorstanding Speakers
Bass Extension (-10dB)50Hz (measured, Erin’s Audio Corner)26Hz (measured average, Erin’s Audio Corner)
Bass Extension (-3dB)70Hz (measured, Erin’s Audio Corner)47Hz (measured average, Erin’s Audio Corner)
Dimensions40.3”H x 8.4”W x 12.2”D (1023.6 x 213.4 x 309.9 mm)38.8” x 8.4” x 13.5” (986 x 213 x 343 mm)
Impedance6 ohms nominal (3.8 ohms minimum, measured by Erin’s Audio Corner)8 ohms nominal (3.3 ohms minimum measured by Erin’s Audio Corner; manufacturer specifies 4 ohms minimum)
Sensitivity89.4dB (measured, Erin’s Audio Corner; 90dB manufacturer specified)85.1dB (measured average, Erin’s Audio Corner)
Drivers3x 5.25” deep anodized aluminum cone woofers, 1” Aluminum Tweeter1” titanium dome tweeter, 5.25” woven carbon fiber midrange, 2x 6.5” woven carbon fiber woofers
Weight41 lbs (18.6 kg) each44.1 lbs (20 kg) each
Woofer Cabinetported, rear-
Spinorama Preference Score5.355.29
Spinorama Preference Score with Perfect Sub7.306.51
DIY KitNoNo
Crossover Frequency-600Hz & 2000Hz, 4th-order Linkwitz-Riley
Recommended Power-20-200W
Enclosure-Vented: dual rear slot ports, individual woofer chambers
Frequency Response-28Hz - 20kHz (±1.5dB, manufacturer specified)

Where the Ratings Come From

This comparison is generated from the ratings, specifications and measurements on each product’s own page, and it updates when that data changes. How we rank explains how each rating is decided.
