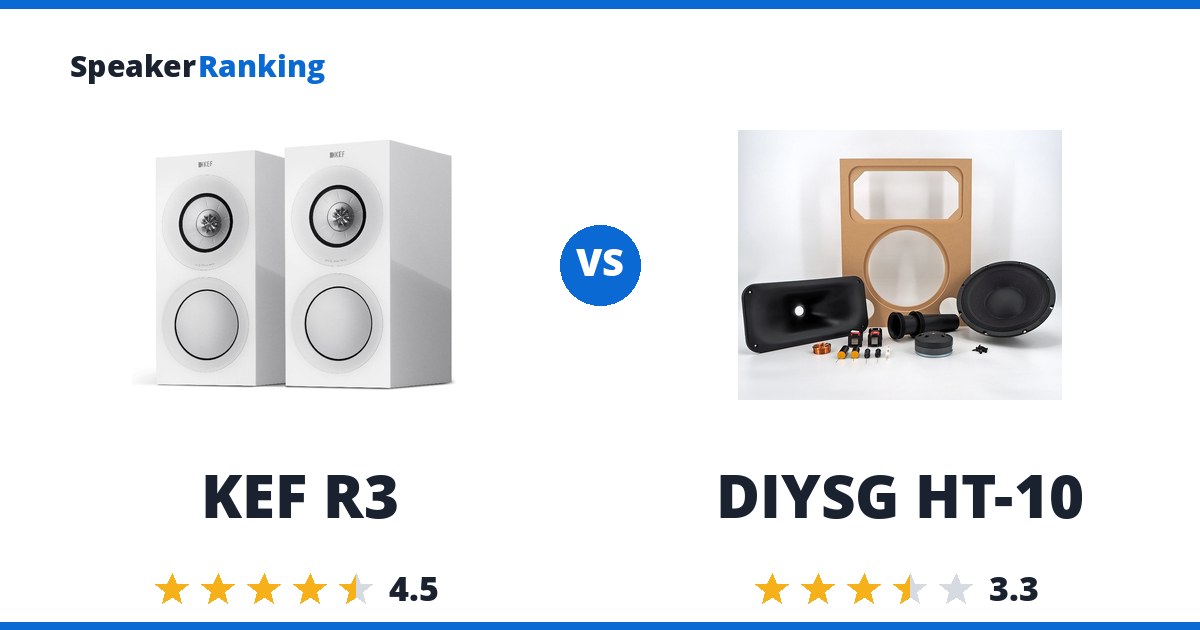

KEF R3 vs DIYSG HT-10

Short answer: the KEF R3 if sound quality matters most, the DIYSG HT-10 if price matters most. The KEF R3 ranks #15 of 131 bookshelf speakers, rated 4.5/5, at $2,200. The DIYSG HT-10 ranks #98, rated 3.3/5, at $496, $1,704 cheaper.

Why pick the KEF R3: True three-way stand-mount with a 6.5-inch woofer below KEF’s 5-inch Uni-Q midrange/1-inch tweeter. The catch: The low-frequency alignment rolls gradually rather than delivering high-output sub-bass; KEF specifies 58Hz +/-3dB and Erin’s high-level data supports using an 80Hz subwoofer crossover.

Why pick the DIYSG HT-10: A distinct kit design from DIY Sound Group’s HTM-12 v2, a 10” ported LCR/surround box built around a Celestion woofer and compression tweeter. The tradeoff: On-axis deviation of 0.537dB is rough, with a pronounced -0.43dB per octave downward tilt giving it a notably dark tonal character, a somewhat resonant bass-alignment Q of 1.76, and the Harman in-room bass extension estimate is a modest 56Hz for a 10” woofer.

Buy the KEF R3 if sound quality matters more than the price. Buy the DIYSG HT-10 if the price matters more than sound quality.

Looking for alternatives? See the complete Passive Home rankings.

Specifications Side By Side

Related Speaker Comparisons

More worthwhile head-to-heads for KEF R3:

• TAD Compact Reference One (CR1TX) vs KEF R3
• KEF R3 vs Perlisten S4b
• KEF Reference 1 Meta vs KEF R3
• KEF R3 vs GR-Research NX-Studio
• March Audio Sointuva AWG vs KEF R3

Prices on this page were last checked September 30, 2026 at 2:57 PM UTC. Product prices and availability are accurate as of that date/time and are subject to change; the price and availability shown on Amazon at the time of purchase will apply to the purchase of this product.

As an eBay Partner, we may be compensated if you make a purchase.

The Two Speakers In Full

KEF R3: $2,200 per pair Amazon eBay

Pros: True three-way stand-mount with a 6.5-inch woofer below KEF’s 5-inch Uni-Q midrange/1-inch tweeter. Erin measured approximately 86-87dB/2.83V/1m sensitivity, exceptionally low sub-1% distortion at 86dB and orderly directivity in both planes. The coaxial geometry maintains image stability across seats, while Flexible Port Technology avoids the strong midrange port resonance common to rear-vented competitors. A 110W Parasound drove it successfully in Erin’s listening. Measured bass extension of 35.2Hz (-10dB), with a measured sensitivity of 87dB.

Cons: The low-frequency alignment rolls gradually rather than delivering high-output sub-bass; KEF specifies 58Hz +/-3dB and Erin’s high-level data supports using an 80Hz subwoofer crossover. Narrow high-frequency features and natural Uni-Q narrowing toward the top octave make toe angle audible, although off-axis tracking remains smooth. Sensitivity is moderate, the cabinet weighs almost 30 lb, and this original R3 lacks the Meta successor’s MAT absorber.

Full KEF R3 review and specifications →

Bass Extension (-10dB)	35.2Hz (measured, Audio Science Review)
Bass Extension (-3dB)	Approximately 58Hz (manufacturer specified; consistent with Erin’s measured roll-off)
DIY Kit	No
Dimensions	16.6”H x 7.9”W x 13.2”D
Drivers	1” tweeter coaxial with 5” midrange; 6.5” woofer
Impedance	8 ohms nominal; suitable for Erin’s 4/8-ohm-rated amplifier
Sensitivity	Approximately 86-87dB/2.83V/1m (measured, Erin’s Audio Corner)
Spinorama Preference Score	6.2 (spinorama.org)
Spinorama Preference Score with Perfect Sub	7.97 (spinorama.org)
Weight	29.9 lbs (13.55 kg) each
Woofer Cabinet	ported, rear Flexible Port

• Links
  • Official KEF R3 Page
• Reviews, Comparisons and Sound Samples
  • Erin’s Audio Corner: KEF R3 Review More from Erin’s Audio Corner →
  • Erin’s Audio Corner Website: KEF R3
  • Audio Science Review Measurements More from Audio Science Review →
  • Audio Science Review Measurements (spinorama.org)
• Head-to-Head Comparisons
  • KEF R3 vs Buchardt Audio E50
  • KEF R3 vs MoFi SourcePoint 8
  • KEF R3 vs Wharfedale Aura 2
  • KEF R3 vs AsciLab A6B Passive
  • KEF R3 vs AsciLab F6B
  • KEF R3 vs KEF Q Concerto Meta
  • KEF R3 vs Epos ES14N
  • KEF R3 vs KEF R3 Meta
  • See all 98 comparisons

DIYSG HT-10: $496 per pair DIY Sound Group eBay

Pros: A distinct kit design from DIY Sound Group’s HTM-12 v2, a 10” ported LCR/surround box built around a Celestion woofer and compression tweeter. Sound-power smoothness of 0.197 is solid for a budget DIY kit. Measured bass extension of 73.4Hz (-3dB), with a measured sensitivity of 91.3dB.

Cons: On-axis deviation of 0.537dB is rough, with a pronounced -0.43dB per octave downward tilt giving it a notably dark tonal character, a somewhat resonant bass-alignment Q of 1.76, and the Harman in-room bass extension estimate is a modest 56Hz for a 10” woofer. It ships as a flat-pack cabinet kit requiring assembly, sold in a minimum order of two units.

Full DIYSG HT-10 review and specifications →

Bass Extension (-3dB)	73.4Hz (measured, spinorama.org)
Country	United States (kit design)
DIY Kit	Yes
Dimensions	15W x 19.5H x 9D in
Drivers	Celestion TF1020 10” woofer, Celestion CDX1-1445DA compression tweeter
Enclosure	Ported, MDF flat-pack cabinet kit
Impedance	8 ohms
Sensitivity	91.3dB (measured average 300Hz-3kHz @ 2.83V/1m, spinorama.org); 95dB manufacturer specified
Spinorama Preference Score	4.26
Spinorama Preference Score with Perfect Sub	6.80
Weight	approx. 28 lbs (12.7 kg) assembled
