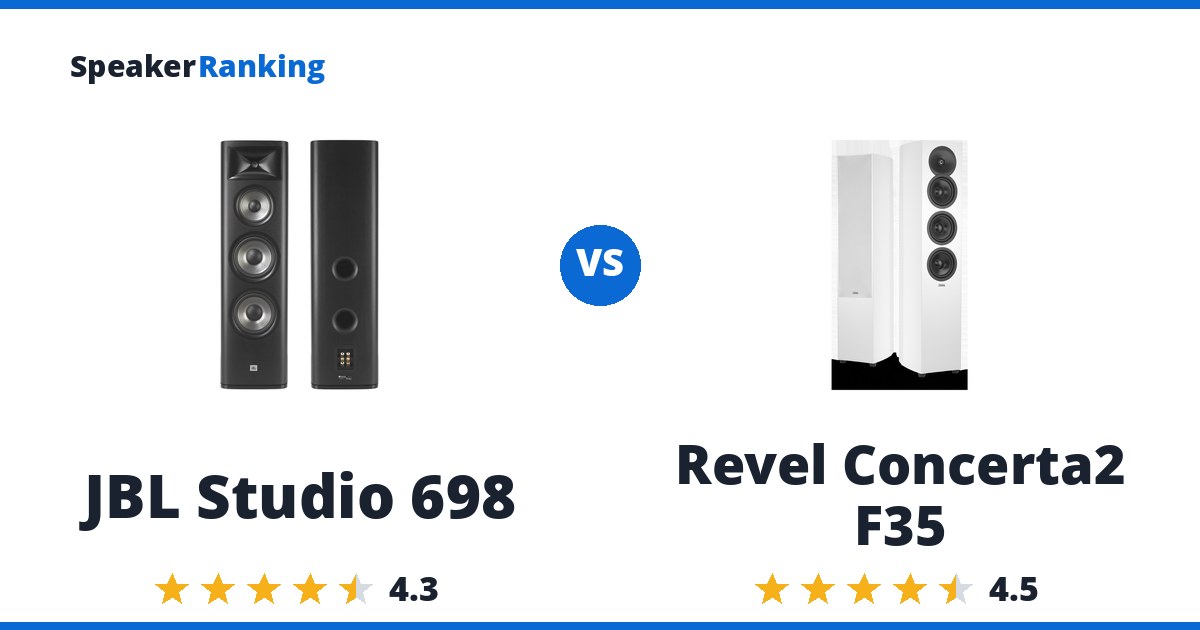

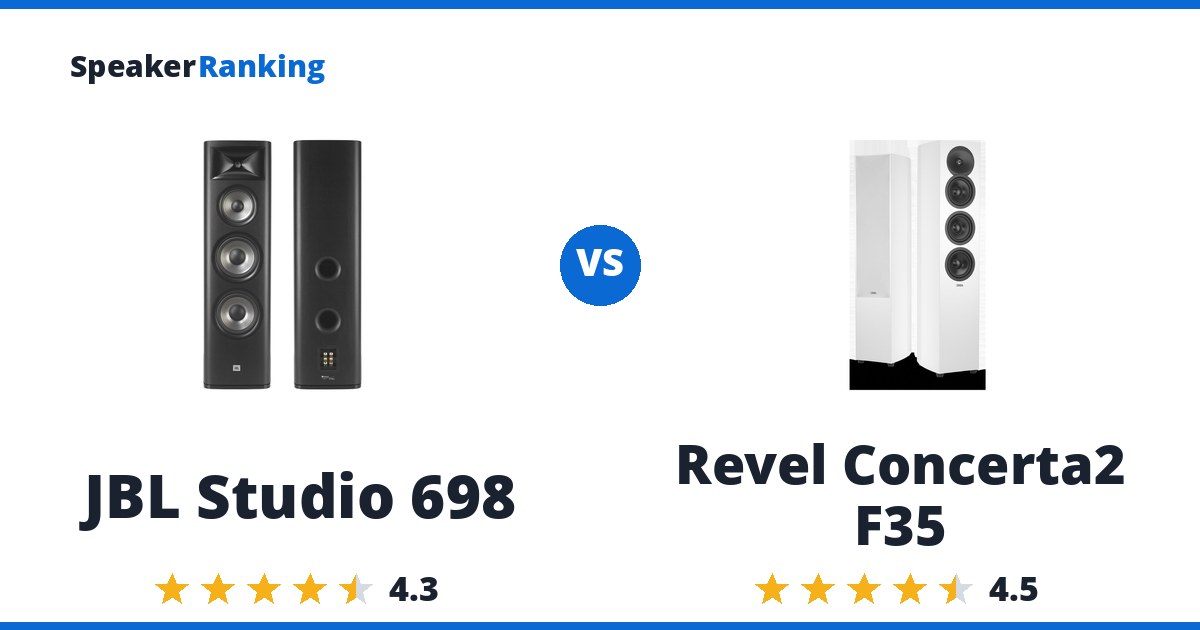

Short answer: the JBL Studio 698. It ranks #16 of 56 floorstanding speakers by sound quality at $699; the Revel Concerta2 F35 ranks #18 and costs $900, so there is not much of a tradeoff to weigh.
The case for the JBL Studio 698: High-Definition Imaging (HDI) horn waveguide paired with a 1” compression driver provides excellent high-frequency directivity control and seamless acoustic handoff to the 6” PolyPlas midrange. The tradeoff: Measured response exhibits a prominent mid-bass emphasis bump around 80Hz that can sound overly thick or chesty in smaller rooms without DSP EQ.
What the Revel Concerta2 F35 gets right: Two-and-a-half-way, four-driver design: a 1” aluminum dome tweeter on a waveguide, a 5.25” mid-range, and dual 5.25” mid-bass drivers in a rear-ported cabinet. The catch: F3 of 61Hz and F10 of 39Hz mean a subwoofer is needed for real bass extension.
Buy the JBL Studio 698. It ranks higher for sound quality than the Revel Concerta2 F35 and costs less, so there is no real case for the other one.
Specifications Side By Side
| JBL Studio 698 | Revel Concerta2 F35 | |
|---|---|---|
| Price | $699.00 | $900 |
| Ranked | #16 of 56 in Large Size Floorstanding Speakers | #18 of 56 in Large Size Floorstanding Speakers |
| Bass Extension (-10dB) | 34Hz (measured, Erin’s Audio Corner) | 50Hz (measured, Erin’s Audio Corner) |
| Bass Extension (-3dB) | 53Hz (measured, Erin’s Audio Corner) | 70Hz (measured, Erin’s Audio Corner) |
| Dimensions | 41.7"H x 11.8"W x 15.7"D (1058 x 300 x 400 mm) | 40.3"H x 8.4"W x 12.2"D (1023.6 x 213.4 x 309.9 mm) |
| Impedance | 6 ohms nominal (4.1 ohms minimum above 80Hz, measured by Erin’s Audio Corner) | 6 ohms nominal (3.8 ohms minimum, measured by Erin’s Audio Corner) |
| Sensitivity | 90dB (measured average, Erin’s Audio Corner) | 89.4dB (measured, Erin’s Audio Corner; 90dB manufacturer specified) |
| Drivers | 1 in. High-Definition Imaging compression driver, 6 in. PolyPlas midrange, dual 8 in. PolyPlas woofers | 3x 5.25" deep anodized aluminum cone woofers, 1" Aluminum Tweeter |
| Weight | 78.9 lbs / 35.8 kg each | 41 lbs / 18.6 kg each |
| Woofer Cabinet | ported, rear | ported, rear |
Related Speaker Comparisons
More useful head-to-heads from the same speaker class:
- Revel F206 vs ELAC DF63
- Focal Chora 816 vs Revel F206
- Revel F206 vs Emotiva Airmotiv T2+
- Focal Chora 816 vs JBL Studio 698
- Revel Concerta2 F35 vs Polk Reserve R500
The Two Speakers In Full
JBL Studio 698: $699.00 Amazon Crutchfield
Pros: High-Definition Imaging (HDI) horn waveguide paired with a 1” compression driver provides excellent high-frequency directivity control and seamless acoustic handoff to the 6” PolyPlas midrange. Dual 8” PolyPlas woofers deliver robust low-end authority with solid bass extension down to an F3 of 53Hz and F10 of 34Hz. High voltage sensitivity (90dB SPL at 2.83V/1m) and clean power handling provide effortless dynamic headroom and low distortion for home theater and music listening.
Cons: Measured response exhibits a prominent mid-bass emphasis bump around 80Hz that can sound overly thick or chesty in smaller rooms without DSP EQ. Treble response lacks top-octave ‘air’ above 12kHz compared to high-end dome or ribbon tweeters. Physically large, heavy cabinet (35.8 kg per speaker) requires careful room placement and a wide acoustic footprint.
Full JBL Studio 698 review and specifications →
| Bass Extension (-10dB) | 34Hz (measured, Erin's Audio Corner) |
|---|---|
| Bass Extension (-3dB) | 53Hz (measured, Erin's Audio Corner) |
| Dimensions | 41.7"H x 11.8"W x 15.7"D (1058 x 300 x 400 mm) |
| Drivers | 1 in. High-Definition Imaging compression driver, 6 in. PolyPlas midrange, dual 8 in. PolyPlas woofers |
| Impedance | 6 ohms nominal (4.1 ohms minimum above 80Hz, measured by Erin's Audio Corner) |
| Sensitivity | 90dB (measured average, Erin's Audio Corner) |
| Weight | 78.9 lbs / 35.8 kg each |
| Woofer Cabinet | ported, rear |
As an eBay Partner, we may be compensated if you make a purchase.
- Links
- Reviews, Comparisons and Sound Samples
- Head-to-Head Comparisons
Revel Concerta2 F35: $900 Crutchfield
Pros: Two-and-a-half-way, four-driver design: a 1” aluminum dome tweeter on a waveguide, a 5.25” mid-range, and dual 5.25” mid-bass drivers in a rear-ported cabinet. Measured sensitivity of 89.4dB closely matches the 90dB spec, and distortion looks good at both 86dB and 96dB, holding up well even with a high-pass filter applied. At its sale price (around $900/pair, down from full retail), the reviewer calls it a “no-brainer,” undercutting comparable budget floorstanders like the ELAC DF63. Frequency response and directivity mismatches are largely EQ-able, since most of what shows up in measurements traces to physical tweeter/mid-range separation rather than a fundamental flaw. Compression is fairly well controlled for the price - about 1dB of loss around 100Hz under long-term compression, described as “par for the course” at this cost.
Cons: F3 of 61Hz and F10 of 39Hz mean a subwoofer is needed for real bass extension. A dip in the lower midrange/2-3kHz region reduces attack and detail, and a peak around 5kHz adds some edge and sibilance in the lower treble. A peak in off-axis energy around 3kHz reflects off sidewalls at roughly 60-70° off-axis and arrives louder than the direct sound - this specific issue can’t be fixed with EQ (boosting the direct sound would boost the stronger reflection too) and would need acoustic absorption to properly address, though the reviewer considers it a minor, optional fix at this price. A couple of minor resonances appear in the impedance plot, including one around 300Hz that may partly explain a subtle sense of vocal warmth noticed in listening, though it’s more likely room-related. Minimum impedance around 3.8 ohms. Short-term compression testing shows some increased distortion in the tweeter and higher-frequency compression at loud output.
Full Revel Concerta2 F35 review and specifications →
| Bass Extension (-10dB) | 50Hz (measured, Erin's Audio Corner) |
|---|---|
| Bass Extension (-3dB) | 70Hz (measured, Erin's Audio Corner) |
| Dimensions | 40.3"H x 8.4"W x 12.2"D (1023.6 x 213.4 x 309.9 mm) |
| Drivers | 3x 5.25" deep anodized aluminum cone woofers, 1" Aluminum Tweeter |
| Impedance | 6 ohms nominal (3.8 ohms minimum, measured by Erin's Audio Corner) |
| Sensitivity | 89.4dB (measured, Erin's Audio Corner; 90dB manufacturer specified) |
| Weight | 41 lbs / 18.6 kg each |
| Woofer Cabinet | ported, rear |
