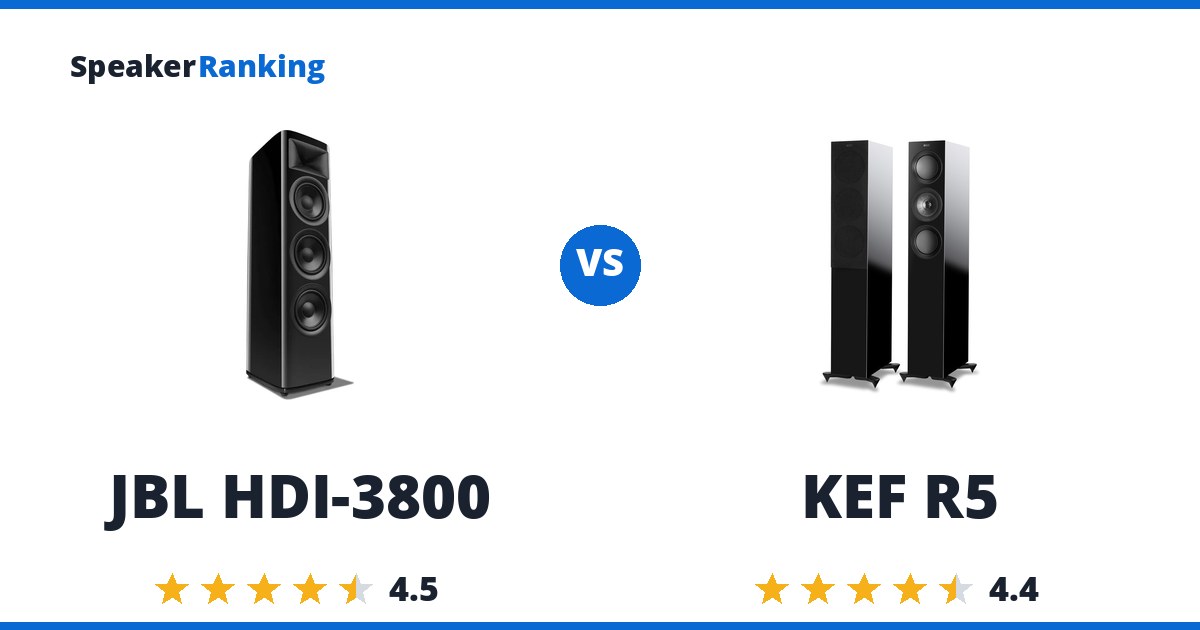

Short answer: the JBL HDI-3800 for better sound quality, the KEF R5 for the lower price. The JBL HDI-3800 ranks #5 of 54 floorstanding speakers at $5000. The KEF R5 ranks #8 at $2999, $2001 cheaper.
What the JBL HDI-3800 offers: 2410H-2 1” Teonex compression driver matched to a custom High-Definition Imaging (HDI) horn geometry achieves exceptional horizontal directivity control, high output capability, and effortless transient response. Watch for: On-axis frequency response features a narrow upper-frequency elevation around 8-10kHz, performing noticeably smoother when toed out 10-20° off-axis.
What the KEF R5 offers: Slim three-way tower with the acoustic advantages of KEF’s coincident Uni-Q midrange/tweeter: horizontal and vertical off-axis responses track the direct sound smoothly, producing stable imaging and a well-behaved directivity… Watch for: The unusual gap between 77Hz F3 and 33Hz F10 indicates a gradual bass contour rather than flat deep-bass output; a subwoofer and roughly 80Hz high-pass are recommended for high-level playback.
Buy the JBL HDI-3800 if sound quality matters more than the price. Buy the KEF R5 if the price matters more than sound quality.
Specifications Side By Side
| JBL HDI-3800 | KEF R5 | |
|---|---|---|
| Price | $5,000.00 Discontinued | $2,999/pair |
| Ranked | #5 of 54 in Large Size Floorstanding Speakers | #8 of 54 in Large Size Floorstanding Speakers |
| Bass Extension (-10dB) | 28Hz (measured, Erin’s Audio Corner) | 33Hz (measured, Erin’s Audio Corner) |
| Bass Extension (-3dB) | 37Hz (measured, Erin’s Audio Corner) | 77Hz (measured, Erin’s Audio Corner) |
| Dimensions | 43.3"H x 11.8"W x 16.4"D (1100.5 x 300.0 x 417.8 mm) | 40.4"H x 6.9"W x 13.5"D |
| Discontinued | Yes | - |
| Impedance | 4 ohms nominal (3.8 ohms minimum, measured by Erin’s Audio Corner) | Approximately 3.5 ohms minimum near 150Hz (measured, Erin’s Audio Corner) |
| Sensitivity | 92dB (measured average, Erin’s Audio Corner) | Approximately 86dB/2.83V/1m (measured, Erin’s Audio Corner) |
| Drivers | 1 in. 2410H-2 Teonex compression driver with HDI horn, triple 8 in. Advanced Aluminum Matrix cone woofers | 1" aluminum tweeter coaxial with 5" midrange; dual 5.25" woofers |
| Weight | 83.8 lbs / 38.0 kg each | 59.5 lb each |
| Woofer Cabinet | ported, rear | ported, rear |
Related Speaker Comparisons
More useful head-to-heads from the same speaker class:
- MoFi SourcePoint 888 vs Revel F206
- MoFi SourcePoint 888 vs KEF R5 Meta
- Revel F206 vs Revel F226Be
- MoFi SourcePoint 888 vs KEF R5
- JBL HDI-3800 vs KEF R5 Meta
The Two Speakers In Full
JBL HDI-3800: $5,000.00 Discontinued
Pros: 2410H-2 1” Teonex compression driver matched to a custom High-Definition Imaging (HDI) horn geometry achieves exceptional horizontal directivity control, high output capability, and effortless transient response. Triple 8” Advanced Aluminum Matrix woofers deliver deep, authoritative bass extension down to an F3 of 37Hz and F10 of 28Hz with minimal low-frequency compression. Outstanding sensitivity (92dB SPL at 2.83V/1m) and ultra-low THD/multitone distortion allow extremely high undistorted SPL output in large home theater spaces.
Cons: On-axis frequency response features a narrow upper-frequency elevation around 8-10kHz, performing noticeably smoother when toed out 10-20° off-axis. Vertical directivity handoff across the triple woofer layout creates vertical soundstage height tilt depending on listening distance and ear height. Minimum impedance dips to 3.8 ohms, requiring high-current amplifier stability. Substantial cabinet dimensions and 38kg weight require significant room real estate. Discontinued.
Full JBL HDI-3800 review and specifications →
| Bass Extension (-10dB) | 28Hz (measured, Erin's Audio Corner) |
|---|---|
| Bass Extension (-3dB) | 37Hz (measured, Erin's Audio Corner) |
| Dimensions | 43.3"H x 11.8"W x 16.4"D (1100.5 x 300.0 x 417.8 mm) |
| Discontinued | Yes |
| Drivers | 1 in. 2410H-2 Teonex compression driver with HDI horn, triple 8 in. Advanced Aluminum Matrix cone woofers |
| Impedance | 4 ohms nominal (3.8 ohms minimum, measured by Erin's Audio Corner) |
| Sensitivity | 92dB (measured average, Erin's Audio Corner) |
| Weight | 83.8 lbs / 38.0 kg each |
| Woofer Cabinet | ported, rear |
As an eBay Partner, we may be compensated if you make a purchase.
- Links
- Reviews, Comparisons and Sound Samples
- Head-to-Head Comparisons
- JBL HDI-3800 vs MoFi SourcePoint 888
- JBL HDI-3800 vs KEF R5 Meta
- JBL HDI-3800 vs MoFi SourcePoint V10 Master Edition
- JBL HDI-3800 vs Revel F226Be
- JBL HDI-3800 vs JBL 4367
- JBL HDI-3800 vs KEF Reference 203
- JBL HDI-3800 vs Klipsch Forte IV
- JBL HDI-3800 vs Revival Audio Atalante 5
- See all 9 comparisons
KEF R5: $2,999/pair Amazon Crutchfield
Pros: Slim three-way tower with the acoustic advantages of KEF’s coincident Uni-Q midrange/tweeter: horizontal and vertical off-axis responses track the direct sound smoothly, producing stable imaging and a well-behaved directivity index. Erin measured deep low-frequency reach for the cabinet width—77Hz F3 but 33Hz F10—and less than 1% harmonic distortion at 86dB. At 96dB it remains clean when high-passed, and its mild response deviations are suitable for equalization because the radiation pattern stays orderly.
Cons: The unusual gap between 77Hz F3 and 33Hz F10 indicates a gradual bass contour rather than flat deep-bass output; a subwoofer and roughly 80Hz high-pass are recommended for high-level playback. Erin measured a minimum near 3.5 ohms around 150Hz, although most of the curve remains above 4 ohms, so amplifier quality still matters. Sensitivity is approximately 86dB/2.83V/1m. At 102dB, compression reaches roughly 1dB around 150Hz, showing the limits of the twin 5.25-inch woofers. This original model lacks the Meta version’s MAT rear-wave absorption.
Full KEF R5 review and specifications →
| Bass Extension (-10dB) | 33Hz (measured, Erin's Audio Corner) |
|---|---|
| Bass Extension (-3dB) | 77Hz (measured, Erin's Audio Corner) |
| Dimensions | 40.4"H x 6.9"W x 13.5"D |
| Drivers | 1" aluminum tweeter coaxial with 5" midrange; dual 5.25" woofers |
| Impedance | Approximately 3.5 ohms minimum near 150Hz (measured, Erin's Audio Corner) |
| Sensitivity | Approximately 86dB/2.83V/1m (measured, Erin's Audio Corner) |
| Weight | 59.5 lb each |
| Woofer Cabinet | ported, rear |
