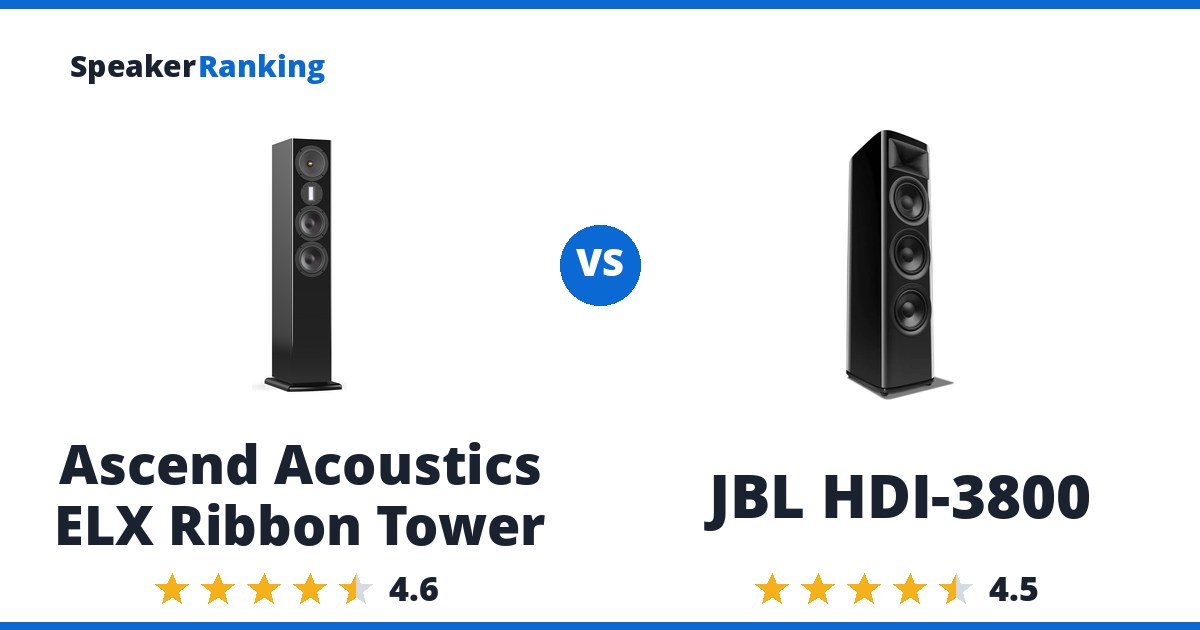

Short answer: the Ascend Acoustics ELX Ribbon Tower for better sound quality, the JBL HDI-3800 for the lower price. The Ascend Acoustics ELX Ribbon Tower ranks #6 of 59 floorstanding speakers at $5698. The JBL HDI-3800 ranks #7 at $5000, $698 cheaper.
What the Ascend Acoustics ELX Ribbon Tower gets right: A RAAL 70-20xram ribbon tweeter and dual SEAS Excel aluminum woofers in a 3-way, 4-driver bamboo tower measure a genuine 38.7Hz extension point with a nearly flat on axis slope of 0.05dB per octave, among the best measured towers in this batch. The tradeoff: Listening window smoothness measures a moderate 0.40 and on axis deviation runs 0.286dB average, both trailing the tighter figures posted by some of the passive AsciLab and Ascend bookshelf models in this same batch.
The case for the JBL HDI-3800: 2410H-2 1” Teonex compression driver matched to a custom High-Definition Imaging (HDI) horn geometry achieves exceptional horizontal directivity control, high output capability, and effortless transient response. The catch: On-axis frequency response features a narrow upper-frequency elevation around 8-10kHz, performing noticeably smoother when toed out 10-20° off-axis.
Buy the Ascend Acoustics ELX Ribbon Tower if sound quality matters more than the price. Buy the JBL HDI-3800 if the price matters more than sound quality.
Specifications Side By Side
| Ascend Acoustics ELX Ribbon Tower | JBL HDI-3800 | |
|---|---|---|
| Price | $5,698/pair | $5,000.00 Discontinued |
| Ranked | #6 of 59 in Large Size Floorstanding Speakers | #7 of 59 in Large Size Floorstanding Speakers |
| Enclosure | ported | - |
| Drivers | RAAL 70-20xram ribbon tweeter, 6" SEAS Excel Curv midrange (sealed sub-chamber), 2x 6" SEAS Excel aluminum woofers | 1 in. 2410H-2 Teonex compression driver with HDI horn, triple 8 in. Advanced Aluminum Matrix cone woofers |
| Dimensions | 43"H x 7.5"W x 10.5"D (1092 x 190 x 267 mm) (43 x 7.5 x 10.5 in) | 43.3"H x 11.8"W x 16.4"D (1100.5 x 300.0 x 417.8 mm) |
| Weight | 56 lbs / 25.4 kg (56 lbs) each | 83.8 lbs / 38.0 kg each |
| Sensitivity | 87.5dB @ 2.83V/1m anechoic (manufacturer) | 92dB (measured average, Erin’s Audio Corner) |
| Impedance | 8 ohms nominal | 4 ohms nominal (3.8 ohms minimum, measured by Erin’s Audio Corner) |
| Power Output (Watts) | 400W continuous, 600W peak | - |
| Frequency Response | 36-27,000Hz +/-3dB anechoic (manufacturer) | - |
| Bass Extension (-3dB) | 38.7Hz (measured, spinorama.org vendor data) | 37Hz (measured, Erin’s Audio Corner) |
| Bass Extension (-10dB) | 28.5Hz (measured, spinorama.org vendor data) | 28Hz (measured, Erin’s Audio Corner) |
| Warranty | 7 years parts and labor | - |
| Country | United States | - |
| Discontinued | - | Yes |
| Woofer Cabinet | - | ported, rear |
Related Speaker Comparisons
More useful head-to-heads from the same speaker class:
- Polk T50 vs Revel F328Be
- Revel F328Be vs JBL Studio 698
- Revel F328Be vs Focal Chora 816
- MoFi SourcePoint 888 vs JBL HDI-3800
- JBL HDI-3800 vs Klipsch Forte IV
The Two Speakers In Full
Ascend Acoustics ELX Ribbon Tower: $5,698/pair Ascend Acoustics
Pros: A RAAL 70-20xram ribbon tweeter and dual SEAS Excel aluminum woofers in a 3-way, 4-driver bamboo tower measure a genuine 38.7Hz extension point with a nearly flat on axis slope of 0.05dB per octave, among the best measured towers in this batch. The bass alignment Q of 0.62 keeps the low end well damped rather than peaky. Backed by a 7 year parts and labor warranty and hand assembled in Orange County, California, with each pair matched within +/-1.5dB.
Cons: Listening window smoothness measures a moderate 0.40 and on axis deviation runs 0.286dB average, both trailing the tighter figures posted by some of the passive AsciLab and Ascend bookshelf models in this same batch. At $5,698/pair it is Ascend’s most expensive tower, well above the Titan dome tweeter version of the same cabinet. The manufacturer’s own claimed sensitivity (87.5dB) runs nearly 1.5dB higher than the independently measured average (86.1dB), worth accounting for when matching an amplifier.
Full Ascend Acoustics ELX Ribbon Tower review and specifications →
| Bass Extension (-10dB) | 28.5Hz (measured, spinorama.org vendor data) |
|---|---|
| Bass Extension (-3dB) | 38.7Hz (measured, spinorama.org vendor data) |
| Country | United States |
| Dimensions | 43"H x 7.5"W x 10.5"D (1092 x 190 x 267 mm) (43 x 7.5 x 10.5 in) |
| Drivers | RAAL 70-20xram ribbon tweeter, 6" SEAS Excel Curv midrange (sealed sub-chamber), 2x 6" SEAS Excel aluminum woofers |
| Enclosure | ported |
| Frequency Response | 36-27,000Hz +/-3dB anechoic (manufacturer) |
| Impedance | 8 ohms nominal |
| Power Output (Watts) | 400W continuous, 600W peak |
| Sensitivity | 87.5dB @ 2.83V/1m anechoic (manufacturer) |
| Warranty | 7 years parts and labor |
| Weight | 56 lbs / 25.4 kg (56 lbs) each |
As an eBay Partner, we may be compensated if you make a purchase.
- Links
- Reviews, Comparisons and Sound Samples
- Head-to-Head Comparisons
JBL HDI-3800: $5,000.00 Discontinued
Pros: 2410H-2 1” Teonex compression driver matched to a custom High-Definition Imaging (HDI) horn geometry achieves exceptional horizontal directivity control, high output capability, and effortless transient response. Triple 8” Advanced Aluminum Matrix woofers deliver deep, authoritative bass extension down to an F3 of 37Hz and F10 of 28Hz with minimal low-frequency compression. Outstanding sensitivity (92dB SPL at 2.83V/1m) and ultra-low THD/multitone distortion allow extremely high undistorted SPL output in large home theater spaces.
Cons: On-axis frequency response features a narrow upper-frequency elevation around 8-10kHz, performing noticeably smoother when toed out 10-20° off-axis. Vertical directivity handoff across the triple woofer layout creates vertical soundstage height tilt depending on listening distance and ear height. Minimum impedance dips to 3.8 ohms, requiring high-current amplifier stability. Substantial cabinet dimensions and 38kg weight require significant room real estate. Discontinued.
Full JBL HDI-3800 review and specifications →
| Bass Extension (-10dB) | 28Hz (measured, Erin's Audio Corner) |
|---|---|
| Bass Extension (-3dB) | 37Hz (measured, Erin's Audio Corner) |
| Dimensions | 43.3"H x 11.8"W x 16.4"D (1100.5 x 300.0 x 417.8 mm) |
| Discontinued | Yes |
| Drivers | 1 in. 2410H-2 Teonex compression driver with HDI horn, triple 8 in. Advanced Aluminum Matrix cone woofers |
| Impedance | 4 ohms nominal (3.8 ohms minimum, measured by Erin's Audio Corner) |
| Sensitivity | 92dB (measured average, Erin's Audio Corner) |
| Weight | 83.8 lbs / 38.0 kg each |
| Woofer Cabinet | ported, rear |
