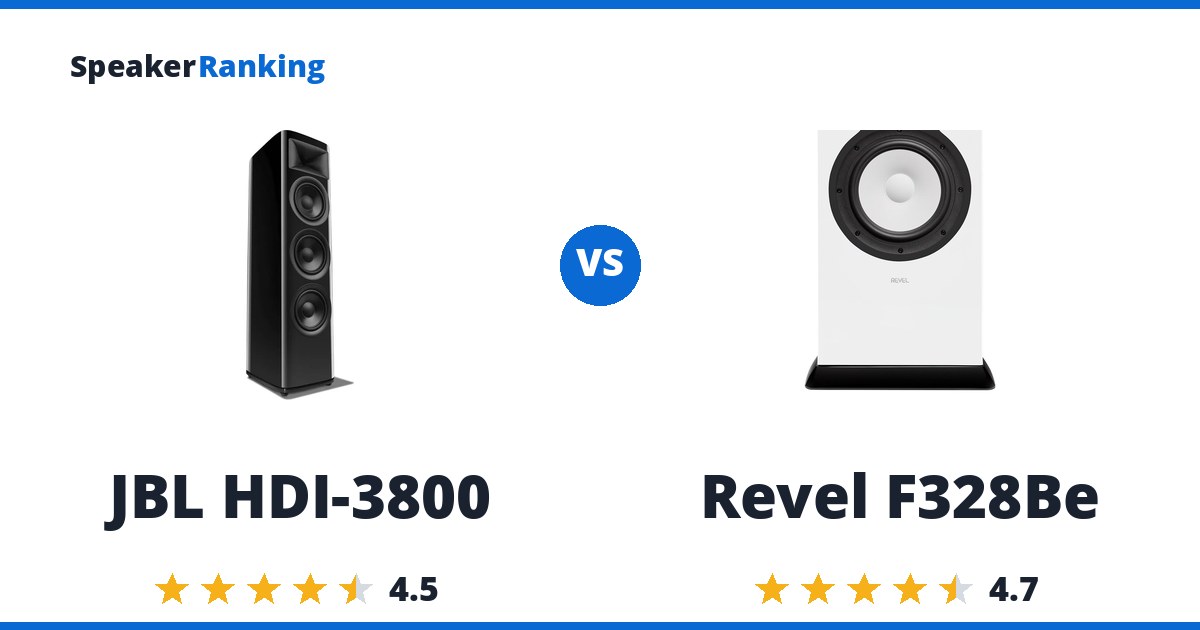

Short answer: the JBL HDI-3800. It ranks #6 of 56 floorstanding speakers by sound quality at $5000; the Revel F328Be ranks #7 and costs $13600, so there is not much of a tradeoff to weigh.
What the JBL HDI-3800 gets right: 2410H-2 1” Teonex compression driver matched to a custom High-Definition Imaging (HDI) horn geometry achieves exceptional horizontal directivity control, high output capability, and effortless transient response. The catch: On-axis frequency response features a narrow upper-frequency elevation around 8-10kHz, performing noticeably smoother when toed out 10-20° off-axis.
On the Revel F328Be side: CEA2034 spinorama shows a quite flat on-axis response with superb directivity and efficiency above 90dB. Set against that: Vertical directivity is asymmetric - the reviewer recommends staying between -20 and +40 degrees relative to the tweeter axis, reflecting the driver layout of this three-way tower.
Buy the JBL HDI-3800. It ranks higher for sound quality than the Revel F328Be and costs less, so there is no real case for the other one.
Specifications Side By Side
| JBL HDI-3800 | Revel F328Be | |
|---|---|---|
| Price | $5,000.00 Discontinued | $13600 |
| Ranked | #6 of 56 in Large Size Floorstanding Speakers | #7 of 56 in Large Size Floorstanding Speakers |
| Bass Extension (-10dB) | 28Hz (measured, Erin’s Audio Corner) | 39Hz (measured, Audio Science Review) |
| Bass Extension (-3dB) | 37Hz (measured, Erin’s Audio Corner) | 74Hz (measured, Audio Science Review) |
| Dimensions | 43.3"H x 11.8"W x 16.4"D (1100.5 x 300.0 x 417.8 mm) | 50.9"H x 13.5"W x 17.6"D (1292.9 x 342.9 x 447 mm) |
| Discontinued | Yes | - |
| Impedance | 4 ohms nominal (3.8 ohms minimum, measured by Erin’s Audio Corner) | 8 ohms nominal (3 ohms minimum, measured by Audio Science Review) |
| Sensitivity | 92dB (measured average, Erin’s Audio Corner) | 91dB (measured, Audio Science Review) |
| Drivers | 1 in. 2410H-2 Teonex compression driver with HDI horn, triple 8 in. Advanced Aluminum Matrix cone woofers | Three 8" (200mm) Deep Ceramic Composite aluminum cones, with cast frames woofer, 5-1/4" (130mm) Deep Ceramic Composite aluminum cone, with cast frame midrange, 1" (25mm) Beryllium dome, with acoustic lens waveguide tweeter |
| Weight | 83.8 lbs / 38.0 kg each | 112.4 lbs / 51 kg each |
| Woofer Cabinet | ported, rear | ported, rear |
Related Speaker Comparisons
More useful head-to-heads from the same speaker class:
- KEF R5 Meta vs Endow Audio Bravura 7
- KEF R5 Meta vs JBL 4367
- Revel F226Be vs KEF R5 Meta
- Revel F328Be vs KEF Reference 203
- Klipsch Forte IV vs Revel F328Be
The Two Speakers In Full
JBL HDI-3800: $5,000.00 Discontinued
Pros: 2410H-2 1” Teonex compression driver matched to a custom High-Definition Imaging (HDI) horn geometry achieves exceptional horizontal directivity control, high output capability, and effortless transient response. Triple 8” Advanced Aluminum Matrix woofers deliver deep, authoritative bass extension down to an F3 of 37Hz and F10 of 28Hz with minimal low-frequency compression. Outstanding sensitivity (92dB SPL at 2.83V/1m) and ultra-low THD/multitone distortion allow extremely high undistorted SPL output in large home theater spaces.
Cons: On-axis frequency response features a narrow upper-frequency elevation around 8-10kHz, performing noticeably smoother when toed out 10-20° off-axis. Vertical directivity handoff across the triple woofer layout creates vertical soundstage height tilt depending on listening distance and ear height. Minimum impedance dips to 3.8 ohms, requiring high-current amplifier stability. Substantial cabinet dimensions and 38kg weight require significant room real estate. Discontinued.
Full JBL HDI-3800 review and specifications →
| Bass Extension (-10dB) | 28Hz (measured, Erin's Audio Corner) |
|---|---|
| Bass Extension (-3dB) | 37Hz (measured, Erin's Audio Corner) |
| Dimensions | 43.3"H x 11.8"W x 16.4"D (1100.5 x 300.0 x 417.8 mm) |
| Discontinued | Yes |
| Drivers | 1 in. 2410H-2 Teonex compression driver with HDI horn, triple 8 in. Advanced Aluminum Matrix cone woofers |
| Impedance | 4 ohms nominal (3.8 ohms minimum, measured by Erin's Audio Corner) |
| Sensitivity | 92dB (measured average, Erin's Audio Corner) |
| Weight | 83.8 lbs / 38.0 kg each |
| Woofer Cabinet | ported, rear |
As an eBay Partner, we may be compensated if you make a purchase.
- Links
- Reviews, Comparisons and Sound Samples
- Head-to-Head Comparisons
Revel F328Be: $13600 Crutchfield
Pros: CEA2034 spinorama shows a quite flat on-axis response with superb directivity and efficiency above 90dB. Predicted in-room response is extremely accurate, with a smooth ~5dB downward slope from bass to treble that suits typical rooms without correction. Early reflections sum very nicely with the direct sound. Horizontal beamwidth of about ±70 degrees is wide and quite smooth. At 96dB SPL/1m distortion stays easily below the reviewer’s audibility threshold across nearly the whole range.
Cons: Vertical directivity is asymmetric - the reviewer recommends staying between -20 and +40 degrees relative to the tweeter axis, reflecting the driver layout of this three-way tower. Impedance dips to a minimum of 3 ohms with an additional resonance-driven phase swing, calling for an amplifier comfortable with a demanding load. Very expensive and very heavy (51 kg each).
Full Revel F328Be review and specifications →
| Bass Extension (-10dB) | 39Hz (measured, Audio Science Review) |
|---|---|
| Bass Extension (-3dB) | 74Hz (measured, Audio Science Review) |
| Dimensions | 50.9"H x 13.5"W x 17.6"D (1292.9 x 342.9 x 447 mm) |
| Drivers | Three 8" (200mm) Deep Ceramic Composite aluminum cones, with cast frames woofer, 5-1/4" (130mm) Deep Ceramic Composite aluminum cone, with cast frame midrange, 1" (25mm) Beryllium dome, with acoustic lens waveguide tweeter |
| Impedance | 8 ohms nominal (3 ohms minimum, measured by Audio Science Review) |
| Sensitivity | 91dB (measured, Audio Science Review) |
| Weight | 112.4 lbs / 51 kg each |
| Woofer Cabinet | ported, rear |
