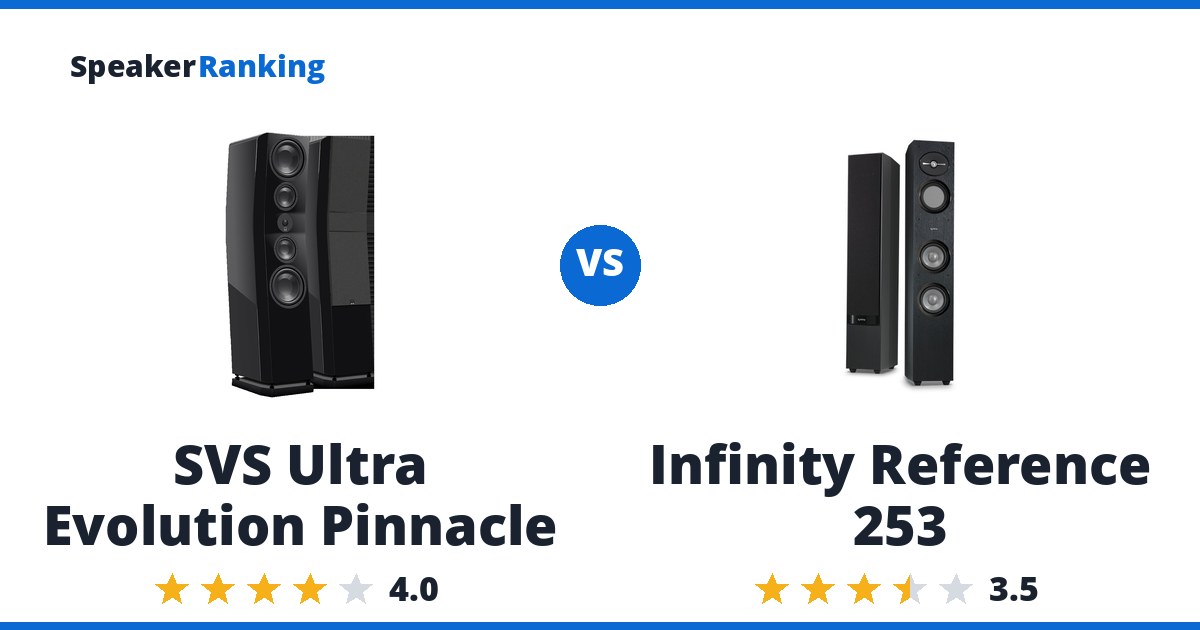

SVS Ultra Evolution Pinnacle vs Infinity Reference 253

Last updated: October 31, 2026

Short answer: neither tower is neutral. The SVS Ultra Evolution Pinnacle is the larger time-aligned curved-baffle design, but a dip followed by a peak around 2-3kHz gives vocals a shouty quality toe-out alone does not resolve. The Infinity Reference 253 keeps a smooth horizontal beamwidth of about ±60 degrees, yet its spinorama and predicted in-room response show treble above 4kHz that is too hot, a dip around 2kHz and bass shelved down.

SVS Ultra Evolution Pinnacle vs Infinity Reference 253

The case for the SVS Ultra Evolution Pinnacle: A large curved-baffle tower built for time alignment: a 1” dome tweeter flanked by two 5.25” midranges above two 8” mid-bass drivers, plus a matching pair of 8” drivers and dual ports on the back. The tradeoff: Not a fully linear speaker: a dip in the upper midrange followed closely by a peak (roughly 2-3kHz) gives vocals and other midrange content a shouty, forward quality that toe-out alone doesn’t resolve.

Buy the SVS Ultra Evolution Pinnacle. It is rated higher for sound quality; the Infinity Reference 253 is no longer sold new.

Looking for alternatives? See the complete Passive Home rankings.

Measured Differences

Prices on this page were last checked November 14, 2026 at 6:17 PM UTC. Product prices and availability are accurate as of that date/time and are subject to change; the price and availability shown on Amazon at the time of purchase will apply to the purchase of this product.

As an eBay Partner, we may be compensated if you make a purchase.

Specifications Side By Side

SVS Ultra Evolution Pinnacle Infinity Reference 253
Price$2,499.00 per pair$400 per pair used, Discontinued
Ranked#151 of 228 in Large Size Floorstanding Speakers#179 of 228 in Large Size Floorstanding Speakers
Bass Extension (-10dB)about 27.3Hz (measured, Erin’s Audio Corner)38Hz (measured, Audio Science Review)
Enclosure3-way passive, dual rear ports-
Drivers1” diamond-coated tweeter, dual 5.25” midranges, quad 8” woofersDual 5.25” (130mm) CMMD™ woofers, 5.25” (130mm) flat-piston CMMD™ midrange, 1” (25mm) CMMD™ tweeter
Dimensions50.2H x 11.8W x 18.1D in40.3”H x 6.8”W x 12.4”D (1023.6 x 172.7 x 315 mm)
Weight96.8 lbs (43.9 kg) each39.2 lbs (17.8 kg) each
Sensitivity88dB86.9dB (measured by Audio Science Review; 88dB manufacturer specified)
Impedance6 ohms nominal6 ohms
Spinorama Preference Score4.915.43 (spinorama.org)
Spinorama Preference Score with Perfect Sub6.137.31 (spinorama.org)
Bass Extension (-3dB)41.0Hz (measured, Erin’s Audio Corner via spinorama.org)78Hz (measured, Audio Science Review)
DIY KitNoNo
Woofer Cabinet-ported, rear

Where the Ratings Come From

This comparison is generated from the ratings, specifications and measurements on each product’s own page, and it updates when that data changes. How we rank explains how each rating is decided.
