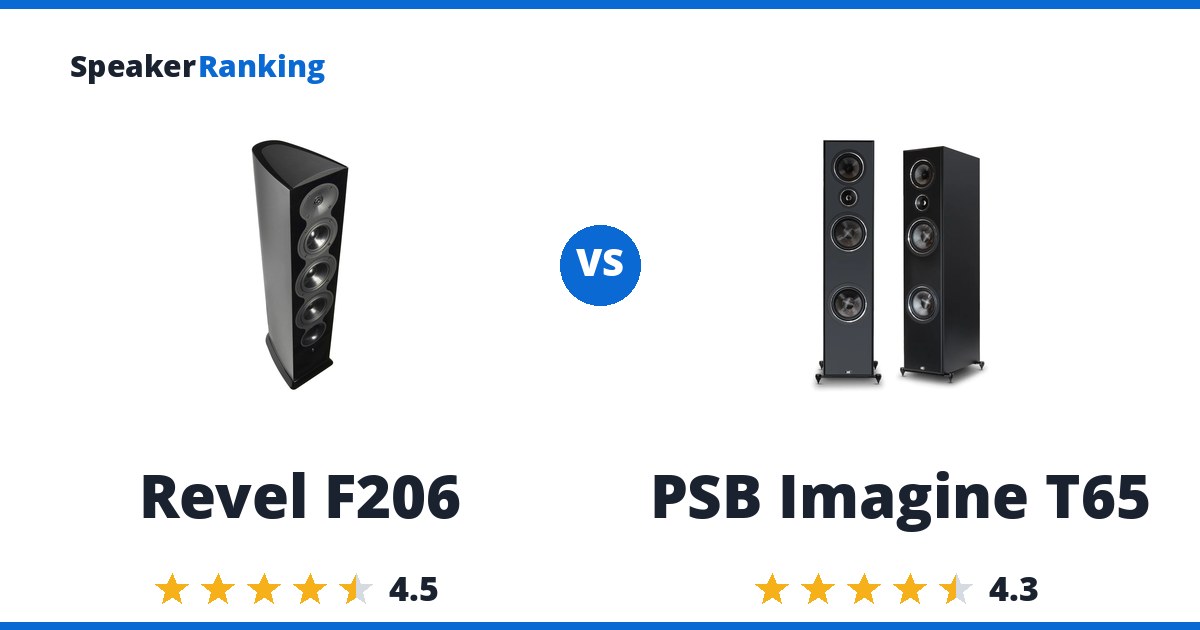

Revel F206 vs PSB Imagine T65

Last updated: October 21, 2026

Short answer: the PSB Imagine T65 for bass, the Revel F206 for evenness. The PSB’s dual 6.5” carbon fiber woofers deliver genuinely strong, extended low end, but a midrange/crossover dip affects dialogue and vocal clarity. The F206’s CEA2034 spinorama shows a pretty even on-axis response, with some directivity error and a small peak around 4.5kHz alongside the directivity error around 3kHz.

Revel F206 vs PSB Imagine T65

Buy the PSB Imagine T65 if price matters most. For better sound quality, the Revel F226Be, the replacement for the discontinued Revel F206, is rated higher but costs $5,999.90.

Want more options? Browse the full Passive Home rankings.

Measured Differences

Prices on this page were last checked November 14, 2026 at 6:17 PM UTC. Product prices and availability are accurate as of that date/time and are subject to change; the price and availability shown on Amazon at the time of purchase will apply to the purchase of this product.

As an eBay Partner, we may be compensated if you make a purchase.

Specifications Side By Side

Revel F206 PSB Imagine T65
Price$2,000 per pair used, Discontinued$2,699 per pair
Ranked#30 of 228 in Large Size Floorstanding Speakers#66 of 228 in Large Size Floorstanding Speakers
Bass Extension (-10dB)34Hz (measured, Audio Science Review)26Hz (measured average, Erin’s Audio Corner)
Bass Extension (-3dB)60Hz (measured, Audio Science Review)47Hz (measured average, Erin’s Audio Corner)
Dimensions40.3”H x 8.4”W x 12.2”D (1023.6 x 213.4 x 309.9 mm)38.8” x 8.4” x 13.5” (986 x 213 x 343 mm)
Impedance4 ohms nominal (3.3 ohms minimum, measured by Audio Science Review)8 ohms nominal (3.3 ohms minimum measured by Erin’s Audio Corner; manufacturer specifies 4 ohms minimum)
DriversDual 6.5” (16.5 cm) Aluminum Cone, Cast-frame Woofers, 5.25” (13.3 cm) Aluminum Cone, Cast-frame Midrange, 1” (2.5 cm) Aluminum Tweeter with Acoustic Lens Waveguide1” titanium dome tweeter, 5.25” woven carbon fiber midrange, 2x 6.5” woven carbon fiber woofers
Sensitivity87dB (measured, Audio Science Review)85.1dB (measured average, Erin’s Audio Corner)
Weight57.3 lbs (26 kg) each44.1 lbs (20 kg) each
Woofer Cabinetported, front-
Spinorama Preference Score5.515.29
Spinorama Preference Score with Perfect Sub7.526.51
DIY KitNoNo
Crossover Frequency-600Hz & 2000Hz, 4th-order Linkwitz-Riley
Recommended Power-20-200W
Enclosure-Vented: dual rear slot ports, individual woofer chambers
Frequency Response-28Hz - 20kHz (±1.5dB, manufacturer specified)

Where the Ratings Come From

This comparison is generated from the ratings, specifications and measurements on each product’s own page, and it updates when that data changes. How we rank explains how each rating is decided.
