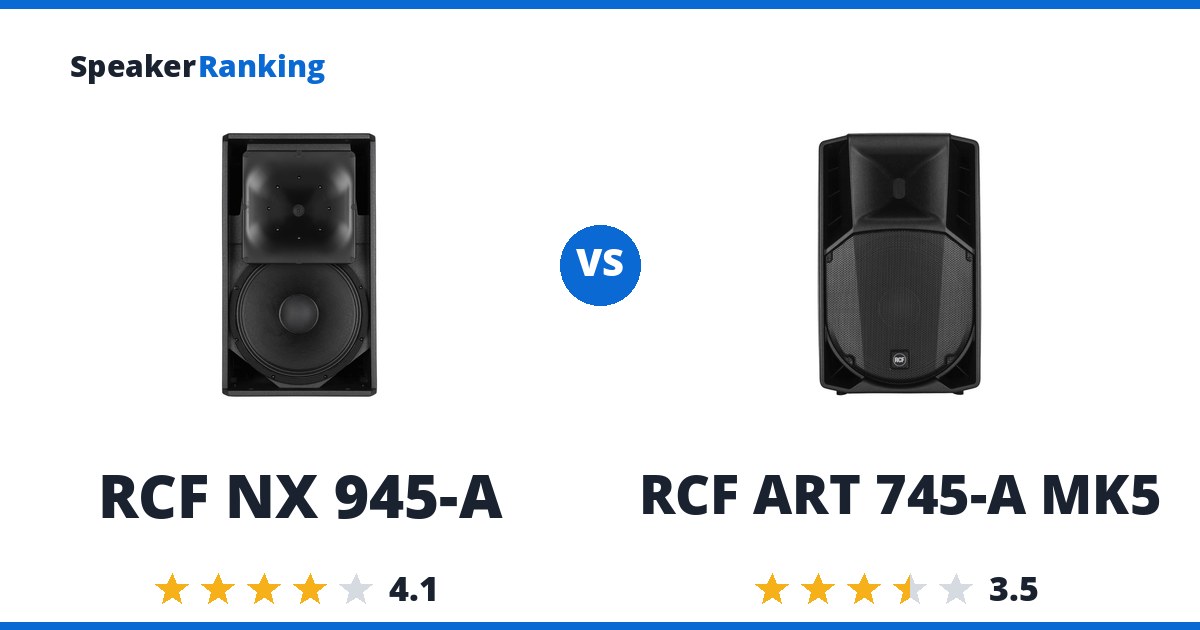

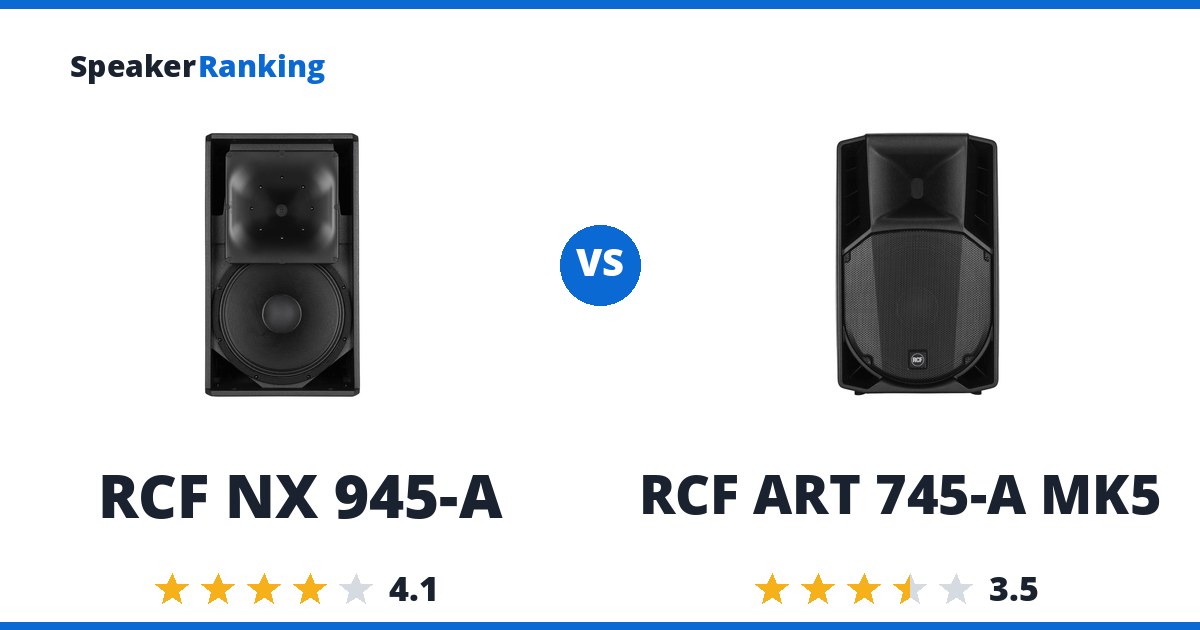

Short answer: these RCF NX 945-A and RCF ART 745-A MK5 alternatives share a brand and size class, but their coverage, driver architecture, cabinet format, processing, and output priorities can make them fit very different jobs.
Why choose the RCF NX 945-A. The top NX-series 15-inch box pairs a plywood cabinet with a 135dB claimed peak, the highest in the NX range, and a wide 100° x 70° pattern. RCF’s FiRPHASE and Bass Motion Control processing carry over from the smaller NX models.
Why choose the RCF ART 745-A MK5. The top of the ART7 range pairs 133dB claimed peak output with a light 41.4 lbs (18.8 kg) enclosure, RCF’s largest ART7-tier compression driver and FiRPHASE processing carried over from the smaller 712/732-A MK5 models.
What to weigh before buying. The measurement is truncated and does not produce a preference score, so its tonal position relies on published engineering rather than a confirmed result. At 60.2 lbs (27.3 kg) it is heavier than the ART 945-A alternative. The low-quality vendor measurement is truncated and cannot generate a preference score, so its tonal position relies on published engineering rather than a confirmed result.
Buy the RCF NX 945-A when its stated coverage, output, processing, and deployment format best match the job.
Buy the RCF ART 745-A MK5 when its stated strengths are the better match for the room and the rest of the PA.
Want more options? Browse the full PA & Live Sound rankings.
A loud powered 15 inch PA speaker in a plywood cabinet with wide coverage and onboard processing that keeps bass tidy.
A light powered 15 inch PA speaker with loud peaks and a large compression driver for strong vocals.
Prices on this page were last checked October 23, 2026 at 8:27 AM UTC. Product prices and availability are accurate as of that date/time and are subject to change; the price and availability shown on Amazon at the time of purchase will apply to the purchase of this product.
As an eBay Partner, we may be compensated if you make a purchase.
Specifications Side By Side
| RCF NX 945-A | RCF ART 745-A MK5 | |
|---|---|---|
| Price | $2,299.00 | $1,149.00 |
| Ranked | #8 of 76 in 15-Inch PA Speakers | #35 of 76 in 15-Inch PA Speakers |
| Passive | No | No |
| Configuration | Active 2-way bass-reflex PA speaker | Active 2-way bass-reflex PA speaker |
| Drivers | 15” woofer, compression driver | 15” woofer, 1.4” exit/3” diaphragm compression driver |
| Frequency Response | 45Hz - 20kHz (manufacturer specified) | 45Hz - 20kHz (manufacturer specified) |
| Dimensions | 27.8”H x 16.5”W x 17.8”D (705 x 420 x 451 mm) | 27.9”H x 17.2”W x 15.3”D (708 x 437 x 389 mm) |
| Coverage | 100° x 70° | 90° x 60° |
| Maximum SPL | 135dB peak (manufacturer specified) | 133dB peak (manufacturer specified) |
| Inputs | XLR/TRS combo input and XLR output | XLR and 1/4-inch jack input; XLR output |
| Amplifier Power | 2100W peak (1400W LF + 700W HF) | 1400W peak (1000W LF + 400W HF) |
| Crossover Frequency | 650Hz | 650Hz |
| Cabinet Material | Plywood | PP composite |
| Rigging | M10 and quick-lock rigging; 35mm pole mount | 2 x M10 inserts; 35mm pole mount |
| Bass Extension (-3dB) | 65Hz (measured, vendor Spinorama data) | 65Hz (measured, vendor Spinorama data) |
| DSP | Yes, FiRPHASE and Bass Motion Control | Yes, FiRPHASE, EQ, limiting and protection |
| Bluetooth | No | No |
| Weight | 60.2 lbs (27.3 kg) | 41.4 lbs (18.8 kg) |
| XLR Input | Yes | Yes |
| RCA Input | No | No |
| TRS Input | Yes | Yes |
| Optical Input | No | No |
| Coaxial Input | No | No |
| USB Input | No | No |
| HDMI Input | No | No |
| AES Input | No | No |
| Aux Input | No | No |
| Microphone Input | No | No |
| Guitar Input | No | No |
Frequency Response Compared
Both speakers’ spinorama measurements, overlaid. A flatter line is more neutral: peaks sound forward or harsh, dips sound recessed. Each curve is shifted so its average from 300 Hz to 3 kHz sits at 0 dB, so loudness differences between the two are removed and only the shape is compared.
Measurement data: RCF NX 945-A (measured by the manufacturer) and RCF ART 745-A MK5 (measured by the manufacturer), via spinorama.org.
