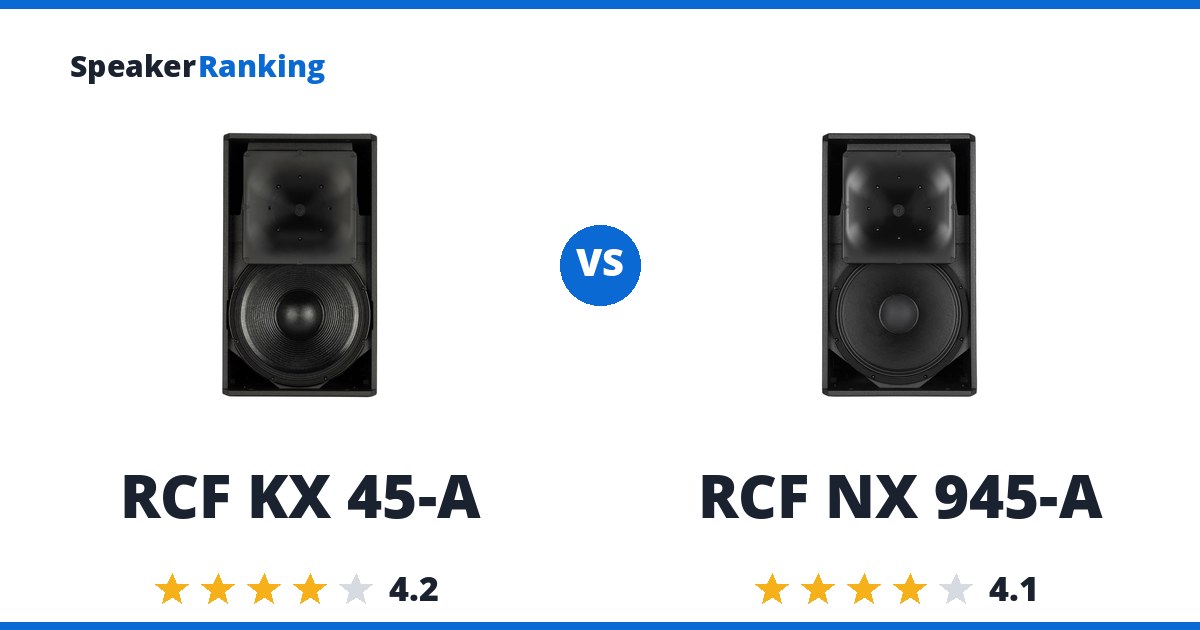

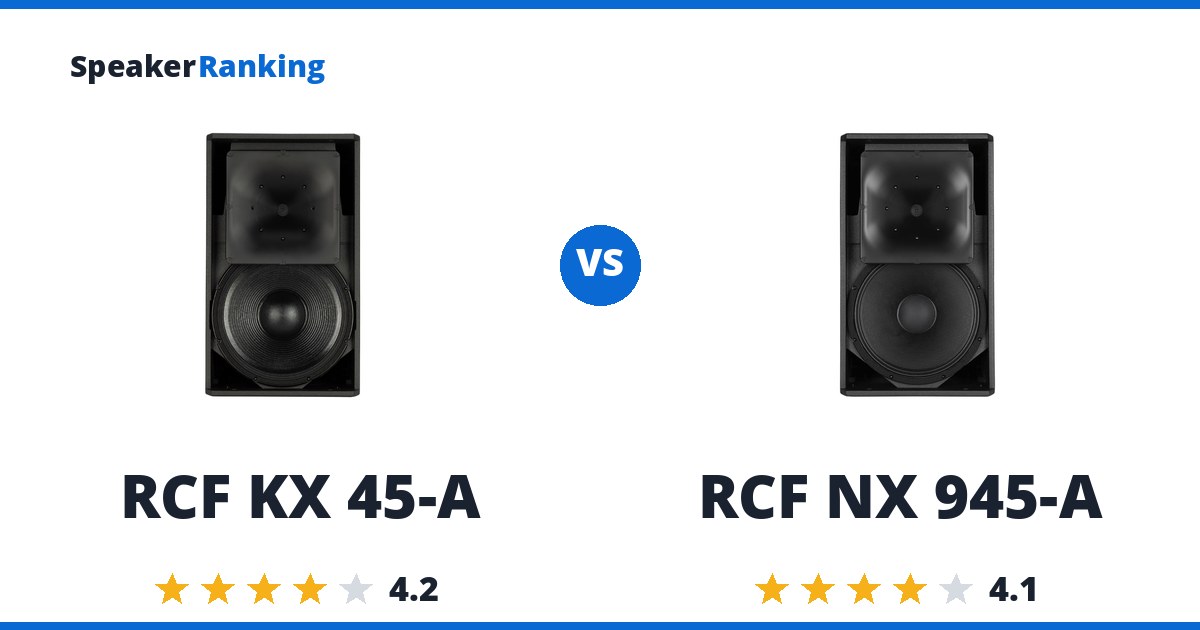

RCF KX 45-A vs RCF NX 945-A

Short answer: choose between the RCF KX 45-A and RCF NX 945-A for the deployment, not from the automatic ranking alone. Their driver format, power requirements, coverage, bass reach, output capability, and control features determine which is the more practical PA for a particular room or system.

The case for the RCF KX 45-A. RCF’s flagship 15-inch point source pairs a 3200W amplifier with a 3-inch titanium-dome compression driver, RDNet remote control and a 137dB claimed peak, the highest maximum-output claim in this ranking. Rotatable 100° x 70° coverage suits both main and monitor use.

The case for the RCF NX 945-A. The top NX-series 15-inch box pairs a plywood cabinet with a 135dB claimed peak, the highest in the NX range, and a wide 100° x 70° pattern. RCF’s FiRPHASE and Bass Motion Control processing carry over from the smaller NX models.

Important trade-offs. The local measurement is truncated and cannot produce a preference score. At 28.4kg it is one of the heaviest boxes here, and pricing/retail availability are not yet established. The measurement is truncated and does not produce a preference score, so its tonal position relies on published engineering rather than a confirmed result. At 27.3kg it is heavier than the ART 945-A alternative.

Buy the RCF KX 45-A when its stated format, coverage, and system features fit the job better.

Buy the RCF NX 945-A when its stated output, control, and deployment strengths better match the system.

Specifications Side By Side

Related Speaker Comparisons

Other pairings from the same speaker class worth checking:

• KV2 Audio EX15 vs JBL PRX915
• KV2 Audio EX15 vs Yamaha DZR15
• RCF ART 945-A vs Vue Audiotechnik H-15
• RCF ART 945-A vs RCF KX 45-A
• RCF KX 45-A vs HK Audio LINEAR 7 115 FA

Prices on this page were last checked September 7, 2026 at 7:47 AM UTC. Product prices and availability are accurate as of that date/time and are subject to change; the price and availability shown on Amazon at the time of purchase will apply to the purchase of this product.

As an eBay Partner, we may be compensated if you make a purchase.

The Two Speakers In Full

RCF KX 45-A: $4,620.00 B&H Photo Video Guitar Center eBay

Pros: RCF’s flagship 15-inch point source pairs a 3200W amplifier with a 3-inch titanium-dome compression driver, RDNet remote control and a 137dB claimed peak, the highest maximum-output claim in this ranking. Rotatable 100° x 70° coverage suits both main and monitor use.

Cons: The local measurement is truncated and cannot produce a preference score. At 28.4kg it is one of the heaviest boxes here, and pricing/retail availability are not yet established.

Full RCF KX 45-A review and specifications →

Amplifier Power	3200W peak (2000W LF + 1200W HF)
Bluetooth	No
Cabinet Material	Baltic birch plywood
Configuration	Active 2-way bass-reflex point-source PA speaker
Coverage	100° x 70°, rotatable
Crossover Frequency	750Hz
DSP	Yes, FiRPHASE, Bass Motion Control, presets and RDNet
Dimensions	27.8"H x 16.5"W x 16.9"D (705 x 419.6 x 430 mm)
Drivers	15" neodymium woofer, 1.4" exit/3" dome compression driver
Frequency Response	50Hz - 20kHz (manufacturer specified)
Inputs	XLR audio input/link and EtherCON RDNet
Maximum SPL	137dB peak (manufacturer specified)
Network Control	RDNet
Rigging	Quick-lock rigging; 6 x M10 inserts; 35mm pole mount
Weight	62.6 lbs / 28.4 kg

• Links
  • RCF KX 45-A Product Information
• Reviews, Comparisons and Sound Samples
  • Spinorama Measurements
• Head-to-Head Comparisons
  • RCF KX 45-A vs Vue Audiotechnik H-15
  • RCF KX 45-A vs HK Audio LINEAR 7 115 FA
  • RCF KX 45-A vs RCF ART 945-A
  • RCF KX 45-A vs KV2 Audio EX15

RCF NX 945-A: $2,299.00 Amazon B&H Photo Video Guitar Center eBay

Pros: The top NX-series 15-inch box pairs a plywood cabinet with a 135dB claimed peak, the highest in the NX range, and a wide 100° x 70° pattern. RCF’s FiRPHASE and Bass Motion Control processing carry over from the smaller NX models.

Cons: The measurement is truncated and does not produce a preference score, so its tonal position relies on published engineering rather than a confirmed result. At 27.3kg it is heavier than the ART 945-A alternative.

Full RCF NX 945-A review and specifications →

Amplifier Power	2100W peak (1400W LF + 700W HF)
Bass Extension (-3dB)	65Hz (measured, vendor Spinorama data)
Bluetooth	No
Cabinet Material	Plywood
Configuration	Active 2-way bass-reflex PA speaker
Coverage	100° x 70°
Crossover Frequency	650Hz
DSP	Yes, FiRPHASE and Bass Motion Control
Dimensions	27.8"H x 16.5"W x 17.8"D (705 x 420 x 451 mm)
Drivers	15" woofer, compression driver
Frequency Response	45Hz - 20kHz (manufacturer specified)
Inputs	XLR/TRS combo input and XLR output
Maximum SPL	135dB peak (manufacturer specified)
Rigging	M10 and quick-lock rigging; 35mm pole mount
Weight	60.2 lbs / 27.3 kg
