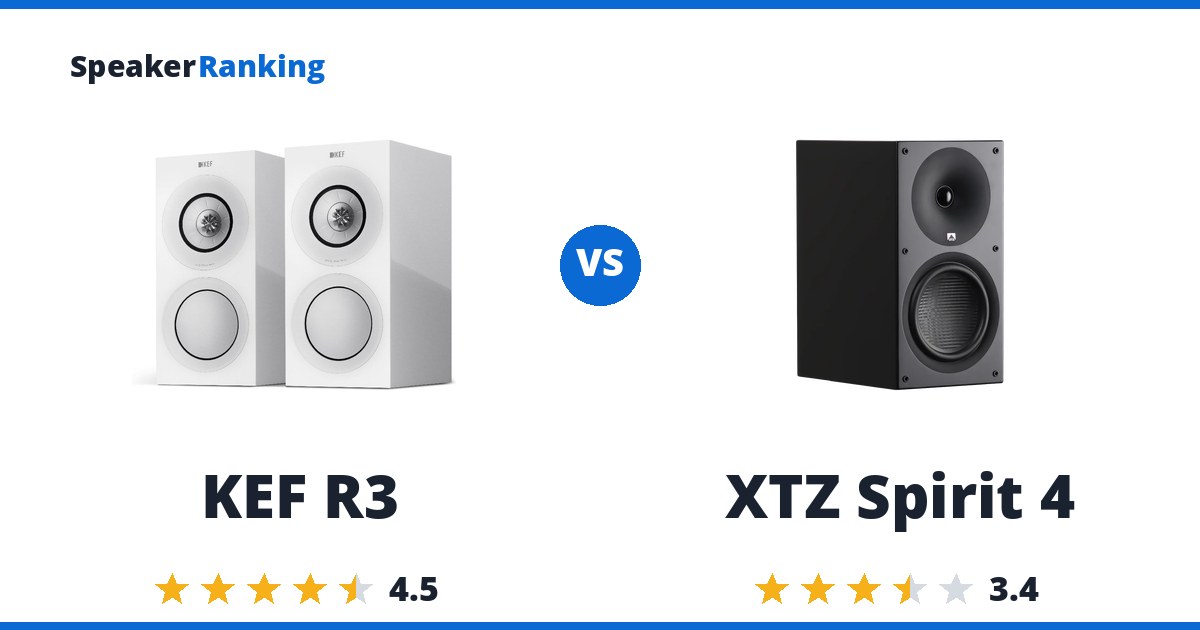

KEF R3 vs XTZ Spirit 4

Short answer: the KEF R3 for better sound quality, the XTZ Spirit 4 for the lower price. The KEF R3 ranks #15 of 130 bookshelf speakers at $2200. The XTZ Spirit 4 ranks #92 at $477, $1723 cheaper.

What the KEF R3 offers: True three-way stand-mount with a 6.5-inch woofer below KEF’s 5-inch Uni-Q midrange/1-inch tweeter. Erin measured approximately 86-87dB/2.83V/1m sensitivity, exceptionally low sub-1% distortion at 86dB and orderly directivity in both planes. The coaxial geometry maintains image stability across seats, while Flexible Port Technology avoids the strong midrange port resonance common to rear-vented competitors. A 110W Parasound drove it successfully in Erin’s listening. Watch for: The low-frequency alignment rolls gradually rather than delivering high-output sub-bass; KEF specifies 58Hz +/-3dB and Erin’s high-level data supports using an 80Hz subwoofer crossover. Narrow high-frequency features and natural Uni-Q narrowing toward the top octave make toe angle audible, although off-axis tracking remains smooth. Sensitivity is moderate, the cabinet weighs almost 30 lb, and this original R3 lacks the Meta successor’s MAT absorber.

What the XTZ Spirit 4 offers: Substantial 6.5-inch stand-mount with a waveguided dome tweeter, adjustable treble level and port tuning. Spinorama predicts 44Hz in-room extension, broad roughly +/-60-degree horizontal coverage and a 5.39 preference score with a subwoofer. Watch for: The third-party measurement is low confidence. On-axis smoothness is only 0.248, directivity-index consistency is middling at 3.21, and the mildly downward -0.29dB/octave tonal slope contributes to a modest 3.27 raw preference score.

Buy the KEF R3 when sound quality outweighs the price for you, and the XTZ Spirit 4 when the price outweighs sound quality instead.

Still deciding? The full Passive Home rankings cover every ranked option.

Specifications Side By Side

Related Speaker Comparisons

How KEF R3 compares with other leading options:

• KEF R3 vs Perlisten S4b
• KEF Reference 1 Meta vs KEF R3
• KEF R3 vs GR-Research NX-Studio
• AsciLab C6B vs KEF R3
• KEF R3 vs Audio First Cadentia 3

Prices on this page were last checked September 16, 2026 at 12:41 AM UTC. Product prices and availability are accurate as of that date/time and are subject to change; the price and availability shown on Amazon at the time of purchase will apply to the purchase of this product.

As an eBay Partner, we may be compensated if you make a purchase.

The Two Speakers In Full

KEF R3: $2,200 per pair Amazon eBay

Pros: True three-way stand-mount with a 6.5-inch woofer below KEF’s 5-inch Uni-Q midrange/1-inch tweeter. Erin measured approximately 86-87dB/2.83V/1m sensitivity, exceptionally low sub-1% distortion at 86dB and orderly directivity in both planes. The coaxial geometry maintains image stability across seats, while Flexible Port Technology avoids the strong midrange port resonance common to rear-vented competitors. A 110W Parasound drove it successfully in Erin’s listening. Measured bass extension of 35.2Hz (-10dB), with a measured sensitivity of 87dB.

Cons: The low-frequency alignment rolls gradually rather than delivering high-output sub-bass; KEF specifies 58Hz +/-3dB and Erin’s high-level data supports using an 80Hz subwoofer crossover. Narrow high-frequency features and natural Uni-Q narrowing toward the top octave make toe angle audible, although off-axis tracking remains smooth. Sensitivity is moderate, the cabinet weighs almost 30 lb, and this original R3 lacks the Meta successor’s MAT absorber.

Full KEF R3 review and specifications →

Bass Extension (-10dB)	35.2Hz (measured, Audio Science Review)
Bass Extension (-3dB)	Approximately 58Hz (manufacturer specified; consistent with Erin's measured roll-off)
Dimensions	16.6"H x 7.9"W x 13.2"D
Drivers	1" tweeter coaxial with 5" midrange; 6.5" woofer
Impedance	8 ohms nominal; suitable for Erin's 4/8-ohm-rated amplifier
Sensitivity	Approximately 86-87dB/2.83V/1m (measured, Erin's Audio Corner)
Woofer Cabinet	ported, rear Flexible Port

• Links
  • Official KEF R3 Page
• Reviews, Comparisons and Sound Samples
  • Erin’s Audio Corner: KEF R3 Review More from Erin’s Audio Corner →
  • Erin’s Audio Corner Website: KEF R3
  • Audio Science Review Measurements More from Audio Science Review →
  • Audio Science Review Measurements (spinorama.org)
• Head-to-Head Comparisons
  • KEF R3 vs Buchardt Audio E50
  • KEF R3 vs MoFi SourcePoint 8
  • KEF R3 vs Wharfedale Aura 2
  • KEF R3 vs KEF Q Concerto Meta
  • KEF R3 vs KEF R3 Meta
  • KEF R3 vs AsciLab F6Bs
  • KEF R3 vs Revel M106
  • KEF R3 vs Audio First Cadentia 3
  • See all 49 comparisons

XTZ Spirit 4: $477 per pair XTZ eBay

Pros: Substantial 6.5-inch stand-mount with a waveguided dome tweeter, adjustable treble level and port tuning. Spinorama predicts 44Hz in-room extension, broad roughly +/-60-degree horizontal coverage and a 5.39 preference score with a subwoofer.

Cons: The third-party measurement is low confidence. On-axis smoothness is only 0.248, directivity-index consistency is middling at 3.21, and the mildly downward -0.29dB/octave tonal slope contributes to a modest 3.27 raw preference score.

Full XTZ Spirit 4 review and specifications →

Dimensions	13.8H x 7.5W x 10.6D in
Drivers	1" dome tweeter, 6.5" woofer
Enclosure	2-way passive, rear-ported
Impedance	4 ohms
Sensitivity	86dB
Spinorama Preference Score	3.27
Spinorama Preference Score with Perfect Sub	5.39
Weight	17.9 lbs (8.1 kg) each
