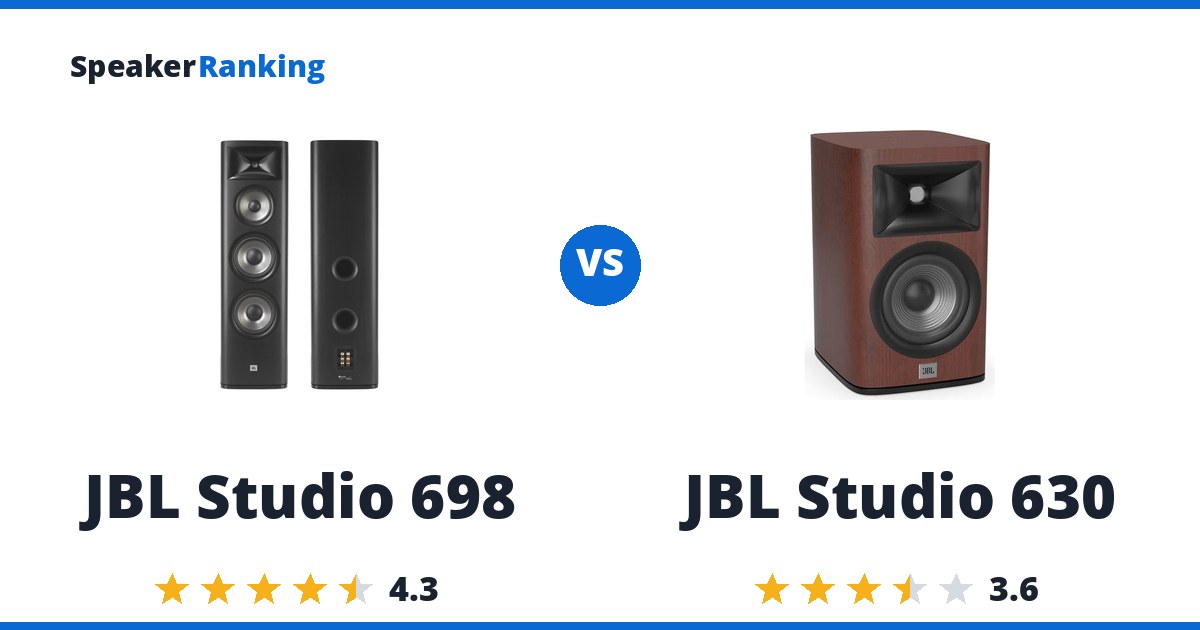

These sit in different size classes, so this is not a straight ranking comparison. The JBL Studio 698 ranks #36 of 89 floorstanding speakers by sound quality at $1,499.90; the JBL Studio 630 ranks #83 of 141 bookshelf speakers by sound quality at $699.
The JBL Studio 698 is the more accurate option. High-Definition Imaging (HDI) horn waveguide paired with a 1” compression driver provides excellent high-frequency directivity control and seamless acoustic handoff to the 6” PolyPlas midrange. Its measured preference score, a predictor of how neutral it sounds, is 4.20 against 3.67 for the JBL Studio 630. The catch: Measured response exhibits a prominent mid-bass emphasis bump around 80Hz that can sound overly thick or chesty in smaller rooms without DSP EQ.
What the JBL Studio 630 does well: Excellent directivity linearity: harmonics of the same instrument stay collocated in the soundstage instead of drifting between positions, giving precise, stable imaging that holds up well into higher frequencies where many speakers start to beam and narrow. Watch for: Noticeable mid-range dip/scoop relative to the higher frequencies: not dramatic, but audibly “missing” something by the second or third track.
One note: the JBL Studio 630 is discontinued and no longer widely available new.
Buy the JBL Studio 698 ($1,499.90) for a floorstanding speaker; the JBL Studio 630 ($699) suits a bookshelf speaker instead.
Want more options? Browse the full Passive Home rankings.
Specifications Side By Side
| JBL Studio 698 | JBL Studio 630 | |
|---|---|---|
| Price | $1,499.90 per pair | $699 per pair Discontinued |
| Ranked | #36 of 89 in Large Size Floorstanding Speakers | #83 of 141 in Large Size Bookshelf Speakers |
| Bass Extension (-10dB) | 34Hz (measured, Erin’s Audio Corner) | 37.0Hz (measured, Erin’s Audio Corner) |
| Bass Extension (-3dB) | 53Hz (measured, Erin’s Audio Corner) | 54.2Hz (measured, Erin’s Audio Corner) |
| Dimensions | 41.7”H x 11.8”W x 15.7”D (1058 x 300 x 400 mm) | 14-13/16”H x 9”W x 11-5/16”D |
| Impedance | 6 ohms nominal (4.1 ohms minimum above 80Hz, measured by Erin’s Audio Corner) | 6 ohms nominal, 4.7 ohms minimum (measured, Erin’s Audio Corner) |
| Sensitivity | 90dB (measured average, Erin’s Audio Corner) | 83.2dB (measured, Erin’s Audio Corner; 85dB manufacturer specified) |
| Drivers | 1 in. High-Definition Imaging compression driver, 6 in. PolyPlas midrange, dual 8 in. PolyPlas woofers | 6.5” PolyPlas cone woofer, 1” compression driver (2414H-1) with waveguide |
| Weight | 78.9 lbs (35.8 kg) each | 19.8 lbs (9 kg) each |
| Woofer Cabinet | ported, rear | - |
| Spinorama Preference Score | 4.20 | 3.67 |
| Spinorama Preference Score with Perfect Sub | 6.14 | 5.68 |
| DIY Kit | No | No |
| Frequency Response | - | 45Hz - 40,000Hz (manufacturer specified) |
| Power Handling | - | up to 150W |
Related Speaker Comparisons
How JBL Studio 698 compares with other leading options:
- JBL Studio 698 vs GR-Research NX-Treme
- JBL Studio 698 vs KEF Blade Two Meta
- JBL Studio 698 vs MoFi SourcePoint V10 Master Edition
- JBL Studio 698 vs MoFi SourcePoint 888
- Revel F328Be vs JBL Studio 698
Prices on this page were last checked October 4, 2026 at 9:58 PM UTC. Product prices and availability are accurate as of that date/time and are subject to change; the price and availability shown on Amazon at the time of purchase will apply to the purchase of this product.
As an eBay Partner, we may be compensated if you make a purchase.
The Two Speakers In Full
JBL Studio 698: $1,499.90 per pair Crutchfield eBay
Older model: the JBL Studio 590 (ranked lower, rated 2.8/5).
Pros: High-Definition Imaging (HDI) horn waveguide paired with a 1” compression driver provides excellent high-frequency directivity control and seamless acoustic handoff to the 6” PolyPlas midrange. Dual 8” PolyPlas woofers deliver robust low-end authority with solid bass extension down to an F3 of 53Hz and F10 of 34Hz. High voltage sensitivity (90dB SPL at 2.83V/1m) and clean power handling provide effortless dynamic headroom and low distortion for home theater and music listening. Measured bass extension of 53Hz (-3dB), with a measured sensitivity of 90dB.
Cons: Measured response exhibits a prominent mid-bass emphasis bump around 80Hz that can sound overly thick or chesty in smaller rooms without DSP EQ. Treble response lacks top-octave ‘air’ above 12kHz compared to high-end dome or ribbon tweeters. Physically large, heavy cabinet (35.8 kg per speaker) requires careful room placement and a wide acoustic footprint.
Full JBL Studio 698 review and specifications →
| Bass Extension (-10dB) | 34Hz (measured, Erin’s Audio Corner) |
|---|---|
| Bass Extension (-3dB) | 53Hz (measured, Erin’s Audio Corner) |
| DIY Kit | No |
| Dimensions | 41.7”H x 11.8”W x 15.7”D (1058 x 300 x 400 mm) |
| Drivers | 1 in. High-Definition Imaging compression driver, 6 in. PolyPlas midrange, dual 8 in. PolyPlas woofers |
| Impedance | 6 ohms nominal (4.1 ohms minimum above 80Hz, measured by Erin’s Audio Corner) |
| Sensitivity | 90dB (measured average, Erin’s Audio Corner) |
| Spinorama Preference Score | 4.20 |
| Spinorama Preference Score with Perfect Sub | 6.14 |
| Weight | 78.9 lbs (35.8 kg) each |
| Woofer Cabinet | ported, rear |
- Links
- Reviews, Comparisons and Sound Samples
- Head-to-Head Comparisons
- JBL Studio 698 vs JBL HDI-3600
- JBL Studio 698 vs Polk Audio Reserve R700
- JBL Studio 698 vs Morel Avyra 633
- JBL Studio 698 vs Arendal 1961 Tower
- JBL Studio 698 vs PSB Imagine T65
- JBL Studio 698 vs KEF R11 Meta
- JBL Studio 698 vs Ascend Acoustics Sierra Titan Tower
- JBL Studio 698 vs Emotiva Airmotiv T2+
- See all 53 comparisons
JBL Studio 630: $699 per pair Discontinued eBay
Pros: Excellent directivity linearity: harmonics of the same instrument stay collocated in the soundstage instead of drifting between positions, giving precise, stable imaging that holds up well into higher frequencies where many speakers start to beam and narrow. Good compression behavior: mid-bass stays taut and controlled from low to high volume without the sound falling apart or distorting as you turn it up. A pleasant, controlled mid-bass bump in the 60-100 Hz range adds punch to kick drums without bleeding into an uncontrolled boom on bass guitar. Horizontal radiation holds steady off-axis (about ±60°), so toe-in isn’t fussy. Compared directly to its predecessor, the JBL Studio 530, the reviewer would pick the 630 (smoother trend line through the upper mids and treble, and likely more dynamic headroom) as long as you’re willing to EQ. Measured bass extension of 54.2Hz (-3dB), with a measured sensitivity of 83.2dB.
Cons: Noticeable mid-range dip/scoop relative to the higher frequencies: not dramatic, but audibly “missing” something by the second or third track. Some tracks read as forward or aggressive around 2 kHz, like the upper frequencies are jumping out at you rather than sitting in stage depth. Needs EQ to bring the mid-range back up to be fully recommendable; without EQ available, the reviewer says he’d look at a different speaker entirely. Measured sensitivity (about 83.2dB) runs noticeably below the 85dB manufacturer spec, likely a byproduct of the mid-range dip skewing the average downward. Discontinued and no longer sold new.
Full JBL Studio 630 review and specifications →
| Bass Extension (-10dB) | 37.0Hz (measured, Erin’s Audio Corner) |
|---|---|
| Bass Extension (-3dB) | 54.2Hz (measured, Erin’s Audio Corner) |
| DIY Kit | No |
| Dimensions | 14-13/16”H x 9”W x 11-5/16”D |
| Drivers | 6.5” PolyPlas cone woofer, 1” compression driver (2414H-1) with waveguide |
| Frequency Response | 45Hz - 40,000Hz (manufacturer specified) |
| Impedance | 6 ohms nominal, 4.7 ohms minimum (measured, Erin’s Audio Corner) |
| Power Handling | up to 150W |
| Sensitivity | 83.2dB (measured, Erin’s Audio Corner; 85dB manufacturer specified) |
| Spinorama Preference Score | 3.67 |
| Spinorama Preference Score with Perfect Sub | 5.68 |
| Weight | 19.8 lbs (9 kg) each |
