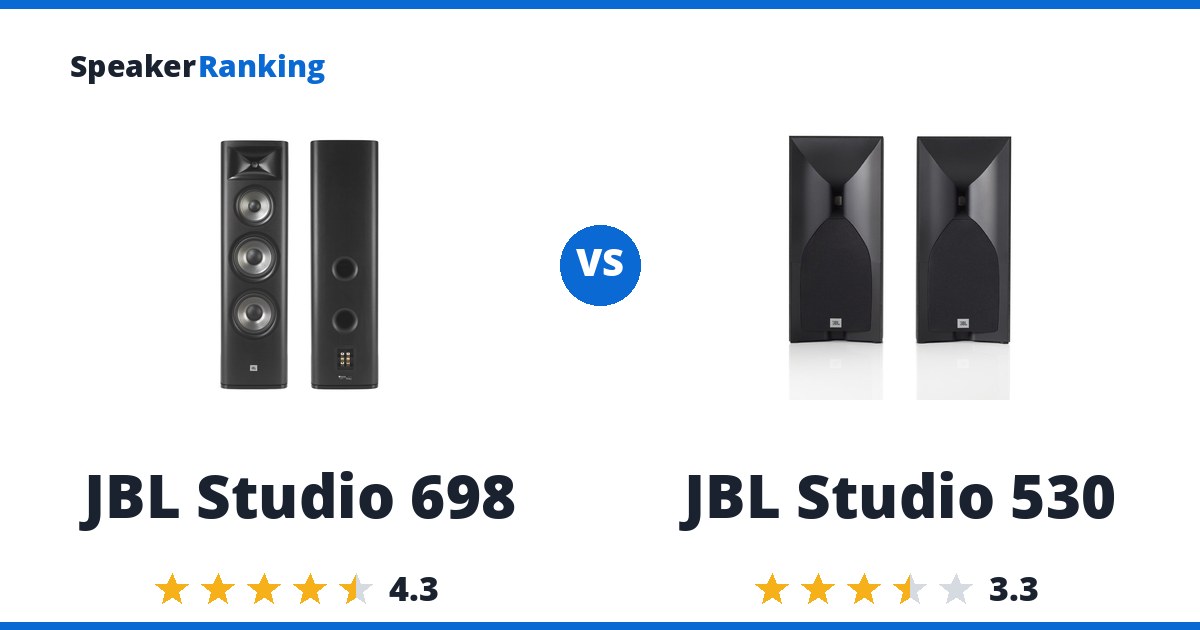

These sit in different size classes, so this is not a straight ranking comparison. The JBL Studio 698 ranks #36 of 89 floorstanding speakers by sound quality at $1,499.90; the JBL Studio 530 ranks #49 of 101 bookshelf speakers by sound quality at $399.
The JBL Studio 698 is the deeper-bass option. High-Definition Imaging (HDI) horn waveguide paired with a 1” compression driver provides excellent high-frequency directivity control and seamless acoustic handoff to the 6” PolyPlas midrange. Its bass reaches about 53Hz before falling 3dB, against 73.2Hz for the JBL Studio 530. The tradeoff: Measured response exhibits a prominent mid-bass emphasis bump around 80Hz that can sound overly thick or chesty in smaller rooms without DSP EQ.
The JBL Studio 530 is the more accurate option. CEA2034 spinorama shows a fairly flat on-axis response. Its measured preference score, a predictor of how neutral it sounds, is 5.21 against 4.20 for the JBL Studio 698. The catch: A peak around 1.4kHz is attributed to a tweeter resonance, and shows up as a distinct spike in harmonic distortion at that frequency along with a second resonance-driven bump around 2kHz.
Worth knowing: the JBL Studio 530 is discontinued, though it still ranks #49 of 101 bookshelf speakers by sound quality, so a used unit beats most of what is still sold new.
Buy the JBL Studio 698 at $1,499.90 for a floorstanding speaker, or the JBL Studio 530 at $399 for a bookshelf speaker instead.
Want more options? Browse the full Passive Home rankings.
Specifications Side By Side
| JBL Studio 698 | JBL Studio 530 | |
|---|---|---|
| Price | $1,499.90 per pair | $399 per pair Discontinued |
| Ranked | #36 of 89 in Large Size Floorstanding Speakers | #49 of 101 in Medium Size Bookshelf Speakers |
| Bass Extension (-10dB) | 34Hz (measured, Erin’s Audio Corner) | 40Hz (derived, log-interpolated between spinorama.org -9dB/-12dB points) |
| Bass Extension (-3dB) | 53Hz (measured, Erin’s Audio Corner) | 73.2Hz (measured, Audio Science Review) |
| Dimensions | 41.7”H x 11.8”W x 15.7”D (1058 x 300 x 400 mm) | 18.4”H x 8.4”W x 8.7”D (467 x 214 x 222 mm) |
| Impedance | 6 ohms nominal (4.1 ohms minimum above 80Hz, measured by Erin’s Audio Corner) | 6 ohms nominal (4 ohms minimum, measured by Audio Science Review) |
| Sensitivity | 90dB (measured average, Erin’s Audio Corner) | ~85dB (measured by Audio Science Review) |
| Drivers | 1 in. High-Definition Imaging compression driver, 6 in. PolyPlas midrange, dual 8 in. PolyPlas woofers | 5.25” (130mm) PolyPlas™ cone woofer with SFG magnet, 1” (25mm) compression driver with Teonex® diaphragm on Bi-Radial® horn |
| Weight | 78.9 lbs (35.8 kg) each | 17 lbs (7.7 kg) each |
| Woofer Cabinet | ported, rear | ported |
| Spinorama Preference Score | 4.20 | 5.21 (spinorama.org) |
| Spinorama Preference Score with Perfect Sub | 6.14 | 7.29 (spinorama.org) |
| DIY Kit | No | No |
| Crossover Frequency | - | 1.5kHz |
Related Speaker Comparisons
How JBL Studio 698 compares with other leading options:
- JBL Studio 698 vs GR-Research NX-Treme
- JBL Studio 698 vs KEF Blade Two Meta
- JBL Studio 698 vs MoFi SourcePoint V10 Master Edition
- JBL Studio 698 vs MoFi SourcePoint 888
- Revel F328Be vs JBL Studio 698
Prices on this page were last checked October 4, 2026 at 9:58 PM UTC. Product prices and availability are accurate as of that date/time and are subject to change; the price and availability shown on Amazon at the time of purchase will apply to the purchase of this product.
As an eBay Partner, we may be compensated if you make a purchase.
The Two Speakers In Full
JBL Studio 698: $1,499.90 per pair Crutchfield eBay
Older model: the JBL Studio 590 (ranked lower, rated 2.8/5).
Pros: High-Definition Imaging (HDI) horn waveguide paired with a 1” compression driver provides excellent high-frequency directivity control and seamless acoustic handoff to the 6” PolyPlas midrange. Dual 8” PolyPlas woofers deliver robust low-end authority with solid bass extension down to an F3 of 53Hz and F10 of 34Hz. High voltage sensitivity (90dB SPL at 2.83V/1m) and clean power handling provide effortless dynamic headroom and low distortion for home theater and music listening. Measured bass extension of 53Hz (-3dB), with a measured sensitivity of 90dB.
Cons: Measured response exhibits a prominent mid-bass emphasis bump around 80Hz that can sound overly thick or chesty in smaller rooms without DSP EQ. Treble response lacks top-octave ‘air’ above 12kHz compared to high-end dome or ribbon tweeters. Physically large, heavy cabinet (35.8 kg per speaker) requires careful room placement and a wide acoustic footprint.
Full JBL Studio 698 review and specifications →
| Bass Extension (-10dB) | 34Hz (measured, Erin’s Audio Corner) |
|---|---|
| Bass Extension (-3dB) | 53Hz (measured, Erin’s Audio Corner) |
| DIY Kit | No |
| Dimensions | 41.7”H x 11.8”W x 15.7”D (1058 x 300 x 400 mm) |
| Drivers | 1 in. High-Definition Imaging compression driver, 6 in. PolyPlas midrange, dual 8 in. PolyPlas woofers |
| Impedance | 6 ohms nominal (4.1 ohms minimum above 80Hz, measured by Erin’s Audio Corner) |
| Sensitivity | 90dB (measured average, Erin’s Audio Corner) |
| Spinorama Preference Score | 4.20 |
| Spinorama Preference Score with Perfect Sub | 6.14 |
| Weight | 78.9 lbs (35.8 kg) each |
| Woofer Cabinet | ported, rear |
- Links
- Reviews, Comparisons and Sound Samples
- Head-to-Head Comparisons
- JBL Studio 698 vs JBL HDI-3600
- JBL Studio 698 vs Polk Audio Reserve R700
- JBL Studio 698 vs Morel Avyra 633
- JBL Studio 698 vs Arendal 1961 Tower
- JBL Studio 698 vs PSB Imagine T65
- JBL Studio 698 vs KEF R11 Meta
- JBL Studio 698 vs Ascend Acoustics Sierra Titan Tower
- JBL Studio 698 vs Emotiva Airmotiv T2+
- See all 53 comparisons
JBL Studio 530: $399 per pair Discontinued eBay
Pros: CEA2034 spinorama shows a fairly flat on-axis response. Predicted in-room response is very smooth aside from the high-frequency roll-off. Measured bass extension of 73.2Hz (-3dB), with a measured sensitivity of 85dB.
Cons: A peak around 1.4kHz is attributed to a tweeter resonance, and shows up as a distinct spike in harmonic distortion at that frequency along with a second resonance-driven bump around 2kHz. Response rolls off in the high frequencies and the tuning is a bit bass-shy overall. Cumulative spectral decay (waterfall) shows the same 1kHz-region resonances lingering in time. Discontinued.
Full JBL Studio 530 review and specifications →
| Bass Extension (-10dB) | 40Hz (derived, log-interpolated between spinorama.org -9dB/-12dB points) |
|---|---|
| Bass Extension (-3dB) | 73.2Hz (measured, Audio Science Review) |
| Crossover Frequency | 1.5kHz |
| DIY Kit | No |
| Dimensions | 18.4”H x 8.4”W x 8.7”D (467 x 214 x 222 mm) |
| Drivers | 5.25” (130mm) PolyPlas™ cone woofer with SFG magnet, 1” (25mm) compression driver with Teonex® diaphragm on Bi-Radial® horn |
| Impedance | 6 ohms nominal (4 ohms minimum, measured by Audio Science Review) |
| Sensitivity | ~85dB (measured by Audio Science Review) |
| Spinorama Preference Score | 5.21 (spinorama.org) |
| Spinorama Preference Score with Perfect Sub | 7.29 (spinorama.org) |
| Weight | 17 lbs (7.7 kg) each |
| Woofer Cabinet | ported |
