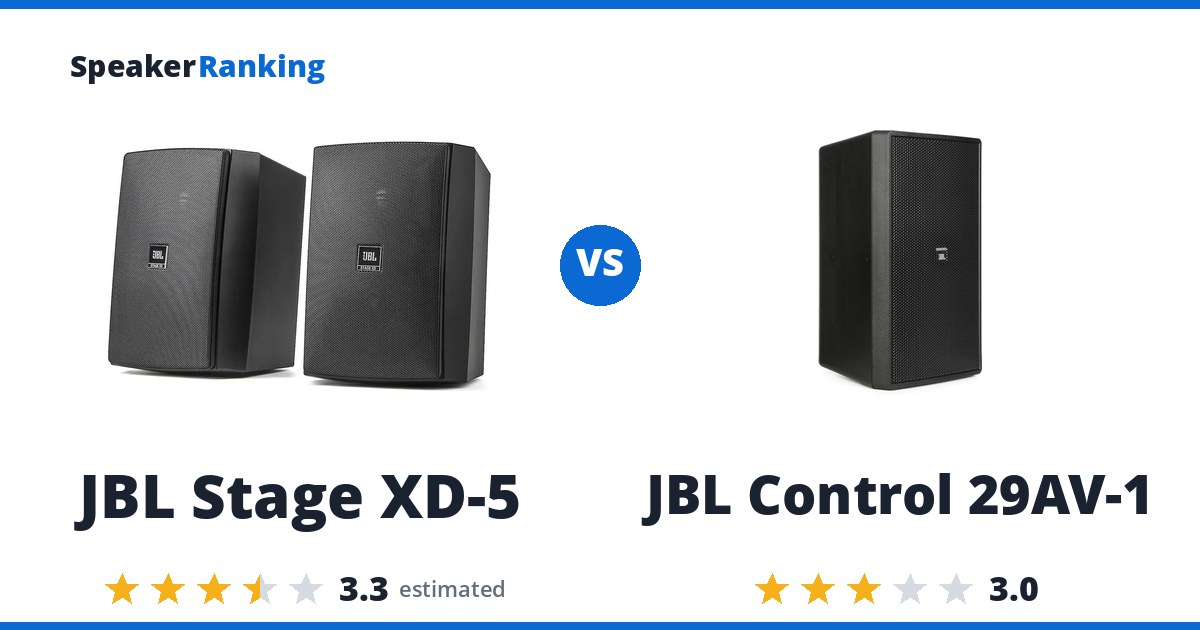

JBL Stage XD-5 vs JBL Control 29AV-1

Last updated: November 14, 2026

Bottom line: the JBL Stage XD-5. It sits at #8 of 16 outdoor speakers for sound quality, rated 3.3/5, at $499.95; the JBL Control 29AV-1 ranks #10, rated 3.0/5, and costs $1,144, so there is not much of a tradeoff to weigh.

JBL Stage XD-5 vs JBL Control 29AV-1

What the JBL Stage XD-5 does well: A fully submersible outdoor speaker with magnetic grilles and a waveguide tweeter for wide coverage across patios and decks. The downside: Acoustic suspension design rolls off bass below 75Hz (-6dB), requiring boundary corner placement or a dedicated subwoofer for full-range musical foundation.

Reasons to choose the JBL Control 29AV-1: A large outdoor speaker with an 8 inch woofer for deep bass, huge output and a built in transformer for multi-zone systems. The tradeoff: Uneven raw frequency response through the crossover region and ragged on-axis treble yield a modest 2.24 preference score without DSP correction.

Buy the JBL Stage XD-5. It is rated higher for sound quality than the JBL Control 29AV-1 and costs less, so it is the default pick unless a specific strength of the other one matters more to you.

Worth knowing: the JBL Stage XD-5 has not been measured yet. Its rating is estimated from related models, with a likely range of 3.1 to 3.5, so treat this verdict as provisional.

Looking for alternatives? See the complete Passive Home rankings.

Measured Differences

Prices on this page were last checked November 18, 2026 at 8:41 AM UTC. Product prices and availability are accurate as of that date/time and are subject to change; the price and availability shown on Amazon at the time of purchase will apply to the purchase of this product.

As an eBay Partner, we may be compensated if you make a purchase.

Specifications Side By Side

JBL Stage XD-5 JBL Control 29AV-1
Price$499.95 per pair$1,144 per pair
Ranked#8 of 16 in Outdoor Speakers Estimated#10 of 16 in Outdoor Speakers
ConfigurationPassive 2-wayPassive 2-way
Drivers5.25” (130mm) polycellulose cone woofer, 1” (25mm) aluminum dome tweeter on HDI waveguide with acoustic lens8” (200mm) Kevlar cone woofer, 1” (25mm) titanium diaphragm compression driver on rotatable 110° x 85° horn
Sensitivity86dB (2.83V @ 1m)90dB
Impedance6 ohms8 ohms
Recommended Power20-100W RMS-
EnclosureSealed all-weather composite, IP67 waterproofPorted high-impact polystyrene, all-weather
Dimensions8.7”H x 6.4”W x 7”D (221 x 162 x 179 mm)20.5”H x 12”W x 10.9”D (520 x 306 x 277 mm)
Weight5.3 lbs (2.4 kg)26.9 lbs (12.2 kg)
Frequency Response75Hz - 25kHz (-6dB, Manufacturer specified)-
IP RatingIP67 (manufacturer specified)-
Power Handling-300W
Bass Extension (-3dB)-54.2Hz (measured, Audio Science Review)
Bass Extension (-6dB)-48.3Hz (measured, Audio Science Review)
Bass Extension (-10dB)-41.0Hz (measured, Audio Science Review)
Spinorama Preference Score-2.24
Spinorama Preference Score with Perfect Sub-4.50

Where the Ratings Come From

This comparison is generated from the ratings, specifications and measurements on each product’s own page, and it updates when that data changes. How we rank explains how each rating is decided.
