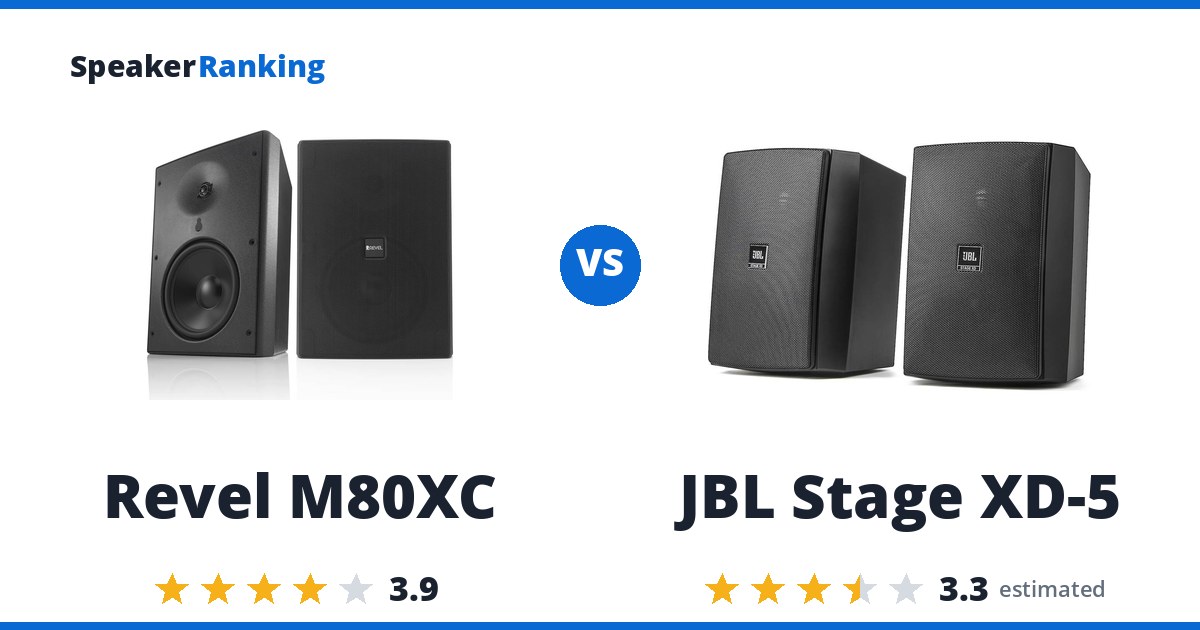

Revel M80XC vs JBL Stage XD-5

Last updated: October 27, 2026

Our pick: the JBL Stage XD-5, if you are buying new. The Revel M80XC ranks higher than it (#2 vs #8 of 16 outdoor speakers, 3.9/5 vs 3.3/5) but is discontinued, so only consider it used; the JBL Stage XD-5 is still sold new at $499.95.

Revel M80XC vs JBL Stage XD-5

The Revel M80XC is the better-sounding choice. A discontinued weatherproof outdoor speaker with a big 8 inch woofer, wide dispersion and high sensitivity, with surprisingly accurate sound. The downside: Price is relatively high at $900 per pair.

The case for the JBL Stage XD-5: A fully submersible outdoor speaker with magnetic grilles and a waveguide tweeter for wide coverage across patios and decks. Keep in mind: Acoustic suspension design rolls off bass below 75Hz (-6dB), requiring boundary corner placement or a dedicated subwoofer for full-range musical foundation.

Buy the JBL Stage XD-5, since the Revel M80XC is discontinued and only worth hunting down used.

Worth knowing: the JBL Stage XD-5 has not been measured yet. Its rating is estimated from related models, with a likely range of 3.1 to 3.5, so treat this verdict as provisional.

Want more options? Browse the full Passive Home rankings.

Measured Differences

Prices on this page were last checked November 18, 2026 at 8:41 AM UTC. Product prices and availability are accurate as of that date/time and are subject to change; the price and availability shown on Amazon at the time of purchase will apply to the purchase of this product.

As an eBay Partner, we may be compensated if you make a purchase.

Specifications Side By Side

Revel M80XC JBL Stage XD-5
Price$900 per pair Discontinued$499.95 per pair
Ranked#2 of 16 in Outdoor Speakers#8 of 16 in Outdoor Speakers Estimated
Drivers8” aluminum cone woofer, 1” aluminum dome tweeter with Acoustic Lens waveguide5.25” (130mm) polycellulose cone woofer, 1” (25mm) aluminum dome tweeter on HDI waveguide with acoustic lens
ConfigurationPassive 2-wayPassive 2-way
Sensitivity91dB86dB (2.83V @ 1m)
Impedance8 ohms6 ohms
Recommended Power20-100W RMS20-100W RMS
EnclosureSealed, IP56 weather-resistantSealed all-weather composite, IP67 waterproof
Dimensions13”H x 10.1”W x 11”D (330 x 257 x 280 mm)8.7”H x 6.4”W x 7”D (221 x 162 x 179 mm)
Weight15 lbs (6.8 kg)5.3 lbs (2.4 kg)
Bass Extension (-3dB)82.0Hz (measured, Audio Science Review)-
Bass Extension (-6dB)67.4Hz (measured, Audio Science Review)-
Bass Extension (-10dB)45.4Hz (measured, Audio Science Review)-
Spinorama Preference Score4.07-
Spinorama Preference Score with Perfect Sub6.95-
Frequency Response-75Hz - 25kHz (-6dB, Manufacturer specified)
IP Rating-IP67 (manufacturer specified)

Where the Ratings Come From

This comparison is generated from the ratings, specifications and measurements on each product’s own page, and it updates when that data changes. How we rank explains how each rating is decided.
