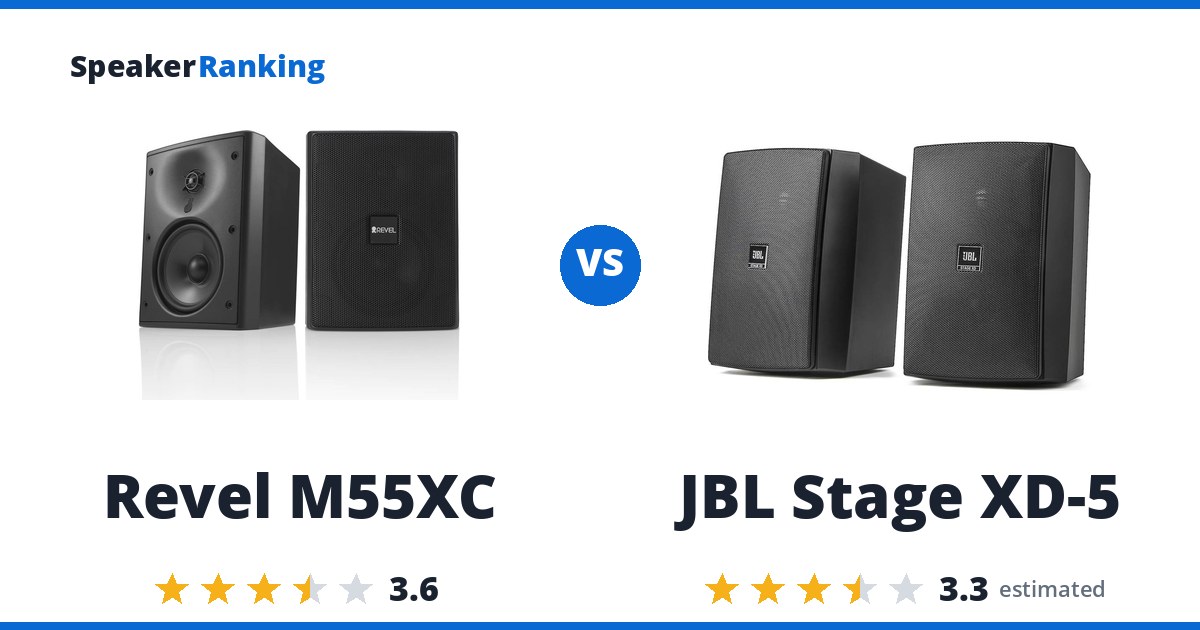

Short answer: the JBL Stage XD-5, if you are buying new. The Revel M55XC ranks higher than it (#5 vs #7 of 13 outdoor speakers, 3.6/5 vs 3.3/5) but is discontinued, so only consider it used; the JBL Stage XD-5 is still sold new at $499.95.
The Revel M55XC is the better-sounding pick. Audio Science Review measurements demonstrate a 3.36 preference score that leaps to 6.89 with a subwoofer. The catch: Compact sealed enclosure limits bass output, with -6dB extension at 90.8Hz and rapid low-frequency roll-off below 100Hz.
Why pick the JBL Stage XD-5: Modern outdoor successor to the Control X, upgrading weatherproofing to a fully submersible IP67 waterproof rating with zero-bezel magnetic grilles. The tradeoff: Acoustic suspension design rolls off bass below 75Hz (-6dB), requiring boundary corner placement or a dedicated subwoofer for full-range musical foundation.
Buy the JBL Stage XD-5, since the Revel M55XC is discontinued and only worth hunting down used.
Still deciding? The full Passive Home rankings cover every ranked option.
Specifications Side By Side
| Revel M55XC | JBL Stage XD-5 | |
|---|---|---|
| Price | $420 per pair Discontinued | $499.95 per pair |
| Ranked | #5 of 13 in Outdoor Speakers | #7 of 13 in Outdoor Speakers |
| Drivers | 5.25” carbon-infused polypropylene woofer, 1” aluminum dome tweeter with Acoustic Lens waveguide | 5.25” (130mm) polycellulose cone woofer, 1” (25mm) aluminum dome tweeter on HDI waveguide with acoustic lens |
| Configuration | Passive 2-way | Passive 2-way |
| Sensitivity | 86.5dB | 86dB (2.83V @ 1m) |
| Impedance | 8 ohms | 6 ohms |
| Recommended Power | 20-70W | 20-100W RMS |
| Enclosure | Sealed, IP56 weather-resistant | Sealed all-weather composite, IP67 waterproof |
| Dimensions | 9.8”H x 7.4”W x 7.1”D (248 x 188 x 181 mm) | 8.7”H x 6.4”W x 7”D (221 x 162 x 179 mm) |
| Weight | 7.5 lbs (3.4 kg) | 5.3 lbs (2.4 kg) |
| Bass Extension (-3dB) | 112.8Hz (measured, Audio Science Review) | - |
| Bass Extension (-6dB) | 90.8Hz (measured, Audio Science Review) | - |
| Bass Extension (-10dB) | 67.4Hz (measured, Audio Science Review) | - |
| Spinorama Preference Score | 3.36 | - |
| Spinorama Preference Score with Perfect Sub | 6.89 | - |
| Frequency Response | - | 75Hz - 25kHz (-6dB, Manufacturer specified) |
Related Speaker Comparisons
How Revel M55XC compares with other leading options:
- JBL Control X Wireless vs Revel M55XC
- Revel M80XC vs Revel M55XC
- Focal Chorus OD 706 V vs Revel M55XC
- Focal 100 OD6 vs Revel M55XC
- Revel M55XC vs RSL Outsider II
Prices on this page were last checked October 4, 2026 at 9:58 PM UTC. Product prices and availability are accurate as of that date/time and are subject to change; the price and availability shown on Amazon at the time of purchase will apply to the purchase of this product.
As an eBay Partner, we may be compensated if you make a purchase.
The Two Speakers In Full
Revel M55XC: $420 per pair Discontinued eBay
Pros: Audio Science Review measurements demonstrate a 3.36 preference score that leaps to 6.89 with a subwoofer. Smooth off-axis response and tight directivity matching through the crossover handover thanks to Revel’s Acoustic Lens waveguide. Rugged IP56 weather resistance and included InvisiBall mounting hardware make installation straightforward. Measured bass extension of 112.8Hz (-3dB).
Cons: Compact sealed enclosure limits bass output, with -6dB extension at 90.8Hz and rapid low-frequency roll-off below 100Hz. Modest 86.5dB sensitivity means it requires a capable amplifier for open outdoor spaces. Discontinued.
Full Revel M55XC review and specifications →
| Bass Extension (-10dB) | 67.4Hz (measured, Audio Science Review) |
|---|---|
| Bass Extension (-3dB) | 112.8Hz (measured, Audio Science Review) |
| Bass Extension (-6dB) | 90.8Hz (measured, Audio Science Review) |
| Configuration | Passive 2-way |
| Dimensions | 9.8”H x 7.4”W x 7.1”D (248 x 188 x 181 mm) |
| Drivers | 5.25” carbon-infused polypropylene woofer, 1” aluminum dome tweeter with Acoustic Lens waveguide |
| Enclosure | Sealed, IP56 weather-resistant |
| Impedance | 8 ohms |
| Recommended Power | 20-70W |
| Sensitivity | 86.5dB |
| Spinorama Preference Score | 3.36 |
| Spinorama Preference Score with Perfect Sub | 6.89 |
| Weight | 7.5 lbs (3.4 kg) |
- Links
- Reviews, Comparisons and Sound Samples
- Head-to-Head Comparisons
JBL Stage XD-5: $499.95 per pair Estimated B&H Photo Video eBay
Older model: the JBL Control X (ranked lower, rated 3.2/5).
Pros: Modern outdoor successor to the Control X, upgrading weatherproofing to a fully submersible IP67 waterproof rating with zero-bezel magnetic grilles. Combines a 5.25” polycellulose cone woofer with an aluminum dome tweeter mated to JBL’s High-Definition Imaging (HDI) waveguide for uniform, wide-dispersion horizontal coverage across open patios and decks.
Cons: Acoustic suspension design rolls off bass below 75Hz (-6dB), requiring boundary corner placement or a dedicated subwoofer for full-range musical foundation. Full laboratory-grade Klippel NFS Spinorama directivity curves have not yet been published, so tonal linearity is estimated from the measured Control X predecessor.
Full JBL Stage XD-5 review and specifications →
| Configuration | Passive 2-way |
|---|---|
| Dimensions | 8.7”H x 6.4”W x 7”D (221 x 162 x 179 mm) |
| Drivers | 5.25” (130mm) polycellulose cone woofer, 1” (25mm) aluminum dome tweeter on HDI waveguide with acoustic lens |
| Enclosure | Sealed all-weather composite, IP67 waterproof |
| Frequency Response | 75Hz - 25kHz (-6dB, Manufacturer specified) |
| Impedance | 6 ohms |
| Recommended Power | 20-100W RMS |
| Sensitivity | 86dB (2.83V @ 1m) |
| Weight | 5.3 lbs (2.4 kg) |
- Links
- Reviews, Comparisons and Sound Samples
- No independent measurement review is linked for this model; it is ranked from hands-on listening and comparison against similarly priced speakers.
- Head-to-Head Comparisons
