Coverage note. Speaker Ranking currently covers 12 d&b audiotechnik models across pa speakers. These are the products in our database, not a complete list of everything d&b audiotechnik makes.
What this page covers. The d&b audiotechnik models ranked here span pa speakers, including d&b audiotechnik 42S, d&b audiotechnik 5S and d&b audiotechnik 4S. Use each model’s category position to compare it with alternatives of the same size and use case.
This page lists all 12 d&b audiotechnik speakers ranked on this site across pa speakers. Each model is shown in the category where it competes, with its current rank and the size of that ranking.
Use the category position rather than the brand name alone: speakers from the same manufacturer can perform very differently by size, price and product family.
Prices on this page were last checked October 12, 2026 at 4:13 PM UTC. Product prices and availability are accurate as of that date/time and are subject to change; the price and availability shown on Amazon at the time of purchase will apply to the purchase of this product.
As an eBay Partner, we may be compensated if you make a purchase.
Quick Navigation
- Compact 5 to 6.5-Inch PA Speakers
- 8-Inch PA Speakers
- 10-Inch PA Speakers
- 12-Inch PA Speakers
- Surface-Mount and Background Music Speakers
- Discontinued d&b audiotechnik Models
Compact 5 to 6.5-Inch PA Speakers
Ranked #10 of 38 in Compact 5 to 6.5-Inch PA Speakers - d&b audiotechnik 44S Passive eBay

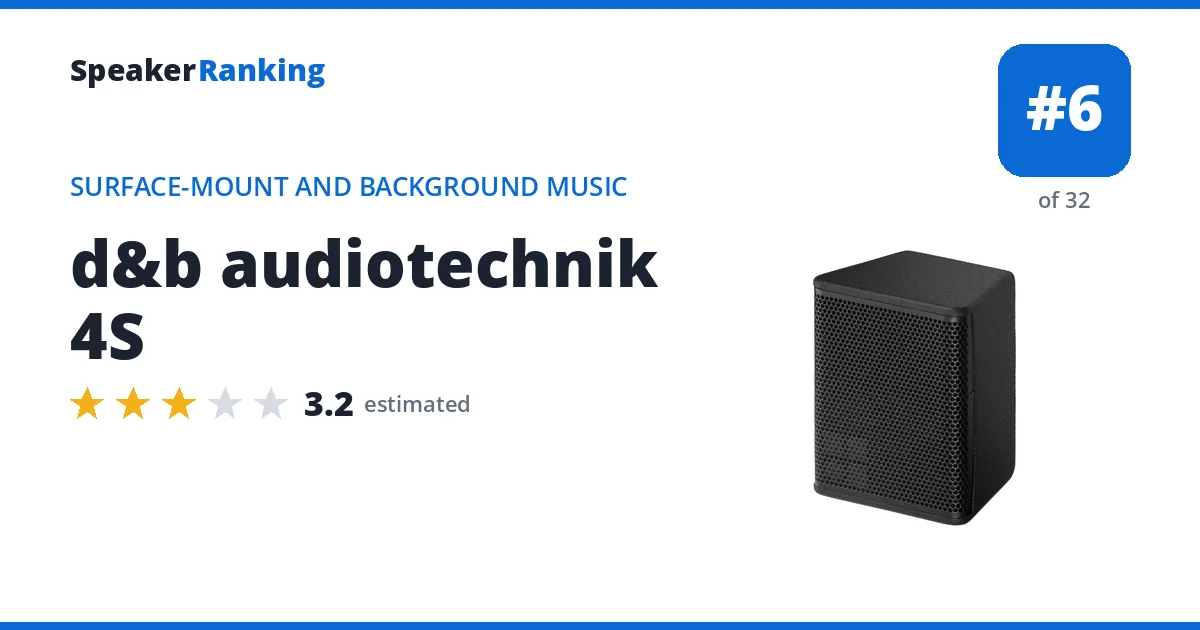

Same family: the d&b audiotechnik 4S (smaller model, estimated 3.2/5), the d&b audiotechnik 42S (smaller model, estimated 3.5/5), the d&b audiotechnik 5S (larger model, estimated 3.3/5), the d&b audiotechnik 8S (larger model, rated 3.1/5), the d&b audiotechnik 10S (larger model, rated 3.7/5), the d&b audiotechnik 12S (larger model, rated 3.8/5) and the d&b audiotechnik 24S (larger model, rated 3.8/5).
Pros: A 3.6kg cabinet with dual 4.5-inch drivers and a rotatable horn that reaches 123dB, with a low on-axis deviation (narrow-band 0.37). Vendor Spinorama data gives preference scores of 3.14 standalone and 6.61 with an ideal subwoofer. Measured bass extension of 122Hz (-3dB).
Cons: Bass reaches only about 122Hz (-3dB), so it works as a speech and fill box that needs a subwoofer for music. It is passive and works properly only with d&b amplifiers, and pricing is dealer quoted.
Full d&b audiotechnik 44S review and specifications →
| Released | 2020 (6 years ago) |
|---|---|
| AES Input | No |
| Amplifier Power | Passive speaker; requires external amplification within the 150W RMS / 500W peak handling rating |
| Aux Input | No |
| Bass Extension (-3dB) | 122Hz (measured, vendor Spinorama data) |
| Bluetooth | No |
| Coaxial Input | No |
| Configuration | Passive 2-way compact PA speaker |
| Coverage | Rotatable CD horn (measured 90° x 30°) |
| DSP | No (passive; used with d&b amplifiers for presets) |
| Drivers | Dual 4.5” neodymium woofers, dual 1.25” dome tweeters on a rotatable CD horn |
| Frequency Response | 90Hz - 17kHz (-5dB, manufacturer specified) |
| Guitar Input | No |
| HDMI Input | No |
| Maximum SPL | 123dB (manufacturer specified) |
| Microphone Input | No |
| Optical Input | No |
| Passive | Yes |
| Power Handling | 150W RMS / 500W peak (manufacturer specified) |
| RCA Input | No |
| Rigging | 2 x M8 inserts on rear panel |
| Spinorama Preference Score | 3.14 |
| Spinorama Preference Score with Perfect Sub | 6.61 |
| TRS Input | No |
| USB Input | No |
| Weight | 7.9 lbs (3.6 kg) (13.7 lbs (6.2 kg) with backbox) |
| XLR Input | No |
- Links
- Reviews, Comparisons and Sound Samples
- Head-to-Head Comparisons
8-Inch PA Speakers
Ranked #34 of 44 in 8-Inch PA Speakers - d&b audiotechnik 8S Passive eBay
Same family: the d&b audiotechnik 4S (smaller model, estimated 3.2/5), the d&b audiotechnik 42S (smaller model, estimated 3.5/5), the d&b audiotechnik 44S (smaller model, rated 3.6/5), the d&b audiotechnik 5S (smaller model, estimated 3.3/5), the d&b audiotechnik 10S (larger model, rated 3.7/5), the d&b audiotechnik 12S (larger model, rated 3.8/5) and the d&b audiotechnik 24S (larger model, rated 3.8/5).
Pros: A 127dB maximum from a 7.4kg coaxial cabinet with wide 100° conical coverage, and bass reaches about 66Hz at -10dB in vendor measurements. Measured bass extension of 106Hz (-3dB).
Cons: Preference scores of 0.93 standalone and 4.01 with an ideal subwoofer are the lowest in this group, because the listening window spreads across a 3.8dB band. It is passive, needs d&b amplifiers and presets, and is sold only through d&b dealers with no published price.
Full d&b audiotechnik 8S review and specifications →
| AES Input | No |
|---|---|
| Amplifier Power | Passive speaker; requires external amplification |
| Aux Input | No |
| Bass Extension (-10dB) | about 65.6Hz (measured, vendor Spinorama data) |
| Bass Extension (-3dB) | 106Hz (measured, vendor Spinorama data) |
| Bluetooth | No |
| Coaxial Input | No |
| Configuration | Passive 2-way coaxial PA speaker |
| Coverage | 100° x 100° |
| DSP | No (passive) |
| Dimensions | 13.9”H x 8.8”W x 8.1”D (352 x 224 x 205 mm) |
| Drivers | 8” woofer, coaxial 1” compression driver |
| Frequency Response | 70Hz - 20kHz (manufacturer specified) |
| Guitar Input | No |
| HDMI Input | No |
| Impedance | 12 ohms |
| Maximum SPL | 127dB (manufacturer specified) |
| Microphone Input | No |
| Optical Input | No |
| Passive | Yes |
| Power Handling | 800W peak |
| RCA Input | No |
| Rigging | M8 inserts in top and bottom panels; 2 x M8 inserts on rear |
| Spinorama Preference Score | 0.93 |
| Spinorama Preference Score with Perfect Sub | 4.01 |
| TRS Input | No |
| USB Input | No |
| Weight | 16.3 lbs (7.4 kg) |
| XLR Input | No |
- Links
- Reviews, Comparisons and Sound Samples
10-Inch PA Speakers
Ranked #14 of 39 in 10-Inch PA Speakers - d&b audiotechnik V7P Passive eBay
Same family: the d&b audiotechnik V10P (larger model, ranked lower, rated 3.6/5).
Pros: Manufacturer measurements give preference scores of 3.09 standalone and 5.80 with an ideal subwoofer. It is a 3-way design with two 10-inch woofers, a horn-loaded 8-inch midrange and a 1.4-inch compression driver, reaching 65Hz at -3dB with a 140dB peak rating. Its 75° x 40° pattern gives long throw for large venues. Measured bass extension of 65Hz (-3dB).
Cons: The 3.0dB reference band and 0.566 listening-window deviation mean tonal balance is less even than the best 10-inch models. It is a 33kg passive touring cabinet that needs d&b amplifiers, and it is sold only through d&b dealers with no published price.
Full d&b audiotechnik V7P review and specifications →
| Released | 2015 (11 years ago) |
|---|---|
| AES Input | No |
| Amplifier Power | Passive speaker; requires external amplification (d&b amplifiers) |
| Aux Input | No |
| Bass Extension (-10dB) | about 53.5Hz (measured, vendor Spinorama data) |
| Bass Extension (-3dB) | 65Hz (measured, vendor Spinorama data) |
| Bluetooth | No |
| Coaxial Input | No |
| Configuration | Passive 3-way point-source loudspeaker |
| Coverage | 75° x 40° |
| DSP | No (passive) |
| Dimensions | 27.6”H x 12.1”W x 18.3”D (700 x 308 x 466 mm) |
| Drivers | 2x 10” neodymium woofers, horn-loaded 8” neodymium midrange, 1.4” exit compression driver |
| Frequency Response | 59Hz - 18kHz (-5dB, manufacturer specified) |
| Guitar Input | No |
| HDMI Input | No |
| Impedance | 8 ohms |
| Maximum SPL | 140dB peak (manufacturer specified) |
| Microphone Input | No |
| Optical Input | No |
| Passive | Yes |
| Power Handling | 500W RMS / 2,000W peak |
| RCA Input | No |
| Rigging | M10 inserts for d&b rigging hardware; 3 x M10 load pin sockets |
| Spinorama Preference Score | 3.09 |
| Spinorama Preference Score with Perfect Sub | 5.80 |
| TRS Input | No |
| USB Input | No |
| Weight | 72.8 lbs (33 kg) |
| XLR Input | No |
- Links
- Reviews, Comparisons and Sound Samples
- Head-to-Head Comparisons
Ranked #17 of 39 in 10-Inch PA Speakers - d&b audiotechnik 10S Passive eBay
Same family: the d&b audiotechnik 4S (smaller model, estimated 3.2/5), the d&b audiotechnik 42S (smaller model, estimated 3.5/5), the d&b audiotechnik 44S (smaller model, rated 3.6/5), the d&b audiotechnik 5S (smaller model, estimated 3.3/5), the d&b audiotechnik 8S (smaller model, rated 3.1/5), the d&b audiotechnik 12S (larger model, rated 3.8/5) and the d&b audiotechnik 24S (larger model, rated 3.8/5).
Pros: Manufacturer measurements give preference scores of 2.74 standalone and 5.60 with an ideal subwoofer, with bass to 75Hz at -3dB and about 56Hz at -10dB. A 1.4-inch compression driver on a rotatable 75° x 50° horn gives a 130dB peak from a compact 13kg cabinet, suited to theaters, churches and fills. Measured bass extension of 75Hz (-3dB).
Cons: Listening-window deviation of 0.608 means tonal balance is less even than the flattest 10-inch models. It is passive, needs d&b amplifiers and presets, and is aimed at permanent installs. It is sold only through d&b dealers with no published price.
Full d&b audiotechnik 10S review and specifications →
| AES Input | No |
|---|---|
| Amplifier Power | Passive speaker; requires external amplification (d&b amplifiers) |
| Aux Input | No |
| Bass Extension (-10dB) | about 56.3Hz (measured, vendor Spinorama data) |
| Bass Extension (-3dB) | 75Hz (measured, vendor Spinorama data) |
| Bluetooth | No |
| Coaxial Input | No |
| Configuration | Passive 2-way installation loudspeaker |
| Coverage | 75° x 50° (rotatable) |
| DSP | No (passive) |
| Dimensions | 22.8”H x 11.1”W x 13.8”D (580 x 283 x 350 mm) |
| Drivers | 10” neodymium woofer, 1.4” compression driver on CD horn |
| Frequency Response | 60Hz - 18kHz (-5dB, manufacturer specified) |
| Guitar Input | No |
| HDMI Input | No |
| Impedance | 12 ohms |
| Maximum SPL | 130dB peak (manufacturer specified) |
| Microphone Input | No |
| Optical Input | No |
| Passive | Yes |
| Power Handling | 200W RMS / 1,200W peak |
| RCA Input | No |
| Rigging | M10 inserts in top and bottom panels; 2 x M8 inserts on rear |
| Spinorama Preference Score | 2.74 |
| Spinorama Preference Score with Perfect Sub | 5.60 |
| TRS Input | No |
| USB Input | No |
| Weight | 28.7 lbs (13 kg) |
| XLR Input | No |
- Links
- Reviews, Comparisons and Sound Samples
- Head-to-Head Comparisons
Ranked #22 of 39 in 10-Inch PA Speakers - d&b audiotechnik V10P Passive eBay
Same family: the d&b audiotechnik V7P (smaller model, ranked higher, rated 3.8/5).
Pros: The wide-coverage sibling of the d&b audiotechnik V7P, with the same 3-way layout of two 10-inch woofers, a horn-loaded 8-inch midrange and a 1.4-inch compression driver, but a 110° x 40° pattern for wider rooms. It reaches 65Hz at -3dB and a 139dB peak, and manufacturer measurements give a 5.15 preference score with an ideal subwoofer. Measured bass extension of 65Hz (-3dB).
Cons: A wide 4.6dB reference band and 0.659 listening-window deviation mean tonal balance is less even than the d&b audiotechnik V7P, with a 2.44 standalone score. It is a 33kg passive touring cabinet that needs d&b amplifiers, and it is sold only through d&b dealers.
Full d&b audiotechnik V10P review and specifications →
| Released | 2015 (11 years ago) |
|---|---|
| AES Input | No |
| Amplifier Power | Passive speaker; requires external amplification (d&b amplifiers) |
| Aux Input | No |
| Bass Extension (-10dB) | about 53.5Hz (measured, vendor Spinorama data) |
| Bass Extension (-3dB) | 65Hz (measured, vendor Spinorama data) |
| Bluetooth | No |
| Coaxial Input | No |
| Configuration | Passive 3-way point-source loudspeaker |
| Coverage | 110° x 40° |
| DSP | No (passive) |
| Dimensions | 27.6”H x 12.1”W x 18.3”D (700 x 308 x 466 mm) |
| Drivers | 2x 10” neodymium woofers, horn-loaded 8” neodymium midrange, 1.4” exit compression driver |
| Frequency Response | 59Hz - 18kHz (-5dB, manufacturer specified) |
| Guitar Input | No |
| HDMI Input | No |
| Impedance | 8 ohms |
| Maximum SPL | 139dB peak (manufacturer specified) |
| Microphone Input | No |
| Optical Input | No |
| Passive | Yes |
| Power Handling | 500W RMS / 2,000W peak |
| RCA Input | No |
| Rigging | M10 inserts for d&b rigging hardware; 3 x M10 load pin sockets |
| Spinorama Preference Score | 2.44 |
| Spinorama Preference Score with Perfect Sub | 5.15 |
| TRS Input | No |
| USB Input | No |
| Weight | 72.8 lbs (33 kg) |
| XLR Input | No |
- Links
- Reviews, Comparisons and Sound Samples
- Head-to-Head Comparisons
12-Inch PA Speakers
Ranked #31 of 78 in 12-Inch PA Speakers - d&b audiotechnik 24S Passive eBay
Same family: the d&b audiotechnik 4S (smaller model, estimated 3.2/5), the d&b audiotechnik 42S (smaller model, estimated 3.5/5), the d&b audiotechnik 44S (smaller model, rated 3.6/5), the d&b audiotechnik 5S (smaller model, estimated 3.3/5), the d&b audiotechnik 8S (smaller model, rated 3.1/5), the d&b audiotechnik 10S (smaller model, rated 3.7/5) and the d&b audiotechnik 12S (smaller model, ranked lower, rated 3.8/5).
Pros: Manufacturer measurements give preference scores of 3.11 standalone and 5.81 with an ideal subwoofer, and two 12-inch woofers reach 69Hz at -3dB and about 53Hz at -10dB. A 1.4-inch compression driver on a rotatable 75° x 45° horn and a 138dB peak rating give long throw for larger rooms. It can run full range on its own or pair with d&b xS subwoofers. Measured bass extension of 69Hz (-3dB).
Cons: The 3.4dB reference band means tonal balance is less even than the best 12-inch speakers here. It is a large 33kg passive cabinet meant for permanent installs, needing d&b amplifiers and presets. It is sold only through d&b dealers with no published price.
Full d&b audiotechnik 24S review and specifications →
| Released | 2016 (10 years ago) |
|---|---|
| AES Input | No |
| Amplifier Power | Passive speaker; requires external amplification (d&b amplifiers) |
| Aux Input | No |
| Bass Extension (-10dB) | about 53Hz (measured, vendor Spinorama data) |
| Bass Extension (-3dB) | 69Hz (measured, vendor Spinorama data) |
| Bluetooth | No |
| Coaxial Input | No |
| Configuration | Passive 2-way installation loudspeaker |
| Coverage | 75° x 45° (rotatable) |
| DSP | No (passive) |
| Dimensions | 31.5”H x 16.1”W x 16.5”D (800 x 410 x 420 mm) |
| Drivers | 2x 12” neodymium woofers, 1.4” exit compression driver |
| Frequency Response | 55Hz - 18kHz (-5dB, manufacturer specified) |
| Guitar Input | No |
| HDMI Input | No |
| Impedance | 4 ohms |
| Maximum SPL | 138dB peak (manufacturer specified) |
| Microphone Input | No |
| Optical Input | No |
| Passive | Yes |
| Power Handling | 500W RMS / 2,000W peak |
| RCA Input | No |
| Rigging | 8 x M10 inserts on top, bottom and sides |
| Spinorama Preference Score | 3.11 |
| Spinorama Preference Score with Perfect Sub | 5.81 |
| TRS Input | No |
| USB Input | No |
| Weight | 72.8 lbs (33 kg) |
| XLR Input | No |
- Links
- Reviews, Comparisons and Sound Samples
- Head-to-Head Comparisons
Ranked #32 of 78 in 12-Inch PA Speakers - d&b audiotechnik 12S Passive eBay
Same family: the d&b audiotechnik 4S (smaller model, estimated 3.2/5), the d&b audiotechnik 42S (smaller model, estimated 3.5/5), the d&b audiotechnik 44S (smaller model, rated 3.6/5), the d&b audiotechnik 5S (smaller model, estimated 3.3/5), the d&b audiotechnik 8S (smaller model, rated 3.1/5), the d&b audiotechnik 10S (smaller model, rated 3.7/5) and the d&b audiotechnik 24S (larger model, ranked higher, rated 3.8/5).
Pros: Its 3.20 standalone preference score is among the better passive 12-inch results here, and bass reaches 60Hz at -3dB and about 46Hz at -10dB, deep enough to run without a subwoofer for speech and background music. A 1.4-inch compression driver on a rotatable 75° x 50° horn gives a 133dB peak from a 17kg cabinet, and the 12S-D version offers 110° wide coverage. Measured bass extension of 60Hz (-3dB).
Cons: Listening-window deviation of 0.556 means the tonal balance is less even than the best 12-inch models. It is passive, needs d&b amplifiers and presets, and is aimed at permanent installs. It is sold only through d&b dealers with no published price.
Full d&b audiotechnik 12S review and specifications →
| AES Input | No |
|---|---|
| Amplifier Power | Passive speaker; requires external amplification (d&b amplifiers) |
| Aux Input | No |
| Bass Extension (-10dB) | about 46.2Hz (measured, vendor Spinorama data) |
| Bass Extension (-3dB) | 60Hz (measured, vendor Spinorama data) |
| Bluetooth | No |
| Coaxial Input | No |
| Configuration | Passive 2-way installation loudspeaker |
| Coverage | 75° x 50° (rotatable) |
| DSP | No (passive) |
| Dimensions | 25.1”H x 13.3”W x 14.4”D (638 x 338 x 365 mm) |
| Drivers | 12” neodymium woofer, 1.4” compression driver on CD horn |
| Frequency Response | 48Hz - 18kHz (-5dB, manufacturer specified) |
| Guitar Input | No |
| HDMI Input | No |
| Impedance | 8 ohms |
| Maximum SPL | 133dB peak (manufacturer specified) |
| Microphone Input | No |
| Optical Input | No |
| Passive | Yes |
| Power Handling | 300W RMS / 1,600W peak |
| RCA Input | No |
| Rigging | M10 inserts in top and bottom panels; 2 x M8 inserts on rear |
| Spinorama Preference Score | 3.20 |
| Spinorama Preference Score with Perfect Sub | 5.79 |
| TRS Input | No |
| USB Input | No |
| Weight | 37.5 lbs (17 kg) |
| XLR Input | No |
- Links
- Reviews, Comparisons and Sound Samples
- Head-to-Head Comparisons
Surface-Mount and Background Music Speakers

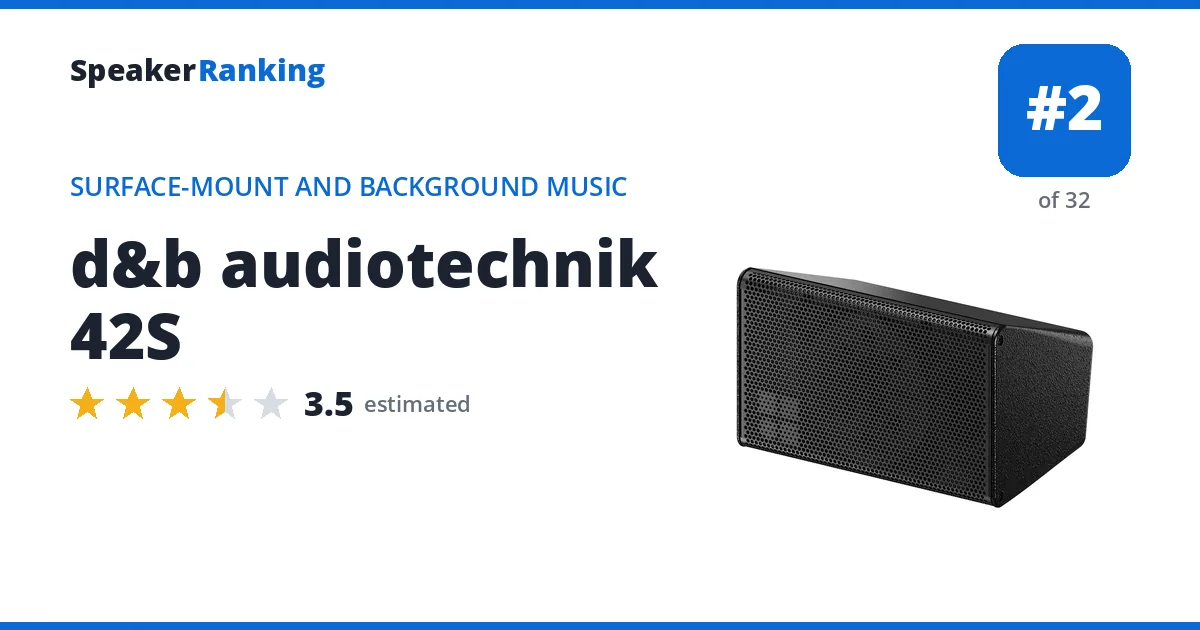

Ranked #2 of 26 in Surface-Mount and Background Music Speakers - d&b audiotechnik 42S Passive eBay
Same family: the d&b audiotechnik 4S (smaller model, ranked lower, estimated 3.2/5), the d&b audiotechnik 44S (larger model, rated 3.6/5), the d&b audiotechnik 5S (larger model, ranked lower, estimated 3.3/5), the d&b audiotechnik 8S (larger model, rated 3.1/5), the d&b audiotechnik 10S (larger model, rated 3.7/5), the d&b audiotechnik 12S (larger model, rated 3.8/5) and the d&b audiotechnik 24S (larger model, rated 3.8/5).
Pros: A passive installation loudspeaker from d&b’s xS-Series alongside the measured d&b audiotechnik 44S and d&b audiotechnik 8S: the newest ultra-compact model, with a single 4.5” woofer and 120° x 90° dispersion. d&b rates it at 117dB maximum SPL with a range of 77Hz - 20kHz (-5dB) when driven by its matched d&b amplifier presets.
Cons: No independent measurements yet, so it can’t be compared with ranked PA speakers. It is meant to run from d&b amplifiers with the matching preset and is sold only through d&b dealers, so there is no retail price.
Full d&b audiotechnik 42S review and specifications →
| Released | 2026 (this year) |
|---|---|
| Amplifier Power | Passive speaker; requires external amplification |
| Bluetooth | No |
| Configuration | Passive 2-way installation speaker |
| DSP | No (passive) |
| Drivers | 4.5” woofer, 0.75” tweeter |
| Frequency Response | 77Hz - 20kHz (-5dB) (manufacturer specified) |
| Maximum SPL | 117dB (manufacturer specified) |
| Passive | Yes |
| Rigging | 2 x M8 inserts on rear panel |
| Weight | 3.5 lbs (1.6 kg) |
| XLR Input | No |
- Links
- Reviews, Comparisons and Sound Samples
- No independent measurement review is linked for this model; it is ranked from hands-on listening and comparison against similarly priced speakers.
Ranked #4 of 26 in Surface-Mount and Background Music Speakers - d&b audiotechnik 5S Passive eBay
Same family: the d&b audiotechnik 4S (smaller model, ranked lower, estimated 3.2/5), the d&b audiotechnik 42S (smaller model, ranked higher, estimated 3.5/5), the d&b audiotechnik 44S (smaller model, rated 3.6/5), the d&b audiotechnik 8S (larger model, rated 3.1/5), the d&b audiotechnik 10S (larger model, rated 3.7/5), the d&b audiotechnik 12S (larger model, rated 3.8/5) and the d&b audiotechnik 24S (larger model, rated 3.8/5).
Pros: A passive installation loudspeaker from d&b’s xS-Series alongside the measured d&b audiotechnik 44S and d&b audiotechnik 8S: a compact 5” bass-reflex model that reaches lower than the 4S. d&b rates it at 118dB maximum SPL with a range of 80Hz - 20kHz (-5dB) when driven by its matched d&b amplifier presets.
Cons: No independent measurements yet, so it can’t be compared with ranked PA speakers. It is meant to run from d&b amplifiers with the matching preset and is sold only through d&b dealers, so there is no retail price.
Full d&b audiotechnik 5S review and specifications →
| Amplifier Power | Passive speaker; requires external amplification |
|---|---|
| Bluetooth | No |
| Configuration | Passive 2-way installation speaker |
| DSP | No (passive) |
| Drivers | 5” woofer with coaxial dome tweeter, bass reflex |
| Frequency Response | 80Hz - 20kHz (-5dB) (manufacturer specified) |
| Maximum SPL | 118dB (manufacturer specified) |
| Passive | Yes |
| Rigging | 2 x M8 inserts on rear panel; optional M10 stand adapter |
| Weight | 5.5 lbs (2.5 kg) |
| XLR Input | No |
- Links
- Reviews, Comparisons and Sound Samples
- No independent measurement review is linked for this model; it is ranked from hands-on listening and comparison against similarly priced speakers.
Ranked #5 of 26 in Surface-Mount and Background Music Speakers - d&b audiotechnik 4S Passive eBay
Same family: the d&b audiotechnik 42S (larger model, ranked higher, estimated 3.5/5), the d&b audiotechnik 44S (larger model, rated 3.6/5), the d&b audiotechnik 5S (larger model, ranked higher, estimated 3.3/5), the d&b audiotechnik 8S (larger model, rated 3.1/5), the d&b audiotechnik 10S (larger model, rated 3.7/5), the d&b audiotechnik 12S (larger model, rated 3.8/5) and the d&b audiotechnik 24S (larger model, rated 3.8/5).
Pros: A passive installation loudspeaker from d&b’s xS-Series alongside the measured d&b audiotechnik 44S and d&b audiotechnik 8S: the ultra-compact 4” model, weighing just 1 kg, for fills and discreet installs. d&b rates it at 115dB maximum SPL with a range of 130Hz - 20kHz (-5dB) when driven by its matched d&b amplifier presets.
Cons: No independent measurements yet, so it can’t be compared with ranked PA speakers. It is meant to run from d&b amplifiers with the matching preset and is sold only through d&b dealers, so there is no retail price.
Full d&b audiotechnik 4S review and specifications →
| Amplifier Power | Passive speaker; requires external amplification |
|---|---|
| Bluetooth | No |
| Configuration | Passive 2-way installation speaker |
| DSP | No (passive) |
| Drivers | 4” neodymium woofer with coaxial dome tweeter |
| Frequency Response | 130Hz - 20kHz (-5dB) (manufacturer specified) |
| Maximum SPL | 115dB (manufacturer specified) |
| Passive | Yes |
| Rigging | M10 inserts on rear panel; optional M10 stand adapter |
| Weight | 2.2 lbs (1 kg) |
| XLR Input | No |
- Links
- Reviews, Comparisons and Sound Samples
- No independent measurement review is linked for this model; it is ranked from hands-on listening and comparison against similarly priced speakers.
Discontinued d&b audiotechnik Models
Still ranked, and often still worth buying used, but no longer in production. Check availability before planning around one of these.
10-Inch PA Speakers
Ranked #23 of 39 in 10-Inch PA Speakers - d&b audiotechnik Q7 Passive Discontinued eBay
Same family: the d&b audiotechnik Q10 (larger model, ranked lower, rated 3.6/5).
Pros: A passive touring and installation loudspeaker from d&b with a 10” woofer and a compression driver on a rotatable 75 degree horn, driven by d&b amplifiers. DB Audiotechnik’s measurements show a preference score of 2.84 that reaches 5.7 with an ideal subwoofer, with 0.54 listening window deviation. Measured bass extension of 90.0Hz (-3dB).
Cons: It needs a d&b amplifier with the matching setup. d&b discontinued the Q-Series.
Full d&b audiotechnik Q7 review and specifications →
| Released | 2003 (23 years ago) |
|---|---|
| Bass Extension (-3dB) | 90.0Hz (measured, vendor Spinorama data) |
| Bluetooth | No |
| DIY Kit | No |
| Drivers | 10” woofer, compression driver on rotatable horn |
| Maximum SPL | 134dB peak (manufacturer specified) |
| Passive | Yes |
| Spinorama Preference Score | 2.84 |
| Spinorama Preference Score with Perfect Sub | 5.7 |
| Weight | 48.5 lbs (22 kg) |
- Reviews, Comparisons and Sound Samples
Ranked #24 of 39 in 10-Inch PA Speakers - d&b audiotechnik Q10 Passive Discontinued eBay
Same family: the d&b audiotechnik Q7 (smaller model, ranked higher, rated 3.6/5).
Pros: A passive touring and installation loudspeaker from d&b with a 10” woofer and a compression driver on a wide 110 degree rotatable horn. d&b’s data shows a flat on-axis response (0.23 average deviation). DB Audiotechnik’s measurements show a preference score of 2.6 that reaches 5.47 with an ideal subwoofer, with 0.68 listening window deviation. Measured bass extension of 90.0Hz (-3dB).
Cons: It needs a d&b amplifier with the matching setup. d&b discontinued the Q-Series.
Full d&b audiotechnik Q10 review and specifications →
| Released | 2004 (22 years ago) |
|---|---|
| Bass Extension (-3dB) | 90.0Hz (measured, vendor Spinorama data) |
| Bluetooth | No |
| DIY Kit | No |
| Drivers | 10” woofer, compression driver on rotatable horn |
| Maximum SPL | 137dB peak (manufacturer specified) |
| Passive | Yes |
| Spinorama Preference Score | 2.6 |
| Spinorama Preference Score with Perfect Sub | 5.47 |
| Weight | 48.5 lbs (22 kg) |
- Reviews, Comparisons and Sound Samples
