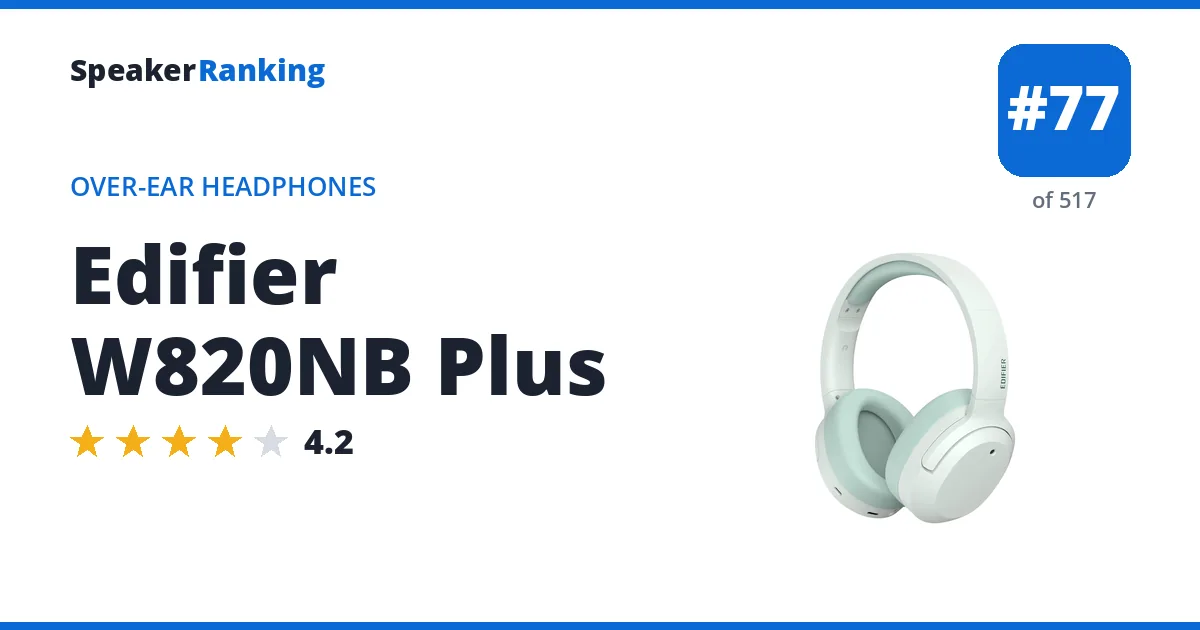

The Edifier W820NB Plus ranks #77 out of 517 total Over-Ear Headphones for sound quality. See all Headphones rankings for every top pick.
Brand: Edifier
Prices on this page were last checked October 20, 2026 at 10:35 PM UTC. Product prices and availability are accurate as of that date/time and are subject to change; the price and availability shown on Amazon at the time of purchase will apply to the purchase of this product.
As an eBay Partner, we may be compensated if you make a purchase.
#77 Edifier W820NB Plus: $59.55 Wireless Amazon $59.55 eBay
Pros: ANC over ears at about $60 with LDAC, a light 221 g build and up to 33 hours with ANC, and a preference score of 86. Bass extends fully to 20 Hz with a gentle lift, and the midrange stays within about 1 dB of target.
Cons: Treble is jagged, with peaks of 6.3 dB near 7.3 kHz and 7.6 dB near 8.2 kHz next to a 7.6 dB dip near 9.2 kHz, which can make sibilants stand out. Wired listening is over USB C only, and the score rests on a single measurement.
Is the Edifier W820NB Plus right for you?
Buy it if
- you want the tuning most listeners prefer in blind tests out of the box (Harman score 86).
- you want sub-bass rumble that reaches down to 20 Hz.
- you want noise cancelling for commutes or flights.
- you want long battery life (claimed 33 hours).
| Released | 2023 (3 years ago) |
|---|---|
| Active Noise Cancelling | Yes |
| Back | Closed |
| Battery Life | 33 hours (ANC on); 49 hours (ANC off) |
| Bluetooth Codecs | SBC, LDAC |
| Bluetooth Version | 5.2 |
| Built-in Microphone | Yes |
| Connection | Wireless and wired |
| Deviation From Target | 2.16 dB standard deviation |
| Driver Type | Dynamic |
| Drivers | 1 x 40mm dynamic |
| Form Factor | Over-ear |
| Frequency Response | 20Hz - 40kHz (Manufacturer specified) |
| Harman Preference Score | 86 (1 squig.link measurement, calibrated to AutoEQ) |
| Impedance | 32 ohms |
| Sub-bass Extension | Within 6 dB of target down to 20 Hz (+2.6 dB at 30 Hz) |
| Tonal Tilt | +0.16 (negative is warmer, positive brighter) |
| Weight | 0.5 lbs (221 g) |
EQ Presets
Harman target
Set a preamp of -3.4 dB, then add these filters in any parametric equalizer (Wavelet, Equalizer APO, Peace, or a player with parametric EQ). Calculated by Speaker Ranking from a single measurement from squig.link, in the filter layout AutoEQ uses. Predicted Harman match with this EQ: 97 out of 100, up from 86.
| Filter | Frequency | Gain | Q |
|---|---|---|---|
| Low shelf | 105 Hz | -1.4 dB | 0.70 |
| High shelf | 10,000 Hz | -1.8 dB | 0.70 |
| Peak | 340 Hz | +3.3 dB | 2.30 |
| Peak | 2,857 Hz | -4.8 dB | 5.18 |
| Peak | 4,398 Hz | +2.5 dB | 5.37 |
| Peak | 7,223 Hz | -5.5 dB | 4.13 |
Neutral target
Set a preamp of -3.3 dB, then add these filters in any parametric equalizer (Wavelet, Equalizer APO, Peace, or a player with parametric EQ). Calculated by Speaker Ranking from a single measurement from squig.link, in the filter layout AutoEQ uses. Predicted Neutral match with this EQ: 96 out of 100, up from 67.
| Filter | Frequency | Gain | Q |
|---|---|---|---|
| Low shelf | 105 Hz | -7.1 dB | 0.70 |
| High shelf | 10,000 Hz | -1.8 dB | 0.70 |
| Peak | 60 Hz | -1.6 dB | 5.91 |
| Peak | 340 Hz | +3.3 dB | 2.31 |
| Peak | 2,857 Hz | -4.8 dB | 5.18 |
| Peak | 4,398 Hz | +2.5 dB | 5.37 |
| Peak | 7,223 Hz | -5.5 dB | 4.14 |
Studio flat target
Set a preamp of -3.5 dB, then add these filters in any parametric equalizer (Wavelet, Equalizer APO, Peace, or a player with parametric EQ). Calculated by Speaker Ranking from a single measurement from squig.link, in the filter layout AutoEQ uses. Predicted Studio flat match with this EQ: 92 out of 100, up from 44.
| Filter | Frequency | Gain | Q |
|---|---|---|---|
| Low shelf | 105 Hz | -9.0 dB | 0.70 |
| High shelf | 10,000 Hz | +2.0 dB | 0.70 |
| Peak | 60 Hz | -1.3 dB | 6.00 |
| Peak | 149 Hz | -2.4 dB | 1.90 |
| Peak | 341 Hz | +1.6 dB | 4.75 |
| Peak | 1,174 Hz | -1.3 dB | 4.18 |
| Peak | 1,988 Hz | +3.7 dB | 4.08 |
| Peak | 2,961 Hz | -1.8 dB | 6.00 |
| Peak | 4,239 Hz | +2.5 dB | 5.39 |
| Peak | 7,066 Hz | -5.7 dB | 5.15 |
Warm target
Set a preamp of -3.4 dB, then add these filters in any parametric equalizer (Wavelet, Equalizer APO, Peace, or a player with parametric EQ). Calculated by Speaker Ranking from a single measurement from squig.link, in the filter layout AutoEQ uses. Predicted Warm match with this EQ: 90 out of 100, up from 70.
| Filter | Frequency | Gain | Q |
|---|---|---|---|
| Low shelf | 105 Hz | -1.2 dB | 0.70 |
| High shelf | 10,000 Hz | -5.4 dB | 0.70 |
| Peak | 341 Hz | +3.4 dB | 1.93 |
| Peak | 2,843 Hz | -4.5 dB | 5.92 |
| Peak | 4,450 Hz | +3.6 dB | 4.51 |
| Peak | 8,000 Hz | -4.7 dB | 0.51 |
Bass target
Set a preamp of -3.3 dB, then add these filters in any parametric equalizer (Wavelet, Equalizer APO, Peace, or a player with parametric EQ). Calculated by Speaker Ranking from a single measurement from squig.link, in the filter layout AutoEQ uses. Predicted Bass match with this EQ: 96 out of 100, up from 75.
| Filter | Frequency | Gain | Q |
|---|---|---|---|
| Low shelf | 105 Hz | +2.4 dB | 0.70 |
| High shelf | 10,000 Hz | -1.8 dB | 0.70 |
| Peak | 340 Hz | +3.2 dB | 2.27 |
| Peak | 2,857 Hz | -4.8 dB | 5.17 |
| Peak | 4,398 Hz | +2.5 dB | 5.37 |
| Peak | 7,223 Hz | -5.5 dB | 4.13 |
Bright target
Set a preamp of -4.7 dB, then add these filters in any parametric equalizer (Wavelet, Equalizer APO, Peace, or a player with parametric EQ). Calculated by Speaker Ranking from a single measurement from squig.link, in the filter layout AutoEQ uses. Predicted Bright match with this EQ: 89 out of 100, up from 54.
| Filter | Frequency | Gain | Q |
|---|---|---|---|
| Low shelf | 105 Hz | -7.2 dB | 0.70 |
| High shelf | 10,000 Hz | +1.1 dB | 0.70 |
| Peak | 340 Hz | +3.2 dB | 2.37 |
| Peak | 2,841 Hz | -4.2 dB | 5.28 |
| Peak | 4,535 Hz | +4.8 dB | 4.62 |
| Peak | 5,760 Hz | +2.1 dB | 6.00 |
| Peak | 7,303 Hz | -1.9 dB | 6.00 |
V-shaped target
Set a preamp of -5.2 dB, then add these filters in any parametric equalizer (Wavelet, Equalizer APO, Peace, or a player with parametric EQ). Calculated by Speaker Ranking from a single measurement from squig.link, in the filter layout AutoEQ uses. Predicted V-shaped match with this EQ: 88 out of 100, up from 82.
| Filter | Frequency | Gain | Q |
|---|---|---|---|
| Low shelf | 105 Hz | +3.0 dB | 0.70 |
| High shelf | 10,000 Hz | +1.5 dB | 0.70 |
| Peak | 89 Hz | +1.6 dB | 3.66 |
| Peak | 317 Hz | +4.1 dB | 1.53 |
| Peak | 1,165 Hz | -1.9 dB | 4.87 |
| Peak | 1,948 Hz | +1.7 dB | 5.70 |
| Peak | 2,865 Hz | -3.8 dB | 5.83 |
| Peak | 4,600 Hz | +5.0 dB | 3.31 |
| Peak | 5,812 Hz | +1.8 dB | 6.00 |
- Links
- Reviews, Comparisons and Sound Samples
Frequency Response
How the Edifier W820NB Plus measures across the audible range, against the Harman over-ear target that most listeners prefer in blind tests. Where the line sits above the target that range sounds louder (more bass, brighter treble), below it quieter. The curve is a single measurement, and both lines are shifted so their 500 Hz to 2 kHz average sits at 0 dB.
Measurement data: a single measurement from the squig.link database of filk. Thanks to them for publishing their work.
