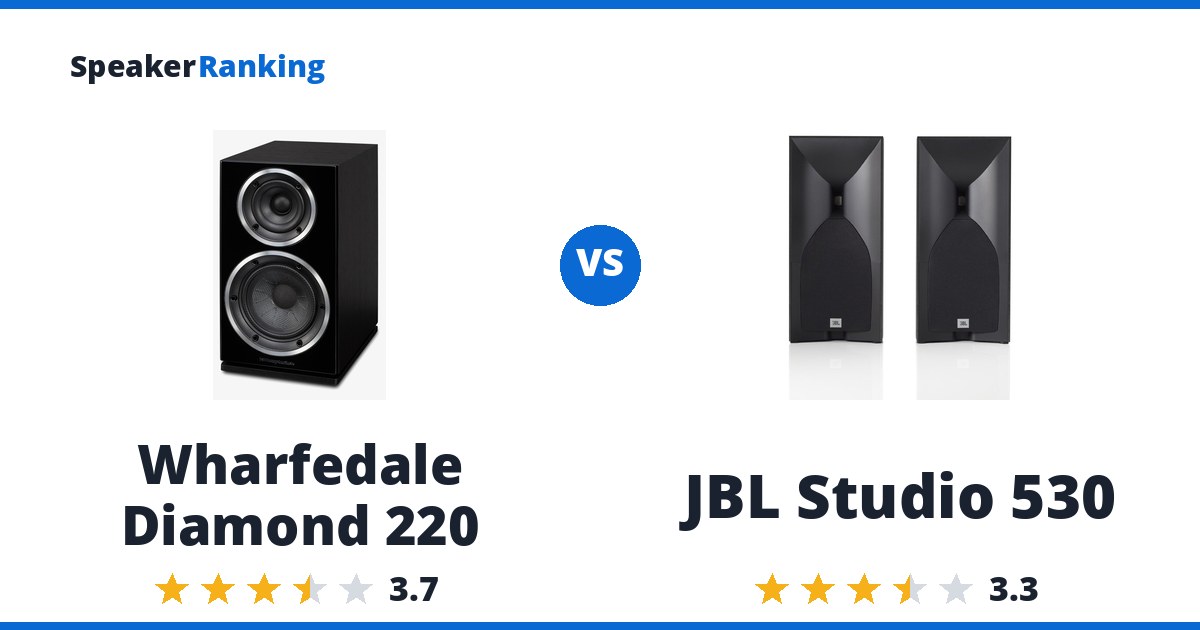

Wharfedale Diamond 220 vs JBL Studio 530

Last updated: October 31, 2026

Short answer: the Wharfedale Diamond 220, since the JBL Studio 530’s flat on-axis curve hides a resonance problem. The Studio 530’s CEA2034 spinorama is fairly flat, but a peak around 1.4kHz traced to a tweeter resonance shows up as a distinct spike in harmonic distortion at that frequency, with a second resonance-driven bump near 2kHz. The Diamond 220 is smooth on axis once its grille is removed, though it rolls off below 200Hz.

Wharfedale Diamond 220 vs JBL Studio 530

Buy the Wharfedale Diamond 220 only if you find one used in good condition; both are discontinued, and it is the better rated of the two. For a new speaker, buy the Wharfedale Diamond 12.1i, which replaces the Wharfedale Diamond 220.

Want more options? Browse the full Passive Home rankings.

Measured Differences

Prices on this page were last checked November 14, 2026 at 6:17 PM UTC. Product prices and availability are accurate as of that date/time and are subject to change; the price and availability shown on Amazon at the time of purchase will apply to the purchase of this product.

As an eBay Partner, we may be compensated if you make a purchase.

Specifications Side By Side

Wharfedale Diamond 220 JBL Studio 530
Price$299 per pair Discontinued$399 per pair Discontinued
Ranked#50 of 179 in Medium Size Bookshelf Speakers#85 of 179 in Medium Size Bookshelf Speakers
Drivers5” (130mm) woven Kevlar woofer, 1” (25mm) tweeter5.25” (130mm) PolyPlas™ cone woofer with SFG magnet, 1” (25mm) compression driver with Teonex® diaphragm on Bi-Radial® horn
Dimensions12.4”H x 6.9”W x 8.9”D (315 x 174 x 227 mm)18.4”H x 8.4”W x 8.7”D (467 x 214 x 222 mm)
Weight11.7 lbs (5.3 kg) each17 lbs (7.7 kg) each
Sensitivity86.9dB (2.83V/1m, measured, Audio Science Review; 86dB manufacturer specified)~85dB (measured by Audio Science Review)
Impedance8 ohms6 ohms nominal (4 ohms minimum, measured by Audio Science Review)
Woofer Cabinetported, bottom-firing into secondary enclosureported
Bass Extension (-3dB)117.2Hz (measured, Audio Science Review)73.2Hz (measured, Audio Science Review)
Bass Extension (-10dB)58.0Hz (measured, Audio Science Review)40Hz (derived, log-interpolated between spinorama.org -9dB/-12dB points)
Spinorama Preference Score3.405.21 (spinorama.org)
Spinorama Preference Score with Perfect Sub6.647.29 (spinorama.org)
DIY KitNoNo
Crossover Frequency-1.5kHz

Where the Ratings Come From

This comparison is generated from the ratings, specifications and measurements on each product’s own page, and it updates when that data changes. How we rank explains how each rating is decided.
