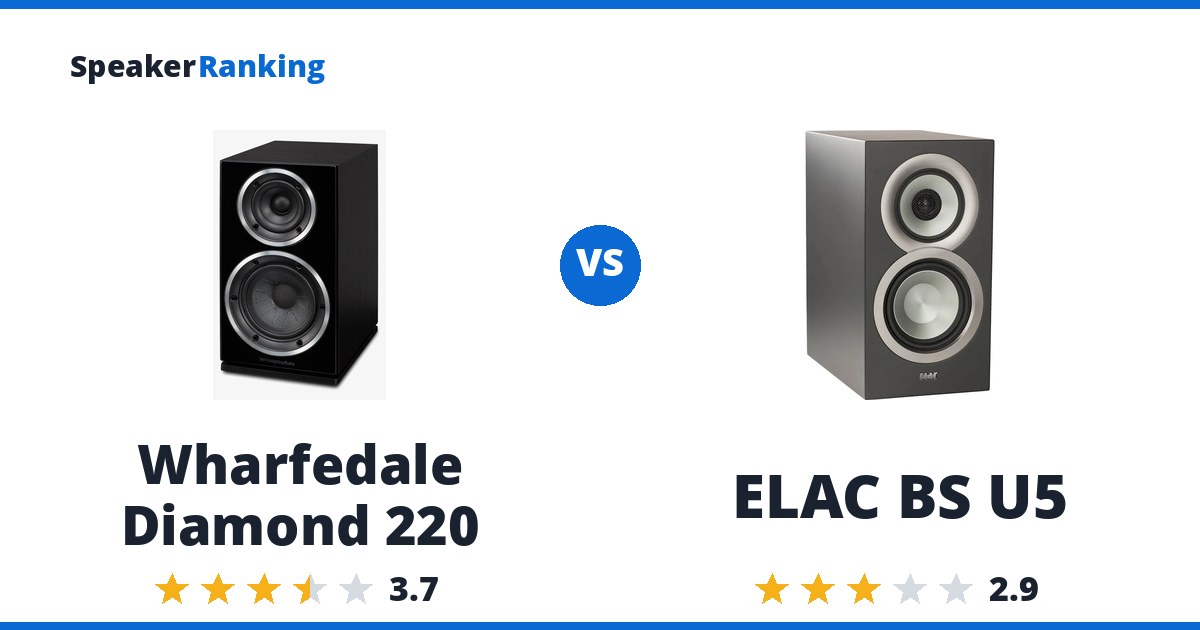

Short answer: the Wharfedale Diamond 220. It ranks #19 of 56 bookshelf speakers by sound quality at $350; the ELAC BS U5 ranks #29 and costs $856, so there is not much of a tradeoff to weigh.
On the Wharfedale Diamond 220 side: Amir found the on-axis response smooth once the grille is removed, calling grille removal “a huge improvement” since the stock grille caused unusually strong comb filtering around 5kHz. Set against that: Response rolls off below 200Hz, so a subwoofer is recommended for full-range use.
The case for the ELAC BS U5: This slim three-way coaxial design (an Andrew Jones creation) shows a fairly even on-axis response up to 3kHz, with off-axis behavior notably smoother than the on-axis curve. The tradeoff: Distortion is very high right at both crossover points - around 270Hz (mid-range) and 2700Hz (tweeter) - at both 86dB and 96dB SPL/1m, exceeding 3% at the mid-range crossover.
Buy the Wharfedale Diamond 220. It ranks higher for sound quality than the ELAC BS U5 and costs less, so there is no real case for the other one.
Specifications Side By Side
| Wharfedale Diamond 220 | ELAC BS U5 | |
|---|---|---|
| Price | $350 | $856 Discontinued |
| Ranked | #19 of 56 in Medium Size Bookshelf Speakers | #29 of 56 in Medium Size Bookshelf Speakers |
| Drivers | 5" (130mm) woven Kevlar woofer, 1" (25mm) tweeter | 1" tweeter + 5.25" woofer |
| Dimensions | 12.4"H x 6.9"W x 8.9"D (315 x 174 x 227 mm) | 13.4"H x 7"W x 11.5"D (339.1 x 178.0 x 293.1 mm) |
| Weight | 11.7 lbs / 5.3 kg each | 13.2 lbs / 6 kg |
| Sensitivity | 86.9dB (2.83V/1m, measured, Audio Science Review; 86dB manufacturer specified) | 83dB (2.83V/1m, measured, Audio Science Review) |
| Impedance | 8 ohms | 4 ohms nominal (3.4 ohms minimum) |
| Woofer Cabinet | ported, bottom-firing into secondary enclosure | ported, rear |
| Bass Extension (-3dB) | - | 78Hz (measured, Audio Science Review) |
| Bass Extension (-10dB) | - | 60Hz (measured, Audio Science Review) |
| Discontinued | - | Yes |
Related Speaker Comparisons
More useful head-to-heads from the same speaker class:
- JBL Studio 530 vs Dynaudio Emit M10
- KEF Q150 vs Dynaudio Emit M10
- Dynaudio Emit M10 vs JBL Stage 2 250B
- KEF Q150 vs ELAC BS U5
- ELAC BS U5 vs JBL Stage 2 250B
The Two Speakers In Full
Wharfedale Diamond 220: $350 Amazon
Pros: Amir found the on-axis response smooth once the grille is removed, calling grille removal “a huge improvement” since the stock grille caused unusually strong comb filtering around 5kHz. Good horizontal dispersion from the waveguide-loaded tweeter and controlled distortion. After some EQ (a room mode filter and treble shelf), the reviewer called it “a truly hifi speaker” where “every audiophile track…sounded very good,” and said he was “happy to recommend” it for the budget class.
Cons: Response rolls off below 200Hz, so a subwoofer is recommended for full-range use. Some port rattling was noted at high volumes, traced to vibration rather than the woofer itself. Best performance requires removing the grille and applying the reviewer’s EQ filters.
Full Wharfedale Diamond 220 review and specifications →
| Dimensions | 12.4"H x 6.9"W x 8.9"D (315 x 174 x 227 mm) |
|---|---|
| Drivers | 5" (130mm) woven Kevlar woofer, 1" (25mm) tweeter |
| Impedance | 8 ohms |
| Sensitivity | 86.9dB (2.83V/1m, measured, Audio Science Review; 86dB manufacturer specified) |
| Weight | 11.7 lbs / 5.3 kg each |
| Woofer Cabinet | ported, bottom-firing into secondary enclosure |
As an eBay Partner, we may be compensated if you make a purchase.
- Links
- Reviews, Comparisons and Sound Samples
- Head-to-Head Comparisons
- Wharfedale Diamond 220 vs KEF Q150
- Wharfedale Diamond 220 vs Boston Acoustics A25
- Wharfedale Diamond 220 vs JBL Studio 530
- Wharfedale Diamond 220 vs ELAC Debut 2.0 B5.2
- Wharfedale Diamond 220 vs Sony SS-CS5 M2
- Wharfedale Diamond 220 vs Wharfedale Diamond 12.1
- Wharfedale Diamond 220 vs Paradigm Monitor SE Atom
- Wharfedale Diamond 220 vs Wharfedale Super Denton
- See all 14 comparisons
ELAC BS U5: $856 Discontinued
Pros: This slim three-way coaxial design (an Andrew Jones creation) shows a fairly even on-axis response up to 3kHz, with off-axis behavior notably smoother than the on-axis curve. Predicted in-room response looks like it should give good tonality. Vertical directivity is better than average, a benefit of the coaxial layout.
Cons: Distortion is very high right at both crossover points - around 270Hz (mid-range) and 2700Hz (tweeter) - at both 86dB and 96dB SPL/1m, exceeding 3% at the mid-range crossover. Minimum impedance dips to 3.4 ohms with a possible resonance around 500Hz visible in the impedance/phase curve. Discontinued.
Full ELAC BS U5 review and specifications →
| Bass Extension (-10dB) | 60Hz (measured, Audio Science Review) |
|---|---|
| Bass Extension (-3dB) | 78Hz (measured, Audio Science Review) |
| Dimensions | 13.4"H x 7"W x 11.5"D (339.1 x 178.0 x 293.1 mm) |
| Discontinued | Yes |
| Drivers | 1" tweeter + 5.25" woofer |
| Impedance | 4 ohms nominal (3.4 ohms minimum) |
| Sensitivity | 83dB (2.83V/1m, measured, Audio Science Review) |
| Weight | 13.2 lbs / 6 kg |
| Woofer Cabinet | ported, rear |
