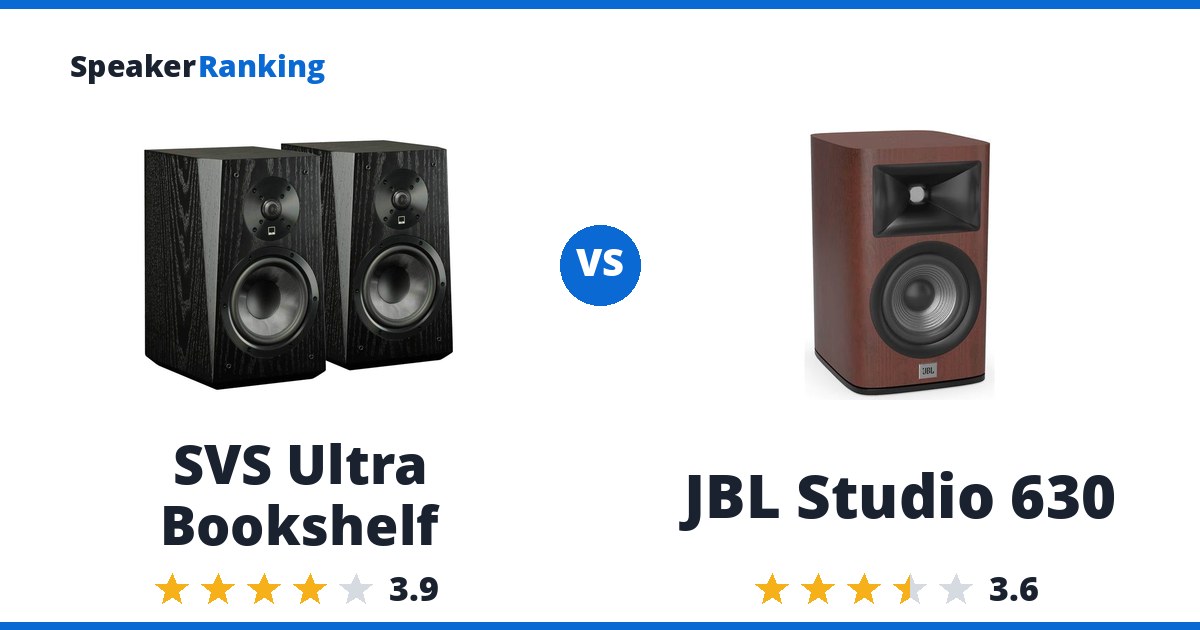

SVS Ultra Bookshelf vs JBL Studio 630

Last updated: October 21, 2026

Short answer: the SVS Ultra Bookshelf for measured linearity, the JBL Studio 630 for imaging. The Ultra holds response within about -3dB/+1.5dB on average but still has a boosted upper mid-range. The JBL’s directivity linearity keeps harmonics of the same instrument collocated rather than drifting, though it has a noticeable mid-range dip. At $1,200 against $699, the choice is tonal balance versus a stable soundstage.

SVS Ultra Bookshelf vs JBL Studio 630

Buy the SVS Ultra Bookshelf only if you find one used in good condition; both are discontinued, and it is the better rated of the two. For a new speaker, buy the SVS Ultra Evolution Bookshelf, which replaces the SVS Ultra Bookshelf.

Want more options? Browse the full Passive Home rankings.

Measured Differences

Prices on this page were last checked November 14, 2026 at 6:17 PM UTC. Product prices and availability are accurate as of that date/time and are subject to change; the price and availability shown on Amazon at the time of purchase will apply to the purchase of this product.

As an eBay Partner, we may be compensated if you make a purchase.

Specifications Side By Side

SVS Ultra Bookshelf JBL Studio 630
Price$1,200 per pair Discontinued$699 per pair Discontinued
Ranked#98 of 222 in Large Size Bookshelf Speakers#135 of 222 in Large Size Bookshelf Speakers
Drivers6.5” composite glass fiber cone woofer, 1” aluminum dome tweeter6.5” PolyPlas cone woofer, 1” compression driver (2414H-1) with waveguide
Dimensions14.9”H x 8.5”W x 10”D14-13/16”H x 9”W x 11-5/16”D
Weight19 lbs (8.6 kg) each19.8 lbs (9 kg) each
Impedance8 ohms nominal, 3.8 ohms minimum (measured, Erin’s Audio Corner)6 ohms nominal, 4.7 ohms minimum (measured, Erin’s Audio Corner)
Sensitivity87.8dB (measured average, Erin’s Audio Corner)83.2dB (measured, Erin’s Audio Corner; 85dB manufacturer specified)
Bass Extension (-3dB)69Hz (measured, Erin’s Audio Corner)54.2Hz (measured, Erin’s Audio Corner)
Bass Extension (-10dB)48Hz (measured, Erin’s Audio Corner)37.0Hz (measured, Erin’s Audio Corner)
Frequency Response45Hz - 32kHz (manufacturer specified)45Hz - 40,000Hz (manufacturer specified)
Recommended Power20-150W-
Spinorama Preference Score5.633.67
Spinorama Preference Score with Perfect Sub8.105.68
DIY KitNoNo
Power Handling-up to 150W

Where the Ratings Come From

This comparison is generated from the ratings, specifications and measurements on each product’s own page, and it updates when that data changes. How we rank explains how each rating is decided.
