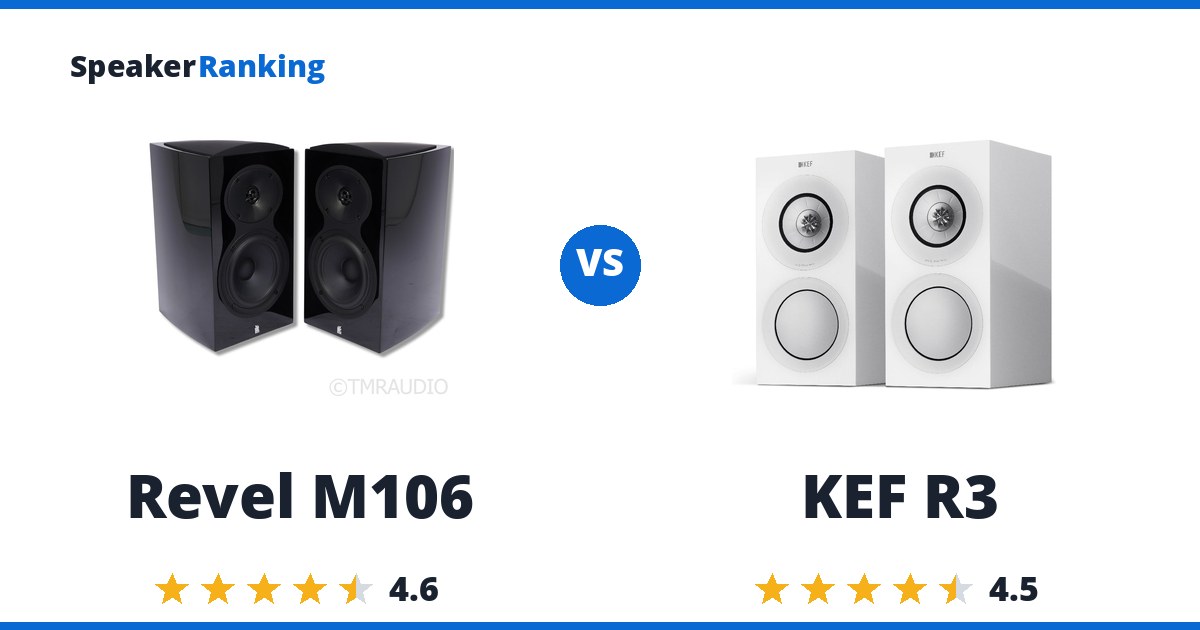

Short answer: the Revel M106 for a cleaner crossover, the KEF R3 for a true three-way stand-mount. The R3 pairs a 6.5-inch woofer with KEF’s 5-inch Uni-Q midrange and 1-inch tweeter, but its low-frequency alignment rolls gradually rather than delivering high-output sub-bass, with KEF specifying 58Hz +/-3dB and an 80Hz subwoofer crossover supported. The M106 is fairly even on-axis, though it shows directivity error in the crossover region. The Revel M106 is discontinued; its replacement is the Revel M126Be.
Buy the KEF R3 new; the Revel M106 is no longer sold new, so it only makes sense as a used find.
Still deciding? The full Passive Home rankings cover every ranked option.
Measured Differences
- Bass depth: the KEF R3 reaches 35.2 Hz (10 dB down) against 43 Hz for the Revel M106, about half an octave deeper. You hear more of the lowest bass notes and kick drums.
Prices on this page were last checked November 14, 2026 at 6:17 PM UTC. Product prices and availability are accurate as of that date/time and are subject to change; the price and availability shown on Amazon at the time of purchase will apply to the purchase of this product.
As an eBay Partner, we may be compensated if you make a purchase.
Specifications Side By Side
| Revel M106 | KEF R3 | |
|---|---|---|
| Price | $2,000 per pair Discontinued | $1,544.56 per pair |
| Ranked | #9 of 222 in Large Size Bookshelf Speakers | #15 of 222 in Large Size Bookshelf Speakers |
| Bass Extension (-10dB) | 43Hz (measured, Audio Science Review) | 35.2Hz (measured, Audio Science Review) |
| Bass Extension (-3dB) | 60Hz (measured, Audio Science Review) | Approximately 58Hz (manufacturer specified; consistent with Erin’s measured roll-off) |
| Impedance | 4 ohms | 8 ohms nominal; suitable for Erin’s 4/8-ohm-rated amplifier |
| Sensitivity | 86dB (measured, Audio Science Review) | Approximately 86-87dB/2.83V/1m (measured, Erin’s Audio Corner) |
| Drivers | 6.5” (16.5 cm) Aluminum Cone, Cast-frame Woofer, 1” (2.5 cm) Aluminum Tweeter with Acoustic Lens Waveguide | 1” tweeter coaxial with 5” midrange; 6.5” woofer |
| Weight | 9.9 lbs (4.5 kg) | 29.9 lbs (13.55 kg) each |
| Dimensions | 15”H x 8.3”W x 11”D (381.0 x 210.8 x 279.4 mm) | 16.6”H x 7.9”W x 13.2”D |
| Woofer Cabinet | ported, rear | ported, rear Flexible Port |
| Spinorama Preference Score | 5.62 | 6.2 (spinorama.org) |
| Spinorama Preference Score with Perfect Sub | 7.87 | 7.97 (spinorama.org) |
| DIY Kit | No | No |
Where the Ratings Come From
- Revel M106: Spinorama.org measurements and reviews by Audio Science Review.
- KEF R3: Spinorama.org measurements and reviews by Erin’s Audio Corner and Audio Science Review.
This comparison is generated from the ratings, specifications and measurements on each product’s own page, and it updates when that data changes. How we rank explains how each rating is decided.
