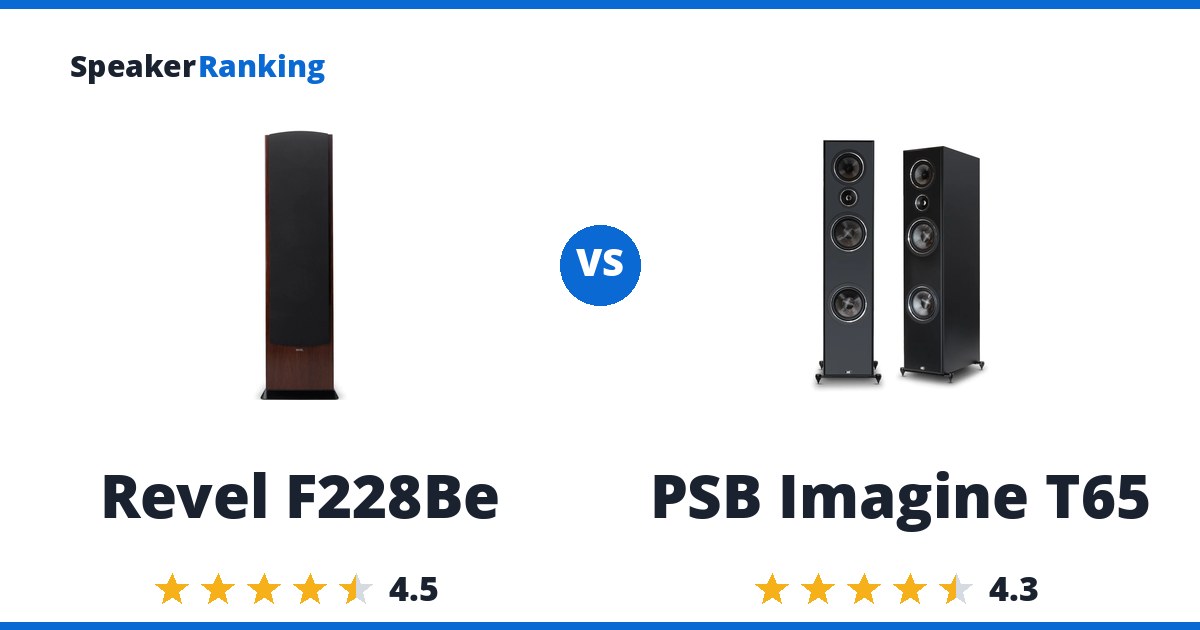

Short answer: the Revel F228Be for better sound quality, the PSB Imagine T65 for the lower price. The Revel F228Be ranks #16 of 59 floorstanding speakers at $7000. The PSB Imagine T65 ranks #28 at $2699, $4301 cheaper.
What the Revel F228Be gets right: CEA2034 spinorama shows an essentially flat on-axis response with very nice directivity. Watch for: Minimum impedance dips to 3.4 ohms with a secondary rise around 2kHz, calling for an amplifier comfortable with a demanding load.
What the PSB Imagine T65 offers: Three-way design with dual 6.5” woven carbon fiber woofers delivers genuinely strong, extended low end for a $2,699 tower - among the better performers Erin has measured in this price class. The tradeoff: Noticeable dip in the midrange/crossover region that Erin flagged as affecting dialogue and vocal clarity, though he notes a couple bands of EQ smooths it out.
Buy the Revel F228Be if sound quality matters more than the price. Buy the PSB Imagine T65 if the price matters more than sound quality.
Specifications Side By Side
| Revel F228Be | PSB Imagine T65 | |
|---|---|---|
| Price | $7000 | $2,699 |
| Ranked | #16 of 59 in Large Size Floorstanding Speakers | #28 of 59 in Large Size Floorstanding Speakers |
| Bass Extension (-10dB) | 25Hz (measured, Audio Science Review) | 26Hz (measured average, Erin’s Audio Corner) |
| Bass Extension (-3dB) | 61Hz (measured, Audio Science Review) | 47Hz (measured average, Erin’s Audio Corner) |
| Dimensions | 50.9"H x 13.5"W x 17.6"D (1292.9 x 342.9 x 447 mm) | 38-13/16"H x 8-3/8"W x 13.5"D (986 x 213 x 343mm) |
| Impedance | 8 ohms | 8 ohms nominal (3.3 ohms minimum measured by Erin’s Audio Corner; manufacturer specifies 4 ohms minimum) |
| Drivers | Dual 8" (200mm) Deep Ceramic Composite aluminum cones, with cast frames woofers, 5-1/4" (130mm) Deep Ceramic Composite aluminum cone, with cast frame midrange, 1" (25mm) Beryllium dome, with acoustic lens waveguide tweeter | 1" titanium dome tweeter, 5.25" woven carbon fiber midrange, 2x 6.5" woven carbon fiber woofers |
| Sensitivity | 89.3dB (300Hz-3kHz @ 2.83V/1m, measured by Audio Science Review; 90dB manufacturer specified) | 85.1dB (measured average, Erin’s Audio Corner) |
| Weight | 112.4 lbs / 51 kg each | 44 lbs each |
| Woofer Cabinet | ported, front | - |
| Crossovers | - | 600Hz & 2000Hz, 4th-order Linkwitz-Riley |
| Recommended Power | - | 20-200W |
| Bass Reflex | - | Dual rear slot ports, individual woofer chambers |
| Frequency Response | - | 28Hz - 20kHz (±1.5dB, manufacturer specified) |
Related Speaker Comparisons
More useful head-to-heads from the same speaker class:
- Revel F226Be vs Revel F208
- MoFi SourcePoint V10 Master Edition vs Revel F208
- JBL HDI-3800 vs Revel F208
- KEF R5 vs Revel F228Be
- Revel F208 vs Revel F228Be
The Two Speakers In Full
Revel F228Be: $7000 Crutchfield
Pros: CEA2034 spinorama shows an essentially flat on-axis response with very nice directivity. Predicted in-room response is nearly perfect, with a smooth slope down from bass to treble. Horizontal beamwidth of about ±70 degrees is wide and holds up well until narrowing above 8kHz. Vertical directivity offers more degrees of listening-height freedom than a typical bookshelf design, a benefit of this tower’s driver layout. Distortion is extremely low across the full audio range at 86dB SPL/1m and stays comfortable even at 96dB SPL/1m. Near-field measurements of the individual drivers show nice, well-integrated crossover behavior with only low-level resonances.
Cons: Minimum impedance dips to 3.4 ohms with a secondary rise around 2kHz, calling for an amplifier comfortable with a demanding load. Very expensive and very heavy (51 kg each).
Full Revel F228Be review and specifications →
| Bass Extension (-10dB) | 25Hz (measured, Audio Science Review) |
|---|---|
| Bass Extension (-3dB) | 61Hz (measured, Audio Science Review) |
| Dimensions | 50.9"H x 13.5"W x 17.6"D (1292.9 x 342.9 x 447 mm) |
| Drivers | Dual 8" (200mm) Deep Ceramic Composite aluminum cones, with cast frames woofers, 5-1/4" (130mm) Deep Ceramic Composite aluminum cone, with cast frame midrange, 1" (25mm) Beryllium dome, with acoustic lens waveguide tweeter |
| Impedance | 8 ohms |
| Sensitivity | 89.3dB (300Hz-3kHz @ 2.83V/1m, measured by Audio Science Review; 90dB manufacturer specified) |
| Weight | 112.4 lbs / 51 kg each |
| Woofer Cabinet | ported, front |
As an eBay Partner, we may be compensated if you make a purchase.
- Links
- Reviews, Comparisons and Sound Samples
- Head-to-Head Comparisons
PSB Imagine T65: $2,699 The Audio Factory
Pros: Three-way design with dual 6.5” woven carbon fiber woofers delivers genuinely strong, extended low end for a $2,699 tower - among the better performers Erin has measured in this price class. Distortion shows a clean second-order character with clear separation from third-order all the way up to 96 dB, indicating a well-controlled motor. Compression data shows enhancement rather than compression below about 50-60 Hz, so the bass can sound louder as you turn it up rather than choking off. Wide, forgiving vertical listening window (about ±25°) thanks to the 3-way layout, giving more seating and placement flexibility than most towers. Plenty of dynamic headroom for home theater use or a two-channel system - 100W drove it comfortably in Erin’s room.
Cons: Noticeable dip in the midrange/crossover region that Erin flagged as affecting dialogue and vocal clarity, though he notes a couple bands of EQ smooths it out. Some horizontal dispersion mismatch (about 10-15° of ballooning between 1-3 kHz) between the midrange and tweeter can add extra perceived attack or detail if your room’s sidewalls are reflective. Dips to 4 ohms, so it wants an amplifier comfortable driving a 4-ohm load. Distortion climbs above 3% around 60 Hz at 96 dB, though it’s benign second-order distortion.
Full PSB Imagine T65 review and specifications →
| Bass Extension (-10dB) | 26Hz (measured average, Erin's Audio Corner) |
|---|---|
| Bass Extension (-3dB) | 47Hz (measured average, Erin's Audio Corner) |
| Bass Reflex | Dual rear slot ports, individual woofer chambers |
| Crossovers | 600Hz & 2000Hz, 4th-order Linkwitz-Riley |
| Dimensions | 38-13/16"H x 8-3/8"W x 13.5"D (986 x 213 x 343mm) |
| Drivers | 1" titanium dome tweeter, 5.25" woven carbon fiber midrange, 2x 6.5" woven carbon fiber woofers |
| Frequency Response | 28Hz - 20kHz (±1.5dB, manufacturer specified) |
| Impedance | 8 ohms nominal (3.3 ohms minimum measured by Erin's Audio Corner; manufacturer specifies 4 ohms minimum) |
| Recommended Power | 20-200W |
| Sensitivity | 85.1dB (measured average, Erin's Audio Corner) |
| Weight | 44 lbs each |
