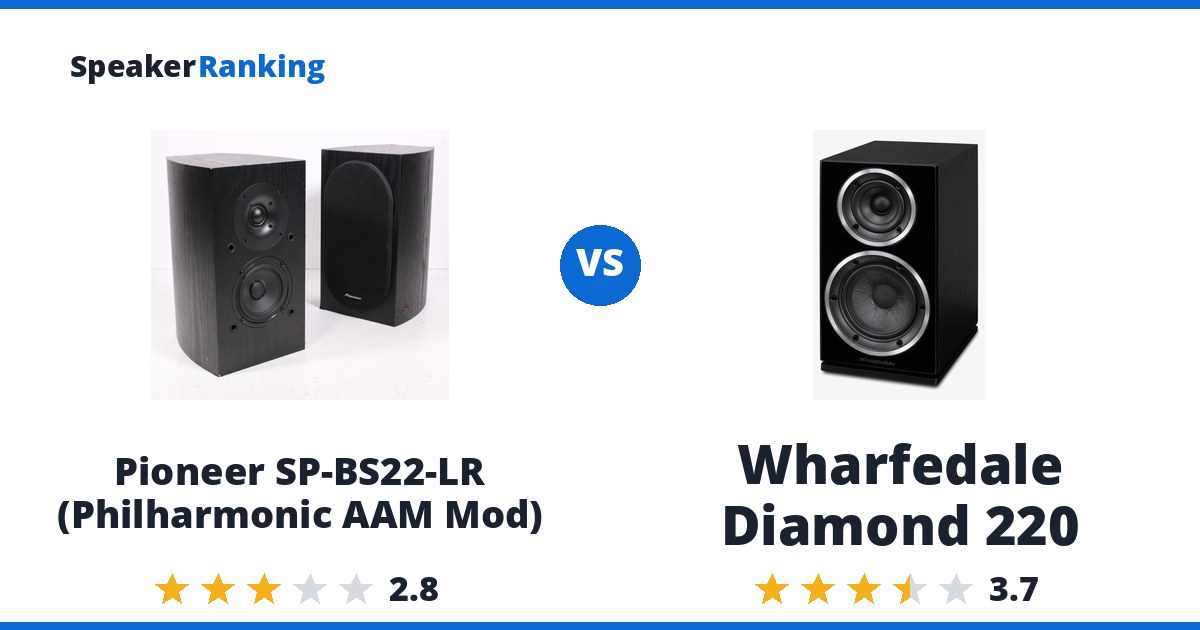

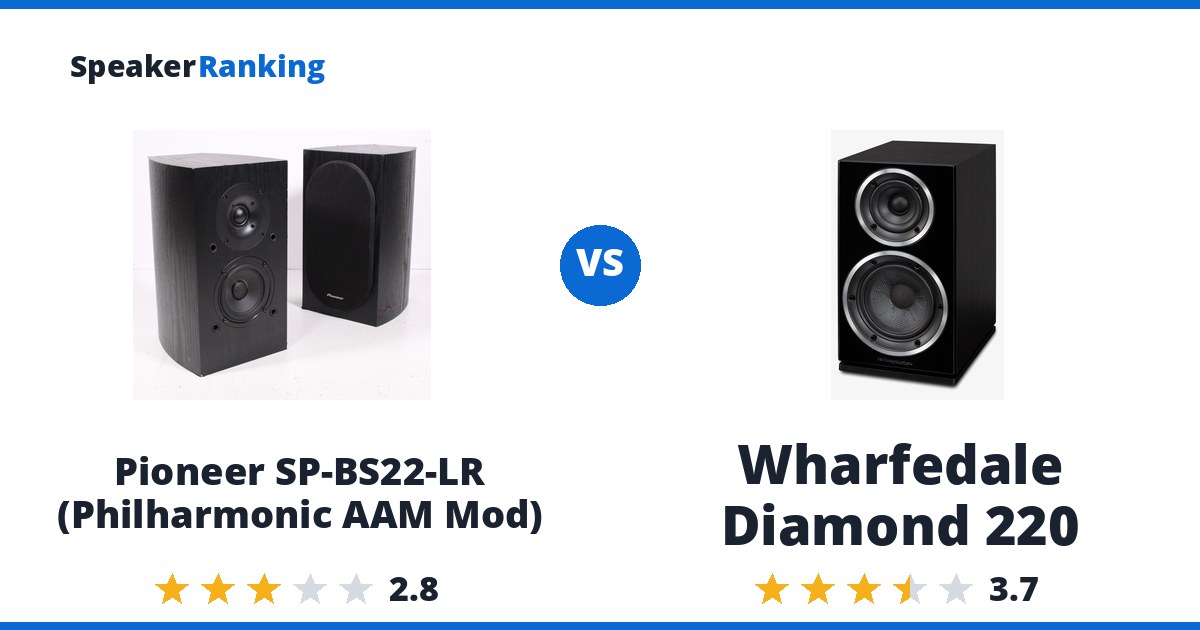

Short answer: both are discontinued, so this only matters if you are buying used. Used, the Wharfedale Diamond 220 is the better pick: it ranks #51 of 160 bookshelf speakers by sound quality (rated 3.7/5), against #111 (rated 2.8/5) for the Pioneer SP-BS22-LR (Philharmonic AAM Mod). If you want one new, the Wharfedale Diamond 12.1i replaces the Wharfedale Diamond 220 and is rated 4.0/5 at $499.
The Pioneer SP-BS22-LR (Philharmonic AAM Mod) is the more accurate, deeper-bass option. This is Dennis Murphy’s “Affordable Accuracy Monitor” (AAM) mod of the discontinued, budget Pioneer SP-BS22-LR: the stock tweeter is swapped for a Peerless BC25TG15 dome and a redesigned 3rd-order crossover is built to match it to the stock 4” woofer. Its measured preference score, a predictor of how neutral it sounds, is 5.07 against 3.40 for the Wharfedale Diamond 220. Its bass reaches about 78Hz before falling 3dB, against 117.2Hz for the Wharfedale Diamond 220. Watch for: Some directivity error appears near the crossover frequency.
The Wharfedale Diamond 220 is the better-sounding option. Amir found the on-axis response smooth once the grille is removed, calling grille removal “a huge improvement” since the stock grille caused unusually strong comb filtering around 5kHz. The tradeoff: Response rolls off below 200Hz, so a subwoofer is recommended for full-range use.
Buy the Wharfedale Diamond 220 only if you find one used in good condition; both are discontinued, and it is the better rated of the two. For a new speaker, buy the Wharfedale Diamond 12.1i, which replaces the Wharfedale Diamond 220.
Looking for alternatives? See the complete Passive Home rankings.
Specifications Side By Side
| Pioneer SP-BS22-LR (Philharmonic AAM Mod) | Wharfedale Diamond 220 | |
|---|---|---|
| Price | $168 per pair Discontinued | $299 per pair Discontinued |
| Ranked | #111 of 160 in Medium Size Bookshelf Speakers | #51 of 160 in Medium Size Bookshelf Speakers |
| Bass Extension (-3dB) | 78Hz (measured, Audio Science Review) | 117.2Hz (measured, Audio Science Review) |
| Bass Extension (-10dB) | 60Hz (measured, Audio Science Review) | 58.0Hz (measured, Audio Science Review) |
| Drivers | 1x 4” curvilinear-cone woofer (stock Pioneer), 1x Peerless BC25TG15 1” silk dome tweeter (replacement) | 5” (130mm) woven Kevlar woofer, 1” (25mm) tweeter |
| Weight | 9 lbs (4.1 kg) | 11.7 lbs (5.3 kg) each |
| Sensitivity | 83dB (2.83V/1m, measured by Audio Science Review) | 86.9dB (2.83V/1m, measured, Audio Science Review; 86dB manufacturer specified) |
| Impedance | 8 ohms nominal (approx. 5 ohms minimum, measured by Audio Science Review) | 8 ohms |
| Crossover Frequency | 3000Hz | - |
| Dimensions | 12.6”H x 7.1”W x 8.5”D (320.0 x 180.0 x 215.0 mm) | 12.4”H x 6.9”W x 8.9”D (315 x 174 x 227 mm) |
| Woofer Cabinet | ported, rear | ported, bottom-firing into secondary enclosure |
| Spinorama Preference Score | 5.07 | 3.40 |
| Spinorama Preference Score with Perfect Sub | 7.82 | 6.64 |
| DIY Kit | Yes | No |
Related Speaker Comparisons
More top alternatives to Wharfedale Diamond 220:
- Ascend Sierra 1 v2 vs Wharfedale Diamond 220
- KEF LS50 Meta vs Wharfedale Diamond 220
- Arendal 1961 Monitor vs Wharfedale Diamond 220
- Revel M105 vs Wharfedale Diamond 220
- Monitor Audio Silver 50 7G vs Wharfedale Diamond 220
Prices on this page were last checked October 7, 2026 at 9:25 PM UTC. Product prices and availability are accurate as of that date/time and are subject to change; the price and availability shown on Amazon at the time of purchase will apply to the purchase of this product.
As an eBay Partner, we may be compensated if you make a purchase.
The Two Speakers In Full
Pioneer SP-BS22-LR (Philharmonic AAM Mod): $168 per pair Discontinued eBay
Pros: This is Dennis Murphy’s “Affordable Accuracy Monitor” (AAM) mod of the discontinued, budget Pioneer SP-BS22-LR: the stock tweeter is swapped for a Peerless BC25TG15 dome and a redesigned 3rd-order crossover is built to match it to the stock 4” woofer. CEA2034 spinorama shows only small variations from a flat on-axis response with some directivity error near the crossover, a marked improvement over the unmodified Pioneer, which the reviewer notes shows much more variation from flat. Distortion at 86dB SPL/1m is reasonably controlled above 200Hz, and tweeter distortion barely rises even at 96dB SPL/1m. Measured bass extension of 78Hz (-3dB), with a measured sensitivity of 83dB.
Cons: Some directivity error appears near the crossover frequency. Distortion climbs in the woofer’s range (below 200Hz) at both 86dB and 96dB SPL/1m. Minimum impedance dips to about 5 ohms with a couple of resonance peaks. This is a DIY project, not a finished retail product: Murphy sold ~$168 pre-built pairs for a while but no longer does, so it now requires sourcing a used/discontinued Pioneer SP-BS22-LR pair plus building the crossover and swapping the tweeter yourself. The mod itself is public domain, but there is no current turnkey way to buy this speaker.
Full Pioneer SP-BS22-LR (Philharmonic AAM Mod) review and specifications →
| Bass Extension (-10dB) | 60Hz (measured, Audio Science Review) |
|---|---|
| Bass Extension (-3dB) | 78Hz (measured, Audio Science Review) |
| Crossover Frequency | 3000Hz |
| DIY Kit | Yes |
| Dimensions | 12.6”H x 7.1”W x 8.5”D (320.0 x 180.0 x 215.0 mm) |
| Drivers | 1x 4” curvilinear-cone woofer (stock Pioneer), 1x Peerless BC25TG15 1” silk dome tweeter (replacement) |
| Impedance | 8 ohms nominal (approx. 5 ohms minimum, measured by Audio Science Review) |
| Sensitivity | 83dB (2.83V/1m, measured by Audio Science Review) |
| Spinorama Preference Score | 5.07 |
| Spinorama Preference Score with Perfect Sub | 7.82 |
| Weight | 9 lbs (4.1 kg) |
| Woofer Cabinet | ported, rear |
- Links
- Reviews, Comparisons and Sound Samples
- Head-to-Head Comparisons
- Pioneer SP-BS22-LR (Philharmonic AAM Mod) vs Dynaudio X14
- Pioneer SP-BS22-LR (Philharmonic AAM Mod) vs MartinLogan Motion 4i
- Pioneer SP-BS22-LR (Philharmonic AAM Mod) vs ELAC BS U5
- Pioneer SP-BS22-LR (Philharmonic AAM Mod) vs JBL L52 Classic
- Pioneer SP-BS22-LR (Philharmonic AAM Mod) vs Dynaudio Emit M10
- Pioneer SP-BS22-LR (Philharmonic AAM Mod) vs Parts Express Copperhead Desktop Kit
- Pioneer SP-BS22-LR (Philharmonic AAM Mod) vs JBL Stage A120
- Pioneer SP-BS22-LR (Philharmonic AAM Mod) vs ELAC Uni-Fi 2.0 UB52
- See all 36 comparisons
Wharfedale Diamond 220: $299 per pair Discontinued eBay
Newer model: the Wharfedale Diamond 12.1i, ranked higher, estimated 4/5.
Pros: Amir found the on-axis response smooth once the grille is removed, calling grille removal “a huge improvement” since the stock grille caused unusually strong comb filtering around 5kHz. Good horizontal dispersion from the waveguide-loaded tweeter and controlled distortion. After some EQ (a room mode filter and treble shelf), the reviewer called it “a truly hifi speaker” where “every audiophile track..sounded very good,” and said he was “happy to recommend” it for the budget class. Measured bass extension of 117.2Hz (-3dB), with a measured sensitivity of 86.9dB.
Cons: Response rolls off below 200Hz, so a subwoofer is recommended for full-range use. Some port rattling was noted at high volumes, traced to vibration rather than the woofer itself. Best performance requires removing the grille and applying the reviewer’s EQ filters. Discontinued, with only limited remaining stock available direct from Wharfedale.
Full Wharfedale Diamond 220 review and specifications →
| Bass Extension (-10dB) | 58.0Hz (measured, Audio Science Review) |
|---|---|
| Bass Extension (-3dB) | 117.2Hz (measured, Audio Science Review) |
| DIY Kit | No |
| Dimensions | 12.4”H x 6.9”W x 8.9”D (315 x 174 x 227 mm) |
| Drivers | 5” (130mm) woven Kevlar woofer, 1” (25mm) tweeter |
| Impedance | 8 ohms |
| Sensitivity | 86.9dB (2.83V/1m, measured, Audio Science Review; 86dB manufacturer specified) |
| Spinorama Preference Score | 3.40 |
| Spinorama Preference Score with Perfect Sub | 6.64 |
| Weight | 11.7 lbs (5.3 kg) each |
| Woofer Cabinet | ported, bottom-firing into secondary enclosure |
