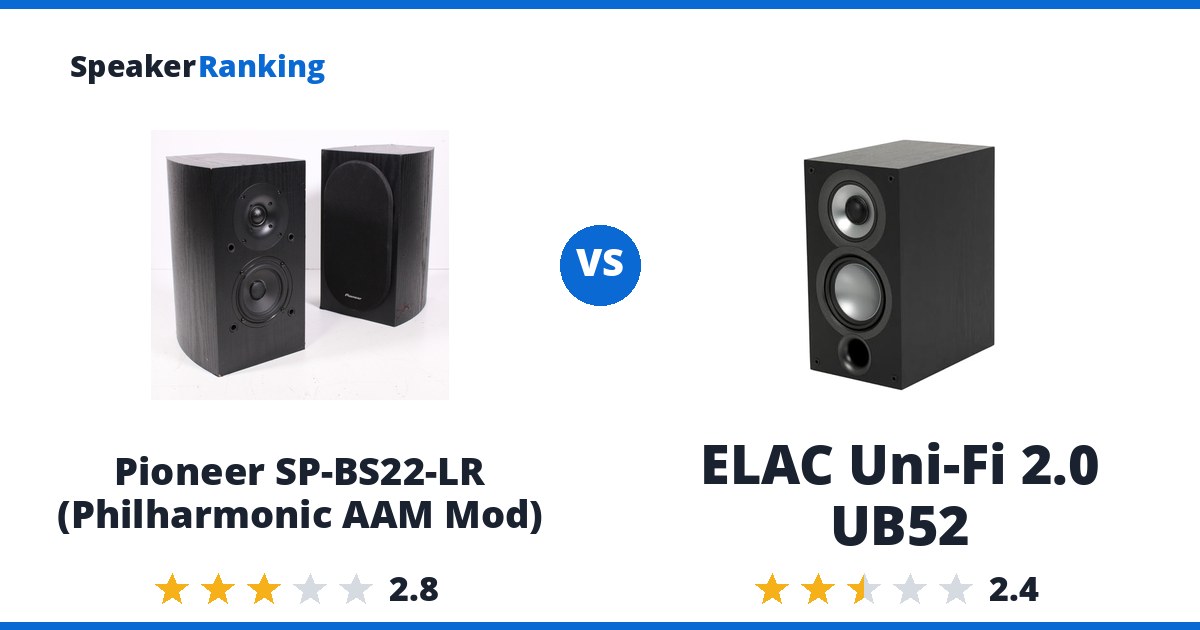

Short answer: the Pioneer SP-BS22-LR (Philharmonic AAM Mod). It ranks #33 of 56 bookshelf speakers by sound quality at $168; the ELAC Uni-Fi 2.0 UB52 ranks #37 and costs $599, so there is not much of a tradeoff to weigh.
What the Pioneer SP-BS22-LR (Philharmonic AAM Mod) offers: This is Dennis Murphy’s “Affordable Accuracy Monitor” (AAM) mod of the discontinued. Watch for: Some directivity error appears near the crossover frequency.
On the ELAC Uni-Fi 2.0 UB52 side: Wide, smooth horizontal directivity - beamwidth holds to about ±60 degrees up to 8kHz before narrowing. Set against that: Dipped 3db from 1.5-3khz.
Buy the Pioneer SP-BS22-LR (Philharmonic AAM Mod). It ranks higher for sound quality than the ELAC Uni-Fi 2.0 UB52 and costs less, so there is no real case for the other one.
Specifications Side By Side
| Pioneer SP-BS22-LR (Philharmonic AAM Mod) | ELAC Uni-Fi 2.0 UB52 | |
|---|---|---|
| Price | $168 | $599.00 |
| Ranked | #33 of 56 in Medium Size Bookshelf Speakers | #37 of 56 in Medium Size Bookshelf Speakers |
| Bass Extension (-3dB) | 78Hz (measured, Audio Science Review) | 55.7Hz (measured, Audio Science Review) |
| Bass Extension (-10dB) | 60Hz (measured, Audio Science Review) | - |
| Drivers | 1x 4" curvilinear-cone woofer (stock Pioneer), 1x Peerless BC25TG15 1" silk dome tweeter (replacement) | 5.25" aluminum woofer, 4" aluminum midrange, 1" soft dome tweeter |
| Weight | 9 lbs / 4.1 kg | 7.7 lbs / 3.5 kg |
| Sensitivity | 83dB (2.83V/1m, measured by Audio Science Review) | 83.3dB (measured by Audio Science Review; 85dB manufacturer specified) |
| Impedance | 8 ohms nominal (approx. 5 ohms minimum, measured by Audio Science Review) | 6 ohms |
| Crossover Frequency | 3000Hz | 200Hz / 2000Hz |
| Dimensions | 12.6"H x 7.1"W x 8.5"D (320.0 x 180.0 x 215.0 mm) | 13.6"H x 7.3"W x 10.8"D (346 x 185 x 275 mm) |
| Woofer Cabinet | ported, rear | ported |
| Power Handling | - | 140W max |
Related Speaker Comparisons
More useful head-to-heads from the same speaker class:
- KEF Q100 vs Fluance Signature HFS
- KEF Q100 vs Definitive Technology ProMonitor 1000
- KEF Q100 vs JBL Control 1 Pro
- Pioneer SP-BS22-LR (Philharmonic AAM Mod) vs Wharfedale Diamond 12.1
- ELAC Uni-Fi 2.0 UB52 vs JBL Control 1 Pro
The Two Speakers In Full
Pioneer SP-BS22-LR (Philharmonic AAM Mod): $168
Pros: This is Dennis Murphy’s “Affordable Accuracy Monitor” (AAM) mod of the discontinued, budget Pioneer SP-BS22-LR: the stock tweeter is swapped for a Peerless BC25TG15 dome and a redesigned 3rd-order crossover is built to match it to the stock 4” woofer. CEA2034 spinorama shows only small variations from a flat on-axis response with some directivity error near the crossover, a marked improvement over the unmodified Pioneer, which the reviewer notes shows much more variation from flat. Distortion at 86dB SPL/1m is reasonably controlled above 200Hz, and tweeter distortion barely rises even at 96dB SPL/1m.
Cons: Some directivity error appears near the crossover frequency. Distortion climbs in the woofer’s range (below 200Hz) at both 86dB and 96dB SPL/1m. Minimum impedance dips to about 5 ohms with a couple of resonance peaks. This is a DIY project, not a finished retail product: Murphy sold ~$168 pre-built pairs for a while but no longer does, so it now requires sourcing a used/discontinued Pioneer SP-BS22-LR pair plus building the crossover and swapping the tweeter yourself. The mod itself is public domain, but there is no current turnkey way to buy this speaker.
Full Pioneer SP-BS22-LR (Philharmonic AAM Mod) review and specifications →
| Bass Extension (-10dB) | 60Hz (measured, Audio Science Review) |
|---|---|
| Bass Extension (-3dB) | 78Hz (measured, Audio Science Review) |
| Crossover Frequency | 3000Hz |
| Dimensions | 12.6"H x 7.1"W x 8.5"D (320.0 x 180.0 x 215.0 mm) |
| Drivers | 1x 4" curvilinear-cone woofer (stock Pioneer), 1x Peerless BC25TG15 1" silk dome tweeter (replacement) |
| Impedance | 8 ohms nominal (approx. 5 ohms minimum, measured by Audio Science Review) |
| Sensitivity | 83dB (2.83V/1m, measured by Audio Science Review) |
| Weight | 9 lbs / 4.1 kg |
| Woofer Cabinet | ported, rear |
As an eBay Partner, we may be compensated if you make a purchase.
- Links
- Reviews, Comparisons and Sound Samples
- Head-to-Head Comparisons
- Pioneer SP-BS22-LR (Philharmonic AAM Mod) vs JBL L52 Classic
- Pioneer SP-BS22-LR (Philharmonic AAM Mod) vs Dynaudio X14
- Pioneer SP-BS22-LR (Philharmonic AAM Mod) vs Parts Express Copperhead Desktop Kit
- Pioneer SP-BS22-LR (Philharmonic AAM Mod) vs JBL Stage A120
- Pioneer SP-BS22-LR (Philharmonic AAM Mod) vs JBL Stage 2 250B
- Pioneer SP-BS22-LR (Philharmonic AAM Mod) vs ELAC BS U5
- Pioneer SP-BS22-LR (Philharmonic AAM Mod) vs KEF Q100
- Pioneer SP-BS22-LR (Philharmonic AAM Mod) vs Dynaudio Emit M10
- See all 21 comparisons
ELAC Uni-Fi 2.0 UB52: $599.00 Amazon
Pros: Wide, smooth horizontal directivity - beamwidth holds to about ±60 degrees up to 8kHz before narrowing. Vertical directivity is substantially better than average, giving more listening-height leeway than most two-way bookshelf speakers.
Cons: Dipped 3db from 1.5-3khz. On-axis response shelves down above 1.5kHz along with multiple resonances, leading the reviewer to predict it will “likely sound dull.” Nasty resonance at 600hz - audible as an actual buzzing artifact on some recordings (the reviewer demonstrated it with an Eva Cassidy track), and it shows up as a sharp distortion spike exceeding 4% at 585Hz when driven to 96dB SPL/1m. Not recommended.
Full ELAC Uni-Fi 2.0 UB52 review and specifications →
| Bass Extension (-3dB) | 55.7Hz (measured, Audio Science Review) |
|---|---|
| Crossover Frequency | 200Hz / 2000Hz |
| Dimensions | 13.6"H x 7.3"W x 10.8"D (346 x 185 x 275 mm) |
| Drivers | 5.25" aluminum woofer, 4" aluminum midrange, 1" soft dome tweeter |
| Impedance | 6 ohms |
| Power Handling | 140W max |
| Sensitivity | 83.3dB (measured by Audio Science Review; 85dB manufacturer specified) |
| Weight | 7.7 lbs / 3.5 kg |
| Woofer Cabinet | ported |
