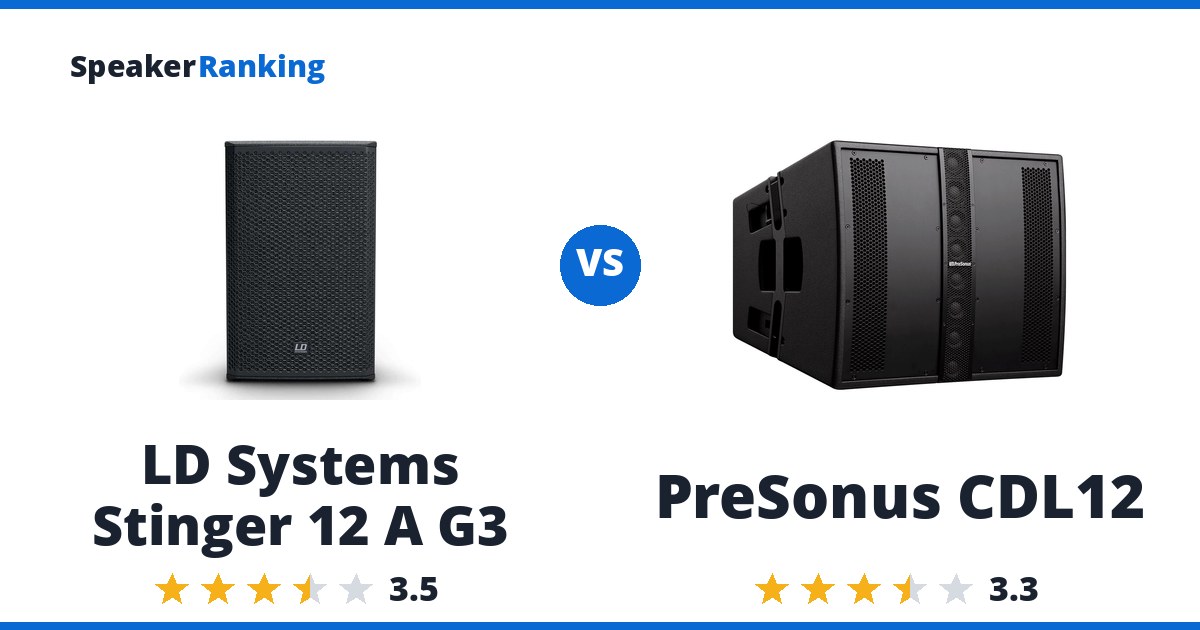

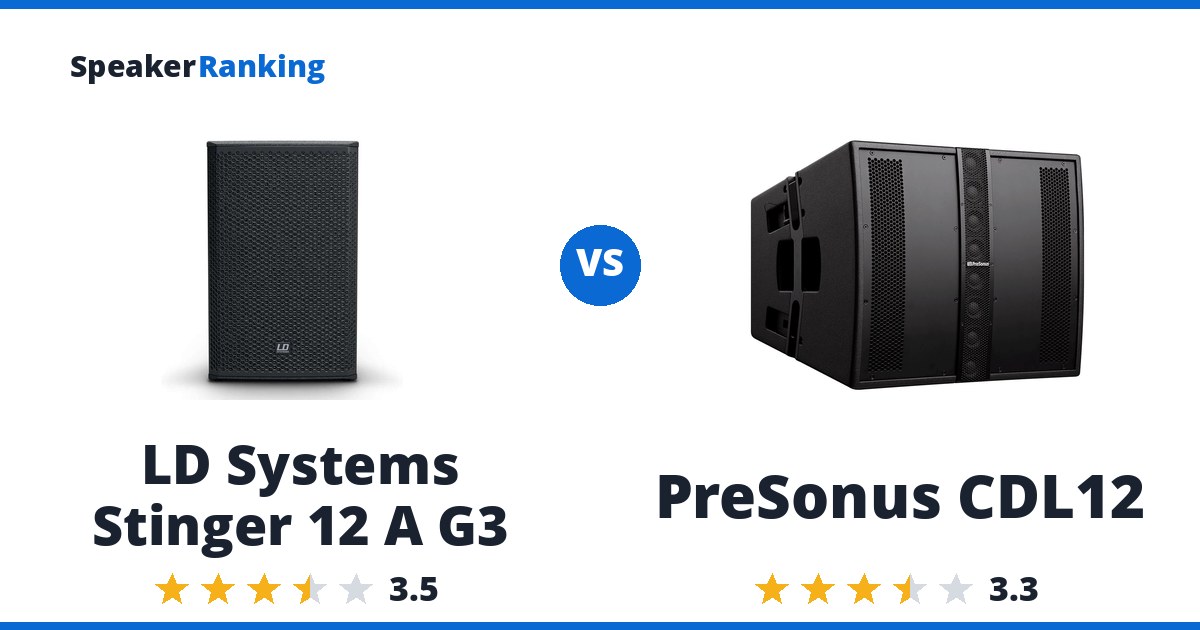

LD Systems Stinger 12 A G3 vs PreSonus CDL12

Last updated: October 21, 2026

Short answer: choose between the LD Systems Stinger 12 A G3 and PreSonus CDL12 for the deployment, not from the automatic ranking alone. Their driver format, power requirements, coverage, bass reach, output capability, and control features determine which is the more practical PA for a particular room or system. The PreSonus CDL12 is discontinued; its replacement is the PreSonus CDL12P.

LD Systems Stinger 12 A G3 vs PreSonus CDL12

The case for the LD Systems Stinger 12 A G3. A rugged birch-plywood cabinet, dual-tilt pole socket and two-channel input section make it practical for repeated live work. Its 42Hz measured bass extension is unusually deep in this group, and the manufacturer claims 131dB peak output.

The case for the PreSonus CDL12. Its constant-directivity high-frequency array is designed for controlled coverage and scalable deployments rather than a conventional single horn. The medium-quality vendor data provides a 4.79 ideal-subwoofer preference score and 58Hz measured extension.

Important trade-offs. Despite the bass reach, medium-quality vendor data gives only a 4.97 ideal-subwoofer preference score because the broader response/directivity behavior is uneven. At 45 lbs (20.4 kg) it is heavier than several molded-cabinet alternatives. This is a specialized, heavier cabinet whose rigging and array behavior add complexity for ordinary portable-PA buyers. The measured tonal score is modest, and availability is less consistent than the mainstream QSC, JBL, Yamaha and RCF choices.

Buy the LD Systems Stinger 12 A G3 when its stated format, coverage, and system features fit the job better.

Buy the PreSonus CDL12 when its stated output, control, and deployment strengths better match the system.

Looking for alternatives? See the complete PA & Live Sound rankings.

LD Systems Stinger 12 A G3

A rugged powered 12 inch PA speaker in birch plywood with two inputs and unusually deep bass for its size, built for regular gigs.

Woofer: 12"Max SPL: 131 dBType: PoweredWeight: 45 lbs
Amazon $585.91 eBay
$585.91
PreSonus CDL12 Discontinued

A powered 12 inch PA speaker with a column of tweeters for controlled coverage, designed to scale up into flown arrays.

Woofer: 12"Max SPL: 131 dBType: PoweredWeight: 65 lbs
eBay
$1,999.95

Prices on this page were last checked October 23, 2026 at 8:27 AM UTC. Product prices and availability are accurate as of that date/time and are subject to change; the price and availability shown on Amazon at the time of purchase will apply to the purchase of this product.

As an eBay Partner, we may be compensated if you make a purchase.

Specifications Side By Side

LD Systems Stinger 12 A G3 PreSonus CDL12
Price$585.91$1,999.95 Discontinued
Ranked#49 of 83 in 12-Inch PA Speakers#56 of 83 in 12-Inch PA Speakers
PassiveNoNo
ConfigurationActive 2-way bass-reflex PA speakerActive 2-way constant-directivity PA speaker
Drivers12” woofer, compression driver12” woofer, eight 2” high-frequency drivers
Frequency Response58Hz - 20kHz (manufacturer specified)-
Dimensions24.7”H x 15.4”W x 14.8”D (627 x 390 x 377 mm)18.6”H x 20.8”W x 17.5”D (473 x 529 x 444.5 mm)
Amplifier Power1000W peak / 500W RMS2,000W peak / 500W RMS (1,000W peak / 250W RMS per band, manufacturer specified)
Cabinet Material15mm plywood with polyurea coating15mm eucalyptus plywood
RiggingM10 suspension points; 36mm Dual-Tilt pole mountIntegrated array rigging; dual-position 35mm pole mount
Bass Extension (-3dB)42Hz (measured, vendor Spinorama data)58Hz (measured, vendor Spinorama data)
Coverage90° x 50°120° x 20° per enclosure (-6dB)
Maximum SPL131dB peak (manufacturer specified)131dB peak
Inputs2 x XLR/TRS comboXLR input and direct XLR line output
DSPYesYes
BluetoothNoNo
Weight45 lbs (20.4 kg)65 lbs (29.5 kg)
Spinorama Preference Score2.962.20
Spinorama Preference Score with Perfect Sub4.974.79
XLR InputYesYes
RCA InputNoNo
TRS InputYesNo
Optical InputNoNo
Coaxial InputNoNo
USB InputNoNo
HDMI InputNoNo
AES InputNoNo
Aux InputNoNo
Microphone InputNoNo
Guitar InputNoNo
Crossover Frequency-420Hz (manufacturer specified)
Network Control-Worx Control remote control (compression, polarity, limiting, delay, EQ and presets)

Frequency Response Compared

Both speakers’ spinorama measurements, overlaid. A flatter line is more neutral: peaks sound forward or harsh, dips sound recessed. Each curve is shifted so its average from 300 Hz to 3 kHz sits at 0 dB, so loudness differences between the two are removed and only the shape is compared.

Listening window: the sound arriving straight at you, averaged over a small window around the listening position.
LD Systems Stinger 12 A G3PreSonus CDL12
Listening window of the LD Systems Stinger 12 A G3 and PreSonus CDL12-24-18-12-60+6dB20501002005001k2k5k10k20k
Estimated in-room response: what a typical room adds: reflections from walls and the floor make it tilt down toward the treble, and a gentle, even tilt is ideal.
LD Systems Stinger 12 A G3PreSonus CDL12
Estimated in-room response of the LD Systems Stinger 12 A G3 and PreSonus CDL12-24-18-12-60+6dB20501002005001k2k5k10k20k

Measurement data: LD Systems Stinger 12 A G3 (measured by the manufacturer) and PreSonus CDL12 (measured by the manufacturer), via spinorama.org.
